Int J App Pharm, Vol 9, Issue 6, 2017, 1-9Review Article

ENZYMOSOMES: A RISING EFFECTUAL TOOL FOR TARGETED DRUG DELIVERY SYSTEM

SHEFRIN S., SREELAXMI C. S., VISHNU VIJAYAN, SREEJA C. NAIR*

Department of Pharmaceutics, Amrita School of Pharmacy,Amrita Vishwa Vidyapeetham, Amrita University,AIMS Health Science Campus, Kochi, India
Email: sreejacnair@aims.amrita.edu

Received: 13 Sep 2017, Revised and Accepted: 10 Oct 2017


ABSTRACT

Thestudy aims to develop enzymosomes as an emergingnovel drug delivery system for site-specific action. Enzymosomes utilises the specific nature of an enzyme, which is binding to a specific substrate at a controlled rate and catalysing product production step. An enzyme is encapsulated by coupling covalently to thesurface of liposomes/lipid vesicles to form enzymosomes. Enzymes links through acylation, direct conjugation, physical adsorption, encapsulation methods to prepare enzymosomes with targeted action.Such novel drug delivery systems prove effective drug release and concomitantly reduces undesirable side effects of conventional treatment methods and hence showcase improvement in the long-term therapy of the disease. They are a promising substitute to conventional treatment therapies of gout, antiplatelet activities etc.Enzymosomes are newly designed supramolecular vesicular delivery systems to be useful as a tool in pharmaceutics for the raising of drug targeting and physicochemical properties and hence bioavailability. It shows beneficial effects of drugs with a narrow precision because targeting of these drugs to their site of action improves the drugs overall pharmacodynamics and pharmacokinetic profile. It also minimizes alterations in the normal enzymatic activity, thus enhancing half-life and achieve enzyme activity on targeted sites such as cancerous cells.

Keywords:Enzymosomes, Phospholipids, Superoxide dismutase, Immuno-enzymosomes, Alkaline enzymosomes, Anti-platelet enzymosomes, Targeted drug delivery


INTRODUCTION

Novelty in drug delivery is an upcoming targeted system by which entities are directed to sites of action specifically [1]. Novel drug delivery system (NDDS) emerged its use in various fields like pharmaceutical, food and cosmetics industries [2]. It mainly accomplishes and overcomes the limitation of conventional drug delivery systems i.e. by transferring the entire active moiety of the drug to the site of action [3]. It also carries the drug at a rate directed manner as required by the body need through proper channels. Vesicular carriers act as the latest vehicle of choice for most drugs facing problems in bioavailability as well as extents to cellsand genetic engineering, diagnosis tests, immunology techniques [4-6]. Vesicular drug delivery helps in sustaining the drug release at a predetermined rate and thus minimizing the dangerous effects of drug toxicities,providing importance in treating ocular diseases [7].

The structure of such vesicles is user-friendly and used to incorporate both hydrophilic and lipophilic drugs [8]. Most carriers are having an orderly concentric congregates of lipid bilayer where separate sites are utilized for hydrophilic and lipophilic drugs to be enclosed, finally turning to amphiphilic nature [9]. The vesicles were initially proclaimed by Bingham in 1965 who stated it as Bingham bodies. The novel carriers localize their action by spatial induction of drug bordering the diseased organ or tissue especially by chemical derivatization [10, 11]. Researches on various drugs in glaucoma, ulcerative colitis, colon associated diseases, NSAIDS, insulin-like drugs are proven to show improved bioavailability and duration of action in humans [12]. Vesicular drug delivery decreases thecost of treatment and improves pharmacodynamics of it, especially in poorly wetting drugs [13]. It could provide great milestones in conventional chemotherapy methods where drug penetration and the permeability of cells were majorly restrained [14].

Advantages of novel vesicular drug delivery system

The system utilizes a productive pathway for drug release to thesite of infection thud reducing adverse effects. The vesicular drug delivery system is classified on the basis of composition as lipoidal and non-lipoidal carriers. Lipoidal carriers include sphingosomes, transferosomes, liposome, emulsomes, and virosome whereas non-lipoidal carriers include aquasomes, noisome, bilosome etc. Newer particulate carriers like lipid particles (using low and high-density lipoprotein), nanoparticles, colloidal transfer system, and polymeric micelles and various pharmaceutical carriers like cellular macromolecule are emerging as useful tools for targeted drug delivery [16].

Cells to vesicles

“Somes” are abiological cellular structure which makes up the internal organs, tissues and contains nucleic acid and genetic materials for reproduction and replication. The cell membrane incorporating the outer regions of cell in mammalian cells is made of phospholipid bilayer [17]. Such a two-layered arrangement of lipid structures makes the physiological nature mainly lipophilic.

Thus lipoidal drugs and proteins can easily cross the membranous barriers of the body due to its similar characteristics with cells lined by every organ. Such an arrangement of supramolecular lipid molecules, similar to a cell membrane is called a vesicle. Vesicles are of transport, secretory in nature which are released within our cells [18]. Exogenous vesicles can be engulfed by the cells by endocytosis and broken down into smaller fragments using lysosomal enzymes. The review mainly aims the utilization of such vesicles for targeted and site-specific drug delivery of both hydrophilic and lipophilic drugs.

Enzymes are proteins which folds into different shapes and enable size reduced molecules to fit within them. Enzymes are biological catalysts acting on a substrate molecule which will be its target site. Enzyme converts these reactants to product molecules and thus needed by every cell to carry out a reaction at asignificant rate. Since enzymes are specific and extremely selective, these mainly determine the metabolic pathway in which the cell further proceeds [19]. Enzymes are site targeted and interlocks with a lock and key mechanism to the substrate. The extent of enzyme binding to the substrate determines the response of reaction. This specificity of enzymes is exploited by combining with the concept of vesicular drug delivery.

Enzymosome: an overview

Enzymosomes is an innovative currently emerging targeted vesicular drug delivery system. Enzymosomes fundamentally uses enzymes, which are having a targeted catalytic function for a substrate, which are incorporated within cell-like structures having high lipid background. They yield newly designed liposomes, in which the enzymes are coupled covalently to the surface of lipid molecules. The liposomes so devised to provide proper micro surrounding for the enzymes to be incapacitated within them [20]. Liposomes are micro-sized vesicles consisting of a lipid bilayer enclosing with an aqueous environment. The hydrophilic drugs can be solubilised within the internal aqueous compartment and the lipophilic drugs are incorporated into the lipid bilayer membrane consisting of phospholipid-cholesterol as seen infig.1 [21]. The drug delivery systems of lipid-based are beneficial in special characteristics like lowering volume of distribution, interrupting drug clearance and alter thedistribution of drug with enhanced capillary permeability towards the infected tissues and reducing toxicity associated with normal tissues, proving to give an efficient nanoscale drug delivering for clinical use[22].

Fig.1: Diagrammatic representation of structure of lipoid bilayer

Enzymes are having role in catalysis, site-specific pharmacological action, prodrug activation, etc. But by reviewing their low lipid membrane penetrability, if an enzyme is encased to the surface of the liposome, the degradation of the enzyme and transmutations are minimized, thus promoting their half-life along with targeted action [23]. Enzymosomes is a method of novel vesicular rate directed drug conveying system which channels the active form of the drug to the site of action and rapidly degrade them for easy uptake. Enzymes can be constrained with liposome surface by two approaches; by coupling functional hydrophobic compartments like long chain fatty acids with the enzyme or by associating the enzyme and the phospholipids of the liposome layer [24]. Using the crafted approach, enhanced therapeutic efficacy and lower side effects are visualized by carrying the therapeutic agent to the destined tissue receptors especially seen on an organ or system. Such mutated vesicles have enhanced solubility, stability, therapeutic index for the sheathed drug molecule. One of the utilization of such lipid nanocarriers is in the therapeutics of CNS disorders like epilepsy, seizures as these acts as natural attractants of BBB due to its lipophilicity [25]. The enzymes acting as therapeutic proteins are supplied through polymeric carriers like liposomes, lipoplexes, among which the attachment of enzymes to exposed areas of liposomes shows maximum response. A vesicular delivery system loaded with drugs shows precise results at the site of infection or inflammation, with least drug toxicity and side effects, useful for centrally acting drugs which have to BBB which plays a fundamental homeostatic role of the brain [26]. It also helps to embellish the bioavailability of drugs, the merest amount of drug concentration available for systemic circulation, by minimizing the purchase cost [27]. The covalently bound enzyme and liposome will have minimum alterations in the activity of the enzyme and the enzyme-loaded in a vesicle preserves its structural integrity and enzymatic activity when tested in vitro and in vivo [28]. Advances in the designing of enzymosomesare variably applicable in fields like production of new recombinant proteins, biotechnological products etc. [29, 30].

Advantages of liposomes enzyme conjugates

Disadvantages of liposome-enzyme complex

Lipid-based drug carriers

Lipid-based chemical systems are amonetarily accepted methodology for formulating oral, parenteral as well as topical dosage forms [35]. The safety and efficacy of such systems prove to be its trademark and is attractive for formulations, diagnostics and vaccine preparations. It is custom-fit to wide requirements by considering the cost, toxicity due to treatments like ultrasound, efficacy, and stability including indications of a disease [36]. The advantages of such systems are extensive:

Vesicular systems include liposomes based vesicular carriers, lipid particulate systems and emulsions.Liposomal carriers accommodate modified liposomes, marinosome,phytosome, transferosome [38, 39]. Lipid particulate system covers lipid microparticles and lipid nanoparticle which are biocompatible in nature and devised in recent years. These are advantageous due to regulated drug release, a solid grid of stable lipids, physicochemical compatibility and preserve the active moiety from degradation. Solid-lipid nanoparticles, lipid drug conjugates and other nanostructure lipid carriers are recently developed advanced techniques of drug delivery which overtakes the polymer used nanoparticles by preventing cytotoxicity [40, 41]. Many research works are done on thesemisolid type of solid lipid nanoparticles for topical drug delivery by incorporating conventional semisolid to dispersion mixtures of the systems [42]. Emulsions encircle pickering emulsions, nanoemulsions, SLN’s and self-emulsifying delivery systems [43]. Enzyme ligation with lipid carrier molecules generate enzymosomes, by preserving enzymatic activity and maintaining thestructural integrity of vesicles, are the key features of enzymosomes.

Applications of enzymosomes

Enzymosomes coming underclass of lipid nanoparticulate drug delivery system, prepared primarily from phospholipids, which are arranged to a bilayer form, incorporates any substance within them, independent of solubility, electric charge, molecular weight and thus improve GIT absorption and oral bioavailability[44]. The enzymosomes can be loaded over lipid-based nanocarriers like liposomes, solid-lipid nanoparticles, inorganic nanocarriers like gold nanoparticle and magnetic nanoparticles, polymeric nanocarriers like nanogels and micelles, protein-mediated nanocarriers like super positively charged proteins etc. One assuring acurrent set of drugs without DNA interaction resides within ether and alkylphospholipids since cell membrane was used as the target for therapeutic intervention. In studies, these were especially effectiveagainstthe clinical treatment of metastases, breast cancer, anti-inflammatory action etc. [45].

Preparation of enzymosomes of surface-exposed superoxide dismutase (sod)

Binding of enzymes directly to the lipids of liposomes is a demanding work, yet they are used presently as a persuasive mechanism in thetreatment of immune-mediated diseases or antibody. A model of such direct conjugated therapeutic enzyme includes SOD (Super Oxide Dismutase) [46]. The enzyme Cu, Zn-superoxide dismutase (SOD) was delineated as an innate defence mechanism which decreases the teratogenicity produced by toxic free radicals. It sets off dismutation of the toxic superoxide radical anion O22_ to O2 and H2O2, disorganising the array of biochemical inflammatory processes induced by the free radical. SOD appears to be a promising substitute for conventional anti-inflammatory therapies, by the use of non-steroidal anti-inflammatory drugs avoiding their side effects [47]. The enzyme was not clinically acceptable due to its finite characteristics, short half-life time in the bloodstream and poor penetration into cells. Many studies was done for modifying the substrate on which the enzyme was loaded with enhanced half-life and liposomal incorporation efficiency along with clinical trials in specific risk groups like obesity, Type 2 DM, etc. [48]. To date, the most frequently used application for intracellular SOD delivery is targeting protein to cell penetrating peptides (CPPs) or protein transduction domains (PTDs). Regardless of the practical advantages of the enzyme transduction technology, the main interest of this plan is the inefficient escape from the endosome to cytosol thus leading to CPP-tagged cargoes secluded in intracellular vesicles. Proteins are of importance to biological needs and thus for controlling delivery of these peptides, modern techniques of encapsulation paved way for its adorable use in the treatment of various diseases [49].

Construction of nanocarriers

Techniques like carbon nanotubes, crosslinkednanogel matrices are used to prepare polymer colloids which encompass within nanocarriers. The productive nature of these systems dependsupon the biological conditions as well as theintermolecular force of attraction. A nanocarrier must be able to carry drugs to the active site without deactivation, the drug should be released obeying the laws of kinetics, must be able to retain its stability after administration and also should actively deliver the drug with site specificity [50]. Modifications were done chemically either by covalent or non-covalent ligation. Self-assembling of proteins and nanocarriers were another alternative.

Through physical adsorption method, spontaneous binding is achieved by utilizing the driving electrostatic force as seen in fig.2 [51]. Nanoparticles can be congregated from a variety of materials to covetable geometries and configurations and thus to acquire useful functionalities and properties [52]. Conventional chemotherapy treatments bear various adverse reactions along with theinability to access thecore of the disease. Thus nano-sized polymeric carriers prove to be selectively and specifically cell-targeted drug delivery [53, [54].

Fig.2: Schematic of three loading methods for preparing protein/nanocarrier composites

The launching of SOD over the liposomal surface is conventional to be more beneficial than anencapsulation of enzyme in liposomes, since the release of the enzyme from the liposomes at the site of inflammation may not be needed to achieve therapeutic activity. To accomplish surface localization of SOD on the enzymosomes, the method of acylation by covalent linkage of palmitic acid to q-NH2 groups of SOD (Ac-SOD) [55]. The studies speculated that the procedure will result in a more hydrophobic enzyme with enhanced affinity for the liposomal bilayers. Also by exposing SOD onto the external liposomal surface, we also intended to target SOD to inflammatory sites. For this liposome were prepared with a long circulation time for obtaining localization at the inflammation sites and acts as efficient intracellular drug delivery method [56]. Through these studies, it was convincingly visualized that long-circulating liposomes (LCL) tends to localize preferentially at inflammation sites after i. v. administration. This preferential localization could be due to the inflammatory response provoking a locally maximized capillary permeability allowing liposome extravasation. Therefore, LCL has attractive prospects for the targeted delivery of Ac-SOD. SOD and Ac-SOD wasincorporated in two types of liposomes: PEG-coated LCL (PEG liposomes) and non-PEG-liposomes containing stearylamine (SA-liposomes). The enzymes are sensitive to physical and chemical stress like thermal treatment, thus are protected within lipid bilayers maintaining their native conformation [57]. Both liposomal formulations were characterized with regard to incorporation efficiency, zeta potential, retention of enzymatic activity and externally exposed enzyme activity.

The studies done for preparing and optimizing SOD enzymosomes was mainly to enhance longer time of circulation of human blood and accumulate the enzyme at the target site, thereforemaintaining the enzyme flawless within the lipid structure [58]. Hydrophilic range therapeutic enzymes are retained or encapsulated within the inner aqueous space of prepared vesicles. A liposome, which exhibits catalytic action in its intact form, i.e. before it gets destroyed. The enzymes could be bound to liposomes by two approaches:-

As a result of thefirst process, the enzyme is assimilated to the liposomal membrane, and in the latter step, the docking is between liposome bilayer and coupling reaction take place with theliposomal surface. Both the processes are having difference in,

A schematic diagram depicted in Gaspar MM et al., where the ligation of enzymes to the internal hydrophilic environment,i.e. native enzyme occurs and to the lipid bilayer membrane of liposomes by the Ac-enzyme [59]. When the liposomes are intact, the enzyme in the interiors are not available for reaction. But when the enzymes are directly attached to the lipid membrane, the enzyme is available for catalytic action even before the liposomal destruction.

During the unification of hydrophilic enzyme to the acyl residual chains of lipids, the process of acylation (addition of acyl functional group) occurs resulting in the formation of Ac-enzyme. This result in diversion of enzyme from hydrophilic to hydrophobic micro-environment. The attained hydrophobicity level is inflected by the length and number of fatty chains joined to the surface of the enzyme. The conservancy of other equities of the modified enzyme must be evaluated by using the basic strategies of conjugation. An example, L-Asparginase enzyme used for treatment of acute lymphoblastic leukaemia, withholds 100% of its catalytic action, if the active site of enzyme is hindered with the substrate while conjugation. For augmenting a fine dose of Ac-enzyme to the liposomal structure and for enabling proper release of enzymes, different strategies are used. The partly insertion of Ac-enzyme into lipid bilayer or concealed within the hydrophobic lipid vesicular matrix. The association Ac-enzyme to the lipid bilayer membrane is mainly dependent on several factors, including electrostatic interactions between the charges associated with enzymes [60]. The efficiency of the Ac-enzyme incorporated to liposome is determined by calculating the ratio between catalytic values estimated during the intact life period versus the disrupted enzymosomes. The ideal characteristics of liposomes play a very useful role during construction of enzymosomes which include, the size of the vesicle, composition, ionic charge, etc.

Acylated-sod liposomes

Generally, the SOD enzymosomes was ahomogenous film obtained by dispersing aqueous solution containing SOD and thus the non-bounded enzyme was extruded by ultracentrifugation separation method. The prepared enzymosomes were characterized by the research work of Gaspar MM et al, by different parameters which ensured that the enzymosomes is standard in its characteristics. The different parameters included where;

The results of various works in chemical alterations of SOD were presented innovative methodologies for characterizing Ac-SOD and analysed if it was superior over plain SOD and other pharmaceutical preparations.

Thus Ac-SOD presented substantial activity for the incorporated enzyme, which acts independently depending on, rate and extend of enzyme release, thus producing a different mechanism of action. Thus the undertaken work confirms that the designed enzymosomeis significantpotential since even in the presence of surface PEG chains, the PEG-enzymosome converted the substrate. Thus, it was not abarrier and the release of the enzyme was not a prerequisite for producing dismutation action at theinflamed site. If the Ac-SOD enzymosome could be prepared with circular micro-reservoirs, it could be markedly ample for expressing its action without disruption and also for a sustained release pattern of theenzyme. Similar modifications are done for peptides and polymers which makes an important drug targeting pathway [62]. Therefore the Ac-enzymosome could be a replaceable therapeutic agent for an intense effect in rheumatoid arthritis and longer flowing active particles for reperfusion pathologies. The affinity of SOD for negatively charged lipid molecules accounts for at least part of its ability to protect lipid membranes from oxygen-induced injury and are valuable tools for studying membrane structure and dynamics [63].

Designing of immuno-enzymosomes having enhanced enzyme targeting capability and cell binding properties

The potency of traditional anticancer drugs for the treatment of chemotherapy is confined due to theinadequacy of discrimination between normal as well as cancerous cells. On reviewing the studies on immuno-enzymosomes could be used to target enzymes to for achieving site peculiar activation of anticancer prodrugs. The potency of generating a sole well portrayed liposomal system which is having a binding capacity to variety targeted ligands is significant worth. These methods offer the hiding of enzyme within small packet like structures and releasing them on reaching action site [64]. It was stated that enzyme, β-glucuronidase, which was proficient in stimulating anthracyclineglucuronideprodrugs, when coupled with immunoliposomes surface aimed against ovarian cancer cells (OVCAR-3). Thus, by cleansing commercially accessible enzyme β-glucuronidase (GUS) an immune-enzymosome formulation could be prepared which had a 2 times increase in its enzyme specific activity when incubated with ovarian cancer cells[65]. The principle involves fusion of a cell unique antibody with (liposome) immunoliposome enclosing the chemotherapeutic agent, thus providing aprobability for selective drug transmission and cell-specific cytotoxicity as seen in fig.3 [66]. This results in new derivatives of therapeutic proteins having minimum immune-genicity. The antibody-enzyme complex was administered, pursued by injection of comparable non-toxic prodrug after binding of the complex with cancerous cells and cleared from the blood and tissues. Targeted by the enzyme’s action, the prodrug is converted to active cytotoxic molecule within the concurrence of tumour cells, therefore leading to its selective wiping out.

Advantages

The GUS enzyme due to its bulky steric hindrance sometimes could negatively affect the coupling with cells. But studies showed that even increasing the enzymatic density over the surface provided large enzymatic targeting. In studies of Szczupak et al., the electrosome was used as a tool for the release and action of a cascade of enzymes overcoming the drawback of the low number of enzymes on the surface [67]. The GUS obtained was initially purified and Fab’ fragments were developed. Using these immuno-liposome or the enzymosome was generated followed by its characterization.

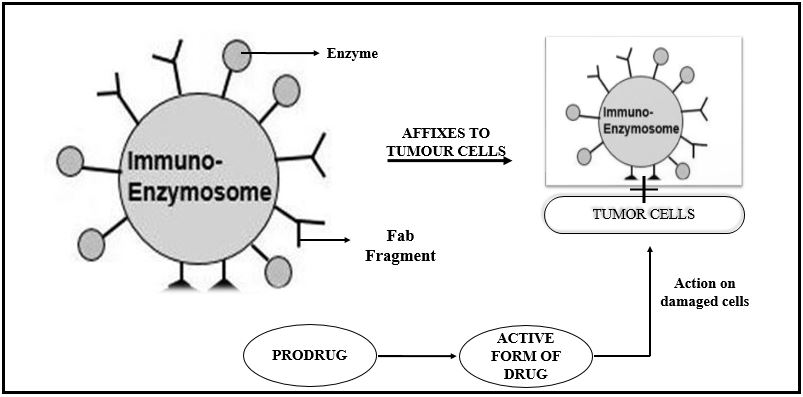

Fig.3: Specificity of immuno-enzymosomes to target cells

The review of the research work, for the most part, was done to cite certain important milestones in the field of nanoscience, which can be used as leads for developing efficient drug delivering methods for uncompromising diseases. The main objectives of the study were to preserve maximum enzyme density at cell environment and to quantitatively enhance the enzyme without its aggregation by undergoing additional conformational changes, which determines the enzymes efficacy and selectivity [68].

As the experiment progresses, the purification of commercially available GUS increased two folds its enzymatic action. Thus terminating, the density of enzyme up to the level of asteric hindrance for interacting with a target antigen could be an effective strategy for producing immuno-enzymosomes with maximum enzyme targeting capability as seen in fig.4 [69]. The major application of the immuno enzymosomes was in the diagnosis and treatment of ovarian carcinomas. Even during the initial stages itself, the cancer cells could spread up to the peritoneal cavity.

The usual surgical removal of tumorous mass followed by chemotherapy is done regularly. Thus, for a complete curing with the full elimination of residual matters which could otherwise further damage the normal cells. The studies thus confirm that by giving the immuno-enzymosomes preparation i. p for antibody–directed enzyme prodrug therapy, the peritoneally injected drug could easily gain access to targeted cells to which the enzyme has to bind.

Fig.4: Enzyme bound drug targeting tumour cells

Production alkaline enzymosomes loaded with Bacillus fastidious

The study done byTan Q et al. was to judge the promising action of a novel alkaline enzymosome for delivering the enzyme, Uricase from Bacillus fastidious (UBF) and embellish its biochemical activity, therapeutic use and pharmacological characteristics [70]. Uricasehave anormal physiological action to lower the plasma uric acid level by undergoing catalysis of uric acid by oxidation reaction [71]. It was proven from studies that it took less time for UBF loaded in the novel alkaline enzymosomes (ESUBFs) to diminish the plasma uric acid concentration to the normal level from higher, compared to the time taken by free UBF [72, 73]. Their results showed that ESUBFs effortlessly delivers UBF and positively increasing the total area under curve (AUC), half-life (t1/2) and catalytic activity as well as modifying its biochemical and pharmacological characteristics [74]. Thus ESUBFs could be a favourable second choice solution to problems like gout and hyperuricemia [75]. It was theadditionally accountable advantage of the expanded in vivouricolytic action could be of great clinical implication since the clinical dosage given as well as the side effects produced during the normal dosage of UBF formulation could be much considerably reduced via conjugation [76]. In the work, the development of novel alkaline UBF enzymosomes was profitably developed to indeed improve the pharmaceutical, biological and biochemical properties and exploited for hyperuricemia effects of enzyme uricase from Bacillus fastidious. In research work of Szczurek et al. the oral delivery of uricase enzyme was found to reduce uric acid levels in hyperurecemia rat model [77, 78]. Uricase enzyme had constitutional advantages like enhanced selectivity with efficient, fast reactivity along with disadvantages like short in vivo half-life with limited therapeutic usage. The main aim of encapsulating an enzyme within an enzymosomes is to regulate its delivery and also to sustain its molecular structure intact.

The research work included the catalytic activity of the UBF loaded in the novel alkaline enzymosomes (ESUBFs) in vitro, which suggested almost 3 folds that of free UBF at the optimum pH. Following intravenous (i. v.) administration in study model, ESUBFs provided asignificantly higher area under the plasma concentration (AUC) and longer circulation half-life (t1/2) compared with free UBF, similar to studies by Xiong H et al.[79]. The preparatory security assessment actively exhibited that ESUBFs was acceptable when injected through theparenteral route of administration thus used in emergencies of enzyme replacement for curing enzyme deficit diseases [80]. The systematic investigation trends indicate well the maximized activity of encapsulated biochemical and pharmacological characters of alkaline enzymosomes. Therefore enzymosomes could be a preferred alternative for the formulation of UBF and ESUBFs which mightbe a preferred alternative to therapeutically curehyperuricemiaand gout.

Antiplatelet activity of CD 39 enzymosomes

The endothelial cells of body consist of an enzyme CD39/NTPDase-1 which is expressed on the opening side of the cell. It physiologically has an ability to rapidly metabolize ATP and ADP, along with AMP and minimizing the platelet sensitivity to the major agonists. Thus, motivation existed to examine therapeutic anti-platelet ‘enzymosomes’ formulations that consist of CD39 integrated within liposome lipid bilayers. Initially, CD39 enzymatic activity was optimized which appears to be dependent on the expression of either of its transmembranedomains [81]. The full-length human CD39 was generated by using a yeast expression system as a model which was purified and reconstituted within a suitable lipid vesicle chosen accordingly. The dephosphorylation and formation of ADP and ATP were taken as parameters for finding it’s catalytic efficiency and was determined both for detergent solubilized CD39 and when reconstituted within a lipid membrane. The CD39 containing lipid vesicles ability to inhibit platelet activation induced by ADP, collagen and thrombin was defined in vitro by platelet aggregometry method. A murine model of thromboplastin induced thromboembolism was utilized to find out the effectiveness and therapeutic applicability of intravenously administered CD39 enzymosomes in limiting platelet consumption and death. The reconstitution of human CD39 in lipid vesicles caused a reduction of the Km value of nearly an order with aconcomitant enhancement in both ADPase and ATPase catalytic efficiency [82]. The platelet activation by ADP, collagen, or thrombin was effectively inhibited after administration of CD39 lipid vesicles thus effectively inhibited platelet aggregation when platelets were activated and produced a platelet disaggregation response.

One drawback obtained from studies was that treatment with CD39 lipid vesicles enormously limited the reduction in platelet counts caused by thromboplastin. The incorporation of theenzyme into a lipid bilayer significantly enhanced CD39 enzyme activity when compared to its solubilized counterpart. Thus, studies revealed treatment with CD39 enzymosomes minimized platelet consumption and death rate in the animal model. Thus prepared CD39 enzymo-somes could be a useful therapeutic option for complementing other existing anti-platelet therapies characterized by platelet thrombus formation [83].

Generation of streptavidin-liposomal conjugates for targeted ligand specific applications

The tetrameric biotin-binding protein, Streptavidin confined fromStreptomyces avidinii is having a low degree of nonspecific binding in immunohistochemistry applications. Thus, it is a quintessential choice in various detection systems [84]. It belongs to the avidin group of proteins which functions as antibiotics and its specific interaction with biotin molecules makes it useful in nonradioactive detection systems. Biotin is a vitamin in living cells demanding in different biological processes, including cell growth [85]. Formerly, when biotin is attached to a molecule, the biotin tag is used to assist the progress of affinity purification of molecules using immobilized biotin-binding protein. Thus the avidin-biotin interaction is applied in Enzyme-linked immunosorbent assay (ELISA), Immuno-histochemistry (IHC), Cell-surface labelling, Fluorescence-activated cell sorting (FACS) etc. [86]. Thus, under optimum conditions Streptavidin attached to liposome result in well-characterized protein-liposome conjugate. The resulting targeted vesicle system retains more activity with respect to their size and binds more firmly to the biotinylated targeting ligands. The coupling of natural circulating cells with enzymes for drug delivery has gained interest in later years [87].

In the studies, the streptavidin is noncovalently coupled to biotin which is a vitamin and phosphatidylethanolamine which is a class of phospholipid. The phospholipid was chosen due to its primary role in distributing out negative charge produced by anionic membrane phospholipids [88]. The researchers used the extrusion method to prepare the sample by dissolving the lipid mixture in a solvent which was coated over a tube a dried to athin film by passing a stream of appropriate gas under high vacuum [89]. The biotinylation process involved the covalent coupling of a protein or a nucleic acid with biotin. Biotin combination with streptavidin, a member of avidin family is with high affinity and fast action and thus in many fields of biotechnology to separate such biotinylated compounds of interest. The liposome vesicles were incubated with streptavidin for accomplishing its binding and at a constant ratio of streptavidin to lipid molecules when maintained, maximum coupling efficiency was obtained [90]. This efficient communication between streptavidin and biotin containing lipid molecules is utilized in the indirect targeting procedures. Other drug discoveries like photoaffinityis used as additional mechanisms for molecular interactions and targets for thebinding site via activation through light [91].

Another method investigated in studies was the covalent binding streptavidin to two lipid derivatives, which contained thiol groups to initiate the reaction [92]. In the research work done in the reference article, the maleimide derivatives of lipids were cross-connected better due to the presence of long spacing reactive arms [93]. The enzyme is then coupled with these liposomes and is designed in such a manner to use its ability to conjugate in a specific manner with membrane-linked antigens, producing different nanocarriers with physicochemical features efficient as a drug delivery system [94]. The biotinated antibody was coupled with enzyme-linked with liposomes which had wide in vivo and in vitro applications. Such applications are useful in retention of hydrophilic drugs and fluorescent groups in water-loving compartments of targeted liposomes for cell surface activity [95]. The conjugates of small size preparationsproves longer half-life and thus retains their capacity and action more within the plasma,varying the infection and acute reaction severity [96].

CONCLUSION

Enzymosomes are suitably engineered lipid constructions in which there is a suitable mini-environment for the enzyme to be immobilized within lipid structures or covalently coupled to the outer side of lipids. It has its major application in easiness in permeation as well as for targeted drug arrival at tumorous cellular sites [97]. These vesicular systems have wide flexibility for drug development to overcome several side effects and bioavailability problems. The approach of nanosystems of delivering drugs to the CNS by permeating through BBB is promising lead for enhancing treatment methods like in different type of malignancies [98]. Various prodrugs, as well as charged proteins along with complexes, are delivered to the brain by the method thus increasing the concentration of drug linearly. Even though different carrier nucleus has disadvantages like oxidative stress damage, in spite of all they have a major role in selecting and targeting and brings a newer origin to conventional drug therapies [99]. Various methods like biotinylation, pegylation are the latest innovative trends for targeted drug delivery. There are various lipoidal and nonlipoidal vesicular carrier nanoparticles utilized for sustained drug release and cellular targeting. Enzymosomes as one of the lipid bio carrier along with others like ethosome, transferosome, pharmacosome, virosome, and non-lipoidal ones like niosomes, aquasomesetc. [100]. Each carrier is now proven to be successful in their action though various studies. From studies of CA Valeetal., it was proven that PEG-SOD enzymosomes were having an adequate action to be used therapeutically. Liposomes are now becoming clinically accepted since they maintain the level of toxicity to a minimum and attains enhanced efficacy when compared with free supplements. Review of Nair et al.,shows that emulsomes are proven carriers for loading low water-soluble drugs and thus variable bioavailability when compared free drug. Thus enzymosomes can be also an assuring carrier nucleus to achieve a newer generation of flexible drug designing system in future.

To advance the better applications of carrier-mediated protein delivery the different strategically approved methods. The therapeutic enzymes are integrated to carriers of the polymeric nature of the hydrophilic area of lipid vesicles and the hydrophobized forms assimilated to lipid bilayers of vesicles. Not one thing above specified can retain the activity of therapeutic protein fully. Other than therapeutic enzymes another method of plan is that, its coupling to the outer surface of liposomes, by which scientific know-how was developed for anantibody with drug preparation. Complexation of theenzyme with lipid nature carriers brought about enzymosomes. The seductive characteristics of enzymosomes is its enzymatic activity preservation and restraining structural integrity. The conception of consolidating the drug to lipid vesicles for a more exceptional targeting of the drug at the apt tissue terminal is widely accepted. It is discernible that different deformable and lipid, rigid supramolecular vesicular constructs have tremendous potential to deliver drugs for targeted delivery of different bioactive. During last years, repeated researches have been going on to achieve the target with the goal of enhanced targeting and limiting the dosing frequency. To acquire these efforts, these can be formulated in a semi-liquid or liquid drug delivery systems with corresponding matching lipid composition. The novel vesicular systems actively revealed their therapeutic potential to genetic levels from topical one. Using the notions of supramolecular chemistry, an enzymosome, a novel vesicular system is capable of acquiring the mentioned traits.
