Int J App Pharm, Vol 10, Issue 1, 2018, 86-93Original Article
A NOVEL APPROACH OF LOCUST BEAN GUM MICROSPHERES FOR COLONIC DELIVERY OF MESALAMINE
V. N. L. SIRISHA1, M. CHINNA ESWARIAH2, A. SAMBASIVA RAO3
1JNTUH, Hyderabad, Telangana, 2Pharmacy College, Kodad, Nalgonda Dt, Telangana), 3Sri Indu College of Pharmacy, Sheriguda, Ibrahimpatnam, R. R Dt, Telangana)
Email: sirishaphd2011@gmail.com
Received: 18 Sep 2017, Revised and Accepted: 28 Nov 2017
ABSTRACT
Objective: The objective of the present study was to formulate site-specific drug delivery of mesalamine using Locust bean gum.
Methods: The core microspheres were prepared by ionic gelation method using CaCl2 solution and cross-linked with glutaraldehyde and were further coated with pH-sensitive polymer eudragit S-100(1.5-4.5 ml) to retard the drug release in the upper gastrointestinal environment (Stomach and small intestine). Microspheres were characterized by ftir spectroscopy, differential scanning calorimetry and evaluated by scanning electron microscopy (SEM), particle size analysis, entrapment efficiency and in vitro drug release studies in different simulated gastric fluids. Stability studies were carried out for one month at 40±2 °C/75±5% RH.
Results: The SEM images revealed the surface morphology was rough and smooth for core and coated microspheres, respectively. The optimized batch (ILBG6) of core microspheres(for 7hr), coated microspheres and coated microspheres in presence of rat caecal contents (8%w/v) for 24hr exhibited 98.44±2.48, 73.58±3.49 % and 98.28±4.42 drug release, respectively. The drug release from all locust bean gum microsphere formulations followed higuchi kinetics. Moreover, drug release from Eudragit S-100 coated microspheres followed the korsmeyer-peppas equation with an fickian kinetics mechanism. Finally, stability studies suggested the change in entrapment efficiency and in vitro drug release of microspheres was minimal, indicating good stability of the formulation.
Conclusion: The microspheres formed using natural polysaccharide locust beangum by ionic gelation method are capable of colon targeting the anti-inflammatory drug, mesalamine for the treatment of ulcerative colitis.
Keywords: Colon-specific, Locust Bean Gum, Mesalamine, Eudragit S-100, Microspheres
© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i1.22638
INTRODUCTION
Various drug delivery approaches have been explored for successful delivery of drugs to the target site. However, the oral route of administration is considered to be the most convenient and preferred route for a sustained as well as controlled drug delivery system [1]. Controlled drug delivery systems offer numerous advantages compared to conventional dosage forms such as improved efficiency, reduced toxicity and improved patient compliance and convenience [2]. Colonic drug delivery has gained increased attention not just for the delivery of the drugs for the treatment of local diseases associated with the colon but also for its potential for the delivery of proteins and therapeutic peptides. Colon targeting is naturally of value for the topical treatment of diseases of the colon such as Chron’s diseases, ulcerative colitis, colorectal cancer, and amoebiasis [3]. 5-Aminosalicylic acid (5-ASA), a typical anti-inflammatory agent is the drug of choice for the treatment of ulcerative colitis.
However, 5-ASA rapidly absorbs from the small intestine and there is little localization of 5-ASA in the colon relative to the small intestine. Thus, it is necessary to develop a colon-specific delivery system for 5-ASA in the treatment of ulcerative colitis [4]. Microspheres form an important part of such novel drug delivery systems [5, 6]. In recent years, considerable attention has been focused on hydrophilic polymers in the design of oral controlled drug delivery systems because of their flexibility to obtain a desirable drug release profile, cost-effectiveness, and broad regulatory acceptance [7]. These polymeric systems have been the potential candidates to deliver bioactive molecules, particularly in controlled release applications [8, 9]. Locust bean gum is a high molecular weight branch polysaccharide and is extracted from the seeds of carob tree Ceratonia siliqua. Being non-ionic, it is not affected by pH or ionic strength. It is dispersible in either hot or cold water, forming a sol having a pH range 5.4–7.0 [10].
The aim of the present research was to formulate a novel colon targeted drug delivery of mesalamine by using a natural polysaccharide in treating ulcerative colitis because the natural polymer can be degraded only in the colon by the bacterial enzymes produced by the micro flora of colon.
MATERIALS AND METHODS
Mesalamine was obtained as a gift sample from TherDose Pharma Pvt Ltd, Hyderabad. Locust bean gum was obtained from Nutriroma Pvt. Ltd, Hyderabad. Eudragit S 100 was gifted by Evonik, Germany. sodium alginate, calcium chloride, and glutaraldehyde were purchased from Sigma-aldrich. All reagents used were analytical grade.
Preparation of microspheres by ionic gelation method
Locust bean gum microspheres containing mesalamine were prepared by ionic gelation method. The drug was dispersed in a solution of locust bean gum in WFI (water for injection) until a uniform dispersion is formed. The microspheres were formed by dropping the bubble free dispersion through a disposable syringe (with a nozzle of 24 gauge) into 4% calcium chloride solution and allowed curing for 1h. Later separated, washed and dried in an oven at 50 °C for 24 h and stored plastic bags for further use(table 1) [11].
Preparation of eudragit-coated cross-linked locust bean microspheres
Eudragit coating of GA cross-linked locust bean gum microspheres containing MSL were prepared by an oil-in-oil solvent evaporation method. Eudragit-S-100 was dissolved in a 10 ml organic solvent (2:1, ethanol: acetone) to give either 4:1 or 8:1 ratio. To the above coating solution, 100 mg of drug-loaded microspheres were added. The above dispersion was then poured into 100 ml of liquid paraffin containing 3% of w/v span-80. The above system was agitated at 1000rpm at 40 °C for 3 h using a mechanical stirrer (Remi, Mumbai, India). The coated microspheres were filtered and washed with n-hexane to remove the traces of oily phase on the microspheres and dried overnight in desiccators and packed in plastic bags until further [12].
Table 1: Formulation for mesalamine microspheres
| Formulation | Drug (mg) | Polymer (%) | GA (ml) | SA (%) | CC (%) | SS (rpm) | ST (hr) |
| LBG1 | 100 | 0.25 | 1.5 | 1 | 4 | 100 | 1 |
| LBG2 | 100 | 0.5 | 1.5 | 1 | 4 | 100 | 1 |
| LBG3 | 100 | 1 | 1.5 | 1 | 4 | 100 | 1 |
*LBG-Locust bean gum, GA-Glutaraldehyde, SA-Sodium alginate, CC-Calcium Chloride, SS-Stirring speed, ST-Stirring time
Optimization of formulation variables
A three-factor two-level full factorial design was used for the systemic study of the combination of drug and polymers.
The main effects (X1and X2) represent the average result of changing one factor from its low to high values.
The interaction term (X1, X2) shows how the response values change when two factors are simultaneously changed.
A 32—factorial design was applied for the experiment where two variables (X1, X2) were the amount of matrix forming a polymer and a cross-linking agent. The concentration of drug was maintained constant. Further, the quantity of drug and a cross-linking agent and controlled release matrix forming polymer adjusted in combination as like 1:(1.5-4.5)i.e.,(-1,+1) and 1:(0.25-1) respectively. By this way totally 12 formulations were prepared, using Locust bean gum in different concentrations by Ionic gelation method. The levels of polymer and cross-linking agent are set to low and high values are shown in table 2.
Table 2: 32—full factorial design: factors, factor levels, and responses
| Factors–in-dependant variables | ||
| Level | LBG in %(X1) | CA in ml(X2) |
| Low level-1 | 0.25 | 1.5 |
| Medium level(0) | 0.5 | 3 |
| High level+1 | 1.0 | 4.5 |
| Responses-dependant variables | ||
| Y1 | Particle size in mm | |
| Y2 | Entrapment Efficiency in % | |
| Y3 | In vitro drug release | |
*LBG-Locust bean gum, CA-Cross-linking agent
Characterization of microspheres
Determination of particle size
Particle size was measured by optical microscopy (INKO, Ambala, India) using a compound microscope. A suspension of MSL (mesalamine) microspheres was allowed to dry on a glass slide to form a thin film and was mounted onto the stage of the microscope and min of 500 particles were measured using an ocular micrometer. Each measurement was made in triplicate.
The mean particle size was calculated using the formula [13].
Shape and surface morphology
The shape and surface morphology of microspheres were investigated using Scanning electron microscopy (SEM) (LEO-430, Cambridge, U. K). The microspheres were fixed with carbon-glue on the supports and gold coated in a high vacuum evaporator using a gold sputter module (15Kv) [13].
Determination of encapsulation efficiency
About 50 mg of microspheres were digested in 10 ml Phosphate buffer saline (PBS, pH-7.4) and extracted completely during 24 h. The solution was centrifuged at 6000rpm. The supernatant filtered through a 0.22 µm membrane filter (Millipore) and the amount of mesalamine was measured spectrometrically (Shimadzu, Double-Beam Spectrophotometer, 150-03, Japan) at 212 nm.
Each determination was made in triplicate [14, 15].
Fourier-transform infrared (FT-IR) spectroscopy
Fourier-transform infrared spectrum (FTIR) were recorded for 5-ASA, locust bean gum, 5-ASA loaded Locust bean gum microspheres using spectrum BX (Perkin Elmer) infrared spectrophotometer. KBr disks were prepared with samples in them (2 mg sample/200 mg KBr) with a hydrostatic press at a force of 40 psi for 4 min. The scanning range employed was 450-4000 cm-1.
Differential scanning calorimerty (DSC)
The thermal behavior of for 5-ASA, locust bean gum, 5-ASA loaded locust bean gum microspheres observed using a differential scanning calorimetry (DSC) Q 10V 8.1 Build 261(Universal V3.9 A TA Instruments) thermal analyzer. The carrier gas used for analysis was argon with a heating rate of 10 °C/min with a flow rate of 35cc/min. The sample size was 5 mg and the temperature range was 0 to 300 °C.
In vitro drug release studies
The in–vitro drug release studies were performed using USP dissolution rate test (paddle apparatus, 100 rpm, 37±0.1 °C). 500 mg of microspheres were suspended in 900 ml of dissolution media. For the first two hours in simulated gastric fluid (SGF, pH 1.2; without pepsin), simulated intestinal fluid(SIF, pH 7.4) mimicking small intestine for 3hr and replaced with simulated intestinal fluid(SIF,pH6.8) mimicking large intestine environment. Samples withdrawn at different time intervals were quantified using UV-Visible Spectrophotometer (Shimadzu, Kyoto, Japan) at 212 nm. Fresh sample w replaced to maintain sink conditions. The experiment was continued for 24h [16].
Preparation of rat caecal medium
Albino rats weighing (150±50) g were kept on standard normal diet and water and acclimatized for 10 d. Rats were placed in the cage with cage environments having temperatures around 25 °C to maintain minimum humidity. Rats were separated into groups and placed separately to avoid interaction between them. The condition of the rats was monitored every day and the weight of rats was weighed for a week.1 ml of 1% w/v solution of locust bean gum in distilled water was administered orally in order to induce the enzymes, which are specified for the biodegradation of the locust bean gum during its passage through the colon. This treatment was continued for 2, 4 and 6 d in different sets of animals for enzyme induction. Rats were anaesthetized with diethyl ether, dissected and caecal contents were removed in presence of CO2. The caecal contents were then transferred into the simulated colonic fluid (SCF, pH 7.0), to produce 2% caecal dilution. The formulation, which was previously subjected to in vitro drug release studies in SGF (pH 1.2) and SIF (pH 7.5) were immersed in the simulated colonic fluid (SCF, pH 7.0). To maintain anaerobic environment CO2 gas was bubbled into the medium. The experiments were approved by the Ethical Committee of Anurag Pharmacy College, Faculty of Pharmaceutics, Kodad, Affiliated to JNTUH University, Hyderabad with ethical approval Reg. No. 1712/PO/a/13/CPCSEA [17].
In vitro release in presence of rat caecal contents
The release of the final optimized formulation was carried out with the addition of rat caecal contents (2% w/v) to observe the effect of the caecal enzymes on the release rate of the drug. Samples obtained at regular intervals were filtered through a 0.22 µm membrane filter (Millipore, India) and analyzed using UV-Visible Spectrophotometer (Shimadzu, Kyoto, Japan) at 212 nm. The experiment was continued for 24h.
Stability studies
According to ICH Guidelines, an accelerated stability study has to be carried out on the dosage form at 40±2 °C/75±5% RH. The optimized formulation was placed in the stability chamber at 40±2 °C/75±5% RH for over a period of 30 d. Entrapment efficiency and in vitro drug release studies were carried out and compared with the results of it before conducting the stability [18].
Release kinetic study
All the release data were fitted to various kinetic models like zero order, first order Korsmeyer-Peppas, Higuchi to find out the mechanism of drug release from the polymeric matrix of microspheres [18].
RESULTS AND DISCUSSION
Evaluation of optimized formulation of formulation variables
To study the effect of variables on the characterization of microspheres, different batches were prepared by applying 32 full factorial designs. Amount of polymer (X1) and cross-linking agent(X2) w varied three levels, low level (-1), medium (0), and high level (+1). The amount of drug and sodium alginate was kept constant. Particle size (Y1), % entrapment efficiency (Y2), % in vitro drug release (Y3) were selected dependant variables fig. 1.

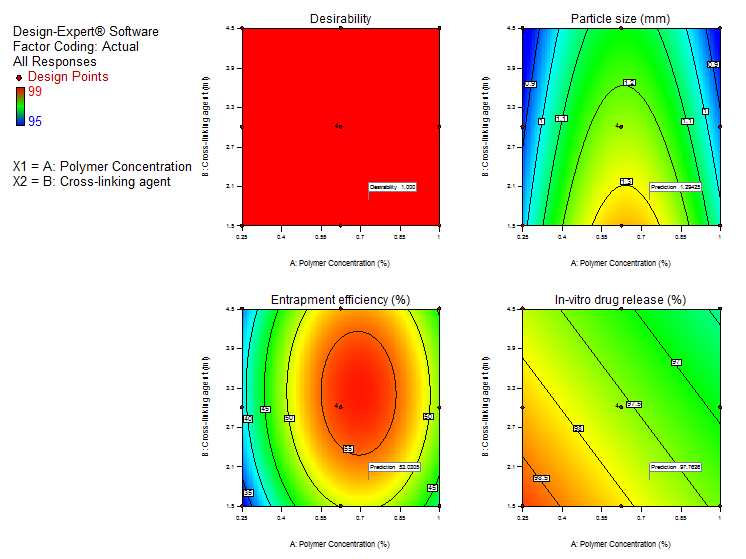

Fig. 1: Surface response graphs for particle size, % entrapment efficiency, % in vitro drug release
Particle size, percentage yield, entrapment efficiency
All the formulated batches were evaluated for particle size, Percentage yield, and entrapment efficiency. Results are given in table 3. Based on the particle distribution results, the microspheres produced did not have a uniform particle size distribution.
This could be caused by the pressure difference in the shedding process of drug and polymer mixtures into the calcium chloride solutions. The average beads diameter showed that the bigger size was obtained while using a higher concentration of natural polysaccharide used. This proved that the big beads size could be affected by natural polysaccharide concentration [19].
The size of the sphere decreased with increase in cross-linking agent concentration because of hardening of the polymer matrix and shrinking of size. The particle size increased with a coating of the microsphere. Faster cross-linking of the microspheres is achieved with the increase in cross-linking agent concentration forming rigid microspheres hence prevent the drug loss from the formed spheres.
The entrapment efficiency increased with the increase of polymer concentration and amount of cross-linking agent. The reason may be, increase in polysaccharide concentration leads to increase in the viscosity of aqueous phase and highly viscous phase shows high drug retention capacity by preventing the migration of drug from droplets to surrounding media which result in more encapsulation efficiency [20].
Table 3: Characterization of locust bean microspheres
| Batch code | LBG (X1) (%) | GA (X2)(ml) | PS (mm) | EE (%) | IDR (%) |
| ILBG1 | 0.25 | 4.5 | 0.852±0.75 | 38.58±2.57 | 99.32±0.93 |
| ILBG2 | 0.625 | 3 | 1.26±0.65 | 57.42±1.98 | 98.54±1.02 |
| ILBG3 | 1 | 4.5 | 0.853±0.77 | 45.89±1.08 | 97.83±3.74 |
| ILBG4 | 0.25 | 1.5 | 0.921±0.33 | 32.64±0.57 | 98.36±2.36 |
| ILBG5 | 0.25 | 3 | 0.876±0.57 | 35.15±0.65 | 98.29±3.85 |
| ILBG6 | 0.625 | 1.5 | 1.45±0.65 | 50.44±1.28 | 98.44±2.48 |
| ILBG7 | 1 | 3 | 0.934±0.76 | 47.25±2.58 | 96.78±2.76 |
| ILBG8 | 1 | 1.5 | 0.967±0.66 | 41.09±2.56 | 98.68±1.86 |
| ILBG9 | 0.625 | 4.5 | 1.04±0.74 | 48.49±1.69 | 95.49±3.22 |
*LBG-Locust bean gum, GA-Glutaraldehyde, PS-Particle size, %EE-Entrapment efficiency, % IDR-in vitro drug release, *All readings are expressed as mean±standard deviation (n=3)
Surface morphology
Surface morphology of microspheres was taken at 60 x, 70 x magnifications. Scanning electron microscopy confirmed the spherical shape of the microsphere.
The shape of all formed microspheres was found to be spherical and the surface morphology of the un-coated formulation of microsphere was rough and the coated form of the same formulation was smooth in the surface. This might be because of the smoothing of the surface by the eudragit coating solution. (fig. 2).
a)
b)
c)

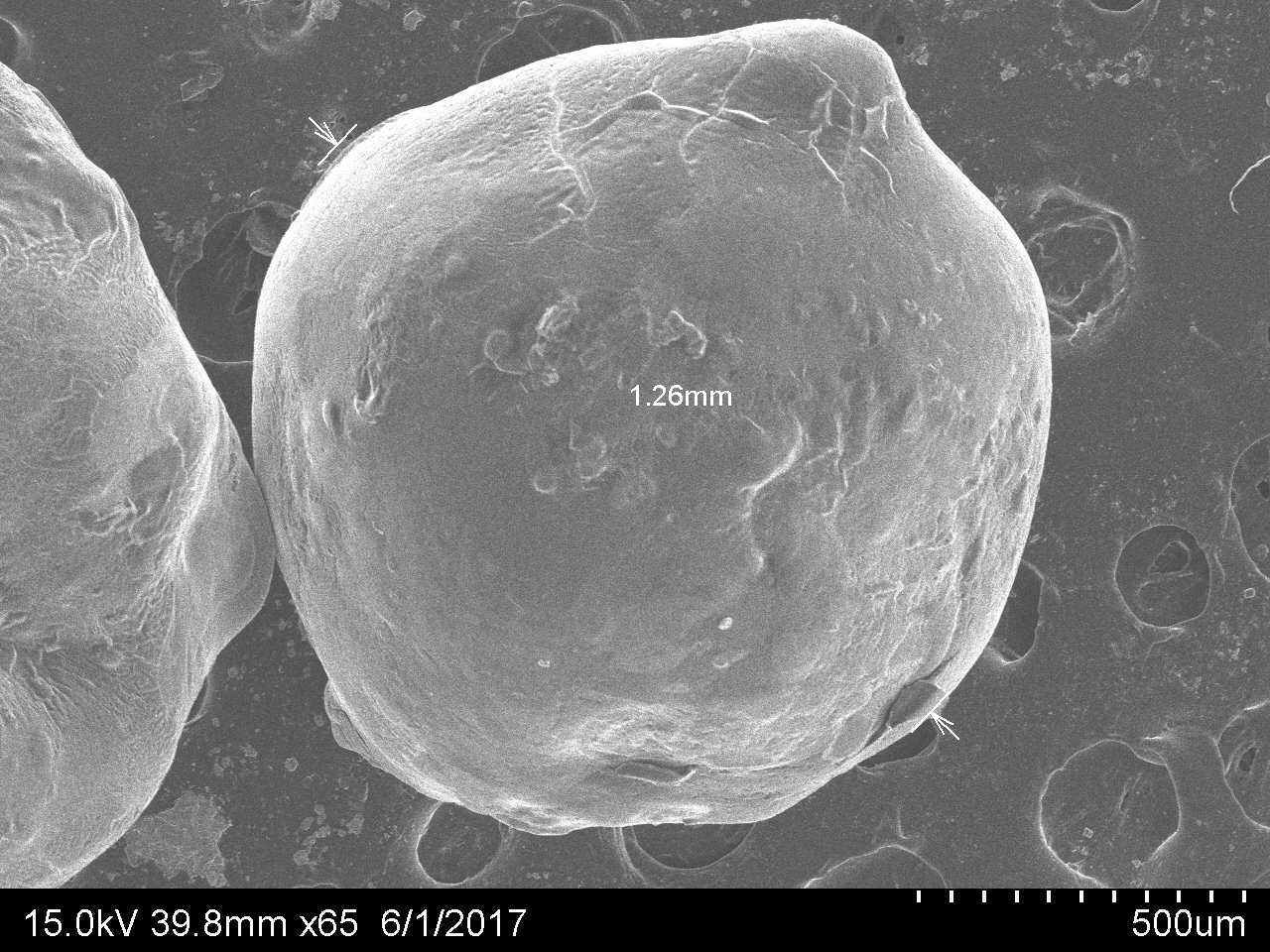

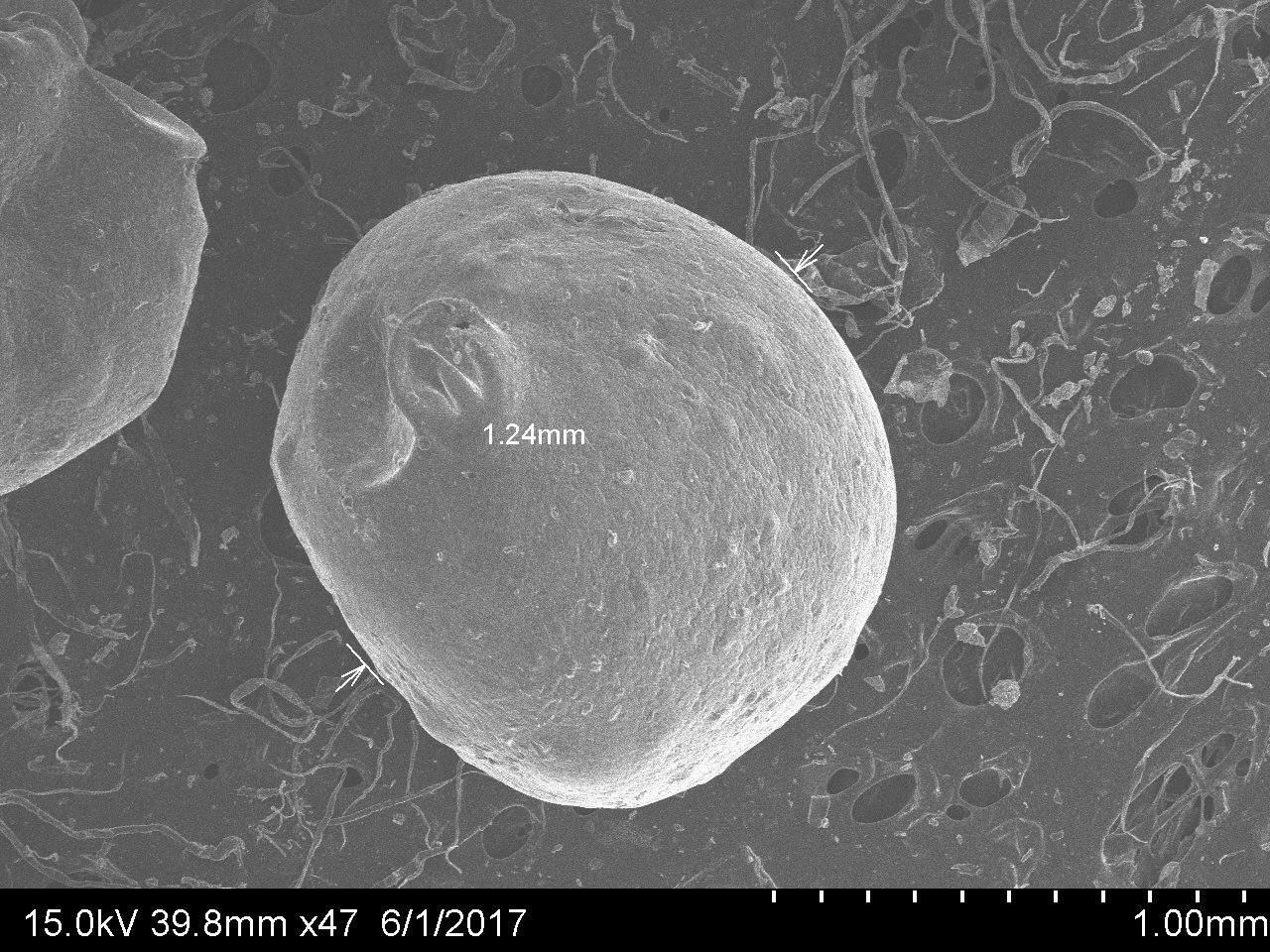

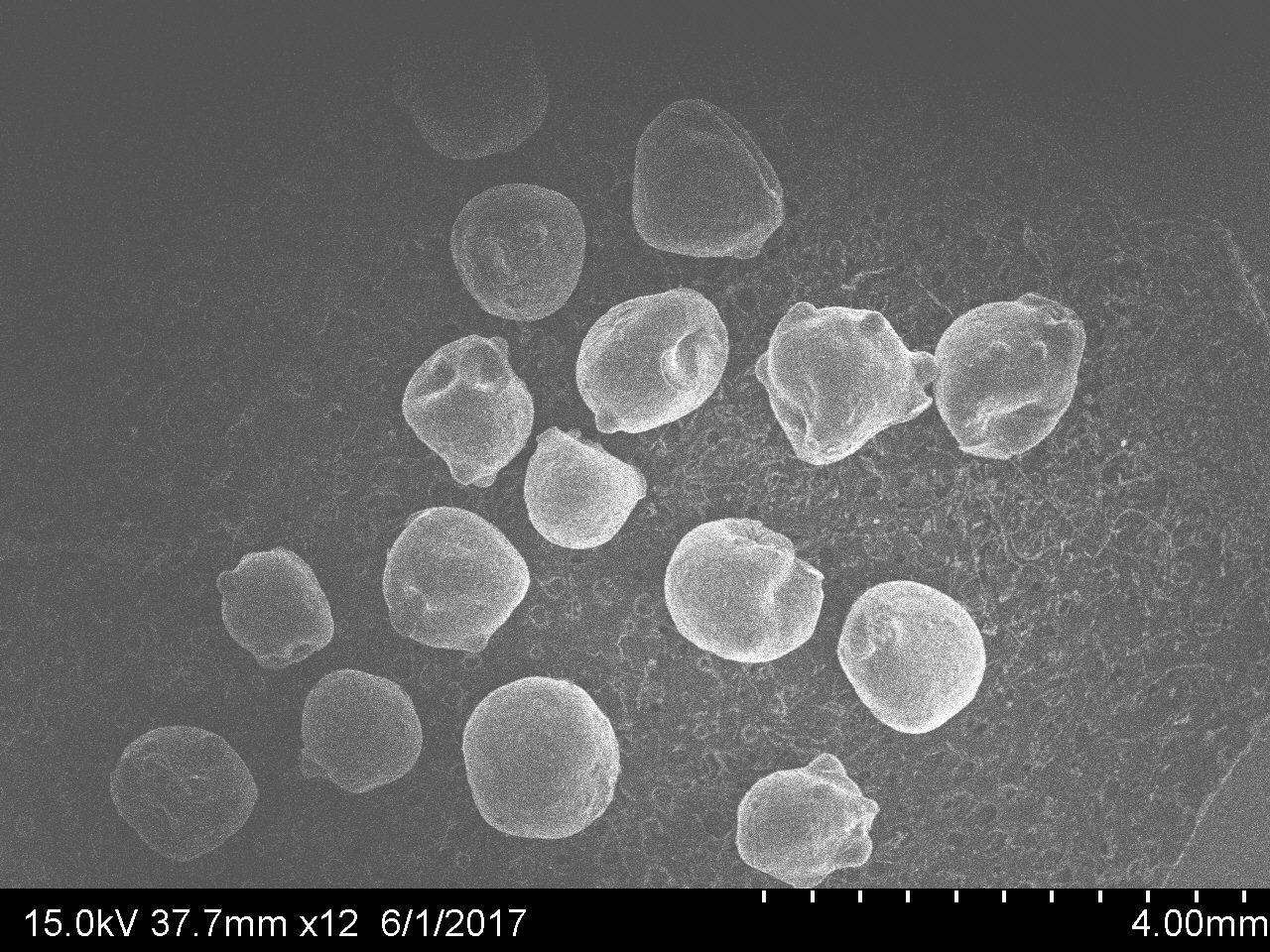

Fig. 2: Scanning electron microscopy of a) group of drug loaded LBG-microspheres, b) surface morphology of un-coated drug-loaded microspheres, c) coated drug loaded microsphere
FTIR studies
To investigate the interaction between drug and polymer FTIR studies were carried out. The FTIR Spectra for the Pure drug, Polymer, Microsphere formulation were analyzed. The FTIR Spectrum of the pure drug shows a characteristic peak at 1266.2 cm-1 for C-N stretching vibration, 1794.7 cm-1 and 1487.9 cm-1 indicating the presence of benzene ring and at 1602.3 cm-1 indicates for N-H in-plane bending. Other peaks observed are 1651.0 cm-1 for C=O stretching vibration of carboxylic acid and 2982.8 cm-1 for acryl C-H stretching. The spectrum was overlapped and with the drug-loaded microsphere formulation and was observed that no new bond was formed and there was no interaction with polymer indicating good compatibility between the drug and the polymer (fig. 3).
DSC studies
The DSC studies carried out to observe the thermal behavior of drug-loaded microspheres whether the drug was encapsulated in them or not. The characteristic endothermic peak appeared at 298.38 °C and 163.50 °C for Mesalamine and Locust bean gum respectively was disappeared in drug-loaded microsphere formulation but had a characteristic new peak at 207.78 °C (fig. 4). A significant peak change in DSC thermogram confirmed that mesalamine had experienced chemical interaction and had been entrapped into the microsphres. This explains the molecular encapsulation of mesalamine in the matrix of the polymer.

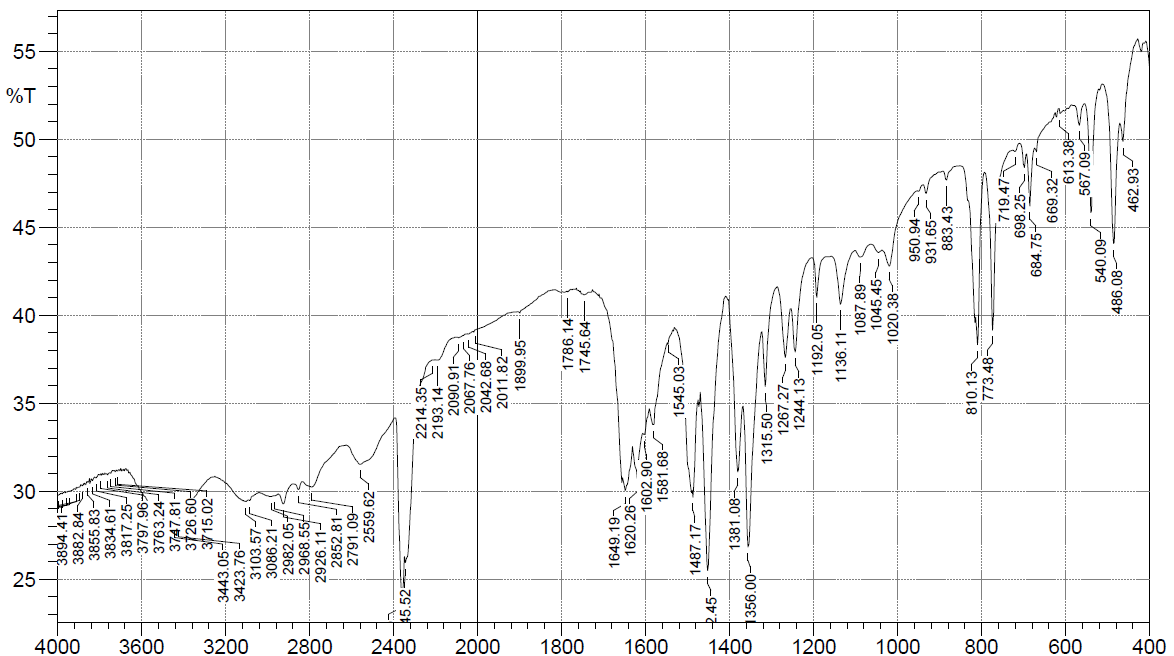

Fig. 3: FTIR results of pure drug, locust bean gum, MSL-loaded locust bean gum microspheres, *MSL-mesalamine, LBG-locust bean gum, LBGF-locust bean gum formulation

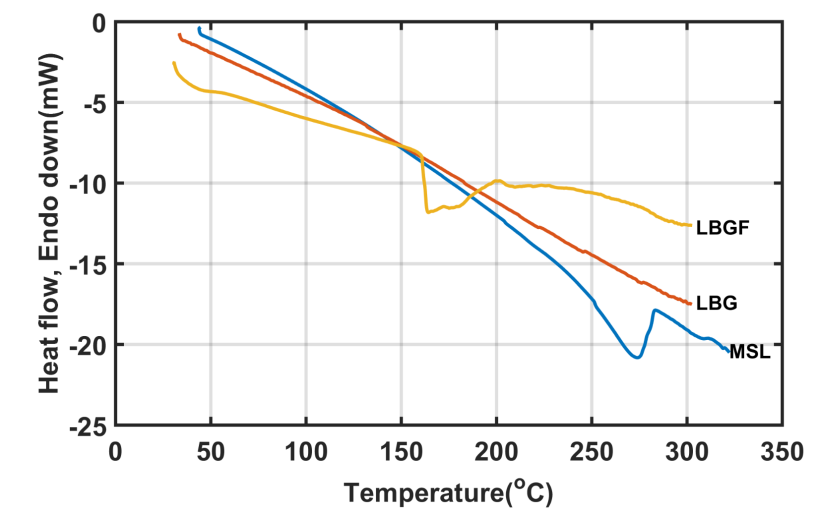

Fig. 4: DSC curves of the pure drug, locust bean gum, MSL-loaded locust bean gum microspheres, *MSL-mesalamine, LBG-locust bean gum, LBGF-locust bean gum formulation
In vitro drug release
All formulation batches were subjected to in vitro drug release studies in SGF (pH-1.2) for first 2h and SIF (pH-7.4) for 3h later and in SIF (pH-6.8) up to 24h to observe the drug release of the microspheres in the stomach, small intestine, large intestine respectively. The amount of drug release for the optimized formulation in first 5h studies showed that the polymer matrix remained intact in the stomach and small intestine environment and the gelling property of the polymer retards the drug release from the matrix. There was an initial release of drug in the first 2h of the studies indicating the un-entrapped drug on the surface of the matrix of the microsphere but later due to the formation of the viscous gel layer around the sphere, the drug release was retarded. The polymer matrix could retard the drug release up to around 7h. To retard the drug release up to 24 h the optimized formulation was coated with Eudragit S-100 in three different concentrations (4 % w/v, 8% w/v, 15% w/v) and the drug release studies were performed. Of all the formulated batches ILBG6 was selected as the optimized formulation which showed good entrapment efficiency. Due to the coating of the microsphere, the drug release was retarded for more than 24 h. Of the three concentrations of coating solutions formulation coated with 8% w/v showed good retardation and optimized release of drug for 24h, while the 4%w/v and 15%w/v formulation had a fast release before 24 h and retardation which had very low release even after 24 h respectively. The In vitro drug release studies were performed with and without rat caecal contents for the final optimized formulation and the release was compared.
The amount of drug release from the formulation was found to be higher in the presence of rat caecal contents (98.28±4.42) % due to the degradation of the polymer matrix by colonic enzymes released by colonic bacteria than without rat caecal contents (73.58±3.49) in the SIF medium (fig. 5). Since being non-ionic in nature locust bean gum was not affected by pH or ionic strength which makes it efficient in retard the drug release in the gastric and intestinal pH and once reaches the large intestine the polymer gets degraded by the microfloral enzymes of colonic bacteria which cause the breakdown of the 1, 4-linked β-D-mannopyranose units of natural polymer and thus cause the release of the drug locally in colon. To extend the retardation of drug release the optimized formula was coated with pH-sensitive polymer eudragit S-100 which does not degrade below the pH 7. The presence of rat caecal contents increase the drug release because of the bacterial enzymes present in them. The polymer concentration and cross-linking agent amount had a significant effect on the size, shape, surface morphology and entrapment efficiency and in vitro drug release profiles of the formed microspheres. The molecular structure of the polymer and the polymer coating of drug release and the rat caecal contents have a significant effect on the drug release from the microspheres.
Stability studies
The entrapment efficiency and in vitro drug release had no significant decrease when compared with the formulation before stability studies. Hence the formulations are found to be stable.
Release kinetic study
All the release data were fitted to various kinetic models like zero order, first order Korsmeyer-Peppas, Higuchi to find out the mechanism of drug release from the polymeric matrix of microspheres. The in vitro release from the core microsphere (Locust bean gum microsphere) was found to be following Higuchi diffusion since the plots provide the highest linearity.
For all LBG-microspheres, then value as per Korsmeyer-Peppas model was found to be between 0.44 and 0.82, indicating anomalous release behavior of the drug, i.e., both diffusion and dissolution of the hydrated polymer matrix might be responsible for drug release from the microsphere. Coated microspheres followed Fickian kinetics with the value n<0.44 as per the Korsmeyer-Peppas model which might be due to relaxation of the polymer matrix; followed by the diffusion matrix (table 4).
The release of drug from the coated microspheres is by the first relaxation of the matrix by dissolution of polymer matrix structure further diffusion through the pores formed in the matrix.
a)
b)
c)
d)

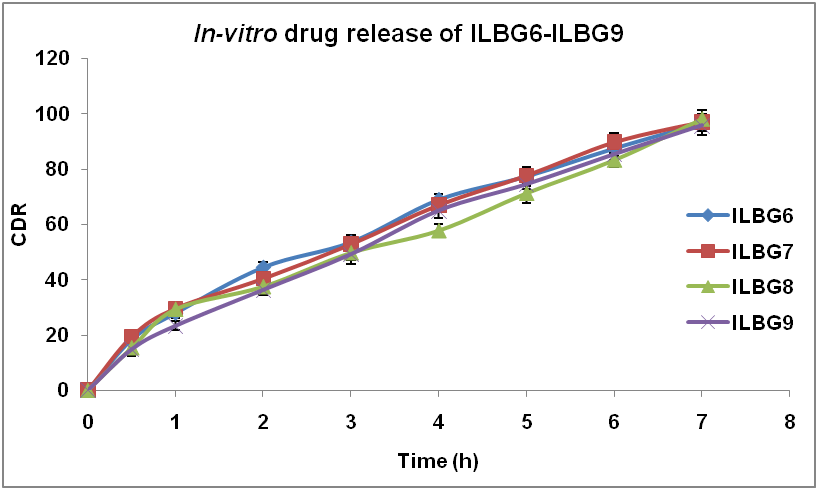

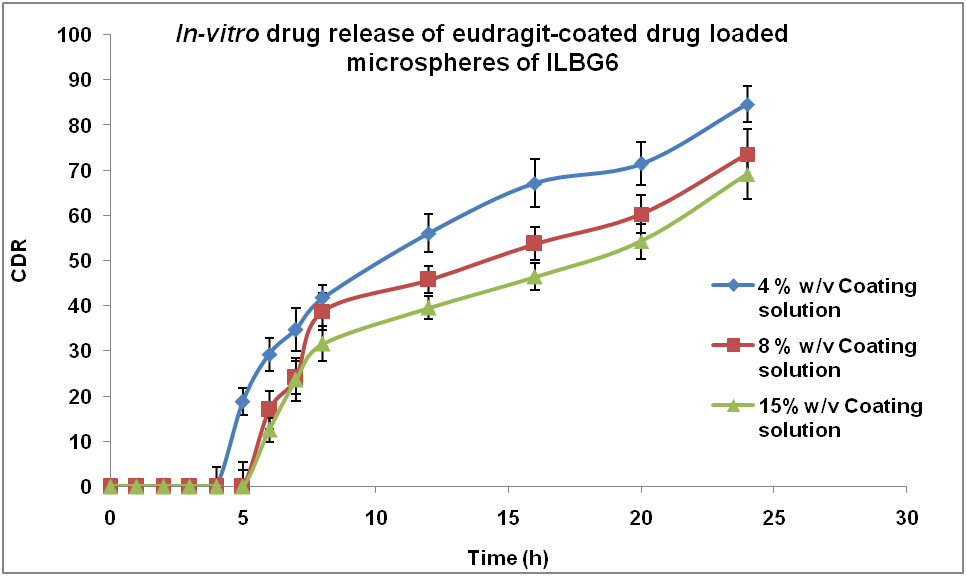

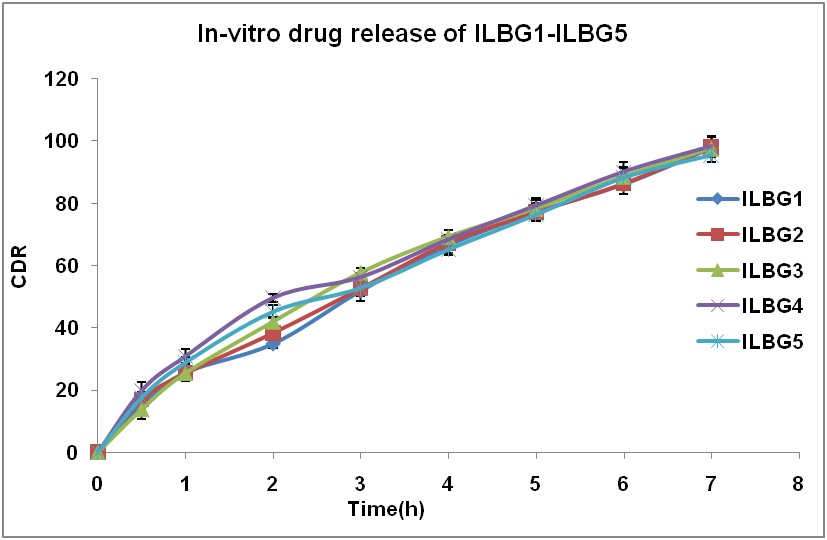

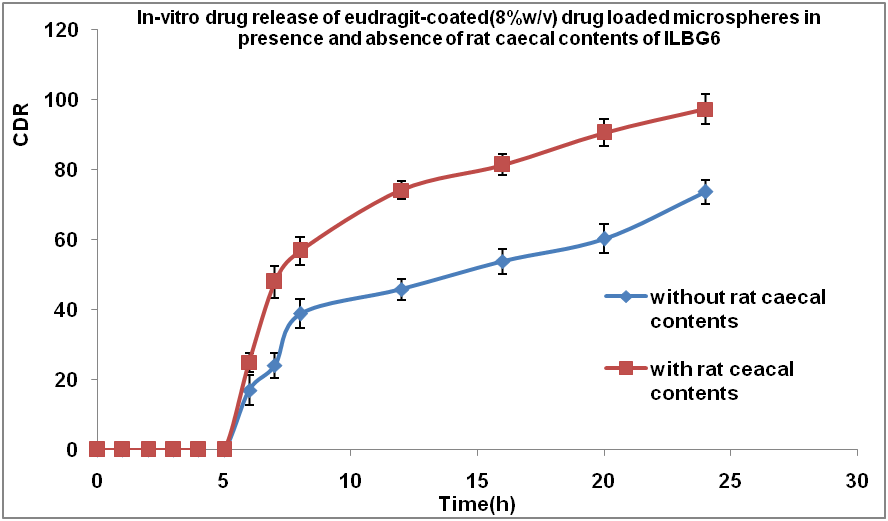

Fig. 5: In vitro drug release curves of a) ILBG1-ILBG5,b) ILBG6-ILBG9,c) Eudragit-coated drug-loaded microspheres of ILBG6,d) Eudragit-coated(8%w/v) drug-loaded microspheres in presence and absence of rat caecal contents of ILBG6, *All readings are expressed as mean±standard deviation (n=3), *CDR-Cumulative percentage drug release
Table 4: Comparison of different dissolution kinetic models
| Formulation | Zero-order | First order | Higuchi | Korsmeyer-Peppas | |
| R2 | R2 | R2 | R2 | N | |
| ILBG1 | 0.894 | 0.976 | 0.980 | 0.959 | 0.52 |
| ILBG2 | 0.898 | 0.987 | 0.993 | 0.986 | 0.61 |
| ILBG3 | 0.942 | 0.896 | 0.992 | 0.984 | 0.76 |
| ILBG4 | 0.946 | 0.966 | 0.996 | 0.980 | 0.67 |
| ILBG5 | 0.971 | 0.974 | 0.989 | 0.983 | 0.44 |
| ILBG6 | 0.939 | 0.987 | 0.990 | 0.985 | 0.78 |
| ILBG7 | 0.954 | 0.967 | 0.979 | 0.961 | 0.82 |
| ILBG8 | 0.969 | 0.950 | 0.976 | 0.968 | 0.46 |
| ILBG9 | 0.964 | 0.965 | 0.976 | 0.963 | 0.49 |
CONCLUSION
The ionic gelation method was proposed for the preparation of locust bean gum microspheres was found to be a good technique to entrap mesalamine and was capable of targeting the release of the anti-inflammatory drug (mesalamine) in the colon for the management of colitis. Various parameters studied such as particle size, entrapment efficiency, in vitro drug release the capability of locust bean gum microspheres in delivering the therapeutic moiety to the colon. Ther locust bean gum microspheres formulations require for further in vivo studies to scale up the technology.
