Int J App Pharm, Vol 10, Issue 1, 2018, 109-114Original Article

OPTIMIZED DELIVERY OF DICLOFENAC SODIUM FORMULATED IN A SUSTAINED RELEASE RAPHIA AFRICANA HYDROCOLLOID MATRIX

MUSILIU ADEDOKUN*, CLEMENT NKANTA

Department of Pharmaceutics and Pharmaceutical Technology, Faculty of Pharmacy, University of Uyo, Nigeria
Email: mo_adedokun@yahoo.com

Received: 04 Oct 2017, Revised and Accepted: 28 Nov 2017

ABSTRACT

Objective: The aim of this research work was to comparatively study various proportions of a natural hydrocolloid-Raphia africana, and polyvinylpyrrolidone (PVP) as release sustaining agents in diclofenac sodium tablet formulation.

Methods: The purified hydrocolloid (R. africana) was characterized by evaluating its organoleptic, physicochemical and flow properties. Diclofenac-polymer ratios of 1:0, 1:0.2, 1:0.4, 1:0.6, and 1:0.8 were employed to produce different granule batches using wet granulation method (that is, the drug was formulated with 0, 5, 10, 15 and 20 % w/w of either R. africana hydrocolloid or PVP, and coded DWB-00, DRA-05, DRA-10, DRA-15, DRA-20, DPP-05, DPP-10, DPP-15 and DPP-20, respectively). Flow properties of granules were studied by determining bulk density, tapped density, Carr’s index, and Hausner’s ratio for all the formulations. Compressed tablets were evaluated using various parameters as weight variation, friability, hardness, tablet thickness and diameter, content uniformity and in vitro dissolution evaluated in phosphate buffer (pH 7.3).

Results: Flowability, mechanical and release parameters determined were within pharmacopoeial limits. Generally, the values of bulk and tapped densities increase as binder concentrations increase for both PVP and R. africana hydrocolloid. The values were significantly different across the batches (p<0.05). Hardness values obtained varied significantly (p<0.05) and were between 5 and 12 KgF which imply that most of the tablet batches are harder than normal depending on the proportion of the polymer used. All the batches exhibited friability within the standard limit without significant difference in values (p>0.05), indicating that tablet formulated with the experimental binders would not undergo surface abrasion. All the formulations exhibited zero order kinetics except batches DPP-10 and DPP-15 which showed Higuchi mechanism. Formulation batches DRA-05 and DRA-10 showed maximum drug release of 98% and 95% respectively after 6 h. A prolonged drug release was observed on increasing polymer ratio. Significantly higher release rates (p<0.05) were observed in the tablets formulated with PVP than those containing R. africana gum. All the batches followed non-fickian diffusion release mechanism.

Conclusion: From the study, purified R. africana hydrocolloid generally appeared to perform better than PVP as sustained release agent.

Keywords: R. africana hydrocolloid, Diclofenac sodium, Sustained release, Zero order kinetics

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i1.22925

INTRODUCTION

The sustained release pharmaceutical delivery system is formulated to retard the release of a therapeutic agent such that its appearance in the systemic circulation is delayed and/or prolonged and its plasma profile is sustained in duration [1]. This duration is in hours for oral dosage forms and varies from days to months in the case of parenteral products. According to some researchers, the basic rationale of sustained release drug delivery system development is to optimize the bio-pharmaceutical, pharmacokinetic and pharmaco-dynamic properties of a drug so as to achieve and maintain a constant drug blood level such that its utility is maximized, side effects are reduced and the cure of the disease is achieved [2-4] Employment of prolonged release formulation as supposed to conventional immediate release ones has been a widely accepted approach as it would afford the patient better compliance and enhanced bioavailability [5, 6].

Recently, polymers of plant origin have attracted tremendous interest due to their wide application as pharmaceutical adjuvants such as diluents, binders, disintegrants, thickeners, protective colloids as well as gelling agents. These natural hydrocolloids and mucilage are preferred to the synthetic ones because they are non-prohibitive, bio-compatible, and readily available than the latter. Moreover, the natural excipients are relatively non-toxic, non-irritant, possesses soothing effects and more readily available than the synthetic and semi-synthetic ones [7]. For instance, the choice of a suitable binder for a tablet formulation requires extensive knowledge of the binder properties for enhancing the strength of the tablet and also the interaction between the various materials constituting a tablet [8].

Raphia palm which belongs to the large family, Arecaceae, is a genus of about twenty species native to tropical regions of Africa and especially Madagascar with one species (R. teadigra) also occurring in Central and South Africa. They grow up to 16 m tall with basically clustered stems and long leaves, and are remarkable for their compound pinnate leaves, the longest in the plant kingdom. The plants are either monocarpic, flowering once and then drying after the seeds are mature, or hypoxanthic, with individual stems dying after fruiting but the root system remaining alive and sending up new stems [9, 10].

Diclofenac is the most widely used of non-steroidal anti-inflammatory drugs (NSAIDs) in the treatment of rheumatic disorders. The name diclofenac is derived from its chemical name: 2-(2, 6-dichloranilino) phenylacetic acid [11]. The drug has been shown to inhibit the lipoxygenase pathways thereby reducing the formation of the leukotriene. As part of its mode of action, diclofenac may also inhibit phospholipase A2 [12]. It is characterized by rapid systemic clearance, and thus warrants the use of sustained release formulation for prolonged action and to improve efficacy [13]. Also, the various experimental reports such as solubility, pH and half-life indicated diclofenac as a good candidate for sustained release formulation.

A thorough literature search showed that R. africana hydrocolloid, though possesses good binding properties in conventional tablets [14], its activity as a release sustaining agent has not been evaluated. Thus, this study was primarily designed to formulate sustained release diclofenac sodium tablet with R. africana hydrocolloid as a binder and assess its dosage sustainability, using such parameters as weight variation, friability, hardness, tablet thickness and diameter, content uniformity and dissolution test.

MATERIALS AND METHODS

Materials

The materials used are diclofenac sodium powder (Sigma-Aldrich, USA), polyvinylpyrrolidone (PVP) (FSA Lab Supplies, England), talc powder, lactose, maize starch (BDH Chemicals Ltd, Poole, UK), magnesium stearate (Sigma-Aldrich, USA), Raffia gum was extracted and purified in the Pharmaceutical Technology Laboratory, University of Uyo, Nigeria. All other materials employed were of the Analar grade.

Methods

Gum extraction

Raphia gum was obtained from the incised trunk of R. africana palm at a village in Uyo Local Government Area of Akwa Ibom State, Nigeria. The plant was authenticated in the herbarium facility of the Faculty of Pharmacy, University of Uyo, Nigeria and the voucher number of authentication is UUPH8 (eii). The gum was purified using an established procedure [10, 15, 16]. The raw Raffia gum was hydrated in 0.5: 95.5 (v/v) chloroform water mixture for 5 d with intermittent stirring; extraneous materials were removed by straining through a piece of calico cloth. The gum was precipitated from solution using absolute ethanol. The precipitated gum was filtered washed with diethyl ether and then dried in hot air oven at 40 °C for 18 h. The dried gum was pulverized using a laboratory blender (Neelam Industries, India). The extracted gum was screened to obtain fines (<180 µm) and the percentage yield of the gum then computed.

Physicochemical properties

Moisture content and pH

The moisture content of the purified gum was determined by employing an Ohaus moisture balance (Ohaus Scale Corporation, USA). The pH of the supernatant liquid obtained after shaking a 2 g quantity of the gum powder with 100 ml of distilled water for 5 min was determined using a pH meter (Kent Industrial Measurements, England).

Swelling index

The swelling index of the gum sample was determined by the method employed by some workers [17, 18]. A quantity (1 g) of the powdered and dried sample was poured into 15 ml plastic centrifuge tubes and the volume occupied was recorded (V1). Ten milliliters (10 ml) of distilled water was added and stoppered. The dispersion was mixed on a vortex mixer (Vortex Gennie Scientific, USA) for 2 min and then allowed to stand for 10 min and thereafter immediately centrifuged at 1000 rpm for 10 min on a centrifuge (GallenKamp, England). The supernatant was decanted and the volume of sediment obtained (V2). The swelling index was then calculated as follows:

…………… (1)

Water absorption capacity (WAC)

To 2.5 g of gum sample in a weighed 50 ml centrifuge tube, 30 ml of distilled water was added. This was then agitated on a vortex mixer for 2 min, centrifuged at 400 rpm for 20 min (Optima Centrifuge, Type BHG 500, Germany) and the supernatant carefully decanted. The residue was weighed (W1). The adsorbed drops of water were removed by drying the residue at 60 °C to constant weight (W2) in an oven. WAC was then expressed as the weight of water bound by 100 g dry gum powder [19]:

.100 …………… (2)

Evaluation of flow and density properties of purified gum

Angle of repose

The fixed funnel and free-standing cone method [20-22] was employed to determine the static angle of repose of the purified gum. A glass funnel was clamped on a retort stand with its tip 2 cm above a plain white sheet of paper, placed on a flat horizontal surface. A 30 g quantity of the powder was carefully poured through the funnel until the apex of the cone-shaped heap thus formed by the powder just reached the tip of the funnel. The height of the sample (H) was obtained using a cathetometer. The diameter (D) of the static base was divided by two to obtain the radius R. Angle of repose (Ɵ) for the gum was then calculated using the equation:

…………… (3)

Flow rate

The flow rate was determined by clamping a clean dry funnel on a retort stand at a fixed position such that its lower tip was 8 cm above a piece of plain white sheet of paper placed on the horizontal bench surface directly under the funnel tip. The orifice of the funnel was blocked at the tip and 30 g of the gum powder was accurately weighed into the funnel. The bottom of the funnel was unblocked and the time taken for the entire sample to flow out of the funnel was taken. The flow rate was then determined as the mass of the sample per unit time (g/s).

Bulk and tapped densities

A 25 g quantity of the gum powder was placed in a 100 ml clean, dry measuring cylinder and the volume Vb occupied by the sample without tapping was determined. After some mechanical taps of the cylinder on a padded horizontal surface, the tapped volume Vt was recorded (when a constant volume was reached). The means of four determinations was taken. The bulk and tap densities, Dband Dt (g/cm3) were calculated as the ratio of sample weight to volume (V0 and Vt respectively) [22].

Hausner’s index

The Hausner’s index was calculated as the ratio of the tapped density to the bulk density of the sample, that is,

…………… (4)

Carr’s compressibility index (CI %)

The value of CI was computed by employing the following equation:

100 …………… (5)

Preparation of diclofenac granules

Diclofenac sodium granule preparation was carried out based on the following formula:

Diclofenac sodium-100 mg Polymer-x % Magnesium stearate-1 % Talc-1 % Corn starch-5 % Lactose-q. s

NOTE: x ranges from 0–20 %

Each batch of 20 g of granule was prepared by incorporating either Raphia gum extract or PVP as a binder at 5%, 10%, 15% and 20% with other ingredients as presented in table (1). Appropriate quantities of diclofenac sodium, cornstarch and lactose were weighed out and mixed using mortar and pestle to obtain a homogenous mix. Then an appropriate amount of the binder (Raphia gum) was dispersed in a small quantity of hot water and was used to granulate the homogenous powder mixture in the mortar to form a damp coherent mass. The wet mass was passed through a 2.0 mm stainless steel sieve with the aid of a spatula. The wet granules were dried in the hot air oven at a temperature of 50 °C for about an hour after which they were further passed through the 1.0 mm stainless steel sieve to obtain finer granules. This was repeated for the different batches varying the ingredients based on the formula in the table (1).

Evaluation of the flow and density properties of diclofenac sodium granules

Various flow and density characteristics for all the batches of prepared granules–angle of repose, flow rate, bulk and tapped densities, Hausner’s ratio and Carr’s index–were evaluated using the same methods as earlier explained for purified gum powder.

Preparation of tablets

Carefully weighed magnesium stearate (0.2 g) and talc (0.2 g) were mixed with each batch of granule in a sample bottle and then transferred into a beaker. Each tablet of 400 mg was compressed using a single punch tabletting machine (SSF-3) (Cadmach machinery CO. PVT. Ltd; India) at a compression pressure of 35 kN. Each batch of tablets produced was then stored in an airtight container for further analysis.

Table 1: The basic formula for the preparation of sustained release diclofenac sodium tablet containing 100 mg of the drug per unit

Ingredients DWB-00a DRA-05b DRA-10b DRA-15b DRA-20b DPP-05c DPP-10c DPP-15c DPP-20c
Diclofenac Na 100 mg 100 mg 100 mg 100 mg 100 mg 100 mg 100 mg 100 mg 100 mg
Raffia gum − 20 mg 40 mg 60 mg 80 mg − − − −
PVP − − − − − 20 mg 40 mg 60 mg 80 mg
Magnesium stearate 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg
Talc 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg 4 mg
Starch 20 mg 20 mg 20 mg 20 mg 20 mg 20 mg 20 mg 20 mg 20 mg
Lactose 272 mg 252 mg 232 mg 212 mg 192 mg 252 mg 232 mg 212 mg 192 mg
Total 400 mg 400 mg 400 mg 400 mg 400 mg 400 mg 400 mg 400 mg 400 mg

aDWB-00 is diclofenac tablet formulation without binder (that is, 0.0% binder), bDRA are diclofenac tablet formulations containing R. africana gum binder at concentrations of 05, 10, 15 and 20 %w/w, cDPP are diclofenac tablet formulations containing polyvinylpyrrolidone (PVP) binder at concentrations of 05, 10, 15 and 20 % w/w.

Evaluation of tablet physicomechanical properties

Tablet dimensions

The diameter and thickness of ten tablets from the different batches were determined using a micrometre screw gauge (0.25x0.01 mm). The average values were then computed for each batch [23].

Weight uniformity

Twenty tablets were obtained from each of the batches and weighed individually with an electronic analytical weighing balance (Ohaus Scale Corporation, USA). The mean weight and standard derivation were determined for each tablet batch to establish whether or not it conforms to the official weight uniformity standards [23, 24].

Hardness test

Tablet hardness was determined using the Monsanto hardness tester, India (MHT-20). Ten tablets from each batch were used. Each tablet was placed diametrically between the jaws of the tester and the force needed to just crush the tablet was noted. The mean of the hardness was also determined [23, 25].

Friability test

Ten tablets from each batch were obtained, de-dusted, weighed and placed in separate drums of a Roche friabilator (DT-2D). The tablets were tumbled for 4 min at a speed of 25 revolutions per minute. The tablets were then removed, de-dusted and weighed again. The friability of the tablets was expressed as a percentage using the formula below [23, 25].

100 …………. (6)

Tablet dissolution and release kinetics studies

In vitro dissolution test for the tablets was carried out using the United States Pharmacopoeia basket method in the tablet dissolution test apparatus [26]. The tablet was placed in a wire mesh basket suspended in a dissolution medium of 900 ml of dissolution medium containing 2.1 %w/v of citric acid and pH phosphate buffer maintained at 37 in a water bath. The wire mesh basket was rotated at a speed of 50 rpm. The experiment was allowed to run for 6 h and 10 ml aliquot withdrawn at 30 min intervals filtered through Whattman filter paper No.2 and assayed spectrophotometrically using the UV 2100 spectrophotometer. The assayed was done at a wavelength of 276 nm where diclofenac experiences peak absorption. An equal volume of fresh medium was replaced into the dissolution medium after each sampling to maintain the constant volume throughout the test. The concentration of the active ingredient was then obtained from the standard Beer Lambert’s plot. The data obtained from the dissolution studies were fitted into the release kinetics of Zero order, First order, Higuchi and Korsmeyer equations using the model dependent methods [27, 28].

Content uniformity test

Ten tablets were selected randomly from each batch and powdered. A quantity of this powder corresponding to 100 mg of diclofenac sodium was dissolved in 100 ml of 7.3 pH phosphate buffer stirred for 60 min and filtered. A quantity of 1 ml of the filtrate was diluted to 100 ml with the phosphate buffer. The absorbance of this solution was measured at 276 nm and content of diclofenac sodium was estimated [26, 29].

All the determinations were made in quadruplicates and the values presented were the average values (±standard deviations).

Statistical evaluation

All determinations were carried out in quadruplicates (n = 4). Values of parameters were presented as mean±SD. Statistical evaluation was performed by employing a two-way Analysis of Variance (ANOVA) on a computer software GraphPad Prism® 4 (GraphPad Software Inc., San Diego, USA). Post-hoc (Turkey-Kramer multiple comparison) tests was used in comparing the individual differences between the samples. At 95 % confidence interval, probability (p) values less than 0.05 were considered statistically significant.

RESULTS AND DISCUSSION

The pure gum obtained from R. africana exudates was 30.4 %w/w. From the result obtained from the evaluation of gum powder flow (table 2), it was found that the flow rate, Carr’s index, Hausner’s ratio and angle of repose had values that comply with the official standard for good powder flowability.

Table 2: Flow properties of purified R. africana hydrocolloid

Parameters R. africana hydrocolloid

Angle of repose ( °)

39.60

Flow rate (g/sec)

1.90

Bulk density (g/ml)

0.68

Tapped density (g/ml)

0.88

Carr’s index (%)

22.72

Hausner’s ratio

1.29

Data presented are as mean values±SD, n = 4

The values of physicochemical properties (moisture content, pH, swelling index, water absorption capacity and moisture sorption capacity) determined for the hydrocolloid are presented in table (3). The values indicate not only that the performance of the experimental hydrocolloid as excipient would be enhanced; it is also suggestive of its compatibility with other components of the formulation [10, 14].

Table 3: Physicochemical properties of purified R. africana hydrocolloid

Parameters R. africana hydrocolloid

Moisture content (%)

7.20

pH

6.79

Swelling index

3.95

Water absorption capacity (g/100 g)

78.00

Moisture sorption capacity (%)

102.50

Data presented are as mean values±SD, n = 4

The pre-compression evaluation of flowability and densification of the formulated granules equally depict good flow (as shown in table 4). The higher the concentrations of either PVP or R. africana hydrocolloid, the higher were the values of bulk and tapped densities. Generally, as the size of granules increases, the orifice would be blocked and the flow retarded.

Table 4: Flow and density properties of sustained release diclofenac Na formulated with R. africana gum and PVP binders

Batches Angle of repose Flow rate (g/s) Bulk density (g/cm3) Tapped density (g/cm3) Hausner’s ratio Carr’s index
DWB-00 21.801.00 5.380.18 0.5250.020 0.5890.011 1.120.018 10.861.01
DRA-05 26.561.09 5.350.20 0.5500.018 0.6230.028 1.130.028 11.720.91
DRA-10 25.271.22 6.330.21 0.6250.021 0.6900.025 1.100.026 10.400.75
DRA-15 26.562.02 6.050.21 0.6350.030 0.7330.026 1.150.031 15.432.00
DRA-20 25.641.26 6.110.09 0.6450.015 0.6880.028 1.060.022 6.660.88
DPP-05 25.941.25 5.840.18 0.5450.022 0.5970.019 1.090.045 9.540-90
DPP-10 30.392.41 4.640.02 0.4840.012 0.5530.015 1.140.019 14.252.01
DPP-15 29.552.50 5.200.03 0.5460.020 0.6000.022 1.090.033 9.891.04
DPP-20 25.902.52 7.140.02 0.6230.022 0.7230.020 0.860.017 16.051.08

Data presented are as mean values±SD, n = 4

Mechanical properties of the compressed tablets are presented in table (5). The thickness and diameter of a tablet al. so play a key part in dose uniformity. The diameter size and shape of tablet depend on the die and punches selected for making the tablet. From the values of tablet dimensions determined, the tablets generally exhibited uniform diameter and conform to the limits for tablets. Tablet thickness is an important quality control test for tablet packaging. Tablet thickness may influence ease of packaging either in blisters or plastic containers. Tablet thickness can vary without any change in its weight. This may depend on the die size of the tablet machine as well as the force applied to compress the powder. It can also be influenced by the different density of granules and the speed of compression. From the result, the tablets exhibited good uniformity of thickness and conform to the official standard limit.

The uniformity of weight of tablets contributes to the dose uniformity of a drug [26]. The data obtained for weight uniformity test indicate that the tablets possess significant dose uniformity. Variations in tablet weight may be due to inconsistent powder or granule density and particle size distribution.

Official hardness values for conventional immediate release tablets range from 4-6 kgF but 5-8 kgF for sustained release tablets [7, 26, 30]. From the study, the hardness obtained ranges from 5-12 kgF which imply that most of the tablet batches are harder than normal. This difference in hardness may be due to the quantity of the polymer used. There was significant variation (p<0.05) observed between the hardness values between the tablets formulated with either of the two binders. Tablet hardness influences the rate of release of drug during dissolution test. If a tablet is too hard, it may be difficult to dissolve during dissolution test and soft tablet cannot withstand the pressure force applied to it. The nature of the polymer used as binder influences the hardness of tablets. Hardness influences compaction and tablets with high compaction have a high ability to retard solvent penetration into the tablet core.

All the formulated tablets had friability within the official limits of ≤ 1% [30], and the difference between the values was statistically insignificant (p>0.05). Indicating that tablet formulated with the experimental binders would. Friability test measures the ability of tablets to withstand abrasion during packaging, handling, and shipping. The normal limit for friability is less or equal to Lower values observed implies that the tablet would not readily undergo surface abraision upon handling. All the batches complied with the standard requirement for uniformity of active ingredient. That is, diclofenac content of the tablets was relatively uniform for most of the batches and statistically, there was generally no significant difference in the drug content across the batches (p>0.05). Thus, when such tablets are administered, no dose variation is expected [26].

Table 5: Mechanical parameters of diclofenac Na tablets formulated with with R. africana gum and PVP binders

Batch Weight variation (g) Hardness (kgF) Friability (%) Diameter (mm) Thickness (mm) Drug content (%)
DWB-00 0.40 4.45 1.11 12.51 2.56 82.67
DRA-05 0.40 8.20 0.43 12.50 2.57 80.008.5
DRA-10 0.40 9.30 0.45 12.53 2.58 77.33
DRA-15 0.40 10.25 0.20 12.55 2.58 73.50
DRA-20 0.40 5.85 0.230.01 12.50 2.54 72.83
DPP-05 0.40 6.85 0.45 12.50 2.53 83.00
DPP-10 0.41 6.85 0.22 12.50 2.52 80.00
DPP-15 0.40 5.58 0.22 12.55 2.52 76.32
DPP-20 0.40 10.65 0.45 12.55 2.53 75.15

Data presented are as mean values±SD, n = 4.

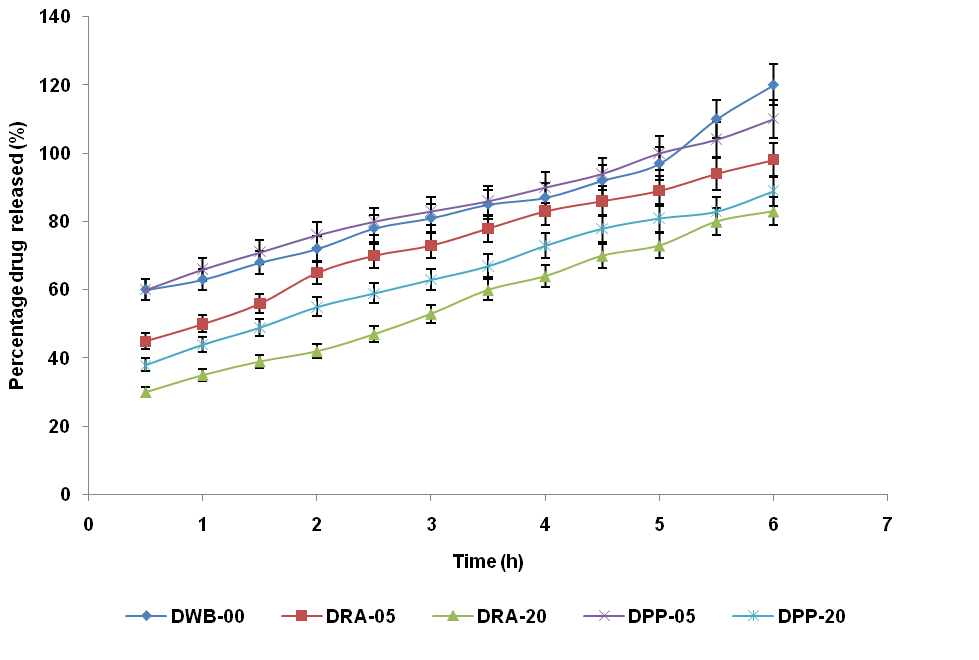

Fig. 1: Plots of percentage diclofenac released against time for tablets containing 5 % w/w and 20 %w/w of R. africana hydrocolloid and PVP as binders, n = 4; the graph was plotted from mean values of four (4) determinations

Table 6: Release kinetics for diclofenac tablets

Batches Zero-order First order Higuchi Korsmeyer n (diffusion)
DWB-00 0.961 0.702 0.906 0.877 0.54
DRA-05 0.984 0.974 0.992 0.975 0.58
DRA-10 0.990 0.977 0.986 0.964 0.65
DRA-15 0.998 0.964 0.970 0.949 0.71
DRA-20 0.996 0.975 0.967 0.947 0.73
DPP-05 0.992 0.750 0.977 0.954 0.52
DPP-10 0.979 0.894 0.994 0.976 0.62
DPP-15 0.971 0.967 0.995 0.970 0.68
DPP-20 0.994 0.962 0.988 0.973 0.72

From the results obtained for dissolution test, plots were made of percentage diclofenac released against time for all the tablets containing R. africana hydrocolloid and PVP as binders. Typical plots for tablets formulated with 5 %w/w and 20 % w/w of the binders are presented in fig. (1). Values obtained when data from dissolution studies were fitted into the equations of Zero order, First order, Higuchi and Korsmeyer are as shown in the table (6). Batches DWB-00, DRA-05, DRA-10, DRA-15, DRA-20, DPP-05, and DPP-20 showed zero order kinetics meaning that diffusion in these batches was independent of the initial concentration of drug in the dissolving medium. Two batches of the formulations containing synthetic polymer-DPP-10 and DPP-15 showed Higuchi kinetics. Therefore R. africana gum is a good choice for sustained release formulations, thus confirming the findings of Bhosale and co-workers that natural hydrocolloids are effective alternative binders to synthetic ones in the formulation of sustained release tablets [29]. The release rates shown by tablets containing PVP were significantly higher (p<0.05) than those exhibited by those containing R. africana hydrocolloid. The mechanism of release for all the batches followed non-fickian diffusion.

Batches formulated with polyvinylpyrrolidone (PVP) showed higher release than those formulated with R. africana gum. This may be due to slow hydration of matrix and its property to form a gel layer which retards the drug release from the tablet. Highest release of the polymer (Raffia gum) was obtained in batch DRA-05 with 98 % and DRA-10 with 95 % release. The highest release for the synthetic binder (PVP) was obtained in batches DPP-05, at 110 %, 103 % and 96%, respectively.

The results obtained indicate that the batches complied with the standard requirements for uniformity of active ingredients. This implies that the tablets contain a relatively uniform amount of active ingredient (diclofenac). As a result, the tablets would exhibit uniform potency which characterizes a positive content uniformity test result.

CONCLUSION

From the study, the use of Raphia gum as a binder in formulating sustained release diclofenac tablet was satisfactory based on compliance with official standards. All the formulations containing the natural gum exhibit sustained release with formulation DRA-20 containing 20 % of the gum found to release the drug in a slow, controlled manner with maximum drug release of 83% after 6 h. This implies that the percentage of drug release decreases with increasing polymer content. The rate of release for the synthetic polymer (PVP) was much higher than for the natural polymer (Raphia gum) thereby making Raphia gum a better candidate for sustained release formulation. The kinetics of drug release from the tablets followed zero order with non fickian diffusion mechanism.

ACKNOWLEDGEMENT

The authors appreciate the technical staff of Departments of Pharmaceutics and Pharmaceutical Technology, and Pharmacognosy and Natural Medicine, University of Uyo, Nigeria.

AUTHORS’ CONTRIBUTION

The first author conceived and designed the work, supervised the laboratory aspect, assembled, analysed and interpreted the data and wrote the final manuscript. The second author carried out the laboratory work and collected the raw data.

CONFLICTS OF INTERESTS

Declared none

REFERENCES

  1. Zheng Z, Wang X, Du X. Preparation and characterization of sustained release matrix tablets of tizanidine hydrochloride for spinal injuries. Trop J Pharm Res 2015;14:174-954.

  2. Salsa T, Veiga F, Pinna ME. Oral controlled release dosage forms. I. Cellulose ether polymers in hydrophilic matrices. Drug Dev Ind Pharm 1997;23:929-38.

  3. Burcea Dragomiroiu GTA, Miron DS, Baloescu C, Barca M, Mitu MA, Popa DE, et al. Comparative in vitro study of immediate and modified released oral dosage forms of cefaclor. Farmacia 2012;60:334-41.

  4. Tungaraza TE, Talapan-Manikoth P, Jenkins R. Curse of the ghost pills: the role of oral controlled-release formulations in the passage of empty intact shells in faeces. Two case reports and a literature review relevant to psychiatry. Ther Adv Drug Saf 2013;4:63-71.

  5. Rathbone MJ, Hadgraft J, Robert MS. editors. Modified release drug delivery technology, New York: Marcell Dekker Inc; 2003.

  6. Reddy MR, Manjunath K. Pharmaceutical applications of natural gums, mucilage and pectins. Chem Sci 2013;2:1233-9.

  7. Baveja SK, Rao KVR, Arora J. Examination of natural gums and muclages as sustaining materials in tablet dosage form. Indian J Pharm Sci 1988;50:89-92.

  8. Sujitha B, Krishnamoorthy B, Muthukumaran M. A role of natural polymers used in the formulation of pharmaceutical dosage forms. Int J Pharm Technol 2012;4:2247-62.

  9. Obahiagbon FI. A review of the origin, morphology, cultivation, economic products, health and physiological implications of raphia palm. Afr J Food Sci 2009;3:447-53.

  10. Adedokun MO, Olorunsola EO, Anselem EL. Comparative evaluation of metronidazole suspensions formulated with Raphia africana hydrocolloid and other natural polymers. J Appl Pharm Sci 2017;7:83-92.

  11. Fitz Gerald GA, Patrono C. The coxibs selective inhibitors of cyclooxygenase-2. New Eng J Med 2001;345:433-42.

  12. Solomon DH, Avorn J, Sturmer T. Cardiovascular outcomes in new users of coxibs and non-steroidal anti-inflammatory drugs: High-risk subgroups and time course of risk. Arthritis Rheum 2006;54:1378-89.

  13. Dutta NK, Mazumdar K, Dastidar SG, Park JH. The activity of diclofenac used alone and in combination with streptomycin against mycobacterium tuberculosis in mice. Int J Antimicrobial Agent 2007;30:336-40.

  14. Majekodunmi SO, Itiola OA. Physicochemical and binding properties of Raphia africana gum in paracetamol tablet formulations. Aca J Biotechnol 2016;4:177-85.

  15. Adedokun MO, Ayorinde JO, Odeniyi MA. Compressional, mechanical and release properties of a novel gum in paracetamol tablet formulations. Curr Issues Pharm Med Sci 2014;27:187-94.

  16. Bhosale RR, Riyaz AM, Osmani PC, Moin A. Formulation and evaluation of sustained release dosage form using modified cashew gum. Int J Pharm Pharm Sci 2015;7:141-50.

  17. Okhamafe AO, Igboechi A, Obaseki TO. Celluloses extracted from groundnut shell and rice husk 1: preliminary physicochemical characterization. Pharm World J 1991;8: 120-30.

  18. Ohwoavworhua FO, Adelakun TA. Some physical characteristics of microcrystalline cellulose obtained from raw cotton of Cochiospermum planchonii Trop J Pharm Res 2005;4:501-7.

  19. Solsulski FW. The centrifuge method for determining flour absorptivity in hard red spring wheat. Cereal Chem 1962;39:344–50.

  20. Momoh MA, Brown SA, Onunkwo GC, Chime SA, Adedokun M, Akpabio EI. Effect of hydrophilic and hydrophobic binders on the physicochemical properties of sodium salicylate tablet formulation. J Pharm Res 2012;5:2045-8.

  21. Adedokun M, Essien E, Uwah T, Umoh R, Josiah J, Jackson C. Evaluation of the release properties of microcrystalline cellulose derived from Saccharum officinarum L. in paracetamol tablet formulation. J Pharm Sci Res 2014;6:342-6.

  22. Deshpande AH, Wasule D. Design and evaluation of food grade wax matrix sustained release mini-tablets of montelukast sodium. Asian J Pharm Clin Res 2017;10:317-21.

  23. Chukka S, Shaik S. Development and characterization of gastro-retentive drug delivery system for ritonavir tablets using natural polymers. Asian J Pharm Clin Res 2017;10:318-22.

  24. Roy SKR, Naskar S, Kundu S, Koutsu K. Formulation and evaluation of sustained release bi-layer tablets of propranolol hydrochloride. Int J Pharm Pharm Sci 2014;7:264-9.

  25. Adedokun MO, Itiola OA. Material properties and compaction characteristics of natural and pregelatinized forms of four starches. Carbohydr Polym 2010;79:818–24.

  26. The United States Pharmacopoeia/National Formulary, USP 37/NF 32. Vol. I. The United States Pharmacopoeial Convention, Timbrook Parkway, Rockville; 2014. p. 344-6, 487, 491-4, 1145-7.

  27. Jackson C, Akpabio E, Umoh R, Adedokun M, Ubulom P, Ekpe G. Evaluation of Sesamum indicum gum as a binder in the formulation of paracetamol granules and tablets. Res Pharm Biotechnol 2012;4:1-5.

  28. Mohite PB, Khanage SG, Harish Chandra VS, Shirsath Y. Recent advances in microsponges drug delivery system. J Crit Rev 2016;3:9-16.

  29. Bhosale RR, Riyaz AM, Osmani PC, Moin A. Formulation and evaluation of sustained release dosage form using modified cashew gum. Int J Pharm Pharm Sci 2015;7:141-50.

  30. British Pharmacopoeia. Her Majesty’s Stationary Office, London. Vol. I; 2002.
