Int J App Pharm, Vol 10, Issue 3, 2018, 19-27Original Article
BIOANALYTICAL METHOD DEVELOPMENT AND VALIDATION FOR THE SIMULTANEOUS DETERMINATION OF VERAPAMIL AND ENALAPRIL IN THE PRESENT OF ENALAPRILAT BY HPLC-MS/MS
LILIYA LOGOYDA
Pharmaceutical Chemistry Department, Pharmaceutical faculty, I. Horbachevsky Ternopil State Medical University, Ternopil City, Ukraine
Email: logojda@tdmu.edu.ua
Received: 26 Nov 2017, Revised and Accepted: 03 Jan 2018
ABSTRACT
Objective: The main purpose of this study was to develop a simple, precise, rapid and accurate method for the simultaneous quantification of verapamil and enalapril in the present of enalaprilat in human plasma.
Methods: Analytes were extracted from plasma using a protein precipitation extraction method. Chromatography was achieved on Discovery C18, 50 × 2.1 mm, 5 μm column. Samples were chromatographed in a gradient mode (eluent A (acetonitrile–water–formic acid, 5: 95: 0.1 v/v), eluent B (acetonitrile–formic acid, 100: 0.1 v/v)). The initial content of the eluent B is 0%, which increases linearly by 1.0 min to 100% and to 1.01 min returns to the initial 0%. The mobile phase was delivered at a flow rate of 0.400 ml/min into the mass spectrometer ESI chamber. The sample volume was 5 μl.
Results: The total chromatographic run time was 2.0 min and the elution of verapamil, enalapril, enalaprilat and IS (bisoprolol) occurred at ~1.09, 1.03, 0.96 and 1.01 min, respectively. A linear response function was established at 1-100 ng/ml for verapamil hydrochloride, 2-200 ng/ml for enalapril maleate, 1-100 ng/ml for enalaprilat dehydrate in human plasma. The % accuracy of LLOQ samples prepared with the different biological matrix lots were found 99.2 % for enalapril, 103.4 % for enalaprilat, 90.6 % for verapamil, which were found within the range of 80.00-120.00% for the seven different plasma lots. % CV for LLOQ samples was observed as 4.9%, 5.9 %, 9.0 % respectively, which are within 20.00% of the acceptance criteria. The % mean recovery for enalapril in LQC, MQC and HQC was 103.6 %, 100.1 % and 102.4 %, for enalaprilat in LQC, MQC and HQC was 103.2 %, 98.0 % and 101.1 %, for verapamil in LQC, MQC and HQC was 97.9 %, 96.1 % and 98.6 % respectively.
Conclusion: A new rapid method was developed for simultaneous determination of verapamil and enalapril in the present of enalaprilat in human plasma. The method was strictly validated according to the ICH guidelines. Acquired results demonstrate that proposed strategy can be effortlessly and advantageously applied for routine examination of verapamil and enalapril in the present of enalaprilat in human plasma.
Keywords: Verapamil, Enalapril, Enalaprilat, HPLC-MS/MS, Validation, Human plasma
© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i3.23974
INTRODUCTION
Bioanalytical methods for appraising drugs and their metabolites in biological samples play an important role in calculating and interpreting data from the studies on bioavailability, bioequivalence, and pharmacokinetics.
Verapamil hydrochloride is a first generation calcium channel blocker used for treatment of hypertension, angina pectoris and supraventricular tachyarrhythmias. Verapamil has been linked to a low rate of serum enzyme elevations during therapy and to rare instances of clinically apparent acute liver injury. The chemical name of verapamil is 2-(3,4-dimethoxyphenyl)-5-[2-(3,4-dimethoxyphenyl)ethyl-methyl-amino] -2-propan-2-ylpentanenitrile (fig. 1) [1].
Enalapril maleate is chemically described as (2S)-1-[(2S)-2-[[(1S)-1-(ethoxycarbonyl)-3-phenylpropyl] amino] propanoyl] pyrrolidine-2-carboxylic acid (Z)-butenedioate (fig. 2). Enalapril maleate is a prodrug which metabolized rapidly in the liver to ethyl ester of a long-acting enalaprilat (fig. 3) which inhibits angiotensin-converting enzyme (ACE) in human subjects and animals [2, 3].

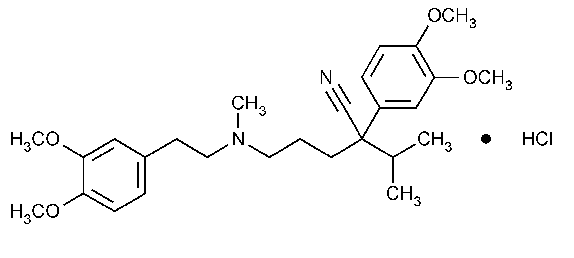

Fig. 1: Chemical structure of verapamil hydrochloride

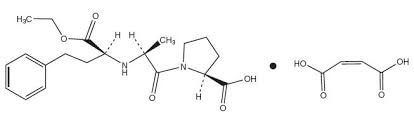

Fig. 2: Chemical structure of enalapril maleate
Fig. 3: Chemical structure of enalaprilat
In the contemporary literature, few bioanalytical methods were reported for quantification of verapamil and enalapril in the present of enalaprilat in human plasma [4-6]. Therefore, it was thought desirable to develop a simple, accurate, cheap and fast procedure that could be applied for the simultaneous determination of verapamil and enalapril in the present of enalaprilat in human plasma, this study performed assay validations as per guidelines [7]. While this method with validation details were economical and applied for pharmacokinetic studies of verapamil and enalapril.
MATERIALS AND METHODS
Chemicals and reagents
Verapamil (purity 100.0 %), enalapril (purity 99.3 %), enalaprilat (purity 100.0 %), bisoprolol (Internal Standard) (purity 99.9 %) were purchased from Moehs Catalana, S. L., Spain, Zhejiang Huahai Pharmaceutical Co., Ltd, КНР, EDQM–Council of Europe. HPLC grade acetonitrile and methanol were purchased from CHROMASOLV, HPLC grade formic acid were purchased from Fluka. All other chemicals and reagents were of analytical grade. Microcaps® disposable micropipettes (50 μl, catalog number: 1-000-0500) were purchased from Drummond Scientific Company, USA. The control human dipotassium ethylenediaminetetraacetic acid (K2EDTA) plasma sample was procured from Red Cross Society, Ukraine.
Instrumentation and chromatographic conditions
A Shimadzu HT (Shimadzu, Japan) LC system equipped with degasser (DGU-14A), binary pump (LC-20ADXR) along with auto-sampler (SIL-20ACXR) was used to inject 5 μl aliquots of the processed samples on Discovery C18, 50 × 2.1 mm, 5 μm column maintained at 25±1 °C. Samples were chromatographed in a gradient mode (eluent A (acetonitrile–water–formic acid, 5: 95: 0.1 v/v), eluent B (acetonitrile–formic acid, 100: 0.1 v/v)). The initial content of the eluent B is 0%, which increases linearly by 1.0 min to 100% and to 1.01 min returns to the initial 0%. The mobile phase was delivered at a flow rate of 0.400 ml/min into the mass spectrometer ESI chamber. Paramatrs of electrospray ionizer and MRM parametrs are listed in table 1-2. The analytical data were processed by Analyst Software (version 1.5.2).
Table 1: Parameters of ionizer electrospray
| S. No. | Parametr | Value |
| 1 | Polarity | Positive |
| 2 | Nebulizer Gas (NEB, Gas 1) | 15 |
| 3 | Curtain Gas (CUR) | 8 |
| 4 | Collision Gas (CAD) | 4 |
| 5 | IonSpray Voltage (IS) | 5000 |
| 6 | Temperature (TEM) | 400 |
| 7 | Turbo IonSpray Gas | 8 |
| 8 | Horizontal Position | 5.3 |
| 9 | Lateral Position | 1.3 |
Table 2: Multiple reaction monitoring (MRM) parameters
| ID | Parent, m/z | Daughter, m/z | Time, ms | DP, V | FP, V | EP, V | CE, V | CXP, V |
| Enalapril | 377.397 | 234.3 | 50 | 41 | 210 | 11 | 29 | 20 |
| Enalaprilat | 349.328 | 206.3 | 50 | 46 | 220 | 11 | 27 | 34 |
| Bisoprolol (IS) | 326.435 | 116.3 | 50 | 46 | 260 | 11 | 27 | 20 |
| Verapamil | 455.385 | 165.4 | 50 | 61 | 320 | 11 | 39 | 28 |
*Abbreviations: DP, declustering potential; FP, focusing potential; EP, entrance potential; CE, collision energy; CXP, collision cell exit potential
Standard solutions
Verapamil, enalapril, enalaprilat and IS were weighed accurately into volumetric flasks using an analytical microbalance. Approximately 1 mg/ml primary stock solutions of enalaprill, 0.5 mg/ml primary stock solutions of enalaprilat, 0.25 mg/ml primary stock solutions of bisoprolol (IS) and 0.5 mg/ml primary stock solutions of verapamil solutions were prepared in methanol. The stock solutions were stored at −20 °C, which were found to be stable for 1 mo. The stock solutions of verapamil, enalapril, enalaprilat were successively diluted with methanol and water to prepare secondary stocks and working solutions. Secondary stock solutions and working solutions were used to prepare calibration curve (CC) and quality control (QC) samples. Working stock solutions were stored at 4 °C for a week. Working stocks were used to prepare plasma calibration standards. A working IS solution (20 ng/ml) was prepared in acetonitrile: methanol (50:50 v/v). Blank human plasma was screened before spiking to ensure that it was free from endogenous interference at retention times of verapamil, enalapril, enalaprilat and IS, respectively. Calibration standards’ samples (1-100 ng/ml for verapamil hydrochloride, 2-200 ng/ml for enalapril maleate, 1-100 ng/ml for enalaprilat dehydrate) were prepared by spiking the blank human K2EDTA plasma with appropriate concentration of verapamil, enalapril and enalaprilat.
Samples for the determination of precision and accuracy were prepared by spiking control human plasma in bulk with verapamil, enalapril and enalaprilat at appropriate concentrations (for verapamil hydrochloride 3.0 ng/ml low QC [LQC], 30.0 ng/ml medium QC [MQC], and 75.0 ng/ml high QC [HQC], for enalapril maleate 6.0 ng/ml low QC [LQC], 60.0 ng/ml medium QC [MQC], and 150.0 ng/ml high QC [HQC], for enalaprilat dihydrate 3.0 ng/ml low QC [LQC], 30.0 ng/ml medium QC [MQC], and 75.0 ng/ml high QC [HQC],) and 120 μL plasma aliquots were distributed into different tubes. All the samples were stored at −80 °C±10 °C.
Sample preparation
A simple protein precipitation extraction method was followed for extraction of verapamil, enalapril, enalaprilat at from human plasma. From the deep freezer, the required quantities of CC standards and QC samples were withdrawn. The samples were thawed at room temperature. To an aliquot of 100 μl plasma, 20 μl of IS was added. To this mixture, 300 μl of acetonitrile: methanol (50:50 v/v) was added and vortexed for 2 min, followed by centrifugation at 6000 rpm for 5 min at 4 °C. After centrifugation, approximately 50 μl supernatant was aliquoted into, respectively, labeled autosampler vials, which were later placed in the autosampler at 15 °C±4 °C. 10 μl of the sample was injected onto LC-MS/MS system for analysis.
Method validation
A full validation according to the ICH guidelines was performed for the assay in K2EDTA human plasma.
Specificity and selectivity
The specificity of the method was evaluated by analyzing human plasma samples from different lots to investigate the potential interferences at the chromatographic peak region for analytes and IS. The acceptance criterion for the experiment was that should have<20% area response to that of the LLOQ level response in the same matrix. Two lots of hemolyzed plasma samples were also analyzed to ensure specificity against potential biological interferences.
Linearity
The points CC (1-100 ng/ml for verapamil hydrochloride, 2-200 ng/ml for enalapril maleate, 1-100 ng/ml for enalaprilat dehydrate) were constructed by plotting the peak area ratio of each analyte: IS against the nominal concentration of calibration standards in K2EDTA human plasma. Following the evaluation of different weighing factors, the results were fit into linear regression analysis using 1/X2 (X: Concentration) weighing factor. The CC should have a correlation coefficient (r) of 0.99 or better. The acceptance criteria for each back-calculated standard concentration were±15% deviation from the nominal value except at LLOQ, which was set at±20%.
Recovery
The efficiency of verapamil, enalapril, enalaprilat and IS extraction from human plasma was determined by comparing the responses of the analytes extracted from replicate QC samples (n=6) with those of neat standard solutions spiked in post-extracted plasma blank sample at equivalent concentrations by protein precipitation extraction method. Recovery of enalapril was determined at LQC (6.28 ng/ml) and HQC (150.00 ng/ml) concentrations, enalaprilat was determined at LQC (2.99 ng/ml) and HQC (75.8 ng/ml) concentrations, verapamil was determined at LQC (2.99 ng/ml) and HQC (75.8 ng/ml) concentrations whereas the recovery of IS was determined at a single concentration of 20 ng/ml.
Matrix effect
The effect of human plasma constituents over the ionization of verapamil, enalapril, enalaprilat, and IS was determined by post-column infusion method to evaluate matrix effect. Briefly, an infusion pump delivers a constant amount of analyte into LC system outlet entering to mass spectrometer inlet. To follow the analyte signal, the mass spectrometer was operated in MRM mode. The human plasma constituent sample extract was injected on LC column. A steady ion response was obtained as a function of time since the analyte was infused at a constant rate. Any endogenous compound that elutes from the column which causes a variation in ESI response of the infused analyte was seen as a suppression or enhancement in the response of the infused analyte. A separate experiment was performed with verapamil, enalapril, enalapril, and IS solutions, which were infused at a constant rate, and blank matrix sample injected through the LC. To evaluate matrix effect, different lots of human plasma were spiked with analyte concentration levels at LQC and HQC levels. According to guidelines, the acceptance criterion for each back-calculated concentration was±15% deviation from the nominal value.
Precision and accuracy
The intra-assay precision and accuracy were estimated by analyzing six replicates containing verapamil, enalapril, enalapril, at four different QC levels concentrations (for verapamil hydrochloride 3.0 ng/ml low QC [LQC], 30.0 ng/ml medium QC [MQC], and 75.0 ng/ml high QC [HQC], for enalapril maleate 6.0 ng/ml low QC [LQC], 60.0 ng/ml medium QC [MQC], and 150.0 ng/ml high QC [HQC], for enalaprilat dihydrate 3.0 ng/ml low QC [LQC], 30.0 ng/ml medium QC [MQC], and 75.0 ng/ml high QC [HQC]) in human plasma. The four-level QC samples on four different runs were performed to assess the interassay precision. The acceptance criteria for each back-calculated standard concentration were 85-115% accuracy from the nominal value except at LLOQ, which was set at 80-120%.
Stability experiments
Stability tests were conducted to evaluate the stability of verapamil, enalapril, enalaprilat in plasma samples under different conditions. 8 h bench top stability, processed samples stability (autosampler stability for 26 h at 10 °C), three cycles of freeze-thaw stability, 30 d of long-term stability at −80±10 °C were performed at LQC and HQC levels using six replicates at each level. Samples were considered stable if assay values’ acceptance criterion was of accuracy (i.e., 85-115% from fresh samples) and precision (i.e.,±15% relative standard deviation [RSD]).
RESULTS AND DISCUSSION
In previous study, a rapid, sensitive, and highly selective liquid chromatography-tandem mass spectrometry method was developed and validated for simultaneous determination of enalapril and its major active metabolite enalaprilat in human plasma. The analytes were extracted from plasma samples by liquid-liquid extraction, separated on a Zorbax Extend-C18 column, and detected by tandem mass spectrometry with a Turbo IonSpray ionization interface. The method has a lower limit of quantification (LLOQ) of 0.1 ng/ml for both enalapril and enalaprilat. The chromatographic run time was 3.5 min [8].
In the present study, optimization and critical evaluation of mobile phase composition (gradient), flow rate, and analytical column were important to obtain good resolution of peaks of interest from the endogenous components, which in turn affect reproducibility and sensitivity of the method. Selection of chromatographic conditions for the proposed method was optimized to suit the preclinical pharmacokinetic studies. To ease the sample preparation in microtubes and to reduce the usage of solvent, the plasma volume was kept low. Initial feasibility experiments of a various mixture(s) of solvents such as acetonitrile, methanol and formic acid along with altered flow rates (in the range of 0.1-0.6 ml/min) were performed to optimize an effective chromatographic resolution of verapamil, enalapril, enalaprilat, and IS. Various analytical columns were tested to obtained good and reproducible response within short run time. The resolution of peaks was best achieved with Discovery C18, 50 × 2.1 mm, 5 μm column. Samples were chromatographed in a gradient mode (eluent A (acetonitrile–water–formic acid, 5: 95: 0.1 v/v), eluent B (acetonitrile–formic acid, 100: 0.1 v/v)). The initial content of the eluent B is 0%, which increases linearly by 1.0 min to 100% and to 1.01 min returns to the initial 0%. The mobile phase was delivered at a flow rate of 0.400 ml/min into the mass spectrometer ESI chamber. The injection volume was 5 μl.
The purpose of sample extraction optimization is mainly to achieve high extraction recovery with negligible or low matrix effects to improve sensitivity and reliability of LC-MS/MS analysis [9-16]. A poor extraction procedure decreases method robustness due to the presence of endogenous interference in the sample extracts, which are not efficiently cleaned up due to poor extraction procedure decreases the method robustness due to the endogenous interference in the sample extracts. With time-saving advantage and simplicity, the protein precipitation extraction method was chosen as an extraction method. The attained LLOQ was sufficient to quantify verapamil, enalapril, enalaprilat in low-dose pharmaco-kinetic studies.
Verapamil, enalapril, enalaprilat eluted at ~1.09, 1.03 and 0.96 min, respectively. During a direct infusion experiment, the mass spectra for verapamil, enalapril, enalaprilat and IS revealed peaks at m/z 455.385, 377.397, 349.328 and 326.435, respectively as protonated molecular ions, [M+H]+. Typical multiple reaction monitoring chromatograms of verapamil, enalapril, enalaprilat and internal standard in dipotassium ethylenediaminetetraacetic acid human blank plasmaare shown in fig. 4-5.
The total chromatographic run time was 2.0 min and the elution of verapamil, enalapril, enalaprilat and IS (bisoprolol) occurred at ~1.09, 1.03, 0.96 and 1.01 min, respectively.
Specificity
Different lots of plasma were analysed to ensure that no endogenous interferences were present at the retention time of verapamil, enalapril, enalaprilat. LLOQ level samples along with plasma blank from the respective plasma lots were prepared and analysed (table 3).

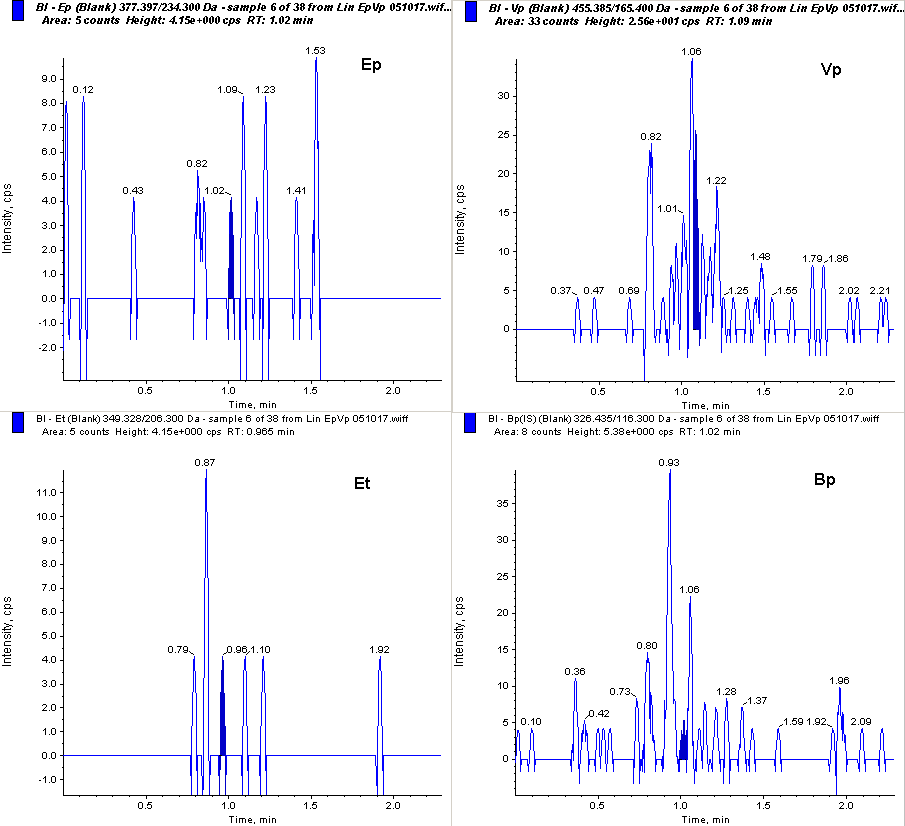

Fig. 4: Typical multiple reaction monitoring chromatograms of verapamil (right up panel), enalapril (left up panel), enalaprilat (left down panel) and internal standard (right down panel) in dipotassium ethylenediaminetetraacetic acid human blank plasma

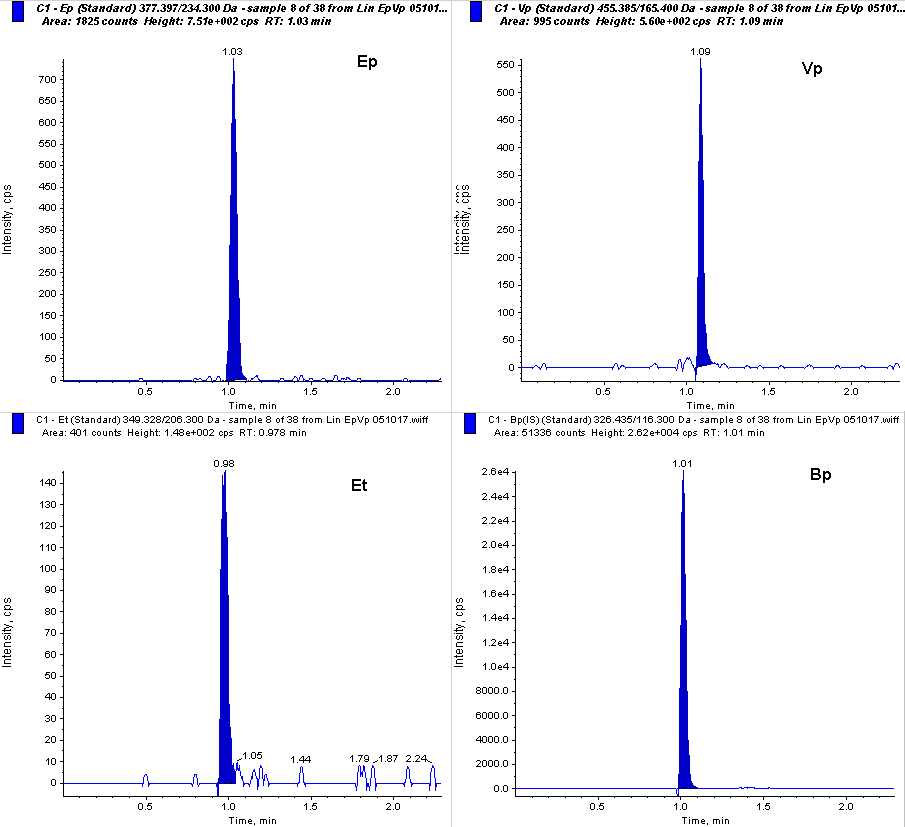

Fig. 5: Typical multiple reaction monitoring chromatograms of verapamil (right up panel), enalapril (left up panel), enalaprilat (left down panel) and internal standard (right down panel) in dipotassium ethylenediaminetetraacetic acid human blank plasma
Table 3: Results of specificity for verapamil, enalapril, enalaprilat
| S. No. | Enalapril | Enalaprilat | Verapamil | |||||||||
| STD BL | LLOQ | % Interference | STD BL | LLOQ | % Interference | STD BL | LLOQ | % Interference | ||||
| Area | RT | Area | RT | Area | RT | |||||||
| 1 | 0 | 1958 | 1.03 | NIL | 0 | 353 | 0.97 | NIL | 0 | 892 | 1.09 | NIL |
| 2 | 0 | 1831 | 1.03 | NIL | 0 | 322 | 0.96 | NIL | 0 | 817 | 1.09 | NIL |
| 3 | 0 | 1692 | 1.03 | NIL | 0 | 358 | 0.97 | NIL | 0 | 926 | 1.09 | NIL |
| 4 | 0 | 1888 | 1.03 | NIL | 0 | 372 | 0.97 | NIL | 0 | 978 | 1.08 | NIL |
| 5 | 0 | 1914 | 1.03 | NIL | 0 | 409 | 0.96 | NIL | 0 | 1024 | 1.09 | NIL |
| 6 | 0 | 1745 | 1.04 | NIL | 0 | 379 | 0.98 | NIL | 0 | 896 | 1.09 | NIL |
| 7 | 0 | 1902 | 1.03 | NIL | 0 | 382 | 0.96 | NIL | 0 | 902 | 1.08 | NIL |
| 8 | 0 | 1806 | 1.03 | NIL | 0 | 379 | 0.97 | NIL | 0 | 865 | 1.09 | NIL |
| 9 | 0 | 1896 | 1.03 | NIL | 0 | 348 | 0.97 | NIL | 0 | 910 | 1.09 | NIL |
| 10 | 0 | 1807 | 1.03 | NIL | 0 | 347 | 0.97 | NIL | 0 | 896 | 1.09 | NIL |
*Average of triplicate injections, In all plasma blanks, the response at the retention time of verapamil, enalapril, enalaprilat was less than 20% of LLOQ response and at the retention time of IS, the response was less than 5% of mean IS response in LLOQ.
Linearity
The calibration standard curves had a reliable reproducibility over the standard concentrations across the calibration range. The average regression (n=3) was found to be>0.997 for all analytes.
The calibration curve (fig. 6) (peak area ratio Vs Concentration) was linear over working range for enalapril maleate of 2 to 200.00 ng/ml with 7 point calibration used for quantification by linear regression, shown in fig. 6. The regression equation for the analysis was.
Y=0.0187x+0.000248 with coefficient of correction (r2) = 0.9993.

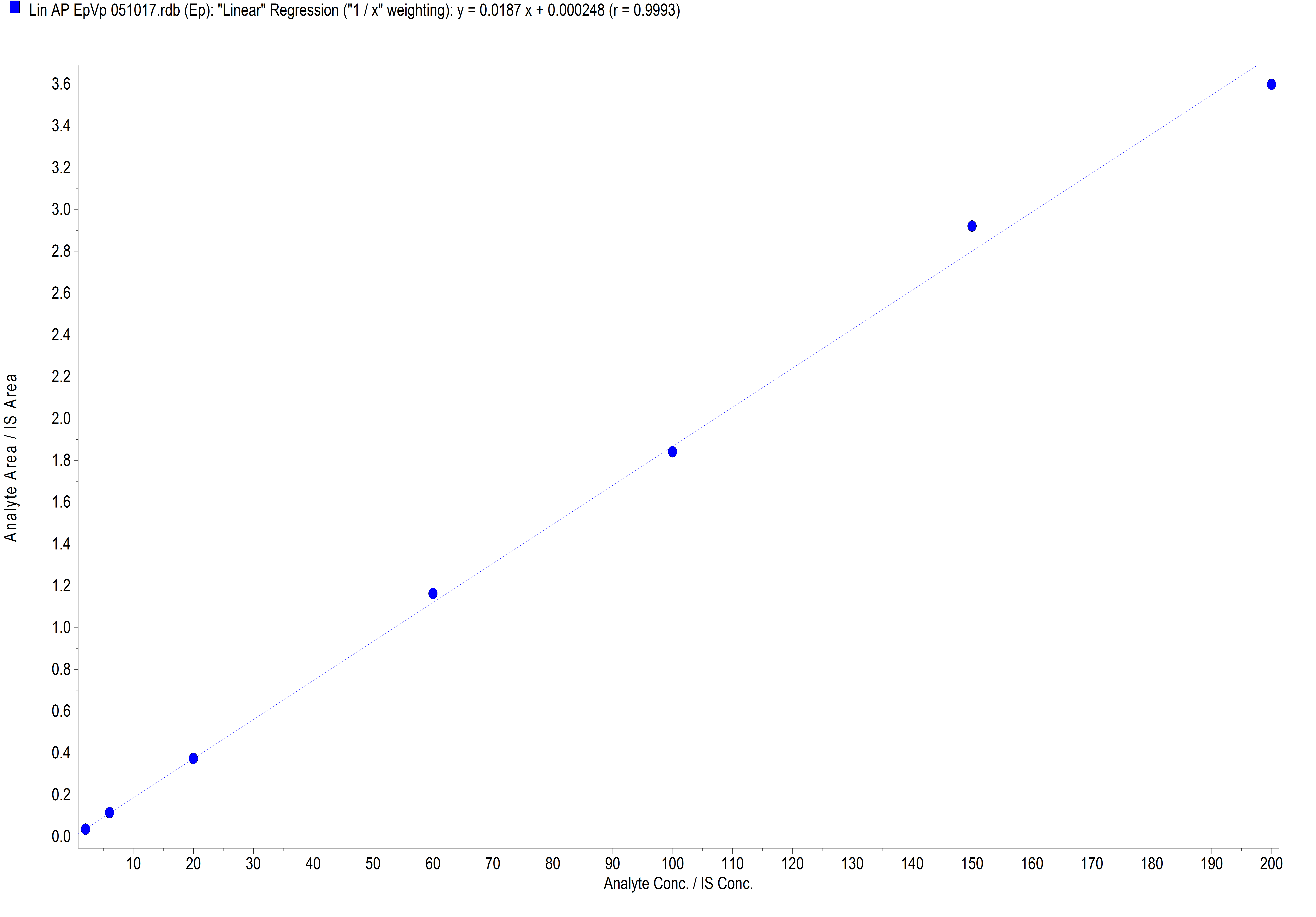

Fig. 6: The calibration curve of enalapril maleate in human plasma
The calibration curve (fig. 7) (peak area ratio Vs Concentration) was linear over working range for enalaprilat dihydrate of 1 to 100.00 ng/ml with 7 point calibration used for quantification by linear regression, shown in fig. 7. The regression equation for the analysis was.
Y=0.00833x+0.00133 with coefficient of correction (r2) = 0.9995.
The calibration curve (fig. 8) (peak area ratio Vs Concentration) was linear over working range for verapamil hydrochloride of 1 to 100.00 ng/ml with 7 point calibration used for quantification by linear regression, shown in fig. 8. The regression equation for the analysis was
Y=0.0162x+0.00391 with coefficient of correction (r2) = 0.9992.
Recovery
The % mean recovery for enalapril, enalaprilat and verapamil in LQC, MQC and HQC are listed in tables 4-6.
Table 4: The % mean recovery of enalapril for LQC, MQC and HQC
| S. No. | LQC | MQC | HQC |
| 1 | 6.06 | 61.5 | 152 |
| 2 | 6.02 | 62.6 | 158 |
| 3 | 6.74 | 55.7 | 155 |
| 4 | 6.27 | 59.2 | 155 |
| 5 | 6.00 | 61.2 | 147 |
| Mean | 6.22 | 60.0 | 154 |
| SD | 0.309 | 2.72 | 4.01 |
| % CV | 5.0 | 4.5 | 2.6 |
| % Mean Recovery | 103.6 | 100.1 | 102.4 |
*Abbreviations: Lower quality control (LQC), middle quality control (MQC), higher quality control (HQC), Each value is represented as a mean±SD of 5 observations (n=5), SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0.

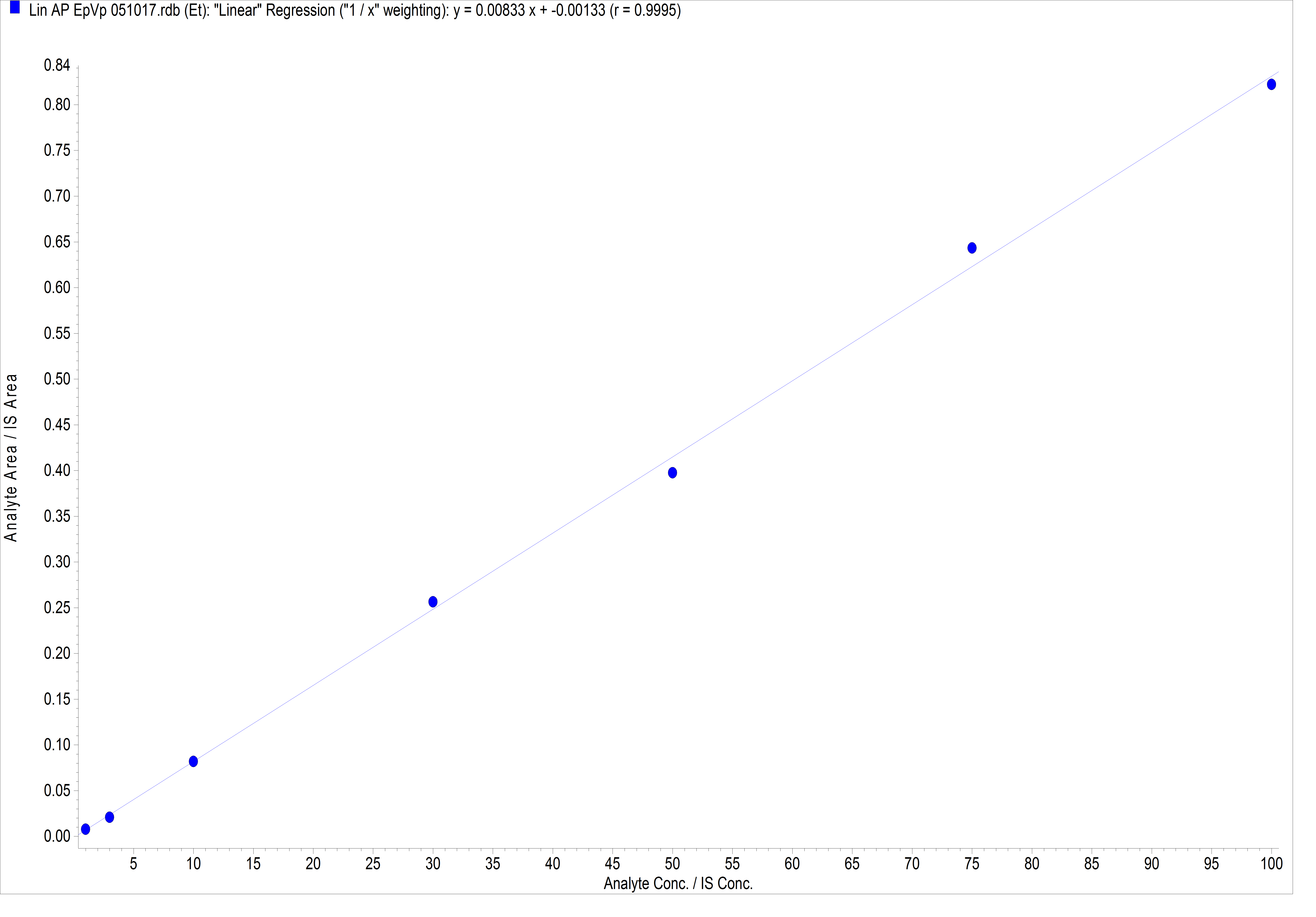

Fig. 7: The calibration curve of enalaprilat dihydrate in human plasma

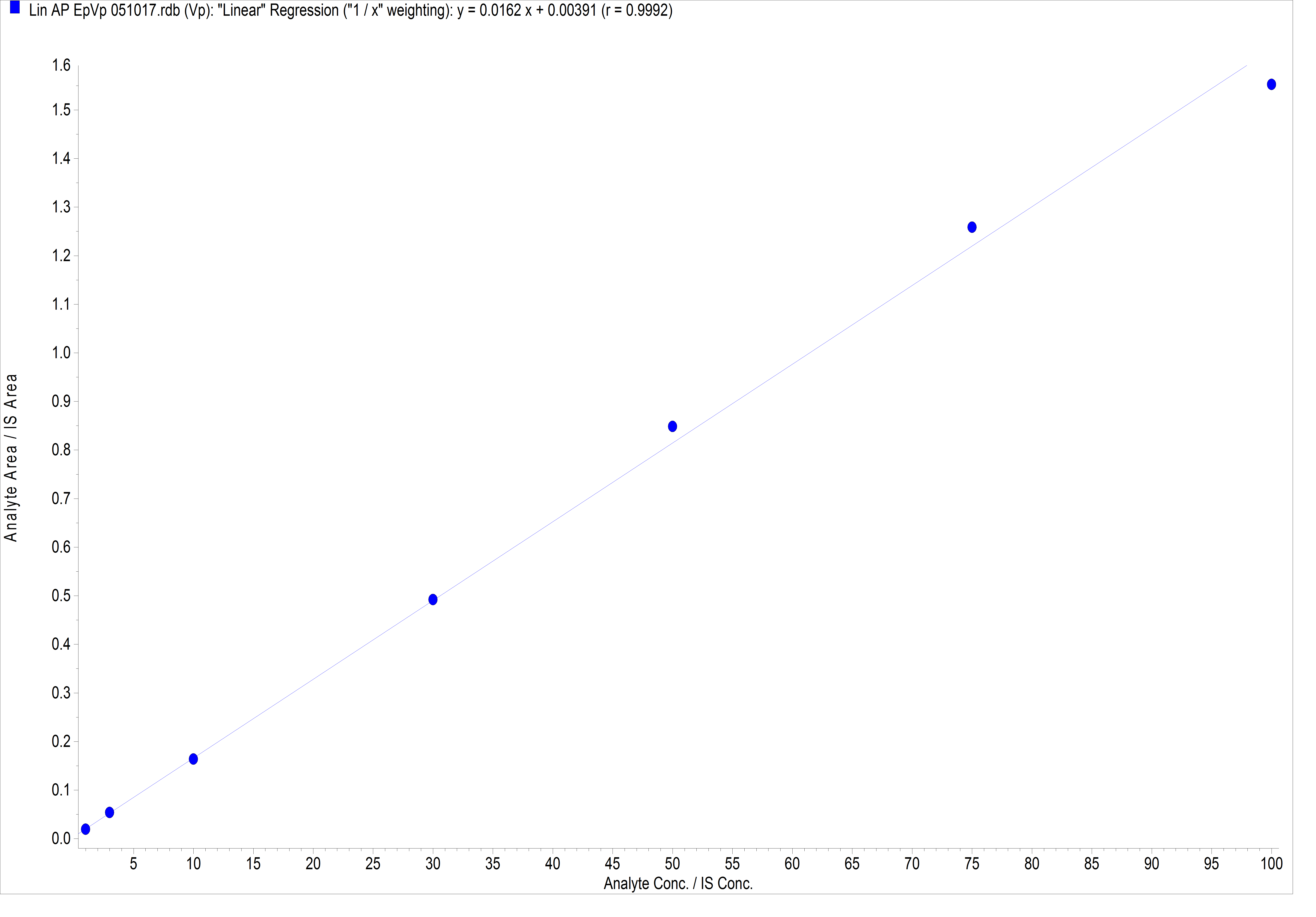

Fig. 8: The calibration curve of verapamil hydrochloride in human plasma
Table 5: The % mean recovery of enalaprilat for LQC, MQC and HQC
| S. No. | LQC | MQC | HQC |
| 1 | 3.49 | 30.6 | 76.8 |
| 2 | 2.96 | 29.8 | 77.2 |
| 3 | 3.30 | 26.7 | 72.8 |
| 4 | 2.94 | 29.2 | 78.3 |
| 5 | 2.80 | 30.7 | 73.9 |
| Mean | 3.10 | 29.4 | 75.8 |
| SD | 0.288 | 1.61 | 2.35 |
| % CV | 9.3 | 5.5 | 3.1 |
| % Mean Recovery | 103.2 | 98.0 | 101.1 |
*Abbreviations: Lower quality control (LQC), middle quality control (MQC), higher quality control (HQC), Each value is represented as a mean±SD of 5 observations (n=5), SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0.
Table 6: The % mean recovery of verapamil for LQC, MQC and HQC
| S. No. | LQC | MQC | HQC |
| 1 | 3.10 | 28.5 | 73.3 |
| 2 | 2.92 | 30.8 | 76.2 |
| 3 | 2.90 | 27.4 | 74.9 |
| 4 | 3.01 | 28.3 | 72.0 |
| 5 | 2.76 | 29.2 | 73.3 |
| Mean | 2.94 | 28.8 | 73.9 |
| SD | 0.127 | 1.27 | 1.65 |
| % CV | 4.3 | 4.4 | 2.2 |
| % Mean Recovery | 97.9 | 96.1 | 98.6 |
*Abbreviations: Lower quality control (LQC), middle quality control (MQC), higher quality control (HQC), Each value is represented as a mean±SD of 5 observations (n=5), SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0.
The % mean recovery for enalapril in LQC, MQC and HQC was 103.6 %, 100.1 % and 102.4 %, for enalaprilat in LQC, MQC and HQC was 103.2 %, 98.0 % and 101.1 %, for verapamil in LQC, MQC and HQC was 97.9 %, 96.1 % and 98.6 % respectively.
Intraday (within run) and Inter-day (between run) precision and accuracy
The within-run coefficients of variation ranged between 0.336 % and 0.617 % for verapamil. The within-run percentages of nominal concentrations ranged between 98.82 % and 100.62 % for verapamil. The between-run coefficients of variation ranged between 0.334 % and 0.612 % for verapamil. The between-run percentages of nominal concentrations ranged between 98.97 % and 101.76 % for verapamil. Results are presented in table 7. The assay values on both the occasions (intra-and inter-day) were found to be within the accepted limits.
The within-run coefficients of variation ranged between 0.351 % and 0.717 % for enalapril. The within-run percentages of nominal concentrations ranged between 99.13 % and 101.11 % for enalapril. The between-run coefficients of variation ranged between 0.343 % and 0.671 % for enalapril. The between-run percentages of nominal concentrations ranged between 99.17 % and 101.76 % for enalapril. Results are presented in table 8.
The within-run coefficients of variation ranged between 0.321 % and 0.541 % for enalaprilat. The within-run percentages of nominal concentrations ranged between 99.13 % and 101.12 % for enalaprilat. The between-run coefficients of variation ranged between 0.314 % and 0.663 % for enalaprilat. The between-run percentages of nominal concentrations ranged between 99.17 % and 101.03 % for enalaprilat. Results are presented in table 9.
Table 7: Intra-day and Inter-day precision data of verapamil
| Day | Intra-day precision | Inter-day precision | |
| Mean | R. S. D. % | Mean | |
| 1 | 98.82 | 0.378 | 101.76 |
| 2 | 100.41 | 0.617 | 98.97 |
| 3 | 100.62 | 0.336 | 100.53 |
*Each value is represented as a mean±SD of observations, SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0
Table 8: Intra-day and Inter-day precision data of enalapril
| Day | Intra-day precision | Inter-day precision | |
| Mean | R. S. D.% | Mean | |
| 1 | 99.13 | 0.351 | 101.76 |
| 2 | 101.11 | 0.717 | 99.17 |
| 3 | 100.82 | 0.376 | 100.13 |
*Each value is represented as a mean±SD of observations, SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0
Table 9: Intra-day and Inter-day precision data of enalaprilat
| Day | Intra-day precision | Inter-day precision | |
| Mean | R. S. D. % | Mean | |
| 1 | 99.13 | 0.321 | 100.77 |
| 2 | 100.31 | 0.541 | 99.17 |
| 3 | 101.12 | 0.396 | 101.03 |
*Each value is represented as a mean±SD of observations, SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0
Matrix effect
The lowest concentration with the RSD<20% was taken as LLOQ and was found to be 1.98 ng/ml for enalapril, 1.03 ng/ml for enalaprilat, 0.91 ng/ml for verapamil. The % accuracy of LLOQ samples prepared with the different biological matrix lots were found 99.2 % for enalapril, 103.4 % for enalaprilat, 90.6 % for verapamil, which were found within the range of 80.00-120.00% for the seven different plasma lots. % CV for LLOQ samples was observed as 4.9%, 5.9 %, 9.0 % respectively, which are within 20.00% of the acceptance criteria. Results are presented in tables 10-12.
Table 10: Results of matrix effect of enalapril
| S. No. | LLQC |
| 1 | 2.09 |
| 2 | 1.99 |
| 3 | 1.83 |
| 4 | 2.02 |
| 5 | 1.98 |
| Mean | 1.98 |
| SD | 0.097 |
| % CV | 4.9 |
| % Mean Recovery | 99.2 |
*Abbreviations: Lower limit of quantification (LLOQ), Each value is represented as a mean±SD of 5 observations (n=5), SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0.
Table 11: Results of matrix effect of enalaprilat
| S. No. | LLQC |
| 1 | 1.01 |
| 2 | 0.951 |
| 3 | 1.03 |
| 4 | 1.06 |
| 5 | 1.12 |
| Mean | 1.03 |
| SD | 0.061 |
| % CV | 5.9 |
| % Mean Recovery | 103.4 |
*Abbreviations: Lower limit of quantification (LLOQ), Each value is represented as a mean±SD of 5 observations (n=5), SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0.
Table 12: Results of matrix effect of verapamil
| S. No. | LLQC |
| 1 | 0.863 |
| 2 | 0.790 |
| 3 | 0.919 |
| 4 | 0.972 |
| 5 | 0.989 |
| Mean | 0.91 |
| SD | 0.082 |
| % CV | 9.0 |
| % Mean Recovery | 90.6 |
*Abbreviations: Lower limit of quantification (LLOQ), Each value is represented as a mean±SD of 5 observations (n=5), SD: Standard Deviation, RSD: Relative Standard Deviation, #Acceptance criteria<2.0.
Table 13: Stability data of bisoprolol, enalapril, enalapril at QCs in human plasma
| Nominal concentration (ng/ml) | Stability | Stability data | ||
| mean±SD °(n=6) | Accuracy (%)• | Precision (% CV) | ||
| Verapamil-2.99 | 0 h | 2.98±0.41 | 99.6 | 2.29 |
| 7 h (bench‑Top) | 2.98±0.33 | 99.6 | 2.36 | |
| 22 h (in‑injector) | 2.98±0.37 | 99.6 | 2.40 | |
| 3 FT cycles | 2.97±0.45 | 99.33 | 2.33 | |
| Enalapril–6.28 | 0 h | 6.27±0.37 | 99.8 | 3.08 |
| 7 h (bench‑Top) | 6.27±0.22 | 99.8 | 2.51 | |
| 22 h (in‑injector) | 6.26±0.42 | 99.6 | 3.16 | |
| 3 FT cycles | 6.26±0.37 | 99.6 | 2.16 | |
| Enalaprilat–2.99 | 0 h | 2.98±0.38 | 99.6 | 3.12 |
| 7 h (bench‑Top) | 2.98±0.45 | 99.6 | 3.07 | |
| 22 h (in‑injector) | 2.97±0.67 | 99.3 | 3.43 | |
| 3 FT cycles | 2.96±0.44 | 98.9 | 3.11 | |
| Verapamil-75.8 | 0 h | 75.5±0.43 | 99.6 | 2.07 |
| 7 h (bench‑Top) | 75.5±0.53 | 99.6 | 3.34 | |
| 22 h (in‑injector) | 75.4±0.47 | 99.5 | 2.32 | |
| 3 FT cycles | 75.5±0.51 | 99.5 | 3.01 | |
| Enalapril–150.0 | 0 h | 149.9±0.51 | 99.9 | 3.15 |
| 7 h (bench‑Top) | 149.7±0.31 | 99.8 | 2.32 | |
| 22 h (in‑injector) | 149.6±0.22 | 99.7 | 2.02 | |
| 3 FT cycles | 149.2±0.64 | 99.4 | 3.24 | |
| Enalaprilat–75.8 | 0 h | 75.5±0.53 | 99.6 | 3.08 |
| 7 h (bench‑Top) | 75.3±0.27 | 99.3 | 2.04 | |
| 22 h (in‑injector) | 75.3±0.38 | 99.3 | 2.54 | |
| 3 FT cycles | 75.1±0.57 | 99.0 | 2.84 | |
°Back-calculated plasma concentrations; •Mean assayed concentration/mean assayed concentration at 0 h × 100. FT: Freeze‑thaw, SD: Standard deviation, QC: Quality control, The results were found to be within the assay variability limits during the entire process.
Stability
The predicted concentrations for verapamil (2.99 ng/ml and 75.8 ng/ml), enalapril (6.28 ng/ml and 150.0 ng/ml), enalaprilat (2.99 ng/ml and 75.8 ng/ml) deviated within±15% of the fresh sample concentrations in a battery of stability tests namely, in-injector (22 h), bench-top (7 h), and repeated four freeze/thaw cycles stability (table 13).
CONCLUSION
In summary, a highly sensitive, specific, reproducible, rapid and high-throughput LC-MS/MS assay was developed and validated to quantify verapamil and enalapril in the present of enalaprilat in human plasma as per the regulatory guidelines. The present method involved a simple precipitation method of sample preparation, which gave consistent and reproducible recoveries. Acquired results demonstrate that proposed strategy can be effortlessly and advantageously applied for routine examination of verapamil and enalapril in the present of enalaprilat in human plasma. Hence, the combination was taken up for developing a bioanalytical method development and validation so that further it would be useful for performing pharmacokinetic studies.
AUTHOR CONTRIBUTION
All the work have been carried out by me
CONFLICT OF INTERESTS
Declared none
REFERENCES
https://pubchem.ncbi.nlm.nih.gov. [Last accessed on 20 Oct 2017].
https://dailymed.nlm.nih.gov. [Last accessed on 20 Oct 2017]
Liliya Logoyda, Dmytro Korobko, Iryna Ivanusa, Kovalenko Serhii. Development of the methodology of the chromatographic determination of nifedipine in medicines. Asian J Pharm Clin Res 2017;10:149-52.
Bhardwaj SP, Singh S. Study of forced degradation behavior of enalapril maleate by LC and LC–MS and development of a validated stability-indicating assay method. J Pharm Biomed Anal 2008;46:113–20.
Ghosh C, Jain I, Shinde CP, Chakraborty BS. Rapid and sensitive liquid chromatography/tandem mass spectrometry method for simultaneous determination of enalapril and its major metabolite enalaprilat, in human plasma: application to a bioequivalence study. Drug Testing Anal 2012;4:94–103.
Danafar H, Hamidi M. Liquid chromatography–tandem mass spectrometry (LC-MS) method for the assignment of enalapril and enalaprilat in human plasma. Pharm Biomed Res 2015;1:47–58.
Guideline on Bioanalytical method validation: European Medicines Agencies; 2011.
Gu Q, Chen X, Zhong D, Wang Y. Simultaneous determination of enalapril and enalaprilat in human plasma by liquid chromatography-tandem mass spectrometry. J Chromatogr B: Anal Technol Biomed Life Sci 2004;813:337-42.
Sonawane LV, Poul BN, Usnale SV. Bioanalytical method validation and its pharmaceutical application a review. Pharm Anal Acta 2014;5:1-7.
Pushpa Latha E, Sailaja B. Bioanalytical method development and validation by HPLC: a review. J Appl Pharm 2014;1:1-9.
Yuliya Kondratova, Liliya Logoyda, Yuliia Voloshko, Ahmed Abdel-Megied, Dmytro Korobko, Yuriy Soroka. Development and validation of HPLC-DAD method for the determination of bisoprolol in tablet dosage forms. Int J Appl Pharm 2017;9:54-9.
Delma D’cruz, Anu Babu, Eena Joshy, Aneesh TP. Bioanalytical method development and validation of ticagrelor by RP-HPLC. Int J Appl Pharm 2017;9:51-4.
Liliya Logoyda, Yuliya Kondratova, Dmytro Korobko, Yuriy Soroka. Development of UHPLC method for the determination of captopril in pharmaceutical dosage forms. Asian J Pharm Clin Res 2017;10:308-10.
Liliya, L, Dmytro K, Olena S, Ihor B, Tamara K. Development of methodology for identification of captopril in medicines. Asian J Pharm 2016;10:168-71.
Olgya Polyauk, Liliya Logoyda. The investigation of conditions of API from group of calcium channel blockers extraction by organic solvents by using high-performance liquid chromatography as method assay. Asian J Pharm Clin Res 2017;10:354-6.
Asha B Thomas, Ashish Naphade, Snehal S Karanjkhele. Determination of alprazolam and fluoxetine HCl from spiked rat plasma using HPTCL with UV deterction. Int J Pharm Pharm Sci 2016;8:147-51.
