Int J App Pharm, Vol 10, Issue 5, 2018, 167-172Original Article

QUANTITATIVE ASSAY OF ASPIRIN AND (SALICYLIC ACID AND HEAVY METALS AS IMPURATIES) IN IRAQI’S MARKET ASPIRIN TABLETS USING DIFFERENT ANALYTICAL METHODS

AHMED MAHDI SAEED^1*, MOHAMMED JASSIM HAMZAH², NOOR QASIM AHMED¹

¹Chemistry Department, College of Education for Pure Science, Diyala University, Iraq, ²Pharmaceutical Chemistry Department, Pharmacy College, Al-Nahrain University, Iraq
Email: dr.ahmedalanbakey@yahoo.com

Received: 09 May 2018, Revised and Accepted: 20 Jul 2018

---

ABSTRACT

Objective: Easy and precise methods were developed for estimation of aspirin (ASP), impurities from such as salicylic acid (SAL) and heavy metal ions (HMI) in ASP tablets that available in the Iraqi’s market using High-performance liquid chromatography (HPLC), UV–VIS spectrophotometry and atomic absorption spectrophotometric (AAS).

Methods: HPLC separation was carried out using C18 as stationary phase and acetonitrile (ACN): water in the ratio of (10: 90 v/v) as a mobile phase for HPLC method and as a solvent for UV-VIS spectrophotometric for quantitative ASP and SAL at 254 nm for HPLC, 226 and 296 nm for UV measurements. AAS was used for HMI determination.

Results: ASP and SAL gave absorbance maxima at 226 and 296 nm in ACN: H₂O solvent. The Beer’s law was obeyed in the range of 0.05-20 for ASP and 0.02-8 µg/ml for SAL. Correlation coefficients (R²) were 0.9996 and 0.9992 for ASP and SAL respectively, for HPLC and LOD value was 0.006 for ASP and 0.004 μg/ml for SAL. The % recovery for the developed method was found to be in the range of (98.80 to 101.26%) and (98.67 to 103.33%) for ASP and SAL respectively, within the acceptable range, that approved by world health organization (WHO).

Conclusion: The proposed method can help research studies, quality control and routine analysis with lesser resources available. The results of the assay of pharmaceutical formulation of the developed method are highly reliable and reproducible and is in good agreement with the label claim of the medicines.

Keywords: HPLC, Salicylic acid, Heavy metals, Aspirin tablets

---

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i5.26820

INTRODUCTION

In HPLC method there are several factors such as, the interaction between the solute components and the stationary phase that affected the chromatography resolution. HPLC is a good method for analysis of drugs because it has good selectivity and sensitivity values with small levels and in a complex matrix [1]. Therefore, the HPLC systems can be easily used to separate a wide range of chemical components. ASP is a nonsteroidal anti-inflammatory, antirheumatic, antithrombotic; chemically it is 2-acetoxy benzoic acid (fig. 1a) [2, 3]. In addition, aspirin is broadly used for the treatment of fever, inflammatory diseases, pain and blood thinner to prevent blood clots [4]. ASP is rapidly hydrolyzed in the body to produce salicylic acid (fig. 1b), which is the compound that is primarily responsible for the pharmacological activity of ASP. SAL is further metabolized to gentisic acid, salicyluric acid and other conjugates. It is not therapeutically active molecule as compare with ASP [5].

A b

Fig. 1: Chemical structure of aspirin and salicylic acid

An impurity in a drug substance as defined by the International Conference on Harmonisation (ICH) Guidelines, is any component of the drug substance that is not the chemical entity defined as the drug substance and affects the purity of active ingredient or drug substances [6]. The impurity profile of pharmaceuticals is of increasing importance as drug safety receiving more and more attention from the public and from the media. Therefore, identification, quantification, and control of impurities in the drug substance and drug product, are an important part of drug development and regulatory assessment [7]. Some evidences revealed that HPLC in particular mobile phase method was used to measure ASP and SAL in dosage forms or in biological materials [8-12]. The aim of this work is to develop a new analytical method, which consider to be an easy and applicable method to measure ASP and impurities in the aspirin tablets which are commercially available in Iraqi market pharmacy.

MATERIALS AND METHODS

Reagents and chemicals

ASP and SAL as pure standard powders were supplied by Sammara Drug Industries (SDI) Iraq. ASP tablets were obtained from local market. Acetonitrile (ACN), Methanol (HPLC-grade) and heavy metal ion solutions (AAS–grade) were from BDH. All chemicals and reagents were of analytical grade and double distilled water was used.

Instrumentation and analysis condition

Spectroscopic analysis was carried out using Jasco V-650 Japan double beam UV-Visible spectrophotometer with 10 mm path length quartz cells was used for the analytical purpose. The separation was achieved by using HPLC Shimadzu LC–20 A, Japan uses ACN: H₂O (10: 90) as mobile phase and Phenomenex C18 column (50 × 4.6 mm, 3μm). The separation was monitored for 5 min at 254 nm using a UV-visible detector and 1 ml/min flow rate. Atomic absorption AUORA Canadian model was used for HMI analysis.

Preparation of stock solutions of drugs (100 µg/ml)

Accurately weighed 0.01 g pure samples of ASP and SAL were transferred to 100 ml calibrated volumetric flask, dissolved and made up to the mark with ACN: H₂O (10: 90 v/v). It was the stock solution of ASP and SAL (100 μg/ml) in ACN: H₂O. By using the stock solution of 100 μg/ml, subsequent dilution was carried out by withdrawing different aliquots (0.02-3.0 ml) from standard solution were transferred into a series of 10 ml calibrated volumetric flasks and all were made up to the mark with ACN: H₂O in order to prepare working standard solutions of different concentrations (0.02-30 μg/ml).

Procedure for drugs assay in pharmaceuticals tablets

Ten tablets of ASP drug’s formula were weighed accurately and powdered finely. An accurately weighed quantity of tablets, powder equivalent to 100 mg of ASP was transferred to a 100 ml volumetric flask and diluted with (H₂O: ACN 90: 10 v/v), and the content was ultrasonicated for 20 min. The volume was made up to the mark with solvent and mixed well. The solutions were further filtered using whatman no. 1 filter paper to remove any unwanted particulate materials. The filtered solutions were further appropriately diluted with a respective solvent to finally produce a sample solution of concentration 10 μg/ml for analysis. The amount of ASP, SAL and heavy metal ions present in the sample solution was determined by using the calibration graphs of the standard.

RESULTS AND DISCUSSION

UV-VIS Spectrophotometry method

Estimation of detection wavelength

A solution of ASP and SAL mixture in the concentration of 10 μg/ml was scanned in the range of wavelength 200-400 nm [13]. It was observed that the ASP and SAL mixture showed considerable absorbance at a wavelength of 226 and 296 nm. The absorption spectrum was found sharp and maximum at a wavelength of 226 nm for ASP and at 296 nm for SAL. Therefore, it was selected as the wavelength for detection in (H₂O: ACN 90: 10 v/v). The study of spectrum revealed that ASP and SAL mixture shows a well-defined λ_max at 226 and 296 nm respectively as shown in (fig. 2).

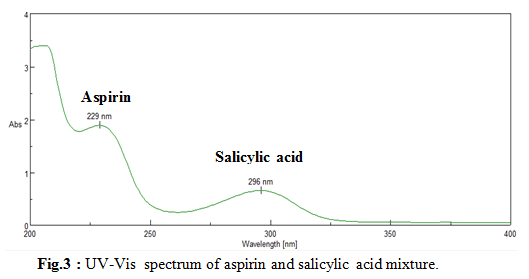

Fig. 2: UV–VIS spectrum of aspirin and salicylic acid mixture

Preparation of calibration graphs

The solutions of ASP and SAL standard mixture in different concentrations (0.05 to 30 and 0.02 to 8 μg/ml) for ASP and SAL respectively, were taken and the absorbance of these solutions were measured against solvent (H₂O: ACN 90: 10 v/v) as blank at a wavelength of 229 nm and 296 nm. A calibration graphs were constructed by plotting absorbance versus concentrations and a regression equations were calculated [14]. From the calibration graphs, it was found that ASP and SAL obeys Beer’s law in concentrations of 0.3–30 and 0.1-10 μg/ml for ASP and SAL respectively, as shown in (fig. 3). Statistical parameters were calculated as shown in (table 1), revealed that the t_cal values were larger than the values of t_tab. Good linearity was observed with an R² of (0.9996 and 0.9992) for ASP and SAL respectively. The linear regression data for the calibration plot are indicative of a good linear relationship between concentration variation and response. Determined of linearity was done by regression analysis.

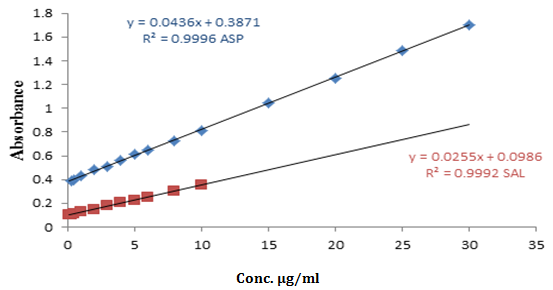

Fig. 3: UV–VIS calibration graphs of ASP and SAL mixture

Table 1: Statistical parameters of UV-VIS determination of ASP and SAL

Statistical parameter	Value
	Aspirin	Salicylic acid
Linear equation Slope (m) Intercept (b) Correlation Coefficient (R2) Percentage Linearity (R2%) Intercept standard error Intercept standard deviation Relative standard deviation (RSD) LOD (μg/ml) Linearity range (μg/ml) Calculated t-value	y = 0.0436 [X]+0.3871 0.0436 0.3871 0.9996 99.96 0.22 0.33 1.41 0.09 0.3-30 173.7>>2.14	y = 0.0255 [X]+0.0986 0.0255 0.0986 0.9992 99.92 0.13 0.18 1.12 0.03 0.1-10 106.04>>2.21

HPLC method

Chromatographic condition

The RP-HPLC method was developed to provide specific procedure for the rapid quality control analysis of ASP and SAL. To find the appropriate HPLC condition for the separation of the examined drugs, various reversed-phase columns, isocratic mobile phase systems and different wavelength detection were tried and successfully attempts were performed using a Phenomenex C18 column (50 × 4.6 mm, 3μm) and a mobile phase composed of ACN: H₂O (10: 90) at a flow rate of 1 ml/min with λ_max at 254 nm. Injection volume was 20 μl and elution time was close to five min. various analytical columns were tested for obtaining good and reproducible response within the short run time. Under the described HPLC parameters, the respective compound was clearly separated and their typical chromatogram (fig. 4a), which shows a clear separation between the peaks at reasonable Rt 1.8 and 2.199 min using a C18 column in comparison with C8, which shows Rt higher than 2.199 and unclear chromatogram (fig. 4 b). Three selected detector wavelengths (254, 214 and 270 nm) were applied to estimate the separated compounds chromatograms as shown in (fig. 4 a, c and d). The results were indicated that the best chromatogram was obtained at 254 nm. HPLC separation of ASP and SAL had been carried out using various mobile phases consisting of water and (methanol or acetonitrile) as the organic phase. Fig. 4 (e, f and g) are shown the chromatograms of ASP and SAL standard analysis on C18 at 254 nm using different mobile phase ACN: H₂O and methanol: H₂O, which shown more Rt than1.8 and it means that developed method is more rapid.

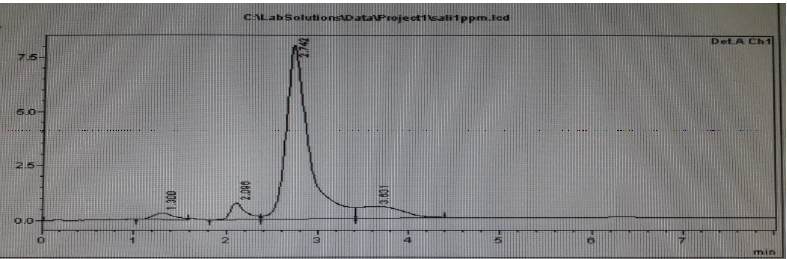

(a): Mixture on C 18 column at 254 nm (b): Mixture on C 8 column at 254 nm

(c): Mixture on C 18 column at 214 nm(d): Mixture on C 18 column at 270 nm

(e): ASP on C 18 using 10% ACN at 254 nm

(f): SAL on C 18 using 10% ACN at 254 nm

(g): ASP on C 18 using 10% methanol at 254 nm

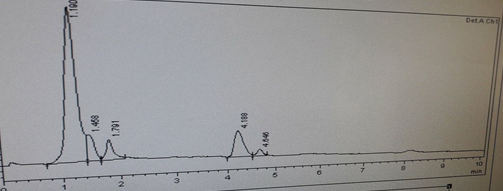

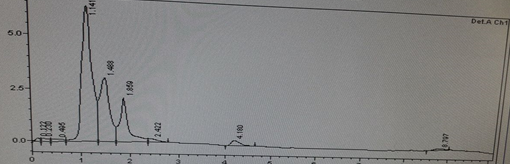

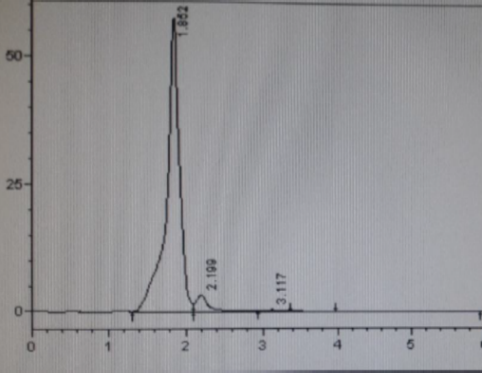

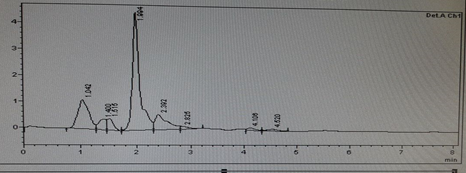

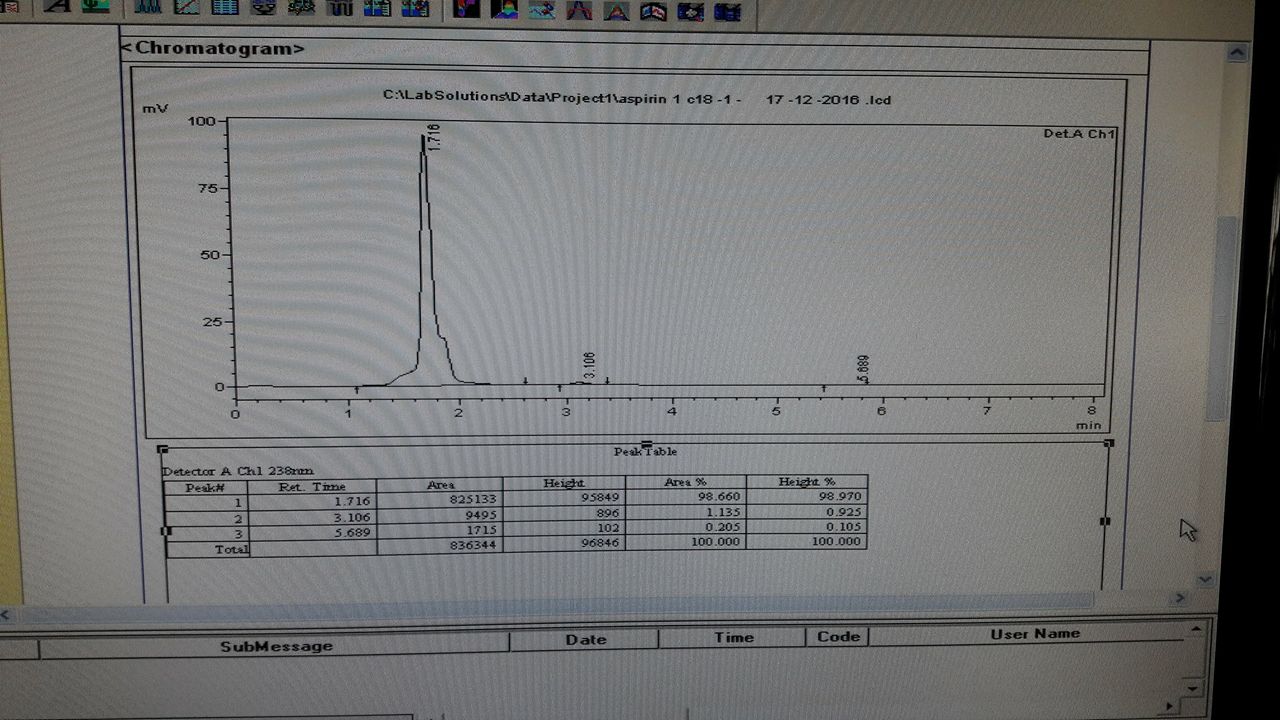

Fig. 4 (a–g): Chromatograms of ASP, SAL and mixture using different condition

HPLC calibration graphs

Calibration graph representing the relation between the concentrations of drugs versus the peak area was constructed. A 20 μl of the standard solutions contain ASP or SAL were injected in triplicate run from which the linear regression equation was calculated. A calibration graphs were constructed by plotting area under peak versus concentrations and a regression equations were calculated. The results of chromatographic determination are presented in table 2, which shown that the linear dynamic range for aspirin was in the range 0.05-20 μg/ml, while for salicylic acid was 0.02-8 μg/ml as shown in (fig. 5). The statistical analytical values such as correlation coefficient (R²), limit of detection (LOD) and other parameters for HPLC methods were tabulated in table 2. Good linearity was observed with an R² of (0.9993 and 0.9992) for ASP and SAL respectively. The linear regression data for the calibration plot are indicative of a good linear relationship between concentration variation and area.

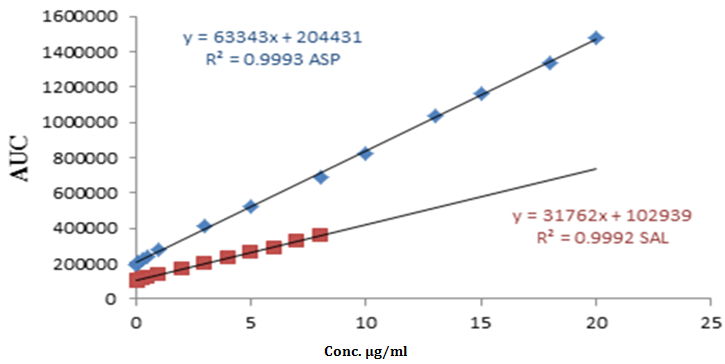

Fig. 5: Calibration graphs of ASP and SAL using HPLC

Table 2: Statistical parameters of HPLC determination of ASP and SAL

Statistical parameter	Value
	Aspirin	Salicylic acid
Linear equation Slope (m) Intercept (b) Correlation Coefficient (R2) Percentage Linearity (R2%) Intercept standard error Intercept standard deviation Relative standard deviation (RSD) LOD (μg/ml) Linearity range (μg/ml) Calculated t-value	y = 63343 [X]+204431 63343 204431 0.9993 99.93 8957 23794 2.36 0.006 0.05-20 130.87>>2.14	y = 31762 [X]+10293 31762 10293 0.9992 99.92 4953 14251 2.21 0.004 0.02-8 111.78>>2.18

Accuracy, precision and recovery of proposed methods

This study was carried out to assure the closeness of the test results obtained by the analytical method to the true value [15]. For study methods ASP and SAL were determined at three different selected concentrations within the Beer’s law limits 10, 15, 20 and 0.3, 1.0, 1.5 μg/ml for ASP and SAL respectively, using UV-VIS spectrophotometry, while 5, 10, 15 and 0.08, 0.5, 1.0 μg/ml for ASP and SAL respectively by HPLC method. The results were reported as % Recovery, % Error and % RSD, as in table 3, which revealed that the suggested method for detection of aspirin and salicylic acid were interesting and quite convenient with respect to the methods and parameters calculated.

Table 3: Accuracy and precision of proposed methods

UV-VIS
ASP (μg/ml) % recovery	%Error	%RSD (n = 3)
Taken	Mean found±SD (n=3)
10 15 20	10.06±0.014 15.13±0.016 19.96±0.029	100.06 100.87 99.80	0.06 0.13 0.20	0.14 0.11 0.15
SAL (μg/ml)
Taken	Mean found±SD (n=3)
0.3 1.0 1.5	0.31±0.0003 1.01±0.0017 1.48±0.0024	103.33 101.00 98.67	3.33 1.00 0.33	0.10 0.17 0.16
HPLC
ASP (μg/ml)
Taken	Mean found±SD (n=3)
5 10 15	4.99±0.0085 10.02±0.008 15.19±0.018	99.80 100.20 101.26	0.20 0.20 1.26	0.17 0.08 0.12
SAL (μg/ml)
Taken	Mean found±SD (n=3)
0.1 0.5 1.0	0.099±0.0001 0.499±0.005 1.004±0.0009	99.66 99.80 100.40	0.34 0.20 0.40	0.10 0.01 0.09

Values represent mean±SD, n=3.

Table 4: The obtained results of ASP and SAL in pharmaceutical tablets

Company	Aspirin weight (mg)	Mean found of ASP (mg)±SD (n = 3)		% recovery		% salicylic acid ±SD (n = 3)
		UV-VIS	HPLC	UV-VIS	HPLC	UV-VIS	HPLC
Cox-pharmaceutical Ltd. Dijla-IRAQ Adiphram SDI-IRAQ Bristol laboratories Ltd Wockhardt UK Aswar alkhaleje–IRAQ BAYAR MOH-IRAQ ATABAY-Turkey ASIA-Syria Medcellpharma–Nether. Pharmaline-Lebanon Actavis Antibiotic SA-Romania Rameda–Egypt BAYAR Sunlond-Atlanta Cisphrama-USA Allegiant Health	75 100 100 100 75 300 100 81 100 80 81 100 100 300 100 75 100 81 81 81	74.25±0.53 100.90±1.78 100.05±1.04 99.85±1.22 74.5±0.66 299.4±1,98 101.30±1.34 80.60±0.88 99.80±0.98 82.08±0.87 81.25±0.77 99.05±1.01 102.03±1.35 301.80±1.89 98.98±1.02 74.60±0.76 100.01±1.12 81.09±0.81 80.95±0.75 80.64±0.73	74.36±0.61 99.94±1.45 100.00±0.99 100.03±1.11 75.01±0.44 300.04±1.88 99.91±1.14 81.02±0.77 100.21±0.88 80.06±0.67 81.00±0.55 100.15±0.99 101.27±1.21 304.54±1.11 99.76±1.03 74.78±0.71 100.65±1.01 80.91±0.76 80.25±0.66 81.23±0.72	99.00 100.90 100.05 99.85 99.33 99.80 101.30 99.50 99.80 102.60 100.31 99.05 102.03 100.60 98.98 99.46 100.01 100.11 99.93 99.55	99.15 99.94 100.00 100.03 100.01 100.01 99.91 100.02 100.21 100.07 100.00 100.15 101.27 101.51 99.76 99.71 100.65 99.89 99.07 100.28	0.111±0.002 0.101±0.001 0.102±0.001 0.113±0.003 0.101±0.001 0.123±0.011 0.109±0.001 0.099±0.001 0.099±0.001 0.103±0.001 0.112±0.002 0.109±0.002 0.099±0.001 0.120±0.003 0.105±0.001 0.115±0.002 0.100±0.001 0.112±0.002 0.099±0.001 0.113±0.002	0.108±0.001 0.102±0.001 0.100±0.002 0.103±0.002 0.102±0.001 0.121±0.003 0.103±0.002 0.107±0.001 0.095±0.001 0.111±0.003 0.102±0.001 0.108±0.001 0.098±0.001 0.119±0.002 0.109±0.002 0.116±0.002 0.099±0.001 0.101±0.001 0.101±0.002 0.111±0.003

Values represent mean±SD, n=3.

Table 5: The amount of heavy metals measured by AAS

Company	Pb found at 283 nm (µg/kg) n =3	Co found at 210 nm (µg/kg) n=3	Fe found at 248 nm (µg/kg) n=3	Ni found at 232 nm (µg/kg) n=3	Cd found at 228.8 nm (µg/kg) n=3	Cr found at 357.9 nm (µg/kg) n=3
Cox–pharmaceutical Ltd. Dijla-IRAQ Adiphram SDI-IRAQ Bristol laboratories Ltd. Wockhardt UK Aswar alkhaleje–IRAQ BAYAR (81( MOH-IRAQ ATABAY-Turkey ASIA-Syria Medcellpharma–Nether. Pharmaline-Lebanon Actavis Antibiotic SA-Romania Rameda–Egypt BAYAR (100( Sunlond-Atlanta Cisphrama-USA Allegiant Health	12.1 7.2 10.4 10.5 10.6 7.5 7.8 10.0 10.2 10.8 10.9 6.9 11.3 8.6 12.0 6.7 10.3 8.4 8.1 10.7	1.2 1.4 1.2 1.3 1.1 1.3 1.4 0.9 1.1 1.5 1.4 1.2 1.3 1.0 1.4 1.2 1.3 1.0 1.0 1.1	12.1 12.2 10.4 10.5 10.6 9.5 9.8 10.0 10.2 10.8 10.9 9.9 11.3 8.6 12.0 9.7 10.3 8.4 8.1 10.7	6.2 6.5 7.2 5.4 3.8 5.5 4.6 3.2 5.1 5.6 6.6 4.6 3.6 6.3 6.7 5.8 2.3 2.1 2.3 3.4	8.9 7.2 8.3 7.8 8.8 7.5 7.8 3.5 8.4 5.6 7.7 6.9 5.3 8.6 8.8 2.6 4.4 8.4 8.1 6.7	6.2 6.5 7.2 5.4 3.8 5.5 4.6 3.2 5.1 7.6 6.6 4.6 3.4 6.3 7.6 5.8 2.3 2.4 2.2 2.3

Values represent mean only n =3.

Quantitative assessment of ASP and SAL in tablets

Twenty pharmaceutical drugs that contain aspirin were commercially available in Iraqi markets. In table 3, we mentioned the names of the companies that we used their products to detect aspirin and salicylic acid. Table 4, represents the data we was obtained from our recommended and suggested method. Interestingly the results were suggested the precision and the appropriateness of the suggested method to determine of ASP and SAL in pharmaceutical tablets. Furthermore, the data were revealed that the recovery percentages for applying methods are with an acceptable range of the medication samples and the amount of the salicylic acid was within the standard and accepted percentage as compared to official analytical method [16, 17]. Therefore, we used recovery percentage in formulating tablets as indicating the validity of the method for analysis the aspirin and the impurities of salicylic acid in pharmaceutical formulation. RSD for all results is less than 2%.

Atomic absorption spectrophotometry

The heavy metals contain in aspirin tablets, such as Nickel, Cobalt, Iron, Lead, Cadmium and Chromium ions were determined by atomic absorption spectrophotometry. We summarized the results in table 5. Interestingly the data reveal that the amount of these metals within the normal ranges adopted by WHO [18].

CONCLUSION

The developed analytical methods were found to be simple, sensitive, rapid, economical, linear, reproducible and applicable over a wide concentration range with high precision and accuracy. The method was found suitable to determine the concentration of ASP as well as in the dosage form analysis precisely and accurately. The sample recovery from the formulation by using this method was very applicable in respect to its label claim. The results of the validated parameters were found to be satisfactory and can also be applied for the quality control tool in the estimation of aspirin, salicylic acid and heavy metal ions in pharmaceutical dosage forms.

ACKNOWLEDGEMENT

The author would like to express his gratitude to the University of Diyala, College of Education for Pure Science, Department of chemistry for providing lab and research facilities to complete this work.

AUTHORS CONTRIBUTIONS

All the author have contributed equally

CONFLICT OF INTERESTS

Declared none

REFERENCES

1. Muchtaridi M, Yuliani E, Sopyan I. Application off-line SPE-HPLC/UV methods in the analysis in human (in vitro). Int J Pharm Pharm Sci 2015;8:255–61.

2. Khan HN, Bandewar SS, Zameeruddin M, Bharkad VB. Development and validation of RP-HPLC method for simultaneous determination of aspirin and omeprazole. Der Pharm Chem 2017;9:55-8.

3. Kumar SS, Jamadar DL, Bhat K, Prashant B, Musmade B, Vasantharaju SG, et al. Analytical method development and validation for aspirin. Int J ChemTech Res 2010;2:389-99.

4. Pawar PY, Ankita R, Lokhande BR, Bankar AA. Simultaneous estimation of atorvastatin calcium and aspirin in pure and capsule dosage form by using UV spectrophotometric method. Der Pharm Chem 2013;5:98-103.

5. Bae SK, Seo KA, Jung EJ, Kim HS, Yeo CW, Shon JH, et al. Determination of acetylsalicylic acid and its major metabolite, salicylic acid, in human plasma using liquid chromatography–tandem mass spectrometry: application to pharmacokinetic study of astrix® in Korean healthy volunteers. Biomed Chromatogr 2008;22:590-5.

6. US Food and Drug Administration. Guidance for Industry, Q3A Impurities in New Drug Substances; 2003.

7. US Food and Drug Administration. Guidance for Industry, Q3B Impurities in New Drug Products; 2006.

8. Desai NC, Senta RD. Simultaneous RP-HPLC determination of salicylamide, salicylicacid and deferasirox in the bulk API dosage forms. JTUSCI 2015;9:245–51.

9. Acheampong A, Addai-Arhin S, Apau J, Gyasi WO. Development and validation of a RP-HPLC method with PDA detection for the simultaneous estimation of acetylsalicylic acid, paracetamol and caffeine in fixed dose combination tablets. Int J Chem Biomol Sci 2015;1:211-7.

10. Patila AS, Khairnara BJ, Maneb DV, Chaudharia BR. A validated stability-indicating HPLC related substances method for salicylic acid in bulk drug and dosage form. World J Pharm Sci 2015;3:1184-90.

11. Gousuddin MD, Sengupta P, Tripathi VD, Das A. Stability indicating RP-HPLC method for simultaneous determination of aspirin and clopidogrel in dosage form. MJAS 2016;20:247-57.

12. Hullah Bhuyian MD, Rashid DH, Islam AF, Tareque MD. Development and validation of method for determination of clobetasol propionate and salicylic acid from pharmaceutical dosage form by HPLC. BJPR 2015;7:375-85.

13. Skoog DA, Holler FJ, Crouch SR. Instrumental analysis. 11^thed. Delhi: Cengage Learning India Pvt Ltd; 2012.

14. Huber L. Validation of analytical methods and processes. In: The Pharmaceutical codex, principles and practice of pharmaceutics. 12^th ed. London: The Pharmaceutical Press; 1994. p. 507-24.

15. Davidson AG. Ultraviolet-visible absorption spectro-photometry. In: Beckett AH, Stenlake JB. editors. Practical pharmaceutical chemistry. 4^thed. Part 2. New Delhi: CBS Publishers and distributors; 2002. p. 275-337.

16. Ahmed MS, Noor QA. Simultaneous spectrophotometric determination of aspirin and codeine. Res J Pharm Biol Chem Sci 2017;8:1137-43.

17. Salako Q, Fadiran EO, Thomas WO. Detection and determination of salicylic acid impurity in aspirin tablet formulation by HPLC. Afr J Med Med Sci 1989;18:215-8.

18. Somaya ST, Khairi SA, Abdussalam SA, Mohammad MK. Atomic absorption analysis of toxic heavy metal impurities in various commercial aspirin formulations. AB 2015;3:9-14.
