Int J App Pharm, Vol 10, Issue 5, 2018, 34-42Review Article


RECENT PROGRESS OF DENDRIMERS IN DRUG DELIVERY FOR CANCER THERAPY

P. ANITHA, J. BHARGAVI, G. SRAVANI, B. ARUNA, RAMKANTH S.*

Annamacharya College of Pharmacy, New Boyanapalli, Rajampet, Kadapa, Andhra Pradesh 516126
Email: ramkanthsg@gmail.com

Received: 02 May 2018, Revised and Accepted: 14 Aug 2018

ABSTRACT

With the recent advances of nanotechnology, dendrimers are emerging as a highly attractive class of drug delivery vectors for cancer therapy. Dendrimers are multifunctional smart Nanocarriers to deliver one or more therapeutic agent safely and selectively to cancer cells. The high level of control over the synthesis of dendritic architecture makes dendrimers a nearly perfect (spherical) nanocarrier for site-specific drug delivery. The presence of functional groups in the dendrimers exterior also permits the addition of other moieties that can actively target certain diseases which are now widely used as tumor targeting strategies. Drug encapsulation, solubilization and passive targeting also equally contribute to the therapeutic use of dendrimers. Dendrimers are ideal carrier vehicles on cytotoxicity, blood plasma retention time, biodistribution and tumor uptake. In this review we highlight the advantages of dendrimers over conventional chemotherapy, toxicity and its management, following anti-cancer drugs delivered by using dendrimers and recent advances in drug delivery by various types of dendrimers as well as its diagnostic applications.

Keywords: Dendrimer, Cancer therapy, Nanocarriers, Drug delivery, Diagnostic applications

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i5.27075

INTRODUCTION

Cancer is one of the world’s most distressing diseases with no significant cure for several types of tumors [1, 2]. Cancer is principally a disease of cells identified by the loss of normal cellular growth, maturation and multiplication leading to disturbance of homeostasis. A brief consideration of the challenges facing an anti-cancer drug are–at first the drug must be able to seek out differences between a transformed cells from other healthy cells in the body. Secondly, they should provide sufficiently a high dose of toxic agent to kill the cell. Furthermore, it successfully cures a patient by eradicating each and every cancer cell [3]. However, conventional chemotherapeutic agents have several challenges such as low aqueous solubility, poor bio-distribution, unfavorable pharmacokinetics, narrow therapeutic index, poor membrane permeability, instability, rapid clearance, severe toxicity, and the emergence of multidrug resistance phenotypes.

Although, it has been observed that cancer chemotherapy is one of the best approaches to eradicate cancer and the success of chemotherapy mainly depends on the selection of optimum carrier system. These carriers include nanoparticles, nano tubes, nano rods, dendrimers, liposomes, solid lipid nanoparticles, microspheres etc.

Among all these, dendrimeric system appears to be promising in cancer chemotherapy, especially via ligand or Receptor-mediated endocytosis as it possess numerous properties [especially surface property] to target cancer and also to overcome all these limitations of conventional chemotherapeutic agents, there is an immediate need for developing safe and effective carrier vectors such as dendrimers that can protect the drug from degradation during transit and enhance targeting efficiency and also reduce adverse toxic effects caused by cytotoxic drugs [2].

Dendrimers are highly branched, nanosized, symmetric molecules with well defined, homogenous and monodisperse structure having diameter in 2-10 nm range. The word Dendrimer is based on the Greek words-“Dendron meaning tree or branch” and “merosmeaningpart” [3]. The structure of the denrimers is shown in fig. 1. The three component of dendrimer are central core, repetitive branching units and terminal groups. The “Generation number” of dendrimer is determined by the increase in a number of branching units which results in globar structure formation [4-7]. Palmerston Mendes L, Pan J, Torchilin VP 2017, has inferred in their review article that the presence of functional groups in the dendrimer’s exterior also permits the addition of other moieties that can actively target certain diseases and improve delivery which is now widely used as tumor targeting [4]. The presence of unique properties makes them ideal carriers for the targeted delivery of therapeutic and diagnostic agents [8].

Fig. 1: Structure of dendrimer
Source-bitspace.com

Advantages of dendrimers over conventional anti-cancer agents

Toxicity and its management

Table 1: Anti-cancer drugs delivered by using dendrimers

S. No. Anti-cancer drugs Dendrimer type
1 5-FU(5-Flurouracil)

PAMAM-mPEG-PDEA

PAMAM

Polyglycerol
2 CDDP(Cisplatin)

PAMAM

PAMAM-COOH
3 MTX(Methotrexate) Polyether-co-polyester PAMAM
4 PTX(Paclitaxel)

Poly Glycerol

PAMAM

Triazine

PPI
5 DOX(Doxorubicin)

PEGylated-PAMAM

Poly ester
6 Camptothecin PAMAM
7

Adriamycin

Tamoxifen

 PAMAM

.

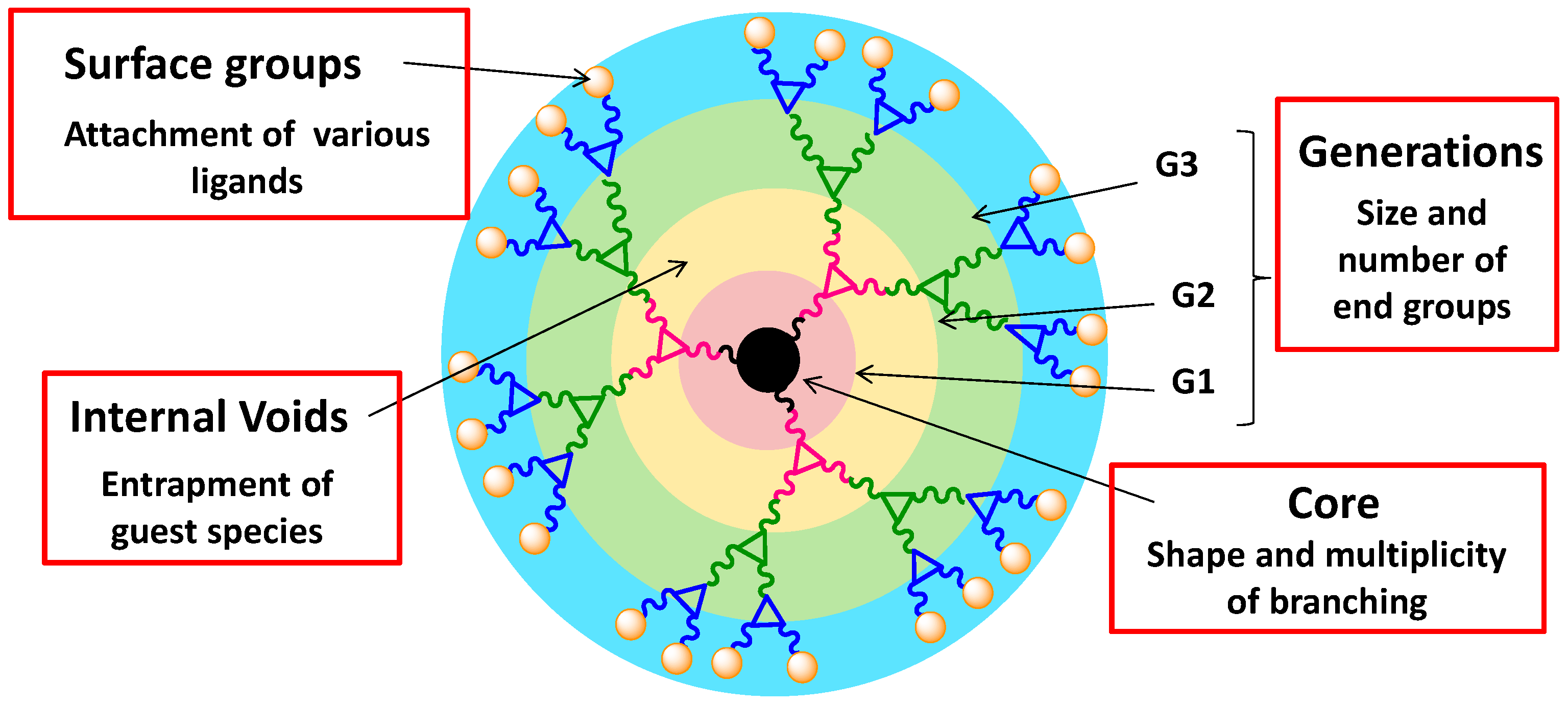

Fig. 2: Gerenal representation of the model structure of a dendrimer
Source: pubmed

Drug delivery as carriers

Dendrimers act as a carrier for the delivery of anti-cancer drugs by either encapsulation of the drug in the interior of the dendrimer or conjugating covalently to form macromolecular prodrug [27].

Drug encapsulated dendrimers

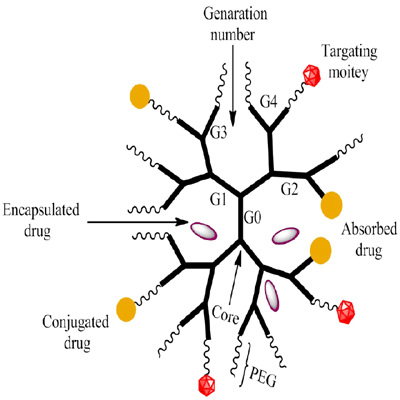

Fig. 3: Encapsulation of various types of drug into dendrimers
Source: Pubmed

Dendrimer drug conjugates: [27]

  1. Multiple drug molecules can be attached to each dendrimer molecule.

  2. Nature of linkages controls the release of therapeutic molecules.

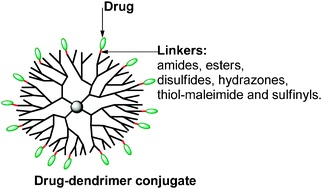

Fig. 4: A representation of drug-dendrimer conjugate
Source: Pubmed

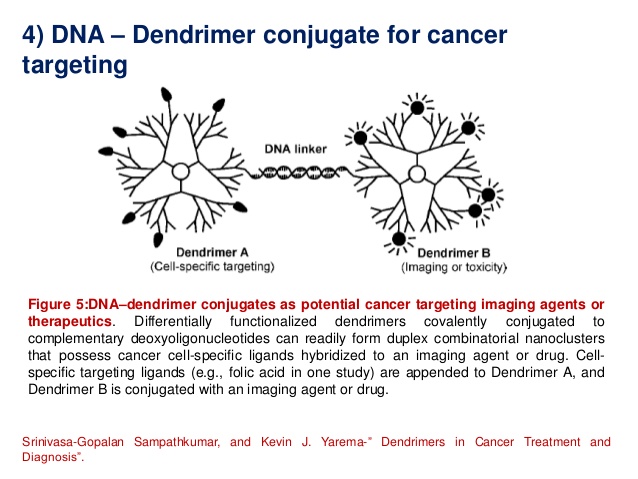

Fig. 5: A typical DNA-dendrimer conjugate for cancer targeting
Source: Pubmed

Drug delivery by various types of dendrimers

The utility of dendrimers can be well known by their ability to traverse several delivery barriers using two principles, namely active and passive tumor targeting.

Moreover, a Passive targeting approach (or) the EPR effect is only applicable to highly permeable solid tumors. However, the permeability of several tumor types is very low or non-uniform throughout heterogeneous tumors. These shortcomings can be resolved by Active targeting approach only which enables conjugation of a variety of cancer targeting ligands.

  1. PAMAM dendrimers (Poly amidoamine) dendrimers

It is principally used as carriers for anti-cancer therapy.

e. g.:

  1. Phosphoryl choline-conjugated fifth generation PAMAM dendrimers have been developed for the delivery of an anti-cancer drug “Adriamycin” [2].

  2. To improve the drug accumulation in lungs tumor, prepared DOX-dendrimer conjugates and investigated their ability to decrease metastatic lung burden through the administration of these Nanosystems [4].

4.0 G PAMMAM dendrimers have been conjugated with two targeting ligands, namely Transferrin (TF) and wheat germ agglutinin (WGA) and utilize d for the purpose of traversing the blood-brain barrier and Ingestion of drugs by brain tumor cells. Thus, provide a potential application for brain cancer therapy [2, 31].

Fig. 7: Cellular uptake of drug from dendrimer by passive targeting
Source: Science direct article Reference No. 2

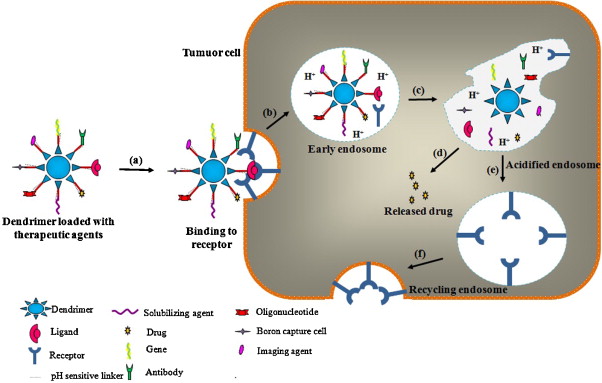

Fig. 8: Cellular uptake of drug from Dendrimer by Active targeting
Source: Science direct article Reference No. 2

2. PPI Dendrimers (Poly-propylene Imine) dendrimers

E. g.:

  1. G4.5PPI dendrimers that were carboxylic acid terminated to conjugate the monoclonal antibody mAbk1 to encapsulate paclitaxel (PTX). It targets Mesothelin protein, overexpressed in some cancers but not in normal cells [4, 33]

  2. Nanoconjugates of DOX were prepared by coupling with fifth generation PPI dendrimers using unique aromatic azo linkers (L1-L4) that could be selectively recognized and cleaved using azoreductase enzymes present in the cytoplasm of hepatic cancer cells. Hence, this approach could be successfully explored for controlled delivery of drugs to hepatic cancer cells [2, 34].

  3. Polysorbate-80 conjugated PPI dendrimers were explored for targeted delivery of DTX to the brain tumor.

3. PLL Dendrimers: (Poly–L-lysine) dendrimer

PLL dendrimers less well studied than PAMAM or PPI. Also, they found to be greatly associated with DOX and improve the drugs anti-cancer activity while showing fewer adverse events than the free drug [44, 21, 35, 36].

E. g.:

  1. The hydrophobic cavity of 6.0G PLL dendrimers anchored with PEG-linked hydrophobic pentaphenyl alanine are used to deliver DOX by I. V. which resulted in tumor accumulation by the EPR effect and led to the suppression of tumor growth without loss of body weight [2, 37].

  2. PLLDendrimers of generation 6 had well anti-angiogenic activity in an in vivo B16F10 Xenograft model (brain, lung, liver cancer) even in absence of therapeutic molecule. By associating the PLL dendrimers with DOX they attempted to combine the anti-cancer effect of the drug and anti-angiogenic effect of carrier [4, 36].

Table 2: Commonly used dendrimers as drug carriers [4]

S. No. Polymer Generation Pay load Application
1 PAMAM

G4

G4

G4

Doxorubicin

Paclitaxel

Docetaxel

Lung metastasis

Breast cancer

Breast cancer
2 PPI

G3-G5

G4.5

Melphalan

Paclitaxel

Breast cancer

Ovarian cancer
3 PLL

G6

G6

Doxorubicin

Doxorubicin

Melanoma

Rectum cancer

A glimpse of researches of dendrimers in cancer therapy

Sylwia Michlewska et al., 2018, stanch to study interactions between new carbosilane-based metallodendrimers containing ruthenium and anti-cancer small interfering RNA (siRNA). Formation of complexes between anti-cancer siRNAs and Ru-based carbosilane dendrimers was evaluated by transmission electron microscopy, circular dichroism, and fluorescence. The zeta-potential and the size of dendriplexes were determined by dynamic light scattering. The internalization of dendriplexes was estimated using HL-60 cells. Results show that ruthenium dendrimers associated with anticancer siRNA have the ability to deliver siRNA as non-viral vectors into the cancer cells. Moreover, dendrimers can protect siRNA against nuclease degradation [38].

Kelly E. Burnsa, James B. Delehanty 2018, had developed a peptide-dendrimer-drug conjugate system for the pH-triggered direct cytosolic delivery of the cancer chemotherapeutic doxorubicin (DOX) using the pH Low Insertion Peptide (pHLIP). In their research, they synthesized a pHLIP-dendrimer-DOX conjugate in which a single copy of pHLIP displayed a generation three dendrimer bearing multiple copies of DOX via disulfide linkages. Biophysical analysis showed that both the dendrimer and a single DOX conjugate inserted into membrane bilayers in a pH-dependent manner. Time-resolved confocal microscopy indicate the single DOX conjugate may undergo a faster rate of membrane translocation, due to the greater nuclear localization of DOX at 24 h and 48 h post-delivery. At 72 h, however, the levels of DOX nuclear accumulation for both constructs were identical. Cytotoxicity assays revealed that both constructs mediated ∼80% inhibition of cellular proliferation at 10 µM, the dendrimer complex exhibited a 17%greater cytotoxic effect at lower concentrations and greater than three-fold improvement in IC50 over free DOX. Their findings show proof of concept that the dendrimeric display of DOX on the pHLIP carrier (1) facilitates the pH-dependent and temporally-controlled release of DOX to the cytosol, (2) eliminates the endosomal sequestration of the drug cargo, and (3) augments DOX cytotoxicity relative to the free drug [39].

Jun Cao et al., 2018, has used small nanoparticles as a potentiator of conventional chemotherapy by co-administration with free chemotherapeutic agents. Their strategy avoided the problems associated with drug loading and controlled release encountered in NDDS, and was also much simpler than NDDS. Negatively charged poly (amidoamine)-2,3-dimethylmaleic monoamide (PAMAM-DMA) dendrimers were prepared, which possessed low toxicity and can be converted to positively charged PAMAM dendrimers responsive to tumor acidic pH. The in situ formed PAMAM in tumor tissue promoted cellular uptake of co-administered doxorubicin by increasing the cell membrane permeability and subsequently enhanced the cytotoxicity of doxorubicin. The small size of the dendrimers was found to be favorable for deep penetration in tumor. Co-injection of PAMAM-DMA with doxorubicin into nude mice bearing human tumors almost completely inhibited tumor growth, with a mean tumor weight reducing by 55.9% after the treatment compared with the treatment with doxorubicin [40].

Kuruvilla SP et al., 2018, were interested to see if tri-valent NAcGal ligands (i.e. NAcGal3) displayed on G5 dendrimers (i.e. G5-cPEG-NAcGal3; tri Gal) could improve their ability to target hepatic cancer cells compared to their mono Gal counterparts. They, therefore, synthesized a library of tri Gal particles, with either 2, 4, 6, 8, 11, or 14 targeting branches (i.e. cPEG-NAcGal3) attached. Conventional flow cytometry studies showed that all particle formulations can label hepatic cancer cells in a concentration-dependent manner, reaching 90-100% of cells labeled at either 285 or 570 nM G5, but interestingly, monoGal labeled more cells at lower concentrations. To elucidate the difference in internalization of monoGal versus triGal conjugates, we turned to multi-spectral imaging flow cytometry and quantified the amount of internalized (I) versus surface-bound (I0) conjugates to determine the ratio of internalization (I/I0) in all treatment groups. Results show that regardless of NAcGalvalency, or the density of targeting branches, all particles achieve full internalization and diffuse localization throughout the cell (I/I0 ∼ 3.0 for all particle compositions). This indicates that while tri-valentNAcGal is a promising technique for targeting nanoparticles to hepatic cancer cells, mono-valentNAcGal is more efficient, contrary to what is observed with small molecules [41].

Narsireddy Amreddy et al., 2018, Co-administered functionally distinct anti-cancer agents as an efficient strategy in lung cancer treatment. The study reported that they required aes a specially designed drug delivery system to co-encapsulate functionally different agents, such as a combination of siRNA and chemotherapy, for targeted delivery. Hence they developed a folic acid (FA)–conjugated polyamidoamine dendrimer (Den)-based nanoparticle (NP) system for co-delivery of siRNA against HuR mRNA (HuRsiRNA) and cis-diamine platinum (CDDP) to folate receptor-α (FRA)–overexpressing H1299 lung cancer cells. The co-delivery of HuRsiRNA and CDDP using theFRA-targeted NP had a significantly greater therapeutic effect than did individual therapeutics. Further, the FRA-targeted NP exhibited improved cytotoxicity compared to non-targeted NPagainst lung cancer cells. Finally, the NP showed negligible toxicity towards normal MRC9 lung fibroblast cells [42].

Chuda Chittasupho et al., 2017, hypothesized that targeted inhibition of CXCR4 in breast cancer cells should suppress CXCR4-positive tumor cells toward secondary metastatic sites. They emphasized their research to identify the efficacy of CXCR4 targeted dendrimers carrying DOX (LFC131-DOX-D4) on cellular binding, cytotoxicity and migration of BT-549-Luc and T47D breast cancer cells was investigated. PAMAM dendrimers encapsulating DOX was surface functionalized with LFC131 peptide which recognized CXCR4 expressed on the surface of breast cancer cells. The LFC131-DOX-D4 bound to breast cancer cells resulting in significantly enhanced in vitro cellular toxicity as compared with non-targeted dendrimers. The LFC131-D4 exhibited remarkable reduced migration of BT-549-Luc breast cancer cells toward chemoattractant. Finally, the work demonstrated the potential utility of LFC131-dendrimer conjugates for breast cancer therapy and metastasis [43].

Nigam S, Bahadur Det al., 2017, demonstrates the fabrication and characterization of a new class of cationic, biocompatible, peptide dendrimers, which were then used for stabilizing and functionalizing magnetite nanoparticles for combinatorial therapy of cancer. The synthesized peptide dendrimers have the edge over the widely used PAMAM dendrimers due to better biocompatibility and negligible cytotoxicity of their degradation products. The surface engineering efficacy of the peptide dendrimers and their potential use as drug carriers were compared with their PAMAM counterparts. The peptide dendrimer was found to be as efficient as PAMAM dendrimers in its drug-carrying capacity, while its drug release profiles substantially exceeded those of PAMAM's. A dose-dependent study was carried out to assess their half maximal inhibitory concentration (IC50) in vitro with various cancer cell lines. A cervical cancer cell line that was incubated with these dendritic nanoparticles was exposed to the alternating current magnetic field (ACMF) to investigate the effect of elevated temperatures on the live cell population. The DOX-loaded formulations, in combination with the ACMF, were also assessed for their synergistic effects on the cancer cells for combinatorial therapy. The results established the peptide dendrimer as an efficient alternative to PAMAM, which can be used successfully in biomedical applications [44].

Ozturk Ket al., 2017, developed a dendrimer-based drug delivery system targeting Flt-1 (a receptor for vascular endothelial growth factors (VEGF)) receptor to improve the therapeutic efficacy of gemcitabine in pancreatic cancer. Synthesized polyethylene glycol (PEG)-cored PAMAM dendrimers, which bear anionic carboxylic acid groups on the surface were modified with PEG chains, which were then conjugated with Flt-1 antibody. Following structural and chemical characterization studies, gemcitabine HCl-dendrimer inclusion complexes were successfully prepared. These complexes were efficiently engulfed by Flt-1 expressing pancreatic cancer cells, which enhanced the cytotoxicity of gemcitabine. Moreover, pancreatic tumors established in mice were highly targeted by PEG-cored Flt-1 antibody-conjugated dendrimers and increased accumulation of these gemcitabine-loaded complexes exhibited satisfactory in vivo anti-cancer efficacy [45].

Bodewein L et al., 2016, has tested polyamidoamine (PAMAM) dendrimers of generations G3.0, 3.5, 4.0, 4.5 and 5.0 and polypropylenimine (PPI) dendrimers G3.0, 4.0 and 5.0 in zebrafish embryos for 96h and human cancer cell lines for 24h, to assess and compare developmental in vivo toxicity with cytotoxicity. The zebrafish embryo toxicity of cationic PAMAM and PPI dendrimers increased over time, with EC50 values ranging from 0.16 to just below 1.7μM at 24 and 48hpf. The predominant effects were mortality, plus reduced heartbeat and blood circulation for PPI dendrimers. Apoptosis in the embryos increased in line with the general toxicity concentration-dependently. Hatch and dechorionation of the embryos increased the toxicity, suggesting a protective role of the chorion. Lower generation dendrimers were more toxic in the embryos whereas the toxicity in the HepG2 and DU145 cell lines increased with increasing generation of cationic PAMAMs and PPI dendrimers. HepG2 were less sensitive than DU145 cells, with IC50 values≥402μM (PAMAMs) and ≤240μM (PPIs) for HepG2 and ≤13.24μM (PAMAMs) and ≤12.84μM (PPIs) for DU145. Neither in fish embryos nor cells toxicity thresholds was determinable for anionic PAMAM G3.5 and G4.5. Their study demonstrated that the cytotoxicity underestimated the in vivo toxicity of the dendrimers in the fish embryos [46].

Prashant Kesharwani et al., 2014, describes comparative data pertaining to generation dependent cancer targeting propensity of Poly (-propyleneimine) (PPI) dendrimers. PPI dendrimers of different generations (3.0G, 4.0G and 5.0G) were synthesized and loaded with Melphalan. Results from loading, hemolysis, hematologic, cytotoxicity and flow cytometry assay depicted that as the generation of dendrimer increased from fourth to fifth, the only parameter i.e. toxicty is increased exponentially. However, others parameters, i.e. loading, sustained release behavior, and targeting efficacy increased negligibly. Kaplan-Meier survival curves clearly depicted comparable therapeutic potential of PPI4M with PPI5M. In vivo investigations in Balb/c miceagain favored 4.0G PPI dendrimer to be preferable nanocarrier for anticancer drug delivery owing to analogous anticancer potential. The outcomes of the investigation evidently projects 4.0G PPI dendrimerover 3.0G and 5.0G dendrimer in respect of its drug delivery benefit as well as superior biocompatibility [47].

Wenjun Yang et al., 2009, executed their research by conjugating partially acetylated generation 5 (G5) polyamidoamine(PAMAM) dendrimer with the targeting moiety (biotin) and the imaging moiety (fluorescein isothiocyanate, FITC), and the resulting dendrimer-biotin conjugate was characterized by 1H NMR, UV-vis spectrum. As revealed by flow cytometry and confocal microscopy, the bifunctional conjugate (dendrimerebiotineFITC) exhibited much higher cellular uptake into HeLa cells than the conjugate without biotin. The uptake was energy-dependent, dose-dependent, and could be effectively blocked by dendrimer-conjugated biotin. Their results indicated that the biocompatible biotinedendrimer conjugate might be a promising nano-platform for cancer therapy and cancer diagnosis [48].

Diagnostic applications of dendrimers

Advances in nanotechnology have enabled development of dendrimers that can be used as diagnostic aids in diverse molecular imaging application, particularly diagnostic applications such as-

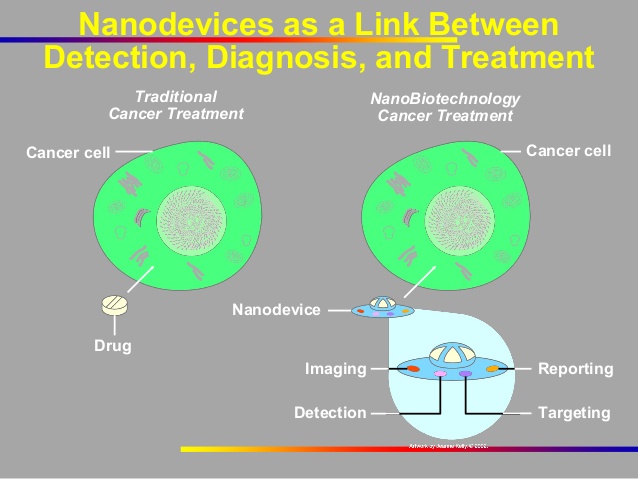

Fig. 9: Nanodevices as a link between detection, diagnosis and treatment

  1. Cancer Imaging

  2. Photodynamic therapy

  3. Boron neutron capture therapy

  4. Tecto-dendrimer Nanodevice

  5. Photothermal therapy

a. Cancer imaging

b. Photodynamic therapy: (PDT)

c. Boron neutron capture therapy-(BNCT)

d. Tectodendrimer as nanodevice [51]

Tecto dendrimers are multifunctional devices built from a core dendrimer, surrounded by shell dendrimers. Each shell dendrimer performs one function

e. Photothermal therapy [27]

CONCLUSION

Nowadays understanding the disease, development of newer targeted therapies and treatment of several forms of cancer remains a major challenge. Among all the latest developed Nanotechnologies, Dendrimer mediated drug delivery has emerged as a superior opinion to overcome the shortcomings of conventional chemotherapy. Dendrimer act as a carrier for the delivery of drug to tumor by encapsulation (or) conjugation. This delivery to tumor site mostly occurs through PAMAM, PPI, and PLL dendrimers by either passive or active targeting. Many advances have been made to obtain safe and efficacious dendrimer-based formulation for increasing the specificity and efficacy towards diagnosis and treatment of cancer. The future scope of dendrimers in research depends on its applicability in areas such as synthesis, drug delivery, biotechnology, nanotechnology, detection, catalyst and cosmetics.

ACKNOWLEDGMENT

We are immensely obliged and thankful to Chairman Sri. C Gangi Reddy of Annamacharya of pharmacy for catering legitimate facilities for carrying out the work.

AUTHORS CONTRIBUTIONS

All the author have contributed equally

CONFLICT OF INTERESTS

Declared none

REFERENCES

  1. Ferlay J, Soerjomataram I, Dikshit R, Eser S, Mathers C, Rebelo M, et al. Cancer incidence and mortality worldwide; sources, methods and major patterns in globocan. Int J Cancer 2015;136:359-86.

  2. Prashant Kesharwani, Arun K Iyer. Recent advances in dendrimer-based Nano vectors for tumor targeted drug and gene delivery. Drug Discovery Today 2015;20:536-47.

  3. Srinivasa Gopalan, Sampath kumar, Kevin J Yarema. Dendrimers in cancer treatment and diagnosis. Nanotechnologies for the Life sciences. Nanomaterials for Cancer Diagnosis. WILEY-VCH Verlag GmbH and Co. KGaA, Weinheim; 2007. p. 1-33.

  4. Palmerston Mendes L, Pan J, Torchilin VP. Dendrimers as nano carriers for nucleic acid and drug delivery in cancer therapy. Molecules 2017;22:23.

  5. Liu M, Frechet JMJ. Designing dendrimers for drug delivery. Pharm Sci Technol Today 1999;2:393-401.

  6. Sven Son S, Tomalia DA. Dendrimers in bio medical applications-Reflections on the field. Adv Drug Delivery Rev 2012;64:102-15.

  7. Lee CC, Mackay JA, Frechet JMJ, Szoka FC. Designing dendrimers for biological applications. Nat Biotechnol 2005;23:1517-26.

  8. Ashok Kumar Sharma, Avinash Gothwal, Prashant Kesharwani, Hashem Alsaab, Arun K Iyer. Dendrimers nano-architectures for cancer diagnosis and anti-cancer drug delivery. Drug Discovery Today 2016;22:314-26.

  9. Nanjwade BK, Bechra HM, Derkar GK, Manvi FV, Nanjwade VK. Dendrimers: emerging polymers for drug-delivery systems. Eur J Pharm Sci 2009;38:185-96.

  10. Landge DA, Shyale SS, Kadam SD, Shah DV, Katareys, Pawar JB. Dendrimer: an acceptable innovative approach in novel drug delivery system. Pharmacophore An Int J 2014;5:24-34.

  11. Patidar A, Thakur DS. Dendrimer: a potential carrier for drug delivery. Int J Pharm Sci Nanotech 2011;4:1383-9.

  12. Sadhana R Shahi, Mitali S Kulkarni, Gopal S Karva, Prabhanjan S Giram, Ruchika R Gugulkar. Dendrimers. Int J Pharm Sci Res 2015;33:187-98.

  13. Duncan R, Izzo L. Dendrimer bio compatibility and toxicity. Adv Drug Delivery Rev 2005;57:2215-37.

  14. Silva JRNP, Menacho FP, Chorilli M. Dendrimers as potential platform in nanotechnology-based drug delivery systems. IOSR J Pharm 2012;2:23-30.

  15. Jain K, Kesharwani P, Gupta U, Jain NK. Dendrimer toxicity: let’s met the challenge. Int J Pharm 2010;394:122-42.

  16. Madaan K, Kumar S, Poonia N, Lather V, Pandita D. Dendrimers in drug delivery and targeting: drug-dendrimer interactions and toxicity issues. J Pharm Bioallied Sci 2014;6:139-50.

  17. Crampton, Hannah L, Manek Eric E. Dendrimers the drug delivery vehicles: non-covalent interactions of bioactive compounds with dendrimers. Polymer Int 2007;56:489-96.

  18. Szymanski, Pawel, Markowicz, Magdalena, Mikiciuk-Olasik, Elz Bieta. Nanotechnology in pharmaceutical and biomedical applications. Dendrimers World Scientific Publishing Company 2011;6:509-39.

  19. Kim, Tae-il. Comparison between arginine conjugated PAMAM dendrimers with structural diversity for gene delivery systems. J Controlled Release 2009;136:132-9.

  20. Kesharwani P, Iyer AK. Recent advances in dendrimer-based Nano vectors for tumor-targeted drug and gene delivery. Drug Discovery Today 2015;20:536-47.

  21. Kaminskas LM. A comparison of changes to doxorubicin pharmaco kinetics, anti-tumor activity and toxicity mediated by PEGylated dendrimer and PEGylated liposome drug delivery systems. Nanomed Nanotechnol Biol Med 2012;8:103-11.

  22. Ly TU, Tran NQ, Hoang. PE gylateddendrimerand its effect in fluorouracil loading and release for enhancing anti-tumor activity. J Biomed Nanotechnol 2013;9:213-20.

  23. Bhadra, D, Bhadra S, Jain NK. A PEGylated dendritic nano particulate carrier of fluorouracil. Int J Pharm 2003;257:111-24.

  24. Jevprasesphant R, Penny J, Jalal, Attwood D, Mckeown NB, Manuele A. The influence of surface modification on the cytotoxicity of PAMAM dendrimers. Int J Pharm 2003;252:263-6.

  25. Luo J, Borgens R, Shi R. Poly ethylene glycol immediately repairs neuronal membranes and inhibits free radical production after acute spinal cord injury. J Neurochem 2002;83:471-80.

  26. Zhu S, Hong M, Zhang L, Tang G, Jiang Y, Pei Y. PEGylated PAMAM dendrimer-doxorubicin conjugates: Invitro evaluation and invivo tumor accumulation. Pharm Res 2010;27:161-74.

  27. Jesse B Wolinsky, Mark W, Grin Staff. Therapeutic and diagnostic applications of dendrimers for cancer treatment. Adv Drug Delivery 2008;60:1037-55.

  28. MT Morgan, MA Carnahan, Chad E Immoos, Anthony A Ribeiro, Stella Finkelstein. Dendritic molecular capsules for hydrophobic compounds. J Am Chem Soc 2003;125:15485-9.

  29. MF Neerman, Hui Ting Chen, Alan R Parrish, Eric E Simanek. Reduction of drug toxicity using dendrimers based on melamine. Mol Pharm 2004;1:390-3.

  30. Jayant J Khandare, SreejaJayant, Ajay Singh, Pooja Chandna, Yang Wang, Nicholi Vorsa, Tamara Minko. Dendrimer versus linear conjugate: influence of polymeric architecture on the delivery and anti-cancer effect of paclitaxel. Bio Conjug Chem 2006;17:1464-72.

  31. He H, Li Y, Jia XR, Du J, Ying X, Lu WL, et al. PEGylated poly (amido amine) dendrimer-based dual-targeting carriers for treating brain tumors. Bio Materials 2011;32:478-87.

  32. Kesharwani P, Jain K, Jain NK. Dendrimer as nano carrier for drug delivery. Prog Polym Sci 2014;39:268-307.

  33. Jain NK, Tare MS, Mishra, Tripathi PK. The development characterization and invivoanti-ovarian cancer activity of poly (propylene imine)-antibody conjugates containing encapsulated paclitaxel. Nanomed Nanotechnol Biol Med 2015;11:207-18.

  34. Medina SH, Chevliakov MV, Tiruchinapally G, Durmaz YY, Kuruvilla SP, Elsayed ME. Enzyme-activated nano conjugates for tunable release of doxorubicin in hepatic cancer cells. Bio Materials 2013;34:4655-66.

  35. Kaminskas LM, Kelly BD, McLeod VM, Sberna G, Owen DJ, Boyd BJ, et al. Characterization and tumor targeting of PEGylated polylysine dendrimers bearing doxorubicin via a pH liable linker. J Controlled Release 2011;152:241-8.

  36. Al-Jamal KT, Al-Jamal, Wang JTW, Rubio N, Buddle J, Gathercole D Zloh. Cationic poly l-lysine dendrimer complexes doxorubicin and delays tumor growth complexes doxorubicin and delays tumor growth in vitro and in vivo. ACS Nano 2013;7:1905-17.

  37. Takuro Niidome, Hisayo Yamauchi, Kayo Takahashi, Kenshiro Naoyama, Kazuto Watanabe, Takeshi Mori, et al. Hydrophobic cavity formed by oligopeptide for doxorubicin delivery based on dendritic poly (L-lysine). J Biomater Sci Polym Ed 2014;25:1362-73.

  38. Sylwia Michlewska, Maksim Ionov, Marta Maroto Diaz, Aleksandra Szwed, AliakseiIhnatsyeu-Kachane, Svetlana Loznikov, et al. Ruthenium dendrimers as carriers for anticancer si RNA. J Inorg Biochem 2018;181:18-27.

  39. Kelly E Burnsa, James B Delehantya. Cellular delivery of doxorubicin mediated by disulfide reduction of a peptide-dendrimerbioconjugate. Int J Pharm 2018;545:64–73.

  40. Jun Cao, Chenhong Wang, Leijia Guo, Zhiyong Xiao, Keliang Liu, Husheng Yan. Co-administration of a charge-conversional dendrimer enhances antitumor efficacy of conventional chemotherapy. Eur J Pharm Biopharm 2018;127:371-7.

  41. Kuruvilla SP, Tiruchinapally G, Kaushal N, ElSayed MEH. Effect of N-acetylgalactosamine ligand valency on targeting dendrimers to hepatic cancer cells. Int J Pharm 2018;545:27-36.

  42. Amreddy N, Babu A, Panneerselvam J, Srivastava A, Muralidharan R, Chen A, et al. Chemo-biologic combinatorial drug delivery using folate receptor-targeted dendrimer nanoparticles for lung cancer treatment. Nanomedicine 2018;14:373-84.

  43. Chuda Chittasupho, Songyot Anuchapreed, Narong Sarisuta. CXCR4 targeted dendrimer for anti-cancer drug delivery and breastcancer cell migration inhibition. Eur J Pharm Biopharm 2017;119:310–21.

  44. Nigam S, Bahadur D. Dendrimer-conjugated iron oxide nanoparticles as stimuli-responsive drug carriers for thermally-activated chemotherapy of cancer. Colloids Surf B 2017;155:182-92.

  45. Ozturk K, Esendagli G, Gurbuz MU, Tulu M, Calis S. Effective targeting of gemcitabine to pancreatic cancer through PEG-cored Flt-1 antibody-conjugated dendrimers. Int J Pharm 2017;517:157-67.

  46. Bodewein L, Schmelter F, Di Fiore S, Hollert H, Fischer R, Fenske M. Differences in toxicity of anionic and cationic PAMAM and PPI dendrimers in zebrafish embryos and cancer cell lines. Toxicol Appl Pharmacol 2016;305:83-92.

  47. Prashant Kesharwani, Rakesh K Tekade, Narendra K Jain. Generation dependent cancer targeting potential of poly (propyleneimine) dendrimer. Biomaterials 2014;35:5539-48.

  48. Wenjun Yang, Yiyun Cheng, Tongwen Xu, Xueyuan Wang, Long-ping Wen. Targeting cancer cells with biotinedendrimer conjugates. Eur J Med Chem 2009;44:862-8.

  49. Wenjun Yang, Yiyun Cheng, Tongwen Xu, Xueyuan Wang, Long-Ping Wen. Targeting cancer cells with biotinedendrimer conjugates. Eur J Med Chem 2009;44:862-8.

  50. S Langereis, QG Delussanet, MH Van Genderen, EW Meijer, RG Beets-Tan, AW Griffioen, et al. Evaluation of Gd (lll) DTPA-terminated poly (propylene Imine) dendrimers as contrast agents for MR imaging. NMR Biomed 2006;19:133-41.

  51. Y Fu, DE Nitecki, GH Simon, K Berejnoi, HJ Raat Sehen, BM Yeh. Dendritic Iodinated contrast agents with PEG-cores for CT imaging: synthesis and preliminary characterization. Bio Conjug Chem 2006;17:1043-56.

  52. James R, Baker Jr. Dendrimer-based nanoparticles for cancer therapy. Hematol Am Soc Hematol Educ Program 2009;708-19. DOI:10.1182/asheducation-2009.1.708.

  53. G Wu, RF Barth, W Yang, RJ Lee, W Tjarks, MV Backer, et al. Boron containing Macromolecules and Nano vehicles as delivery agents for neutron capture therapy. Anti-Cancer Agents Med Chem 2006;6:167-84.
