Int J App Pharm, Vol 10, Issue 5, 2018, 117-124Original Article


SUSTAINED RELEASE TABLETS OF SORAFENIB-SILIBININ COMBINATIONS FOR THE TREATMENT OF HEPATOCELLULAR CARCINOMA

SAVITA MISHRA1#, SANDHYA HORA1#, VIBHA SHUKLA2, MUKUL DAS2, HARSHA KHARKWAL3, DEEPSHIKHA PANDE KATARE*1

1Proteomics and Translational Research Lab, Centre for Medical Biotechnology, Institute of Biotechnology, Amity University Uttar Pradesh, Noida, India, 2CSIR-Indian Institute of Toxicology Research, Lucknow, India, 3Amity institute of Phytomedicine and Phytochemistryand Amity Center for Carbohydrate Research, Amity University Uttar Pradesh, Noida, India
Email: dpkatare@amity.edu

Received: 29 May 2018 Revised and Accepted: 11 Jul 2018

ABSTRACT

Objective: The aim of this study was to develop polymer coated sustained release tablet using sorafenib and silibinin combination for the treatment of hepatocellular carcinoma.

Methods: The qualitative analysis such as weight variation, friability, hardness, interaction studies, disintegration and in vitro release were performed to validate formulated tablets. We have maintained the acceptable official limits for weight variation, friability, hardness and disintegration time according to prescribed pharmacopoeial recommendation. In vitro drug release studies were performed using USP-II (paddle type) dissolution apparatus. The MTT assay was performed for assessment of Cell viability of drug combination for tablet formulation. Molecular docking studies have been performed to determine the combinatorial mode of action for the tablet formulation.

Results: Friability and weight variation were less than 1% for each formulation, which were within range of prescribed pharmacopoeial recommendation. The hardness of 20 tablets showed 5-6.5Kg/cm2 for all formulations 5-6.5Kg/cm2. The optimized formulation resulted in 98% drug release after 28 h. The present study reports the synergistic effects of drug combination to inhibit cell growth in HepG2 cell line. Molecular docking studies showed that sorafenib has high binding affinity for B-Raf vascular endothelial growth factor receptor β and protein kinase B. Silibinin showed binding affinity with MAP kinase-11, protein phosphatase 2 A and tankyrase.

Conclusion: The present study reports for the first time a novel formulation for sustained release and reduced toxicity of sorafenib with enhanced inhibitory effect of the drug combination on cancerous hepatic cell line as well collaborative mechanism of action for the formulation.

Keywords: Sustained release, Pullulan, Combinational treatment, Silibinin, Silymarin, Sorafenib, Hepatocellular Carcinoma

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i5.27597

INTRODUCTION

Hepatocellular carcinoma (HCC) is a life threatening neoplasm originated from hepatocytes, representing approximately 80% of liver cancer and 3rd most common cancer related death [1]. HCC is a extremely vascularized and malignant tumor that is responsible for poor survival and rapid recurrence in patients [2, 3]. Sorafenib, an angiogenesis inhibitor is predominantly used as oral drug for HCC treatment [4]. However, long term exposure of sorafenib to the hepatic cells can lead to drug resistance as well as the risk of rebound growth of tumorigenic cells [5]. Combination of natural phytochemicals (silymarin and silibinin) with synthetic (sorafenib) treatment is an alternative way for HCC management, due to their efficacy to protect normal hepatic cell from tumorigenic hepatocytes [6, 7]. The major issue with this type of infirm soluble drugs is to confront bioavailability and cellular absorption; however, several polymers are prevalent these days to increase bioavailability in the GI tract [8-10]. Polymers such as chitosan, pullulan and cyclodextrin are well established coating material to maintain sustained release of drugs for prolonged therapeutic effect as well as steady drug concentration in blood [11-13]. Pullulan is thermally stable, biodegradable and water soluble compound which consists of stable neutral linear polysaccharide chain of α-1; α-1,6-maltotriose monomer [14]. Pullulan has higher affinity to asialo-glycoprotein receptors of hepatic sinusoidal cells and is abundantly expressed in liver. This unique feature of pullulan has been utilized by researchers for targeted drug delivery to the hepatic cells [15, 16]. Pullulan based prodrugs can enhance the bioavailability of anticancer drugs and improve tumour targeting [17].

The present study reports for the first time pullulan coated matrix tablet having a combination of sorafenib and silymarin/silibinin to target hepatocytes. The tablets were made pH specific for sustained release into intestinal fluid. The cell viability assay of above combination was performed on Hep G2 cell line to elucidate the effective dose of this formulation to inhibit growth of cancerous hepatic cells. Furthermore, molecular docking of the combination revealedthe collective signalling pathway for both synthetic (sorafenib) and phytoconstituents (silibinin). The formulation is also reducing the toxicity of the synthetic drugs.

METHODS AND MATERIALS

Chemical required

Hydroxy propyl methyl cellulose, carboxymethyl cellulose, talc powder, lactose, distilled water, ethanol, isopropyl alcohol, magnesium stearate, croscarmellose sodium Microcrystalline cellulose are procured from Himedia (India). Sorafenib was a gift from Cipla. Dulbecco’s Modified essential medium (DMEM) 3-(4, 5-dimethyl thiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT), and fetal bovine serum (FBS) were purchased from Himedia (India). Trypsin-EDTA (1, 10-phenanthrolinemonohydrate o-phenanthroline ethylene diaminetetraacetic acid), dimethylsulfoxide (DMSO), antibiotic (penicillin-streptomycin solution), silymarin and silibinin are procured from Sigma Aldrich (USA).

Cell culturing

HepG2 (Human hepatocellular carcinoma) cells were obtained from National Centre for Cell Science (NCCS Pune, Maharashtra, India). The cell culture medium was DMEM supplemented with 10% heat-inactivated fetal bovine serum (FBS), 100 U/ml penicillin and 100 g/ml streptomycin (Invitrogen, Carlsbad, CA). Cells were grown in cell culture media and incubated at 37◦C in a 5% CO2/95% air humidified incubator. For experimental purposes, a fully confluent 75 cm2 culture flask containing the cells was trypsinized (500 μl of 0.25% trypsin).

MTT assay

We have performed cell viability assay to investigate the inhibitory effect of sorafenibsilymarin and silibinin individually as well as in combination. The MTT-assay was performed on HepG2 cells using different concentration of drugs and its combinations for determining cell viability [18]. For this, 10 x 103 cells were seeded in 96 well cell culture plates. The cells were incubated with different concentration of silymarin, silibinin and sorafenib alone and its different combination for 24 and 48 h. Each combination contained two types of compounds, one was synthetic (sorafenib) and another was plant based compound either silymarin or silibinin according to the table 1. After required incubation MTT solution (5 mg/ml) was added to the each well and further incubates for 2-3 h.

Further, DMSO (200 µl) was added to each well for solubilization of fromazon crystals and plate was read at 550 and 660 nm on a microplate reader (Synergy HT, BIO-TEK International, Winooski, VT). The percentage viability was calculated by comparing the absorbance of control and treated cells.

Table 1: Individual dose and its combination for cell viability assay

Name of drug Concentration
Sorafenib 2.5, 5, 10 and 20 µM
Silymarin 2.5, 5, 10 and 20 µM
Silibinin 4, 10, 20, 40 and 80 µM
Combination1 (Sorafenib: silymarin) 5: 5 µM
Combination2 (Sorafenib: silymarin) 10: 10 µM
Combination3 (Sorafenib: silibinin) 10: 20 µM
Combination4 (Sorafenib: silibinin) 20: 40 µM

Drug interaction studies through FTIR

The drug-drug interaction has been performed using ATR-FTIR (Attenuated total reflection-Fourier transform infrared spectroscopy, Cary 660 FTIR spectrometer-Agilent Technologies) procedure. Sorafenib, silibinin and silymarin individually and in combination (sorafenib-silymarinand sorafenib-silibinin in 1:1 ratio) diluted with chemically latent compound KBr for pellet preparation. These pellets were scanned from 4000 to 400 cm−1 on FTIR for spectra analysis.

Methodology for matrix tablet formulation

Tablets were formulated using wet granulation method with drugs and excipients. Different concentration of each drug (table 2), lactose 1.2 gram, microcrystalline cellulose 0.8 gram, croscarmellose sodium 400 mg, and magnesium stearate 100 mg were used to prepare 100 tablets. All material except HPMC and talc powder were added in a tray and mixed using double comb blender for 15-20 min. Dough was prepared using minimal amount of 5% HPMC solution (1-2 ml only). Subsequently, granules were produced using 12 mesh sieve and air dried at 45-50 ° for 2 h. These granules were mixed with 100 mg talc powder using double comb blender. Tablets were punched according to their theoretical weight using punching machine.

Pullulan coating

Coating was done using 2% pullulan (0.05% glycerol-mili-Q water) solution. Spray coating were done for 3 min and liquid component of coating material were air dried through passing of air on the tumbling pan for complete dehydration. The multiple cycle of spraying were done for complete coating of the tablets.

Table 2: Concentration of each drug in different formulation

Name of formulation Drug concentration per tablet Theatrical Weight of each tablet
Formulation 1 Sorafenib: Silymarin (1: 1) (7 mg+7 mg) 40.0 mg
Formulation 2 Sorafenib: Silibinin (1: 1) (4.5 mg+4.5 mg) 36.0 mg
Formulation 3 Sorafenib: Silibinin (0.7: 1) (3.5 mg+4.5 mg) 34.5 mg

Qualitative evaluation of tablets

Monsanto hardness tester was used to measure hardness (n=10) of the tablet and unit was Newton/meter. The friability was measured utilizing Roche friabilator and total five tablets were taken from each formulation. First, pre-weighed tablets kept in friabilator for rotation at 25 rpm speed for 4 min and then reweighed afterremoval. Weight loss percentage was calculated. The disintegration test apparatus was used for disintegration time calculation by keeping one tablet placed in each basket. This procedure has been performed with both acidic medium (0.1N HCl) and basic medium (phosphate buffer pH 7.4). Disintegration time calculated using stopwatch. Weight variation was carried out to ensure proper amount of drug in each tablet. The test was accomplished after weighing 20 tablets individually using analytical balance and then calculating the average weight.

Dissolution test

In vitro drug release studies were performed using USP-II (paddle type) dissolution apparatus, on the rotational pace of 50 rpm at 37±0.5 °. Dissolution of formulating tablets was performed under both acidic and basic conditions. 900 ml of 0.1 M HCl was used for initial 2 h followed by phosphate buffers (pH 7.4) for 28 h. Sample (10 ml) was withdrawn at specific interims and the same volume of pre-warmed (37±0.5 °) fresh dissolution medium was supplanted to keep up the volume steady. The sample was filtered with Whatman filter paper and different wavelength (272 nm, 288 nm and 287 nm for Sorafenib, silymarin and silibinin respectively) were used to calculate the cumulative drug content in each formulation using suitable dilution. The dissolution test was

Molecular docking and metabolic pathway analysis

An extensive review was performed to identify the effective target proteins for binding of sorafenib and silibinin. Identified proteins were studied for their role in hepatocarcinogenesis. All proteins were directly imported from Protein Data Bank (PDB) into the Protein Preparation Wizard of Maestro9.6 and analyzed for their unordered side chains, loops and missing atoms. Moreover, water atoms were removed and the missing side chains were validated by Prime3.5 program. Protein optimization and minimization was performed for hydrogen atom addition and atomic charge assignment, respectively. Ligands were sketched on 2D-sketcher for structure designing. Later, low energy conformations were achieved for both ligands through ligand preparation (LigPrep2.8 module) in Maestro workspace. Extra Precision (XP) program of Glide6.1 was utilized to dock both ligands with each receptor. The flexible ligand-receptor docking was performed for the conformation generation and only low energy conformations were retained. The Predicted signalling pathway was prepared utilizing glide score of ligand receptor docking.

Statistical analysis

The results were studied using either one way or two ways ANOVA (analysis of variance) and p-value<0.05 was measured to be statistically significant using Graph Pad Prism software, U. S. A.

RESULTS

Effect of individual dose of sorafenib, silymarin and silibinin on HepG2 cell line

Dose and time dependent effects of sorafenib, silymarin and silibinin were determined at different concentrations (2.5, 5, 10, 20 and 40 μM) in HepG2 cells by performing MTT assay. As shown in fig. 1. All the three compounds did not exhibit any significant effect at 24 h. However at 48 h, cell viability was significantly reduced to 87%, 88%, 74% and 67% (P<0.001) at 5-40 μM concentration of sorafenib. Further, plant based compound, Silymarin also showed significant effect at 48 hr showing reduced cell viability from 78% to 67% (P<0.001) at concentrations of 5–40 μM. Similar trend was exhibited by another plant based compound, Silibinin that reduced the cell viability by 84%, 75%, 66%, 71%, and 65% (P<0.001) at 48 h incubation with 2.5-40 μM concentration.

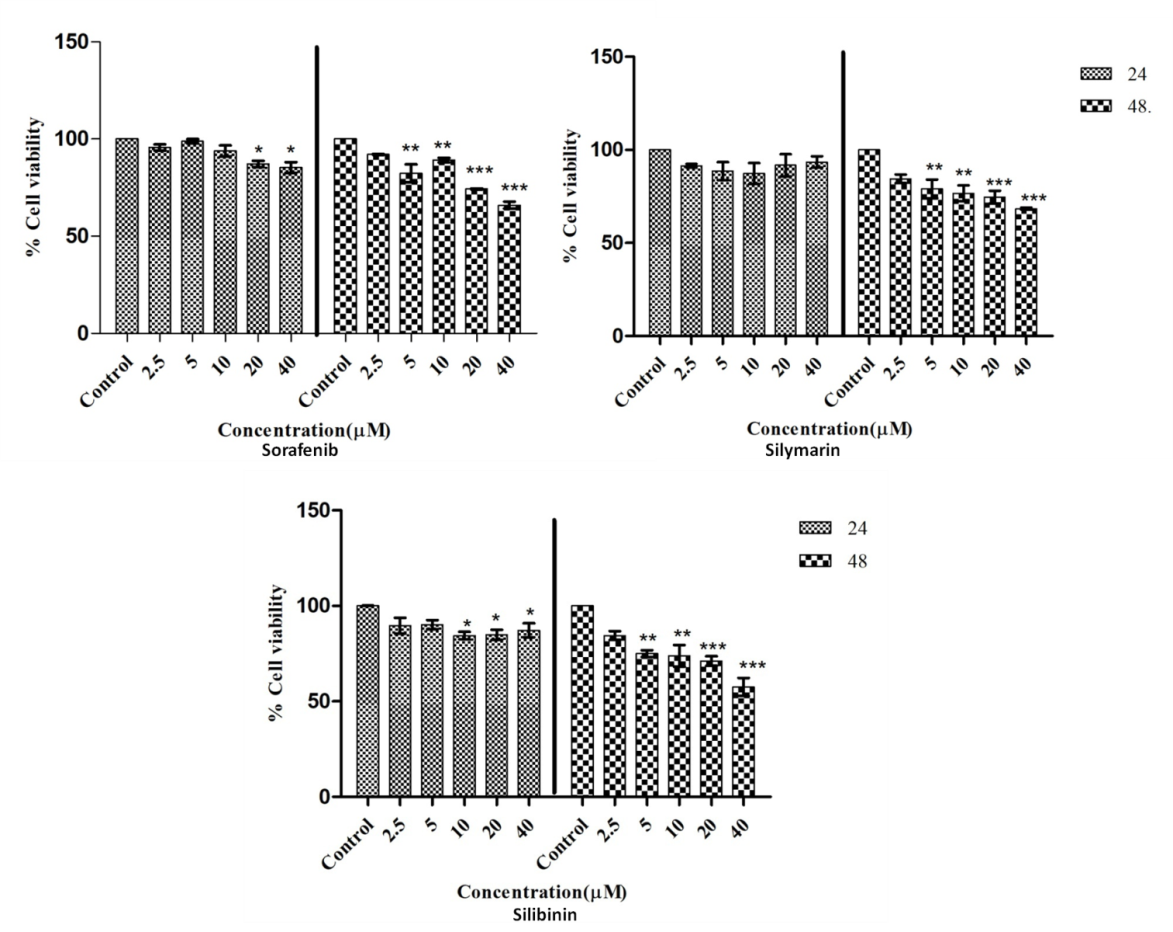

Fig. 1: Percent viability of Hep G2 cell line after individual drugs exposure, (n=5; mean+SD; *<0.05; **<0.01; and ***<0.001 as compared to control cells)

Formulation of tablets and evaluation of their efficacy

Drug-drug interaction studies

IR spectra of each drug and combination (sorafenib with silymarin/silibinin) component were carried out for drug-drug interaction analysis (fig. 2 A and 2 B). No major differences in the FTIR. patterns of pure drug and combination were observed.

The FTIR studies confirmed that there is no interaction between synthetic and phytochemical drug in the tablets of combination drug.

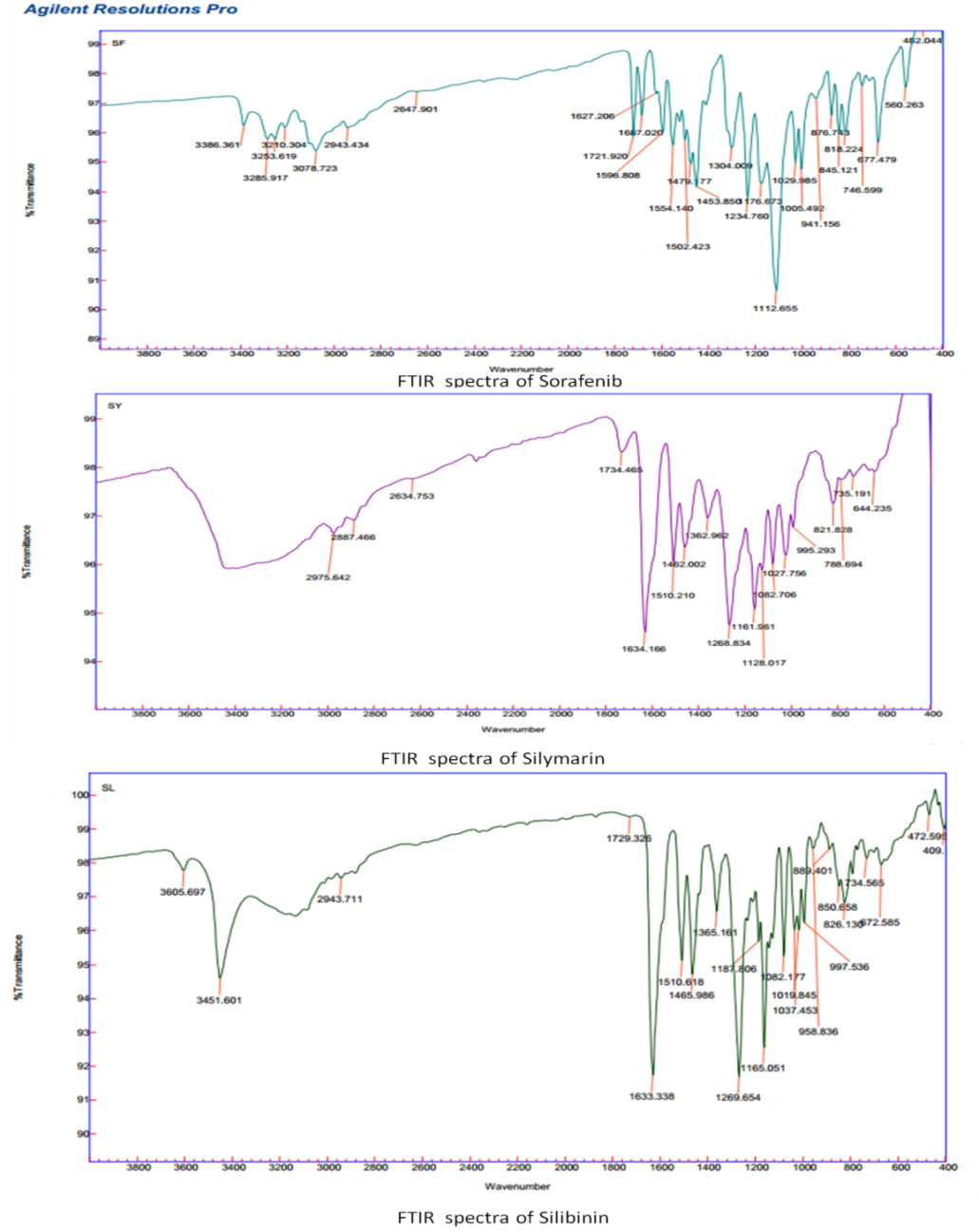

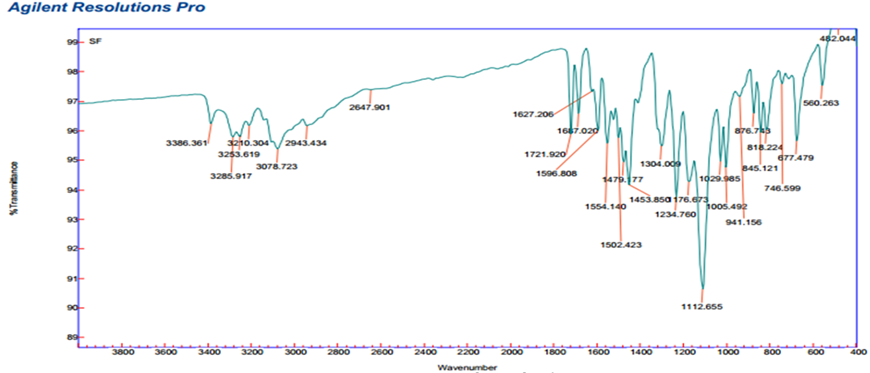

Fig. 2A: FTIR spectra of individual drugs (Sorafenib, Silymarin and Silibinin)

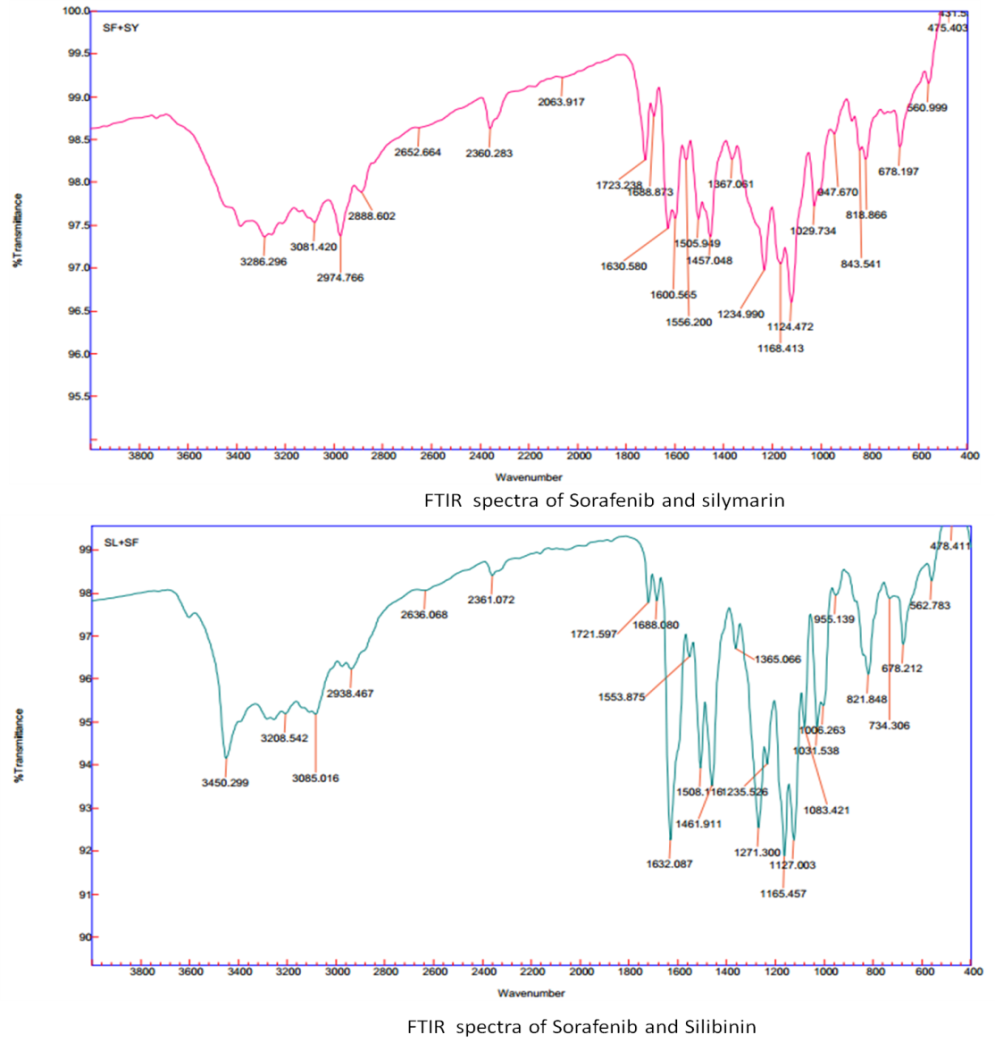

Fig. 2B: FTIR spectra of combination (Sorafenib: Silymarin and Sorafenib: Silibinin)

Qualitative analysis

We formulated three types of pullulan coated tablets, sorafenib in combination with silymarin and/or silibinin in 1:1 ratio and sorafenib with silibinin in 0.7:1 ratio. Small variation in the qualitative study of each formulation (F1, F2 and F3) was indicative of uniform compression procedure throughout tablet formulation. All formulations were prepared utilizing 1-3% of pullulan coating; however, the best result of coating was found with 2% of pullulan in 0.05% glycerol solution (Significant batch of each formulation has been illustrated). Different qualitative parameters including hardness, friability and weight variety of formulated matrix tablets were analysed to identify the best combination of pullulan coated synthetic and herbal drugs. Friability and weight variation were less than 1% for each formulation, which were within range of prescribed pharmacopoeial recommendation. The hardness of 20 tablets showed 5-6.5Kg/cm2 for all formulations which was within the acceptable official limits (table 3, fig. 3).

Table 3: Quality control test result: the table shows quality control results of formulated tablets for each combination

Formulation numbers

Friability %

(n=5; mean+SD)

 Hardness Kg/cm2 average (n=20; mean+SD) Weight variation % (n=10; mean+SD)

Disintegration

time in 0.1N HCl

Disintegration

time in phosphate buffer
formulation 1 (F1) 0.53±0.001 5±0.09 44.16±0.29 No Disintegration 30 min
formulation 2 (F2) 0.41±0.012 6.5±0.08 36.58±0.41 No Disintegration 20 min
formulation 3 (F3) 0.43±0.001 6.2±0.019 37.66±0.27 No Disintegration 15 min

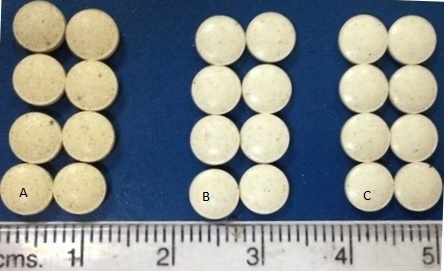

Fig. 3: Combination tablets A) formulation 1; B) Formulation 2; C) Formulation 3

Disintegration analysis

The enteric coating capability of pullulan made the tablets unable to disintegrate in 0.1N HCl. Five tablets were kept in 0.1N HCl for 2 h, but no disintegration reported throughout duration. However, when the medium was changed with phosphate buffer it took (pH 7.4) 30, 20 and 15 min to disintegrate formulation 1, formulation 2 and formulation 3 respectively (table 3).

Dissolution studies

Enteric coating pullulan did not show any release in 0.1N HCl within 2 h in each formulation. The dissolution medium was changed with phosphate buffer and the drug release was observed. In formulation 1 sorafenib released up to 67% whereas in same formulation silymarin has released up to 90 %. Formulation 2 showed release of 98% for both sorafenib and silibinin. On the other hand, formulation 3 showed moderate release of both drugs that was 73% and 84% for sorafenib and silibinin, respectively. The P value was less than 0.001 for each formulation showed its significance. Due to controlled release medium each formulation has taken minimum 28 hr to release its maximum amount (fig. 4)

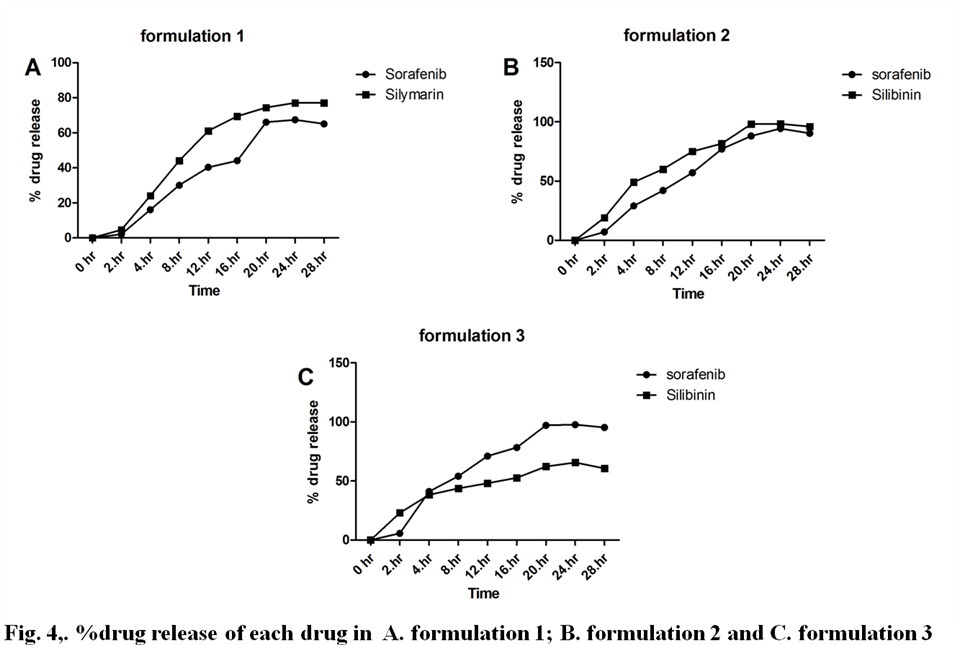

Fig. 4: Percent drug release of individual drugs in each formulation (n=5; mean+SD)

Effect of combinational treatment on HepG2 Cell lines

For evaluation of the combinational effect of synthetic and herbal drug, different drug formulations were prepared. HepG2 cells were treated with combination 1 (Sorafenib: silymarin 5: 5 µM) showed reduced cell viability by 77% and 62% (P<0.01) at 24 and 48 h of incubation. Whereas combination 2 (Sorafenib: silymarin 10: 10 µM) showed to be more effective than the combination 1 and the cell viability reduced to 61% and 54% (P<0.001) at same time points. Combination 3 (Sorafenib: silibinin 10: 20 µM) and Combination 4 (Sorafenib: silibinin 20: 40 µM) reduced cell viability by 61% and 51% (P<0.001) at 24 h, whereas at 48 h it found to be more effective and reduced cell viability by 52% and 45% (P<0.001), respectively. From the above results it is clear that combination 4 showed better cytotoxic effects against hepatocellular carcinoma cells in comparison to the individual compounds or other combinations (fig. 5).

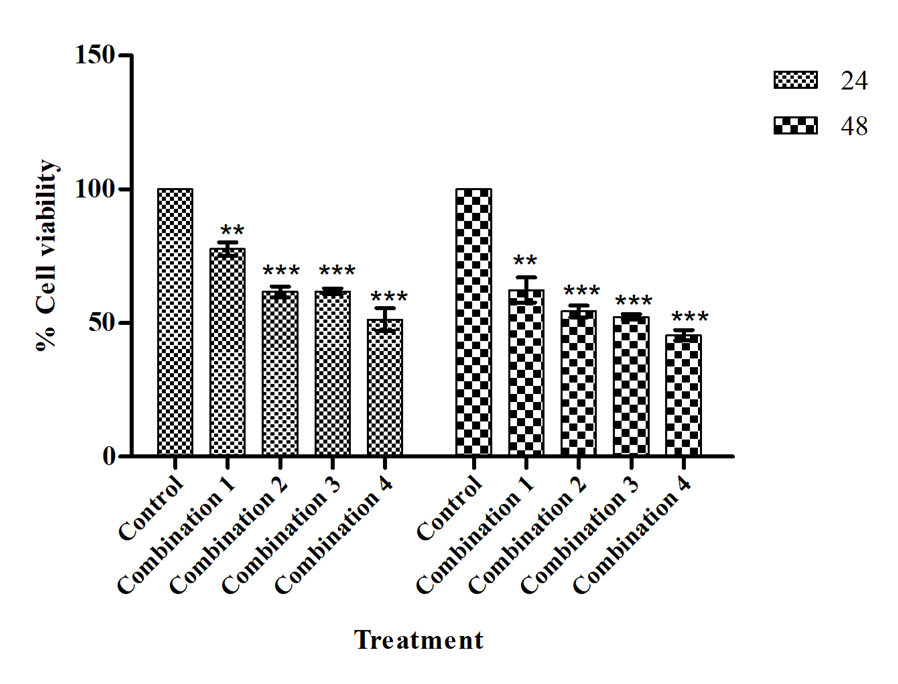

Fig. 5: Percent viability of Hep G2 cell line after combination of drugs exposure, (n=5; mean+SD; **P<0.01and ***P<0.001 as compared to control cells)

Molecular docking analysis

We have retrieved the target proteins involved in hepato-carcinogenesis through extensive literature survey. Molecular docking helped us to understand and analyze the binding efficacy between ligands and receptors. Different poses of ligands were allowed to dock with each receptor and were reviewed according to their Glide Score. Sorafenib has high binding affinity for B-Raf (-12.804), vascular endothelial growth factor receptor β (VEGFR-β) (-12.651) and protein kinase B (AKT) (-8.488) which provided an antagonist for inhibition of angiogenesis and cell proliferation [Table 4; fig. 6; Supplementary file]. Silibinin showed binding affinity with number of receptors such as MAP kinase-11 (p38) (-11.471), protein phosphatase 2 A (PP2A) (-6.781), tankyrase (-11.221) and predicted as inhibitor of cell proliferation, survival and differentiation [Table 4; fig. 6; Supplementary file]. However, both ligands have shown good binding affinity with epidermal growth factor receptor 1 (EGFR-1), fibroblast growth factor receptor (FRFR-1) and hepatocyte growth factor receptor (c-Met) that showed inhibited cell proliferation and survival through antagonist binding. Therefore, overall docking score of sorafenib/silibinin with respective protein hypothesized a collaborative signalling pathway through inhibition of Ras/Raf/MEK/ERK, PI3K/AKT/mTOR, Wnt/β-catenin routes for treatment of HCC [fig. 7].

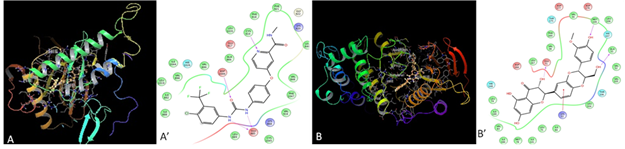

Fig. 6: Docking poses of (A and A’) Sorafenib with VEGFR-β (vascular endothelial growth factor receptor β) and (B and B’) Silibinin with p38 (Mitogen-activated protein kinase 11)

Table 4: Docking score of both ligands with different receptors

Name of receptor (PDB ID) Glide score with sorafenib Glide score with silibinin
VEGFR2 (4ASD) -12.651 -8.395
B-Raf (5HI2) -12.804 -9.466
AKT (3CQU) -8.488 -6.911
FGFR1 (5B7V) -9.034 -8.659
EGFR(5HCX) -8.144 -8.837
HGFR (5HLW) -7.705 -9.116
MAPK11 (3HEC) -9.625 11.471
Tankyrase (5FPF) -10.870 -11.221
PP2A (3K7V) -4.336 -6.781

The glide score<-7.00 represents permissible affinity of particular drag to their receptor and can act as antagonist to respective protein (vascular endothelial growth factor receptor (VEGFR-β); proto-oncogene B-Raf (B-Raf); protein kinase B-1(AKT-1); Fibroblast growth factor receptor 1(FGFR1); epidermal growth factor receptor (EGFR); hepatocyte growth factor receptor (HGFR); Mitogen-activated protein kinase 11 (p38); tankyrase; protein phosphatase 2 A (PP2A))

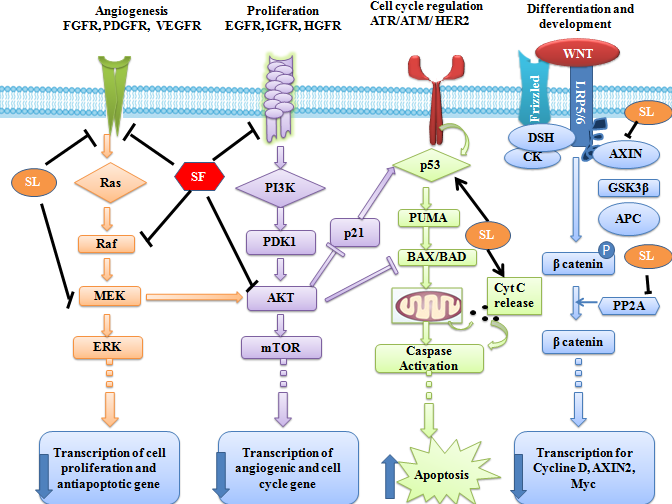

Fig. 7: The target proteins which are involved in hepatocarcinogenesis can be inhibited by sorafenib (SF) and silibinin (SL). Sorafenib has antagonist effect of vascular endothelial growth factor receptor (VEGFR-β), proto-oncogene B-Raf and protein kinase B-1(AKT-1). However, silibinin is involved in inhibition of mitogen-activated protein kinases (p38), AKT, Protein kinase B, tankyrase and protein phosphatase 2 A (PP2A). MEK kinases (MEK); extracellular signal-regulated kinase (ERK); phosphatidylinositol-3-kinase (PI3K); Insulin-like growth factor receptor (IGFR); Pyruvate dehydrogenase lipoamide kinase isozyme 1 (PDK1); Mammalian target of rapamycin (mTOR); Tumor protein p53 (Tp53); p53 unregulated modulator of apoptosis protein (PUMA); BCL-2-associated death promoter (BAD); a family of G-protein-coupled receptor proteins for WNT/β-catenin signalling pathway (Frizzled); Low-density lipoprotein receptor-related proteins 5 and 6 (LRP5/6); Downstream effector Dishevelled (DSH); Glycogen synthase kinase 3β (GSK-3β,); a G-protein signalling molecule (AXIN); Casein kinase (CK); Adenomatous polyposis coli (APC)

DISCUSSION

The study successfully develops sustained release pullulan-coated tablets containing sorafenib in combination with silymarin and silibinin. Silymarin and its major constituent silibinin have hepatoprotective and cytotoxic nature against cancerous hepatic cells [19, 20]. Our previous report on combinational formulation also suggested that plant based compound with synthetic drugs are more effective and less toxic for HCC treatment [21]. Interestingly, Silibinin and sorafenib follow same pathways to inhibit cell growth [22]. Taking this phenomenon into consideration, we have used silymarin and its major constituent silibinin in combination with sorafenib for tablet formulation. Pullulan coated enteric tablets were prepared for sustained release of drugs in intestinal tract. The enhanced solubility of drug is expected in intestinal fluids with shift of dissolution medium from acidic to basic phase [9, 23]. Our results are in accordance with the earlier reports and as we have observed that after changing the pH of dissolution medium from 0.1N HCl to phosphate buffer (pH 7.4) enhanced release of drug/s were obtained. This is the first report of a novel formulation using synthetic and herbal drug in sustained release for the treatment of HCC. The physical parameters of each formulation such as average weight, hardness, friability and disintegration capacity of tablets were within the permissible range and assured the formulation quality. Moreover, dissolution of each drug started in a controlled manner and maximum release occurred within 28 h, which represented the sustained release of both drugs at specific pH as a result of pullulan coating. Similarly, the pH specific controlled release of drugs through pullulan or other biopolymers have been earlier reported by researchers to maintain plasma concentration for longer duration [11, 24]. Our dissolution studies demonstrated that formulation 2, (sorafenib with silibinin in 1:1 ratio) showed maximum release up to 98% for both drugs after 28 h. However, it was quite lower in formulation 3 (73% and 84 for sorafenib and silibinin, respectively). The lowest release of sorafenib was observed in presence of silymarin in formulation 1 (67% and 90% for sorafenib and silymarin, respectively). This observation gave an idea that instead of silymarin complex, silibinin can be used as a better option for combination treatment. However, not much work has been done on the combination of sorafenib and silibinin as for today. A study conducted by Gu and coworkers reported that silibinin in combination with sorafenib/gefitinib inhibits growth of cancerous cell lines, but their work mainly emphasize on the efficacy of silibinin-gefitinib combination. [25]. Our result strengthens the idea that sorafenib in combination with silibinin have synergestic effect on HCC cell line. The maximum growth inhibition effect of each drug was seen at its higher concentration (40 µM and 80 µM for sorafenib/silymarin and silibinin, respectively). However, in combination, 20 µM of silibinin with 10 µM sorafenib was enough to reduce cell viability up to 59% after 24 hour incubation. The overall cell viability assay affirmed that sorafenib and silymarin has cytotoxicity against tumorigenic hepatic cells, whereas combination of sorafenib and silibinin showed synergistic growth inhibition of cancer-bearing hepatocytes with maximum sustained release.

The molecular docking studies were performed to elucidate signalling pathways affected by combinatorial formulations. The docking studies can be considered as an emerging tool in discovery of new targets [26, 27]. We have observed that sorafenib and silibinin inhibit their specific pathways along with other signalling routes which are involved in hepatocarcinogenesis. The result showed that sorafenib was inhibiting angiogenesis and cell proliferation through binding with VEGFR-β, B-Raf and Protein kinase B. Whereas, silibinin acted as antagonist for wnt/β-catenin pathway through inhibition of AXIN1 activation (binding with tankyrase) and β-catenin dephosphorylation (binding with PP2A) [28, 29]. Moreover, silibinin can also inhibit cell survival through antagonist binding of c-Met and MAP Kinase-11(p38). Sorafenib and silibinin have antagonist binding with EGFR1 and FGFR1 for inhibition of cell proliferation and angiogenesis, respectively. The studies by other researchers have also shown similar inhibitory effects on various cancerous cell-lines after incubation with both drugs individually [22, 30, 31]. The overall pathway deciphers the collaborative signalling for inhibition of tumorigenesis through down regulation of cell proliferation, angiogenesis and cell survival.

CONCLUSION

Polymer coated tablet formulations are efficient and established methods to accomplish sustained release of drugs. Pullulan, a thermally stable and neutral linear polysaccharide, is an amazing polymer for sustain release and liver targeting. The present study concludes that pullulan coated tablet has the ability to maintain steady drug concentration in blood. Sorafenib and silibinin combination can assure the sustained release of both drugs and an effective combination for the treatment of hepatocellular carcinoma through inhibition of cell survival, proliferation and differentiation. However, preclinical studies are required for further analysis.

ACKNOWLEDGEMENT

Authors would like to thank Dr. Ashok K. Chauhan, Founder President, Amity University Uttar Pradesh, Noida, India for providing the infrastructure and support. We acknowledge Cipla Ltd for providing sorafenib.

AUTHORS CONTRIBUTIONS

All the author have contributed equally

CONFLICT OF INTERESTS

Declared none
