Int J App Pharm, Vol 10, Issue 6, 2018, 23-26Review Article


MESOPOROUS SILICA PARTICLES FOR DERMAL DRUG DELIVERY: A REVIEW

CHSAI SANJAY, VIVEK M. GHATE, SHAILA A. LEWIS*

Department of Pharmaceutics, Manipal College of Pharmaceutical Sciences, Manipal Academy of Higher Education, Manipal 576104, India
Email: s.lewis@manipal.edu

Received: 19 Jul 2018, Revised and Accepted: 04 Sep 2018

ABSTRACT

Mesoporous silica particles (MSP) have been reported to be applicable in diverse situations pertaining to the delivery of several drug molecules. MSP have established themselves in treating diseases with oral, dermal and parenteral modes of administration. Recently, dermal delivery using MSP have gained a considerable amount of interest owing to the increase in drug stability, permeation and ease of functionalization. MSP, in general,havea very high capability of delivering actives ranging from small molecules like drugs and amino acids to larger peptides, vaccines and antibodies. The applicability of MSP in achieving desired cosmetic and health-related outcomes depends on the careful tuning of their pore size, surface area, shape and overall physicochemical properties. This review provides comprehensive details of the recent developments in the fabrication of MSP, their characteristic features and, applications in dermal drug delivery. Studies on establishing the safety profile of MSP have also been summarized in the review.

Keywords: Mesoporous Silica, Dermal Delivery, Permeation, Pore Size, Functionalization

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i6.28633

INTRODUCTION

The word ‘meso’ alludesto a pore size estimate ranging from 2 to 50 nm [1]. Majorly reported mesoporous silica particles (MSP) consists of oxides of inorganic metals like silica or alumina [2]. Silicon dioxide or silica is arranged in various indentations and stacked to form different MSP characterized by their pore size, shape and pore volume. Broadly silica observed in nature are seen either in their amorphous or crystalline structures [3,4]. MSP are a type of synthetic amorphous silica material, consisting of smallest units of less than 1 micrometer in diameter. Due to the presence of silanol groups on the surface of the MSP, they can form hydrogen bonding with various functional groups present on the entrapped molecules [5]. A recent trend seen in the utility of MSP are because of their surface chemistry mainly consisting of the hydrophilic groups that allow for sufficient solubility when given by oral and parenteral routes. A simplified surface decorated with silanol groups allows for a versatile functionalization in the development of a targeted drug delivery system [6]. Low cost of production and ease of large-scale transition make it convenient for the industries to prioritize their product profile for bulk manufacture of MSP [7]. Till date MSP have been reported to be used in drug development [5,8], diagnosis [9] and biomarkers[10], gene delivery[11]and controlled drug release systems [12,13]. The present review is based on the Scopus database search with keywords: mesoporous, silica, dermal, drug delivery, topical. A comprehensive data has been provided here with the search filters ranging from January 2010 to March 2018.

A wide range of MSPwith a uniform pore size which included ordered, hallow and rattle types can be synthesized using different surface active agents [14]. Due to the wide availableness of various surface acting agents,various MSP structures such as Mobil Composition of Matter No. 41 and 48 (MCM-41 and MCM-48), Santa Barbara amorphous type material (SBA-15 and SBA-16), folded sheets mesoporous materials (FSM) and silica particles with bicontinuous body-centered (Ia3d) cubic symmetry(KIT-1 and KIT-6) have been synthesized [15]. Hollow or rattle type of MSP can obtain high drug loading capacity due to their low density of the outer shell of mesoporesand offer greater specific area. These can be used as drug delivery systems rather than conventional systems. Toxicity and cellular interaction depend on the chemistry of the surface. Different types of functional nanoparticles such as iron oxide, gold etc. can be entrapped into the silica providing a way for targeted therapies.

MSP are chemically synthesized either in the form of ordered or unordered particles varying in their internal arrangement involving the pores and structures [16,17]. Several ingredients though engaged in the synthesis, main components of MSP system consists of a silica precursor and structure directing surfactants. A well-controlled procedure and description of the characteristics can be developed for the synthesis of MSP. Extensive studies being reported worldwide on nanoparticles, a relatively newer concept of mesoporous silica nanoparticles (MSNP) have emerged. MSP and MSNP both are known to increase the solubility of drug molecules, provide greater stability to the entrapped molecules [18,19]and enhance their in vivo performance.

Barriers for the skin delivery

The skin being the most prominent portion of the human body is the most robustbarrier to the externally applied molecules [20]. It is composed of several layers namely the epidermis, the dermis and the hypodermis which is lined by the fatty tissues and the muscle layers. A molecule, when applied topically, has to permeate through the initial layers of dead cells called the stratum corneum. This covering is known to protect the underlying cells very efficiently from invading substances and chemicals. Being the most challenging barrier to bypass, the stratum corneum is the major hurdle to the formulating scientists. Once a molecule has crossed the initial layers of the skin, the entry into the systemic circulation and muscular tissues is solely dependent on its physicochemical properties. Apart from these, the skin is abundantly supplied by the hair follicles and sweat glands which also account for the removal of a sufficient amount of the dose applied topically [21,22].

Dermal applications of MSP

Though several formulation strategies are available commercially like the liposomes, nanostructured lipid carriers and polymeric nanoparticle, hydrogels and topical patches there is an unmet need fordeveloping an efficient dermal formulation till date [23]. In the purview of this, research has been directed towards the utility of using the MSP in the dermal and transdermal drug delivery applications. MSP due to their unique characteristics [24]and compatibility with the skin cells are gaining popularity in the cosmetic and dermal drug delivery applications. There are many components which affect the transdermal absorption, an active process involved in the interaction of a penetrating agent before entering into the systemic circulation. However, being in a very nascent stage successful MSP based formulation requires several factors to be considered and well-controlled parameters like their pore size, shape, and duration of exposure, distribution, the effect of other excipients and non-toxicity [25].

Physicochemical properties

The drug loading potential, the interaction between host and guest molecules and the action of the release profile of the drug can be achieved by proper designing and customizing the silica nanoparticles [26]. For obtaining a uniform distribution of drugs, MSP and MSNP have a free gateway for the drugs to enter despite of well-structured channels of silica particles. Biomolecules, on the other hand,are having substantialmolecular weight and greater volumes such as protein molecules and genes need silica particles of larger pore size because the diameter of the pore is considered as selective size specification for the adsorption of drugs. The interaction between the guest and host is primarily a chemical bonding between silanol groups and functional groups present on the guest molecules (fig. 1). Various surface potentials, and different functional groups and lipophilic/lipophobic property of the matrix surface can be obtained by modifying the surface of the silica particles with the appropriate chemical functionalization. Permeation of the MSP through the skin is reported to be highly dependent on its physicochemical properties, not limiting to the size, agglomeration, shape, porosity, chemical groups present on the surface and the integral portions of the pores [27]. It was observed that the loading of ketoprofen took place at a higher rate in SBA-15 than in MCM-41 due to the presence of larger pore size in SBA-15 [28].Advances in the analytical techniqueshaverelated the effects of these properties of MSPwith the penetration of the active compounds. Much of the attention is focused on the aggregation of these MSP and MSPN in the physiological medium and solvents used in the routine analysis [29,30]. Once aggregated they are harder to redisperse and hence are unable to be clearly investigated for the purpose.

A handful of studies carried out in this regard show that despite the aggregation of MSP the skin cells can uptake the particles to a maximum particle size of 75 nm [31]. A slight increase in the particle size above this, do not provide for a more significanteffect on the penetration of the carriers. Another notable approach to increase the permeation into the skin is the addition of permeation enhancers and functionalization of the carrier molecules. As mentioned earlier, the targeting the hair follicles is also an important strategy to increase the transdermal delivery of the drugs [32]. A study of the particles with nanometer to micrometer sizes wasconducted [21]and then concluded that optimal penetration was seen in the particles in the range of 400–700 nm through the hair follicles.A similar study conducted showed that the penetration of the particles begins at 300 nm and increases until 646 nm after thatthe hair follicles were unable to uptake these particles [33]. Once the particle is in the immunogenically accessible layers of the skin, the silica particles in the said size range are also reported to cause certain types of toxicity and immunogenic reactions [34]. Chemically, the negative charges on the surface hinder the penetration into the skin cells hence functionalization would be appropriate in ascertaining the entry of MSP into the cells. A similar interaction of the MSN surface functional groups and the gram-negative and gram-positive bacteria was seen to largelyinhibit the strains after being loaded with tetracycline [35].

Biocompatibility of the particles isgreatly affected by the surface properties of the MSNP. Compared with the neutral and anionic analogs, cationic charged analogsare more prone to cytotoxicity and produce more immune responses [36]. Upon prolongedexposure of silanol groups to the environment, these groups may dismantle the structures of lipids, proteins, and other biological molecules. PEGylation forms a hydrophilic coating around MSNP which can significantlyenhance the surface activity, biocompatibility, and circulation time (in vivo). A siRNA delivery platform was developed by coating the MSNP core with polyethyleneimine and PEG to target the heat shock protein (HSP 47) in the treatment of fibrosis. The results of the study demonstrated that the MSNP were able to reduce the levels of elevated HSP 47 to normal and also provide antioxidant properties in in vitro models of the disease [37].Other than PEGylation, the cellular uptake, bio-distribution, excretion, and cytotoxicity can be controlled by modifications of MSNP with different functional groups such as amino, carboxyl, phenyl phosphate, methyl phosphate which includes all kinds groups that cause a change in the Zetapotentials [29,38]. The effect of particle shape on the toxicity of nanoparticles, drug performance, and bio distribution can be investigated by altering the diameter of the particles, different shapes and a relation between the bio-compatibility and the particle shape can be obtained.

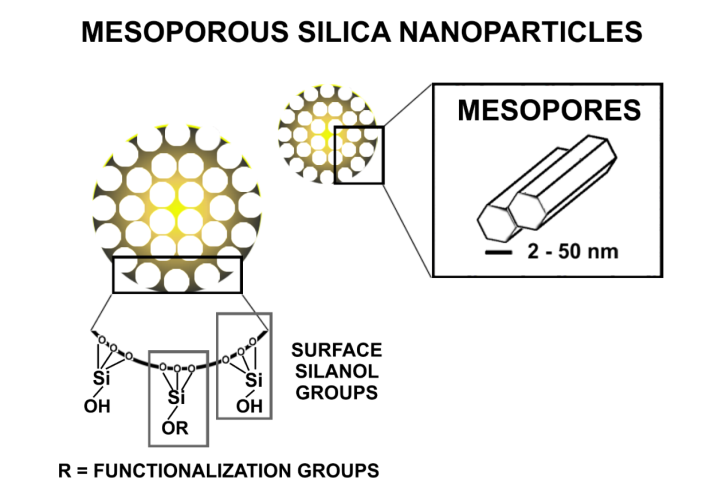

Fig.1: Mesoporous silica nanoparticles and the surface silanol groups

Excipient effect

The topmost layer of the skin sharing the air interface is the stratum corneum. Like most other barriers, it also has an affinity for lipophilic moieties and favorably transports the substances tagged with a lipid-like compound. The explanation further moves on into the barrier preventing the entry of lipophobic or hydrophilic molecules through it. It is well-advised that a compound to be able to breach the stratum corneum has to possess considerable lipophilicity as well as slight hydrophilicity to be able to be formulated into an effective system. MSP offer a considerable amount of both these properties to the entrapped molecules thereby facilitating the entry of the entrapped molecules into the skin cells [39]. Agglomeration, on the other hand, prevents the smooth passage of the carrier systems into the cells due to the increase in the size of the particles and reduction in the surface area, which in turn elicits an immunogenic reaction on sufficient exposure. Skin in itself is a barrier that has a slightly acidic pH of about 6.8 thus allowing it to be highly efficient in its purpose of the activity. Therefore the ionization of the MSP and the drug moieties play a crucial role in such cases where the absorption is said to be pH dependent [40]. Contrary to the fact that the particles of size 300 to 600 nm was found to be well concentrated in the cellular systems, the particles of size above 3 micrometers were also seen to penetrate well into the dermis [41]whereas the concentration into the epidermis was possible only with an ethanolic medium (65 %). Adding onto the theories that oil and lipid-like molecules were able to bypass the stratum corneum, the coating of MSP and MSNP have been looked as an excellent strategy for the dermal or transdermal therapy. Several lipids such as lecithin and other phospholipids, and emulsion coating [42] have been coated onto the MSP, and the results have shown the extensive stability of the particles and sufficient penetration into the deeper skin layers. Substances like the retinol [43], quercetin and rutin [44,45]have been explicitly studied in conjunction with the MSP coated with the oil-based emulsions. All-trans-retinol, when formulated as oil-in-water emulsions coated onto MSNP, showed that the stability was improved two times compared to the oleylamine-and lecithin-stabilized droplets [43].Flavonoids such as quercetin and rutin were loaded on to MSP functionalized with titanium. The results showed that the free radical scavenging of the ethanolic citric acid recovered and the bound flavonoids weregreater than 80% [44]. Penetration in certain cases is not desirable due to the objective of treating the superficial or conditions encircling the dermis or the epidermis. In these type of applications, penetration retarders are known to serve the purpose. Recently emulsions and MSP together constituting the barrier-like function have been explored for the delivery of caffeine. It was shown that there was a delayed penetration of the active through the pigskin in comparison with the reference gel.

Other factors

Despite taking enormous precautions and carefully selecting the ranges of the components to obtain the desired functional characteristics of MSP and MSNP for the topical administration, specificfactors still exist which are out of the control of the formulators. Majorly the exfoliation, sweating and transfer to external surfaces from the skin represent the concerns for the failure of the well-formulated product [45]. Certain molecules that are to be entrapped into the MSP are sensitive to light, oxygen, and moisture. Even though the MSP are highly regarded as a system to provide stability, these conditions may pose unavoidable problems in a formulation [46,47].

Preparation methods of MSPs and MSNPs

There are three ways by which functionalities are integrated with silica particles:

a) Grafting method (in which silica nanoparticles are succeeding attached by organic compounds)

b) Upon co-condensation of silica particles and the organic compounds containing silyl group (R3Si)

c) Formation of periodic mesoporousorganosilicas (PMO) with the help of organic precursors which are bissilyated.

Grafting method

The major principle involved in the grafting is the reaction of organosilanes with the unreacted silanol groups present on the silica surface. Some of the silanes include organo, chloro or silazanes. The word grafting mainly alludes to sequential modification of internal pore surfaces of mesoporous silica phases with organic compounds [48,49]. The uniformity of the distribution of organic compounds over the silica surface depends on the size of the organic compound and the degree of tenancy, in turn, leads to the abnormal diffusion of more amount of molecules into the pores present on the silica surface which leads to the blockade of pores, thus creating an ordered or unordered pore system.

Co-condesation of silica particles

Functionalized MSP can be achieved by co-condensation of type (R′O)3-alkoxysilanes and (RO)4-alkoxysilaneswhere MCM-41 and SBA-15 acts as a structure-directing agent present on the pore walls so that organic residues are obtained. The primaryadvantage of this method is that less blockade of pores are seen due to the presence of organic functionalities which discharge into the pores of the silica particles and organic particles are uniformly distributed over the pores of silica particles when compared with the grafting process [50,51]. The drawbacks of this method include improper functionalization can occur, and the proportion of concentration of organic groups present on the pore walls varies leading to lower concentrations at the extreme groups compared with the initial groups. Another drawback is that upon an increase in incorporation of organic functionalities, a decrease in the size of the pore, volume of the pore and the surface area is seen.

Formation of PMOs

PMO contain a tapered pore radius because the integrated compounds of silica are formed by the organic bridges between surface active agents acting on bisilyatedorganosilica precursors and mesoporos silica particles [52,53]. PMO are extensively used in the preparation of active payloads.

Safety concerns

All kinds of materials applied over the skin with theintention of concentrating in the upper and deeper layers of the skin, the entry into the systemic circulation and their effect on distal organs have to be clearly addressed. Most commonly reported issues of toxicity with such formulations include the primary inflammatory responses upon contact of the actives and carriers with the epidermis which may then progress to the dermis producing allergic reactions [54]. Effects of the systemic exposure can also be seen in the distal organs upon prolonged exposure to the formulation and can also lead to certain types of cancer [55]. MSP are also not free from these kinds of complications that may be fatal in the long run [56]. Therefore it is very important to address these concerns especially in the case of MSNP clearly. The safety concerns can be adequatelyaddressed with modern analytical techniques like the transmission electron microscopy (TEM), Raman scattering and using fluorescent probes in a confocal laser microscopy system. Apart from in vivo safety concerns, MSP are released into the environment by a variety of common industrial processes [57].

CONCLUSION

MSP and MSNP are more adaptable, flexible, and stronger than traditional drug delivery frameworks, for example, polymer nanoparticles and liposomes. The confinements of regular natural systems are low medication stacking limit, low produce, and high-price of generation. With the extraordinary mesoporous structure and high surface region, MSP as carriers have a high ability to oblige guest particles and can discharge the stacked particles in physiologic conditions. Their pore structure with capable pore size and geometry encourages a similar joining of guest particles with various sizes and surface groups. The fabrication procedure is moderately basic, and the price is fundamentally low, which is critical to satisfy the intended clinical request concerning the dermal delivery of actives.

AUTHORS CONTRIBUTIONS

All the authors have contributed equally

CONFLICT OF INTERESTS

Declared none
