Int J App Pharm, Vol 10, Issue 6, 2018, 318-325Original Article


SWELLING BEHAVIOR OF POLY (AAM_MA) HYDROGEL MATRIX AND STUDY EFFECTS PH AND IONIC STRENGTH, ENFORCEMENT IN CONTROLLED RELEASE SYSTEM

FAIQ F. KARAMa*, ASAWER A. MHAMMED ALZAYDb

aDepartment of Chemistry, College of Science, University of Al-Qadisiyah, Iraq, bCollege of Veterinary Medicine, University of Kerbala
Email: faiq.karam@yahoo.com

Received: 24 Jul 2018, Revised and Accepted: 29 Oct 2018

ABSTRACT

Objective: The objective of this study was to estimate the performance of Acrylamide-malice acid (AAM_MA) hydrogel preparatory by free radical polymerization to loading/release Atenolol and Ciprofloxacin drugs from aqueous solution to be used in a controlled release system.

Methods: Free radical polymerization method has been used to prepare (AAM-MA) hydrogel. The prepared hydrogel was characterized by Fourier transform infrared (FTIR), Thermal Gravimetric Analysis/Derivative Thermal Gravimetric (TGA/DTG) and Field Emission Scanning Electron Microscopy (FE-SEM) techniques. The pH-dependent swelling behavior was investigated in addition to the effective ionic strength on adsorption and release system of the drug in vitro.

Results: Results showed that the highest swelling ration in pH=7.4 and the same value of pH for the release of the drug. Thermal analysis test for prepared hydrogel showed good thermal stability. The hydrogel showed a negative effect with an increase saline contact Calcium carbonate appeared to have highly effect on releasing drugs from the polymeric network.

Conclusion: Higher ability of poly (AAM-MA) hydrogel to act as a carrier for the Ciprofloxacin and Atenolol with highest swelling and releasing under following conditions: at pH 7.4, at temperature 37 °C and the effect of ionic strength (charge/ratio) which indicate that the smaller radius have less effect on release and the largest charge have negative effect on release ratio that attributed to cation formation inter and intra complex surface hydrogel.

Keywords: Ciprofloxacin, Atenolol, Swelling ratio, Drug carriers, Polymeric network, Controlled release system, Biological half-life

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i6.28724

INTRODUCTION

Over the past century, new chemical families have been discovered and produced, particularly in the broad domain of polymers life. In fact, polymers are defined as large molecules consisting of smaller repeated chemical units which are called monomers that become macromolecular polymers [1]. Polymers have various applications in medical, industrial, agricultural fields [2, 3]. While they can use as a kind of adsorption and purification materials, the polymers are used as drugs carrier to improve pharmaceutical efficiency, pharmacodynamics and pharmacokinetic characteristics [4]. This usage is reflected in their role in reducing the side effects of the drugs that improve the bioavailability of the drug, prolong the biological half-life of drug and maintain the therapeutic efficiency which easily transfers hydrophobic drugs and improvement uptake by target body tissue [5, 6]. The development carrier's drugs also improve the dissolution properties of poorly water-soluble drugs [7]. Hydrogel crosslinked polymer has a 3D network. Due to the fact that hydrophilic group is found in chemical structures such as COOH, NH, OH, SO3H and CONH, hydrogel has a capability to retain a quantity of water and biological field so that it suffers swelling [8, 9]. Swelling behavior responds to the surrounding environment stimuli such as acidic function, temperature, ionic forces solvent composition, light, or electric field and magnetic field that either accept or release protons in response to changes in environmental pH so exploited swelling behavior to loading and release the drug in the body [11, 10]. Atenolol is one of type beta blocker used mainly to treat hypertension, mycrocaial in functions and cardiovascular disease(CVD) [12]. Several studies have shown that this drug has a low absorption in colon and intestine, so the body can get rid of it quickly, therefore, it has a short half-life, a lack of bioavailability and dumping in the concentration of doses in plasma blood level because of the undesirable effects that include the central nerves system (CNS) [13]. The previous study proved that this drug may stay in sewage at 166 d to these [14], reasons requires to develop a method that takes this drug to prolong the period in the body and achieves the highest therapeutic effectiveness. On the other hand, wastewater is treated from its pharmaceuticals compound [15]. The antibiotic also suffers a low absorption in the human body and a short half-life like ciprofloxacin. One of its kinds is fluoroquinolone group that is frequently used from both human and animals. Due to its inexpensiveness and its availability, it is used to treat gram-negative bacterial infections, respiratory, abdominal infections bacterial diarrheal infections urinary tract infections, skin, ophthalmic and respiratory infection [16, 17]. Controlled release systems show many good features over traditional dosage forms. In addition to tamper the rate of release, drug packaging provides, among other things, protection from a medical decomposition, chemical degradation and low drug toxicity [18]. Hence, the study was aimed to estimate the performance of (acrylamide-maleic acid) hydrogel preparatory by free radical polymerization to loading/release both Atenolol and ciprofloxacin drugs from aqueous solution to used in controlled release system.

MATERIALS AND METHODS

Materials

Acrylamide and maleic acid were supplied by (Himedia, India). The activator N, N,N', N'-tetramethylethylenediamine (TMEDA) supplied from Merck(Darmstadt, Germany) were used as the redox initiator pair, the initiator potassium persulfate (KPS) was supplied by(Merck, Germany). The multifunctional crosslinker is N,N'-methylene bis-a crylamide (NMBA) was purchased from (Fluka, Germany). Sodium chloride, Carbonate Calcium, and Potassium chloride were obtained from (Fluka, Germany). Atenolol (ATL) was purchased from (Basic Pharma Life Science Pvt. Ltd, India). Ciprofloxacin (CIP) was purchased from (Basic Pharma Life Science Pvt. Ltd, India). Sodium Hydroxide and Hydrochloric acid were supplied from (Fluka, Germany).

Chemical preparation of cross-linked poly (AAM-co-MA) Hydrogels

The hydrogel was prepared according to the method of (Y. Murali Mohan) et al., they used a free radical polymerization as shown in fig. 1 which demonstrates the steps of polymer preparation with the suggested structural form [19].

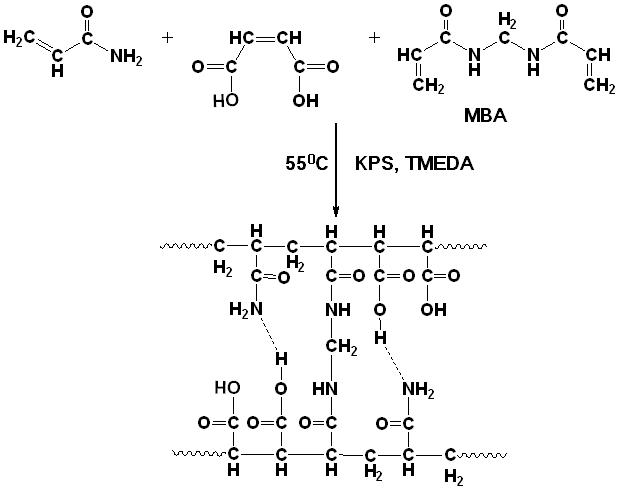

Fig. 1: Preparation steps of hydrogel

Drug loading and preparation of matrix tablet

Loading of drug on hydrogel by swelling equilibrium so left (1g) from hydrogel in highly concentration pH=4 and 6 of drugs aqueous solution to ciprofloxacin and atenolol respectively then left at 24h at room temperature to late the drug being saturated with polymeric network then it used a thermostatically controlled incubator with shaking speed of 150 cycle/min at 15 °C,then dried at45 °C, follow grained to made matrix tablet by pharmaceutical compress device(TP1.5, china) to be ready for usage and studding release of drug in vitro to calculate lauded drug amount according to the equation 1.

=-----------------------------(1)

Vsol: solution volume in l

Co: Ce: initial concentration and concentration at equilibrium in mg/l

m: weight of the polymer in g

Qe: quantity of drug in mg/g [20]

Drug release studies

Hydrogel matrix tablet to both drugs was put in different pH solution (1.2, 5, 7.4 and 11) which is similar to the temperatures of stomach, colon and intestines environments. Shaking in a thermostatically controlled at37 °C with speed of 150 cycle/min, then centrifuged at 6000 rpm (D-78532 Tuttlingen 6000 U/min Hettich Triup, Germany) for 10 min. The amount of released drug was calculated by ultraviolet-visible (spectrophotometer) at 275.5 nm and apply equation 2.

Amount drug release = ............................ (2)

Ce: Concentration of the released drug at equilibrium in mg/l

V: Volume of solution in l

m: adsorbent weight in g. [21]

Swelling study

Determination of the highest swelling percentage of hydrogel was needed to be applied in different pH. Several pH media were prepared (1.2, 5, 7.4 and 11), 1 mg from dry hydrogel was taken and soaked then lifted swelling after that removal of an aqueous solution at regular intervals and dried with associate filter paper to gate for accurate weight. The swelling ratio is calculated by equation 3.

100*% Swelling = ------------------(3)

Wt: Weight after swelling

Wo: Weight before swelling [22]

Characterization of hydrogel

FT. IR measurement

The drugs were identified by FTIR (Shimadzu, Japan, 8500) used Potassium bromide (KBr) disk technique. The spectra were recorded from (4000-400) cm-1.

Morphology

The morphology of surface for both hydrogel and hydrogel matrix was observed by Field Emission Scanning Electron Microscopy (FESEM) (JEOL, JSM-6701F, Japan) the samples observed under nitrogen gas vacuum and accelerated potential 8.0kv.

Thermal test

This test was studied by using TG/DTG (Perkin Elmer,USA,TGA4000) to estimate the physical properties by taking10 mg of sample with a heating rate 10 °C/min and heating range from(40-800) °C in the presences of nitrogen gas.

RESULTS AND DISCUSSION

The swelling

Swelling behavior of hydrogel that increases or decreases is affected by several factors. One of the most important factors is the change of pH cause ionization or protonation of a functional group on hydrogel-like carboxyl group ionized in basic medium to become a carrier of the negative charge then increasing of volume hydrogel. In the studied hydrogel, the result reveals a high swelling ratio in pH =7.4 to presence two carboxyl group carried a negative charge in hydrogel that has lead to a repulsion between negative charge that belongs to (CON-)and also a repulsion between(–COO--)and a baring electron on nitrogen in amide group [23]. When comparing swelling ratio with the same polymer, which prepared by (ɣ-ray) radiation that prepared by the researcher (Eid), we can observe that the polymer in our studies has higher swelling, it reached to 1500 after 30 h while other polymer reached to 800 after 120 h [24]. This increase in swelling ratio results from an increase in the number of carboxylic groups carrying the negative charge repulsion. Fig. 2, shows swelling ratio to (AAM-co-MA) hydrogel in different pH values.

Fig. 2: Swelling behavior of the 1 g of the hydrogel at different pH values, all the values were calculated as mean±standard deviation; n=3

Fourier transform infrared spectroscopy (FT-IR)

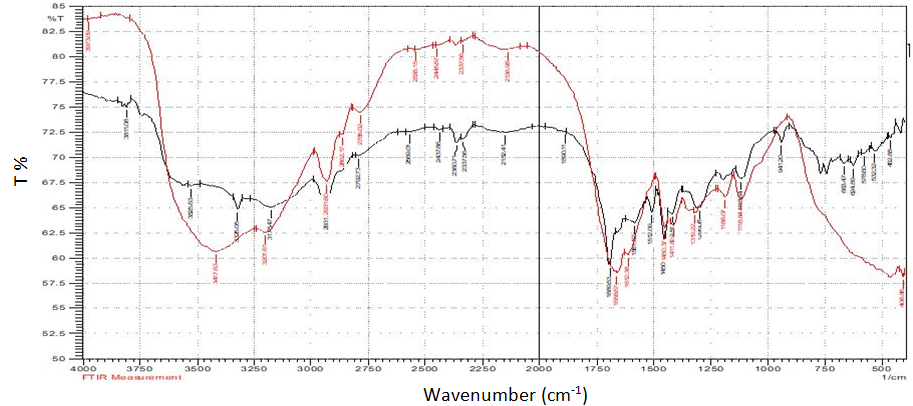

Fig. 3 represents FTIR spectra before loading drug, the chemical structure is confirmed by FTIR and can have a follow-up change on functional group and shifted in wave number to both compound hydrogel matrix, we noticed large differences peaks between hydrogel and hydrogel matrix that belong to both drugs. The differences indicate the interface between drug and adsorbent surface (hydrogel). Spectra appeared before the loaded broadband is 3500-3200 cm-1to nip up stretching vibration amid and a hydroxyl group. Other bands in the (2830 and 2717) cm-1 to asymmetrical and symmetrical stretching of a methylene group. Also, other important band showed a sharp in 1659, 1613 that belongs to C=O stretching vibration to both carboxylic and Amide group respectively [25]. The chart for both drug shows a shift in the wave number in the peak that belongs to C=O in the region of 3500-3100 due to the occurrence of hydrogen bounding between drugs and hydrogel surface. New bands appeared in drugs charts belong to appeared anew peaks retune aromatic group at presence in structured drugs like (C=C)searching in 1500 cm-1and bending out of plane 940 cm-1 in ciprofloxacin drugs also appear (C-F)stretching in 670 cm-1 belong to ciprofloxacin drug in fig. 4 and fig. 5 we can observe the difference between two drugs [26, 27].

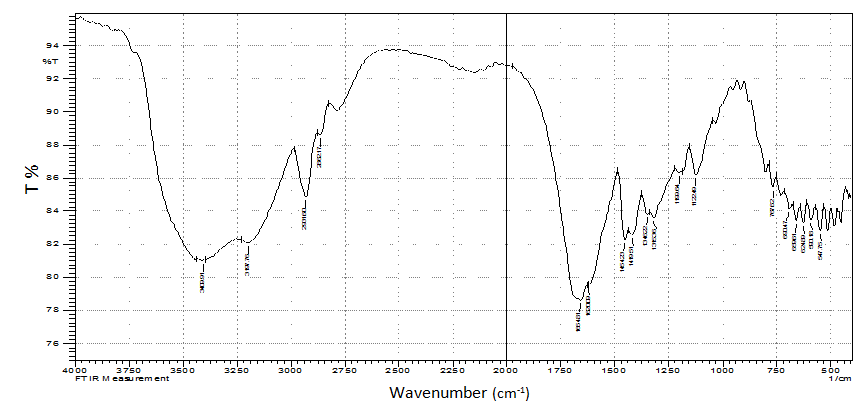

Fig. 3: FTIR spectra of hydrogel

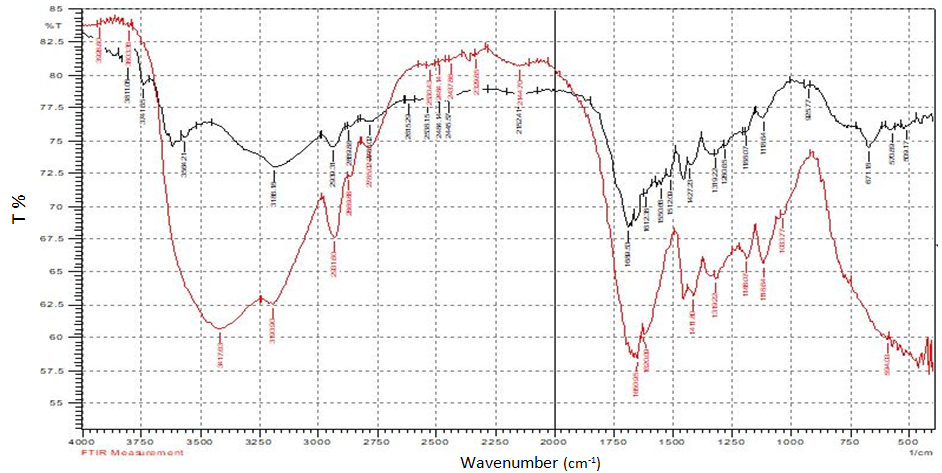

Fig. 4: FTIR spectra of atenolol loaded on hydrogel

Fig. 5: Spectrum of ciprofloxacin loaded on hydrogel

Field emission scanning electron microscopy (FESEM) imaging

Field emission–scanning electron microscopy (FESEM) is an important magnification tool for examining the surface topography as before and after loaded pharmaceutical compounds. FESEM pictures were taken at magnification value 200 nm for each surface by hydrogel and matrix tablet to both drugs in fig. 6(A). It was observed the surface hydrogel that was seen homogenous granular and founded slit between granular, fig. 6(C), clarify atenolol drug loaded on hydrogel and seem heterogeneous form but in fig. 6(B)which represents ciprofloxacin drug loaded on hydrogel it has seen homogenous granular and looks as waves. FESEM is better than the SEM because FESEM higher resolution and the lower ratio(S/N), so it is fit to be a sensitive sample like drugs [28, 29].

Fig. 6: FE-SEM image of surface hydrogel in 200 nm and magnification150kx, B and C-FE-SEM image of ciprofloxacin and Atenolol magnification100kx respectively

Thermal analysis

Fig. 7,showed the integration of TG/DTG curves in this fig., continuous line represents thermal gravimetric analysis while the dashed line represents derivational thermal analysis. The DTG curve has less interference from the TG curve and the peaks reflect the chemical reaction occurring during an increase in temperature within the time unit. [30]. TG curve shows a three stages of losses of weight, initial stage in 117 °C attribute to loss moisture (humidity) that found in the hydrogel, second stage when reached temperature between range (257-332) °C belong to loss CO2 and amide group and respective this is identical to what observed researcher Yaoji Tang et, al., they studied removal pigment by AA-MA.[31]. Third stage represents the dissociation of polymer in 383.84 °C to refer degradation of the polymer backbone. The DTG clarify loss %12,02 of weight in 1,34%min, the second stage represents loss of 75,4% belong to loss two group of CO2 and amide and the last stage loss 58.0% in 13.6 min due to degradation of the polymer chain so (TG/DTG) appear good thermal stability to prepared hydrogel.

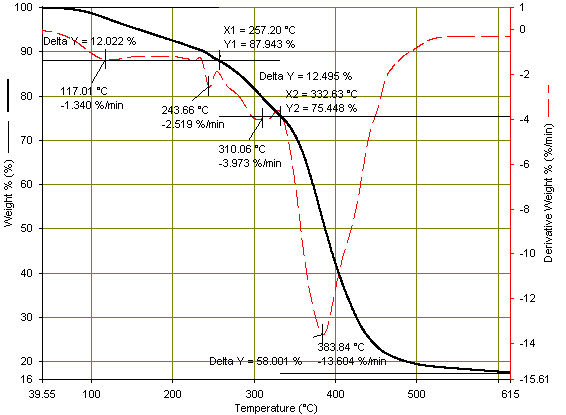

Fig. 7: TG/DTG curve for hydrogel AAM-co-MA

Effect of pH on the release of drug in vitro

The release of drugs was studied in different pH media (1.2, 5 and 7.4) represented small intestinal, colon, stomach respectively. The study showed the highest release values to both drugs in pH=7.4, we can interpret the protonation and ionization carboxyl group in surface hydrogel [32] as having abundant, this group in (pH =1.2) was protonation so that it forms (COOH) which means that the electrostatic repulsion is not found and has not led to swelling, in addition, hydrogen bond was found to restrict the swelling by hydrogel. In either the virtual bowel fluid the carboxyl group were ionization to have a negative charge (COO-), the negative charge helps to form the electrostatic repulsion between similar charge so that swelling is obtained. it has the largest drug matrix tablet and separated the hydrogen bonding and spread out drug outside polymeric network in pH =5 not ionization most of carboxyl group so the swelling behavior is not the greatest [33], as well the ratio of release ciprofloxacin is higher than from atenolol that due to drug solubility, because the solubility of atenolol reached 13g/l while ciprofloxacin 30g/l when raised solubility of drug reduced adsorption and increase release ratio from polymeric network due to easy leave it [34]. The results of ciprofloxacin and atenolol are shown in fig. 9 and fig. 10.

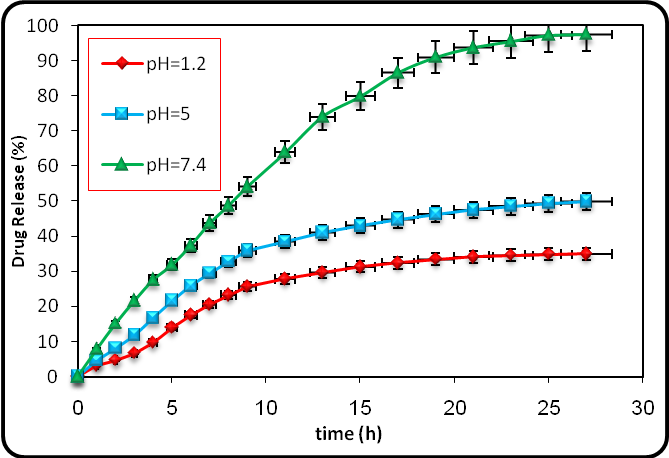

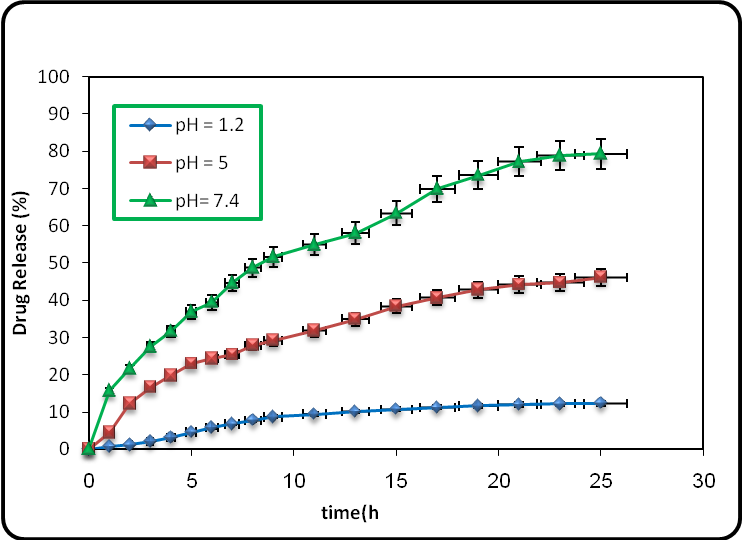

Fig. 8: Effect of acid function on the amount of ciprofloxacin released from the tablets at 37 °C, all the values were calculated as mean±standard deviation; n=3

Fig. 9: Effect of acid function on the amount of atenolol released from the tablets at 37 °C, all the values were calculated as mean±standard deviation; n=3

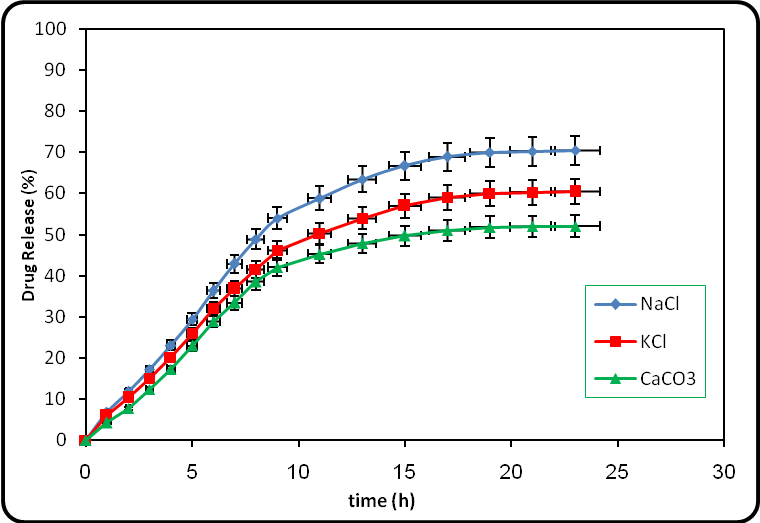

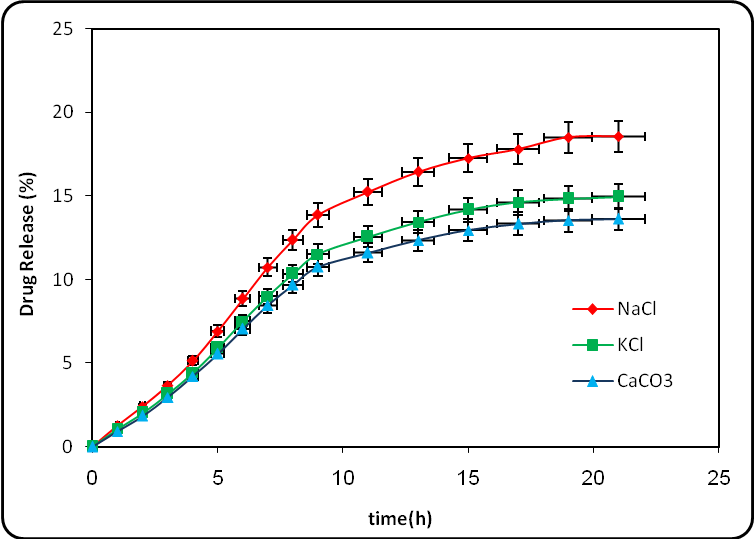

Fig. 10: Effect of ionic strength on ciprofloxacin drug that released from the matrix tablet at 37 °C and pH 7.4, All the values were calculated as mean±standard deviation; n=3

Fig. 11: Effect of ionic strength on atenolol drug that released from the matrix tablet at 37 °C and pH 7.4, all the values were calculated as mean±standard deviation; n=3

Effect of ionic strength on the release of drug in vitro

Through examining the effect ionic strength, we got the following result in fig. 10 for ciprofloxacin and fig. 11 for atenolol. We observed a negative effect on release drugs from matrix tablet. The mechanism of this behavior can be understood as following: due to the continuous ability to penetrate the polymer network and correlation with carboxylic groups (COO-) to the surface polymer that is operating too feeble(anion-anion)electrostatic interaction, we can observed an increase in the ionic value of the used salt that has led to decrease the release ratio because of an increase in the ability to form intermolecular complex on surface hydrogel that has led to reinforcing cross-linked on surface which is resulted in ability to imbibitions water and biological fluids to the polymeric Network so it shrinks as a result of shielding from complex. The smaller diameter of cation made less effect on swelling polymer so we can arrangement based effect on swelling ratio (Na+1<K+1<Ca+2), that agree with researcher Che et, al., when evaluated performance chitosan-based hydrogels for controlled drug delivery [35] on the other hand, the decrease in adsorption capacity may be due to osmotic pressure between external incubation and inner hydrogel fortified with raise ionic strength. The water content within the hydrogel network will then spread and shrink. This indicates that increasing salt concentration will accelerate the release of water molecules from the network polymer then reduced of swelling ratio that agree with study Xiaoliang et al. [36].

CONCLUSION

Results revealed the ability to use poly (AAM-MA) hydrogel as a carrier of the drugs in the intestinal tract, which attributed to the hydrogel that had a higher swelling behavior ratio in hypothetical intestinal. The results also showed a solubility effect on releasing ratio from the polymeric network. The results displayed the effect of ionic strength (charge/radius) to cation on release ratio of release drugs. The smaller radius had less effect on release, and the largest charge had a negative effect on release ratio that was due to cation formation inter and intra complex surface hydrogel.

ACKNOWLEDGMENT

Authors are thankful to the University of Al-Qadisiyah for their technical support.

AUTHORS CONTRIBUTIONS

All the author have contributed equally

CONFLICT OF INTERESTS

Declared none
