Int J App Pharm, Vol 10, Issue 6, 2018, 147-151Original Article
SUPERCRITICAL CARBON DIOXIDE EXTRACTIONOF CITRONELLA OIL FROM CYMBOPOGON WINTERIANUSUSING TAGUCHI ORTHOGONAL ARRAY DESIGN
RINALDI SALEA, STEVANUS HIENDRAWAN, ERNA SUBROTO, BAMBANG VERIANSYAH, RAYMOND R. TJANDRAWINATA*
Dexa Laboratories of Biomolecular Sciences (DLBS), Industri Selatan V Block PP No. 7, Jababeka Industrial Estate II, Cikarang 17550, West Java, Indonesia
Email:raymond@dexa-medica.com
Received: 01Aug 2018, Revised and Accepted: 04 Sep 2018
ABSTRACT
Objective:Optimum condition for the extraction of citronella oil from citronella (Cymbopogonwinterianus) using supercritical carbon dioxide (SC-CO2) was investigated.
Methods:In order to determine the optimum extraction condition, a Taguchi experiment with L9 orthogonal array design was used. Effects of pressure, temperature and dynamic extraction time on citronella oil yield were investigated at levels ranging between 10-15 MPa, 35-45°C and 60-180 min, respectively.
Results:The highest citronella oil yield (3.206%) was achieved at a factor combination of 15 MPa, 50°C and 180 min. The obtained citronella oil yield from SC-CO2 extraction was higher than that of percolation as the solvent extraction method using ethanol, which gave a citronella oil yield of 1.4%. The experimental oil yield at optimum condition was in accordance to the values predicted by a computational process using Taguchi method. Analysis of variance (ANOVA) with 95% confidence interval indicates that extraction temperature is the most significant factor in maximizing citronella oil yield, followed by dynamic extraction time and pressure.
Conclusion:Optimization process foroil yield from SC-CO2extraction of citronella (Cymbopogon winterianus)was successfully performed using Taguchi L9 orthogonal array design. This study demonstrates that Taguchi method was able to simplify the experimental procedure ofSC-CO2 process.
Keywords:Supercritical carbon dioxide extraction, Citronella, Cymbopogonwinterianus,Optimization, Taguchi
© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i6.28880
INTRODUCTION
Citronella is a plant originated from India and Sri Lanka which belongs to the genus Cymbopogon. This plant is commonly found growing wild in most tropical Asian, American and African countries [1].Oil of citronella is one of the most important essential oils obtained from different species of aromatic grasses. This oil is mainly usedas a source of important perfumery chemicals due to its citronellal and geraniol contents, which are extensively used in soap, perfumery, cosmetic and flavouring industries throughout the world. Citronella oil canbe used effectively as a plant-based insect repellent. The oil has also been known to possess antimicrobial, anthelmintic, antiparasitic, anti-inflammatory, anticonvulsant, antispasmodicand antioxidant properties [2].
Pharmacologically-active compounds in plants areusuallypresent in low concentrations. Previously, various different extractionmethods have been developed for the effective and selective extractions of these compoundsfrom raw materials.Our laboratories have developed and investigated various extraction techniques and biologicalassays on natural products[3-7]. Current methods that are commonly used for the extraction of citronella arehydrodistillation, steam distillation and solvent extraction[8-9]. However, hydro-and steam distillation have several drawbacks, such as high-temperature operation which leads to the breakdown of thermolabile components and the hydration of chemical constituents, while the major disadvantage of solvent extraction is the presence of solvent residue in the product.
Extraction of essential oil-bearing plants with supercritical carbon dioxide (SC-CO2) extraction is still considered as a new process on an industrial scale. Several studies have been done in recent years on the applications of SC-CO2 on various essential oil-bearing plants such as black cumin, clove, cinnamon and ginger[10-13].Carbon dioxide (CO2) behaves as a lipophilic solvent. Thus, it is able to extract most non-polar solutes in plant and animal materials, including antioxidants, pigments, flavors, fragrances, fatty acids,and essential oils. Separation of CO2 from the extract is simple and nearly instantaneous, leaving no solvent residue in the extract, as would be typical with organic solvent extraction. Unlike liquid solvents, the solving power of SC-CO2 can be easily adjusted by slight changes in the temperature and pressure, making it possible to extract particular compounds of interest. In addition, CO2 is inexpensive, available in high purity, FDA-approved and classified as a generally recognized as safe (GRAS) compound. CO2 is also a good solvent for thermolabilecompounds that are sensitive to high temperature because CO2 has a relatively low critical point, with a critical temperature (Tc) and critical pressure (Pc) of 31°C and 7.38 MPa, respectively [14].
Taguchi method has widely been used in many engineering applications since it is a powerful tool to design and investigate the parameters [15-16].It is a technique among statistical experimental design methods that comprises a special design of an orthogonal array (OA) to study the entire parameter with a small number of experiments. Thus, by this method, it is possible to reduce both of the time and cost needed for experimental investigations and improveits performance characteristics[17].The objective of this present study was to investigate the optimum condition for citronella oil extraction throughSC-CO2 extraction and to investigate the effect of extraction pressureand temperature and dynamic extraction time on citronella oilyield using Taguchi method. In addition, the yield and chemical profile of citronella oil extracts obtained by SC-CO2 extractionwere also evaluated and compared to those obtained by the solventextraction methodusing ethanol.
MATERIALS AND METHODS
Materials
The fresh stalks and leaves of citronella (Cymbopogon winterianus) were obtained from CV Pavettia Kurnia Atsiri (Subang, Indonesia). Food-grade liquid CO2 (purity of 99.99%) was supplied in cylinder tube by PT Inter Gas Mandiri (Cikarang, Indonesia). Ethanol 96% (technical grade) was purchased from PTBrataco Chemika (Cikarang, Indonesia).Analytical standard of citraland geraniol were purchased from Sigma-Aldrich,Co.(MO,USA).
Material preparation
Citronella was air-dried at room temperature for 1 w. Prior to the extraction process, dried citronella was manually chopped (±1 cm) and milled with a conical mill (Quadro Comil, Canada) with 040G screen and square impeller at 5000 rpm. These ground samples were packaged in a polyethylene bag and stored in a refrigerator. Moisture content of the sample before extraction was 14% wet basis (w. b).
Supercritical carbon dioxide (SC-CO2) extraction
SC-CO2 extraction was performed using a customized supercritical fluid apparatus described in the previous study[10]. SC-CO2 extraction was carried out using a supercritical fluid extractor with CO2 cycle system (KIST-Korea). A 1000 ml stainless steel extraction column loaded with approximately 50 g of dried and milled citronellawas connected to the system. CO2 pump (HKS-12000, South Korea) was cooled using circulating chiller (Lab. Companion, USA) and the pressurized CO2 was delivered to the extraction vessel through a preheater. Temperatures of extraction column and preheater were controlled by a circulating heater (Lab. Companion, USA). The outlet of extraction column was connected to a back pressure regulator (Tescom, USA) to control the pressure in the extraction vessel. Extraction experiments were commenced when the system has reached the predetermined pressure and temperature. There were two stages of extraction which consisted of static and dynamic stages. The static stage was 60 min for all experiments,and the dynamic stage was varied. CO2flow rate was kept at 20 ml/min, measured at operating pressure and temperature for all experiments. SC-CO2 was expanded across the separator vessel,and the extracts were collected in a glass vial after the experiment has been finished.
Solvent extraction (percolation)
Approximately 100g of dried and grounded citronella were loaded into a 2500ml custom-built percolator.Ethanol (96% v/v) with a total volume of2600 ml was used as the solvent. A HKS-12000 Pump(Korea) was used to continuously deliver solventthrough the system at a rate of 180 ml/min. After 6 h of extraction time, the solventwas then removed by evaporation process at a reduced pressure using Rotavapor R-215 (Buchi,Switzerland). The amount of remaining extract was determinedas the yield of the experiment.
Gaschromatography (GC) analysis
Gaschromatography (GC) analysiswas performed with a PerkinElmer GC Clarus 680 equipped with a flame ionization detector (FID) and an Elite-5 (5% phenyl, 95% dimethylsiloxane) capillary column (30m×0.25 mm i.d×0.25μm film thickness). Nitrogen was used as the carrier gas at a flow rate of 0.7ml/min. 1μl of samplewas injected using the split mode (split ratio of 1:10). Injector and detector temperatures were 150°C and 320°C, respectively. Oven temperature was set at 80°C, programmed to 120°C at a rate of 3°C/minand further programmed at a rate of 20°C/min to 310°C.
Taguchi orthogonal array
Taguchi method has widely been used in many engineering applications since it is a powerful tool to design and investigate the parameters. It is a technique among statistical experimental design methods that comprises a special design of an orthogonal array (OA) to study the entire parameters with a small number of experiments. Thus, by this method, it is possible to reduce both of the time and cost needed for experimental investigations and to improve the performance characteristics[18]. A Taguchi L9 orthogonal array design was used to investigate the optimum condition inSC-CO2extraction process since it is the most suitable method for the investigated condition, i.e., three factors withthree levels (values). The factors and levels are listed in table 1, whereas the structure of Taguchi L9orthogonal array design is shown in table 2.
The data obtained from SC-CO2 extraction process was subjected to signal-to-noise (S/N) ratio calculation. S/N ratio calculation is an evaluation of output performance stability which measures the level of performance and effect of noise parameters on performance. The experimental results should be transformed into S/N ratios, which mainly consist of three types, including smaller-the-better, nominal-the-best and larger-the-better. In this study, target values of ‘larger is better’ was used since the purpose of this study was to obtain the highest yield of citronella oil. The larger difference value (Δ) in the parametersindicates that the parameters will affect the process since any change in signal will cause a larger effect on the output factors being measured. S/N ratio is calculated using the following equation:
……. (1)
where yi represents the experimentally observed value of the ith experiment, and n is the number of the trial at the same level.Statistical analysis was performed using MINITAB v.15 (Minitab Inc., USA) statistical softwarepackage.
Table 1: Factors and levels used in experimental design
| Level | Factors | ||
| Pressure(MPa) | Temperature( °C) | Dynamic time(min) | |
| A | B | C | |
| 1 | 10 | 40 | 60 |
| 2 | 12.5 | 45 | 120 |
| 3 | 15 | 50 | 180 |
Table 2: Standard for L9 orthogonal arrays
| Run | Independent variables | ||
| A | B | C | |
| 1 | 1 | 1 | 1 |
| 2 | 1 | 2 | 2 |
| 3 | 1 | 3 | 3 |
| 4 | 2 | 1 | 2 |
| 5 | 2 | 2 | 3 |
| 6 | 2 | 3 | 1 |
| 7 | 3 | 1 | 3 |
| 8 | 3 | 2 | 1 |
| 9 | 3 | 3 | 2 |
RESULTS AND DISCUSSION
Effect of SC-CO2 extraction conditions on citronella oil yield
Based on experimental designs in the framework of Taguchi method and according to the array and orthogonal L9, and considering the change of condition and different parameters which consisted as pressure (P), temperature (T) and dynamic extraction time (t), 9 experiments were performed in the present study.Summary of SC-CO2experiments using Taguchi method is shown intable 3. Experiment results showed that the obtainedcitronella oil yield was varied from 0.854-2.802%.
Table 3: Results of citronella oil using SC-CO2 extraction
| Run | Pressure(MPa) | Temperature( °C) | Dynamic time(min) | Yield (%) |
| 1 | 10 | 40 | 60 | 0.854 |
| 2 | 10 | 45 | 120 | 1.972 |
| 3 | 10 | 50 | 180 | 2.132 |
| 4 | 12.5 | 40 | 120 | 1.324 |
| 5 | 12.5 | 45 | 180 | 2.174 |
| 6 | 12.5 | 50 | 60 | 2.802 |
| 7 | 15 | 40 | 180 | 2.454 |
| 8 | 15 | 45 | 60 | 1.528 |
| 9 | 15 | 50 | 120 | 2.448 |
Fig. 1shows the main effect plot of citronella oil yield todifferent extraction factors and levels. Main effect plot was performed based on the average response foreach combination of control factor levels. It can be seen infig. 1that an increased pressurefrom 10 to 12.5 MPa resulted in a significant increment ofcitronellaoil yield, while further increasing pressure from 12.5 to 15 MPa resultedin a smaller citronella oil yield increment.Generally, using a higher pressure at isothermal conditions resulted inan increased solvent densityand subsequently solvent power and solubility of the compounds. As the density increased, the distance betweenmolecules was decreased,and interactionsbetween compoundsand CO2were increased, which led to greater solubility ofcompounds in CO2[19].
The effect of temperature on the yield of citronella oil obtained in this study presents analogies to the influence of temperature on the solubility of solid materials in supercritical fluids. Solubility of solids in supercritical fluids is the combination of two competing effects, which consists ofthe increased solid volatility and the decreased solvent density along with temperature rise[19-20].
Extraction time exhibited a positive impact on citronella oil yield as shown infig. 1. The citronella oil yield was increased along with increased dynamic extraction time. The results showed that increased dynamicextraction time to 180 min was able to enhance the yield of citronella oil.

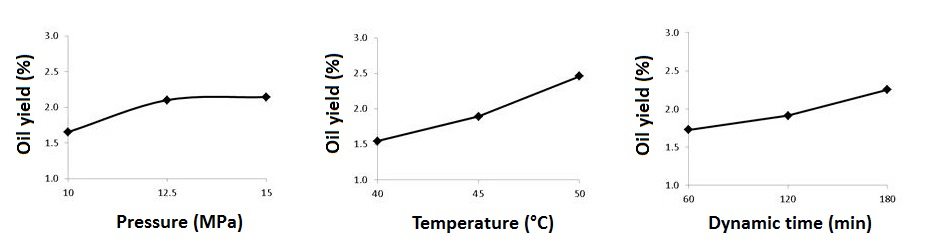

Fig. 1:Main effects plot of taguchimethod for citronella oil yield
Optimum condition
The main effect plots of S/N ratios clearly depicted the optimum level of each significant factor on extraction yield as shown in fig. 1.In this study, since the target value was ‘larger is better’,the optimum condition for each factor was defined as the level that gives the highest point of means of each plot for citronella oil yield. Based on the results of Taguchi method, the highest citronella oil yield fromSC-CO2 extraction was obtained at a pressure of 15 MPa, the temperature of 50°C and dynamic extraction time of 180 min. S/N ratio calculation results are shown in table 4. Greater difference value (Δ) of the averageS/N ratio indicated that the control factors have a greater substantial effect on S/N ratio. Based on the S/N ratio calculation, themost influencingparameters in this process is extraction temperature, followed by dynamic extraction time and extraction pressure. Thereby, the influencing parameters in the extraction process follow the order:extraction temperature>dynamic extraction time>extraction pressure.
Analysis of variance (ANOVA) was carried out to evaluate the significance of extraction pressure, extraction temperature and dynamic extraction time on the yield of citronellaoil using SC-CO2 extraction,as shown in table 5. Resultsshowed that different level of parameters exhibited no significanteffect on citronellaoil yield (p>0.05). However, it was found that temperature has a greater effect than dynamic extraction time and pressure on citronella oil yield. This result was in a good agreement to the S/N ratio calculation results.
Table 4: S/N value calculated for each parameter and level
| Level | Pressure(MPa) | Temperature( °C) | Dynamic time(min) |
| 1 | 2.103 | 1.533 | 1.923 |
| 2 | 5.184 | 5.243 | 4.795 |
| 3 | 5.956 | 7.660 | 7.007 |
| Δ (max–min) | 3.853 | 6.126 | 5.084 |
| Rank | 3 | 1 | 2 |
Table 5: Analysis of variance (ANOVA) of citronella oil yield
| Source | DF | Seq SS | Adj SS | Adj MS | F-value | P-value |
| Pressure | 2 | 13.02 | 13.02 | 6.508 | 0.62 | 0.618 |
| Temperature | 2 | 34.75 | 34.75 | 17.375 | 1.65 | 0.377 |
| Dynamictime | 2 | 16.20 | 16.20 | 8.098 | 0.77 | 0.565 |
| Residual Error | 2 | 21.04 | 21.04 | 10.519 | ||
| Total | 8 | 85 |
DF:Degree of freedom;Seq SS:Sequentials sums of squares;Adj SS:Adjusted sums of squares;Adj MS:Adjusted means of squares
Experimental validation
Experimental validation is the final step in the modeling process to investigate the accuracy and robustness of the established model. The final analysis involved a comparison between the predicted values of the established model and experimentally validated values. The predicted value at optimized condition is 2.93%,whilethe actual value at this condition is 3.206%. Percentage error found in this study was 9.1%. It was found that the average of percentage error was less than 15%, confirming and concluding that the methodology used in establishing the model in this scientific research was systematic. Citronella oil yield obtained in this study was higher than previous studies using SC-CO2. In previous study, Silvaet al.used SC-CO2 to extract citronella essential oil. They varied the extraction temperature from 40 to 80°C, as well as the pressure from 6.2 to 18 MPa. The results showed that the best citronella extraction yield was 2.18% at 60°C and 15 MPa for 60 min[21].
Comparison with ethanol extraction (percolation)In comparison to the solvent extraction method, the optimum yield from SC-CO2 extraction was much higher than percolation (table 6). Moreover, in terms of dynamic extraction time, SC-CO2extraction was less time-consuming than conventional methods, and this extraction method does not need a further process to separate the remaining organic solvent in the obtained extract. Therefore, SC-CO2extraction exhibited a potential to be a better alternative for citronella oil extraction, since itoffersthe use of non-toxic, non-explosive, environmentally-friendly, cost-effective, time-saving and selectively-adjustable solvent in the extraction process.
Table 6: Citronella oil yields obtained by ethanol extraction and SC-CO2 extraction at optimum condition
| Methods | Yield(%) | Citral(%) | Geraniol (%) |
| SC-CO2 extraction | 3.206 | 0.508 | 3.620 |
| Ethanol extraction | 1.400 | 0.069 | 0.473 |
CONCLUSION
Process optimizationof SC-CO2 extraction onthe yield of citronella (Cymbopogon winterianus)oil was successfully performed using TaguchiL9 orthogonal array design. Optimum condition to obtain the highest oil yield (3.206%) was achieved at extraction pressure of 15 MPa, extraction temperature of 50°C and dynamic extraction time of 180 min. The experimental oil yield at optimum condition was in a good agreement with the predicted computational results. S/N ratio calculation and ANOVA identified extraction temperature as the main factor that exhibited the most influential effect on SC-CO2 extraction of citronella. Compared to the conventional method in this study (percolation using ethanol extraction),SC-CO2 extraction process resulted in a higher yield of citronella oil with a shorter period of extraction time.
ACKNOWLEDGMENT
The authors acknowledge Dexa Laboratories of Biomolecular Sciences (DLBS)–PT. Dexa Medica for financial support. The authors would like to thank Isabela Anjani for a critical review on this manuscript.
AUTHORS CONTRIBUTIONS
All the author have contributed equally
CONFLICT OF INTERESTS
The authors declared no conflicts of interest with respect to the authorship and/or publication.
REFERENCES
Man HC, Hamzah MZ, Jamaludin H, Abidin ZZ. Preliminary study:kinetics of oil extraction by ohmic heated hydrodistillation. APCBEE Procedia 2012;3:124-8.
Kakaraparthia PS, Srinivasa KVNS, Kumara JK, Kumara AN, Rajputa DK, Sarma VUM. Variation in the essential oil content and composition of Citronella (CymbopogonwinterianusJowitt.) in relation to the time of harvest and weather conditions. Ind Crops Prod 2014;61:240-8.
Tandrasasmita OM, Lee JS, Baek SH, Tjandrawinata RR. Induction of cellular apoptosis in human breast cancer by DLBS1425, a Phaleriamacrocarpacompound extract, via downregulation of PI3-kinase/AKT pathway. Cancer BiolTher 2010;10:814-23.
Tandrasasmita OM, Wulan DD, Nailufar F, Sinambela J, Tjandrawinata RR. Glucose-lowering effect of DLBS3233 is mediated through phosphorylation of tyrosine and upregulation of PPARγ and GLUT4 expression. Int J Gen Med 2011;4:345-57.
Tjandrawinata RR, Nofiarny D, Susanto LW, Hendri P, Clarissa A. Symptomatic treatment of premenstrual syndrome and/or primary dysmenorrhea with DLBS1442, a bioactive extract of Phaleriamacrocarpa. Int J Gen Med 2011;4:465-76.
Salea R, Widjojokusumo E, Veriansyah B, Tjandrawinata RR. Optimizing oil and xanthorrhizol extraction from Curcuma xanthorrhizaRoxb. rhizome by supercritical carbondioxide. J Food SciTechnol 2014;51:2197-203.
Karsono AH, Tandrasasmita OM, Tjandrawinata RR. Molecular effects of bioactive fraction of Curcuma mangga(DLBS4847) as a down-regulator of 5α-reductase activity pathways in prostatic epithelial cells. Cancer Manag Res 2014;6:267-78.
Wany A, Kumar A, Nallapeta S, Jha S, Nigam VK, Pandey SM. Extraction and characterization of essential oil components based on geraniol and citronellol from Java citronella (CymbopogonwinterianusJowitt). Plant Growth Regul 2014;73:133-45.
Timung R, Barik CR, Purohit S, Goud VV. Composition and anti-bacterial activity analysis of citronella oil obtained by hydrodistillation:process optimization study. Ind Crops Prod 2016;94:178-88.
Salea R, Widjojokusumo E, Hartanti AW, Veriansyah B, Tjandrawinata RR. Supercritical fluid carbon dioxide extraction of Nigella sativa (black cumin) seeds using Taguchi method and full factorial design. BiochemCompd 2013. Doi:10.7243/2052-9341-1-1.
Chatterjee D, Bhattacharjee P. Supercritical carbon dioxide extraction of eugenol from clove buds. Food Bioprocess Technol 2013;6:2587-99.
Singh A, Ahmad A. Optimization of total essential oil yield of Cinnamomum zeylanicum N. by using supercritical carbon dioxide extraction. Int J Sci Eng Res 2015;6:318-27.
Salea R, Veriansyah B, Tjandrawinata RR. Optimization and scale-up process for supercritical fluids extraction of ginger oil from Zingiberofficinale var. Amarum. J Supercrit Flu 2017;120:285-94.
McHugh M, Krukonis V. Supercritical fluid extraction:principles and practice. 2nd ed. United Kingdom:Butterworth-Heinemann;1994.
Ansari K, Goodarznia I. Optimization of supercritical carbon dioxide extraction of essential oil from spearmint (Menthaspicata L.) leaves by using Taguchi methodology. J Supercrit Flu 2012;67:123-30.
Subroto E, Widjojokusumo E, Veriansyah B, Tjandrawinata RR. Supercritical CO2 extraction of candlenut oil:process optimization using taguchi orthogonal array and physicochemical properties of the oil.J Food SciTechnol 2017;54:1286-92.
Chuichulcherm S, Prommakort S, Srinophakun P, Thanapimmetha A. Optimization of capsaicin purification from Capsicum frutescens Linn. withcolumn chromatography using Taguchi design. Ind Crops Prod 2013;44:473-9.
Montgomery DC. Design and analysis of experiments. 6th ed. Washington DC.John Wiley and Sons Inc;2005.
Reverchon E, Marco ID. Review:supercritical fluid extraction and fractionation of natural matter. J Supercrit Fluids 2006;38:146-66.
Danh LT, Mammucari R, Truong P, Foster N. Response surface method applied to supercritical carbon dioxide extraction of Vetiveria zizanioides essential oil. ChemEng J 2009;155:617-26.
Silva CF, Moura FC, Mendes MF, Pessoa FLP. Extraction of citronella (Cymbopogonnardus) essential oil using supercritical CO2: experimental data and mathematical modeling. Braz J ChemEng 2011;28:343-50.
