Int J App Pharm, Vol 10, Issue 6, 2018, 204-210Original Article
FORMULATION AND EVALUATION OF ACECLOFENAC PRONIOSOME LOADED ORABASE FOR MANAGEMENT OF DENTAL PAIN
G. V. RADHA1*, K. TRIDEVA SASTRI1, P. PRATHYUSHA1, P. BHANU1, JAMPALA RAJKUMAR1
1GITAM Institute of Pharmacy, GITAM Deemed to be University, Rushikonda, Visakhapatnam, Andhra Pradesh State, India
Email: radhagadela@gmail.com
Received: 16 Aug 2018, Revised and Accepted: 21 Sep 2018
ABSTRACT
Objective: The main motiveis to develop proniosomes loaded orabase for enhanced permeation and prolonged release of aceclofenac for oro dental conditions.
Methods: Variousaceclofenac (ACL)proniosomal gels were formulated employing various surfactants, span 60 was superior and significant for loading into orabase. The formulations were scrutinized for entrapment efficiency, optical microscopy, in vitro diffusion and release studies, mucoadhesive strength, ex-vivo permeation studies and drug-excipient interactions were determined by FTIR spectroscopy.
Results: Consideringbest entrapment efficiencywith span 60 (97.60±1.85) and optimum vesicle shape, along with prolonged drug permeation (45% for 24 h) the formulation F(ACL)1 was selected and optimized for loading into orabase. The F(ACL)1 loaded orabase exhibited significant prolonged release over 14 h, and permeation profilesexhibited nearlytwo-fold increased flux in comparison with control.Good mucoadhesive strength was observed for proniosomal orabase 6370dynes/cm2. No evidence of incompatibility amongst formulation components from FTIR studies.SEM images revealed the particle size range from 136 µm to 236 µm for proniosomal orabase.
Conclusion: Orabase can be an effective carrier for proniosomes with enhanced permeation and prolonged release for oro-dental conditions.
Keywords: Aceclofenac, Oro-dental pain, proniosomal gel, Orabase, Entrapment efficiency, Prolonged release
© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i6.29143
INTRODUCTION
Patients with oro-dental aliments often suffer awful pain due to significant tissue damage and inflammation. The effective analgesic screening and dosage regimendepend on the nature and intensity of pain the patient experience. Oral cavities are the chief complaint about a toothache, nonsteroidal anti-inflammatory drugs (NSAIDs)effectively mitigate acute and chronic dental, tissues and other adjacent structures [1]. With the advancements in understanding, pain pathophysiology novel strategies for drug delivery assessed to alleviate pain at peripheral sites to enhance the therapeutic benefit of the drug [2].
ACL is anNSAID and exhibits potent analgesic activity, effective in the treatment of painful inflammatory conditions, mostly administered orally. It is broadly prescribed for conditions rheumatoid arthritis,osteoarthritis, acutelumbago,and dental pain and oral dental ailments.Gastrointestinal disturbances raise concerns to post oral ACLadministration. Hence, a better strategy with a significant scale of safety is essential to overcome suchsystemic side-effects. One such strategy, designing the delivery system with localized action at the site of ailment.Thereby, lowers systemic disturbances and improves the efficiency of the drug by potentiating drug concentration at the site of inflammation with low dose relative to conventional oral administration hence increases patient compliance.
Proniosomes are dehydrated preparations employing suitable non-ionic surfactants and carrier, the preparation further yields niosomes on hydration with water [3]. Niosomes are proven to be best carriers for drug targeting, relatively less toxic, stable,and economical and better permeation than liposomes.
Ora base is an effective mucoadhesive base effectively employed as a drug carrier, considered as ahydrophobic gel or dental paste.The aim of the present investigation was toachieve the prolonged release of ACL by loading in proniosome vesicles and improve its retention time at the particular site of action by incorporating drug loaded proniosomes into orabase thissignificantlyreduces dosage frequency hence increase patient compliance.
MATERIALS AND METHODS
Materials
ACLwas purchased from yarrow chem products(Mumbai, India),span 40 (sorbitan monopalmitate) and span 60 (sorbitan monostearate), were purchased from lobachemiepvt. ltd.(Mumbai, India),span 20 (sorbitan monolaurate) andspan 80(sorbitan monooleate)were purchased from molychem (Mumbai, India). Cholesterol was purchased from finar chemicalspvt. Ltd(Ahmedabad, India) and soya lecithin wereobtained from sigma chemicals limited (Hyderabad, India).
Methods
Preparation of aceclofenac proniosomal gel
ACLloaded proniosomal gel was formulated employing coacervation phase separation method [4, 5]. The required measures of surfactant, lecithin and cholesterol were dissolved in alcohol in a beakeras shown in (table 1). Contents were stirred uniformly using glass rod, further introduced into water bath shaker (REMI) to warm the ingredients (60-70 ) for about five minutes for complete solubilization. Consequently, aqueous buffer pH 7.4 was added to the preparation, with gentle warming yielded proniosomal gel on cooling.
Table 1: Composition of the proniosomal formulation of Aceclofenac
| S.No. | Formulation | Surfactant | Drug (mg) |
Soya lecithin (mg) |
Surfactant concentration (mg) |
Cholesterol (mg) |
pH 7.4 buffer (ml) |
| 1 | F (ACL) 1 | Span 60 | 10 | 468 | 468 | 52 | 1.6 |
| 2 | F (ACL) 2 | Span 40 | 10 | 468 | 468 | 52 | 1.6 |
| 3 | F (ACL) 3 | Span 20 | 10 | 468 | 468 | 52 | 1.6 |
| 4 | F (ACL) 4 | Span 80 | 10 | 468 | 468 | 52 | 1.6 |
Entrapment efficiency
Proniosomal formulations (0.2g) after reconstitution with sufficient aqueous buffer (pH 7.4) in suitable centrifuge tube were executed for centrifugation using a cooling centrifuge at 3500 rpm for about 1 h at 4 [6]. The clear and distinct supernatant was collected carefully to separate unentrapped ACL,and the sediment was then treated with ethanol (1 ml) to lyse the vesicles and diluted with ethanol respectively,and absorbances were determined spectrophotometrically at 275 nm. The entrapment efficiency was determined using the following equation,
Optical microscopy
The preparation with clear liquid crystalline state yielded niosomal suspension upon hydration; the same was mounted on a glass slide and examined for vesicles using a compound microscope under 100X magnification, magnified images were captured.
In vitrodiffusion
In vitrorelease studies were performed for the preparations using Franz diffusion cell. Dialysis membrane was positioned between receptor and donor compartments.An equivalent dose of ACLpreparation was introducedon the membrane. Receptor compartment was charged with pH 7.4 buffer (15 ml). Cells were conditioned at 37±5 with stirring at 500 rpm. At predetermined time periods aliquots were withdrawn from the receptor compartment, respectively and the same was replenished with fresh buffer. The samples were analysed spectrophotometrically.
Preparation of aceclofenac proniosomal orabase
Required equivalent quantities of gelatin, pectin, sodium carboxymethylcellulose, polyethylene glycol,and liquid paraffin were blended and triturated in optimum ratios for obtaining a smooth orabase in a mortar and pestle. Further desired amount of aceclofenac loaded proniosomal gel was incorporated with uniform stirring until homogeneity was achieved.
Preparation of aceclofenac orabase
Gelatin, pectin, sodium carboxymethylcellulose, polyethylene glycol,and liquid paraffin were blended and triturated in optimum ratios for obtaining orabase in a mortar and pestle. Further equivalent amount of ACLwas incorporated with uniform stirring until homogeneity was achieved.
In vitro release studies
ACL proniosomal gel loaded orabase and drug orabase was characterized for its release employing membrane diffusion technique [7].The preparation equivalent to 60 mgaceclofenac was diluted with 1 ml of the buffer, introduced to the lower end of the glass cylinder on preconditioned dialysis membrane. The cylinder was maintained at 30 rpm with the membrane end being submerged in the dissolution jars. The dissolution medium phosphate buffer pH 7.4 was maintained at 37±5. The suitable volume of the sample was withdrawn at predetermined time periods; the same was replenished with fresh buffer and samples were assayed spectrophotometrically [8].
Determination of mucoadhesive strength of the proniosomal orabase formulation
The mucoadhesive strength of aceclofenac loaded proniosomal orabase formulation was determined by measuring the potency necessary for detaching the preparation from oral goat mucosa using dispensing balance [9].Equal pieces (2.5×2.5 cm), cut from the goat oral mucosal membranes,[10] were horizontally fixed to the upper stage of the dispensing balance keeping the mucosal side out. Proniosomal preparation (0.5 g) was positionedon the lower steel stage enabling the sample surface to adjoin mucosal membrane attached to the upper stage [11, 12]. The sample was placedadjacent to the mucosal membrane for 5 min. Into the other pan of dispensing balance water was added in dropwise manner until the mucosal membrane extricates from the gel sample. The mucoadhesive strength was measured in dyne/cm2. The minimum amount of water required to detach the formulation from the oral mucosa surface was determined by using the following equation [13]
Where m is the weight of water added to the balance in gram, g is acceleration due to gravity (980 cm/s2), and A isan area of tissue exposed in cm2.
Ex vivo permeation studies
Proniosomal orabase permeation against buccal mucosa was determined employing altered Franz diffusion cell.The buccal mucosal membrane of goatpre-conditioned was placed in between donor and receptor compartments with the mucosal side facing the gel sample in the donor compartment.An equivalent amount of proniosomal orabase was introduced to the donor compartment,and subsequently, 50 ml of phosphate buffer filled in the receptor compartment maintained at 37±5 and stirred at 50 rpm. A suitable volume of sample was withdrawn at predetermined time periods, the same was replenished with fresh buffer and samples were assayed spectrophotometrically. The permeability coefficient calculated [14]
The flux of drug was calculated using Jss formula i.e.,
The permeation coefficient of the drug was calculated using formula
Determination of drug deposited into oral mucosa
The amount of the aceclofenacretained in the buccal mucosa membrane was estimated by detaching the buccal mucosa membrane followed by diffusion studiesrinsed with distilled water to washout formulation adhered to the membrane. The membrane was shredded into small pieces and then sonicated in 10 ml ethanol for 30 minto leach out the drug. Then the sonicated ethanol was assayed spectrophotometrically for estimating the amount of ACLremained deposited in the buccal mucosa.
Optical microscopy
The proniosomal orabaseand drug orabasewas placed on a glass slide and observed for vesicles using a compound microscope under 100X magnification; magnified images were captured.
Drug-excipient compatibility studies
An efficient formulation emphasises on physiochemical and biological characteristics of active and excipient employed for product development.Hence signifies compatibility of active and excipients to yield the stable and safe product. Fourier transforms infrared spectroscopy is a significant analytical technique employed to study chemical interactions within active and excipients in the formulations. Active and excipient were mixed extensively with potassium bromide. The samples were introduced into diffuse reflectance sampler, and subsequent spectrums were recorded in wavelength region 4000-400 cm-1 in FT-IR.
Scanning electron microscopy (SEM)
The particle size of proniosomal orabase is a factor of prime importance. The surface morphology and size distribution of proniosomal orabase were studied by SEM.Proniosomal gel was applied on double-sided tape attached on aluminium stubs. The stubs were introduced to the vacuum chamber of SEM (XL 30 ESEM with EDAX, Philips, Netherlands). The samples were screened for morphological characteristics using a gaseous secondary electron detector (working pressure of 0.8 torr, acceleration voltage-30.00 KV) XL 30, (Philips, Netherlands)[15].
RESULTS AND DISCUSSION
To obtain appropriate vesicular formulation for delivery of ACL in the oral cavity for dental pain management, various proniosomal systems were formulated employing cholesterol and lecithin as membrane stabilizers along with a range of non-ionic surfactants, spans (20, 40, 60, and 80) proniosomal gel systems were formulated for effective incorporation broad range of actives.Non-ionic surfactants employed non-toxic and compatible with the biological system. The systems were formulated by blending vesicular components with alcohol and aqueous phase yielding concentrated a liquid crystalline system that produces niosomal dispersion instantaneously on exposure to saliva in the oral cavity.Formulations pertaining to span 60 and 40 evinced semisolid consistency, whereas span 20 and 80 exhibited liquid consistency.
Entrapment efficiency
For a better pharmaceutical perspective, entrapment efficiency is a consequential parameter for collatingvarious proniosomal formulations.ACL is incorporated into the vesicles. The Formulation comprising span 60 exhibited highest entrapment efficiency over other spans, span 80 showed minimal entrapment efficiency. Observed variation with entrapment efficiencies of different surfactants is the consequence of diverse structure and length of alkyl chain used as surfactants [16]. The entrapment efficiencies of the respective formulation are presentedin(fig.1).
Optical microscopy
The size of the formed vesicles has a major contribution towards in vivo fate. From (fig. 2) it is observed that the shape of proniosomal (F(ACL)1-F(ACL)4) formulations exhibited, following hydration yields niosomes with spherical morphology on 100X magnification.

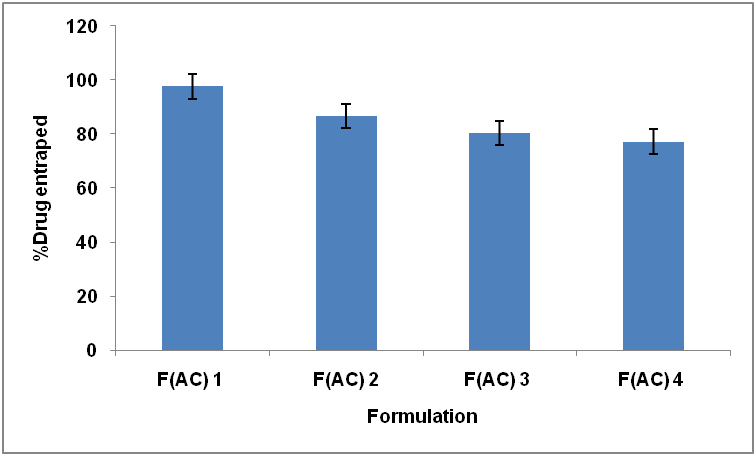

Fig.1: Entrapment efficiency of formulated proniosomesmean (n
3)
Fig.2: Optical microscopic images of proniosomal formulationsA) F1(Span60)B)F2(Span40) C) F3(Span20) D) F4(Span80)at 100X magnification
In vitrodiffusion
Amongst the different formulations, F(ACL)1 showed 45% drug release for 24h diffusion as shown (fig. 3). Consequently, formulation F(ACL)1 exhibited higher diffusion as compared to F(ACL)2-F(ACL)4 respectively.Commonly the release profiles of the proniosomal systems predominantly depended on hydrophobic lipophilic balance (HLB) value besides the alkyl chain length.

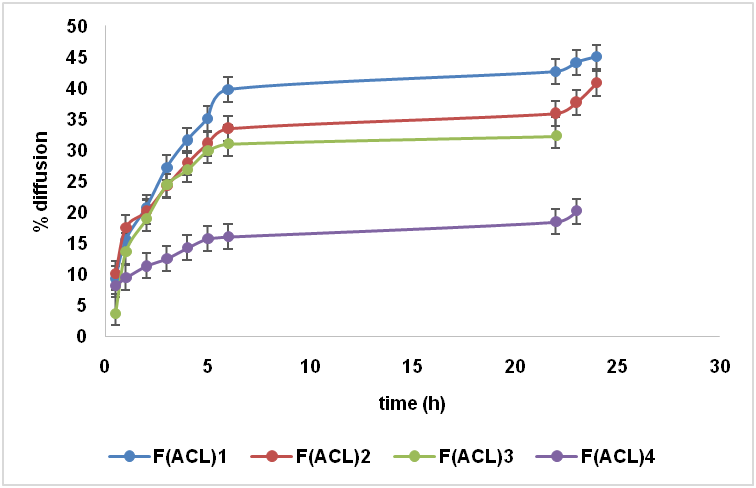

Fig.3: In vitro diffusion profiles of proniosomal formulationsdata expressed meanSD (n
)
Aceclofenac proniosomal orabase
From the in vitrodiffusion profile, with F(ACL)1 showing prominent profile compared to F(ACL)2-F(ACL)4 respectively, consequently F(ACL)1 was incorporated intoorabase, enabling increased retention time within oral mucosa.
Aceclofenac orabase
ACLwas directly incorporated into orabase as a control for comparison with the proniosomal orabase.
In vitro release
Release profiles comprehend the efficiency in the delivery of the drug by the proposed system.Complete release from ACLloaded orabase was achieved within 3 h which verify the aptitude of the drug to permeate through the membrane. It was learned the release of ACL proniosome system exhibited significantly lower release rates compared to control. This specifies that the lipid bilayer of niosomes limits drug release. An interrelation between the entrapment efficiency and the drug release was scrutinized.The higher proportion of drug entrapped within vesicles, the slower the release profile.The release from proniosomal orabase was slow and spread over more than 14 h, compared toACLorabasewith a complete release within a few hours. Significantly the release of the proniosomal orabase formulation was protracted than that of ACLloaded orabase. The release profiles of proniosomal orabase and ACLloaded orabase are shown in (fig. 4).

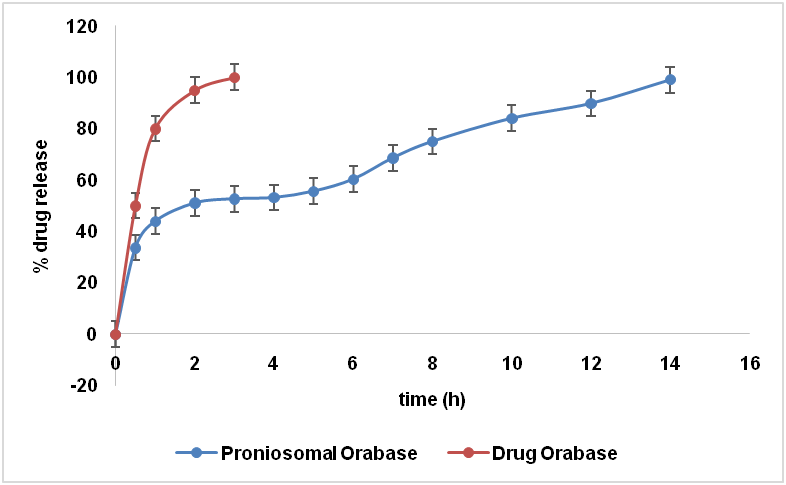

Fig.4: In vitro release profiles of proniosomal and drug orabasedata expressed meanSD (n
)
Mucoadhesive strength of the proniosomal orabase formulation
For delivery of a therapeutic agent from the formulation system through oral mucosa should attribute simple application and sustained retention for establishing clinical efficiency. Even though proniosomal system features significant placement for oral mucosa, but the therapeutic effect is limited due to poor retention on the epithelium. To handle this impediment besides establishing better retention the formulation system was incorporated into the orabase mucoadhesive gel.Mucoadhesive strength can be related to fracture theory. The adhesive bond between systems is linked to the force needed to detach surfaces from each other. This theory is associated with the force essential for a polymer to separate from the mucus towards their adhesive bond strength.Consequently, the mucoadhesive strength in terms of detachment force of the system prepared by incorporating proniosomal gel in orabase and was examined.Proniosome incorporated orabase exhibited significantly increased in mucoadhesive force compared plain proniosome. Besides the weight applied to detach the mucous from the proniosomal gel mucoadhesive strength was found to be 6370dynes/cm2.
Ex vivo permeation studies
Post local administration in the oral cavity upon exposure to saliva, proniosomal gels transform into niosomal vesicles. Formed vesicles increase the penetration of stagnant drug molecules over the mucosal membrane. By adsorption and integration of intact vesicles with mucosal membrane enhances permeation of lipophilic molecules besides enhancing thermodynamic activity gradient at the membrane.From the release profiles(fig. 5)it was evident that after 24h percentage drug released for proniosomal orabase and ACLloaded orabase were determined to be 36.6% and 21.6% respectively with permeation coefficient of 10.397 cm2/h and 3.270 cm2/h. exhibited flux of 230 µg/cm2/h and 110µg/cm2/h for proniosomal orabase and aceclofenac loaded orabase respectively.Comprehensively the permeation of ACL proniosomal orabase systems exhibited significantly enhanced and higher permeation compared to the control, recommending interaction of vesicles with mucosal membrane. The enhanced permeation of the prepared system is attributed to the existence of non-ionic surfactants besides formation of niosomal vesicles upon hydration.

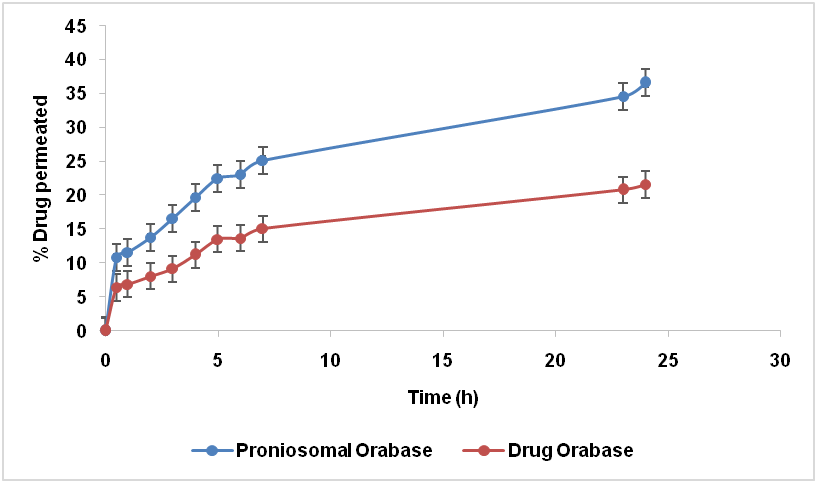

Fig.5: Ex-vivo permeation profiles of proniosomal and drug orabasedata expressed meanSD (n
)
Drug deposited in oral mucosa
Selected proniosomal orabase formulation exhibited 68.26% retention in the oral mucosa. The formulation showed significant deposition within the oral mucosal layerwhen compared to control preparation. This reveals potential aspects of these intact niosomes to overcome the epithelial barrier of the oral mucosa and enhance concentrate within mucosal layers.
Optical microscopy
From (fig. 6) it is observed that the shape of proniosomal orabase formulation exhibited spherical morphology at 100X magnification.The proniosomal orabase formulation system exhibited abundant vesicle formation in contrast to drug orabase.
Drug-excipient compatibility studies
FTIR studies were performed for ACL pure drug, proniosomal orabase and drug orabase and are in shown in (table 2). From the results, it was evident that there is no noticeable change in the peak of the spectrums of drug and excipients mixture. In recent observation there was no significant variation in dosage stability and used excipients was found. Individuality peaks of ACL were clearly established without any interaction of excipients used in proniosomal orabase formulation and drug orabase formulation as shown in the (fig. 7, 8, 9).
Fig.6: Optical microscopic images of proniosomal and drug orabase formulationsA) Proniosomal Orabase B) Drug orabase at 100X magnification
Table 2: FTIR bands of aceclofenac, proniosomal orabase and drug orabase
| Functional group | IR band of ACLpure drug (cm-1) | IR band of proniosomal orabase (cm-1) | IR band of drug orabase (cm-1) |
| Alkane (CH2-CH2) | 2934.54 | 2919.68 | 2919.60 |
| Secondary Amine (NH) | 661.97 | 615.31 | 682.14 |
| Carboxylic Acid (COOH) | 1716.78 | 1712.70 | 1374.77 |
| Ester (COOR) | 1770.13 | 1712.70 | 1748.19 |
| Aromatic ring stretching (C=C-C) | 1578.84 | 1459.43 | 1095.93 |

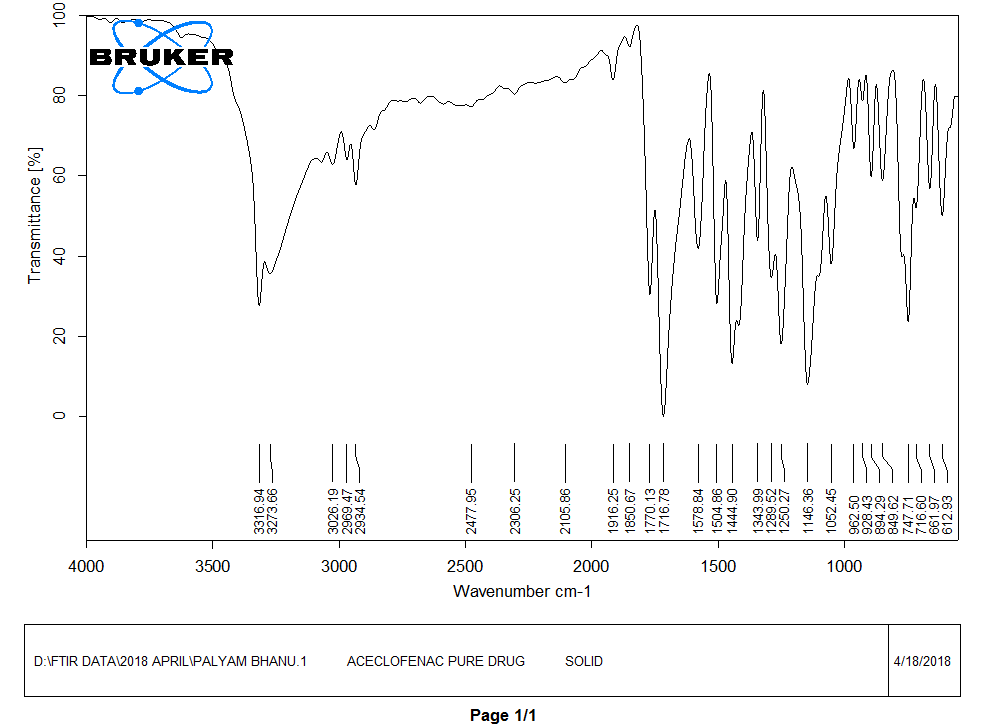

Fig. 7: FTIR Aceclofenac pure drug

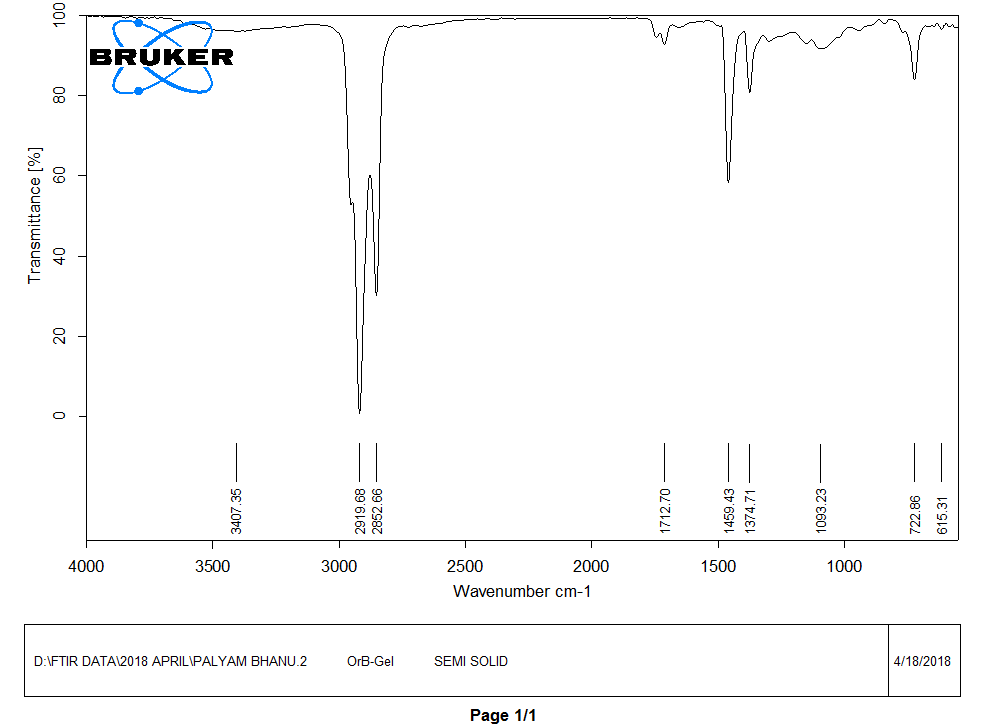

Fig.8: FTIR Proniosomal orabase

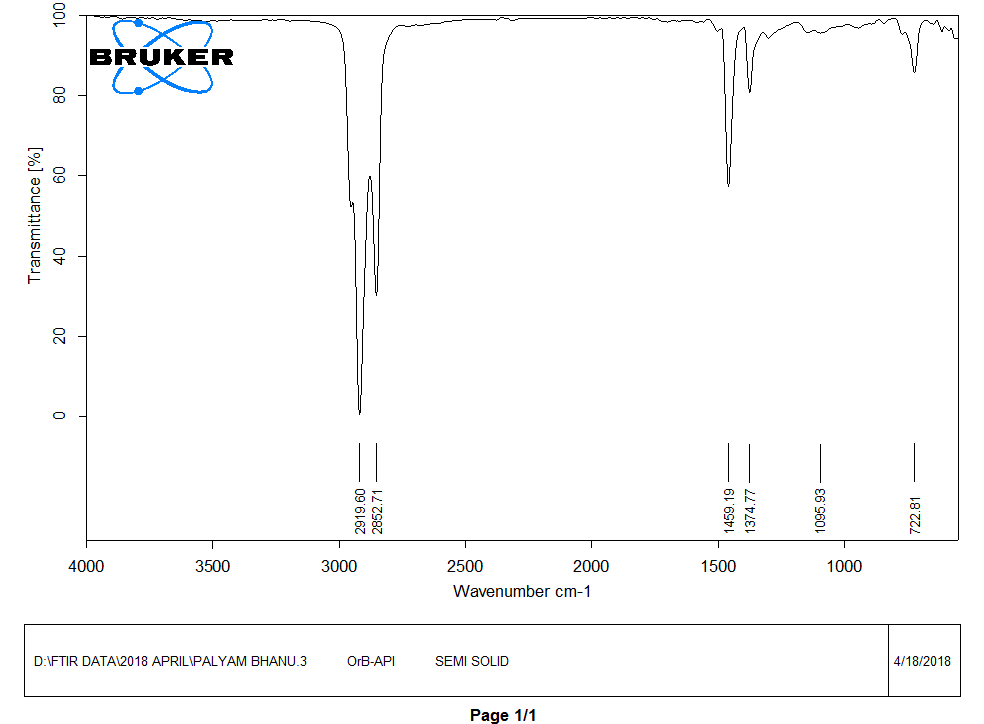

Fig.9: FTIR drug orabase
Scanning electron microscopy (SEM)
As depicted in the SEM images revealed the well identified spherical morphology of proniosomal orabase, post hydration prepared employing span 60,increased vesicle size greatly lowers mucosal penetration. Considering the aforementioned size distribution was examined,and theformulation exhibited particle size ranges from 136 µm to 236 µmas shown in(fig. 10) conferring enhanced mucosal penetration.
Fig.10: SEM image of proniosomal orabase
CONCLUSION
There have been enormous efforts put in the development of novel routes for NSAIDs administration to deliver adaptive treatments for patients ailing with dental pain with better safety margin without losing the efficiency for analgesia and pain management.
Endeavouring effort was made in preparing much safer and an alternative for oral route. Considering proniosomal gels in which aceclofenac was successfully entrapped with high efficiency into vesicles. Proniosomal gel formulation F(ACL)1, considered optimal formulation with EE% (97.60±1.85 %) post reconstitution. As a result, the optimal formula was further incorporated into orabase with desirable mucoadhesive behaviour essential to achieve increased retention for effective pain management. The formula exhibited significant permeation with two-fold increased flux and sustained for longer periods compared to the aceclofenac control at the same dose level. Hence, orabase loaded with proniosomal gels may be a promising carrier for NSAIDs in dental pain management with their intact vesicles and safety aspects for local action for longer periods with simple preparation technique.
ACKNOWLEDGMENT
The authors are grateful to GITAM Institute of Pharmacy, GITAM (Deemed to be University), Visakhapatnam for providing necessary facilities and support.
AUTHORS CONTRIBUTIONS
All the author have contributed equally
CONFLICT OF INTERESTS
All authors have none to declare
