Int J App Pharm, Vol 10, Issue 6, 2018, 224-228Original Article


CHARACTERIZATION AND ANTIBACTERIALACTIVITY OF ZnO NANOPARTICLESSYNTHESIZED BY CO PRECIPITATION METHOD

MANYASREE D.1, KIRANMAYI P.2*, VENKATA R KOLLI3

1,2*Department of Biochemistry, Acharya Nagarjuna University,3Department of Toxicology/Global QC (BPANS), Shire Pharmaceuticals, lexington, MA, USA
Email: peddikiranmayi@gmail.com

Received: 28 Aug 2018, Revised and Accepted: 21 Sep 2018

ABSTRACT

Objective: In the presentstudythe antibacterial activity of zinc oxide (ZnO) nanoparticles was investigated against gram negative (Escherichia coli and Proteus vulgaris) andgram positive (Staphylococcus aureus and Streptococcus mutans) organisms.

Methods: The synthesis of ZnO nanoparticles was carried out by co-precipitation method using zinc sulfate and sodium hydroxide as precursors. These nanoparticles were characterized byXRD (X-Ray Diffraction), FTIR (Fourier Transform Infrared Radiation), UV-Visible spectroscopy and SEM (Scanning Electron Microscope) with EDX (Energy Dispersive X-ray analysis). As well as antibacterial activity and minimum inhibitory concentration of the nanoparticles were carried out by agar well diffusion method and broth dilution method respectively against gram negative (Escherichia coli and Proteus vulgaris) and gram positive (Staphylococcus aureus and Streptococcus mutans) bacteria.

Results: The average crystallite size of ZnO nanoparticles was found to be 35 nm by X-ray diffraction.The vibration bands at 450 and 603 cm-1 which were assigned for ZnO stretching vibration were observed in FTIR spectrum. The optical absorption band at 383 nm was obtained from UV-Visible spectrum. Spherical shape morphology was observed in SEM studies. The antibacterial assay clearly expressed that E. coli showed a maximum zone of inhibition (32±0.20 mm) followed by Proteus vulgaris (30±0.45 nm) at 50 mg/ml concentration of ZnO nanoparticles.

Conclusion: Zinc oxide nanoparticles have exhibited good antibacterialactivity with gram negative bacteria when compared to gram positive bacteria.

Keywords: ZnO nanoparticles, XRD, FTIR, UV-VISIBLE spectroscopy, SEM, EDX, MIC

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i6.29376

INTRODUCTION

Development of antibiotic resistant strains has become a serious global problem now a day. One of the promising approaches for overcoming bacterial resistance towards the antibiotics is the use of metallic nanoparticles [1]. Recently, Inorganic antimicrobial agents are used for the control of organisms in various fields [2]. By bringing down the size of bulk material of inorganic metal oxides to nano, it alters their activity and enhances physical, chemical and biological properties [3]. It has been illustrated that highly reactive metal oxide nanoparticles exhibit striking biocidal action against gram positive and gram negative bacteria [4]. Sawai[5] projected that production of hydrogen peroxide be a main factor for the antibacterial function, while Stoimenov[4] elucidated that the binding of ZnO nanoparticles on the bacterial surface due to electrostatic forces might be a mechanism. The mechanism of action of metal oxide nanoparticles on microorganism alters cell membrane properties, i.e., mainly permeability that facilitates particle penetration inside the microorganism, leading to cellular DNA damage [6]. Generation of reactive oxygen species (ROS) through photocatalysis might be responsible for the biological function of zinc oxide and titanium oxide nanoparticles [7].

The biological activity of the zinc oxide nanoparticles mainly depends on its size, surface area and concentration of the nanoparticle.The antibacterial activity of Zinc oxide nanoparticles along with antibiotics was studied against gram positive (Bacillus subtilis) and gram negative (E. coli) bacteria using disc diffusion method byRavichandrika et al. [8]. Results indicated that zinc oxide nanoparticles enhance the bactericidal activity of macrolides, tetracyclines and beta-lactam antibiotics and similar findings were observed byManyasree and Kiranmayi[9].

Table 1 shows themethod and conditions of synthesis plays a key role in determining the size of the nanomaterial. There are few methods such as co-precipitation [10, 11] sol-gel processing [12] micro-emulsions processing, hydrothermal solvo-thermal processing [13], microwave processing, sono-chemical processing and template processing, high temperature solid state reaction, high energy ball milling [14-16] liquid mix process [17], rapid quenching process [18], thermal plasma [19], UV irradiation and lithography are used for synthesizing nanoparticles.

Table 1: Synthesis of nanoparticles by using various methods

Method of synthesis Synthesis conditions Size of nanomaterial(nm) Reference
Mechanochemical 300-450 °C 51 [20]
Precipitation Calcination 2h at 600 °C 50 [21]
Precipitation in presence of surfactants Calcination 2h at 500 °C 54-60 [22]
Sol-gel method Calcination at 500 °C, drying 24h at 80 °C 100 [23]
Microwave techniques 100-200 °Creaction 5-10h 55-110 [24]
Micro emulsion 15h, 140 °C,drying 60 °C 45 [25]

In the present research work, an attempt has been made to synthesize the ZnO nanoparticles by co-precipitation method and investigate the antibacterialactivity and minimum inhibitory concentration of ZnO nanoparticles against gram negative and gram positive bacteria.

MATERIALS AND METHODS

Zinc sulphate and Sodium hydroxide, involved in the synthesis of ZnO nanoparticles were purchased from Merck chemicals. The test organisms, E. coli(MCC 2412) and Staphylococcus aureus(MCC-2408) were procured from MCC, Pune, India.Proteus vulgaris (MTCC-426) and Streptococcus mutans (MTCC-497) were collected from MTCC, Chandigarh, India. Media required for the cultivation of microorganisms are Nutrient agar (E. coli and Proteus vulgaris)Trypticase soy yeast extract agar (Staphylococcus aureus) and Brain heart infusion agar (Streptococcus mutans) were obtained from Hi-Media Pvt Ltd. All the chemicals used in this experiment were analytical grade and used without further purification.

Synthesis of ZnO nanoparticles

The zinc oxide nanoparticles were prepared by co-precipitation method. 1M of zinc sulfate was dissolved in distilled water and the solution was kept under constant stirring using magnetic stirrer for one hour. After complete dissolution of zinc sulfate, 2M sodium hydroxide solution was added under constant stirring, drop by drop touching the walls of the vessel. The reaction was allowed to proceed for 2 h. At the end of the reaction, the white creamy solution was formed and was allowed to settle for overnight. The precipitate was washed several times using distilled water then dried at 80 °C.Obtained product was kept at 700 °C for 3h in a muffle furnace. During drying, complete conversion of zinc hydroxide into zinc oxide takes place [26].

Characterization of ZnO nanoparticles

The crystal structure of the sample was analyzed by means of XRD-6100 diffractometer (Shimadzu), and the patterns were recorded with Copper Kα radiation (λ=1.54060 A °). Molecular analysis of the samples was performed by Fourier transform infrared (FT-IR) spectroscopy using IR Affinity-1S (Shimadzu) spectrometer, recorded in the wave number range of 400–4,000 cm-1. The maximum optical absorption of the sample was characterized by UV-Visible Spectroscopy (JASCO V 670), in the range of 200-800 nm. Morphological study of the nanoparticles was carried out with scanning electron microscope (SEM) (EVO 18 carlzeiss).

Agar well diffusion method

The antibacterial activity of the nanoparticles was determined by agar well diffusion method [27] against both gram negative and gram positive microorganisms. Once the medium was solidified, a suspension of each sample of the bacteria was diluted prior to 10-1, 10-2 and10-3(1 ml of 108 cells/ml) and was spread on a solid agar medium in petri plates. The wells were prepared by using sterile cork borer (6 mm). Each well was filled with different concentrations of nanomaterial ranging from 10-50 mg/ml. The plates were incubated at 37 °C for 24 h. The zone of inhibition was measured with mean±SD values.

Minimum inhibitory concentration

Broth dilution method [28] was used to determine the minimum inhibitory concentration of ZnO nanoparticles.A series of 4 test tubes were taken add 10 ml of media anda loop full of culture to all the test tubes and finally add 2 mg/ml, 4 mg/ml, 6 mg/ml and 8 mg/ml of nanoparticle suspension to each test tube.The test tube without bacterial suspension is considered as control.Keep the test tubes for overnight incubation at 37 °C temperature.Read the absorbance at 600 nm using spectrophotometer.MIC is where the absorbance value of sample equals to or near to control [29].

RESULTS AND DISCUSSION

Co-precipitation method

The zinc oxide nanoparticles were prepared by co-precipitation method.The synthesis technique is a good choice among all because of simple, direct and rapid procedure [30], homogeneous mixing of reactants [31], easy control of particle size [32], shape and composition of the nanomaterial [33].

Powder X-ray diffraction (XRD) studies

Powder XRD is a rapid analytical technique primarily used for phase identification of a crystallite material and can provide information on unit cell dimensions.XRD pattern of the synthesized ZnOnanopowder is in hexagonal phase. The sharper and stronger diffraction peaks were observed from fig.1. The diffraction peaks at 31.75 °, 34.40 °, 36.23 °, 47.53 °, 56.59 °, 62.85 °, 66.39 °, 67.94 ° and69.07 ° 2θ which are associated with (100), (002), (101), (102), (110), (103), (200), (112) and(201) planes, respectively and were indicated in table 2.The (hkl) values are well agreed with the standard cards of ZnO (JCPDS file No: 79-2205). The average crystallite size of the sample (D) is calculated using Debye Scherrer’s formula:

D = 0.9λ/βcosθ

Where, λ is the wavelength of the X-ray radiation, θ is the diffraction angle and β is the full width half maximum (FWHM) intensity. On substituting the values λ = 1.5408, β = 0.041, cosθ = 0.9504 in Debye Scherrer’s formula (0.91.5408) (0.0410.9504) = 35 nm. The prominent peaks were used to estimate the grain size of sample with the help of Scherrer’s equation and it can be indexed to the hexagonal crystal structure.The calculated average crystallite size is found to be 35 nm.Crystallite size of the nanoparticles was determined from the line broadening of X-ray diffraction peak by using above mentioned formula.The evaluated cell parameters a=0.32511 and c =0.52069 nm are in close agreement with the reported values.

Fig.1: XRD patterns of the zinc oxide nanoparticles

Table2: The observed and standard 2θ values of XRD data of zinc oxide nanoparticles

Observed 2θ Standard 2θ h k l
31.75 31.76 1 0 0
34.40 34.41 0 0 2
36.23 36.25 1 0 1
47.53 47.53 1 0 2
56.59 56.59 1 1 0
62.85 62.85 1 0 3
66.39 66.37 2 0 0
67.94 67.94 1 1 2
69.07 69.08 2 0 1

Fourier transform infrared spectroscopy (FTIR) analysis

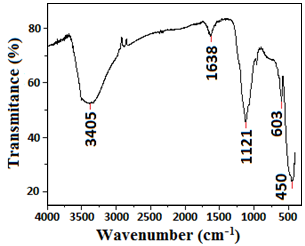

Synthesized zinc oxide nanoparticles were subjected to FTIR spectral study to identify various functional groupsrelatedto the prepared nanoparticle. FTIR spectrum of synthesized zinc oxide nanoparticles was shown in fig. 2. The Peaks at 450 [34] and 603 are assigned to the Zn-O stretching vibration [8].The peak at 1121 indicates the triply degenerative vibrational mode of sulphate ion.The peaks at 1638 and 3405 are assigned to the bending and stretching vibration mode of water molecule.

Fig.2: FT-IR spectrum of zinc oxide nanoparticles

UV-Visible spectroscopy studies

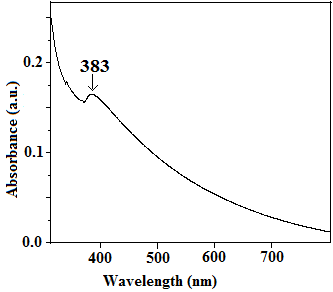

UV-Visible spectroscopy is most widely used technique to investigate the optical properties of the particles.UV-Visible spectroscopy analysis was done in the range of 200-800 nm.Zinc oxide nanoparticles typically exhibit optical absorption around 370 nm [35-36]. The optical absorbance spectra of zinc oxide nanopowder showed in fig. 3.The band was observed at 383 nm assigned to the absorption of zinc oxide nanoparticles.

Fig.3: Optical absorption spectrum of zinc oxide nanoparticles

Scanning electron microscope and EDX analysis

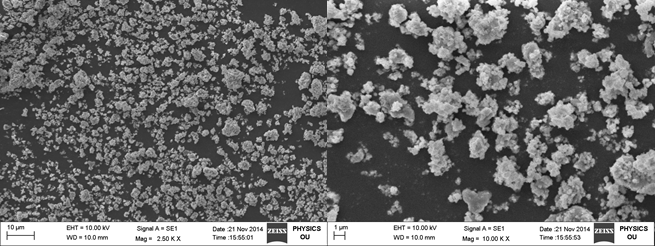

Fig. 4 represents the SEM images of zinc oxide nanopowder at different magnifications.Surface morphology of zinc oxide nanopowder was deduced by using scanning electron microscopy (SEM).The results revealed that particles in the sample were compactly arranged and shown spherical morphology [37]. The appearance of larger nanoparticles is due to van der Waals clusters of smaller entities and magnetic interactions among the particles. The purity ofthe product was further confirmed by EDX analysis.In fig.5EDX elucidates the surface atomic distribution and chemical composition of nanoparticles.The quantitative analysis of EDX spectrum reflects the presence of Zn and O peaks clearly indicated that the product was of pure ZnO devoid of impurities.The other weaker signals of K, L and S are owing to use precursor salts for the synthesis of nanoparticles.

Fig.4: SEM analysis of zinc oxide nanoparticles

Fig.5: EDX spectrum of zinc oxide nanoparticles

Antibacterial activity of the zinc oxide nanoparticles

The antibacterial activity of zinc oxide nanoparticles was tested against gram negative bacteriaE. coli(MCC-2412),P. vulgaris(MTCC-426)and gram positive bacteria S. aureus(MCC-2408)andS. mutans(MTCC-497)by agar well diffusion method.In fig.6 antibacterial activities of zinc oxide nano particles at different concentrations 10 mg/ml, 20 mg/ml, 30 mg/ml, 40 mg/ml, 50 mg/ml against both gram negative and gram positive bacteria were shown. The diameter of inhibition zones around each well is measured in millimeters and represented in table 3. Similar results were published by Rizwan et al., 2010 [38].Results have indicating that the degree of zone of inhibition (with mean±SD values) was more against gram negative bacterial strains E. coli(32±0.20 mm) and Proteus vulgaris (30±0.45 mm)when compared to the gram positive bacteria (Staphylococcus aureuswith24±0.35 mmand Streptococcus mutanswith23±0.30 mm).The formation of an inhibition zone evidently states the mechanism of the biocidal action of nanoparticles involves disrupting the membrane.Range of inhibition depends on the concentration of nanoparticles as well as on the initial bacterial concentration.Due to the smaller size of the nanoparticles they can easily pass through the membrane and can destruct the cell.The important feature of the nanoparticles is large surface area, so that they can tightly bind to the surface of the bacterial cells to disrupt the membrane which would lead to the leakage of intracellular components and that kills the bacterial cells. Nanotoxicity may be attributed to electrostatic interaction between nanoparticles with bacterial cell membrane. Generation of reactive oxygen species (ROS) like hydroxyl ions, peroxides, super oxides and hydrogen peroxide may be the main reason for nanotoxicity of zinc oxide nanoparticles. The lethal agent hydrogen peroxide which is actually produced from hydroxyl ions and peroxide free radicle could damage the cell by complete destruction of membrane of bacterial cells [39]. As well as differences in structural organization between both gram classes of bacterial cell wall i.e. due to the presence of thicker peptidoglycan layer in gram positive bacteria, they are less prone to nanotoxicity of ZnO nanoparticles when compared to gram negative bacteria. This is might be the reason for the obtained results that indicates high degree of inhibition zone in the case of gram negative bacteria compared to gram positive bacteria.

Table 3: Antibacterial activity of ZnO nanoparticles by agar well diffusion method

Organism Zone of inhibition (mm)
10mg/ml 20mg/ml 30mg/ml 40mg/ml 50mg/ml
E. coli 7±0.25 14±0.30 21±0.25 28±0.30 32±0.20
P. vulgaris 6±0.25 12±0.35 18±0.45 24±0.25 30±0.45
S. aureus 6±0.35 10±0.15 14±0.10 19±0.15 24±0.35
S. mutans 4±0.25 9±0.35 13±0.35 18±0.35 23±0.30

Number of experiments n=2, mean±SD

Minimum inhibitory concentration

In broth medium, MIC is where the absorbance value of sample equals to or near to control [29]. In solid medium, lowest concentration of nanoparticle suspension at which the bacterial colonies appeared on the top of the fresh medium in petri dishes is the MIC [40].Minimum inhibitory concentration (MIC) of the zinc oxide nanopowder was determined by using broth dilution method.MIC was determined at different concentrations like 2 mg/ml, 4 mg/ml, 6 mg/ml and 8 mg/ml and control against two gram positive and two gram negative organisms.

The results showed significant MIC values between 2 mg/ml to 8 mg/ml concentration.E. coli and Proteus vulgarisshowed MIC at 6 mg/ml, streptococcusmutansshowed MIC at 8 mg/mland staphylococcusaureus showed MIC at 4 mg/ml for zinc oxide nanopowder in table 4.

Table 4: Minimum inhibitory concentration (MIC) values in (mg/ml) of ZnOnano powder

Bacterual strain MIC(mg/ml)
E. coli 6
P. vulgaris 6
S. aureus 4
S. mutans 8

CONCLUSION

Based on the results, it can be concluded that gram negative organisms have exhibited more sensitivity when compared to gram positive organisms to metal oxide nanoparticles [41]. The difference in the activity of both gram negative and gram positive bacteria might be due to structural and compositional variations of the cell membrane [42,43, 44]. Gram positive bacteria have thicker peptidoglycan layer when compared to gram negative bacteria due to this kind of difference in structure, it is tough for nanoparticles to penetrate into membrane resulting in a low bacterial action [45].All microbial species and strains are not exhibiting the same sensitivity to metal oxide nanoparticles [27]. The concentration of the nanoparticle plays a significant role in the resolution of antibacterial activity. The surface area of the metal oxide nanoparticles that comes in contact with bacterial cells is directly proportional to the extent of antimicrobial activity recommended by the particle.

AUTHORS CONTRIBUTIONS

All the author have contributed equally

CONFLICT OF INTERESTS

Declared none

REFERENCES

  1. Choi O, Yu CP, Esteban Fernández G, Hu Z. Interactions of nanosilver with escherichia coli cells in planktonic and biofilm cultures. Water Res 2010;44:6095–103.

  2. Wilczynski M. Antimicrobial porcelain enamels. Cerr Eng Sci Proceedings 2000;21:81-3.

  3. Nicole J, Binata R, Koodali T, Ranjit C. Antibacterial activity of ZnO nanoparticle suspensions on a broad spectrum of microorganisms. FEMS Microbiol Lett 2008;279:71-6.

  4. Stoimenov PK, Klinger RL, Marchin GL, Klabunde KJ. Metal oxide nanoparticles as bactericidal agents. Langmuir 2002;18:6679–86.

  5. Sawai J, Kawada E, Kanou F, Igarashi H, Hashimoto A, Kokugan T, et al. Detection of active oxygen generated from ceramic powders having antibacterial activity. J Chem Eng Japan 1996;29:627–33.

  6. Brigger I, Dubernet C, Couvreur P. Nanoparticles in cancer therapy and diagnosis. Adv Drug Delivery Rev 2002;54:631-51.

  7. Jia You, Yanyan Zhang, Zhiqiang Hu. Bacteria and bacteriaophage inactivation by silver and zinc oxide nanoparticles. Colloids Surf B 2011;85:161-7.

  8. Ravichandrika K, Kiranmayi P, Ravi Kumar RVSSN. Synthesis, characterization and antibacterial activity of ZnO nanoparticles. Int J Pharm PharmSci 2012;4:336-8.

  9. Manyasree D, Kiranmayi P. ZnO nanoparticles: role in enhancing antibacterial activity of various antibiotics against Escherichia coli. Indo Am J Pharm Res 2017;9:399-402.

  10. Kundu A, Anand S, Verma HCA. Citrate process to synthesize nanocrystalline zinc ferrite from 7 to 23 nm crystallite size. Powder Technol 2003a;132:131-6.

  11. RaeisiShahraki R, Ebrahimi M. Synthesize of superparamagnetic zinc ferrite nanoparticles at room temperature. JNeurosurg 2013;2:413-6.

  12. Hamdeh HH, Ho JC, Oliver SA, Willey RJJ, Oliveri G, Busca G. Magnetic properties of partially-inverted zinc ferrite aerogel powders. J Appl Phys 1997;81:1851-8.

  13. Toledo-Antonio JA, Nava N, Martinez M, Bokhimi X. Correlation between the magnetism of non-stoichiometric zinc ferrites and their catalytic activity for oxidative dehydrogenation of 1-butene. Appl Catal A 2002;234:137-44.

  14. Bid S, Pradhan SK. Preparation of zinc ferrite by high energy ball-milling and microstructure characterization by rietveld's analysis. Mater ChemPhys 2003;82:27-37.

  15. Ehrhardt H, Campbel SJ, Hofmann M. Magnetism of the nanostructured spinel zinc ferrite. Scr Mater 2003;48:1141-6.

  16. Shenoya SD, Joy PA, Anantharaman MR. Effect of mechanical milling on the structural, magnetic and dielectric properties of co-precipitated ultrafine zinc ferrite. J MagnMagn Mater 2004;269:217-26.

  17. Kundu A, Upadhyay C, Verma HC. Magnetic properties of a partially inverted zinc ferrite synthesized by a new co-precipitation technique using urea. Phys Lett 2003b;311:410-5.

  18. Tanaka K, Makita M, Shimizugawa Y, Hirao K, Soga N. Structure and high magnetization of rapidly quenched zinc ferrite. J Phys Chem Solids 1998;59:1611-8.

  19. Mohair I, Szepvolgyi J, Bertoti I, Mohai M, Gubicaz J, Ungar T. Thermal plasma synthesis of zinc ferrite nanopowders. Solid State Ion 2001;163:141–2.

  20. Aghababazadeh R, Mazinani B, Mirhabibi A, Tamizifar M. ZnO nanoparticles by mechanochemical processing.J Phys Chem Solids 2006;26:312‒4.

  21. Xu J, Pan Q, Shun Y,Tian Z. Grain size control and gas sensing properties of ZnO gas sensor. Sens Actuator B-Chem 2000;66:277–9.

  22. Wang Y, Ma C, Sun X, Li H. Preparation of nanocrystalline metal oxide powders with the surfactant-mediated method. InorgChem Commun 2002;5:751‒5.

  23. Mahato TH, Prasad GK, Acharya BSJ, Srivastava AR, Vijayaraghavan R. Nanocrystalline zinc oxide for the decontamination of sarin. J Hazard Mater 2009;165:928‒32.

  24. Ismail AA, El-Midany A, Abdel-Aal EA, El-Shall H. Application of statistical design to optimize the preparation of ZnO nanoparticles via hydrothermal technique. Mater Lett 2005;59:1924‒8.

  25. Li X, He G, Xiao G, Liu H, Wang M. Synthesis and morphology control of ZnO nanostructures in microemulsions. J Colloid Interface Sci 2009;333:465‒73.

  26. Zhang H, Yang D, Ma X, Ji Y, Xu J, Que D. Synthesis of flower-like ZnO nanostructures by an organic-free hydrothermal process.Nanotechnology 2004;15:622-6.

  27. Geoprincy G, Nagendhra Gandhi N, Renganathan S. Novel antibacterial effects of alumina nanoparticles on bacillus cereus and bacillus subtilis in comparison with antibiotics. Int J Pharm Pharm Sci 2012;4:544-8.

  28. UmamaheswaraRao V, Nagababu P. Pharmacological evaluation of ceriopsdecandra (Griff.) dinghoustem extracts. IntJRec Sci Res 2015;6:2783-9.

  29. Ruparelia JP, Arup Kumar Chatterjee, Siddhartha P, Duttagupta, SuparnaMukherji. Strain specificity in antimicrobial activity of silver and copper nanoparticles. ActaBiomater 2008;4:707–16.

  30. Wang F,Liu X.In: Comprehensive nanoscience and technology. eds. Editors-in-Chief: David L. Andrews, Gregory D Scholes, Gary P. Wiederrecht, Academic Press: Amsterdam; 2011. p. 607–35.

  31. Juliana Cristina de Freitas, Rogeriomendesbranco. Magnetic nanoparticles obtained by homogeneous coprecipitation sonochemically assisted.MatRes 2015;18:220-4.

  32. Madankumar M,Sivakumar D, Premkumar S, Manivannan M, Mohamed Rafi M,PremNazeer,et al. Synthesis and dielectric studies of magnetite nanoparticles.J Emer Tech Inn Res2018;5:886-97.

  33. Qiao SZ,Liu J,Lu GQ.Synthetic chemistry of nanomaterials. 2nd edition. Modern Inorganic Synthetic Chemistry; 2017.

  34. Gnanasangeetha D, SaralaThambavani. One pot synthesis of zinc oxide nanoparticles via chemical and green method. Res J Material Sci 2013;1:1-8.

  35. Divya MJ, Sowmia C, Joona K, Dhanya KP.Synthesis of zinc oxide nanoparticle from Hibiscus rosa-sinensisleaf extract and investigation of its antimicrobial activity. Res J Pharm BiolChemSci 2013;4:1137-42.

  36. Prabhu YT, Siva Kumari B, VenkateswaraRao K, Kavitha V, ArunaPadmavathi D. Surfactant assisted synthesis of ZnO nanoparticles, characterization and its antimicrobial activity against staphylococcus aureus and escherichia coli. Int J Cur Eng Tech 2014;4:1038-41.

  37. HarithaMeruvu, MeenaVangalapati, SeemaChaitanyaChippada, SrinivasaRaoBammidi. Synthesis and characterization of zinc oxide nanoparticles and its antimicrobial activity against bacillus subtilis and escherichia coli. Rasayan J Chem 2011;1:217-22.

  38. Rizwan W, Nagendra KK, Akhilesh KV, Anurag M, Hwang IH, You-Bing Y, et al. Fabrication and growth mechanism of ZnO nanostructures and their cytotoxic effect on human brain tumor U87, cervical cancer HeLa, and normal HEK cells. JBiolInorgChem 2010;16:431-42.

  39. Halliwell B, Gutteridge JMC. Oxygen toxicity, oxygen radicals, transition metals and disease.Biochem J 1984;219:1–14.

  40. EmamiKarvani Z, PegahChehrazi. Antibacterial activity of ZnO nanoparticle on gram positive and gram negative bacteria. Microbiol Res 2011;5:1368-73.

  41. Vellora V, Padil T, Cernik M. Green synthesis of copper oxide nanoparticles using gum karaya as a biotemplate and their antibacterial application. IntJNanomed 2013;8:889–98.

  42. Heinlaan M, Ivask A, Blinova I, Dubourguier HC, Kakru A. Toxicity of nanosized and bulk ZnO, CuO and TiO2 to bacteria Vibrio fischeriand crustaceans daphnia magna and thamnocephalusplatyurus. Chemosphere 2008;71:1308-16.

  43. Manyasree D, Kiranmayi P, Ravikumar R. CuO nanoparticles: synthesis, characterization and their bactericidal efficacy. Int J Appl Pharm 2017;6:71-4.

  44. Manyasree D, Kiranmayi P, Ravikumar RVSSN.Synthesis, characterization and antibacterial activity of aluminium oxide nanoparticles. Int J Pharm Pharm Sci 2018;1:32-35.45.

  45. Awale JS, Dey K, Pasricha R, Sood KN, Srivastava AK. Synthesis and characterization of ZnOtetrapods for optical and antibacterial applications. Thin Solid Films 2010;519:1244–7.
