Int J App Pharm, Vol 10, Issue 6, 2018, 259-267Original Article


OPTIMIZATION OF A NOVEL KINETIC-ASSISTED INFUNDATION FOR RICH-EGCG AND POLYPHENOLS OF WHITE TEA (CAMELLIA SINENSIS) USING CENTRAL COMPOSITE DESIGN

SHAUM SHIYAN1,2, TRIANA HERTIANI2, RONNY MARTIEN2, AKHMAD KHARIS NUGROHO2*

1Programme of Pharmacy, Faculty of Mathematic and Natural Sciences, Universitas Sriwijaya, Indralaya, Sumatera Selatan, Indonesia, 2Faculty of Pharmacy, Universitas Gadjah Mada, Sleman, D. I. Yogyakarta, 5281, Indonesia
Email: a.k.nugroho@ugm.ac.id

Received: 09 Sep 2018, Revised and Accepted: 04 Oct 2018

ABSTRACT

Objective: This research aimed to find modeling and optimization of a novel kinetic-assisted infundation for rich-epigallocatechin gallate (EGCG) and polyphenols extraction from white tea leaf (Camellia sinensis L.).

Methods: The optimal conditions for the best extraction of kinetic-assisted infundation were determined using central composite design. The content of EGCG, catechin, gallic acid, caffeine, theobromine, and theophylline was quantified using high-performance liquid chromatography with ultraviolet detection (HPLC/UV-detection). The total polyphenolic content (TPC) and total flavonoid content (TFC) was measured using the spectrophotometric method. The semi-purified extract was characterized by HPLC, fourier transform infrared spectrophotometry-universal attenuated total reflectance (FTIR-UATR), and powder-X ray diffraction (P-XRD). The extraction mechanism of target compounds was analyzed using scanning electron microscopy (SEM) qualitatively.

Results: The optimum process for the rich-EGCG and polyphenolic extraction using kinetic-assisted infundation was the concentration of simplicia 14.75 %, the stir rate 440 rpm, and extraction time 12.31 min. The yield of extracts, TPC, TFC, EGCG, caffeine, gallic acid, and theobromine contents in the optimal extraction process were 9.34 %, 70.97 %, 13.95 %, 29.02 %, 11.95 %, 1.33 %, and 0.33 %, respectively.

Conclusion: The kinetic-assisted infundation method proved to be easy to apply with good results as an alternative technique for extracting polyphenolic compounds and rich-EGCG from white tea leaves.

Keywords: White tea, Central composite design, Polyphenols, Kinetic-assisted infundation, Epigallocatechin gallate

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2018v10i6.29654

INTRODUCTION

White tea of Camellia sinensis L. is produced from the youngest part of the leaf (leaf bud). The most common active compounds are polyphenols such as epigallocatechin gallate (EGCG) and other catechin derivatives [1, 2]. Other ingredients found in white tea are caffeine, theobromine, and theophylline. Epigallocatechin gallate has robust pharmacological activities as an antioxidant agent and oxidative stress inhibitor. White tea contains EGCG reported to have multiple pharmacological effects, such as antidiabetic [3], antiobesity [4], antihypercholesterolemic [4], neuroprotection [5], anticancer and DNA protective [6]. Based on many references, polyphenols have been shown to have extensive pharmacological activities [7–9]. Therefore, it is exciting to develop polyphenol extraction techniques in order to obtain the active compound of quality natural ingredients.

Kinetic-assisted infundation (KAI) is an extraction technique developed from conventional infundation (CIn) methods. Conventional methods have disadvantages such as slow-moving compound transfer processes caused by low solvent penetration [10, 11]. In other conditions, advanced methods such as ultrasound-assisted extraction (UAE) and microwave-assisted extraction (MAE) are not necessarily suitable for the extraction of active compounds from white tea. The supercritical fluid, UAE, and MAE are applied to reduce the use of organic solvents and to shorten the extraction process. However, such methods require high energy consumption and limit applications in large-scale industries [12]. In our previous research, KAI was able to deliver excellent results compared to conventional techniques. With the existing limitations provide results that are not too far from the UAE method.

In this study, essential extraction factors in KAI consisting of concentration, stir rate, and extraction time were optimized. Several studies related to the optimization of the extraction process of white tea have been done. However, the report is limited to brewing and infusion techniques with variable temperature, extraction time and ethanol concentration [13, 14]. Optimization of phenolic extraction from green tea using UAE method [12]. Our the best knowledge, there are no research reports on modeling and optimization of rich-EGCG and polyphenols extraction process using KAI technique with the central composite design approach. The optimum semi-purified extracts were analyzed and characterized using HPLC, FTIR-UATR, P-XRD, and SEM to extraction mechanism analyzed.

MATERIALS AND METHODS

Plant materials and chemicals

The white tea product of Camellia sinensis L., Theaceae, was obtained from Gamboeng Tea Company member of the Research Institute of Tea and Cinchona Gamboeng, Jawa Barat, Indonesia. The standard EGCG, catechin, gallic acid, caffeine, theobromine, and theophylline were purchased from Sigma Aldrich (St. Louis, MO, USA). The methanol and acetonitrile HPLC-grade were purchased from Fisher Scientific (Loughborough, Leics, UK). The Folin-ciocalteu reagent was purchased from Merck (Darmstadt, Germany).

Kinetic-assisted infundation procedure

KAI extraction techniques are developed from CIn. In this technique, mechanical stirring is added which differentiates from conventional methods. The solvent used was water by indirect heating at 90 °C and continued with fractionation using ethyl acetate. The ethyl acetate-soluble target compound was evaporated until the powder was obtained. The semi-purified extracts of white tea obtained were calculated as a percentage of yields.

Optimization design

The design of experiment (DoE) approach using a central composite design (CCD) was applied to find modeling and to optimize the extraction process of polyphenols (rich-EGCG) in white tea. Quantitative data from experiments are modeled, evaluated, and analyzed using response surface methodology (RSM). This analysis with mathematical and statistical techniques is appropriate for problems solving in responses that are influenced by several variables [14]. The main factors as independent variables studied for the development of extraction methods are concentration (water to a material ratio) (%, A), stirring rate (rpm, B), and extraction time (min, C). The responses determined included yields (%, Y1), TPC (% b/b GAE, Y2), TFC (% b/b CAE, Y3), EGCG (% b/b, Y4), caffeine (% b/b, Y5), gallic acid (% b/b, Y6), and theobromine (% b/b, Y7). Based on CCD from the factors entered, 20 runs experiments were obtained. The complete design of all trials is presented in table 1. Each runs with each extraction condition in table 1 was repeated as many as three replications.

Table 1: Design of CCD and experimental results for optimization of KAI uses three dependent variables and seven main responses

Run Std Dependent variable Responses (Y)*
A: Conc. (%) B:Stirr rate (%)

C: Time

(min)

Y1:

Yields (%)

Y2:

TPC (%)

Y3:

TFC (%)

Y4:

EGCG (%)

Y5:

Caf (%)

Y6:

GA (%)

Y7:

TB (%)
1 3 10 600 10 6.41 71.56 14.93 27.46 15.98 0.110 0.418
2 8 20 600 20 3.60 67.51 12.87 26.72 15.26 0.158 0.482
3 1 10 200 10 6.63 70.26 14.81 25.99 15.67 0.103 0.409
4 20 15 400 15 9.20 72.06 13.82 27.54 11.61 0.162 0.327
5 9 5 400 15 8.20 68.52 14.76 26.84 19.05 0.094 0.418
6 16 15 400 15 9.41 70.84 13.28 28.30 12.23 0.115 0.349
7 12 15 800 15 4.10 69.88 14.35 26.25 16.41 0.161 0.488
8 5 10 200 20 6.20 69.50 13.04 24.63 15.07 0.166 0.329
9 11 15 0 15 4.50 70.04 13.82 28.43 13.58 0.134 0.386
10 7 10 600 20 5.10 68.25 14.25 26.65 19.34 0.137 0.417
11 18 15 400 15 9.35 70.76 13.54 26.89 12.65 0.127 0.343
12 6 20 200 20 3.88 66.76 12.17 26.66 13.80 0.161 0.374
13 17 15 400 15 10.50 72.87 13.87 27.52 11.62 0.144 0.336
14 4 20 600 10 3.90 70.46 13.67 29.57 14.29 0.130 0.376
15 10 25 400 15 2.50 67.50 12.78 28.07 14.75 0.145 0.458
16 14 15 400 25 2.89 65.15 13.16 25.23 15.79 0.164 0.430
17 15 15 400 15 9.85 71.99 14.01 27.67 11.11 0.114 0.344
18 13 15 400 5 5.03 68.34 14.28 31.86 14.38 0.106 0.370
19 2 20 200 10 4.06 69.35 13.28 29.72 14.51 0.111 0.377
20 19 15 400 15 9.95 71.05 14.21 25.86 12.73 0.127 0.325

*result expressed in mean (n=3)

Prediction and verification

The model of each response (Y) is used to predict the optimal conditions of the extraction process. The optimal condition prediction is obtained by determining the priority value of each response in Design-Expert software. Verification procedures for optimal conditions obtained using six replication data from the experiment. Data were analyzed with one sample t-test sample using SPSS software and analyzed from 95 % confidence interval (CI) and 95 % prediction interval (PI) from Design-Expert software.

Total phenolic content (TPC) assay

The standard used for the determination of TPC is gallic acid [15–17]. Determination of TPC uses the folin-ciocalteu reagent with the formation of a stable blue color as an important indicator in the reaction. The wavelength used in the absorbance measurement at 740 nm.

Total flavonoid content (TFC) assay

Determination of TFC using aluminum chloride (2 %, b/v) added to the sample and sodium nitrite (5 %, b/v). Sodium hydroxide solution is used to stop the reaction. The sample absorbance was measured at a wavelength of 510 nm using the Hitachi U-2900 (Hitachi, Japan) spectrophotometer.

High-performance liquid chromatography

Quantification of EGCG, catechins, gallic acid, caffeine, theobromine, and theophylline using Hitachi-2000 HPLC instruments (Hitachi, Japan) equipped with UV-Vis L-2420 detector and D-2000 Elite software. The column used for the separation of compounds is LiChrocart reverse phase C18 (Merck, Darmstadt, Germany). Membrane size of 0.45 μm is used in filtering the sample, and 20 μl was injected into the HPLC system. The quantification of compounds is calculated based on a calibration curve that has been validated previously with a wavelength of 280 nm.

Characterization using FTIR-UATR spectrophotometer

The FTIR-UATR spectrometer instrument used by Nicolet iS5 (Thermo Scientific, USA) and equipped with Omnic software (Thermo Scientific, USA) for processing data. The sample powder is loaded in the holder on the instrument. Spectra were recorded in areas of 4000 to 500 cm-1 and a resolution of 4 cm-1.

Characterization using P-XRD

Characterization of samples from semi-purified extracts of white tea was determined using the MiniFlex600 benchtop X-ray diffractometer (Rigaku, Tokyo, Japan) with the MiniFlex600 PDXL2 software as a data processor. The sample is loaded in a sliding glass and operated at a voltage of 30 kV and 10 mA with a scan speed of 10 deg/min.

Comparison of extraction methods

As a comparison, CIn and UAE were used. In the CIn process, the white tea powder is soaked in water at 90 °C using indirect heating. In the UAE technique, ultrasonic baths (Krisbow, Indonesia) were used with 220-240 AC power, 50-watt voltage, and 47 kHz frequency. Quantification using HPLC and characterization using FTIR-UATR and P-XRD.

Extraction mechanism analysis using SEM

Extraction mechanism analysis was carried out by comparing the morphology of tea powder before and after the extraction process using SEM with instrumentation JSM-6510 (Jeol, Tokyo, Japan) based on existing literature [12,13]. Briefly, the sample is sprinkled on a carbon plate to form a conductive surface. Operating procedures by setting electron parameters such as high voltage 10 kV and spot size 40.

Statistical analysis

Responses and models in optimization were analyzed (including statistical analysis) using Design-Expert software (Stat-Ease Inc., Minneapolis, MN, USA). The quantification data from the HPLC method were statistically analyzed with the help of SPSS software (SPSS Inc, Chicago, IL, USA) with significance at p<0.05.

RESULTS AND DISCUSSION

Optimization studies using CCD

The effect of concentration (A), stirring rate (B), and extraction time (C) on extraction response is theoretically expected to increase yield and polyphenolic compounds (rich-EGCG). The specified extraction factor or variable strongly supports polyphenol compounds to dissolve well [18–20]. In order to obtain high levels of EGCG and polyphenols, a strategy is needed in regulating the material ratio with solvent, temperature, stirring rate, and extraction time. In various literature, EGCG and catechin derivatives will be easily damaged at temperatures above 100 °C [10, 12, 13]. However, at temperatures lower than 100 °C for a long time, the EGCG obtained decreases [11, 21]. Another challenge is the presence of purine alkaloid compounds which are also found in tea leaves, especially caffeine.

Extraction techniques such as conventional maceration and infundation have an equilibrium point [18]. Likewise, with the KAI technique developed. Extraction time is a factor that must be considered in CIn techniques. In the extraction mechanism, there is a minimum time needed for the solvent to penetrate the cell and expand. This condition will make the solvent more effective in dissolving the target compounds contained in cells [14, 19]. This KAI technique regulates a fixed temperature at 90 °C referring to the basic technique. Temperature and stirring speed can affect extraction time [13, 18, 19, 22]. Temperature dramatically influences solubility of solutes, diffusion coefficients and dielectric water constants [15, 19, 23]. So the KAI technique determines the stirring rate and the extraction time be included in the optimization variable.

The optimization procedure using the DoE approach refers to studies that have been conducted [13, 14, 24, 25]. Optimization of the extraction process with the DoE approach using the Design-Expert software. The design used in DoE is the CCD method part of RSM. The RSM method in many studies is constructive in evaluating and predicting optimal conditions with very complex variables and responses. A CCD is chosen because of its flexibility, easy to understand, and accuracy in predicting optimal conditions [26]. The design in the experimental design uses three independent variables as the main factor and seven main responses. Extraction conditions in each experiment were presented in table 1.

Based on analysis of variance (ANOVA) of the suggested model Design-Expert software, the seven responses showed a significant model (p<0.05) and the lack of fit value was not significant (p>0.05) (table 3). Based on statistical analysis, the equation model of the seven responses (Y1, Y2, Y3, Y4, Y5, Y6, and Y7) evaluated can be used to predict the optimum conditions of the extraction process. Each response to extraction results can be illustrated by the equations model obtained (table 2). Regression equation (table 2) provides an overview of the effect of each factor on the seven responses evaluated. Each component of the factors (A, B, and C) affects the increase or decrease of the response.

Table 2: The regression equation for each response results of the experiment

Response Regressed equation
Yields (Y1) Y1 = 9.55–1.27A–0.16B–0.41C+0.11AB+0.16AC–0.13BC–1.17A²–1.43B²–1.52C²
TPC (Y2) Y2 = 71.62–0.47A+0.10B–1.00C+0.23AB–0.18AC–0.36BC–0.88A²–0.40B²–1.20C²
TFC (Y3) Y3 = 13.75–0.56A+0.22B–0.41C
EGCG (Y4) Y4 = 27.39+0.65A–0.06B–1.33C
Caffeine (Y5) Y5 = 12.13–1.05A+0.72B+0.36C–0.42AB–0.31AC+0.70BC+1.29A²+0.82 B²+0.84C²
Gallic acid (Y6) Y6 = 1.30+0.10A+0.05+0.17C
Theobromine (Y7) Y7 = 0.34+0.01A+0.03B+0.01C+0.001AB+0.023AC+0.024BC+0.025A2+0.024B2+0.015C2

An equation model in optimization can provide accurate prediction results by considering the parameters of press value, coefficient of determination (R2), adjusted R2, predicted R2, and adequate precision (table 3). The model meets the criteria if the difference between the adjusted R2 and predicted R2 values are not more than 0.2, the R2 value is more than 0.7, and the adequate precision value is more than 4. The press value describes the good fit of a model, and its value is relatively small compared to other models that are being considered.

Table 3: The results of fit statistics of the experimental design

Response Model Status SD CV Press R2 Adj. R2 Pred. R2 Adeq. preci.
Yields (Y1) Quadratic Model significant, Lack of fit not significant 0.72 11.50 33.48 0.9618 0.9274 0.7534 14.1554
TPC (Y2) Quadratic Model significant, Lack of fit not significant 0.77 1.11 24.12 0.9198 0.8475 0.6739 12.4831
TFC (Y3) Linear Model significant, Lack of fit not significant 0.33 2.40 2.80 0.8304 0.7986 0.7274 16.1523
EGCG (Y4) Linear Model significant; Lack of fit not significant 1.04 3.80 29.67 0.6707 0.6089 0.4360 11.4668
Caffeine (Y5) Quadratic Model significant, Lack of fit not significant 0.72 4.97 26.66 0.9455 0.8964 0.7197 14.2884
Gallic acid (Y6) Linear Model significant, Lack of fit not significant 0.13 9.93 0.41 0.7142 0.6606 0.5555 11.9532
Theobromine (Y7) Quadratic Model significant, Lack of fit not significant 0.01 3.08 0.008 0.9707 0.9444 0.8268 18.7813

The response of yields (Y1) from a measurement of 20 experiments scattered around the diagonal line on the normal plot of residuals curve (fig. 1-A). This result indicates that the data is usually distributed and meets the requirements for the ANOVA test. Functional modeling is indicated by the absence of suggestions for transforming the Design-Expert software. Predicted vs. actual curves are used to detect values, or groups of values, that are not easily predicted by the model. The predicted and actual values of yields are not much different (fig. 1-B) with the adjusted R2 and predicted R2 difference indicators of 0.17 (less than 0.2). This result indicates that there is no significant difference between the observation data and the predicted data from the suggested model.

Low or too high concentrations and stirring rates tend to reduce yields. The optimal yields are marked in the reddish-orange area (fig. 1-C and 1-D). The p-value in the Y1 model is less than 0.05 indicating a significant model requirement. In this case factors A, C, A², B², C² are significant models with the selected type of model is quadratic. The yields (Y1) will be optimal in a specific concentration range (A) and decrease the yields by increasing the concentration (A²). The addition of extraction time (C²) will reduce the yields; the more extraction time is indeed not desirable in production. The stirring rate (B) affects the yields, especially the increase in stirring will reduce the extracts.

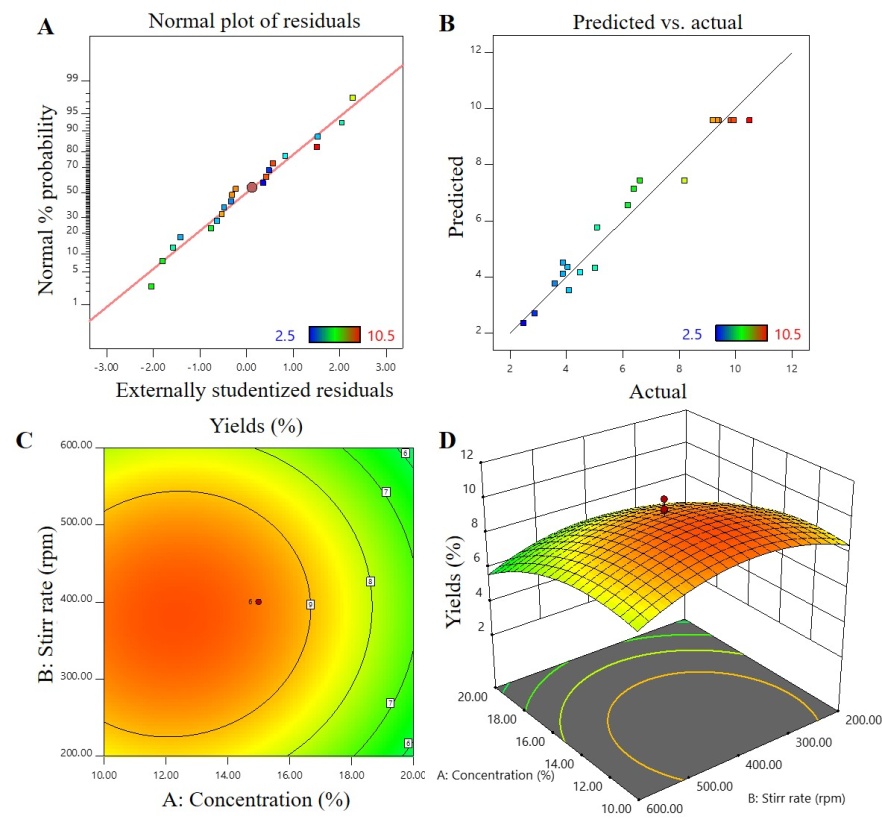

Fig. 1: Model analysis results for response yields (Y1), normal plot of residuals curves (A), prediction vs. actual curves (B), contour plots (C), and 3D surface plots (D)

The yield ranges from 2.5 to 10.5 % and is significantly influenced by concentration, stirring rate and extraction time at a 0.05 significance level. The yields value of 2.5 % is obtained with the following extraction conditions, 25 % for concentration, 400 rpm for stirring rate, and 15 min for extraction time. The yield value of 10.5 % is obtained by extraction conditions similar to the difference in concentration of 15 %. Extraction results (especially yields) obtained are better than existing studies [10, 13, 14].

Systematically and scientifically, the DoE approach will provide a better interpretation. The relationship between the response (Y) and factors (A, B, and C) is presented in contour plots (fig. 2) and 3D surface plots (fig. 3). Contour plots on fig. 2, describes the relationship between the factors determined by the response of TPC, TFC, EGCG, caffeine, gallic acid, and theobromine. All responses have data spread in a diagonal line on the normal plot of residuals curve. Therefore, the seven equation models in the response meet the requirements in the ANOVA test.

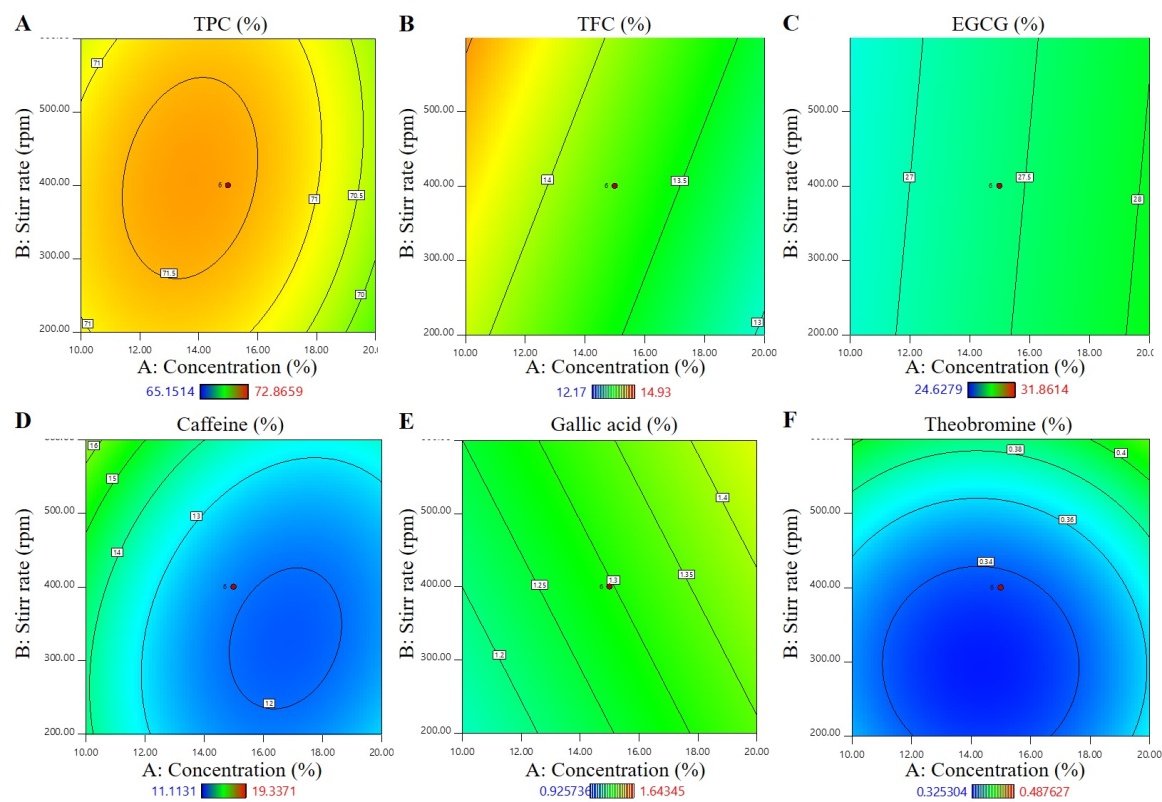

Fig. 2: Contour plots from TPC (A), TFC (B), EGCG (C), caffeine (D), gallic acid (E), and theobromine (F) responses

Contour plots on linear and quadratic models have different characteristics, as well as 3D surface plots. In models with linear types, contour plots (fig. 2-B, 2-C, and 2-E) areas are marked with diagonal lines. Model with quadratic type, area marked with circular lines (fig. 2-A, 2-D, and 2-F). The quadratic model has the optimal value of the response in the range constraints so that the area is marked with a circular line. For the 3D surface plot, the model with linear type surface looks flat (fig. 3-B, 3-C, and 3-E), while for quadratic the surface will look concave or convex (fig. 3-A, 3-D, and 3-F).

As with the Y1 response, the response for TPC (Y2) has significant A, C, A², B², C² factors on the quadratic model. Increasing concentration (A²), stirring rate (B²), and extraction time (C²) will reduce TPC. Based on 20 experimental runs, obtained TPC values of 65.15 to 72.87 % (GAE % b/b). Extraction conditions at run 1 (table 1) produce the highest TFC, which is 14.93 % (CAE % b/b). The highest EGCG was 31.86 % b/b which was found at run 18, while the lowest value was 24.63 % b/b at run 8. The EGCG levels in some tea leaf extraction techniques ranged from 1.5 to 30 % b/b [13, 14].

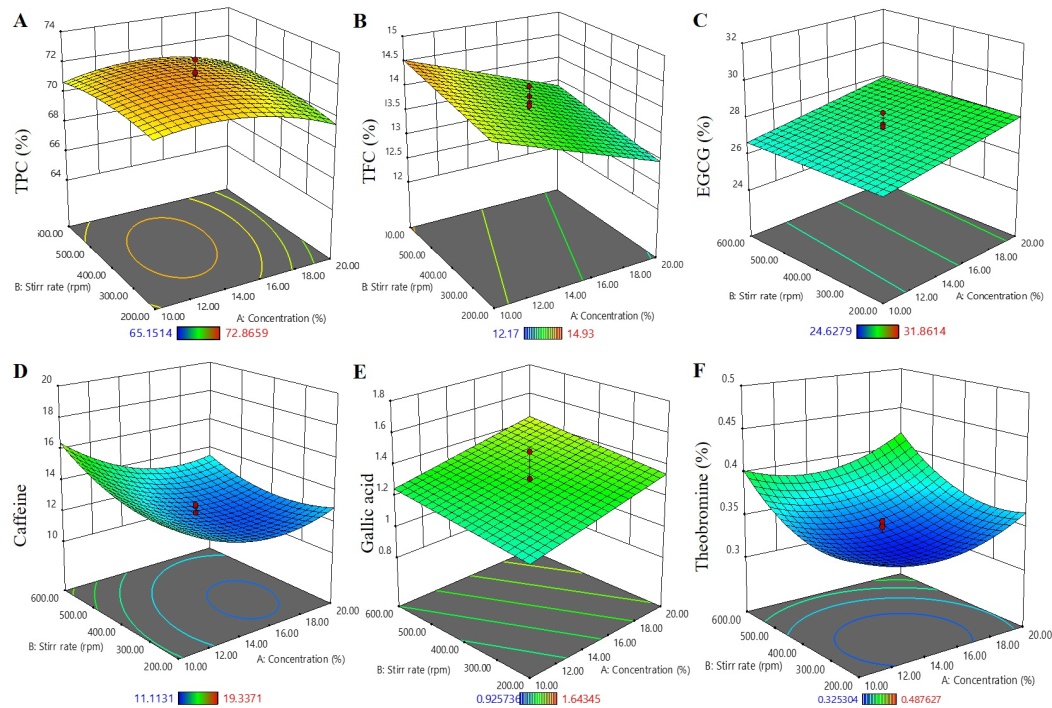

Fig. 3: 3D surface plots from TPC (A), TFC (B), EGCG (C), caffeine (D), gallic acid (E), and theobromine (F) responses

For optimization purposes, especially the selection of responses, catechin and theophylline data were excluded because the extract samples were too low (results of measurement orientation with HPLC/UV-detection). Also, the primary target is EGCG while still considering caffeine as a representative of purine alkaloids (both compounds have high levels). Therefore, catechins and theophylline can be ignored because they do not affect the results of extraction.

The optimum conditions for extraction and verification

Desirability value is used as an important indicator in determining optimum conditions. Desirability values close to 1 indicate proximity to predicted values. The extraction condition with desirability value 0.678 will give 9.32 % for yields, 71.86 % b/b GAE for TPC, 14.04 % b/b CAE for TFC, 28.06 % b/b for EGCG, 12.33 % b/b for caffeine, 1.21 % b/b for gallic acid, and 0.34 % b/b for theobromine. The point of intersection of optimal conditions can be seen in the contour plot with a desirability value of 0.678 (fig. 4).

Predictive values are obtained through prediction of points which consist of 95 % CI and 95 % PI. The confidence interval is the average range of observations at a 95 % confidence level. Prediction interval is the range of individual predictive values observed at 95 % level of confidence [26].

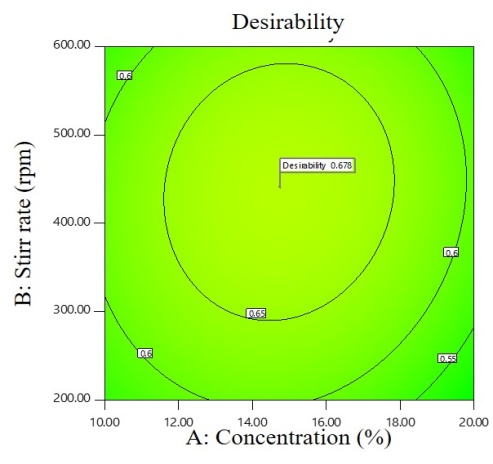

Fig. 4: Desirability value at optimal conditions of extraction process using KAI

Table 4: The predictive value of optimum conditions and verification range

Response Prediction Observation* Shapiro-

One

t-test**

 95 % CI 95 % PI
(%) (%) Wilk test** Low High
Yields (Y1) 9.32 9.34±0.05 0.495 0.314 8.69 9.95
TPC (Y2) 71.86 70.97±1.29 0.668 0.154 71.19 72.54
TFC (Y3) 14.04 13.98±0.46 0.968 0.631 13.85 14.22
EGCG (Y4) 28.06 29.02±0.95 0.522 0.057 27.48 28.65
Caffeine (Y5) 12.33 11.95±0.99 0.341 0.396 11.70 12.96
Gallic acid (Y6) 1.21 1.33±0.12 0.374 0.075 1.14 1.28
Theobromine (Y7) 0.34 0.33±0.01 0.071 0.134 0.33 0.35

*result expressed in mean n=6±standard deviation (SD), **p>0.05)

The yields at optimum conditions were 9.34±0.05 %, theoretically included in the 95 % CI verification range (8.69 to 9.95 %) and from the 95 % PI range (7.60 to 11.05 %) well verified. Verification can be determined from one sample t-test with a p-value of more than 0.05 (table 4). This one sample t-test test shows that the yields are not significantly different from the predicted value. TPC, TFC, EGCG, caffeine, gallic acid, and theobromine levels were also well verified (based on 95 % CI range, 95 % PI range, and one sample t-test).

Observation results for each response enter the range of predictive values. Accuracy in predicting response is related to modeling obtained from CCD results and excellent statistical analysis. Polyphenolic compounds with parameters of TPC, TFC, EGCG, and gallic acid at optimal extraction conditions obtained high results, were 70.97±1.29 %, 13.98±0.46 %, 29.02±0.95 %, and 1.33±0.12 %, respectively. In this study, caffeine and theobromine compounds were set minimum in the prediction priority assessment. The results of extraction using KAI obtained 11.95±0.99 % for caffeine and 0.33±0.01 % for theobromine.

Characterization of semi-purified extract using HPLC

The optimal condition of the extraction process from the KAI technique is then characterized using the HPLC, FTIR-UATR and PXRD methods. The HPLC chromatogram profile shows the presence of EGCG, caffeine, gallic acid, and theobromine compounds with a stronger intensity (fig. 5). In fig. 5-A, the six standards can be appropriately separated. EGCG in white tea extract (fig. 5-B) has a peak with a tendency to be the same as the standard. The HPLC results in the extract showed low intensity for catechin and theobromine compounds.

Fig. 5: The HPLC chromatogram of standards (A) and profile of white tea extracts from kinetic-assisted infundation (B), Peaks: gallic acid (1), theobromine (2), theophylline (3), catechin (4), caffeine (5), and epigallocatechin gallate (6)

Fig. 6 presents the levels of several active compounds resulting from extraction techniques using KAI, CIn, and UAE. EGCG compounds are the main target in the development of extraction techniques in this study. However, other compounds such as caffeine and theobromine remain measured (fig. 6). EGCG levels in semi-purified extract of white tea obtained from KAI, CIn, and UAE were 29.02±0.95 %, 24.26±0.63 %, 30.44±0.74 %, respectively. Caffeine is a class of purine alkaloids; this compound is also found in black tea, green tea, and white tea [27,28]. The caffeine content in the semi-purified extract sample was 11.95±0.99 for KAI, 15.51±0.60 % for CIn, and 18.06±0.57 % for UAE. Caffeine and theobromine in KAI are lower than those of CIn and UAE, and these results are as expected. Ultrasonic wave penetration in the UAE causes cells or tissues to be damaged so that all compounds can quickly dissolve in the solvent. In KAI optimization results, the model and priority determination are set so that alkaloids such as caffeine can be minimized.

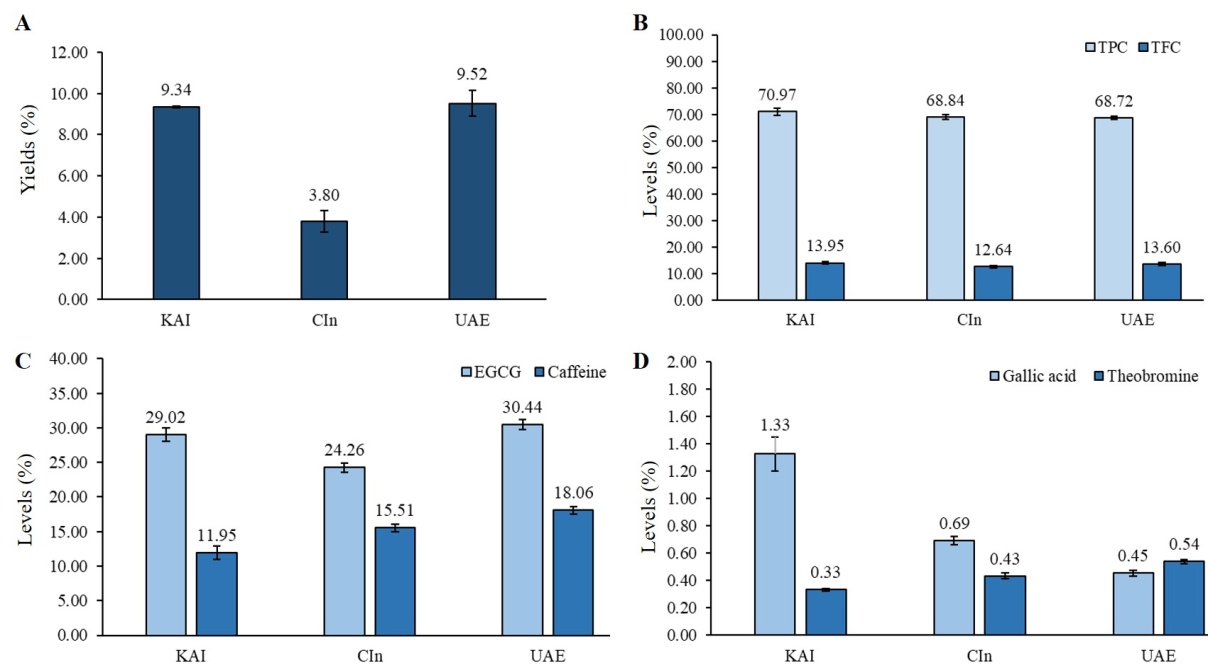

Fig. 6: Comparison of white tea extract using KAI, CIn, and UAE, yield of extracts (A), TPC and TFC (B), EGCG and Caffeine (C), and gallic acid, and theobromine (D), (n=6)

For the purpose of comparing the extraction results from KAI, CIn, and UAE, the levels of catechins and theophylline were measured, although in the optimization analysis these two parameters were not determined. Catechins and theophylline in white tea extracts produced by KAI and CIn were relatively lower than other compounds. Catechins in CIn were not detected, but in UAE techniques were relatively higher than KAI and CI. The catechin and theophylline levels in UAE techniques are caused by ultrasonic waves which can assist in attracting compounds.

Profiling using FTIR-UATR spectrophotometer

High polyphenols content (especially EGCG) in white tea extract powder will be easily analyzed using FTIR instruments [29]. In general, hydroxyl and carbonyl groups provide vibration bands that are easily detected [30–32]. Analysis using FTIR has been done to characterize extracts and medicinal raw materials. Fig. 7, shows the FTIR-UATR spectrum of white tea extract powder produced by KAI, CIn, UAE, EGCG standard, and caffeine.

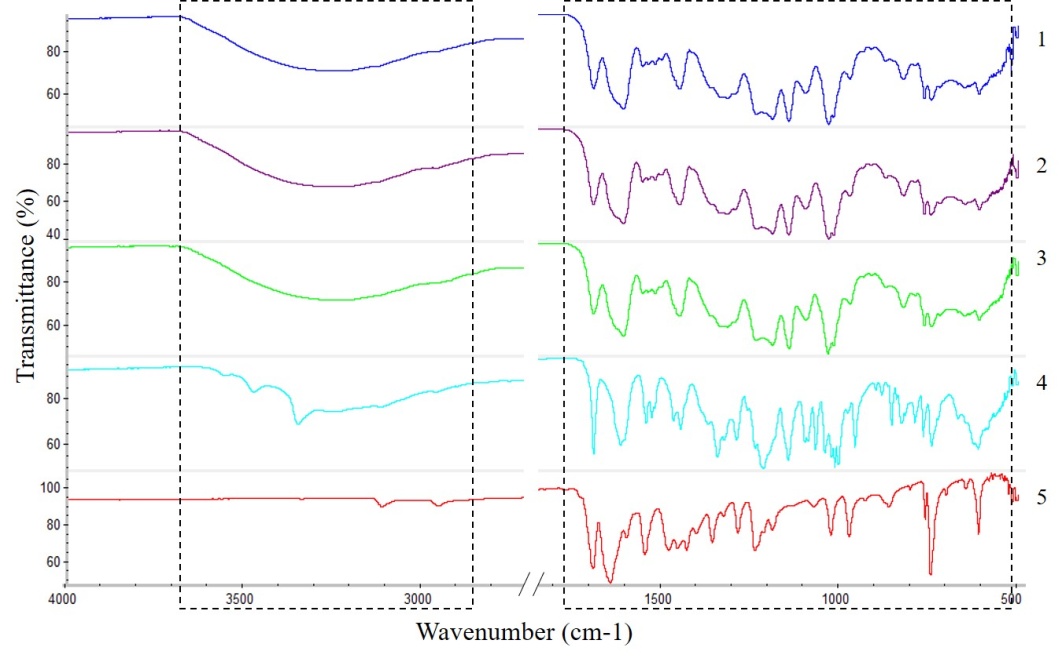

Fig. 7: FTIR-UATR spectra of white tea extracts using KAI (1), CIn (2), UAE (3), standard EGCG (4), and caffeine (5)

Extract results from the UAE and CIn provide a spectral pattern that is similar qualitatively to the KAI method. Based on the spectra, there are strong and broad O-H stretch bands in the area of 3600 to 2800 cm-1 for extract powder produced by KAI, CIn, UAE, and EGCG. Spectra at a wavelength of 1800 to 800 cm-1 prove the presence of carbonyl polyphenols. The spectrum with an area of 3600 to 2800 cm-1 is the first unique feature, and the area of 1800 to 800 cm-1 is a sign of the second unique feature. Characteristics of polyphenols are seen in the number of OH in the area of 3500 to 3100 cm-1 [31]. Bands in the 1689.84 cm-1 for KAI, 1690.11 cm-1 for CIn, and 1689.60 cm-1 are related to the vibration of the carboxyl group stretching, stretching C=O flavonoids. A band 1552.16 cm-1 for the KAI sample related to aromatic stretching C=C. Stretching of aromatic carbon at 741.18 cm-1 for the KAI spectra is similar to the EGCG spectrum pattern at 740.20 cm-1.

Referring to caffeine spectra, extract powder from KAI, CIn, and UAE results have a weak peak in the area of 3100 to 2900 cm-1. Caffeine has a unique spectral pattern on the 3111.93 cm-1 bands and 2953.90 cm-1 bands. As with EGCG, caffeine has a typical spectrum at 1800-800 cm-1 with different patterns. Therefore, semi-purified extract powder from white tea has a spectral pattern combined between catechin derivatives (mainly EGCG) and purine alkaloids (which are dominated by caffeine).

Profiling using powder X-ray diffraction

Characterization of material from the existing literature can be done using the XRD diffractogram pattern [33–36]. The diffractogram sample of powdered white tea extract is shown in fig. 8. The characteristic peaks of white tea extract centered at 10 and 20 degrees (2-theta) according to the crystallographic field, which indicates a highly crystalline material in samples. The diffractogram pattern of extracts of KAI and CIn has similarities with higher intensity in KAI. The sample extract from UAE has a much lower intensity than KAI and conventional techniques with almost the same pattern. In this study, the diffractogram pattern was used as a unique fingerprint marker that distinguished between KAI, UAE, and CIn extraction techniques.

The crystalline form of the chemical in the powder X-ray diffraction pattern can form unique fingerprints. In one chemical compound, there can be more than one crystal form; this phenomenon is known as polymorphism. Different polymorphs of the same compound can show very different solubility and bioavailability properties.

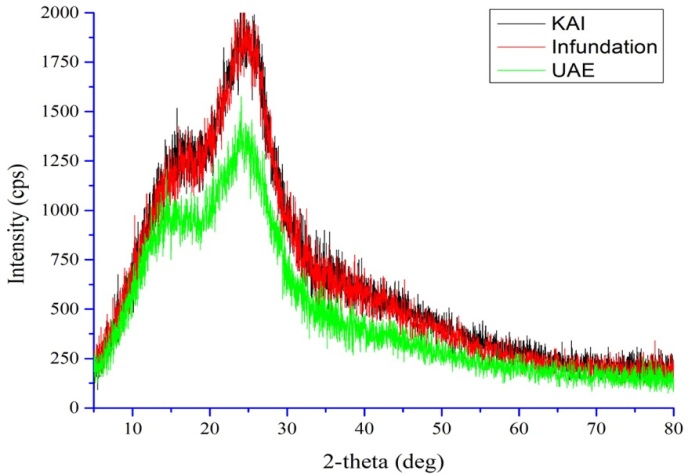

Fig. 8: The XRD pattern semi-purified extracts of white tea using KAI (black), CIn (red), and UAE (green)

Extraction mechanism

Several studies have reported changes in cell wall surface morphology due to the extraction process [37–39]. Analysis using SEM instrumentation aims to evaluate changes in cell wall surface with more specific morphological observations [37]. Based on the results of SEM, there were significant physical changes to the surface of the cell walls of white tea powder matrix before and after KAI treatment (fig. 9). White tea powder before extraction (fig. 9-A) has good morphology with intact cell walls. The remaining white tea powder from KAI and CIn shows the cell wall that has been damaged. In the KAI technique, the cell wall suffered more severe damage.

From the matrix morphology, there was an evident microstructure change from white tea powder after extraction using KAI compared to conventional techniques. Extraction efficiency using KAI can be attributed to optimum stirring rate conditions and extraction time to cause damage to the cell wall surface. The effect of the damaged cell wall facilitates the release of solutes in the sample matrix into the solution [37, 39]. This theory correlates with the results of the content of TPC, TFC, and EGCG resulting from the extraction process. The efficiency of the KAI method is higher than the CIn method which causes damage to the cell wall surface of white tea powder.

Fig. 9: SEM micrograhp of powder white tea before extraction (A), after extraction using KAI (B), and CIn (C)

CONCLUSIONN

Optimization of the extraction process using the DoE with CCD approach was successfully applied to evaluate and obtain optimal conditions from the KAI technique. A novel technique for extracting white tea using KAI was successfully developed and proved to provide better results than conventional techniques. The optimum conditions in the KAI technique include 14.75 % concentration (water to the material ratio), 440 rpm for the stirring rate, and 12.31 min for the extraction time.

ACKNOWLEDGMENT

The authors thank the Beasiswa Unggulan Dosen Indonesia Dalam Negeri (BUDI DN; contract number 20161141040054) and Lembaga Dana Dana Pendidikan (LPDP) Indonesia for providing financial support to conduct these research and sponsorship.

AUTHORS CONTRIBUTIONS

All authors listed in the manuscript contribute equally

CONFLICT OF INTERESTS

The author declares there is no conflict of interest
