Int J App Pharm, Vol 11, Issue 2, 2019, 176-184Original Article


FORMULATION AND EVALUATION OF AN ANTIMICROBIAL MUCOADHESIVE DENTAL GEL OF AZADIRACHTA INDICA AND GLYCYRRHIZA GLABRA

HEMANT K. JAIN*, PRERANA N. SWAMI, K. N. GUJAR

Department of Quality Assurance Techniques, Sinhgad College of Pharmacy, Vadgaon (Bk.), Pune 411041, Maharashtra, India
Email: hemantkjain2001@yahoo.co.in

Received: 12 Sep 2018, Revised and Accepted: 30 Jan 2019

ABSTRACT

Objective: Objective of this study was to formulate and evaluate an antimicrobial mucoadhesive dental gel of herbal drugs for the prevention and treatment of dental plaque, dental caries, and periodontitis.

Methods: Azadirachta indica leaves extract was prepared with ethanol: water (80:20 v/v) and Glycyrrhiza glabra roots extract was prepared with ethanol: water (30:70 v/v). Both the extracts were evaluated for organoleptic properties, pH, phytochemical screening and total phenolic content. Thin layer chromatography (TLC) and Reverse-phase high-performance liquid chromatography (RP-HPLC) studies were performed. Antibacterial activity of the extract was done on Mueller Hinton agar media against Streptococcus mutans using the disc diffusion method. A mucoadhesive gel was prepared using carbopol 934, polyethylene glycol (PEG) 400 as a bioadhesive polymer and penetration enhancer, respectively. Three gel formulations were prepared at various concentrations of carbopol 934. Dental gel formulations were evaluated for different parameters such as appearance, pH, viscosity, spreadabilty, syringeability. Optimised batch was used for further studies viz. stability study, drug content, diffusion study to determine percent cumulative release of drug from gel formulation and in vitro mucoadhesion study.

Results: Rf value of nimbin and glycyrrhizin in TLC study, were found to be 0.08 and 0.56, respectively. RP-HPLC method was developed for estimation of active constituents present in both extracts using mobile phase acetonitrile: water [containing 0.1 % v/v glacial Acetic acid (GAA)]: methanol in the ratio of 30:60:10 at the flow rate of 0.8 ml/min. Rt of active constituents from both drug extracts was found to be 3.119 and 4.15 min, respectively. 2.5 % w/v of Azadirachta indica leaves extract showed a good zone of inhibition (10.66±0.577 mm) near to chlorhexidine (11.33±0.5773 mm). 1 % of Glycyrrhiza glabra roots extract exhibit antibacterial activity (9±1 mm) and masks the bitter taste of formulation. Batch (F2) was selected on the basis of viscosity, spreadabilty and syringeability. The optimised batch was found to be stable and has 83 % and 80.3 % of drug content. Percent cumulative releases of the drug from gel formulation during the diffusion study were found to be 87.52 % and 85.43 %. Adhesive force and adhesiveness were found to be 11.90 g and 0.92 millijoule, respectively during mucoadhesion study.

Conclusion: The evaluation parameters of optimized batch indicate the prepared dental gel is mucoadhesive, stable, good delivery drug system containing antimicrobial agents for prevention of plaque formation, dental caries and periodontitis.

Keywords: Azadirachta indica, Glycyrrhiza glabra, Oral local drug delivery, Mucoadhesive gel, Carbopol 934

© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2019v11i2.29723

INTRODUCTION

Teeth play an important role in breaking down of food material for proper digestion and overall nutrition. Dental diseases may occur without proper care of the teeth. Dental diseases are the most prevalent chronic diseases worldwide and a costly burden to health care services. The treatment of dental diseases is expensive, accounting for between 5 % and 10 % of total health care expenditures in industrialized countries [1]. Periodontal disease or periodontitis is the result of infections that lead to inflammation and tissue damage in the structures surrounding the teeth [2]. Periodontitis is the most common localized dental inflammatory disease related with several pathological conditions like inflammation of gums (gingivitis), degeneration of periodontal ligament, dental cementum and alveolar bone loss [3]. Tooth decay/dental caries/cavity are a breakdown of teeth due to acid made by bacteria like Streptococcus mutans. Dental caries has been the most common oral health problem in the world. Dental caries is defined as a localized, post-eruptive, pathological process of external origin involving softening of the hard tooth tissue and proceeding to the formation of a cavity. Untreated dental caries can affect the quality of life as a result of pain or discomfort, tooth loss, impaired oral functioning [4]. Dental caries is caused by the production of acid originated from bacteria fermenting carbohydrates leading to demineralization of the dental enamel and the formation of cavities. The bacteria are part of the oral biofilm also called the dental plaque residing on the dental enamel [5]. Plaque is a mixture of bacteria, minerals and some food residue. Some plaque hardens into calculus. Often, plaque and calculus do not come off with the brush and floss and cause inflammation, an ongoing state of gingivitis. Various preventive and treatment modalities are used in this perspective which includes oral hygiene, gingival irrigations and mechanical therapies like manual scaling and root planning, ultrasonic scalars and lasers. Mechanical instrumentation, full mouth disinfection, host modulation, and antimicrobial therapy are used in the non-surgical management of periodontal infections [6]. Undesired effects of antimicrobial chemicals and antibiotics create the interest of dental product manufacturers towards herbal drugs to avoid the side effects. Some studies suggested that the natural herbs can help to stop the development of periodontitis [7]. Potent antibacterial herbal drug Azadirachta indica leaves containing terpenoids like nimbin, nimbinin, nimbolide and nimbidin for prevention and treatment of dental plaque, dental caries and periodontitis [8, 38, 39]. Therefore, this drug was selected for the proposed work. However, the taste of Azadirachta indica is bitter and which requires taste masking. Some reports indicate that the glycyrrhizin has low-calorie value and 50 times sweeter than sucrose can masks the bitter taste of pharmaceuticals [9]. In this context, another drug Glycyrrhiza glabra was combined with Azadirachta indica. Local delivery of mucoadhesive gel formulation will increase the residence time of formulation, rapid absorption, improved patient compliance and ease of administration [10]. Therefore, the antimicrobial mucoadhesive dental gel was formulated.

MATERIALS AND METHODS

Dried Azadirachta indica leaves (Auth.18-11) and Glycyrrhiza glabra roots (Auth.18-12) were procured from Green Pharmacy, Pune, India. Both drugs were authenticated from Agharkar Research Institutes, Pune, India. Carbopol 934, polyethylene glycol (PEG 400), Folin-Ciocalteu reagent, methylparaben, propylparaben, triethanolamine, sodium carbonate, gallic acid and glacial acetic acid (GAA) were obtained from Loba Chemie Pvt. Ltd, Mumbai. Disodium hydrogen phosphate and potassium dihydrogen phosphate were procured from Merck Specialities Pvt. Ltd, Mumbai. Mueller Hinton agar media for the growth of bacteria was obtained from HiMedia Laboratories. Freeze dried culture of bacterial strain Streptococcus mutans was procured from Microbial Type Culture Collection (MTCC), Chandigarh.

Instrument

The analytical method was performed on Shimadzu HPLC (LC 2010 CHT, Japan) having a quaternary system with automatic injection facility, LC solution software, and UV visible detector. The column used was Purospher Star RP-18e, Hibar C-18 (250 mm x 4.6 mm, 5 µm). Shimadzu (UV-1800) UV-visible spectrometer, Bruker (Alpha-T model) FT-IR, Equiptronics (EQ-610) digital pH meter and Shimadzu (AX-200) analytical balance were employed for this study.

Preparation of extracts

Preparation of Azadirachta indica leaves extract

Selection of menstruum was based on a better yield of active constituents and safety. Dry powder of Azadirachta indica leaves (40 g) was macerated with ethanol: water (80: 20 v/v) for 48 h under the dark condition at 25-28 °C with occasional shaking and filtered through a muslin cloth and then filtered through Whatman filter paper 0.45 μ [11]. Filtrate was concentrated, acidified and finally fractionated with chloroform. Separated chloroform fraction was dried and weighed which contains terpenoid components [12].

Preparation of Glycyrrhiza glabra roots extract

Dry powder of Glycyrrhiza glabra roots (40 g) was extracted with ethanol: water (30: 70 v/v) for 60 min at 50 °C. The obtained menstruum was filtered through a muslin cloth and then filtered through Whatman filter paper 0.45 μ. The filtrate was dried [13].

Physicochemical characteristics of extracts

Both the extracts were evaluated for organoleptic properties like colour, odour, consistency, pH and phytochemical screening [14].

Total phenolic content (TPC) of Azadirachta indica leaves extract

The total phenolic content was determined by the Folin-Ciocalteu reagent (FCR) method [15]. Folin-Ciocalteu reagent and 6 % Na2CO3 solutions were prepared in distilled water. Aliquot of 200 µl of the extract was dispensed in the tube. 1.5 ml of 10 % FCR was added to the tube followed by incubation for 5 min in the dark condition. Then, 1.5 ml of 6 % sodium carbonate was added to the test tube and mixed thoroughly. The tube was incubated for 2 h in the dark condition and finally, absorbance was measured by UV-visible spectroscopy at 765 nm wavelength by using a UV-visible spectrophotometer.

TPC of Glycyrrhiza glabra roots extract

The total phenolic content in the root of Glycyrrhiza glabra was also determined by spectrophotometry using FCR method. The root extract (200 µl) was mixed with 1 ml of Folin-Ciocalteu reagent followed by incubation for 5 min in the dark condition. Then, 0.8 ml of a 7.5 % sodium carbonate was added to the test tube and mixed thoroughly. The tube was incubated for 30 min in the dark condition and finally, absorbance was measured by UV-visible spectroscopy at 765 nm wavelength by using a UV-visible spectrophotometer [16].

Thin layer chromatography (TLC)

Hexane: acetone (9:1 v/v) solvent system was used as a mobile phase for TLC study of Azadirachta indica leaves extract [17, 18]. Ethyl acetate: ethanol: water: ammonia (65:25:9:1 v/v) solvent system was used as a mobile phase for TLC study of Glycyrrhiza glabra roots extract [19].

RP-HPLC method development

Selection of detection wavelength

Suitable wavelength for the HPLC analysis was determined by recording UV spectra in the range of 200-400 nm for Azadirachta indica leaves and Glycyrrhiza glabra roots extract. Solutions of 10 μg/ml concentration of both extracts were prepared in ethanol and water, separately and scanned in between 200 to 400 nm [20-22].

Chromatographic conditions

Stationary phase ODS Hibar C-18 column (250 mm x 4.6 mm, 5 µm) was used. Initially, various chromatographic conditions were tried in order to obtain better separation characteristics. Finally, the mobile phase containing acetonitrile: water (containing 0.1 % GAA): methanol (30:60:10 v/v) was selected [21, 22].

Preparation of the mobile phase

Solvents (HPLC grade) of mobile phase (acetonitrile, 0.1 % v/v of GAA in water and methanol) were filtered through 0.45 µ membrane filter separately and sonicated to degas. These solvents were transferred in three different reservoirs of the HPLC system.

Preparation of mixed standard solution

Mixed standard stock solution was prepared by transferring accurately weighed Azadirachta indica (10 mg) and Glycyrrhiza glabra (10 mg) extracts into a volumetric flask (100 ml). Ethanol (50 ml) was added to dissolve these extracts and solution was sonicated for 5 min. Then volume was made up to 100 ml with ethanol. This solution was further diluted to obtain 10 μg/ml of each extract.

Study of antimicrobial activity of Azadirachta indica leaves and Glycyrrhiza glabra roots extract

Preparation of microbiological culture media

The ampoule of the freeze-dried culture of bacterial strain was procured. The surface of ampoule was disinfected and appropriate precautions were taken during ampoule handling. The ampoule was broken carefully and 2 ml of isotonic solution was added to microbiological culture media. Serial dilutions were prepared from the undiluted solution.

Preparation of mueller hinton agar media

Media (38 g) was suspended in 1000 ml of distilled water and heated to boil until it gets dissolved completely. Then, it was sterilized by autoclaving at 15 lbs pressure, 121 °C for 15 min and cooled to 45-50 °C, mixed thoroughly and poured into sterile petri plates [23, 24].

Determination of antimicrobial activity

The disc diffusion method was used to screen the antimicrobial activity of Azadirachta indica leaves and Glycyrrhiza glabra roots extract on the bacterial strain of Streptococcus mutans [23]. In vitro antimicrobial activity was screened by using Mueller Hinton agar media. After sterilization, the media was transferred to sterilized petri plates aseptically and allowed to stand for 20 min. One ml of bacterial culture (610 CFU/ml, 9th serial dilution) was spread on the surface of agar plates using sterile glass spreader after solidification of agar plates. Sterile discs of Whatman filter papers were used for an antibacterial study. The discs were impregnated with Azadirachta indica leaves extract (2 %, 2.5 %, 3 %, 3.5 %, 4 %, 4.5 % and 5 % w/v) [11, 25], Glycyrrhiza glabra roots extract (0.5 %, 1 % w/v) [26, 27], chlorhexidine gluconate (0.2 % w/v) solution [28], ethanol as a blank and then carefully placed on the surface of prepared agar plates. The plates were kept for incubation for 24 h at 37 °C. Zones of inhibition formed around the disc were measured by a transparent scale (in mm) at the end of incubation.

Preparation of gel formulation

Three gel formulations were prepared with different concentrations of carbopol. Initially, methylparaben and propyl paraben solution was prepared in water and then carbopol 934 was soaked in the water for 24 h followed by neutralization with triethanolamine to pH 6.8 for preparation of gel. Solutions of a measured quantity of extracts of both drugs were prepared in 5 ml of ethanol and added to the gel and then required the quantity of polyethylene glycol (PEG 400) was added [29]. Composition of the mucoadhesive gel is shown in table 1.

Table 1: Preparation of gel at variable concentration of carbopol 934

S. No. Ingredients F1 F2 F3
1 Azadirachta indica leaves extract (g) 2.5 2.5 2.5
2 Glycyrrhiza glabra roots extract (g) 1 1 1
3 Carbopol 934 (g) 0.4 0.6 0.8
4 PEG 400 (ml) 5 5 5
5 Methyl paraben (g) 0.18 0.18 0.18
6 Propyl paraben (g) 0.02 0.02 0.02
7 Ethanol (ml) 5 5 5
8 Triethanolamine (ml) q. s q. s q. s
9 Distilled water up to (ml) 100 100 100

Evaluation of dental gel

All prepared gel formulations were evaluated for physical appearance, pH, viscosity, spreadability, syringeability, stability study, drug content, diffusion study, in vitro mucoadhesion measurement.

Physical appearance of gel formulations

Gel formulations were visually inspected for colour, odour, consistency, grittiness, uniformity stickiness and homogeneity [30].

pH measurement

The pH of prepared gels was determined using a digital pH meter. The pH meter was calibrated before each use with standard pH 4 and pH 7 buffer solutions [30].

Viscosity

Viscosity of the prepared gels was measured by a Brookfield viscometer at 100 rpm, using spindle number 6. Viscosities were recorded at room temperature [30].

Spreadability

Spreadability is an important property of dental formulation for patient compliance. About 0.5 g of gel was placed within a circle of 1 cm diameter pre-marked on a glass plate over which a second glass plate was placed. A weight of 100 g was allowed to rest on the upper glass plate. The increase in the diameter due to the spreading of the gels was noted [31].

Syringeability

Treatment of severe periodontitis required administration of the drug directly into the periodontal pocket by using an injectable system fast relief. In this view, syringeability of gel formulations was evaluated through 21 G needle [30].

Stability study

Semisolid mucoadhesive dosage form of the optimized batch was selected for the centrifugal test, thermal test, freeze, and thaw test, cooling and heating test [30, 31].

Centrifugal test

The stability of the formulation was studied against the centrifugal force after 48 h of preparation. The formulation was transferred into tube and centrifuged at 2000 rpm for 60 min using a centrifugal device and stability of formulation was evaluated at a different time interval (5, 15, 30 and 60 min).

Thermal test

The stability of formulation was studied against the heat, after 48 h of preparation. Three samples of the formulation were placed at 4 °C, 25 °C and 45 °C and evaluated at different time period i.e. 24 h, 1 w, and 1 mo.

Freeze and thaw test

The stability of the formulation was studied against temperature change, after 48 h of preparation. Gel formulation (15 g) was placed at-8 °C to freeze it for 48 h and then thaw at 25 °C for 48 h for three cycles.

Cooling and heating test

The stability of the formulation was studied against temperature changes, after 48 h of preparation. Gel formulation (15 g) was placed at 45 °C for 48 h and then 48 h at 4 °C for three cycles.

At the end of stability study, the samples were analysed for their physical appearance as colour, pH, and viscosity.

Drug content in dental gel

Drug content of gel formulation was determined by dissolving gel (10 mg) in about 5-6 ml of phosphate buffer (pH 6.8) and then sonicated for 15 min in order to obtain complete solubility of drug. The volume of the resultant solution was made up to 10 ml and filtered. The filtrate was further diluted 10 times with phosphate buffer. Drug content was analysed using UV at 214 and 254 nm [31].

Diffusion study

In vitro drug release study was carried out using the egg membrane. An egg membrane was stored in phosphate buffer (pH 6.8) for 24 h before use. Release of drug from gel formulations was studied using Franz’s diffusion cell. An egg membrane was tied to one end of donor compartment. Gel (1 g) was accurately weighed and placed in donor compartment. Receptor compartment was filled with phosphate buffer (pH 6.8). Phosphate buffer was agitated using magnetic stirrer and the temperature maintained at 37±1 °C. 5 ml of the sample was withdrawn from the reservoir compartment at 15 min interval and absorbance was measured by UV spectrophotometer at 214 and 254 nm. Each time the reservoir compartment was replenished with the 5 ml volume of phosphate buffer solution to maintain constant volume (Sink condition) [32].

In vitro mucoadhesion measurement

A significant characteristic of gel is mucoadhesive strength for adhesion to the mucosa in the dental pocket. The mucoadhesion study was carried out using the pig buccal mucosa. The buccal mucosa was stored in phosphate buffer (pH 6.8) before use. The mucoadhesion study of dental gel formulation was studied using CT3 texture analyser [33-37].

FT-IR analysis of formulation

FT-IR spectra of Azadirachta indica leaves, Glycyrrhiza glabra roots extract and gel formulation was compared for the presence of the functional group.

RESULTS AND DISCUSSION

The % yield was obtained for the Azadirachta indica leaves and Glycyrrhiza glabra roots extract after extraction was found to be 2.25 and 11.2 %, respectively. Results of Physicochemical characteristics of Azadirachta indica leaves and Glycyrrhiza glabra roots extract are shown in table 2.

Menstruum was selected for the extraction of drugs was based on the solubility of the active constituents in it. Results of phytochemical screening showed that alkaloid, steroids, flavonoids, tannins, saponins, amino acids, and terpenoids were present in the extracts of both drugs. However, anthraquinone is absent in the extracts of both drugs. Results obtained by this study are presented in table 3.

Table 2: Physicochemical characteristics of both drug extract

S. No. Characteristics Azadirachta indica leaves extract Glycyrrhiza glabra roots extract
1 Colour Greenish Brown
2 Odour Typical Faint and characteristics
3 Consistency Sticky Sticky
4 pH 4.6 4

Table 3: Phytochemical screening of the of both drugs extract

S. No. Phytochemicals Inference*
Azadirachta indica leaves extract
1 Alkaloids (+)
2 Steroids (+)
3 Tannins (+)
4 Flavonoid (+)
5 Amino acid (+)
6 Anthraquinone (-)
7 Saponins (+)
8 Terpenoids (+)

*(+) denote presence and (-) denote absence of the phytochemical constituent, the total phenolic content of Azadirachta indica leaves and Glycyrrhiza glabra roots extracts were found to be 22.09 mg/g and 1.693 mg/g., Rf value of nimbin is 0.09 for TLC of Azadirachta indica leaves extract [18] and a light blue spot found in fig. 1 (under UV light) has Rf value 0.08 indicates that nimbin is present in the extract.

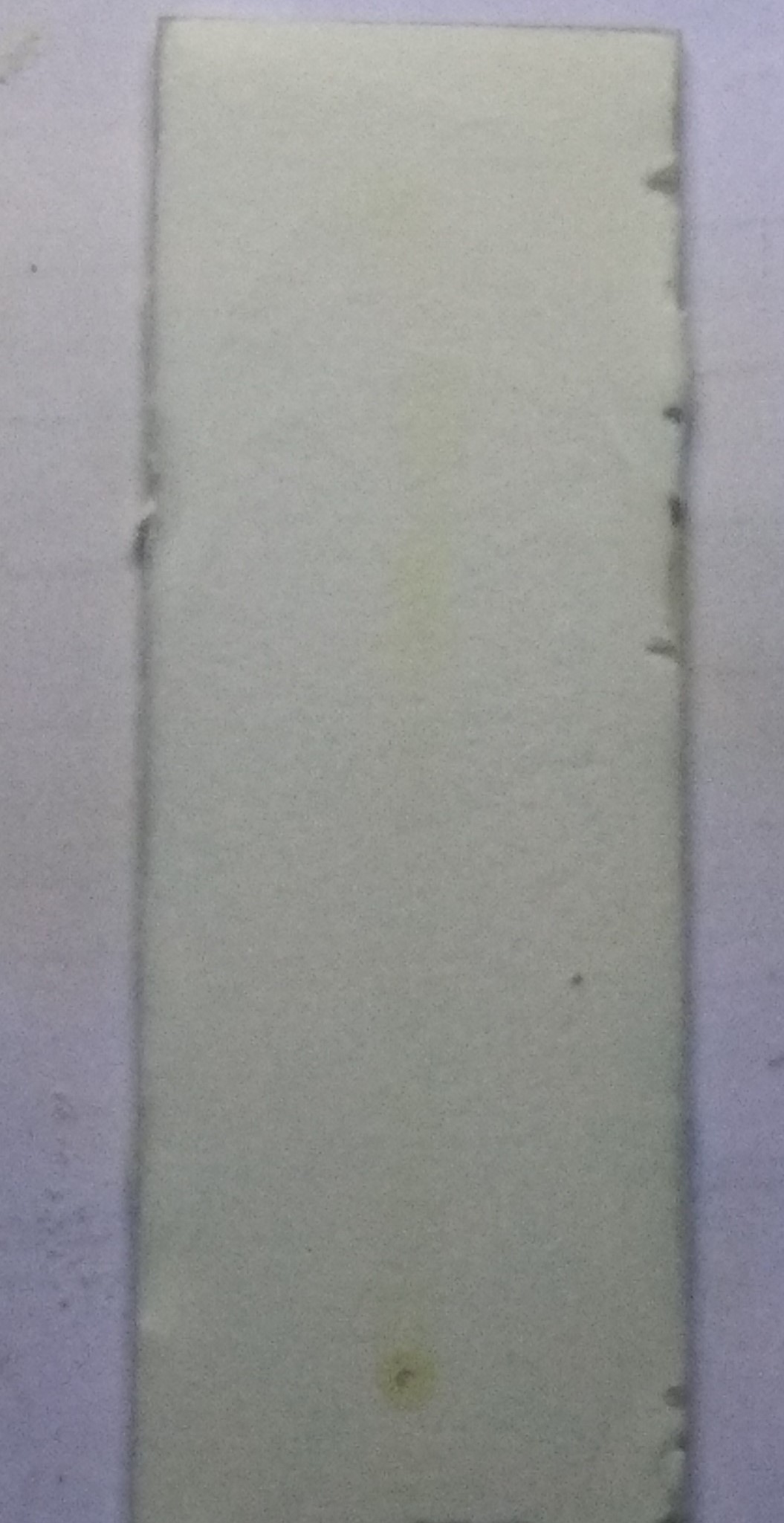

Fig. 1: TLC of Azadirachta indica leaves extract, Rf value of glycyrrhizin is 0.5 for TLC of Glycyrrhiza glabra roots extract [19] and a yellow spot found in fig. 2 has Rf value 0.56 indicates that glycyrrhizin is present in the extract

Fig. 2: TLC of Glycyrrhiza glabra roots extract

Optimization of chromatographic conditions

Isobestic absorbance was observed at 256 and 276 nm in overlain spectra (fig. 3). Here, 276 nm was selected as the detection wavelength for HPLC analysis on the basis of results of the preliminary chromatographic trial.

Initially, various chromatographic conditions were tried in order to obtain better separation characteristics by changing the mobile phase composition. Finally, the mobile phase containing acetonitrile: water (0.1 % GAA): methanol in the ratio (30:60:10 v/v) was selected at 0.8 ml/min flow rate and UV detection was done at 276 nm. The values of the retention time of obtained peak for active constituent’s nimbin and glycyrrhizin of Azadirachta indica leaves and Glycyrrhiza glabra roots extract were found at 3.119 and 4.157 min, respectively. The chromatogram of mixed standard solutions is shown in fig. 4 and optimized chromatographic conditions are mentioned in table 4. The values of retention time, theoretical plates and peak tailing factor was found in acceptance criteria.

Table 4: Optimized chromatographic conditions

S. No. Parameters Details
1 Mobile phase Acetonitrile: water (0.1 %): methanol (30:60:10 v/v)
2 Column Purospher Star RP-18, Hibar C–18 (250 mm x 4.6 mm, 5 µm)
3 Flow rate 0.8 ml/min
4 Column temperature 30 °C
5 Detection wavelength 276 nm
6 Injection volume 20 µl
7 Run time 20 min
8 Retention time 3.119 (Nimbin) and 4.157 (Glycyrrhizin)

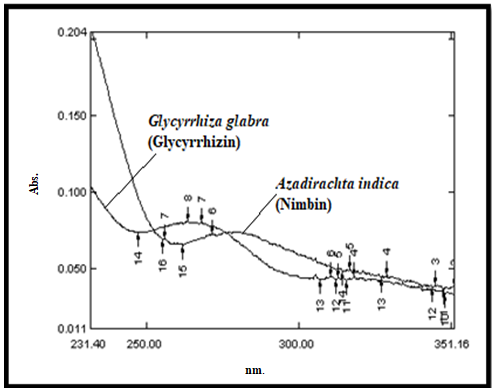

Fig. 3: UV overlain spectra of Azadirachta indica leaves and Glycyrrhiza glabra roots extract

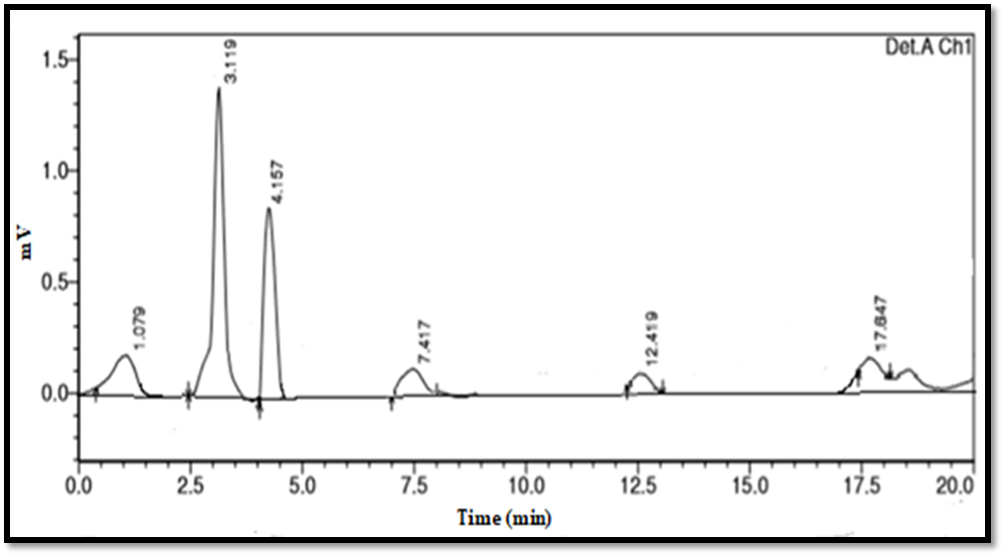

Fig. 4: Typical chromatogram of a mixture of both drug extrat

Results of antimicrobial activity of Azadirachta indica leaves, Glycyrrhiza glabra roots extract and chlorhexidine are shown in table. 5, Photographs of the zone of inhibition obtained on Mueller Hinton agar plates after antimicrobial activity are shown in fig. 5 (a), (b), (c) and (d).

Fig. 5 (a)


Fig. 5 (b)

Fig. 5 (c)

Fig. 5 (d)

Fig. 5: Antimicrobial study (a): 2.5 % w/v Azadirachta indica leaves extract against Streptococcus mutans (b): 1 % w/v Glycyrrhiza glabra roots extract against Streptococcus mutans (c): 0.2 % w/v chlorhexidine gluconate-positive control against Streptococcus mutans (d): Ethanol-negative control (Blank)

Table 5: Antimicrobial activity of Azadirachta indica leaves extract, Glycyrrhiza glabra roots extract and 0.2 % chlorhexidine gluconate solution

S. No. Zone of inhibition (ZOI) Azadirachta indica leaves extract (2.5 % w/v) Glycyrrhiza glabra roots extract (1 % w/v)

Chlorhexidine gluconate

[Positive control] (0.2 % w/v)
Zone of inhibition (mm) 11 10 12
1 10 8 11
11 9 11
2 Mean zone of inhibition±SD* (mm) 10.66±0.58 9±1 11.33±0.58

*Data presented are as mean value±SD, n=3.

All concentrations (2 to 5 % w/v) of Azadirachta indica leaves extract to have antibacterial activity against Streptococcus mutans, but 2.5 % w/v concentration was selected in the formulation on the basis of adequate inhibition and appropriate taste of extract in the oral cavity. An antimicrobial study indicates that the zone of inhibition obtained by 2.5 % w/v extract of Azadirachta indica leaves is closer to the zone of inhibition produced by 0.2 % w/v of chlorhexidine. The extract of Glycyrrhiza glabra roots also showed antibacterial activity against Streptococcus mutans and mask the bitter taste of formulations effectively.

Results of evaluation study indicate that the gel formulations have desired properties with respect to their colour, odour, consistency, grittiness, uniformity, stickiness and homogeneity. Results of an evaluation of the physical appearance of dental gels are shown in table 6.

Table 6: Results of an evaluation of the physical appearance of dental gels

S. No. Formulation Colour Odour Consistency Grittiness Uniformity Stickiness
1 F1 Green Typical Smooth None Good Less sticky
2 F2 Green Typical Smooth None Good Good
3 F3 Green Typical Smooth None Good Good

The value of pH of all gel formulations was found in a range of 6.5 to 7.0 and which was in the range of pH of the site of application. The viscosity of all gel formulations was found in the range 1500 to 3000 cps. The average diameter of the spread area for all gels was found in the range of 2 to 3 cm which indicates that gels are easily spreadable. The result for pH measurement, viscosity determination, and spreadability are showed in table 7. The results of syringeability study indicated that only F1 and F2 were syringeable through 21G needle, while F3 was not syringeable. Here, F2 batch was selected as an optimized batch on the basis of stickiness, pH, viscosity spreadability and syringeability.

Table 7: Results of an evaluation of pH, viscosity, spreadability, and syringeability of dental gels

S. No. Formulation pH Viscosity (cps) Spreadability (cm) Syringeability
1 F1 7 1800 2.3 Syringeable
2 F2 6.8 2500 2.4 Syringeable
3 F3 6.5 3000 2.5 Not syringeable

Entirely the optimized gel formulation was found to be stable upon storage at different temperature conditions for 1 mo. Where no significant changes were observed in the post formulation parameters. The results obtained by the stability study of F2 formulation were shown in table 8. Result of drug content of gel formulation was found to be 83 % of Azadirachta indica leaves and 80.3 % of Glycyrrhiza glabra roots extract, respectively in the gel formulation.

Table 8: Results of stability study

S. No. Stability study Conditions Observation
Colour
1 Centrifuge test 2000 RPM (15 min) Green
2000 RPM (30 min) Green
2000 RPM (60 min) Green
2 Thermal test 4 °C (24 h, 1 w, 1 mo) Green
25 °C (24 h, 1 w, 1 mo) Green
45 °C (24 h, 1 w, 1 mo) Green
3 Freeze and thaw test -8 °C Green
25 °C Green
4 Cooling and heating test 4 °C Green
45 °C Green

*Data presented are as mean value, n=3

Drug diffusion study was carried out to calculate the percentage cumulative diffusion of the drug from gel formulation through an egg membrane. The % cumulative release of Azadirachta indica leaves extract and Glycyrrhiza glabra roots extract from F2 formulation after 120 min were found to be 87.52 % and 85.43 %, respectively as shown in fig. 6.

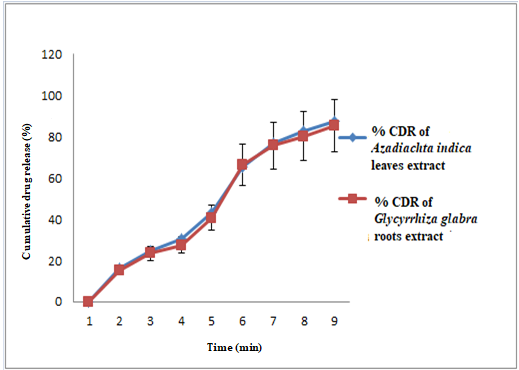

Fig. 6: % Cumulative drug release from the dental gel

The values of adhesive force and adhesiveness of dental gel was found to be 11.90 g and 0.92 millijoule, respectively as shown in fig 11. Good gel adhesion to the mucosal surface results in an increase the contact time with the mucosa and prolongation of residence time and better clinical efficacy. The peak area under the positive part of graph indicates good consistency and the peak area under negative part of the graph indicates adhesiveness (more the negative value more the sticky or Mucoadhesive sample) [37].

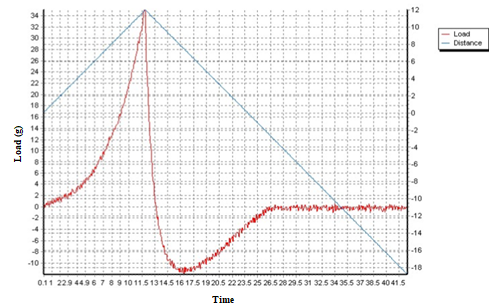

Fig. 7: Mucoadhesion study of formulated gel, the FT-IR spectra for the formulation and extracts are shown in fig. 12. Characteristics peaks obtained for the extract correlated well with that of formulation peaks

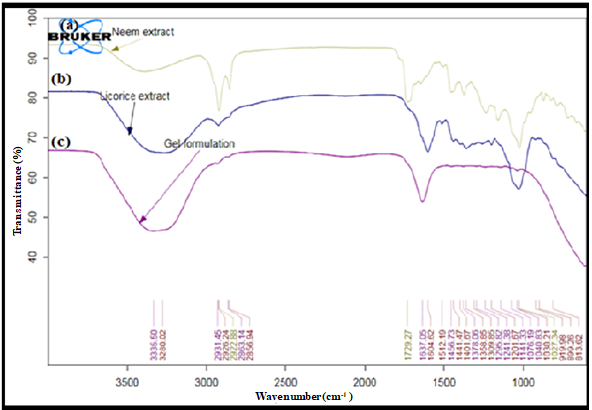

Fig. 8: FT-IR Spectra of (a): FT-IR spectra of Azadirachta indica leaves extract (b): FT-IR spectra of Glycyrrhiza glabra roots extract (c): Semisolid mucoadhesive gel formulation

CONCLUSION

Results indicate that both extracts have antimicrobial activity. Glycyrrhiza glabra roots extract has an intensive natural sweetener with low-calorie value therefore incorporated in the gel formulation. The evaluation parameters of an optimized batch indicate the prepared dental gel is mucoadhesive, stable, good delivery drug system containing antimicrobial agents for prevention of plaque formation, dental caries, and periodontitis.

AUTHORS CONTRIBUTIONS

All the authors have contributed equally

CONFLICT OF INTERESTS

Declared none
