Int J App Pharm, Vol 11, Issue 1, 2019, 227-236Original Article


PHOTOCATALYTIC DEGRADATION OF PHARMACEUTICAL DRUG ZIDOVUDINE BY UNDOPED AND 5 % BARIUM DOPED ZINC OXIDE NANOPARTICLES DURING WATER TREATMENT: SYNTHESIS AND CHARACTERISATION

VIJAYKUMAR S. BHAMARE*, RAVIRAJ M. KULKARNI

Department of Chemistry, KLS Gogte Institute of Technology (Autonomous), Affiliated to Visvesvaraya Technological University Belagavi 590008, Karnataka, India
Email: vbhamare37@gmail.com

Received: 17 Oct 2018, Revised and Accepted: 12 Dec 2018

ABSTRACT

Objective: To study the photocatalytic degradation of pharmaceutical drug zidovudine (ZDV) by synthesized undoped zinc oxide nanoparticles (ZONPs) and 5% (mole ratio) barium doped zinc oxide nanoparticles (BZONPs) during water treatment.

Methods: Kinetics studies were carried out with the help of UV-Visible Spectrophotometer. High-Resolution Mass Spectrophotometry (HR-MS) was used to identify products. A photo-reactor with mercury lamp was used as an external source of light energy. Optical power meter was used for the measurement of light intensity. The particle size of the synthesized photocatalysts was identified with the help of siemens x-ray diffractometer (XRD). The surface topography of photocatalysts was done by scanning electron microscope (SEM). Transmission electron microscopy (TEM) was used for the studies of particle size and morphology.

Results: Five degraded products of ZDV are identified by HR-MS. A suitable electron-hole pair mechanism is projected. XRD patterns show that the intensity of peak is slightly stronger in ZONPs. There is an increase in the rate of photocatalytic degradation of ZDV by adding different quantities of photocatalyst from 0.05 g l-1 to 0.1 g l-1. The kinetic data reveals that there is an initial increase in the values of rate constants with the increase in the concentration of ZDV. The kinetic data indicate that the values of rate constants are higher at pH = 9. There is an increase in the rate constant values with an increase in the light intensities of UV lamp.

Conclusion: The rates of photocatalytic degradation of ZDV were found to be higher using 5 % (mole ratio) BZONPs as a photocatalyst.

Keywords: Water treatment, Pharmaceutical emerging contaminants, Nanotechnology, Doped zinc oxide nanoparticles, Characterisation, Photocatalysis

© 2019 The Authors.Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2019v11i1.30350

INTRODUCTION

There are the huge number of harmful pharmaceutical drugs detected in environmental waters that badly affects human health and animals [1]. Due to this, a systematic study is very much needed to understand the transport, occurrence, and fate of pharmaceutical drugs present in environmental waters as per world health organization (WHO) report [2]. Many oxidations techniques are reported for the elimination of harmful organic micro-contaminants found in environmental waters [3]. The complete elimination of the harmful organic micro-contaminants is not feasible by conventional and biological methods [4]. Chlorination is commonly used to disinfect water by killing harmful germs and bacteria, but the by-products of this conventional method are harmful to living organisms [5, 6]. Heptavalent Manganese (HVMG) displays disinfection property because it oxidises organic micro-contaminants present in environmental waters [7, 8]. HVMG shows chromaticity in the treated environmental waters as a major shortcoming of this oxidant [9-11].

Heterogeneous catalysis is preferred over homogeneous catalysis due to its low cost, easy recovery of catalyst and multiple active sites [12]. In view of this, there was a need of new innovative techniques for complete mineralization of harmful organic micro-contaminants [13, 14]. The constant rate values are higher in advanced oxidation processes (AOPs) than traditional biological methods which make AOPs a better option for water treatment process [15, 16]. AOPs are found to be potent for destroying pathogens present in environmental waters [17].

Zinc oxide (ZO) has been seen as a better choice due to its special features such as low cost and absorbs the huge fraction of light quanta [18, 19]. ZO shows its photocatalytic activity in acidic as well as basic conditions [20]. Properties of materials change due to change in size close to nanoscale [21]. Zinc oxide nanoparticles (ZONPs) have a large number of active sites which makes it potent photocatalyst for the degradation of organic substrates [22, 23]. ZONPs can be decorated by doping suitable metals to prevent the wasteful recombination of an electron-hole pair which improves the rate of photocatalytic degradation of harmful organic substrates at the surface of doped ZONPs [24, 25]. The doping will reduce the band gap energy in metal-doped ZONPs as compared to undoped ZONPs [26]. The number of surface defects is observed more in the case of doped ZONPs which increases the rate of photocatalytic degradation [27].

Antiretroviral drugs are designed to slow down the growth of viruses which cause infections in humans and animals [28]. Zidovudine (ZDV) was approved as the first antiretroviral agent for the treatment of acquired immune deficiency syndrome (AIDS) [29]. Many research studies have reported the presence of antiretroviral drugs in different aqueous systems [30, 31]. ZDV has molecular formula C10H13N5O4 and molecular mass 267.24 g mol-1 [32, 33]. There are no reports found on photocatalytic degradation of ZDV by barium doped zinc oxide nanoparticles (BZONPs). The present study includes the effects of various parameters on photocatalytic degradation of ZDV. The photodegraded products of ZDV were identified, and a suitable mechanism is presented.

MATERIALS AND METHODS

Chemical reagents

Analytical grade zinc nitrate tetrahydrate, sodium hydroxide, and barium nitrate were purchased from HIMEDIA. The sample of zidovudine was received as a model compound from Sigma Aldrich. All freshly prepared solutions were used to obtain accurate results. Acetate (pH 4.0-5.0), phosphate (pH 6.0-8.0) and borate (pH 9.0) buffers were prepared.

Instruments and methods

A CARY 50 Bio UV-Vis spectrophotometer (Varian BV, The Netherlands) with the temperature controller and high-performance liquid chromatography (HPLC) (Shimadzu Prominence) were used. In order to illuminate the surface of ZONPs and BZONPs photocatalysts, a photo-reactor with a mercury lamp (PHILIPS, TUV 8W T5, Emax = 254 nm) as an external source of light energy was used to maintain typical light intensity. Optical power meter (Newport 2936-C) was used for the measurement of light intensity. ZONPs and BZONPs were synthesized and characterized. The particle size of synthesized ZONPs and BZONPs were identified with the help of siemens x-ray diffractometer (XRD) (Cu source) AXS D5005. The surface topography of synthesized ZONPs and BZONPs was done by scanning electron microscope (SEM) JEOL JSM 6360. Transmission electron microscopy (TEM) JEOL JEM-2010 was used for the studies of particle size and morphology of photocatalysts. Kinetic results were reproduced with the help of UV-Vis spectrophotometer (Varian BV, The Netherlands) with the temperature controller and various experiments were carried out three times by using semiconducting materials ZONPs and 5% (mole ratio) BZONPs as a photocatalyst for the photocatalytic degradation of ZDV. Absorbance of the reaction mixtures was recorded every time within a day. The rate constants were evaluated for each experiment. Experimental data reveals that the constant rate values are almost the same for the same kind of experiment at the same temperature and suggesting good reproducibility of the obtained results. The experimentally determined rate constants were reproducible within±6%. All experiments were performed in triplicates, and all points in the fig. are the mean of the results and error bars show the standard deviation of the means.

Synthesis of ZONPs and BZONPs

ZONPs and 5 % (mole ratio) BZONPs were synthesized by chemical precipitation method. 100 ml zinc nitrate (0.1 mol l-1) and 100 ml sodium hydroxide (0.2 mol l-1) aqueous solutions were prepared in double distilled water. Now, 100 ml zinc nitrate solution was taken in a beaker and placed on a magnetic stirrer. In order to inhibit the anomalous growth of zinc hydroxide crystals, 10 mg l-1 of sodium dodecyl sulphate was mixed as a surfactant into the beaker [34]. This reaction mixture was kept for continuous stirring for the period of 2 h. Then, 100 ml of 0.2 mol l-1 sodium hydroxide solution was added drop by drop with continuous stirring (2000 rpm) to form the crystals of zinc hydroxide. After stirring for the period of 5 h, the reaction mixture was kept undisturbed for 12 h to discard the supernant part of the reaction mixture. The white precipitate was then centrifuged. After this, the white precipitate was washed with the help of double distilled water and subsequently with ethanol many times in order to remove impurities. This zinc hydroxide precipitate was dried at temperature 110 °C in an oven for 5 h and kept undisturbed for the period of at least 1 h to maintain the room temperature. This precipitate was transferred into the mortar and grounded into powder form. Then, the white powder was transferred into a crucible for the calcination process at 500 °C for the period of 2 h in a muffle furnace to convert it into ZONPs. Similarly, 5% (mole ratio) BZONPs were also synthesized. In order to prepare 5% (mole ratio) BZONPs, 0.05 mol l-1 Ba (NO3)2 solution was added into the reaction mixture containing 0.1 mol l-1 zinc nitrate solution and 10 mg l-1of sodium dodecyl sulphate as a surfactant. Sodium hydroxide solution (0.2 mol l-1) is added drop by drop with constant magnetic stirring. The same procedure is repeated to enter the barium into interstitial positions of ZONPs lattice structure [35].

The photocatalytic degradation process

A suitable quantity of ZDV solution was poured into the Pyrex beaker containing a suitable buffer solution (0.2 mol l-1). In this reaction mixture, ZONPs were added and kept undisturbed for a period of 2 h in a dark room to attain the equilibrium of adsorption and desorption between photocatalyst and organic substrate. Then, the reaction mixture was kept into the photo-reactor for illumination of the surface of ZONPs with the help of Philips 8 W UV lamps at 254 nm. This reaction mixture was kept for continuous stirring inside the photo-reactor. Then, the degraded solution was taken out and kept for the process of centrifugation at 5000 rpm for 10 min. Then, the reaction mixture was taken into a cuvette for the measurement of absorbance at 267 nm. This kinetic study was performed to examine the degree of mineralization of organic substrate ZDV by ZONPs. Similarly, the above photocatalytic degradation process was repeated for 5% (mole ratio) BZONPs. Lambert-Beers law was verified for [ZDV] = 1.0 x 10-6 to 1.0 x 10-5 mol l-1 at 267 nm.

RESULTS AND DISCUSSION

Comparison of different photocatalysts for the degradation of ZDV

Rate constant values for the mineralization of ZDV by UV/5% (mole ratio) BZONPs were found to be higher as compare to UV and UV/ZONPs treatments as shown in fig. 1 and presented in table 1.

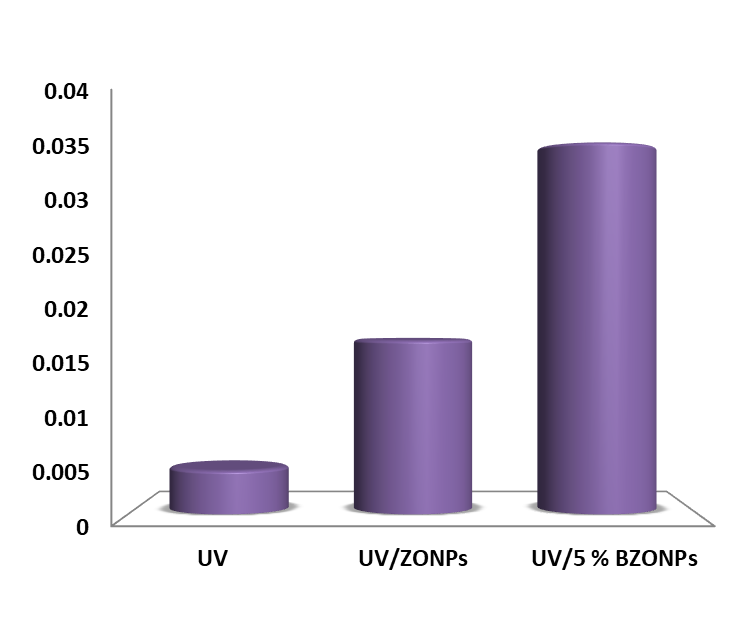

Fig. 1: Rate constants for the photocatalytic degradation of ZDV by various treatments

Table 1: Rate constant values for the photo catalytic degradation of ZDV by UV, UV/ZONPs and UV/5% (mole ratio) BZONPs photocatalysts at [ZDV] = 1 x 10-5 mol l-1 and pH =8

Different treatments Rate constants kobs x 103 (min-1)
UV 4.26
UV/ZONPs 16.91
UV/5% (mole ratio) BZONPs 36.12

This confirms that water treatment by 5% (mole ratio) BZONPs photocatalyst is more effective than UV and UV/ZONPs treatments for the photocatalytic degradation of ZDV. The influence of barium doping on the photocatalytic degradation of ZDV was investigated thoroughly by using 5 % (mole ratio) BZONPs because 5 % doping of barium into the ZnO lattice reduces the particles size and increases the surface reactivity of the photocatalyst which slows down the rate of recombination of photo-generated electron and hole [36]. It means that 5 % (mole ratio) BZONPs increases the surface charge transfer for the higher degree of mineralization of ZDV. Therefore, the detail investigation was performed by using the 5% (mole ratio) BZONPs.

Characterization of ZONPs and 5% (mole ratio) BZONPs

XRD and scherrer equation

XRD was used to find out the particle size and phase purity of ZONPs and 5% (mole ratio) BZONPs. The X-ray diffraction was performed at 2 degrees per min to get the binary output. The XRD pattern shows intense sharp diffraction peaks at the reflection from (100), (002), (101), (102), (110), (103), (200) and (112) crystal planes of the hexagonal wurzite structure of ZONPs and 5% (mole ratio) BZONPs. No other additional peak related to secondary phases of ZONPs and 5 % (mole ratio) BZONPs were observed in the XRD pattern. This also confirms the proper doping of barium metal into the interstitial position of ZONPs lattice. This observation indicates that the hexagonal wurzite structure of ZONPs is not disturbed by decorating it with 5 % (mole ratio) barium metal. This confirms that the prepared ZONPs and 5 % (mole ratio) BZONPs are found to be in a single phase. There is a sharp, intense diffraction peak observed at the crystal plane (101) in XRD pattern of both ZONPs and 5 % (mole ratio) BZONPs. This observation indicates that ZONPs and 5 % (mole ratio) BZONPs growth might have taken place along the easy direction of crystallization [37]. XRD patterns of ZONPs and 5 % (mole ratio) BZONPs indicates that the intensity of peak is slightly stronger in ZONPs. The particle sizes of photocatalysts were calculated by Scherrer Eqn (1) [38].

………. (1)

In this Scherrer Eqn, 𝜆 denotes X-ray wavelength in angstrom, 𝜭 denotes Bragg diffraction angle, D denotes average crystalline diameter, is the full width at half-maximum (WDHM) and is the dimensionless shape factor (0.94 λ). The X-ray wavelength for the XRD was 0.154 x10-9 m. The broadening of the sharp intense peak observed at crystal plane (101) was made to calculate the particle size of the ZONPs and 5 % (mole ratio) BZONPs by Scherrer Eqn (1). After putting the values of 𝜆, and in the Scherrer Eqn (1), calculated values of average grain size for ZONPs is 35.08 (±3) nm and 5 % (mole ratio) BZONPs is 24.39 (±2) nm. The higher value of average grain size of ZONPs over 5 % (mole ratio) BZONPs indicate that the surface area is increased in the case of 5 % (mole ratio) BZONPs and hence the rate of photocatalytic degradation of ZDV by 5 % (mole ratio) BZONPs photocatalyst is faster. The XRD pattern of ZONPs and 5% (mole ratio) BZONPs are presented in fig. 2.

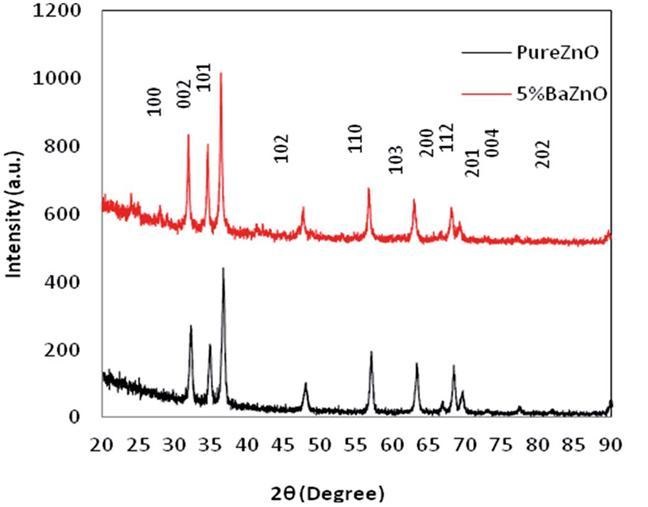

Fig. 2: XRD patterns of ZONPs and 5% (mole ratio) BZONPs photocatalysts

SEM of ZONPs and 5% (mole ratio) BZONPs photocatalysts

The surface morphology was studied using SEM. The size, shape, and morphologies of ZONPs and 5 % (mole ratio) BZONPs were analyzed from SEM images. A voltage of 20 kv was supplied, and the microscope was adjusted for obtaining large images of photocatalysts. The precision distance was kept 1 µm length. The particles can be seen in the SEM images of ZONPs and 5 % (mole ratio) BZONPs. These SEM images show that both ZONPs and 5 % (mole ratio) BZONPs are uniform and homogeneous with closely aggregate oval in shape. The size of particles of 5 % (mole ratio) BZONPs was found to be slightly bigger than ZONPs. This observation confirms that there is an increase in the surface area of 5 % (mole ratio) BZONPs which increases the rate of photocatalytic degradation of ZDV into harmless substances. SEM images are shown in fig. 3a and fig. 3b.

Fig. 3a: SEM Micrographs of ZONPs

Fig. 3b: SEM micrographs of 5 % (mole ratio) BZONPs

EDX of ZONPs and 5% (mole ratio) BZONPs photocatalysts

The quantitative elemental analysis for synthesized ZONPs and 5% (mole ratio) BZONPs were carried out by EDX (JEOL JED-2300). The results of EDX shows that there are only three elements present in 5 % (mole ratio) BZONPs and no any other element is found as an impurity in this pattern. EDX of 5 % (mole ratio) BZONPs shows that the mass percentage of zinc is 71.2, oxygen is 23.9 and barium is 4.78. The atomic percentages of zinc, oxygen and barium elements obtained from EDX of 5 % (mole ratio) BZONPs were found to be 41.6, 57.1 and 1.33 respectively. EDX for ZONPs and 5% (mole ratio) BZONPs is presented in fig. 4a and fig. 4b respectively.

TEM of ZONPs and 5% (mole ratio) BZONPs photocatalysts

TEM (JEOL JEM-2010) was used to do an analysis of particle size and morphology of ZONPs and 5 % (mole ratio) BZONPs. TEM micrograph of 5 % (mole ratio) BZONPs shows heterogeneously dispersed aggregates having a cylindrical shape and crystalline structures. Dispersion of small dark spots was observed in TEM micrograph of 5 % (mole ratio) BZONPs which indicates doping of 5 % (mole ratio) barium metal into interstitial sites of the lattice. 5 % (mole ratio) BZONPs are having breadth from 15-20 nm and length from 25-30 nm approximately. The crystallite size of prepared nano-particles is close to ZONPs data received from XRD values. TEM micrographs of ZONPs and 5 % (mole ratio) BZONPs are shown in fig. 5a and fig. 5b.

Fig. 4a: EDX analysis of semiconducting material pure ZONPs

Fig. 4b: EDX analysis of 5% (mole ratio) BZONPs

Fig. 5a: TEM micrographs of ZONPs

Fig. 5b: TEM micrographs of 5% (mole ratio) BZONPs

Influence of loading of photocatalyst on the rate of photocatalytic degradation reactions

The influence of ZONPs and 5 % (mole ratio) BZONPs on the photodegradation of ZDV was studied by adding different quantities of photocatalyst varying from 0.05 g l-1 to 0.25 g l-1 into the reaction mixture and placed it in a photo-reactor at fixed [ZDV] = 1 x 10-5 mol l-1 and pH = 8. The experimental data shows that there is an increase in the rate of photocatalytic degradation from 0.05 g l-1 to 0.1 g l-1 but after that, the rate almost remains constant as presented in fig. 6 and listed in table 2 for ZONPs and 5 % (mole ratio) BZONPs.

Table 2: Influence of loading of different quantities of photocatalyst ZONPs and 5 % (mole ratio) BZONPs separately at [ZDV] =1 x10-5 mol l-1

ZONPs or 5 % (mole ratio) [BZONPs] g l-1

kobs x 103(min-1)

with ZONPs

kobs x 102 (min-1)

with 5% (mole ratio) BZONPs
0.025 9.00 1.80
0.050 12.30 2.46
0.100 18.20 3.64
0.200 13.70 2.74
0.250 10.80 2.16

Fig. 6: Influence of loading of different quantities of photocatalyst ZONPs and 5% (mole ratio) BZONPs separately at [ZDV] = 1 x10-5 mol l-1

The further addition of ZONPs and 5 % (mole ratio) BZONPs into the reaction mixtures decreases the constant rate values. The decrease in observed rate constant (kobs) values after the limiting value of 0.1 g l-1 may be due to the increase in turbidity of the reaction mixture which prevents UV radiations from reaching to the surface of the photocatalyst and slowing down the speed of photocatalytic degradation. The initial increase in the rate constant values of the photocatalytic degradation may be due to increase in surface area and more number of active sites of ZONPs and 5 % (mole ratio) BZONPs which may increase the hydroxyl species to degrade more number of substrate molecules adsorbed on the surface of photocatalyst [39].

Effect of change in [ZDV]

The [ZDV] was varied in the rage of 2 x 10-6 to 2 x 10-5 mol l-1 and maintaining other reaction conditions fixed such as the concentration of 5 % (mole ratio) BZONPs = 1 g l-1 and pH = 8. The kinetic data reveals that there is an initial increase in the values of kobs with an increase in [ZDV]. The reason behind it may be excitation of a higher number of ZDV substrate molecules which are then adsorbed on the surface of 5 % (mole ratio) BZONPs. It is also interesting to note that kobs values reach to a maximum value at the higher concentration of 1 x 10-5 mol l-1 of ZDV. Then, there is decline in the values of kobs as shown in fig. 7 and listed in table 3 for UV, UV/ZONPs and UV/5% (mole ratio) BZONPs treatments. The decline in the kobs values beyond the higher concentration of 1 x 10-5 mol l-1 of ZDV may be due to the excess number of substrate molecules which acts as a filter for the UV radiations and thereby responsible for the decrease in the degree of mineralization of substrate [40].

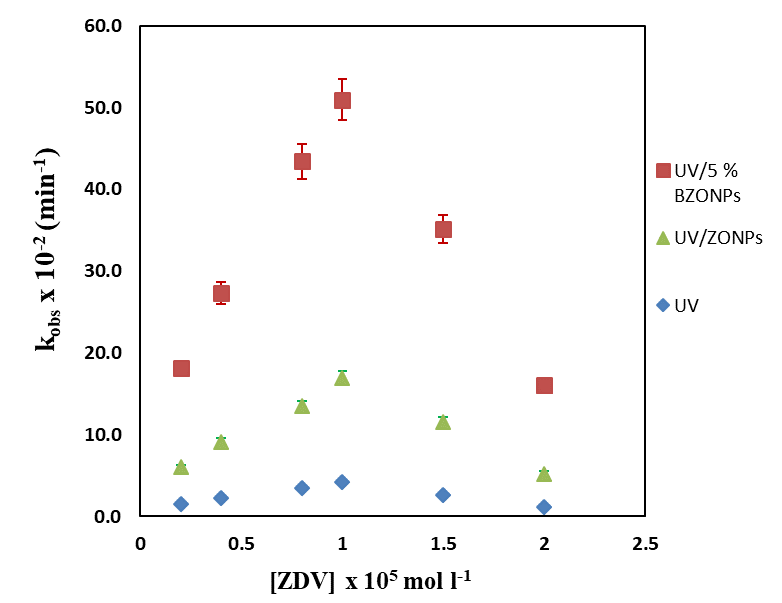

Fig. 7: Effect of varying [ZDV] from 2 x 10-6 to 2 x 10-5 mol l-1 on the rate of photodegradation of ZDV by UV, UV/ZONPs and UV/5 % (mole ratio) BZONPs at pH = 8

Table 3: Effect of varying [ZDV] from 2 x 10-6 to 2 x 10-5 mol l-1 on the rate of photo degradation of ZDV by UV, UV/ZONPs and UV/5 % (mole ratio) BZONPs at pH =8

[ZDV] x 105 mol l-1

kobs x 103 (min-1)

with UV

kobs x 103(min-1)

with ZONPs

kobs x 102(min-1) with

5% (mole ratio) BZONPs
0.2 1.51 6.04 0.68
0.4 2.27 9.11 1.42
0.8 3.47 13.48 2.91
1.0 4.24 16.91 3.61
1.5 2.62 11.56 3.51
2.0 1.13 5.24 0.65

Effect of varying pH of reaction mixtures of ZDV and 5 % (mole ratio) BZONPs

The pH was varied in the rage of 5.0 to 9.0 to study its effect on the photocatalytic degradation of ZDV by maintaining other reaction conditions constants. The absorbance of the reaction mixture was recorded from pH 5.0 to 9.0 with the help of UV-Vis spectrophotometer. The graph of kobs (min-1) versus pH was plotted as presented in fig. 8 and table 4. The kinetic data indicates that the values of rate constants are lower at the pH = 5 and higher at the pH =9.

Table 4: Effect of varying pH on the rate of photo degradation of ZDV by using 5 % (mole ratio) BZONPs, [5% BZONPs] = 1 g l-1 and [ZDV] =1 x 10-5 mol l-1

pH kobs x 102(min-1)
4.0 1.90
7.0 2.89
9.0 3.65

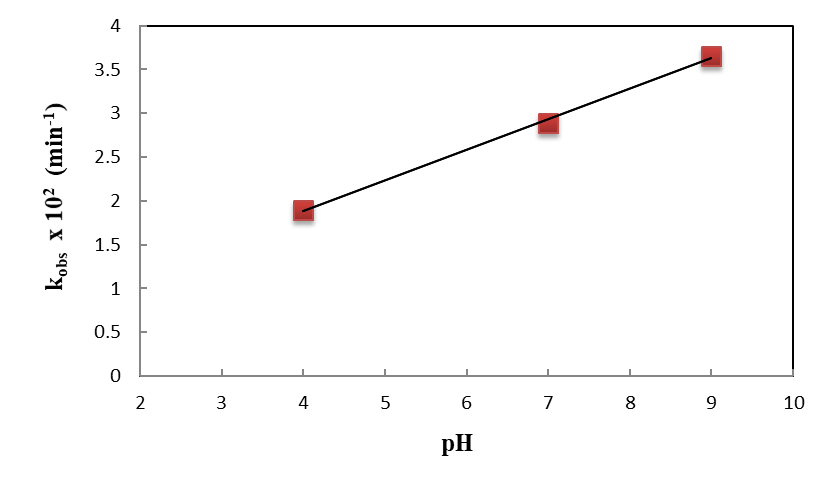

Fig. 8: Effect of varying pH on the rate of photo degradation kinetics of ZDV by using 5 % (mole ratio) BZONPs, [5% BZONPs] = 1 g l-1 and [ZDV] =1 x 10-5 mol l-1


The reason behind this may be increase in more number of hydroxide ions at pH= 9 which are responsible for the generation of more number of powerful hydroxyl radicals by combining with holes. As a result of this the photocatalytic rate degradation at pH =9 is higher. It means that at higher alkaline pH, smaller particle size and more crystallanity of 5 (mole ratio) % BZONPs shows the faster degree of mineralization of organic substrate ZDV with the help of source of light energy.

Influence of light intensity on the photodegradation of organic substrate ZDV

The influence of UV light intensity on the values of kobs (min-1) was investigated by changing the distance of UV lamp from the reaction mixture. The kinetic data implies that the kobs values are found higher at the higher light intensities of UV lamp for the degree of mineralization of organic substrate ZDV present in environmental waters. The reason behind this increase in the kobs values may be due to increase in the number of photons bombarding per unit area of 5 % (mole ratio) BZONPs. As a result of this, there is an increase in the number of photo-generated electron-hole pairs. The large number of photo-generated holes degrades the organic substrate ZDV adsorbed on 5 % (mole ratio) BZONPs and forms simple substances during the water treatment process [41]. The graph kobs (min-1) versus variation in the intensity of UV lamp was plotted and presented in fig. 9. The values of kobs (min-1) are listed in table 5 for the photodegradation of ZDV. Thus, the variation in the intensity of the UV lamp increases the photocatalytic activity of 5% (mole ratio) BZONPs.

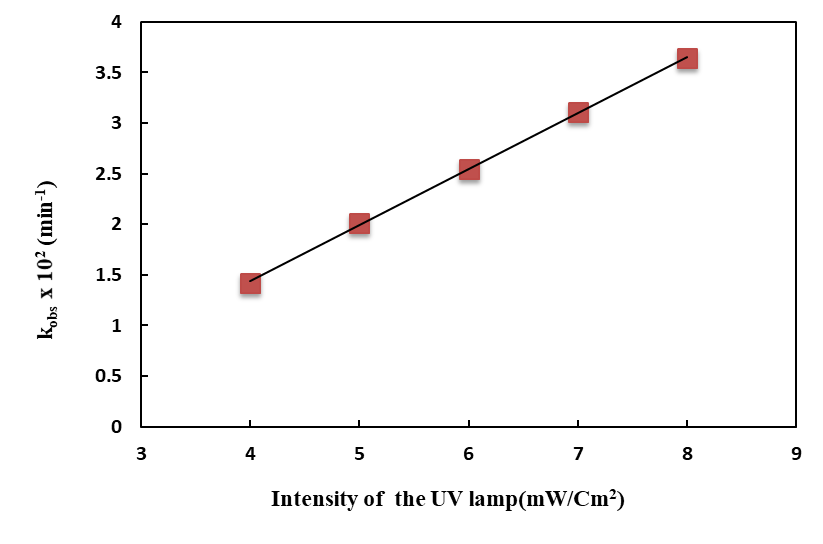

Fig. 9: Influence of variation in light intensity on photo degradation of ZDV by 5 % (mole ratio) BZONPs, [5% BZONPs] = 1 g l-1, [ZDV] = 1 x 10-5 mol l-1 and pH = 8

Table 5: Influence of variation in light intensity on photo degradation of ZDV by 5 % (mole ratio) BZONPs, [5% BZONPs] = 1 g l-1, [ZDV] = 1 x 10-5 mol l-1and pH=8

Intensity of UV lamp mW/Cm2 kobs x 10 2(min-1)
4.0 1.42
5.0 2.01
6.0 2.55
7.0 3.11
8.0 3.64

Photo-generated electron-hole pair mechanism for the photocatalytic degradation of ZDV

A suitable quantity of Propan-2-ol as a scavenger of reactive species hydroxyl radicals or KI as a quencher of h+ and hydroxyl radical were mixed into the reaction mixture to check the photocatalytic degradation mechanism of substrate ZDV and 5% (mole ratio) BZONPs. The experimental results indicate that h+ are reactive species in this plausible mechanism. Therefore, it is supposed that after the adsorption of ZDV on 5 % (mole ratio) BZONPs at dark, the destruction of ZDV in the presence of UV light could be come first through direct reactions of ZDV with h+ trapped on the photocatalyst surface.

When irradiated with sufficient wavelength of light energy, electron-hole pairs are created at the surface of the 5 % (mole ratio) BZONPs [42]. Most of these electron-hole pairs are recombined, but this kind of recombination of electron and hole is a wasteful process while remaining electron-hole pairs which are not recombined starts initiating redox reactions in ZDV for its total photodegradation into simple substances due to higher redox potentials of photogenerated excitons [14].

BZONPs+hv → BZONPs (h++e-) ………. (2)

These photo-generated holes (BZONPs) h+ of the valence band (VB) interacts with H2O and generates reactive powerful hydroxyl free radical species.

(BZONPs) h++H2O → H++. OH ………. (3)

(BZONPs) h+ may interact with hydroxyl anion to generate the reactive hydroxyl species at the VB.

(BZONPs) h++OH-→. OH ……….. (4)

The reactive hydroxyl species at the VB of 5 % (mole ratio) BZONPs interacts with the adsorbed substrate ZDV to degrade it into smaller simple substances.

ZDV+. OH → Photodegraded Products ……….. (5)

Now, superoxide radical anions are generated at the conduction band (CB) due to the combination of BZONPs (e-) with O2 molecule. This may take place due to the transfer of trapped e-from the surface of bariumto oxygen atom [43]. It avoids the wasteful recombination of photo-generated e-and h+ which increases the rate of the photocatalytic degradation of ZDV molecules adsorbed at the surface of 5 % (mole ratio) BZONPs.

(BZONPs) e-+O2 →. O-2 ……………. (6)

After this,. O-2 species interacts with H+ ions to generate HO2. free radicals.

. O-2+H+→ HO2. ………… (7)

Then, HO2. free radicals may interact with photo-generated (BZONPs)e-to form HO2-anion [44,45].

HO2.+e-→ HO2- ……………. (8)

HO2- anion then combines with H+ ions to produce hydrogen peroxide.

HO2-+H+→ H2O2 (9)

H2O2 then interacts with (BZONPs) e-at the CB to generate-OH and. OH species.

H2O2+(BZONPs) e-→-OH+. OH (10)

Now,. OH species may remove a hydrogen atom from the substrate ZDV adsorbed at the surface of 5 % (mole ratio) BZONPs to form photodegraded products [46-48].

. OH+ZDV → Photodegraded products ………. (11)

The reactions as shown in this mechanism are possible because of the presence of dissolved O2 and H2O molecules. In the absence of H2O molecules, the formation of powerful hydroxyl free radical species is not possible, and it would have been inhibited photodegradation of ZDV. The structures of various photodegraded products of ZDV labelled as ZDV_P1, ZDV_P2, and ZDV_P3 are shown in fig. 10. The UV degraded products of ZDV were identified in the range of 100-800 m/z and listed in table 6.

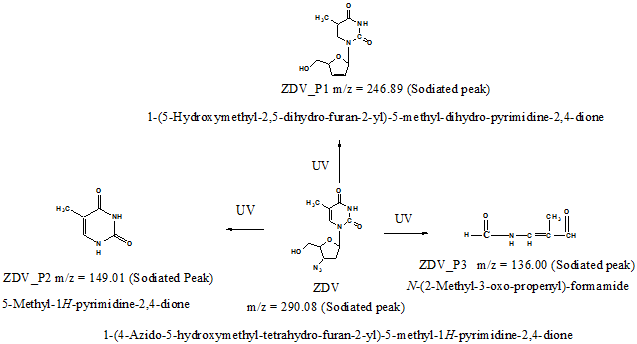

Fig. 10: Photodegraded products of substrate ZDV by UV source of radiation

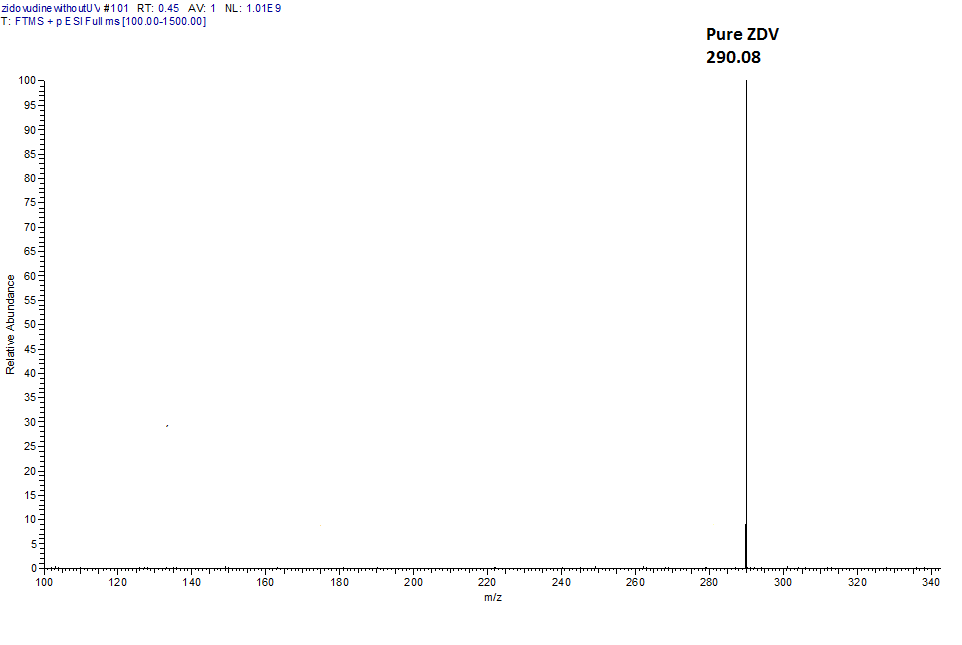

Fig. 11a: HR-MS spectra of pure ZDV

Table 6: Photocatalytic degraded products of ZDV using HR-MS

ZDV Products Measured M+H+/M+Na+

Theoretical

mass (Da)

 Molecular formula Name of the identified photodegraded products of substrate ZDV
ZDV_P1 246.89 224.21 C10H12N2O4 1-(5-Hydroxymethyl-2,5-dihydro-furan-2-yl)-5-methyl-1H-pyrimidine-2,4-dione
ZDV_P2 149.01 126.11 C5H6N2O2 5-Methyl-1H-pyrimidine-2,4-dione
ZDV_P3 136.00 113.11 C5H7NO2 N-(2-Methyl-3-oxo-propenyl)-formamide

Positive mode electrospray ionization (ESI+) technique was used for the product analysis by HR-MS. The mass spectra for pure ZDV and UV degraded ZDV are shown in fig. 11a and 11b.

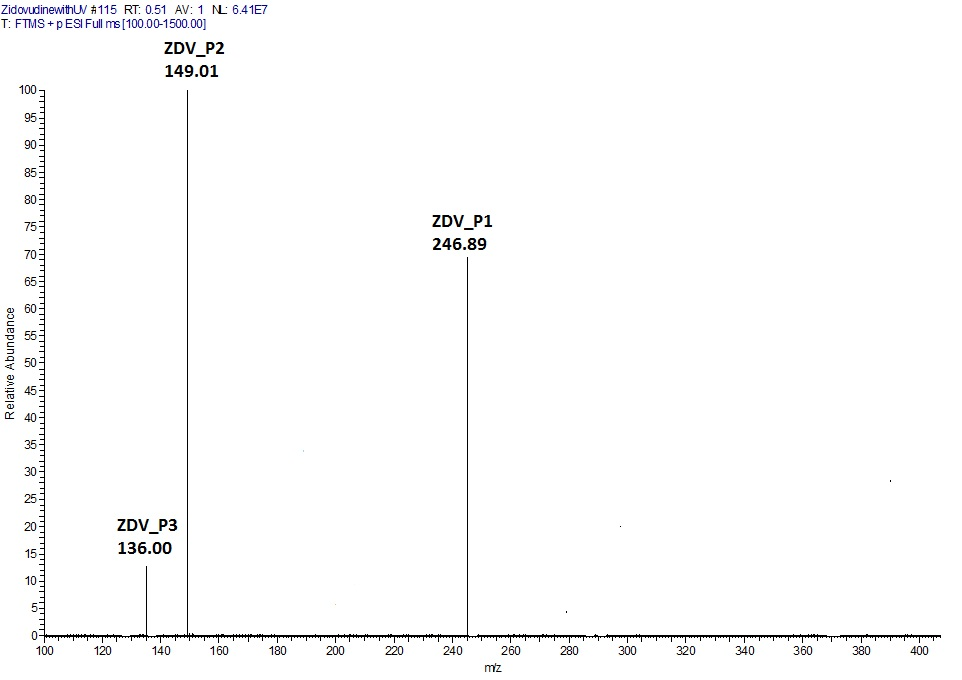

Fig. 11b: HR-MS spectra of photodegraded products of substrate ZDV, with the help of HR-MS and experimental results, the plausible photo-generated electron-hole pair photocatalytic degradation mechanism for ZDV by UV/5 % (mole ratio) BZONPs is presented in fig. 12

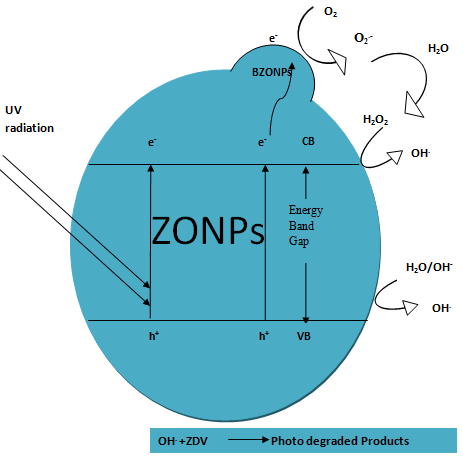

Fig. 12: Photocatalytic electron hole pair mechanism of ZDV with 5 % (mole ratio) BZONPs

CONCLUSION

A suitable electron-hole pair mechanism is projected in agreement with results. The average grain size of 5 % (mole ratio) BZONPs indicates that its surface area is increased. This concludes that the rate of photo-degradation of ZDV is faster using 5 % (mole ratio) BZONPs. XRD patterns confirm that the synthesized ZONPs and 5% (mole ratio) BZONPs are having wurzite structure. SEM images show that ZONPs and 5% (mole ratio) BZONPs are uniform and homogeneous with closely aggregate oval in shape. EDX results concludes that there are only three elements present in 5 % (mole ratio) BZONPs. There is an increase in the rate of photocatalytic degradation of ZDV by adding different quantities of photocatalyst from 0.05 g l-1 to 0.1 g l-1. The kinetic data indicates that kobs values are higher at pH = 9. There is an increase in the kobs values with increase in light intensities of UV lamp. Experimental results conclude that 5 % (mole ratio) BZONPs is a very efficient photocatalyst for the photo-degradation of ZDV present in environmental waters.

ACKNOWLEDGMENT

We would like to place on record our sincere thanks to (a) Principal Scientist, Center for Material Characterization, National Chemical Laboratory, Pune for HR-MS (b) Shivaji University Kolhapur for XRD (c) National Institute of Technology, Surathkal for SEM and TEM of the samples.

AUTHORS CONTRIBUTIONS

All the authors have contributed equally

CONFLICT OF INTERESTS

The authors have declared no conflict of interest
