Int J App Pharm, Vol 11, Issue 2, 2019, 224-230Original Article
DESIGN, CHARACTERIZATION AND STATISTICAL OPTIMIZATION OF RAMOSETRON HYDROCHLORIDE MOUTH DISSOLVING FILM USING DESIGN OF EXPERIMENT
SUWARNA SURESH BOBDE1,2, HEMRAJ M. TANK3
1Department of Pharmaceutics, P. E. S’s Rajaram and Tarabai Bandekar College of Pharmacy, Ponda, Goa, 2Department of Pharmaceutics, School of Pharmacy, RK University Rajkot, Gujarat, 3Department of Pharmaceutics, Atmiya Institute of Pharmacy. Rajkot, Gujarat
Email: suwarnabobde@gmail.com
Received: 23 Nov 2018, Revised and Accepted: 12 Feb 2019
ABSTRACT
Objective: The present study aims to prepare a mouth dissolving film of ramosetron hydrochloride to provide relief to cancer patients suffering from nausea and vomiting.
Methods: Mouth dissolving film of ramosetron hydrochloride were prepared and optimized using three levels two factor design. The films were prepared using the solvent casting technique. The effect of formulation variables such as the concentration of HPMC E15, and honey on disintegration time, tensile strength and drug release from the film were studied. The films were evaluated for weight, thickness, folding endurance, tensile strength, percent elongation, surface pH, disintegration time and drug release.
Results: All the films were found to be transparent, non-sticky and easily peelable. The concentration of HPMC E 15 and Honey was found to have a significant effect on disintegration time and drug release of the mouth dissolving film. Formulation R1 was found to the best formulation with 104.21 % release in 9 min and disintegration time of 57 seconds.
Conclusion: It can be concluded that the developed mouth dissolving film could serve as an effective, convenient alternative to prevent nausea and vomiting in cancer patients of any age group.
Keywords: Ramosetron, Mouth dissolving, Film, Nausea, Vomiting, Antiemetic, 5HT3 antagonist
© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2019v11i2.30952
INTRODUCTION
Nausea and vomiting are very common symptoms in cancer patients on chemo or radiation therapy [1, 2]. About 70-80% patient on treatment suffer from nausea and vomiting of varying severity [3]. This deteriorates the quality of life of cancer patients [1]. There are various national and international guidelines developed to prevent nausea and vomiting in cancer patients [4]. Advent of 5HT3 Antagonist has significantly improved control over nausea and vomiting in cancer patients [5].
Ramosetron hydrochloride is a tetrahydro benzimidazole derivative. It is a potent and selective 5HT3 receptor antagonist. It has the high binding affinity and dissociates slowly from the target receptors due to which it has long-lasting effects than the older agents [5]. Ramosetron hydrochloride is administered as 0.1 mg oral tablet for prevention of nausea and vomiting in cancer patients. Cancer is a disease that can occur in any age group from children, adults to geriatric patients. Conventional dosage forms like tablets and capsules have to be swallowed with the help of water and hence is a disadvantage for patients who have difficulty in swallowing. Mouth dissolving films is an advanced oral dosage form that disintegrates and dissolves in the mouth without uptake of water and eliminates the need of swallowing the dosage form. It caters to patients who have difficulty in swallowing, unlike conventional dosage forms. The present research work aims in preparing a mouth dissolving film of ramosetron hydrochloride that would prevent nausea and vomiting and offer ease of administration to cancer patients of any age group and also to cancer patients suffering from dysphagia.
MATERIALS AND METHODS
Ramosetron Hydrochloride was obtained as a gift sample from Cadila Healthcare Ltd, Kundaim Goa. HPMC E15 was provided as a gift sample from Colorcon Asia pvt Ltd, Verna Goa. Dabur Honey was purchased from the local market. Sodium alginate, carageenan were provided as gift sample by Snap Alginate Ltd Mumbai. Ethanol and propylene glycol was purchased from S. D fine chemicals limited. Citric acid and methylparaben were procured from Molychem Mumbai. Ascorbic acid was purchased from Avra synthesis Pvt Ltd, Aspartame was purchased from Ozone Chemicals Mumbai. PEG 400 was purchased from Hi-Media Pvt ltd. Distilled water prepared using in house plant was used for the research work.
Preliminary trials
Various film-forming polymers such as hydroxypropyl methylcellulose (HPMC) E15, sodium alginate, carageenan were screened for film forming capacity of which HPMC E15 was found be the best polymer forming the transparent and stiff film, and hence was selected. Honey was screened for its film modifying property when used in combination with HPMC E15. The drug ramosetron hydrochloride has good solubility in cosolvent ethanol and hence was used and studied for its effects on film formation.
Experimental design/preparation of mouth dissolving films
An experimental design consisting of nine formulations was set up, using two factors at three levels to statistically optimize mouth dissolving film of ramosetron hydrochloride. Solvent casting technique was used in the preparation of films. The independent variables used included two numeric factors X1-Concentration of HPMC E15, X2–Concentration of honey. The responses used for statistical optimization included Y1-Disintegration Time in seconds, Y2–Tensile strength of films in Kg/cm2and Y3-Drug Release at 9 min. The composition of the films prepared is given in table 1.
HPMC E15, used as the film-forming agent was soaked in the ethanol-water mixture overnight. The polymer solution was stirred on a magnetic stirrer until homogenous. Honey used as film modifier was added to the polymer solution followed by PEG 400 used as the plasticizer and stirred till homogenous. Citric acid, used as saliva stimulating agent, ascorbic acid as antioxidant and flavoring agent aspartame as sweetening agent and drug was dissolved in the remaining amount of water and added to the polymer solution. This was followed by addition of methylparaben used as the preservative, which was previously dissolved in propylene glycol. The prepared formulation was casted on glass petriplate and dried at room temperature. The dried films were carefully peeled and cut in 2 cm x 2 cm films wrapped in aluminum foil and stored in desiccators. The prepared films were evaluated for weight, thickness, surface pH, folding endurance, disintegration time, tensile strength, percent elongation, drug release, assay, and stability.
Table 1: Composition of ramosetron hydrochloride mouth dissolving formulation
| Ingredients | R1 | R2 | R3 | R4 | R5 | R6 | R7 | R8 | R9 |
| Ramosetron HCL (mg) | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 |
| HPMC E15 (%) | 3.5 | 3.75 | 4 | 3.5 | 3.75 | 4 | 3.5 | 3.75 | 4 |
| Honey (%) | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 |
| PEG 400 (%) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Methyl Paraben (%) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Citric acid(%) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ascorbic acid (%) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Aspartame(%) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Propylene glycol(%) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ethanol (ml) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Water qs (ml) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Drug-excipient compatibility
The formulation in the dry state was tested for drug excipient compatibility. The study was carried out using differential scanning calorimetry (Universal V4SA TA). The thermograms of drug alone and drug with polymer were recorded at a scanning rate of 1℃ per minute in temperature range of-100 ℃ to 400 ℃ in a nitrogen atmosphere. The recorded thermograms were checked for any unusual change in appearance or shift in the peaks.
Evaluation of mouth dissolving film
Physical appearance
The films obtained were checked visually for uniformity, clarity and tackiness.
Microscopy
The morphology and topography of the prepared films was observed by placing a 2 cm x 2 cm cut film under the scanning electron microscope
Weight
The prepared and cut films of 2 cm x 2 cm were weighed on sartorius electronic balance. An average and standard deviation of the reading of three films were recorded.
Thickness
The thickness of the film was measured at three places per film using micrometer (Mitutoyo, Japan). Average of the readings of three films were recorded.
Folding endurance
The films were individually folded in a plane manually till it produced visible crack and number of times it was folded to produce visible crack was noted as the folding endurance. An average of three films was recorded [6, 7].
Tensile strength
Tensile strength is the maximum stress applied on the film till it breaks. Tensile strength was calculated using the formula given below [8]:
An average and standard deviation of three readings of films were recorded.
Disintegration time
Disintegration test apparatus IP was used to measure the disintegration time of the films. Average of the readings of three films were recorded and standard deviation found.
Drug release
The drug release was determined using a modified dissolution apparatus as used by Dinge et al. 20 ml of phosphate buffer pH 6.8 was used as dissolution medium. The films were placed in 50 ml beaker containing 20 ml of dissolution medium and suspended in Dissolution apparatus-IP and run at speed of 50 rpm. The sample was drawn at 3, 6, 9,12,15,18, 21 min and content was measured spectrophotometrically at 248 nm using UV1800 (Shimadzu, Japan) [9].
Statistical optimization using the design of experiments
Design expert trial version 11.0 software of Stat ease Inc was used for optimization of ramosetron hydrochloride mouth dissolving films. Two way ANOVA at the significance level of *P<0.05 and response surface graphs were used to find the contribution of each independent variable on the response.
Stability study
The best formulation was tested for stability at room temperature and ambient humidity for 90 d [6].
RESULTS AND DISCUSSION
Preliminary trials
The drug ramosetron hydrochloride is water soluble hence film-forming polymers that would form transparent films would be ideal. Hence placebo films were prepared using polymers, such as HPMC E15, sodium alginate and carrageenan. HPMC E15 was found to produce good results with non-tacky, transparent film. Among the plasticizers’ used PEG 400, Propylene glycol and honey were screened. Honey, when used alone, produced stiff and crisp films that were difficult to peel while PEG 400 and propylene glycol produced easily peelable films but they lacked stiffness. Hence honey in combination with PEG 400 was used wherein honey would provide the necessary stiffness while PEG 400 would allow ease of removal of the film. Since the formulation incorporated honey, methylparaben was used as the preservative in the formulation.
Experimental design
The preliminary trials for the formulation of mouth dissolving film helped to select the factors for the study and the concentration to be used. The layout of the factorial design and the responses is as given in table 2.
Drug-excipient compatibility
On comparison of the thermogram of pure drug Ramosetron Hydrochloride fig. 1 and drug with excipients fig. 2, it was observed that the endothermic peak of the pure drug was found to be at 228.66 ℃ while in presence of excipients it was found to be at 231.65 ℃. The slight shift may be due to the presence of polymers. Since there were no major changes in thermogram it ruled out any possibility of incompatibility.
Table 2: Layout of factorial design
| Code | Coded values | Actual values in percentage (%) | Dependent variables | ||||
| X1 | X2 | X1 | X2 | Y1 | Y2 | Y3 | |
| R1 | -1 | -1 | 3.5 | 2 | 59.00 | 75.65 | 107.32 |
| R2 | 0 | -1 | 3.75 | 2 | 66.66 | 82.47 | 104.49 |
| R3 | +1 | -1 | 4 | 2 | 73.00 | 91.09 | 90.34 |
| R4 | -1 | 0 | 3.5 | 3 | 70.00 | 85.68 | 89.07 |
| R5 | 0 | 0 | 3.75 | 3 | 77.00 | 94.33 | 79.02 |
| R6 | +1 | 0 | 4 | 3 | 89.00 | 100.84 | 74.89 |
| R7 | -1 | +1 | 3.5 | 4 | 90.00 | 95.68 | 84.73 |
| R8 | 0 | +1 | 3.75 | 4 | 94.66 | 104.67 | 79.77 |
| R9 | +1 | +1 | 4 | 4 | 110.98 | 113.07 | 62.52 |
X1 is % of HPMC E15 X2 is % of Honey Y1 is Disintegration Time in seconds Y2 is Tensile strength in Kg/cm2 Y3 is drug release at 9 min of DS and PH respectively.

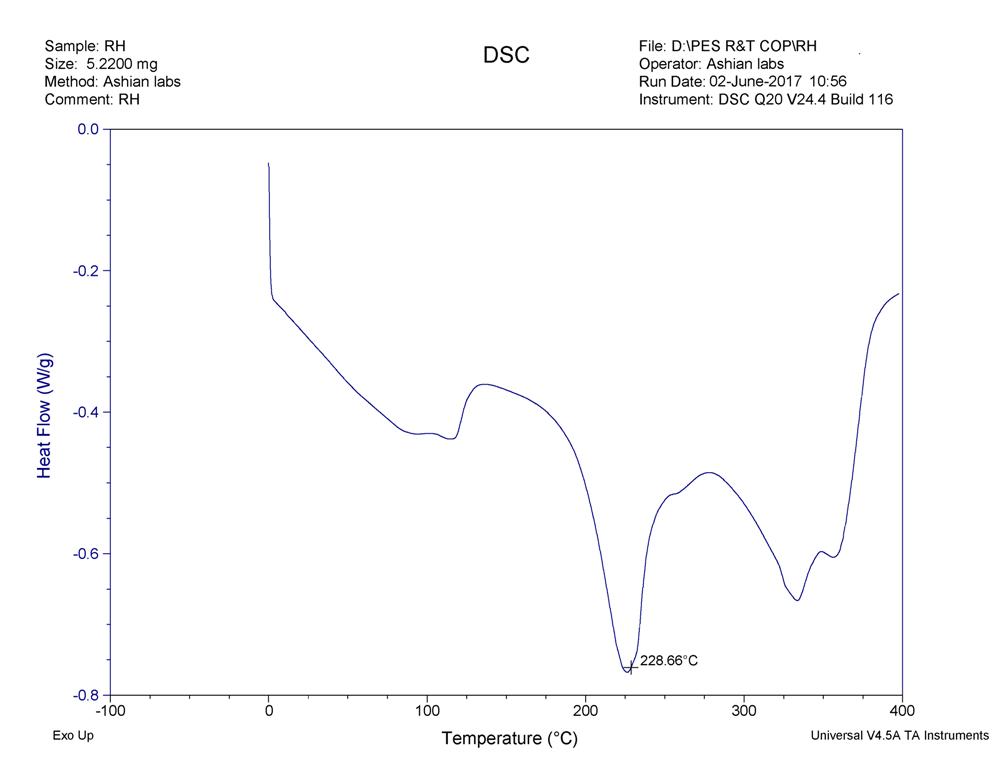

Fig. 1: DSC spectra of ramosetron hydrochloride

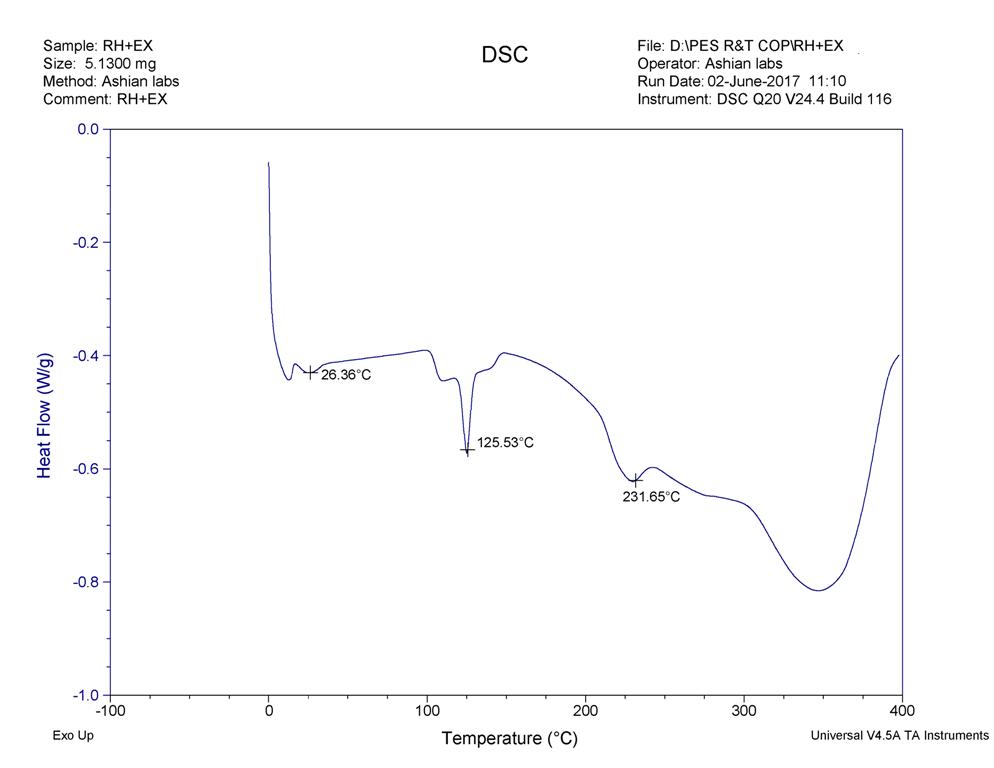

Fig. 2: DSC Spectra of ramosetron hydrochloride and excipients
Evaluation of films
All the prepared films were found to have good clarity, uniformity, were easily peelable and nonsticky. The scanning electron microscopy of the film (fig. 3) revealed that the films were smooth and clear with the uniform distribution of the drug. The films were found to weigh between 43.33 mg and 80.00 mg having thickness between 0.096 mm and 0.136 mm. The folding endurance was found to be in the range of 745.33 to 946.33. Increase in concentration of HPMC E15 and honey increased the folding endurance of the mouth dissolving films. The pH of all the films was found to be between 6.66-6.79 which is close to neutral pH and rules out any chances of irritation of oral mucosa. The percent elongation of all the films was found to be between 1.66 % and 9.83 %. The assay values of all the films were found to be in the range of 98.05 % and 102.17 %. The drug release profile of the films is as shown in fig. 4.
Fig. 3: SEM of ramosetron hydrochloride mouth dissolving the film
Table 3: Physicochemical characterization of the mouth dissolving film
| Code | Weight (mg)a | Thickness (mm)a | Folding endurancea | pHa | % Elongationa | Assay (%)a |
| R1 | 43.33±2.08 | 0.096±0.005 | 745.33±3.51 | 6.66±0.01 | 1.66±0.72 | 100.83±1.08 |
| R2 | 54.0±3.60 | 0.10±0.01 | 753.33±3.05 | 6.70±0.01 | 2.91±0.72 | 100.62±0.85 |
| R3 | 75.0±2.64 | 0.113±0.005 | 806.33±3.05 | 6.70±0.01 | 3.33±0.72 | 102.17±1.22 |
| R4 | 58.33±4.08 | 0.113±0.005 | 814.0±3.60 | 6.75±0.01 | 4.16±0.72 | 100.15±1.31 |
| R5 | 63.33±2.08 | 0.110±0.01 | 822.66±2.51 | 6.78±0.01 | 6.25±0.0 | 100.75±1.07 |
| R6 | 73.0±1.0 | 0.123±0.0005 | 839±3.60 | 6.76±0.01 | 7.75±0.43 | 101.75±1.84 |
| R7 | 71.0±3.60 | 0.133±0.005 | 867±3.00 | 6.77±0.01 | 6.0±0.90 | 98.05±1.68 |
| R8 | 72.33±2.51 | 0.126±0.005 | 879±3.60 | 6.79±0.01 | 8.0±0.43 | 101.58±0.45 |
| R9 | 80.0±1.0 | 0.136±0.005 | 946.33±2.51 | 6.73±0.02 | 9.83±1.50 | 99.52±0.58 |
amean±SD n=3
Fig. 4: Percent drug release profile of all mouth dissolving film formulation (mean±SD n=3)
Statistical analysis
The design expert software 11.0 trial version helps to determine the model that best suits for the correlation between dependent variables and independent variables. The best-suited model was selected on the basis of parameters of regression analysis namely p value, adjusted and predicted R2value [10]. ANOVA is implemented at 5% level of significance.
Effect of formulation variables on disintegration time
The 32factorial design on screening the data depicted a linear model as a best fit for response Y1 i. e disintegration time having p value<0.0001, adjusted R2 of 0.9574 and predicted R2of 0.9224 (table 4). The adequate precision which measures signal to noise ratio was found to be 25.950. A ratio greater than 4 is desired.
The polynomial equation generated by the software is as given below:
Y1=+81.14+9X1+16.16X2------------------- (1)
X1 and X2 were found to be significant factors having agonistic effect on the disintegration time and the same has been demonstrated in the response surface plot fig. 5, which shows an increase in the concentration of HPMC E15 and honey, increases the disintegration time of the film. X2 has a greater influence on disintegration time as seen from the coefficient value (16.16) than X1 (9.0).

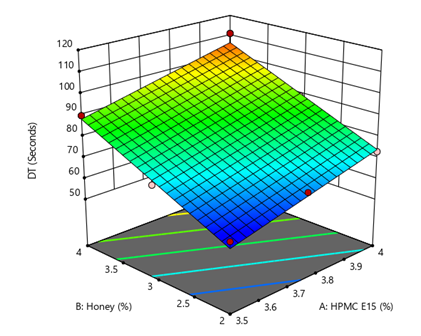

Fig. 5: Response surface plot for disintegration time
Effect of formulation variables on tensile strength
The analysis of response 2 shows a linear model as a best-fit model (table 4). The p-value was found to be<0.0001 hence the model was found to be significant, while the adjusted R2 of 0.9574 and predicted R2of 0.9224 were found to be in reasonable agreement with each other that is the difference was less than 0.2. The adequate precision was found to be 93.419. The polynomial equation generated by the software for response Y2 is as given below:
Tensile strength in kg/cm2 =+93.72+8.00X1+10.70X2 ------------- (2)
From the equation, it can be predicted that X2 has the greater influence on tensile strength as seen from the beta coefficient value of 10.70 than the value of 8.0 coefficient value for X1. The response surface plot revealing the influence of independent variables, honey and HPMC E15 is depicted in fig. 6. Increase in concentration of honey made the film more robust and stiff than the use of just mere HPMC E15 polymer.
Fig 6: Response surface plot for tensile strength
Effect of formulation variables on drug release
Response 3 (Y3) analysis also shows the linear model as a best-fit model (table 4) with a p-value of 0.00013, the adjusted R2 of 0.8550 and predicted R2of 0.8013. The adequate precision was found to be 13.828. The polynomial equation for Y3 is as given below:
Drug release at 9 min (Y3) =+85.79-8.90X1-12.52 X2 ----------- (3)
From the equation, it can be interpreted that formulation variables X1 and X2 have an antagonistic influence on the drug release at 9 min from the mouth dissolving films as the coefficient estimate of X1 and X2 have negative values of-8.90 and-12.52 respectively. The increase in the concentration of HPMCE15 and Honey decreases the release of the drug from the mouth dissolving as depicted in fig. 7.
Fig. 7: Response surface plot for drug release
Table 4: Fit summary of the highest order polynomial of responses
| Response/ | Y1 | Y2 | Y3 | |||
| Source | f value | p Value | f value | p value | f value | p Value |
| Linear vs Mean | 91.00 | <0.0001 | 1113.70 | <0.0001 | 24.59 | 0.0013 |
| 2FI vs Linear | 1.10 | 0.3428 | 2.46 | 0.1778 | 0.2061 | 0.6688 |
| Quadratic vs 2FI | 4.12 | 0.1377 | 0.0784 | 0.9264 | 4.06 | 0.1402 |
Statistical optimization
Optimization of the ramosetron hydrochloride mouth dissolving film was done using the design expert software 11.0 trial version by setting the desired goals for the responses. The goals set for the present study was to have minimum disintegration time and maximum drug release at 9 min. The software provided four solutions based on the goals. One of the solutions provided by the software was among the formulation batches ie R1. Formulation R1 was chosen as the best-optimized formulation having desirability of 0.9999 that would give a mouth dissolving film of ramosetron hydrochloride having predicted disintegration time of 55.98 seconds, the tensile strength of 75.02 Kg/cm2 and that would release 107.21 % drug at the end of 9 min. The optimized formulation showed the responses close to that predicted by the software. The actual responses of the optimized batch were found to have a disintegration time of 57.0 seconds, tensile strength of 75.02 Kg/cm2 and that would release 104.21 % drug at the end of 9 min.
Stability study
The stability studies done on the optimised batch were found to be within the specification. The films were clear, non-tacky having folding endurance of 730.00, disintegration time of 57 seconds and releasing 104.21% drug completely at the end of 9 min.
CONCLUSION
The mouth dissolving film of ramosetron hydrochloride that would provide ease of administration to cancer patients of any age group was successfully developed. Design of experiment was found to be a useful tool in understanding the influence of excipients on the performance of the film. The formulation batches were successfully optimized using design expert software. The formulation R1 was found to be the best-optimized batch with disintegration time of 57 seconds and drug release of 104.21% drug at the end of 9 min.
