Int J App Pharm, Vol 11, Issue 2, 2019, 130-137Original Article
THE OPTIMIZATION OF HPLC FOR QUANTITATIVE ANALYSIS OF ACID ORANGE 7 AND SUDAN II IN COSMETIC PRODUCTS USING BOX BEHNKEN DESIGN
NOVALINA BR PURBA1,2, ABDUL ROHMAN1*, SUDIBYO MARTONO1
1Department of Pharmaceutical Chemistry, Faculty of Pharmacy, Universitas Gadjah Mada, Yogyakarta, 2The National Agency of Drug and Food Control, District of Denpasar 80235, Bali Republic of Indonesia
Email: abdul_kimfar@ugm.ac.id
Received: 11 Dec 2018, Revised and Accepted: 30 Jan 2019
ABSTRACT
Objective: The objective of this study was to optimize high-performance liquid chromatography (HPLC) method for the determination of acid orange 7 (AO7) and sudan II (SII) in blusher product based on response surface methodology using box behnken design (BBD) approach.
Methods: Some factors responsible for HPLC separation including column temperature, mobile phase composition, flow rate were optimized using BBD. The responses evaluated were peak area, retention time, and tailing factor. AO7 and SII in blusher product has different properties, therefore both analytes were analysed using C18 column (Thermo Synergy Gold 250 mm x 4.6 mm i.d.,5 µm) using Shimadzu LC 20AD chromatograph equipped with photo-diode array (PDA) detector at 300-650 nm. The mobile phase used was acetonitrile-water (1:1 v/v), and acetonitrile composition was optimized at 35-50% for separation AO7 (ACN1), and 80-90% for SII (ACN2), delivered at the flow rate of 0.9–1 ml/min, using column temperature at 30-40 °C.
Results: BBD showed that separation of AO7 was influenced by the concentration of ACN1, flow rate and column temperature. These factors affected retention time, peak area, and tailing factor with peak area was the most significant. Tailing factor was not significantly affected by each factor, and retention time was slightly effected. Otherwise, Sudan II was affected by all these factors except ACN1. The optimal condition obtained based BBD was ACN1 43%, ACN2 90%, the flow rate of 0.9 ml/min and a column temperature of 40 °C.
Conclusion: BBD can be used to get optimum condition for analysis of AO7 and SII in blusher product.
Keywords: Acid orange 7, Sudan II, HPLC, BBD, Blusher
© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2019v11i2.31285
INTRODUCTION
Dyes is the most important additive component in cosmetics industry to improve personal appearance [1]. Acid orange 7 (AO7) and sudan II (fig. 1) are azo dyes. AO7 is allowed in cosmetics product except if it was used around eyes. Sudan II (SII) is a forbidden dyes. Because of its similarity colour, AO7 is often replaced by sudan II [2]. AO7 and SII are harmful for longterm use [3, 4]. Therefore, analytical methods for analysing AO7 and SII must be developed in order to ensure the cosmetic safety.

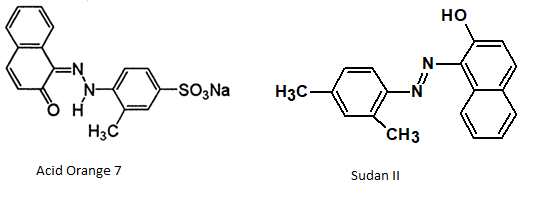

Fig. 1: The chemical structures of acid orange 7 (AO7) and sudan II (SII)
Different solubility of AO7 and SII make big challenge in the separation of both compounds simultaneously. Some methods have been reported for determination of AO7 and SII individually which are included ELISA, [5], UV-Vis [6], FTIR [7], HPTLC [8], LC/GC-MS [9, 10], HPLC [11-15]. These methods consume time and not effective, therefore optimization method HPLC for simultaneous analysis of AO7 and SII using experimental design is very interesting. Experimental design can predict optimum condition in short experiment and time. This design can determine the correlation between factors and respons (output) that are resulted in the experiment process [16].
MATERIALS AND METHODS
Blush products were obtained from local markets in Yogyakarta. Reference standars of acid orange 7 (CI 15510, Control Number: BR0114304), sudan II (CI 12140, Control Number: 113034) were acquired from the national agency of drug and food control (NADFC) of Republic of Indonesia. All solvents used for mobile phase were of HPLC grade and obtained from E. Merck (Darmstadt, Germany). Aquabidest was obtained from Ikapharmindo (Indonesia).
Preparation of reference standards
An approximately of 5.00 mg of each AO7 and SII was accurately weighed using analytical balance (Metler Toledo MX5) with a sensitivity of 0.01 mg and was added into volumetric flask 5 ml. AO7 was dissolved in 3 ml methanol, sonicated using sonicator (Elma ultrasonic, Germany) for 5 minute, and made to volume with methanol (5 ml) to get the solution with the concentration of 1000 µg/ml. SII was dissolved in 1 ml acetonitrile, added with 2 ml methanol, sonicated for 5 minute and made to volume 5 ml with methanol to get the solution with the concentration of 1000 µg/ml.
Preparation of samples
An approximately of 100.0 mg of blush cosmetic products was accurately weighed using analytical balance (Metler Toledo MX5)with the sensitivity of 0.1 mg, added with 1.0 ml of each standard solutions (AO7 and SII), added with 1 ml acetonitrile, sonicated for 5 minute, and added with methanol to volume 5 ml. The solution was filtered with PTFE 0.45 µm. In HPLC vial, 125 µl of this solution was added with 875 µl of acetonitrile: methanol (1:1 v/v). The solution was injected into HPLC system.
HPLC instrumentation
AO7 and SII were analysed using chromatograph of Shimadzu LC 20AD chromatograph equipped with photo-diode array (PDA) (Shimadzu LC 20AD, M20A PDA Detector) at wavelength of 300-650 nm. Separation of analytes was performed using C18 column (Thermo Synergy Gold 250 mm x 4.6 mm i.d., 5 µm). The mobile phase was modified from method of determining sudan dyes [12], used acetonitrile-water as solvent (1:1 v/v), the composition of acetonitrile was optimized at 35-50% for separation AO7 (ACN 1), 80-90% for SII (ACN 2), delivered at flow rate of 0.9–1 ml/min, using column temperature of 30-40 °C.
Experimental design using BBD
Most experimental design technique used is based on response surface methodology (RSM), a optimization based on fit of a polynomial equation to data experiment [17, 18]. Symmetrical design of RSM, namely central composite design (CCD) and box behnken design (BBD) are frequently used in HPLC method optimization because they can resolve HPLC separation-related problems which the number of factors is higher than 2 [18]. CCD and BBD have difference of selection experimental point, variables number, as well as number of run and block [19]. In this study, separation of AO7 and SII, four factors, also known as independent variables namely acetonitrile concentration for separation of AO7 (ACN1)(X1), acetonitrile concentration for separation of SII (ACN2) (X2), flow rate (X3), and column temperature (X4) were used. While, the responses, known as dependent variables evaluated included retention time AO7 and SII (Y1 and Y2), peak area AO7 and SII (Y3 and Y4), tailing factor AO7 and SII (Y5 and Y6).
Data analysis
All experiments using BBD along with statistical parameters were performed using Design-Expert version 8.0.4.1. The responses evaluated were retention time, peak area, tailing factor. of AO7 and SII. Factors (independent variables) significantly affected the responses (dependent variables) if R2≥ 0.8 and Adjusted R²>0.8. The difference between Predicted R² with the Adjusted R² must be less than 0.2. The confirmation of optimal method was performed using six injection replicates. The statistical test of independent t-test was used for comparing results obtained from BBD and from actual experiments was carried out using Minitab software version 17 (Minitab Corp., USA).
Table 1: Box-Behnken design using dependent variables of concentration of acetonitrile 1 (%) (X1), concentration of acetonitrile 2 (%) (X2), flow rate (X3) and column temperature (X4) with response variables of retention time AO7 (Y1), retention time AO7 (Y2), peak area AO7 (Y3), peak area SII (Y4), tailing factor AO7 (Y5) and tailing factor SII (Y6) used in HPLC optimization for separation of Acid Orange 7 (AO1) and sudan II (SII)
| Std | Run | Dependent variables | Responses | ||||||||
| Conc. ACN 1 (%) (X1) | Conc. ACN 2 (%) (X2) | Flow rate (ml/min) (X3) | Column Temp. ( °C) (X4) | Retention time AO7 (Y1) | Retention time SII (Y2) | Area AO7 (Y3) | Area SII (Y4) | TF AO7 (Y5) | TF SII (Y6) | ||
| 29 | 1 | 42.5 | 85 | 1 | 35 | 2.551 | 14.075 | 718647 | 761589 | 0.857 | 1.031 |
| 28 | 2 | 42.5 | 85 | 1 | 35 | 2.495 | 14.130 | 710606 | 761514 | 0.726 | 1.028 |
| 27 | 3 | 42.5 | 85 | 1 | 35 | 2.391 | 14.134 | 706873 | 761573 | 0.810 | 1.025 |
| 14 | 4 | 42.5 | 90 | 0.9 | 35 | 2.577 | 14.179 | 783104 | 826350 | 1.026 | 1.048 |
| 20 | 5 | 50 | 85 | 1.1 | 35 | 1.991 | 12.636 | 629380 | 691823 | 0.800 | 1.035 |
| 2 | 6 | 50 | 80 | 1 | 35 | 2.158 | 15.339 | 690442 | 773393 | 0.771 | 1.001 |
| 10 | 7 | 50 | 85 | 1 | 30 | 2.458 | 14.286 | 691074 | 761217 | 0.849 | 1.030 |
| 9 | 8 | 35 | 85 | 1 | 30 | 3.106 | 15.045 | 709254 | 760680 | 0.617 | 1.026 |
| 3 | 9 | 35 | 90 | 1 | 35 | 2.699 | 13.261 | 716202 | 743710 | 0.709 | 1.055 |
| 11 | 10 | 35 | 85 | 1 | 40 | 2.183 | 14.012 | 677197 | 760764 | 0.682 | 1.017 |
| 8 | 11 | 42.5 | 85 | 1.1 | 40 | 1.836 | 12.631 | 638040 | 691491 | 0.709 | 1.018 |
| 19 | 12 | 35 | 85 | 1.1 | 35 | 2.406 | 13.314 | 654414 | 686654 | 0.654 | 1.033 |
| 23 | 13 | 42.5 | 80 | 1 | 40 | 1.975 | 15.245 | 691065 | 770904 | 0.779 | 0.985 |
| 6 | 14 | 42.5 | 85 | 1.1 | 30 | 2.404 | 13.585 | 650290 | 692914 | 0.792 | 1.036 |
| 17 | 15 | 35 | 85 | 0.9 | 35 | 2.634 | 15.808 | 775329 | 846130 | 0.646 | 1.017 |
| 18 | 16 | 50 | 85 | 0.9 | 35 | 2.257 | 14.983 | 760805 | 840086 | 0.767 | 1.023 |
| 12 | 17 | 50 | 85 | 1 | 40 | 1.858 | 13.232 | 685957 | 760518 | 0.763 | 1.013 |
| 25 | 18 | 42.5 | 85 | 1 | 35 | 2.125 | 14.120 | 697755 | 758976 | 0.763 | 1.017 |
| 16 | 19 | 42.5 | 90 | 1.1 | 35 | 1.903 | 11.982 | 637067 | 676598 | 0.731 | 1.051 |
| 1 | 20 | 35 | 80 | 1 | 35 | 2.286 | 16.215 | 678082 | 770621 | 0.681 | 0.994 |
| 26 | 21 | 42.5 | 85 | 1 | 35 | 2.060 | 14.138 | 701493 | 759523 | 0.692 | 1.020 |
| 5 | 22 | 42.5 | 85 | 0.9 | 30 | 2.729 | 16.085 | 778922 | 842236 | 0.905 | 1.027 |
| 22 | 23 | 42.5 | 90 | 1 | 30 | 2.596 | 13.439 | 709574 | 744095 | 0.747 | 1.060 |
| 21 | 24 | 42.5 | 80 | 1 | 30 | 2.494 | 16.614 | 711806 | 772956 | 0.743 | 1.006 |
| 4 | 25 | 50 | 90 | 1 | 35 | 1.965 | 12.565 | 690365 | 743483 | 0.817 | 1.049 |
| 13 | 26 | 42.5 | 80 | 0.9 | 35 | 2.178 | 17.461 | 766545 | 857715 | 0.853 | 0.986 |
| 24 | 27 | 42.5 | 90 | 1 | 40 | 1.942 | 12.573 | 686926 | 745445 | 0.860 | 1.038 |
| 7 | 28 | 42.5 | 85 | 0.9 | 40 | 2.078 | 14.984 | 754334 | 843051 | 0.938 | 1.008 |
| 15 | 29 | 42.5 | 80 | 1.1 | 35 | 1.792 | 14.690 | 635316 | 702640 | 0.713 | 0.987 |
RESULTS AND DISCUSSION
HPLC is the most method used for separation of dyes because of its sensitivity, precision, accuracy, time efficiency, low cost and robust [20]. The different polarity between AO7 and SII might be cope by gradient elution method, therefore the separation of AO7 and SII are rather difficult. Reversed phase (C18) column did not retain AO7 in the high concentration of non-polar solvent, while the high concentration of polar solvent such as water could increase its binding with the stationary phase, therefore an experimental design approach was used. Box-behnken design (BBD) was used for HPLC separation of AO7 and SII. BBD was performed using 29 runs, applying 4 independent variables (factors) namely concentration of acetonitrile 1 (%) (X1), concentration of acetonitrile 2 (%) (X2), flow rate (X3) and column temperature (X4) along with response variables of retention time AO7 (Y1), retention time AO7 (Y2), peak area AO7 (Y3), peak area SII (Y4), tailing factor AO7 (Y5) and tailing factor SII (Y6). BBD using these factors and responses resulted during optimization were compiled in table 1.
Based on analysis of variance (ANOVA) results, the equation obtained using X1, X2, X3, and X4 as independent variables with the retention time of AO7 (Y1) as response was:
Y1= 6.4401–2.92 x 10-2X1–1.33x10-2X2–1.77X3–0.07X4 (Adj. R20.7484) (Eq. 1)
The statistic results revealed that Adj. R2obtained was<0.8, which indicated that the experimental model was not good fit using polynomial equation [21]. Difference Predicted R² with the Adjusted R² in all respons less than 0.2. Eq.1 informed that that variables of the concentration of acetonitrile 1 (%)(X1), the concentration of acetonitrile 2 (%) (X2), flow rate (X3) and column temperature (X4) have a negative effect on the retention time of AO7.
The contour plot showed an interaction between factors [21]. Contour plot of retention time SII along with 3D surface graph was shown in fig. 2. Based on ANOVA results, variables of X1, X2, X3 and X4, as well as an interaction between X1 and X3, X1 and X4, X3 and X4 in linear form, contributed significantly for response of Y1 (P<0.05). But, the interaction between X2 and X1, X3, X4 did not contributed significantly to retention time of SII.
[A]
[B]

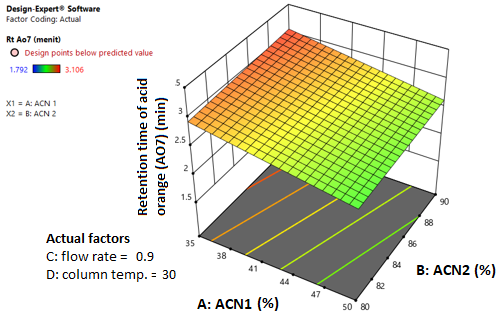

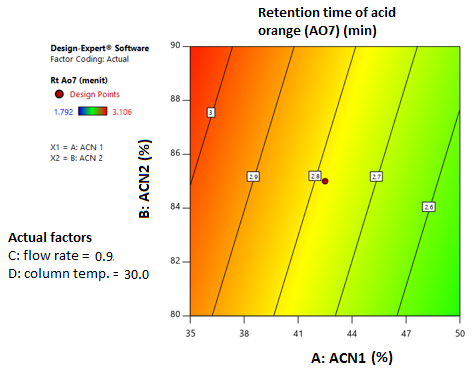

Fig. 2: The contour plot of Retention time of acid orange 7 (AO7) [A] and 3D surface graph of retention time of AO7 [B] as a results of variables of concentration of acetonitrile 1 (%) (ACN1), concentration of acetonitrile 2 (%) (ACN2), flow rate and column temperature
Similarly, the equation for retention time SII (Y2) using multiple linear regression were:
1/Y2=-0.237-9.80x10-4X1+5.19x10-3X2-1.93x10-2X3+7.30x10-4X4+ 04.00x10-6X1X2+ 1.80x 10-4X1X3+ 4.95x10-5X1X4+ 1.06x10-3X2X3-0.000002.79x10-6X2X4+4.9x10-4X3X4+0.000006.21x10-6X12-2.90x10-5X22-0.018X32-9.47x10-6X42(Adj. R²of 0.9995) (Eq.2).
The contour plot along with along with 3D surface graph of the retention time of SII was shown in fig. 3. Statistic parameter of Y2 revealed adjusted R2 (Adj. R2) was>0.8 (acceptable) [21] exhibiting that the experimental model was a good fit using the polynomial equation. Based on ANOVA results in variables of X1, X2, X3 and X4, as well as an interaction between X2 and X3, X4,quadratic form of X2 and X4 contributed significantly for the response of Y2 (P<0.05). The interactions of X1-X2, and X3-X4 were not significant to Y2 response (P>0.05).
Equation 3 revealed the response of peak area Acid Orange 7 (Y3). The statistic results for Y3 informed that adj. R2was>0.8. The variables of X1, X2, X3 and X4, as well as an interaction between X1 and X3, linear form of X1 and X3 contributed significantly for the response of Y3 (P<0.05). The variables of X1 and X2 affected positively, meaning that the increased levels of concentration of acetonitrile 1 (%) (X1) and concentration of acetonitrile 2 (%) (X2) would increase peak area of AO7 (increased sensitivity), while the increased levels of flow rate (X3) and column temperature (X4) could decreased peak area. The contour plot along with along with 3D surface graph of the peak area of AO7 was shown in fig. 4.
Y3=1.3738 x 10-3+693.94 x 10-3X1+833.03X2–654443.33X3–1956.68X4 (Adj. R²of 0.9463) (Eq. 3)

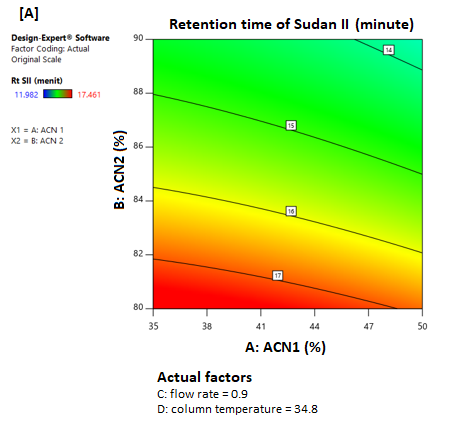

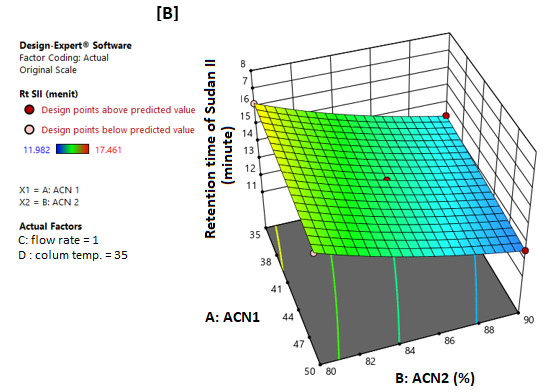

Fig. 3: The contour plot of retention time of Sudan II 7 (SII) [A] and 3D surface graph of retention time of SII [B] as a results of variables of concentration of acetonitrile 1 (%) (ACN1), concentration of acetonitrile 2 (%) (ACN2), flow rate and column temperature
[A]
[B]

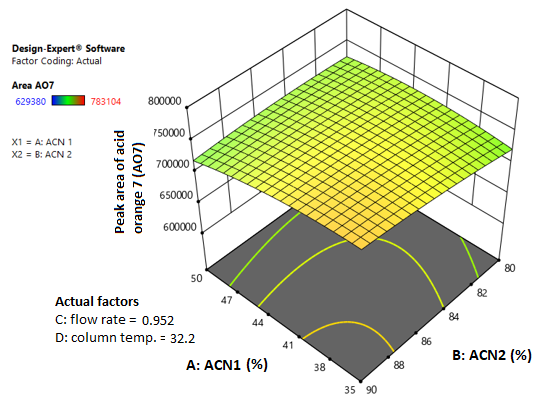

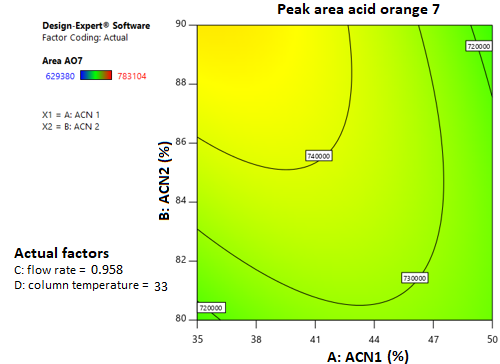

Fig. 4: The contour plot of peak area of acid orange 7 (AO7) [A] and 3D surface graph [B] as a results of variables of the concentration of acetonitrile 1 (%) (ACN1), a concentration of acetonitrile 2 (%) (ACN2), flow rate and column temperature
The equation 4 showed the correlation between the response of peak area of Sudan II (SII) and independent variables of X1, X2, X3 and X4 along with its interaction.
The statistic results for Y4 showed that Adj. R2 obtained was in the acceptable limits [21]. The ANOVA results revealed that variables of X1, X2, X3 and X4, as well as an interaction between X2-X3, quadratic form X2 and X3 contributed significantly for the response of Y4 (P<0.05). The interaction of X1 with X2, X3, X4 and between X2 and X4 did not contributed significantly to Y4 response.
The contour plot along with along with 3D surface graph of the peak area of SII was shown in fig. 5.
[A]
[B]

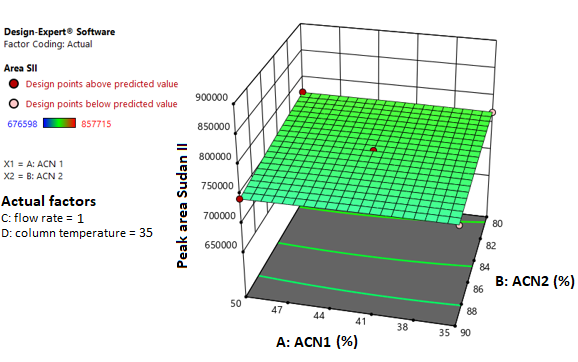

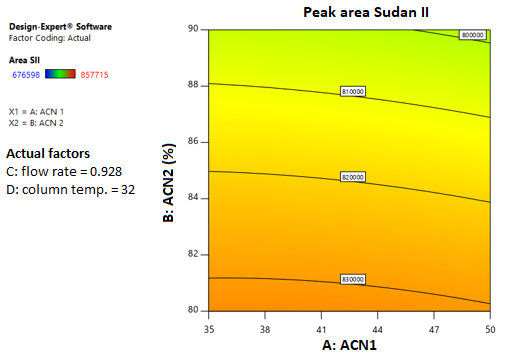

Fig. 5: The contour plot of peak are of sudan II (SII) [A] and 3D surface graph of SII [B] as a results of variables of the concentration of acetonitrile 1 (%) (ACN1), the concentration of acetonitrile 2 (%) (ACN2), flow rate and column temperature
Y4=7.61 x 10-8+163.42X1-14045.67X2-76120.67X3-160.42X4-749.75X1X2+ 2803.25X1X3-195.75X1X4+1330.75X2X3+850.50X2X4-559.50X3X4-660.71X12-2056.83X22+6665.42X32+238.29X42(Adj. R² of 0.9995)(Eq. 4)
The equations 5 and 6 corresponded to the response of tailing factor of AO7 (Y5) and SII (Y6). The statistic results for Y5 revealed that Adj. R2 obtained was<0.8, which was not acceptable [18]. Based on ANOVA results, the variables of X1, X2, X3 and X4 has no interaction for all factors. Based on ANOVA results variables of X1, X2, X3 and X4, as well as an interaction between X2-X3, X2-X4,linear form of X2 and X3 contributed significantly for response of Y6 (P<0.05).
Y5=4.77x10-1+8.64x10-3X1+5.83x10-3X2-0.61X3+1.30x10-3X4 (Eq. 5)
(Adj. R² of 0.3602)
Y6=5.53 x 10-1+1.00x10-4X1+5.7 x 10-3X2+4.25 x 10-2X3–1.77 x 10-3X4 (Eq. 6)
(Adj. R² of 0.9425).
Fig. 6 and fig. 7 showed the contour plot along with along with 3D surface graph of tailing factor of AO7 and SII.
[A]
[B]

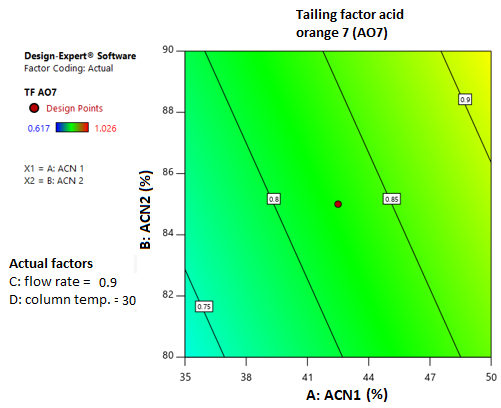

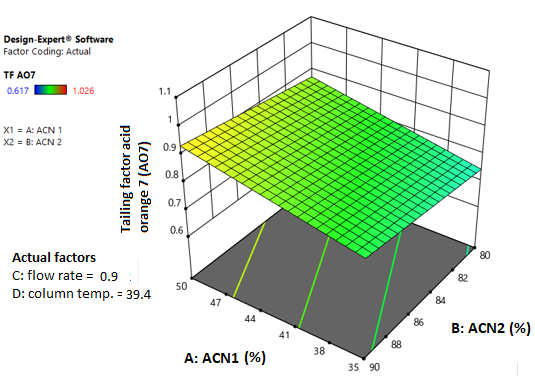

Fig. 6: The contour plot of tailing factor of acid orange 7 (AO7) [A] and 3D surface graph [B] as a results of variables of the concentration of acetonitrile 1 (%) (ACN1), the concentration of acetonitrile 2 (%) (ACN2), flow rate and column temperature
The optimum predicted conditions for separation AO7 and SII based on statistical results were as follows: ACN1 43%, ACN2 90%, flow rate of 0.9 ml/min and column temperature of 40 °C with the desirability of 0.818. It means that 81.80% data can be described by the selected model, the desired response would be reached easily [22]. The HPLC chromatogram obtained using this condition was shown in fig. 8. It is clear that both AO7 and SII were clearly separated using optimum condition suggested by BBD.
[A]
[B]

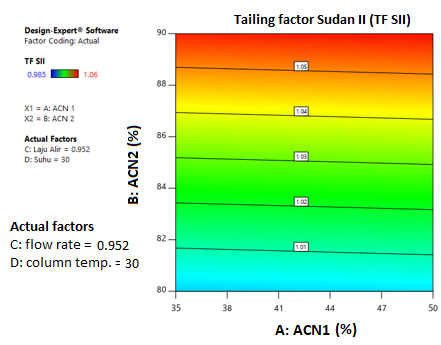

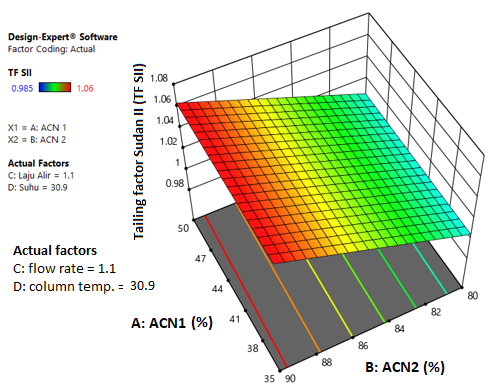

Fig. 7: The contour plot of tailing factor of sudan II (SII) [A] and 3D surface graph [B] as a results of variables of the concentration of acetonitrile 1 (%) (ACN1), the concentration of acetonitrile 2 (%) (ACN2), flow rate and column temperature

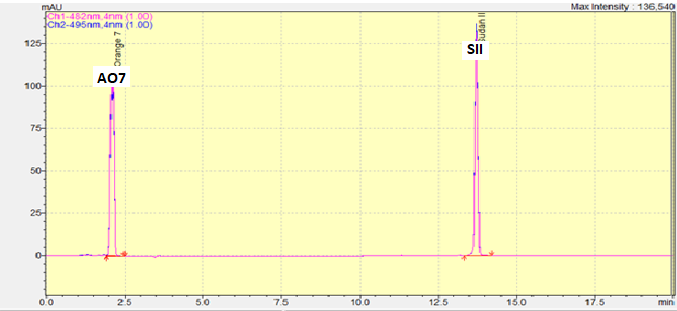

Fig. 8: Separation of acid orange 7 (AO7) and sudan II (SII) using HPLC condition as suggested by box-behnken design. See text for HPLC condition
CONCLUSION
BBD design can be used to get optimum condition for analysis of AO7 and Sudan II in blusher product. The optimum conditions suggested for separation AO7 and SII based on BBD was mobile phase containing ACN1 43% and ACN2 90% with flow rate of 0.9 ml/min, with column temperature of 40 °C.
