Int J App Pharm, Vol 11, Issue 4, 2019, 164-170Original Article


INFLUENCE OF DOSE AND USP DISSOLUTION APPARATUS IN THE RELEASE PERFORMANCE OF REFERENCE TABLETS: PROPRANOLOL-HCl AND RANITIDINE-HCl CASES

JOSE RAUL MEDINA-LOPEZ*, LUIS ANTONIO CEDILLO-DIAZ, MARCELA HURTADO

Departamento Sistemas Biológicos, Universidad Autónoma Metropolitana-Xochimilco, Mexico DF, Mexico
Email: rmlopez@correo.xoc.uam.mx

Received: 31 Mar 2019, Revised and Accepted: 10 May 2019

ABSTRACT

Objective: Due to quality of generic formulations depends on available information of reference drug products the aim of this work was to perform an in vitro dissolution study of two doses of propranolol-HCl and ranitidine-HCl reference tablets using USP basket or paddle apparatus and flow-through cell method.

Methods: Two doses of propranolol-HCl (10-mg and 80-mg) and ranitidine-HCl (150-mg and 300-mg) of Mexican reference products were used. Dissolution profiles of propranolol-HCl were obtained with USP basket apparatus at 100 rpm and 1000 ml of 1% hydrochloric acid. Profiles of ranitidine-HCl were determined with USP paddle apparatus at 50 rpm and 900 ml of distilled water. All formulations were also studied with the flow-through cell method using laminar flow at 16 ml/min. Dissolution profiles were compared by model-independent (f2 similarity factor, mean dissolution time and dissolution efficiency) and model-dependent methods (dissolution data adjusted to some mathematical equations). Time data, derived from these adjustments, as t50%, t63.25%, and t85% were used to compare dissolution profiles.

Results: With all approaches used and being high solubility drugs significant differences were found between low and high doses and between USP dissolution apparatuses (*P<0.05).

Conclusion: In vitro dissolution performance of two doses of propranolol-HCl and ranitidine-HCl was not expected. Considering the same USP dissolution apparatus, the reference tablets did not allow the simultaneous release of the used doses. The results could be of interest for pharmaceutical laboratories or health authorities that classify some drug products as a reference to be used in dissolution and bioequivalence studies.

Keywords: Flow-through cell method, Propranolol-HCl tablets, Ranitidine-HCl tablets, Reference drug products, USP basket apparatus, USP paddle apparatus

© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2019v11i4.33293

INTRODUCTION

Propranolol is a non-selective β-adrenergic receptor-blocking agent. It is used to treat high blood pressure (hypertension) and severe infantile hemangioma [1]. Due to propranolol short biological half-life (3-5 h), it needs to be administered in two or three doses of 40 to 80 mg per day [2]. Ranitidine-HCl is a H2 receptor antagonist used in the treatment of gastric and duodenal ulceration and gastro-oesophageal reflux disease. It is absorbed from the gastrointestinal tract with the bioavailability of about 50% and an elimination half-life of 3 h [3]. Chemical structures of used drugs are shown in fig. 1.

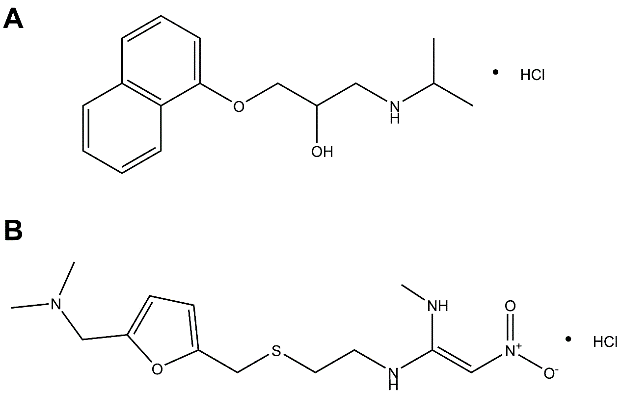

Fig. 1: Chemical structures of propranolol-HCl (A) and ranitidine-HCl (B)

Propranolol-HCl and ranitidine-HCl are included in the WHO Model List of Essential Medicines [4], and because of its wide use, these drugs are manufactured as generic formulations. This kind of formulations offer savings for patients, hospitals and pharmaceutical laboratories. Generic formulations should be evaluated periodically to ensure a similar therapeutic effect to that of the reference, so quality of generic formulations depends on the quality of reference drug products. In vitro dissolution studies are important to know the dissolution performance of reference products considering factors as dose and hydrodynamics.

According to the Biopharmaceutics Classification System (BCS), propranolol is a class I drug (high solubility/high permeability) [5]. Solubility of propranolol-HCl in water is reported as 1 g in 10-30 ml [6]. Ranitidine-HCl is a class III drug (high solubility/low permeability). Solubility of ranitidine-HCl in water is 660 mg/ml [7]. For propranolol-HCl, solubility within the physiological pH is not critical, so the dissolution rate of the formulation will be the decisive factor for its bioavailability [6]. For class I drugs, the dissolution of more than 85% at 30 min makes the comparison of dissolution profiles between reference and test (generic) formulation unnecessary [8].

Official dissolution tests for propranolol-HCl and ranitidine-HCl tablets are described in United States Pharmacopoeia (USP) [9] and Mexican Pharmacopoeia [10]. Dissolution conditions for propranolol-HCl include USP basket apparatus (USP Apparatus 1) at 100 rpm and 1000 ml of 1% hydrochloric acid at 37.0±0.5 °C as dissolution medium. Under these conditions, not less than 75% of drug should be dissolved in 30 min (Q ≥ 75%). Dissolution conditions for ranitidine-HCl include USP paddle apparatus (USP Apparatus 2) at 50 and 900 ml of distilled water at 37.0±0.5 °C. Not less than 80% should be dissolved at 45 min (Q ≥ 80%). Biowaiver monographs for propranolol-HCl [6] and ranitidine-HCl [7] have been published suggesting the replacing of in vivo studies for in vitro dissolution studies.

Additional dissolution tests to those established with USP vessels apparatus (USP Apparatus 1 or 2) have been developed with flow-through cell method (USP Apparatus 4). Its advantages over conventional USP basket and paddle apparatuses have been widely demonstrated, especially with dissolution of poorly soluble drugs [11, 12]. The flow-through cell method has a continuous extraction of the drug, simulating the absorption into the systemic circulation, by generating intermittent flow of dissolution medium inside the compartment where the dosage form is placed [13]. The USP Apparatus 4 better simulates the hydrodynamic environment found in the gastrointestinal tract. Previous reports show that in vitro data obtained with flow-through cell method better reflect in vivo performance of some drugs [14, 15]. Despite the advantages of USP Apparatus 4, information about dissolution performance of propranolol-HCl and ranitidine-HCl reference tablets is scarce.

A comparative dissolution study of metronidazole with reference and generic formulations has been published [16]. In the study, two doses of metronidazole tablets and two USP dissolution apparatuses were used and significant differences in dissolution profiles of metronidazole from reference formulation were found. For this antimicrobial drug a biowaiver monograph has also been published [17]. For its high solubility and dissolution conditions used no problem should present the in vitro dissolution of both metronidazole doses however, its dissolution performance was not as expected. Daousani and Macheras [18], based on a previous analysis of theoretical and experimental data, established the drug dose as an important parameter for drug dissolution and biopharmaceutic drug classification.

The main objective of this in vitro release study was to evaluate the dissolution performance of propranolol-HCl and ranitidine-HCl reference tablets using two doses of each drug and two dissolution apparatuses. The results could be of interest for pharmaceutical laboratories or health authorities that classify some drug products as a reference to be used in dissolution and bioequivalence studies.

MATERIALS AND METHODS

Materials

Propranolol-HCl (Inderalici®, 10-mg and 80-mg, AstraZeneca SA de CV) and ranitidine-HCl (Azantac®, 150-mg and 300-mg, Grimann SA de CV) tablets were used. Mexican health regulatory agency COFEPRIS has established both drug products as a reference to be used in bioequivalence studies [19]. Hydrochloric acid and methanol analytical grade were purchased from J. T. Baker-Mexico. Propranolol-HCl and ranitidine-HCl standard were purchased from Sigma-Aldrich Co. (St. Louis MO, USA).

Content uniformity and assay

Content uniformity and assay tests with all reference formulations were performed according to the procedures described in US Pharmacopeia [9].

Dissolution profiles

USP vessels apparatus

Dissolution profiles of propranolol-HCl and ranitidine-HCl were determined according to USP tests [9] using an automated USP vessels apparatus (Sotax AT-7 Smart, Switzerland) with a piston pump (Sotax CY7-50, Switzerland). An UV/Vis spectrophotometer with 1-mm flow cells (Perkin Elmer Lambda 35, USA) was used. All equipment and data generated were controlled by specific software designed by Sotax. Dissolution profiles of propranolol-HCl tablets were determined with USP Apparatus 1 at 100 rpm. Tablets were sprinkled on 1000 ml of 1% hydrochloric acid. Dissolution profiles of ranitidine-HCl were obtained with USP Apparatus 2 at 50 rpm. Tablets were sprinkled on 900 ml of distilled water. Temperature of dissolution media was 37.0±0.5 °C. Sequential sampling using 0.45 µm nitrocellulose filters (Millipore®) occurred over 30 min (propranolol-HCl) or 45 min (ranitidine-HCl) at regular 5-min intervals with 12 replicates. The amount of propranolol-HCl and ranitidine-HCl dissolved was determined with standard calibration curves at 289 and 314 nm, respectively.

Flow-through cell method

Dissolution profiles of propranolol-HCl and ranitidine-HCl were obtained in an automated USP Apparatus 4 (Sotax CE6, Sotax AG, Switzerland) with 22.6-mm cells (i.d.) and a piston pump (Sotax CY7-50, Sotax AG, Switzerland). Laminar flow (with a bed of 6 g of glass beads) was used. The degassed dissolution media at 37.0±0.5 °C, 1% hydrochloric acid and distilled water, were pumped at 16 ml/min. An open system was used without recycling the dissolution media. Sequential sampling using nitrocellulose filters was set at regular 5-min intervals over 30 or 45 min, with 12 replicates. The amount of propranolol-HCl and ranitidine-HCl dissolved was determined in a UV/Vis spectrophotometer with 1-mm cells (Perkin Elmer Lambda 10, USA) at 289 and 314 nm, respectively. For every trial, a standard calibration curve was prepared.

Dissolution data analysis

Dissolution profiles of propranolol-HCl and ranitidine-HCl were compared by model-independent and model-dependent approaches. For the first kind of comparison, f2 similarity factor was calculated according to equation 1 [20]:

Eq. [1]

Where n is the number of time points used to evaluate the amount of drug dissolved, Rj and Tj are the average percentages of drug dissolved at a j specific time from reference and test products, respectively.

Similar dissolution profiles were found when f2 = 50-100 [20]. Then, dissolution profiles were compared with the following model-independent parameters: percentage of drug dissolved at last sampling time (Q criterion), mean dissolution time (MDT) and dissolution efficiency (DE). Q value is a quality pharmacopeial criterion used to compare the extent of drug dissolved (batch-to-batch or after some modifications of the manufacturing process) [9]. MDT is the time necessary to dissolve 63.2% of drug and it is calculated with statistical moment’s theory [21]. DE is the area under the dissolution curve up to a certain time, t, expressed as a percentage of the area of the rectangle described by 100% dissolution over the same time [22]. MDT and DE are commonly used parameters to IVIVC level B and C, respectively [23].

For model-dependent comparisons, dissolution data of propranolol-HCl and ranitidine-HCl formulations were fitted to Hyperbole, Higuchi, Korsmeyer-Peppas, Hixson-Crowell, Makoid-Banakar, Weibull, Logistic, and Gompertz model. Mathematical equations of all models (excepting Hyperbole model) were described by Zhang et al. [24] and are shown in table 1.

Table 1: Mathematical equations used to fit dissolution data

Model Equation Model Equation
Hyperbole Makoid-Banakar
Higuchi Weibull
Korsmeyer-Peppas Logistic
Hixson-Crowell Gompertz

Dissolution data were adjusted to hyperbole equation with SigmaPlot software (version 11.0) and t50%, t63.2%, and t85% values were calculated after adjustment to this mathematical equation. For the rest of the adjustments, the model with the highest determination coefficient (R2adjusted) and the minimum Akaike Information Criterion (AIC) was chosen as the best fit model [25]. f2, MDT, DE, and adjustment to all models (excepting hyperbole) was calculated with Excel add-in DDSolver program [24]. Mean values were compared by a Student’s t-test and significant differences were considered if *P<0.05.

RESULTS AND DISCUSSION

Content uniformity and assay

All formulations were within USP limits. The percentages of propranolol-HCl and ranitidine-HCl on the content uniformity tests ranged from 85-115% and the assay tests between 90-110%. Results are shown in table 2.

Dissolution profiles

Model-independent comparisons

Dissolution profiles of propranolol-HCl and ranitidine-HCl from reference formulations, obtained with USP basket or paddle apparatus and flow-through cell method, are shown in fig. 2.

Table 2: Content uniformity and assay results, n = 10*; mean±SD, n = 3†

Drug Dose Content uniformity (min-max%)* Assay (%)†
P Low 95.27-110.68 106.34±1.72
High 101.15-108.45 97.78±1.86
R Low 101.96-107.95 101.84±4.65
High 101.72-109.07 108.00±7.50

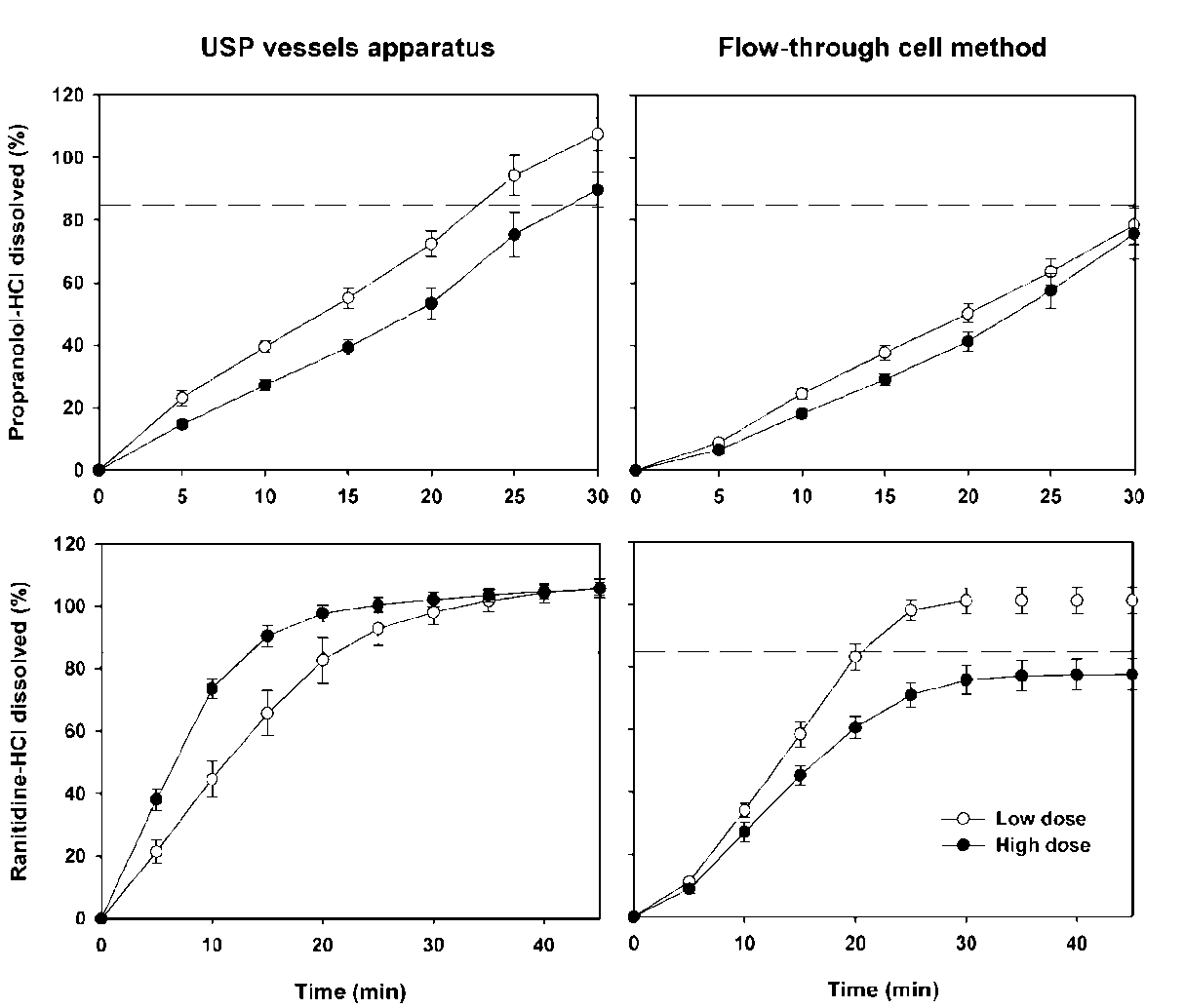

Fig. 2: Dissolution profiles of propranolol-HCl and ranitidine-HCl from reference formulations, the dotted line shows 85% of drug dissolved. mean±SD, n = 12

Table 3: Model-independent and-dependent parameters of propranolol-HCl (P) and ranitidine-HCl (R). mean±SEM, n = 12. *P<0.05, Low vs. High dose

Drug/Dose Diss. at last sampling time (%) MDT(min) DE (%) t50% (min) t63.2% (min) t85% (min)
USP vessels apparatus
P/low 107.49±1.49 14.27±0.15 56.33±0.86 13.08±0.23 16.76±0.28 23.08±0.35
P/High 89.68±1.64* 15.80±0.18* 42.42±0.76* 17.33±0.32* 21.94±0.41* 29.60±0.57*
R/low 105.72±0.87 13.60±0.37 73.76±1.12 10.17±0.45 14.37±0.57 24.04±0.77
R/High 105.57±0.64 8.87±0.09* 84.77±0.57* 5.18±0.11* 7.84±0.17* 15.67±0.34*
Flow-through cell method
P/low 78.41±1.77 15.72±0.16 37.27±0.64 19.73±0.35 24.91±0.45 33.44±0.62
P/High 75.69±2.36 17.39±0.23* 31.65±0.66* 22.12±0.58* 27.96±0.74* 37.61±0.99*
R/low 101.20±1.20 13.40±0.26 71.00±0.53 11.37±0.18 15.84±0.21 25.69±0.35
R/High 77.51±1.45* 13.93±0.16 53.50±0.99* 17.30±0.58* 25.30±0.89* 46.09±1.94*

All formulations met the pharmacopeial Q criterion (Q ≥ 75% for propranolol-HCl and Q ≥ 80% for ranitidine-HCl), excepting high dose of ranitidine-HCl with flow-through cell apparatus (Q = 77.51%). Specific data and comparison of drug dissolved at the last sampling time are shown in table 3.

It is important to highlight the lack of compliance of Q criterion of a high dose of ranitidine-HCl with flow-through cell method. Dose, the total volume of dissolution medium and high solubility should be factors that favor ranitidine-HCl dissolution however, this does not happen. Something similar is observed with the dissolution of both drugs at 15 and 30 min. A very rapid drug dissolution can be achieved if ≥ 85% drug is dissolved in 15 min [26] and rapid drug dissolution can be achieved if the same percentage of drug is reached in 30 min [27]. More than 85% of drug dissolved at 15 min is reached only by a high dose of ranitidine-HCl in USP paddle apparatus. More than 85% of drug dissolved at 30 min is reached by both doses of propranolol-HCl in USP basket apparatus, both doses of ranitidine-HCl in USP paddle apparatus and a low dose of ranitidine-HCl with flow-through cell method. Under dissolution conditions used, reference formulations should allow the complete release of both drugs, however, as previously mentioned, the high solubility of each drug and the volume of dissolution media are not enough factors to obtain the extent of dissolution that characterizes a drug product with very rapid or rapid dissolution.

As observed, with flow-through cell method the used formulations showed slower dissolution rates than that found with USP basket or paddle apparatus. Langenbucher et al. [28] stated that this kind of behavior can be explained by the hydrodynamic conditions generated by USP Apparatus 4, where there are no agitation mechanisms and the dosage form and drug particles are continuously exposed to a uniform laminar flow, similar to the natural environment of the gastrointestinal tract, causing a different dissolution pattern. With flow-through cell method, cell size, glass beads and flow rate are critical factors to form this special pattern. In this in vitro release study of propranolol-HCl and ranitidine-HCl flow rate of 16 ml/min was used because it is one of the three suggested by European and United States Pharmacopeias [29].

To compare dissolution profiles of low vs. high dose of propranolol-HCl and ranitidine-HCl f2 similarity factors were calculated. Additionally, USP vessels apparatus vs. flow-through cell method was also compared. Results are shown in table 4.

Table 4: f2 similarity factor calculated to compare dissolution profiles of propranolol-HCl (P) and ranitidine-HCl (R) formulations

Comparison Drug Apparatus/Dose f2
Low vs. High P USP 1 41.58
USP 4 61.12
R USP 2 42.24
USP 4 35.39
USP 1 vs. USP 4 P Low 34.08
High 46.97
USP 2 vs. USP 4 R Low 61.57
High 24.75

Table 5: Criteria used for the selection of the best fit model, mean, n = 12

Drug/dose Higuchi Korsmeyer-Peppas Hixson-Crowell Makoid-Banakar Weibull Logistic Gompertz
USP vessels apparatus
R2adjusted
P/low 0.8344 0.9905 0.9065 0.9915 0.9877 0.8475 0.7802
P/High 0.7556 0.9862 0.9063 0.9896 0.9784 0.9123 0.8534
R/low 0.9078 0.9093 0.9659 0.9938 0.9974 0.9473 0.9074
R/High 0.6297 0.7972 0.9688 0.9584 0.9975 0.9542 0.9423
AIC
P/low 42.57 25.16 38.99 22.57 25.93 42.57 44.85
P/High 43.39 25.13 37.14 22.12 27.18 37.67 40.91
R/low 60.11 60.51 49.64 34.26 26.87 55.44 60.91
R/high 67.35 62.79 44.11 48.54 20.14 47.79 50.43
Flow-through cell method
R2adjusted
P/low 0.7692 0.9963 0.9459 0.9966 0.9968 0.9756 0.9436
P/High 0.6859 0.9954 0.8889 0.9968 0.9886 0.9608 0.9218
R/low 0.8255 0.8314 0.9153 0.9899 0.9981 0.9681 0.9485
R/High 0.8565 0.8695 0.9286 0.9969 0.9994 0.9725 0.9808
AIC
P/low 41.70 16.95 32.58 16.66 14.93 28.26 33.68
P/High 43.53 17.46 36.89 16.23 21.24 30.98 35.58
R/low 68.56 68.95 61.93 43.16 28.21 53.05 57.91
R/High 62.39 61.31 54.77 27.06 12.13 46.07 43.74

Only dissolution profiles of two doses of propranolol-HCl with flow-through cell method and dissolution profiles of low dose of ranitidine-HCl, obtained with USP paddle apparatus and flow-through cell method, were similar (f2 = 50-100). Although USP Apparatuses 2 and 4 have different characteristics (especially hydrodynamic condition) it should be noted that dissolution profiles of low dose of ranitidine-HCl are similar. Results suggest that dissolution performance of low dose of ranitidine-HCl is independent of the hydrodynamic environment to which tablets were subjected.

Values of model-independent parameters: percentage of drug dissolved at last sampling time, MDT and DE of all formulations, are shown in table 3. Significant differences in all comparisons (Low vs. High dose) were found (*P<0.05) excepting percentage of ranitidine-HCl dissolved at 45 min with USP paddle apparatus as well as the percentage of propranolol-HCl dissolved at 30 min and MDT of ranitidine-HCl with flow-through cell method.

Model-dependent comparisons

The t50%, t63.2%, and t85% values derived from the adjustment to hyperbole model are shown in table 3. Significant differences in all dissolution profiles of low vs. high dose, of both drugs, were found (*P<0.05). Dissolution data of USP basket or paddle apparatus vs. flow-through cell were also compared and only dissolution profiles of low dose of ranitidine-HCl were similar (*P>0.05) which corroborates the independence of low dose of this drug of the hydrodynamic environment surrounding the tablets.

Values of R2adjusted and AIC obtained after the adjustment of dissolution data to all mathematical equations described above are shown in table 5. Considering the established criteria to choose the best fit model (highest R2adjusted and lowest AIC) with USP vessels apparatus dissolution profiles of both doses of propranolol-HCl adjusted to Makoid-Banakar model and both doses of ranitidine-HCl adjusted to Weibull function. With the flow-through cell method both doses of ranitidine-HCl adjusted to Weibull model. Apparently, dissolution performance of both doses of ranitidine-HCl from the reference product can be explained with the same mathematical equation regardless of the dissolution system used.

To compare dissolution profiles of propranolol-HCl and ranitidine-HCl with the previous settings t50%, t75%, and t80% of propranolol-HCl (with USP basket apparatus data) were calculated and compared. Results are shown in table 6. Moreover, Weibull parameters of ranitidine-HCl (with both USP apparatuses data) were used to calculate the model-dependent parameter Td. Results are shown in table 7.

.

Table 6: Time parameters after adjustment of propranolol-HCl data to Makoid-Banakar model, mean±SEM, n = 12. *P<0.05, low vs. high dose

Dose t50% (min) t75% (min) t80% (min)
USP basket apparatus
Low 13.15±0.26 20.48±0.35 21.91±0.36
High 18.39±0.37* 25.88±0.45* 27.26±0.47*

Table 7: Parameters after adjustment of ranitidine-HCl data to Weibull function. Mean, n = 12. *P<0.05, low vs. high dose

Dose α β Ti Fmax Td (±SEM)
USP paddle apparatus
Low 1980.87 1.78 -3.03 105.72 15.34±0.56
High 7.81 0.94 2.14 105.24 8.53±0.16*
Flow-through cell method
Low 155557.80 3.54 -8.57 101.65 15.86±0.32
High 598.82 2.14 -1.69 77.83 16.04±0.19

Significant differences were found with t50%, t75%, and t80% data of propranolol-HCl (*P<0.05) meaning that dissolution profiles of low and high dose of propranolol-HCl, obtained with USP basket apparatus, were not similar while significant differences in Td values of ranitidine-HCl were found only with data obtained with USP paddle apparatus (*P<0.05). Dissolution profiles of ranitidine-HCl, obtained with USP paddle apparatus and flow-through cell method, were also compared and similar profiles were found only with the low dose.

In this in vitro release study of low and high dose, data fitting to models previously described were carried out without any physiological significance in order to find a mathematical equation that explains the in vitro dissolution performance of propranolol-HCl and ranitidine-HCl from Mexican reference products. The purpose of using mathematical models to adjust dissolution data is that they facilitate the analysis and interpretation of observed results because they describe the dissolution profiles as a function of only a few parameters that can be statistically compared [30].

Form a scientific point of view propranolol-HCl is a candidate for granting a biowaiver when the immediate-release tablets are formulated with well-known excipients, show rapid in vitro dissolution, and meet the dissolution profile comparison criteria as defined in the Guidances (f2 = 50-100 in dissolution media with pH of physiological relevance). The USP criteria and method are suitable to assure batch to batch consistency [6]. On the other hand, it would be reasonably safe to grant biowaivers for ranitidine-HCl immediate-release solid oral dosage forms, provided that the test product is formulated with some excipients, in amounts typically used in this kind of formulations, and the test product is also rapidly dissolving [7]. In this sense, the drug products used are commercial products of which the type of excipients and the manufacturing process are unknow, but for their safety and efficacy previously proven, they have been chosen by the Mexican Health Authorities as reference drug products to be used in bioequivalence studies. These products are also used for in vitro dissolution studies of generic formulations.

The BCS suggests that for class I drugs and in some instances for class III drugs, 85% dissolution in 0.1 N HCl in 15 min can ensure that the bioavailability of the drug is not limited by dissolution. In these cases, the rate limiting step for drug absorption is gastric emptying [31]. Of all dissolution profiles obtained in this in vitro dissolution study, only high dose of ranitidine-HCl with USP paddle apparatus met this dissolution criterion. The mean t50% gastric residence (emptying) time is 15-20 min under fasting conditions. Based on this information, a conservative conclusion is that a drug product undergoing 85% dissolution in 15 min under mild dissolution test conditions in 0.1 N HCl behaves like a solution and generally should not have any bioavailability problems. If the dissolution is slower than gastric emptying, a dissolution profile with multiple points in multimedia is recommended [31]. On the other hand, for submission of a biowaiver request, an immediate-release product (test and reference) should be rapidly dissolving (BSC class I) or very rapidly dissolving (BCS class III) [8]. Under pharmacopeial dissolution conditions used low dose of ranitidine-HCl and all formulations with flow-through cell method do not comply with the requirement requested in the Guidance.

This is the first in vitro dissolution study with reference tablets of propranolol-HCl and ranitidine-HCl using USP vessels apparatus and flow-through cell method since comparative dissolution profiles with two doses of reference products are scarce. This work reveals significant differences in dissolution rate and extent of two doses of each drug used. On the other hand, comparative dissolution studies between USP paddle apparatus and flow-through cell method have been reported with ibuprofen and carbamazepine generic suspensions [32, 33] with the aim of improving these dosage forms. Hydrodynamics of USP Apparatus 4 best simulates human gastrointestinal tract. Shah et al. [34] stated that in order to increase the ability to detect any changes in the manufacturing process, a dissolution test at a lower agitation rate is preferred. Attentions should be given to the conditions to which the ingested solid dosage forms may be exposed in the stomach.

As dissolution data obtained with the flow-through cell method have been proved to better correlate with in vivo data [28, 35] and some pharmacopeial dissolution tests (that generally use USP vessels apparatus) do not allow to differentiate the rate and extent of in vitro release from generic drug products [36, 37] it is necessary to investigate new dissolution conditions that reflect the quality of generic formulations and estimate the in vivo performance of drugs. The quality of generic formulations depends on the available information of the dissolution performance of reference drug products under different conditions (e. g. hydrodynamics or pH medium). From a quality assurance point of view, a more discriminative dissolution method is preferred, because the test will indicate possible changes in the quality of the product before in vivo performance is affected [31].

For multiple strengths of immediate-release products with linear kinetics, the bioequivalence study may be performed at the highest strength and waivers of in vivo studies may be granted on lower strengths, based on an adequate dissolution test, provided the lower strengths are proportionately similar in composition [31]. This assertion may not be an absolute rule especially if significant differences in dissolution performance of two doses of drugs with high solubility (class I or III) are documented. The search of “adequate dissolution test” must be essential for to ensure quality, safety and efficacy of drug products of any country. Some authors have reported that the effect of propranolol on portal pressure in patients with portal hypertension is highly variable and does not correlate with propranolol racemate or stereoisomer plasma concentrations [38]. Differences on in vitro behavior found in this work could explain in vivo performance of propranolol.

It is important to consider bioequivalence data of the drugs used in this work. Polli [39] reported the association of dissolution rate of three ranitidine-HCl tablets and their bioequivalences relative to the reference product. He found all formulations bioequivalent despite differences in dissolution rates. The author asserts that differences in dissolution rates observed earlier than 30 min had negligible consequences in vivo. It is necessary to carry on IVIVC studies with both doses of propranolol-HCl and ranitidine-HCl to evaluate the predictability of the proposed methodology since if problems are reported with reference drug products the quality of generic formulations will be affected.

CONCLUSION

In vitro dissolution performance of two doses of propranolol-HCl and ranitidine-HCl under the hydrodynamic environment of USP basket or paddle apparatus and the flow-through cell was not expected. It is essential to carry out bioequivalence studies with the lowest and highest doses of reference products used. This action seems not to be necessary for class I and III drugs, however, due to the results obtained in the present work it must be confirmed that significant differences in dissolution profiles do not affect the bioequivalence of both doses. More research on in vitro dissolution performance of all available doses of reference products is necessary.

AUTHORS CONTRIBUTIONS

All the author have contributed equally

CONFLICT OF INTERESTS

Declared none

REFERENCES

  1. Ashrafi S, Shapouri R, Shirkhani A, Mahdavi M. Anti-tumor effects of propranolol: adjuvant activity on a transplanted murine breast cancer model. Biomed Pharmacother 2018;104:45−51.

  2. Porwal A, Swami G, Saraf SA. Preparation and evaluation of sustained release micro-balloons of propranolol. DARU 2011;19:193−201.

  3. Maharjan R, Subedi G. Formulation and evaluation of floating in situ gel of ranitidine using natural polymers. Int J Pharm Pharm Sci 2014;6:205−9.

  4. World Health Organization. Model List of Essential Medicines; 2017. Available from: https://apps.who.int/iris/bitstream/ handle/10665/273826/EML-20-eng.pdf?ua=1. [Last accessed on 30 Mar 2019].

  5. Lindenberg M, Kopp S, Dressman JB. Classification of orally administered drugs on the World Health Organization model list of essential medicines according to the biopharmaceutics classification system. Eur J Pharm Biopharm 2004;58:265−78.

  6. Vogelpoel H, Welink J, Amidon GL, Junginger HE, Midha KK, Möller H, et al. Biowaiver monographs for immediate release solid oral dosaje forms based on a biopharmaceutics classification system (BCS) literatura data: verapamil hydrochloride, propranolol hydrochloride, and atenolol. J Pharm Sci 2004;93:1945–56.

  7. Kortejarvi H, Yliperttula M, Dressman JB, Junginger HE, Midha KK, Shah VP, et al. Biowaiver monographs for immediate release solid oral dosage forms: ranitidine hydrochloride. J Pharm Sci 2005;94:1617−25.

  8. Food and Drug Administration. Guidance for Industry: Waiver on in vivo bioavailability and bioequivalence studies for immediate-release solid oral dosage forms based on a biopharmaceutics classification system; 2017. Available from: https://www.fda.gov/downloads/Drugs/./Guidances/UCM070246.pdf. [Last accessed on 30 Mar 2019].

  9. United States Pharmacopeia and National Formulary USP 41-NF 36; The United States Pharmacopeial Convention, Inc: Rockville MD; 2018.

  10. Farmacopea de los Estados Unidos Mexicanos. 11a. ed. México DF, Secretaría de Salud; 2014.

  11. Sunesen VH, Pedersen BL, Kristensen HG, Müllertz A. In vitro in vivo correlations for a poorly soluble drug, danazol, using the flow-through dissolution method with biorelevant dissolution media. Eur J Pharm Sci 2005;24:305–13.

  12. Szymanska E, Winnicka K. Comparison of flow-through cell and paddle methods for testing vaginal tablets containing a poorly water-soluble drug. Trop J Pharm Res 2013;12:39–44.

  13. Emara LH, Emam MF, Taa NF, El-Ashmawy AA, Mursi NM. In vitro dissolution study of meloxicam immediate release products using flow-through cell (USP Apparatus 4) under different operational conditions. Int J Pharm Pharm Sci 2014;6:254−60.

  14. Jinno J, Kamada N, Miyake M, Yamada K, Mukai T, Odomi M, et al. In vitro-in vivo correlation for the wet-milled tablet of poorly water-soluble cilostazol. J Controlled Release 2008;130:29−37.

  15. Jantratid E, De Maio V, Ronda E, Mattavelli V, Vertzoni M, Dressman JB. Application of biorelevant dissolution tests to the prediction of in vivo performance of diclofenac sodium from an oral modified-release pellet dosage form. Eur J Pharm Sci 2009;37:434−41.

  16. Medina JR, Ortiz HD, Hurtado M, Dominguez Ramirez AM. Influence of dose and the USP basket and flow-through cell dissolution apparatuses in the release kinetics of metronidazole immediate-release products. Int J Res Pharm Sci 2014;5:137−46.

  17. Rediguieri CF, Porta V, Nunes DSG, Nunes TM, Junginger HE, Kopp S, et al. Biowaiver monographs for immediate release solid oral dosage forms: metronidazole. J Pharm Sci 2011;100:1618−27.

  18. Daousani C, Macheras P. Scientific considerations concerning the EMA change in the definition of “dose” of the BCS-based biowaiver guideline and implications for bioequivalence. Int J Pharm 2015;478:606−9.

  19. COFEPRIS. Listado actualizado de medicamentos de referencia 2017/08, Mexico. Available from: https://www.gob.mx/ cms/uploads/attachment/file/197452/lMR_2017-08_V006.pdf. [Last accessed on 30 Mar 2019]

  20. Moore JW, Flanner HH. Mathematical comparison of dissolution profiles. Pharm Technol 1996;20:64−75.

  21. Podczeck F. Comparison of in vitro dissolution profiles by calculating mean dissolution time (MDT) or mean residence time (MRT). Int J Pharm 1993;97:93−100.

  22. Anderson NH, Bauer M, Boussac N, Khan-Malek R, Munden P, Sardaro M. An evaluation of fit factors and dissolution efficiency for the comparison of in vitro dissolution profiles. J Pharm Biomed Anal 1998;17:811−22.

  23. Demirturk E, Oner L. In vitro-in vivo correlations. FABAD J Pharm Sci 2003;28:215−24.

  24. Zhang Y, Huo M, Zhou J, Zou A, Li W, Yao C, et al. DD Solver: an add-in program for modeling and comparison of dissolution profiles. AAPS J 2010;12:263−71.

  25. Yuksel N, Kanik AE, Baykara T. Comparison of in vitro dissolution profiles by ANOVA-based, model-dependent and independent methods. Int J Pharm 2000;209:57−67.

  26. Kortejarvi H, Shawahna R, Koski A, Malkki J, Ojala K, Yliperttula M. Very rapid dissolution is not needed to guarantee bioequivalence for biopharmaceutics classification system (BCS) I drugs. J Pharm Sci 2010;99:621−5.

  27. Shokhin IE, Ramenskaya GV, Vasilenko GF, Malalshenko EA. Assessment of the possibility of using comparative in vitro dissolution kinetics (biowaiver) instead of in vivo bioequivalence evaluation for establishing the interchangeability of generic drugs. Pharm Chem J 2011;45:107−9.

  28. Langenbucher F, Benz D, Kurth W, Moller H, Otz M. Standardized flow-cell method as an alternative to existing pharmacopoeial dissolution testing. Pharm Ind 1989;51:1276−81.

  29. Steffansen B, Brodin B, Und Nielsen C. editors. Molecular Biopharmaceutics. ULLA Pharmacy Series. Pharmaceutical Press; 2010.

  30. Adams E, Coomans D, Smeyers Verbeke J, Massart DL. Non-linear mixed effects models for the evaluation of dissolution profiles. Int J Pharm 2002;240:37−53.

  31. Food and Drug Administration. Guidance for Industry: Dissolution testing of immediate release solid dosage forms; 1997. Available from: https://www.fda.gov/downloads/drugs/guidances/ucm070237.pdf. [Last accessed on 30 Mar 2019]

  32. Medina JR, Cortes M, Romo E. Comparison of the USP apparatus 2 and 4 for testing the in vitro release performance of ibuprofen generic suspensions. Int J Appl Pharm 2017;9:90−5.

  33. Medina JR, Aguilar E, Hurtado M. Dissolution behavior of carbamazepine suspensions using the USP dissolution apparatus 2 and the flow-through cell method with simulated GI fluids. Int J Pharm Pharm Sci 2017;9:111−6.

  34. Shah VP, Gurbarg M, Noory A, Dighe S, Skelly JP. Influence of high rates of agitation on release patters of immediate-release drug products. J Pharm Sci 1992;81:500−3.

  35. Emara LH, El-Menshawi BS, Estefan MY. In vitro-in vivo correlation and comparative bioavailability of vicamine in prolonged-release preparations. Drug Dev Ind Pharm 2000;26:243−51.

  36. Hurtado M, Vargas Y, Dominguez Ramirez AM, Cortes AR. Comparison of dissolution profiles for albendazole tablets using USP apparatus 2 and 4. Drug Dev Ind Pharm 2003;29:777−84.

  37. Medina JR, Salazar DK, Hurtado M, Cortes AR, Dominguez Ramirez AM. Comparative in vitro dissolution study of carbamazepine immediate-release products using the USP paddles method and the flow-through cell system. Saudi Pharm J 2014;22:141−7.

  38. Cales P. Optimal use of propranolol in portal hypertension. Gastroenterol Clin Biol 2005;29:207−8.

  39. Polli JE. In vitro-in vivo relationships of several “immediate” release tablets containing a low permeability drug. In: Young D, Devane JG, Butler J. editors. In vitro-in vivo correlations. 1st ed. Boston: Springer; 1997. p. 191−8.
