Int J App Pharm, Vol 11, Issue 5, 2019, 324-328Short Communication


DEVELOPMENT AND VALIDATION OF REVERSED PHASE HPLC-PDA METHOD FOR THE QUANTIFICATION OF CHRYSIN IN SOLID LIPID NANOPARTICLES

ANUJ GARG1*, GOPAL PRASAD AGRAWAL1, SHAHADALI K.2

1Institute of Pharmaceutical Research, GLA University, 17 Km Stone, NH-2, Mathura-Delhi Road, P. O. Chaumuhan, Mathura 281406, (U. P.) India, 2National Institute of Pharmaceutical Education and Research (NIPER), ITI Compound, Raebareli 229010, (U. P.) India
Email: anuj.garg@gla.ac.in

Received: 02 May 2019, Revised and Accepted: 04 Jul 2019

ABSTRACT

Objective: The main aim of the present study was to develop and validate a simple, precise and accurate Reversed-Phase HPLC-PDA method for the quantitative determination of Chrysin in solid lipid nanoparticles (SLNs).

Methods: The RP-HPLC-PDA system equipped with a C-18 reversed-phase column (250 × 4.6 mm, particle size 5 μm) was employed in the present study. HPLC grade methanol and water in 85:15 (v/v) ratio was selected as the mobile phase at flow rate of 1 ml/min under an ambient column oven temperature. The detection wavelength was kept at 268 nm. Validation of developed method was performed according to the ICH guidelines.

Results: The developed reversed-phase HPLC-PDA method was found to be linear in the concentration range of 0.2-10 µg/ml with a correlation coefficient of 0.999. The method was also observed to be precise with % relative standard deviation (RSD) below 2%. The limit of detection and limit of quantification of this method were found to be 0.05µg/ml and 0.14µg/ml, respectively. The percent recovery of the developed method was estimated to more than 99%.

Conclusion: The developed HPLC method can be utilized for the determination of Chrysin with a high degree of accuracy, precision, robustness, specificity in solid lipid nanoparticles in the presence of excipients.

Keywords: Chrysin, Solid Lipid Nanoparticle, Quantitative Analysis, Isocratic Reverse Phase High-Performance Liquid Chromatography (RP-HPLC)

© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2019v11i5.33904

Chrysin (5, 7-dihydroxyflavone) is a flavonoid and a primary active chemical constituent of the Indian trumpet trees (Oroxylum indicum). It is also found in chamomile, in the mushroom Pleurotus ostreatus, propolis and in honey [1].

Previous studies also revealed the presence of high Chrysin content (approximately 28g/l) in propolis while the Chrysin content in honeydew and forest honey was found to be 0.10 mg/kg and 0.53 mg/kg, respectively [2-3]. Chrysin was reported to have many biological activities like anti-oxidant, anti-inflammatory, anti-diabetic, anti-cancer, anti-hemolytic, anti-hypertension and neuroprotection [4, 5]. But the therapeutic potential of Chrysin is severely limited by its poor oral bioavailability (F ≤ 0.02%) which is because of its poor aqueous solubility (2-5 μg/ml) and extensive pre-systemic metabolism in the intestine and the first-pass metabolism in the liver [6-8]. Nanotechnology is widely used as an excellent tool to improve the oral bioavailability of flavonoids like quercetin, apigenin, rutin etc. Nanoparticles can also influence the pharmacokinetics of drugs which affect their bioavailability, metabolism as well as biodistribution mainly due to their composition and submicron size [9, 10].

Poorly aqueous soluble drugs often exhibit low bioavailability as their absorption can be kinetically-limited by low rates of dissolution and capacity-limited by poor solubility. Lipid-based formulations can reduce the inherent limitations of slow and incomplete dissolution of water-insoluble drugs, and facilitate the formation of solubilized phases from which absorption may occur [11]. Solid lipid nanoparticles (SLNs) have been proposed as an alternative drug carrier system to other novel delivery approaches, such as microemulsions, microsphere, liposomes and polymeric nanoparticles, due to various advantages, including feasibility of incorporation of lipophilic and hydrophilic drugs, improve physical stability, low cost, ease of scale-up and manufacturing [12] . Nanoemulsions are reported to be less physically stable while polymeric nanoparticles are proved to be more toxic than SLN [13-16]. Further SLNs are easier to prepare and offers more stability than other delivery systems [17].

Chrysin loaded solid lipid nanoparticles (Ch-SLNs) has been developed and evaluated for their physiochemical characterization and in vitro anticancer activity against MCF-7 breast cancer cells by the authors in their previous work. Chrysin loaded SLNs exhibited higher in vitro anticancer activity against the breast cancer cell line as compared to that of bulk chrysin [18].

The literature survey revealed that various analytical methods have been depicted for the determination of Chrysin and their derivatives in natural products either individually or in the presence of other phytochemicals by using HPLC [19, 20]. However, no reports were available as yet on reversed-phase HPLC equipped with photodiode array detector (RP-HPLCPDA) based methods for the quantification of Chrysin in solid lipid nanoparticles. Moreover, none of the methods were available for quantification of Chrysin in solid lipid nanoparticles where a high specificity is required to surmount the likely interference of the excipients. Hence, the objective of the present work was to develop an accurate, precise, robust, specific and suitable RP-HPLC based method to quantify Chrysin in solid lipid nanoparticles to determine entrapment efficiency, total drug content with high specificity and prevent interference of excipients. The different analytical performance parameters such as linearity, precision, accuracy, reproducibility, the limit of detection (LOD) and limit of quantification (LOQ) were determined as per ICH Q2 (R1) guidelines [19, 21].

Chrysin (≥98%) and D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS) was procured from Sigma Aldrich (Mumbai, India) while stearic acid and Poloxamer 188 (Lutrol F-68) was purchased from Hi-media (Mumbai, India). All HPLC grade solvents and chemicals of analytical grade were purchased from Merck Specialties (Mumbai, India).

Modified hot high shear homogenization ultrasonication method was used to prepare Chrysin loaded SLNs as reported earlier [18]. Briefly, 400 mg of solid lipid (stearic acid) was melted and oleic acid (20% of stearic acid) was added in the molten lipid and taken as lipid matrix for preparation of solid lipid nanoparticles. Co-surfactant like (TPGS) was dispersed in the lipid melt and then dissolved in an organic solvent (acetone) and then Chrysin was added to the lipid solution. Organic solvent was evaporated on a water bath. Further, lipid phase was homogenized in a hot aqueous phase containing 1%w/v Poloxamer 188 by utilising high shear homogenizer at 12000 rpm for 5 min. Resulting dispersion was sonicated using a probe sonicator for 15 min (3 cycles, 5 min of each) at 40% amplitude and 1 s pulse on-off time. Blank SLNs were prepared using the same manner excluding the drug. Chrysin loaded solid lipid nanoparticles were successfully prepared by using hot high shear homogenization method. The particle size, polydispersity index and zeta potential of prepared solid lipid nanoparticles was found to be 358±04 nm, 0.268±0.03 and-51.0±2 mV, respectively. The solid-state characterization and morphology studies of prepared Ch-SLNs were carried out along with in vitro anticancer activity against MCF-7 cell lines. These results were published in the previous work of authors [18].

Waters HPLC system consisted of a Waters 515 HPLC binary pumps, degasser, Waters 2998 photodiode array (PDA) detector and waters column oven. Samples were separated on SunFire C18 column (4.6 mm x 250 mm, 5 μm) at ambient temperature. All the parameters of HPLC were controlled and the results were integrated with Empower software.

HPLC grade methanol and water in the ratio of 85: 15 was used as mobile phase. Mobile phase was filtered through 0.22µ PTFE filters and degassed by sonicating for 5 min before use. The flow rate and injection volume were kept at 1.0 ml/min and 20 μL, respectively. The column effluent was monitored at 268 nm by PDA detector. Initially, a mobile phase mixture of methanol and water was used to develop the HPLC method of Chrysin in SLN. However, the method has not proved repeatability or accuracy. Consequently, different ratios of methanol and water as mobile phase were used. The best peak with respect to width and symmetry was observed with a mobile phase of methanol and water in the ratio of 85:15 (v/v) and a flow rate of 1.0 ml/min. The peak was detected at 4.6 min (fig. 1) and chromatographic conditions were summarized in table 1.

Fig. 1: Representative HPLC chromatogram of a 3µg/ml Chrysin standard solution

Table 1: Chromatographic conditions

Composition Value
Column SunFire C18 reverse phase column (250 × 4.6 mm, particle size 5 μm)
Flow rate 1 ml/min
Retention time 4.57±0.12 min
Detector PDA detector (Waters 2998)
Detection wavelength 268 nm
Injection volume 20 μL
Temperature Ambient temperature
Elution type Isocratic
Run time 14 min

Chrysin standard and Chrysin loaded SLNs equivalent to 10 mg was weighed accurately and transferred to 100 ml volumetric flask. A small volume of HPLC grade methanol was used to dissolve chrysin and further diluted up to mark with the same solvent to get a concentration of 100 µg/ml. The solution was filtered through 0.22 μm syringe filter and further diluted with methanol to yield a different concentration.

The developed HPLC method was validated for linearity, specificity, precision, accuracy and robustness as accordance to ICH guidelines [21]. Linearity was evaluated in the range of 0.2–10 µg/ml. Different concentrations of chrysin were prepared like 0.2, 0.3, 0.5, 0.8, 0.9, 1, 2, 4, 5, 6, 7 and 10 μg/ml. All the solutions were filtered with 0.22 µm pore size PVDF Whatman syringe filter prior to injection. Peak area versus concentration was subjected to linear regression analysis and the slope, intercept and correlation coefficient for the calibration was determined. Correlation coefficient is a statistical tool used to measure the degree or strength of this type of relationship. The linear regression data for the calibration curve with equation Y= 136492X+19282 (Where Y is the peak area (mAU) and C is the concentration (µg/ml) of the standard solution demonstrated a good linear relationship over the concentration range of 0.2 to 10 μg/ml. A good linearity was established by a correlation coefficient (R2) value of 0.9992±0.0001. A high correlation coefficient value (a value very close to 1.0) indicated a high level of linear relationship between the concentration of Chrysin and peak area [22].

Limits of detection and quantification were determined from the calibration curve using the following equations:

Where σ is the standard deviation of intercepts and S is the slope of the calibration curve [23].

The LOD and LOQ were found to be 0.05 and 0.14 μg/ml, respectively. This indicated that the developed method was more sensitive towards analyte as compared to previously reported methods [24].

The specificity of the method was ascertained by analysing the standard drug and sample. The peak for Chrysin in SLN samples was confirmed by comparing the Retention time (RT) values with that of the standard. The peak purity of Chrysin was assessed by comparing the spectra at three different levels, that is, peak start, peak apex, and peak end positions of the spectrum. The specificity is considered the first analytical validation step, it must be ensured that the components of the formulation such as excipients, does not interfere in the quantification of the drug. The specificity of the method was evaluated by comparing the chromatograms of Chrysin extracted from solid lipid nanoparticles with that of standard solution of Chrysin. The representative chromatogram of the Chrysin sample (fig. 2) showed the peak at approximately 4.6 min, which was in agreement with that obtained for the standard (fig. 1). No peaks at this retention time were observed in the chromatogram of the blank SLNs (fig. 3), which indicated no interference in the quantitative determination of Chrysin from the formulation.

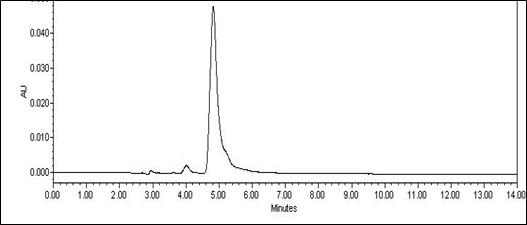

Fig. 2: Chromatogram of chrysin from solid lipid nanoparticles

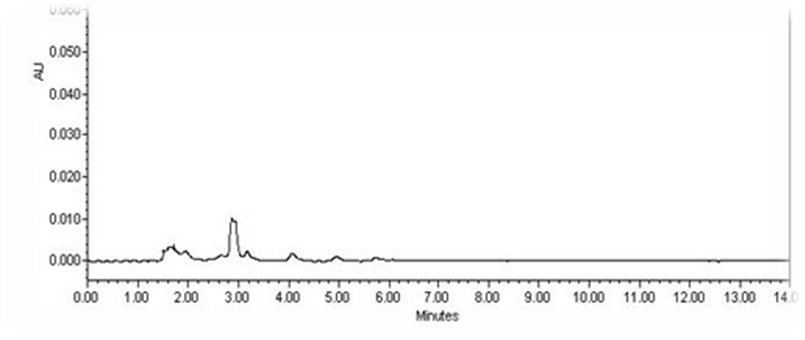

Fig. 3: Chromatogram of blank SLNs

The method was also validated in terms of repeatability (intra-day) and intermediate precision (inter-day) as per ICH guidelines [21]. Three concentrations of Chrysin (1, 6 and 10 μg/ml) were prepared in triplicate and analysed to evaluate the intra-day and inter-day precision. The precision results were reported as the standard deviation (SD) and the percent relative standard deviation (%RSD). The result of repeatability and intermediate precision were found within the limit (˂ 2 %RSD). The % RSD of intra-day precision and inter-day were found at three different concentration (1, 6 and 10µg/ml) less than 2%. These values (table 2) were well within the generally acceptable limit of not more than 2%. The result confirmed the good precision of the developed method of the assay [25]. The responses were calculated for each concentration as shown in table 2.

Table 2: Repeatability and intermediate precision of developed HPLC method

Concentration (μg/ml) Repeatability Intermediate precision
Peak area (µv*sec) %RSD Peak area (µv*sec) %RSD
1 158647.5±389.6 0.24 159412±456 0.28
6 849458±5566.3 0.66 846701±1667.36 0.19
10 1403101±12131.8 0.86 1282212±18252.5 1.45

Data given in mean±SD (n=3)

Accuracy was determined by recovery studies via standard addition method. Pre-analysed samples of the formulation of known quantity were spiked by 50%, 100% and 150% in standard chrysin solution (3μg/ml). Each solution of three different concentrations was prepared in triplicate and suitably diluted and analysed. Recovery studies can also be considered as suitable method to determine drug content precisely in formulated Chrysin loaded solid lipid nanoparticles. The accuracy was assessed by calculating the percent recovery and the % RSD of the mean concentration of the analyte. The detailed results are presented in table 3. The mean percent recovery of Chrysin at three different level (50%, 100% and 150%) from the samples were found to be 102.66%, 99.72% and 100.29% respectively, which indicated a good agreement between the experimental and theoretical values [24].

Robustness of the method was evaluated by deliberately introducing very small changes in the analytical methodology at a single concentration level. Robustness of the proposed method was determined in different ways, i.e., by making deliberate changes in the mobile phase ratio (±2%), flow rate (±0.1 ml/min.), and detection wavelength (±2 nm) of analysis. The percentage of relative standard deviation (%RSD) of the experiment was calculated to assess the robustness of the method [21]. Factors such as the tailing factor, theoretical plates and the capacity factor were taken into consideration for testing the system suitability and system performance.

The evaluation of robustness was based on the percent RSD values obtained using different parameters for the flow rate of the mobile phase. The method was robust concerning these alterations in chromatographic parameters (table 4). The retention time was found to be deviated less than 5% from the actual value of 4.59 to 4.68 min. Peak tailing was influenced from 1.34 to 1.47 which indicated a good and symmetrical peak. Theoretical plates were also found to be more than 9000 above to acceptable limit (˃2000). The results are presented in table 4.

Table 3: Recovery data for the accuracy of the HPLC method

Excess of chrysin added (%) Concentration of sample (μg/ml) Theoretical concentration of spiked sample (μg/ml) Concentration of spiked sample (μg/ml) Recovery (%) % RSD
50 3 4.50 4.61±0.04 102.66±0.92 0.90
100 3 6 5.98±0.11 99.72±1.84 1.84
150 3 7.50 7.52±0.13 100.29±1.75 1.75

Data given in mean±SD (n=3)

Table 4: Robustness data of the HPLC method

Parameter Study Condition Area (µv*sec) %RSD of area RT (min) % RSD of Rt
Original Used Level
Mobile phase ratio (Methanol: Water) 85:15 83:17 -1 1166825±2,650.66 0.23 4.68±0.30 6.42
85:15 0
87:13 +1
Flow rate (ml/min) 1.0 0.9 -1 1278527±1985.78 0.16 4.59±0.34 7.4
1.0 0
1.1 +1
Detection wavelength (nm) 268 266 -1 1318881±843.66 0.06 4.63±0.0 0.0
268 0
270 +1

Data given in mean±SD (n=3)

The HPLC-PDA system with C-18 reversed-phase column (250 × 4.6 mm, particle size 5 μm) was used in the present method for the quantification of Chrysin in solid lipid nanoparticles. Methanol and water in ratio of 85:15 (v/v) was selected and detection wavelength of 268 nm was used with a flow rate of 1 ml/min. The method was validated in terms of linearity, range, accuracy, precision, specificity, robustness, detection limit, and quantitation limit according to the guidelines of the International Conference on Harmonization (ICH) and fulfilled all of the requirements to be considered a reliable method. The detection limits and quantification limits were found to be 0.05 μg/ml and 0.14 μg/ml, respectively. The developed HPLC method can be successfully applied for the quantification of chrysin in other formulations including nanoparticles.
