Int J App Pharm, Vol 11, Issue 5, 2019, 200-209Original Article


FORMULATION AND EVALUATION OF LORAZEPAM ENCAPSULATED COLLAGEN/PECTIN BUCCAL PATCH

LAKSHMI V. S.□a, REVATHY B. MENON□a, KEERTHANA RAJU□a, AISWARYA M. U.□a, SREEJA C. NAIRa*

aDepartment of Pharmaceutics, Amrita School of Pharmacy, Amrita Vishwa Vidyapeetham, AIMS Health Science Campus, Kochi, India
Email: sreejacnair@aims.amrita.edu

Received: 29 May 2019, Revised and Accepted: 25 Jul 2019

ABSTRACT

Objective: To formulate and characterize Lorazepam loaded buccal patches using mucoadhesive, biodegradable, natural polymers-pectin (hydrophilic) and collagen (lipophilic) for treating epileptic seizures.

Methods: Lorazepam loaded buccal patches were prepared by solvent casting method and were subjected to various Physico-chemical evaluation parameters to find the optimized buccal patch. The in vitro drug release study and ex vivo permeation study was carried out. The stability study and histopathological study of optimized Lorazepam loaded buccal patch was also carried out.

Results: From in vitro drug release study, it was found that Lorazepam loaded buccal patch (B4) exhibited maximum drug release of 96.16 %±0.07 than other formulations at the end of 4 h, indicating an initial burst release followed by sustained release with release kinetics as Higuchi diffusion model. Based on the in vitro drug release, % drug content, % swelling index, folding endurance, B4 formulation was considered as optimised formulation and was further characterized. Ex vivo permeation study revealed that the cumulative amount of drug permeated from optimised Lorazepam loaded buccal patch (B4) was higher (3831.4±0.21µg/cm2) than marketed Midazolam buccal solution (1724±0.12 µg/cm2) and control drug solution (895.42±0.07 µg/cm2) with an enhancement ratio of 4.8. B4 formulation also showed a higher flux value (12.52±0.02µg/cm2/hr) compared to marketed formulation (5.732±0.01 µg/cm2) and control drug solution (2.563±0.03 µg/cm2) of P<0.05. The histopathological study using bovine buccal mucosa revealed that the B4 formulation is safe for buccal application. The stability study confirmed that B4 formulation is stable in both room and refrigeration conditions. Hence the formulated Lorazepam loaded buccal patch seems to be a promising carrier for the enhanced buccal delivery of Lorazepam in treating epileptic seizures.

Conclusion: The formulated Lorazepam loaded collagen/pectin buccal patch was found to be an efficient and stable route for the buccal delivery of Lorazepam in treating acute epileptic seizures which could be further explored scientifically.

Keywords: Lorazepam, Buccal patch, In vitro drug release, Steady-state flux, Epileptic seizures

© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2019v11i5.34366

INTRODUCTION

Epilepsy is a disorder of the central nervous system, precisely the brain, characterized by enduring predisposition and neuronal misfiring that ultimately results in epileptic seizures [1]. It causes the periodic loss of consciousness with abnormal electrical activity which either leads to convulsions or not leads to convulsions [2]. Epileptic seizure is an event of transient occurrence of signs and symptoms due to hypersynchronous activity of the neurons [3, 4]. Commonly used medications for these epileptic seizures include oral dosage forms and intravenous dosage forms. These were found to be effective for management of chronic the epileptic seizures but were not effective to treat acute and immediate seizures [5-6]. Even though there are different modes of drug delivery systems all these were not able to save the golden hour, the time from the onset of rapid seizure to the time the person reaches the hospital [7]. Buccal drug delivery systems were found to produce this rapid onset of action as this region is immensely supplied with blood vessels and the drug directly reaches the systemic circulation surpassing the bypass effect. Among them the most effective one was found to buccal/mucosal patches incorporated with the drug [8-9]. The drug too should be such that it is adequately lipophilic, should possess high molecular weight, should be of low size and above all it should have rapid onset of action. All the benzodiazepenes category drugs like Midazolam, Diazepam were found to be effective all these exhibited several serious side effects especially sedation [10, 11]. Therefore the aim of our study was to develop a drug delivery system made of natural polymers only and that incorporates a rapid-acting antiepileptic drug to resolve all these disadvantages and limitations of both the drug delivery system and the drug, effective for the management of acute seizures [12-15].

MATERIALS AND METHODS

Materials and excipients

Lake Chemicals Private Limited, Bangalore gifted us with Lorazeapm API. Pectin was obtained from CK’S products, Kochi. Collagen was obtained from Nitta Gelatin India ltd, Kochi. Olive oil was obtained from Thomson trading agencies, Kochi. All the chemicals used in the experiment were of analytical grade [16, 17].

Preformulation studies

Solubility

The solubility of drug was checked in different solvents such as methanol, distilled water, propanol, acetone, phosphate buffer saline (PBS) pH 6.8 [18].

Melting point

The melting point of the obtained drug sample indicates the purity of the sample. The melting point will be reduced in the presence of very few quantities of impurity. The melting point was found using open capillary method [19].

Partition coefficient

Partition coefficient of lorazepam in n-octanol was found out. The formed aqueous layer and organic phase were separated and the distribution of solute in both phase were determined by UV spectroscopy at 229 nm [20-23].

Drug compatibility with excipients

Excipients are added to improve the elegance of formulation, assist the progress of drug administration and promote bioavailability of drug for consistent release and protection from degradation. The excipients should be tentatively elected in order to get and productive dosage form [24-26].

Fourier Transform Infra-Red (FTIR) spectroscopy study

By FTIR spectrophotometer using KBr pellet method, FTIR spectra of drug and excipients were obtained to ascertain the compatibility between drug (lorazepam API) and selected polymer [27].

Formulation of Lorazepam loaded collagen/pectin buccal patches

In this study, lorazeapm loaded buccal patches were prepared by solvent casting method using a blend of biodegradable natural polymers like pectin (hydrophilic) and collagen (lipophilic) with olive oil as permeation enhancer and plasticizer [28]. Patches were prepared with a concentration of collagen ranging from 0.25-1.25%, the percentage of pectin was kept constant at 1.5% after optimization and used 0.05 ml of olive oil. The weighed quantities of pectin and collagens were dissolved separately in beakers containing 10 ml distilled water [29-31]. 20 mg (2%) of drug was dissolved with olive oil and added small quantity of previously prepared collagen solution with proper continuous stirring. After complete dissolution of drug, remaining collagen solution was added followed by addition of pectin solution drop by drop and shaking after each drop to get a homogenous mixture. This was kept in a magnetic stirrer for 30 min at 600rpm. Then the mixture was poured in a Petri dish of size 5×3 cm2 initially coated with glycerine to avoid sticking of the patch [32-35]. The Petri dish was placed in hot air oven at temperature 40-45 °C for 24 h to get uniformly dried buccal patches. The formulation composition of lorazepam loaded buccal patches was shown in table 1.

Table 1: Formulation composition of Lorazeapam loaded collagen/pectin buccal patches

S. No. Formulation code Lorazepam (%) Pectin (%) Collagen (%) Olive oil (%) Distilled water(ml)
1. B1 0.4 1.5 1.25 0.005 qs.20
2. B2 0.4 1.5 1 0.005 qs.20
3. B3 0.4 1.5 0.75 0.005 qs.20
4. B4 0.4 1.5 0.5 0.005 qs.20
5. B5 0.4 1.5 0.25 0.005 qs.20

Preparation of backing membrane

PVA-aluminium foil backing membrane was prepared by solvent casting film technique. It was casted by pouring 4% w/v aqueous solution of PVA on aluminum foil in Petri dishes at 42 °C and left for 10hours to obtain dry film of drug impermeable backing membrane. The patches of suitable size were then cut and stored under suitable condition [36].

Physicochemical evaluation of prepared Lorazepam loaded buccal patches

The Physico-chemical evaluation studies of prepared lorazepam loaded patches were described below.

Thickness uniformity of the patches

Micrometer screw gauge was used to measure the thickness of three patches of 2×2 cm2 size of formulation at three different places and mean value was determined [37].

Uniformity of weight of the patches

Digital balance was used to determine the weight of three patches of every formulation of size 2×2 cm2 and individual weight was noted and calculated the average weight [38].

Folding endurance

Determination of folding endurance is by folding strip of patch of size 2×2 cm2 at the same place till it broke. The number of time the patch could be folded at the same place without breaking gave the value of folding endurance [39].

Surface pH determination

Swelling index was determined by allowing three patches of each formulation of size 2×2 cm2 to swell by keeping in contact with 1 ml of distilled water for 1 hour at room temperature [40].

Percentage swelling index

Three patches of each formulation were cut into 2×2 cm2and weighed initially and kept immersed in 50 ml PBS pH 6.8. Taken out and weighed at 5, 10, 30 and 60 min time intervals till a constant weight was obtained [41].

Percentage of moisture absorption

Physical stability of the patches was evaluated in high humidity conditions. Accurately weighed 3 patches were kept in a desicator containing aluminium chloride solution for 3 d. The percentage of moisture content was determined by reweighing the patches [42].

Drug content uniformity

The drug-loaded patches of known weight 2×2 mm dimension from 3 different areas were dissolved in 10 ml of methanol and shaken until it dissolved. At 229 nm the absorbance of the diluted drug solution was measured. The polymer solution without drug served as blank [43].

In vitro mucoadhesion study

In vitro mucoadhesion time

Evaluation of Mucoadhesion properties of lorazepam loaded buccal patches was carried out by performing in vitro mucoadhesion study. Detachment time of lorazepam loaded buccal patches was determined. Initially, bovine buccal mucosa was kept in PBS pH 6.8 and stored in freezer and room temperature. Fixing of buccal mucosa was in such a way that mucosal surface placed in glass slide should face towards the the lorazeapm loaded buccal patch of 2×2 cm2 of each formulation. The above mucosa was then placed in the glass beaker containing 100 ml of PBS pH 6.8 and was magnetically stirred at 100 rpm. In vitro mucoadhesion time was considered as time required for erosion of Lorazepam loaded buccal patches visually [44].

In vitro mucoadhesive strength

Specialised chemical balance helps to determine the force or stress used for the detachment of per cm square of area of bovine buccal mucosa in which the lorazeapm loaded buccal patches placed in between mucosae. The buccal mucosae were arranged in such a way that on a clear glass surface of one side of balance a section of buccal mucosa was tied with help of a rubber band and another mucosa placed in inverted position to that of first so that both mucosal surfaces face each other. Each formulation of lorazepam loaded buccal patch of size 2×2 cm2 was kept in between the two mucosae. Measurement of different formulation was noted from different mucosae. Mucoadhesive strength was determined from detachment of two mucosae by increasing the weight on the other side of pan [45].

In vitro drug release study

The in vitro drug release studies of different formulations of lorazepam loaded buccal patches were done by static dissolution method. The apparatus was set up by introducing an open end tube aligned vertically to a beaker containing 50 ml of PBS pH 6.8 which acts as receptor compartment. The open end tube was tied with a cellophane membrane (molecular weight 12000-14000 D) on one side which resembles the membrane acting as a barrier within the body, so that only the tip touches the surface of buffer solution. The reaction conditions were standardised throughout the study. The receptor compartment was filled with 50 ml of PBS 6.8 and the donor compartment with 2 cm2 of lorazepam loaded buccal patch. The beaker was placed on a magnetic stirrer for a definite study time and 1 ml of samples was withdrawn at regular intervals. For each withdrawal, 1 ml of fresh PBS pH 6.8 was replaced into the beaker and the collected samples were diluted using the same. The percentage of drug released in the receptor medium was spectrometrically analysed using UV visible spectrophotometer at 229 nm. All the analysis was done triplicate [46].

Kinetic models of in vitro drug release study

The data obtained from in vitro release studies of lorazepam buccal patches were fitted to various kinetic models such as Zero order, First order, Higuchi plot and Koresmeyer-peppas plot to identify the model of drug release of lorazepam buccal patches.

Ex vivo permeation study

Buccal mucosa preparation

The bovine buccal mucosal region was collected from a local slaughter house at morning and the buccal mucosa was cleaned with normal saline and used for the study by noon. The underlying fat deposits were initially excised off uniformly and the mucosal membrane was separated out. The buccal mucosal layer retaining all the layers was allowed to equilibrate for one hour in receptor buffer to retain its properties as live tissue. Later on the mucosa was stored in containers partly filled with normal saline solution until further use [47].

Preparation of set up in franz diffusion cell

The ex vivo permeation comparison study of optimised lorazepam loaded buccal patch (B4), midazolam buccal solution (marketed formulation) and control drug solution (drug in buffer pH 6.8 were done in franz diffusion cell having a donar and receptor compartment in it. The receptor compartment was loaded in PBS pH 6.8 (7 ml) and bovine buccal mucosa of size 2.54 cm2 was mounted between the donor and receptor compartments. The set up was maintained under sink condition throughout the study period for 6 h at a constant temperature of 37±1 °C. A measured length of 2 cm2 of optimised (B4) was placed on the donor compartment and ex vivo permeation study was carried out. At definite intervals, 0.2 ml of sample was withdrawn from donor compartment with long needles and replaced with fresh 0.2 ml of PBS pH 6.8. The study was done for 6 h and same experiment was repeated for 5 mg/ml of midazolam buccal solution (marketed formulation) and 4 mg/ml of control drug solution (drug in PBS pH 6.8) was done. After the dilution of samples suitably, samples are spectrophotometrically analysed by UV-VIS spectrophotometer at 229 nm and cumulative amount of drug permeated per cm2 were estimated and statistical interpretation using student T test was performed [48].

Steady-state flux determination

The data obtained from ex vivo permeation were used to determine the permeation parameters like steady-state flux (J), enhancement ratio and statistical analysis by Student’s t-test was performed.

Histopathological study

The buccal mucosal membrane was isolated and prepared in a similar to that of ex vivo permeation study of lorazepam loaded buccal patch. The treated bovine buccal mucosa was subjected to 6h of ex vivo permeation study and histopathological examination were done to identify any visual damages occurring to the normal mucosal surface after treatment with the developed lorazepam loaded buccal patch [49].

Treatment of bovine buccal mucosa for histopathological study

Histopathological study was done for three formulations. Previously treated bovine buccal mucosa was subjected to 5 h of ex vivo permeation study of optimised lorazepam loaded buccal patch (B4), midazolam buccal solution (marketed formulation), control drug solution (drug in PBS pH 6.8) and was compared with that of normal buccal mucosa which serves as normal control. The tissue taken after permeation study was initially fixed in 10% formalin solution. The preserved live tissue were equally cut into 5 µm containing sections and further stained with hematoxylin and eosin and analysed using light microscope [50].

Fourier transform infrared spectroscopy

The FTIR spectrum of optimized lorazepam loaded buccal patch was compared with FTIR spectra of drug and excipients to check the compatibility among them [51].

Scanning electron microscopy (SEM)

The SEM image of optimised lorazepam loaded buccal patch (B4) was analysed by powdering the sample and further diluting with distilled water to examine under SEM (Joel jsm-64901a analytic SE) [52].

Stability study

The optimised lorazepam loaded buccal patch (B4) was stored for 45 d and was subjected to various stability studies within refrigerator (4±2 °C) and room temperature (29±2 °C) in triplicate. The samples were taken at frequent intervals and assessed for drug content release at various time intervals were calculated [53].

RESULTS AND DISCUSSION

Preformulation studies

Solubility of Lorazepam

Lorazepam is soluble in methanol, propanol and phosphate buffer saline (PBS pH 6.8) and is slightly soluble in distilled water and acetone.

Melting point

The melting point of the drug was determined by capillary method and was found to be 192-194 °C and was in accordance with the monograph IP.

Partition coefficient

Determination of Partition coefficient of the drug was carried out and was found to be 3.75. It shows that the drug is practically highly lipophilic and insoluble in water [54].

Fourier transform infrared (FTIR) spectroscopy

The FTIR spectra of the drug Lorazepam and excipients, collagen and pectin were determined.

In FTIR spectra of lorazepam a strong peak at 3549 cm-1 shows the presence of the hydroxy group. The most intense band present at 1739 cm-1 is due to the presence of a carbonyl group (C=O). A peak at 673 cm-1 indicated presence of aromatic ring fig. 1A. FTIR spectra of collagen showed strong peak at 1650 cm-1. It indicated the presence of amide I carbonyl stretching. Amide II stretching is also present at 1560 cm−1. Three weak bonds are also present that represents amide III at 1245 cm-1 fig. 1B.

FTIR spectra of pectin showed a broader peak at 3756 cm-1 indicated the presence of hydroxyl functional group. A characteristic peak at 1161 cm-1 indicated the presence of C-O aluminum group fig. 1C.

FTIR spectrum of optimized Lorazepam loaded buccal patch was determined by KBr pellet method. FTIR spectra of optimized Lorazepam loaded buccal patch showed a broad peak at 3612 cm-1 indicated the presence of a hydroxy-functional group of Lorazepam, collagen, and pectin. A peak at 1691 cm-1 indicates the presence of ketone (carbonyl) functional group of Lorazepam. A peak at 1151 cm-1 indicates the presence of C–O group of pectin fig. 1D.

From the peaks, it was found that same peaks were retained as that of the peaks of Lorazepam and the excipients (collagen and pectin). No additional peaks were obtained. This confirmed the compatibility between the drug Lorazepam and the excipients.

Formulation of lorazepam loaded buccal patch

In this study, Lorazepam loaded buccal patches were prepared by solvent casting method using natural biodegradable polymers like collagen and pectin with olive oil as natural permeation enhancer and plasticizer. The concentration of olive oil was optimized. The patches were prepared with 0.25-1.25% and pectin 1.5%. The percentage of pectin was kept constant at 1.5%. As the concentration of collagen increased to 1.25 % the patches became harder and brittle in nature. When the patches were made with 0.50 to 1% collagen and 1.5% pectin, the patches possessed good flexibility and were easily removable from the Petri dish. But when the concentration of collagen was reduced to 0.25%, the patch was difficult to remove from the Petri dish and was brittle in nature. All the patches prepared were translucent in nature.

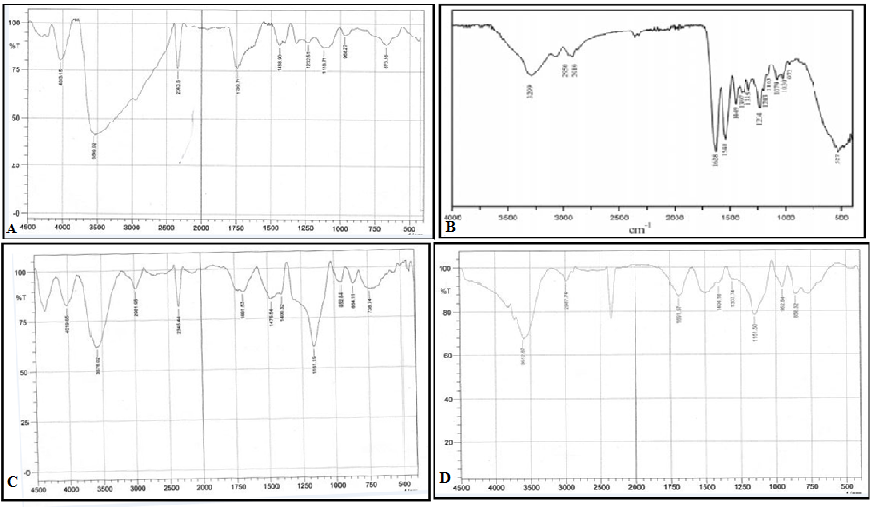

Fig. 1: A) FTIR spectrum of Lorazepam API, B) FTIR spectrum of collagen, C) FTIR spectrum of pectin, D) FTIR spectrum of optimized lorazepam loaded buccal patch (B4)

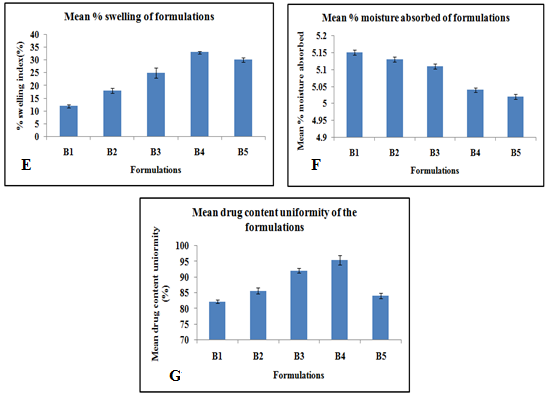

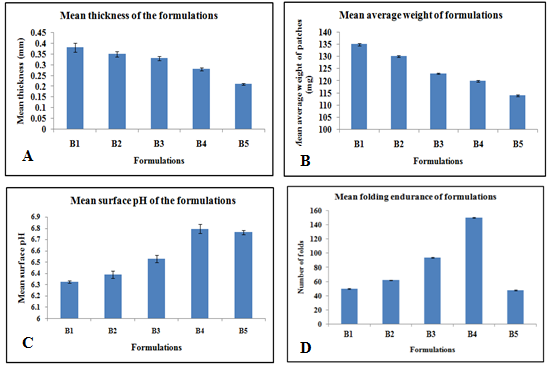

Fig. 2: A) Mean thickness B) Mean average weight, C) Mean surface pH, D) mean folding endurance, E) Mean % swelling, F) Mean % moisture absorbed, G) Mean drug content uniformity, (Values are expressed as mean±standard deviation, n=3)

Physico-chemical evaluation of prepared lorazepam loaded buccal patches

Thickness uniformity of patches

From the thickness studies it was found that the mean thickness of the patches increases with increase in the concentration of the collagen polymer from 0.25-1.25%, shown in fig. 2(a). The thickness of the patches was found to be satisfactory as the area of administration is the buccal region [54].

Uniformity of weight of patches

The average weight of the patches varied from 114 mg±0.70 to 130 mg±0.71 for B1-B5 as given in fig. 2(b).

Folding endurance

The folding endurance study confirmed that the patches did not undergo cracking even after it was folded for more than 100 times. The folding endurance values did not change much when a comparison was made between bare patches and the drug-loaded patches in fig. 2 (c) [55].

Surface pH determination

The surface pH of all the formulations B1-B5 was found to in the range 6.32±0.035-6.79±0.007 (fig. 2 (d)) indicating that the formulations were non-irritant to buccal mucosa [56].

Percentage swelling index

The swelling index of the patches B1-B5 ranged from 12 %±0.70 to 30 %±2.12 shown in fig. 2 (e). As the concentration of collagen increased more than an optimum concentration, the swelling property decreased. B4 formulation got maximum swelling index. The olive oil (plasticizer) also enhanced the swelling properties of the formulations [57].

Percentage moisture absorption

The percentage moisture absorption of Lorazepam encapsulated patch was found to be between 5.15 %±0.07% to 5.02 %±0.14 as shown in fig. 2 (f). The lesser the percentage moisture absorption, the more the patches will be stable at humid conditions [58].

Drug content uniformity

All the formulations exhibited good drug content. Among them, B4 exhibited the highest drug content with 95.49±0.071% as shown in fig. 2 (g) [59].

In vitro mucoadhesion studies

In vitro mucoadhesion time

Mucoadhesion time taken for the Lorazepam loaded buccal patches to detach from the bovine buccal mucosa was noted. The mucoadhesion time taken for B4 formulation was found to be satisfactory when an optimum concentration of collagen was used, as shown in fig. 3(a). Mucoadhesion property of the patch is imparted by the presence of natural polymers like collagen and pectin. A higher value of mucoadhesion of optimized Lorazepam loaded buccal patch indicates that it can be attached to the bovine buccal mucosa for longer period of time with less risk of salivary clearance and provided a sustained effect for few hours[60].

In vitro mucoadhesion strength

Mucoadhesion study was carried out for a longer time at the site of absorption to ensure that the formulation have the ability to adhere to the buccal mucosal membrane. The mucoadhesive character was exhibited due to the presence the two natural polymers collagen and pectin. The mucoadhesive strength of the optimized Lorazepam buccal patch (B4) was found to be optimum to produce its action shown in fig. 3(b).

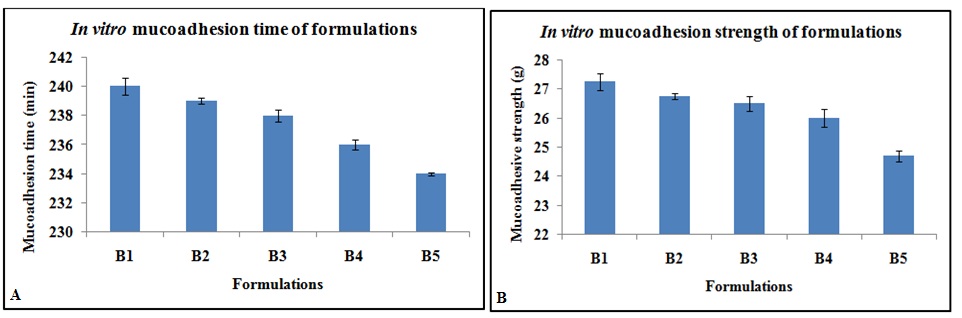

Fig. 3: A) In vitro mucoadhesion time, B) In vitro mucoadhesion strength, (Values are expressed as mean±standard deviation, n=3)

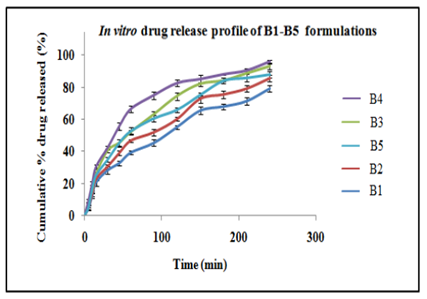

Fig. 4: In vitro drug release of prepared B1-B5 formulations, (Values are expressed as mean±standard deviation, n=3)

In vitro drug release studies

The in vitro drug release study gave an idea regarding the amount of the drug that is available for absorption into the systemic circulation. The release profile of drug predicts the in vivo behavior of the drug in the circulation. The pH of the buccal fluid lies between 6.5-6.8. So the release studies were carried out using phosphate buffer solution of 6.8. The cumulative amount of drug released from each formulation v/s time curve was plotted. The cumulative percentage of drug released for all formulation varied from 79.24±0.14% to 96.16±0.07 % at the end of 4 h. After 4 h, the patch lost its stability and integrity and was not suitable for further release study. The B4 formulation showed a maximum release of 96.16±0.07 % when compared to other formulations, shown in fig. 4. The drug leached out from the surface of the patch into the phosphate buffer solution [61].

Kinetic model of in vitro drug release study

The drug release profile of optimized Lorazepam loaded collagen/pectin buccal patch was attributed to different kinetic models like zero order, first order, Higuchi’s diffusion model and Korsmeyer peppas plot to interpret drug release by kinetic modeling. The release kinetics of the drug Lorazepam was found to be Zero-order and was best fitted with Higuchi diffusion model with the highest regression coefficient value, R2= 0.978 (fig. 5) [62].

Table 2: In vitro release model fitting data of optimized Lorazepam loaded buccal patch (B4)

Zero order release plot First order release plot Higuchi plot Koresmeyer peppas plot Best fitted model
R2 R2 R2 n R2
0.978 0.758 0.978 6.375 0.909

Ex vivo permeation comparison study and steady-state flux determination

For the optimized Lorazepam loaded buccal patch (B4) ex vivo permeation study was performed in franz diffusion cell using buccal mucosa of bovine. Each buccal mucosa of bovine resembled the human buccal mucosa hence the ex vivo studies were done using bovine buccal mucosa. Each bovine buccal mucosa was treated with optimized Lorazepam loaded buccal patch (B4), Midazolam buccal solution (marketed formulation) and control drug solution (drug in PBS pH 6.8). At a fixed time intervals from the receptor compartment 0.2 ml samples were withdrawn. These were analyzed and the cumulative drug permeated was plotted against time. The cumulative amount of drug permeated from the optimized Lorazepam loaded buccal patch (B4) was found to be 3831.19 µg/cm2 at the end of 4 h, from Midazolam buccal solution (marketed formulation) was found to be 1724.12 µg/cm2 and from control drug solution (drug in PBS pH 6.8) was found to be 895.43 µg/cm2 at the end of 4 h. This means that the amount of drug permeated from optimized Lorazepam loaded buccal patch (B4) formulation was higher compared to other formulation with an enhancement ratio of 4.88 (fig. 6). Similarly the enhancement ratio of Midazolam buccal solution (marketed formulation) was found to be 2.23 [63].

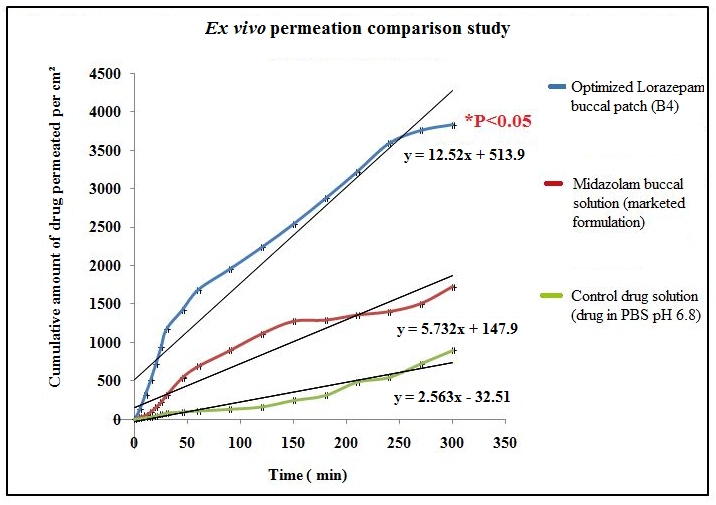

Fig. 6: Ex vivo permeation comparison study of optimized Lorazepam loaded buccal patch (B4) and the Midazolam buccal solution (marketed formulation) with control drug solution (drug in PBS pH 6.8), (Values are expressed as mean±standard deviation, n=3)

Table 3: Ex vivo permeation study of optimized Lorazepam loaded buccal patch (B4), Midazoalm buccal solution (marketed formulation), and control drug solution (drug in PBS pH 6.8)

S. No. Parameters Optimized Lorazepam loaded buccal patch (B4) Midazolam buccal solution (marketed formulation) Control drug solution (drug in PBS pH 6.8)
1 Steady state flux–J (µg/cm²/h) 12.52±0.02 5.732±0.01 2.563±0.03
2 Enhancement ratio 4.88 2.23 -

(Values are expressed as mean±standard deviation, n=3)

From the data obtained from the ex vivo permeation study, the slope gives the steady-state flux of the three formulations as shown in table 3.

The steady-state flux value was higher for the optimized Lorazepam loaded buccal patch 12.52±0.02 µg/cm²/hr than the Midazolam buccal solution (marketed formulation) 5.732±0.01 μg/cm²/hr and the control drug solution (drug in PBS pH 6.8) 2.563±0.03 μg/cm²/h.

The enhancement ratio was obtained by the ratio of the steady-state flux values optimized Lorazepam loaded the buccal patch and the Midazolam buccal solution (marketed formulation) with that of the control drug solution [63, 64]. The enhancement ratio of the optimized Lorazepam loaded buccal patch was found to be 4.88 and that of Midazolam buccal solution (marketed formulation) was found to be 2.23 (fig. 7).

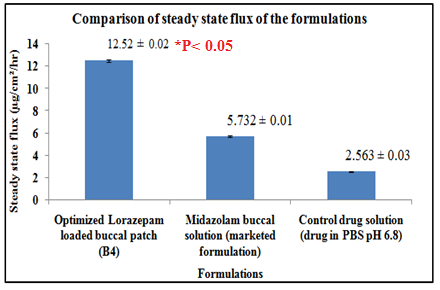

Fig. 7: Comparison of the steady state flux values of optimized Lorazepam loaded buccal patch, the midazolam buccal solution (marketed formulation) and the control drug solution

Statistical analysis by student’s t-test

The statistical analysis by Student’s t-test were performed for the steady-state flux values of the optimized Lorazepam loaded buccal patch, the Midazolam buccal solution (marketed formulation) and the control drug solution (drug in PS pH 6.8). The statistical analysis by Student’s t-test revealed that there was significant difference in the steady-state flux value of the optimized Lorazepam loaded buccal patch (B4) and the Midazolam buccal solution (marketed formulation) with that of the control drug solution (drug in PBS pH 6.8), where (P<0.05) thus very significant. Hence the difference was statistically significant [65].

Histopathological studies

The bovine buccal mucosa, which was subjected to ex vivo permeation studies were assessed for histopathological studies. The fig. 8[B, C, D] showed that there were no significant changes observed in the histological pattern of the mucosa treated with optimized Lorazepam loaded buccal patch, Midazolam buccal solution (marketed formulation) and control drug solution (Lorazepam in PBS pH 6.8) as compared with the normal buccal mucosa shown in fig. 8 [A]. Hence, Lorazepam loaded buccal patch did not cause any irritation and was safe for the buccal application.

Fig. 8: Histopathological studies of the buccal mucosa A) Normal buccal mucosa, B) Buccal mucosa with optimized Lorazepam loaded buccal patch (B4), C) Buccal mucosa treated with Midazolam buccal solution (marketed formulation), D) Buccal mucosa treated with control solution (Lorazepam in PBS pH 6.8)

Scanning electron microscopy (SEM)

The SEM study was carried out for optimized Lorazepam loaded buccal patch (B4) in order to examine the morphology of the buccal patch. The surface morphology of Lorazepam incorporated collagen/pecin buccal patch, indicates that surface is smooth and drug is found dispersed within the matrix shown im fig. 9 [66].

Stability study

The stability study of the optimized Lorazepam loaded buccal patch (B4) was carried out for 45 d at room temperature (30±2 °C) and at refrigerator temperature (4±2 °C) and its physical changes like colour, flexibility, texture, drug content and % drug release was estimated at an interval of one week [67]. The physical appearance of the patch was retained that it did not show any change on comparing with the freshly prepared patch at refrigeration and room temperature. The drug content and cumulative percentage drug release were determined for the patches at 7th, 15th, 30th, 45th day (fig. 10 and fig. 11). The results of the study indicated that there were no significant changes observed in room temperature and refrigerated temperature. The stability study revealed that the optimized Lorazepam loaded buccal patch B4 of 1% collagen concentration remained stable at room temperature and refrigerated temperature [68].

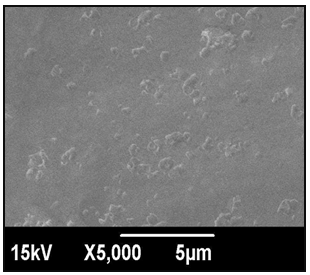

Fig. 9: SEM image of Lorazepam incorporated buccal patch

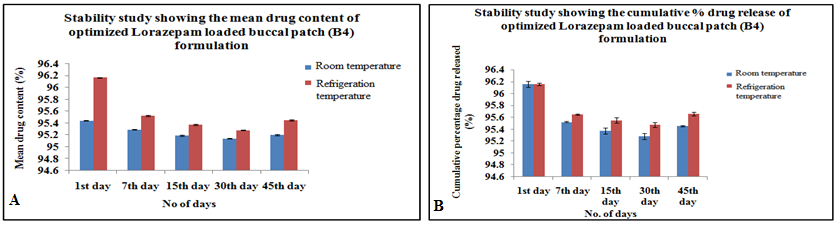

Fig. 11: A) Stability data showing the mean drug content of optimized Lorazepam loaded buccal patch (B4) formulation, B) Stability data showing the cumulative % drug release of optimized Lorazepam loaded bucccal patch (B4) formulation, (values are expressed as mean±Standard deviation, n=3)

CONCLUSION

Epilepsy is a chronic neurologic disorder that causes unprovoked recurrent seizures. Even though there have been different modes of drug delivery systems developed to treat the epileptic seizures, none of them proved to be fully effective. Buccal patches, as a potential drug delivery systems, gained relevance in the pharmaceutical area as a novel, patient-friendly, convenient and excellent forms of accessible products. Lorazepam loaded buccal patches were prepared by solvent casting method using a blend of biodegradable, biocompatible natural polymers like pectin (hydrophilic) and collagen (lipophilic) with olive oil as permeation enhancer and plasticizer. The prepared unidirectional buccal patches of Lorazepam provided a maximum drug release within specified mucoadhesion period and possessed a higher permeation coefficient/flux and enhancement ratio as compared to the Midazolam buccal solution (marketed formulation) and control drug solution (drug in PBS pH 6.8). Thus the formulated Lorazepam loaded collagen/pectin buccal patch was found to be an efficient and stable route for the buccal delivery of Lorazepam in treating acute epileptic seizures which could be further explored scientifically.
