Int J App Pharm, Vol 12, Issue 3, 2020, 1-7Review Article

THE RECENT UPDATE OF DEOXYARBUTIN: A SKIN DEPIGMENTATION AGENT WITH TYROSINASE INHIBITION TARGETING

MUCHTARIDI MUCHTARIDI1*, MENTARI LUTHFIKA DEWI1

1Department of Pharmaceutical Analysis and Medicinal Chemistry, Faculty of Pharmacy, Jl, Universitas Padjadjaran, Jl KM 21.5 Bandung Sumedang, Jatinangor, 45363, West Java
Email: muchtaridi@unpad.ac.id

Received: 28 Jan 2020, Revised and Accepted: 29 Feb 2020

ABSTRACT

Melanin is produced through the process of melanogenesis, which serves to protect the skin from the damaging effects of UV radiation. Abnormal accumulation of melanin will aesthetically disturb even interfere with health. One of the clinical manifestations of abnormal accumulation of melanin is the incidence of melasma. Some of the tyrosinase enzyme inhibitor agents most widely used as Hydroquinone, Kojic acid and Arbutin do not give satisfactory results and cause serious side effects. Hydroquinone is known to cause ochronosis exogenous and cytotoxic. Kojic acid is known to cause allergies and mutagenic, while arbutinisis is known to have cytotoxic properties lower than hydroquinone, but less satisfactory depigmentation activity. There was a compound that has been synthesized by removing the hydroxy group of arbutin, known as deoxyarbutin (4-[Tetrahydro-2H-Pyrans-2-yl) oxy] phenol). Deoxyarbutin (dA) shows Ki 10-fold is lower than hydroquinone and 350-fold is lower than arbutin. IC50dA is 17.5+0.5 µmol/l, while the IC50 hydroquinone is 73.7+9.1 µmol/l. In terms of security, dA indicates that cell viability is 95% higher than hydroquinone. However, dA is thermolabile and photolabile. Several studies have shown satisfactory results to improve the stability of dA, that these compounds are considerable potential for further development as a depigmentation agent. The aim of this review is to describe how the potency of dA as a tyrosinase inhibitor interferes melanogenesis process through the latest depigmentation agent, its safety, efficacy and stability.

Keywords: Melanin, Deoxyarbutin, Tyrosinase inhibitor, Skin depigmenting agent

© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2020v12i3.36957. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Melanin is a biopolymer synthesized by the melanocyte cells in the cell organelles called melanosomes in epidermal layers of the skin [1-3]. Mature melanosomes are then transferred via intermediary dendrites into ceratine, resulting in the dark-colored coating on the corneum layer of skin epidermis [4-7]. Naturally, melanin serves as a photoprotective agent that protects DNA from damage due to UV radiation [8-10].

Melanin synthesized process is a combination of enzymatic catalysis and chemical reactions with tyrosinase [11-14] as the major enzyme. Moreover, tyrosinase can cause enzymatic browning in raw fruits, vegetables, and beverages.

This enzyme plays a critical role in changing substrates in the form of L-tyrosine into L-dihydroxyphenylalanine (L-DOPA) via hydroxylation reaction, and the change of L-DOPA becomes dopaquinone through oxidation [15, 16]. This quinone compound is highly reactive and can polymerize spontaneously that at the end of the reaction it forms the melanin compounds. The formation of melanin is responsible for skin pigmentation condition that would interfere with the aesthetics of human [17-19]. Moreover, hyperpigmentation is caused by the accumulation of excess melanin production. It can cause quite serious skin problems, such as melasma, post-inflammatory melanoderma, solar lentigo, ochronosis exogenous, and dermatosis papu-losanigra [20-23]. Inhibition of the enzymatic activity of tyrosinase, both competitive and non-competitive, is widely used as a key strategy in the development of depigmentation agent, either as cosmetics or the treatment of hyperpigmentation problems [24-27].

Some of the most used tyrosinase enzyme inhibitor agents are hydroquinone [11, 28, 29], kojic acid [30-33], and arbutin [34-38]. Hydroquinone is a tyrosinase inhibitor agent that has been used for a long time and become the gold standard in the treatment of hyperpigmentation in the USA [39, 40]. However, the use of hydroquinone in cosmetic preparations has been banned by FDA, and only allowed for the use of physician prescription. The FDA requested the use of hydroquinone is not exceeded more than 1.5–2.0% in skin cosmetics product. This is due to the effect that hydroquinone can cause ochronosis exogenous and cytotoxic in the presence of reactive metabolites, such as, hydroxyl benzoquinone and p-benzoquinone [41-45].

Natural product that contains stilbenes, uses tyrosinase inhibitors as skin whitening agents [46]. Sapindus mukorossi that grows in tropical and sub-tropical regions of Asia has weak bioactivity against tyronase with IC50 values of 17.8% and 12.3% at 10 μg/ml [47]. Curcumin-Mn and Zn has a potent as anti-tyrosinase capacity as a depigmentation agent [48] that can be studied further.

In the previous study, Celastrus paniculatus seed oil exhibited superior tyrosinase inhibition activity than the standard ascorbic acid, kojic acid and arbutin [49]. Senol et al. found natural anti-tyronase from the aerial parts of 33 Turkish Scutellaria species. However, the plant’s activity is moderate, ranged from 39.57% to 51.58% inhibition [50]. The plants from common tropical plant species in the Indian subcontinent and Southeast Asia have been observed as a skin whitening treatment, and it has sub-nano molar activity. However, the IC50 is 60 times higher than kojic acid [51]. Tyrosinase inhibitory activity also is shown by the enzymatic hydrolysates of the collagen that obtained from the skin of squid (Todarodespacificus) [52].

Hydroquinone has very effective to inhibit melanogenesis thus can be used as a depigmentation agent. However, metabolite results from oxidation of hydroquinone by tryrosinase cause seriously adverse effects. DNA is damaged by hydroquinone as showed in studies against rodent models [53]. Furthermore, hydroquinone is banned in European Union, US FDA, and also in Indonesia for the cosmetic active ingredient.

Some derivatives of hydroquinone has become much better than hydroquinone due to the decreasing its cytotoxycity, such us arbutin derivatives [54].

Kojic acid is an effective tyrosinase inhibitor agent both in vitro and in vivo [55-58]. However, these compounds have been banned in Japan for causing allergies and mutagenic [59]. Arbutin has been traditionally used by Japanese people to treat skin pigmentation disorders [60]. It is known to be an effective agent to address skin hyperpigmentation disorders. Its cytotoxic properties against melanocyte cells are lower than hydroquinone, but depigmentation activity of arbutin is still far below hydroquinone depigmenting activity [61, 62].

In 2005, Boissy and his team synthesized a tyrosinase inhibitor agent and used arbutin as the parent compound, dA (4-[Tetrahydro-2H-Pyrans-2-yl) oxy] phenol), by removing the hydroxy group on the compound of arbutin. This compound is proved to be more effective than other tyrosinase agent inhibitors and more secure [63, 64]. There are known two form of arbutin, α-and β-arbutin. The both form of arbutin is hydroxylated by oxytyrosinase in ortho position of the catechol group thus to give rise to a complex formed by met-tyrosinase with ydroxylated [37]. β-arbutin is naturally compound from Ericaceae and Saxi fragaceae [65]. On the other hand, α-arbutin is synthesized from hydorquinane using enzymatic or chemical reaction [66, 67]. In many study, α and β-arbutin has inhibit the formation melanin in B16 cell induced by α-melanocyte stimulating hormone (α-MSH) and inhibit tyronasinase activity [68]. Sugimoto et al. [62] explained that the α-arbutin has an effective and safe to use as skin lightening that decrease the cellular tyrosinase activity of HMV-II (Human Melanoma cell). The molecular mechanism of α-arbutin against tyrosinase activity is studied by Gilibro et al. [69]. However, arbutin has some side effect to human skin in some cases. Arbutin cause allergic [70-72]. There are cases of allergic contact dermatitis caused by arbutin from Japan patients [71, 73].

The other derivative of hydroquinone is deoxyarbutin (dA) that has more effective and safe clinically than arbutin to therapy hyperpigmentation. dA is second generation derivatives of hydroquinone [74]. dA is less cytotoxic than the others hydroquinone derivatives. This review summarized melanogenesis process and the role of tyrosinase inhibitor through the latest effective and safety compound, dA [75].

The arrangement is automatically carried out by a substrate-induced melanogenic pathway (L-tyrosine and/or L-DOP). This arrangement will also regulate the function of melanocytes by structural or regulatory protein activity and through mediating melanogenesis and melanin itself [76].

Melanogenesis

Melanin is produced in the melanocytes cells through the process of melanogenesisin enzymatic or chemical reactions. Melanogenesis occurs in specialized organelles within melanocytes cells called melanosomes [77-80]. In normal circumstances, melanin serves to protect the skin from the damaging effects of UV radiation. The accumulation of abnormal melanin will cause aesthetic effects and disrupt health [75]. One of the clinical manifestations of abnormally accumulated melanin is the incidence of melasma, i.e. hyperpigmentation on the epidermis or dermis in the facial area that affects mainly the individual light-skinned, which included skin types III-IV, according to the classification of Fitzpatrick. It is more prevalent in women than associated with hormonal factors [81]. The auto regulate automatically itself is carried out by a substrate-induced melanogenic pathway (L-tyrosine and/or L-DOP) and this arrangement will also regulate the function of melanocytes by structural or regulatory protein activity and through mediating melanogenesis and melanin itself [15].

The main targets are developed for depigmentation that inhibits the activity of tyrosinase enzyme, which is a precursor for the melanin synthesis [82]. Tyrosinase is a glycoprotein located on the membrane of melanosomes, and also dominated inside melanosomes, trans membrane, and in the cytoplasm of melanocyte cells. It is a monooxidase copper-dependent enzyme that has a role in catalyzing the conversion of monofenolic compound (L-tyrosine) into difenolic compound (L-DOPA) through hidroxilation process, and convert difenolic compound to quinone (benzoquinone) compound through an oxidation process [83]. The role of tyrosinase enzyme in melanin formation mechanism in the melanosomes within melanocytes cells and the processes that occur during melanogenesis itself [84].

The main substrate on melanogenesis enzymatic reaction is tyrosine. Tyrosine is hydroxylated by tyrosinase enzyme to be dopaquinone as a product of them. Dopaquinone will react with the cysteine-S to produce 5-cysteinyldopa and 2-S-cysteinyldopa in limited quantities. Cysteinyldopa is oxidized to produce benzothiazine followed by pheomelanin, a red pigment that causes blond hair. The absence of cysteine causes additional intramolecular amino groups for dopaquinone changed to be cyclodopa (Leucodopa-chrome). This compound then undergoes auto-oxidation and turned into dopa and dopachrome. Dopa is a substrate of tyrosinase enzyme too, therefore will oxidize back into dopaquinone. Next, dopachrome decomposes gradually and forms DHI and DHICA in very small amounts. The process is catalyzed by the tyrosinase-related enzyme protein-2 (Tyrp2), which is now known as dopachrome tautomerase (Dct). Finally, hydroxyl indole compound is oxidized to eumelanin. Tyrosinase-related protein-1 (tyrp1) catalyzes the conversion of partially enzyme DHICA into eumelanin. Eumelanin is a blackish brown pigment that produces skin hyperpigmentation [85].

After the formation of melanin, melanin-shrouded melanosomes will be taken by melanocytes and transferred to the keratocytes cells, namely keratinocytes that have undergone differentiation. The transfer from melanocytes to keratinocytes is made through the tentacles of melanocyte (dendrites) approaching keratinocytes in the stratum above the basal layer. In the basal stratum 1, melanocyte cells are surrounded by 30-40 keratinocytes cells [86, 87].

Melanogenesis at a subcellular level

In subcellular level, melanogenesisis encoded by the melanogenesis-related enzyme, including tyrosine, Tryp 1 and Tyrp2 that are regulated through intracellular pathways. The signal of this pathway is initiated by some kinds of hormones including interleukin, growth factor, and prostaglandin. Some hormones also respond to a complex signal for their exposure to UV radiation or other stimulation that comes from the environment outside the body. Fig. 2 shows several signaling pathways that have been known to be actively involved in the process of melanogenesis at the subcellular level. All three of the signaling pathway involving microphthalmia-associated transcription factor (MITF), which is a transcription factor with the domain structure of basic helix-loop-helix leucine zipper. In addition, its role in the proliferation and differentiation of melanocyte cell survival, MITF is also an important regulator that regulates the expression of genes for the formation of tyrosinase, Tyrp1, and Tyrp2. Up-regulation of MITF activity will activate the expression of the melanogenesis-related enzyme, which in turn will stimulate melanogenesis and vice versa, while down-regulation of MITF activity will suppress the expression of this enzyme that would inhibit melanogenesis [24, 88].

Alpha-melanocyte stimulating hormone (α-MSH) is a peptide derived from proopio melano cortine (POMC) [89], which regulates melanogenesis through cAMP pathway. α-MSH is released into the systemic circulation of the pituitary. It is related to melanocortin peptides, derived from the precursor POMC, which also expressed in numerous CNS and peripheral structures.

When bound to its receptor namely melanocortine 1 receptor (MC1R) on melanocytes cell membrane, these hormones activate adenylyl cyclase (AC) to produce intracellular cAMP as the second messenger through the activation of G-protein-coupled receptors (GPCR). cAMP activates protein kinase A (PKA), which subsequently activate the MITF gene expression through phosphorilasic AMP response element-binding protein (CREB). Afterwards, MITF efficiently activates the melanogenesis-related enzyme and stimulates melanogenesis. Once α-MSH is bound to the MC1R, the incidence of melanogenesis will increase by more than 100 times. Likewise with other POMC peptides are β-MSH and adrenocorticotropic hormone (ACTH), will stimulate melanogenesis via the same pathways [90].

Other signaling pathways that also activate MITF gene expression are the Wnt signaling pathway. The main key to this pathway is namely intracellular level of β-catenin. When the Wnt signal is absent, β-catenin is phosphorylated by glycogen synthase kinase-3β (GSK-3β). This phosphorylation recognized by the ubiquitin ligase complex, will degrade β-catenin [91]. Conversely, the signal Wnt-activated would regulate GSK-3β, causing the accumulation of β-catenin cytoplasmic translocates to the nucleus and forms a complex with the T-cell factor (TCF) and lymphocyte enhancer factor-1 (LEF), to download the up-regulation of gene expression MITF which in turn activates melanogenesis reaction via the same pathways [92].

In the opposite of the aforementioned path, the path of an extracellular signal-regulated kinase (ERK) regulates melanogenesis through MITF protein degradation. ERK activates the phosphorylation of MITF through serine 73, followed by MITF ubiquination and proteasome-mediated degradation. As the result, the ERK pathway activation will inhibit melanogenesis, associated with down-regulation of MITF activity [34, 93].

The internal and external factors of melanogenesis

Melanocytes produce POMC peptides, cytokines, NO, prostaglandins, and leukotrienes that are activated through autocrine or paracrine pathway, associated with the production of adenylcyclase and cAMP as shown fig. 1. Those receptors are within the immune response and inflammatory response, which are also involved in the process of pigmentation of the skin [20]. This creates some incidences of melanoderma post-inflammatory, hyperpigmentation after an injury to the skin, and hyperpigmentation post-infection as in the case of chikungunya; as for other receptors in the melanocyte cells that are tied to the production of adenylcyclase and cAMP as muscarinic receptor and estrogen receptor α and β. Therefore, increased production of estrogen during pregnancy can cause hyperpigmentation such as melasma, hyperpigmentation areolar, and line nigricans [20].

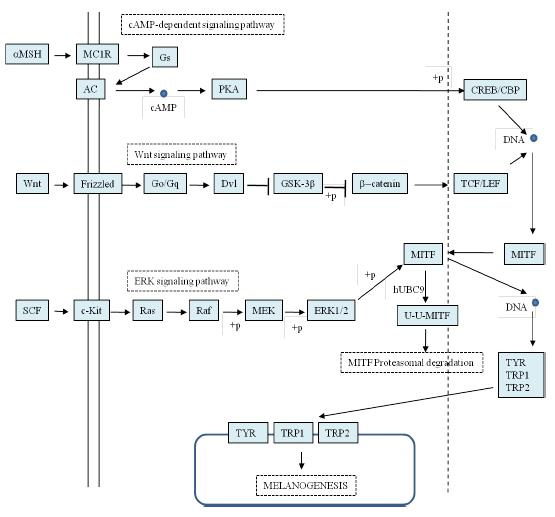

Fig. 1: Melanogenesis at the subcellular level [34]

Many extrinsic factors can trigger the occurrence of hyperpigmentation, such as the use of several kinds of drugs, chemicals, and even substances that are commonly used for the treatment of anti-aging and melisma, for example, hydroquinone which causes oncronosis exogenous—the formation of the blue to black pigment on skin tissue [34]. UV radiation is the main cause of skin hyperpigmentation. Rapid pigmentation can occur 5-10 min after exposure to UVR and disappear after a few minutes or days later. It usually occurs because of UVA radiation or delayed pigmentation in 3-4 d after exposure to UVR, and disappear after a few weeks due to UVA and UVB radiation [20].

UV radiation induces DNA damage which will be activated by p53 (tumor protein suppressor). P53 stimulates the POMC gene undergone the post-translational, such asACTH, α-MSH, and β-endorphin. The POMC peptide binds to MC1R on melanocytes, which further regulates melanogenesis through cAMP pathway [94]. Melanin is produced and transferred back to the keratinocytes. It has been mentioned that one POMC peptides bound to the MC1R, it lead a hundred times of melanogenesis incidence [34] that cause hyperpigmentation due to exposure of UV radiation.

Deoxyarbutin synthesis

dA compound (4-[Tetrahydro-2H-Pyrans-2-yl) oxy] phenol) designed by Boissy and his team for the first time in 2005, used quantitative structure-activity relationships (QSAR). This method is used as an approach to understanding the structural characteristics of the compounds. Although many techniques can be used in QSAR methods, but a basic understanding of this method is to convert the structure of a molecule or a part of the molecular structure to become a value numerically. In consequence, the value will be correlated with traits desired in an unknown compound [64].

The properties are optimized in this design. It is the competitive inhibition (at the binding site) of mushroom tyrosinase enzyme, inhibitor resistance to oxidation by the enzyme tyrosinase (thus can be an alternative substrate) and the molecule's ability to penetrate the skin. dA compounds are synthesized by eliminating the hydroxyl groups of the side chains of glucose group from arbutin as the parent compound as shown in fig. 2 [64]. The facile and highly efficient preparation of deoxyarbutin is recommended using a one-step catalyst-free continuous-flow etherification protocol. The one-step direct etherification obtains dA from hydroquinone through a continuous-flow, catalyst-free process [95].

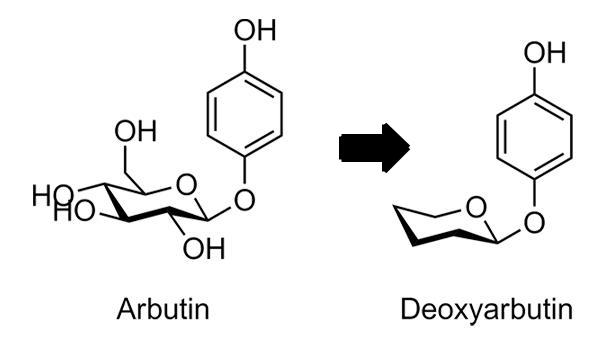

Fig. 2: Conversion of arbutin compound into dA

The activity, efficacy and safety of deoxyarbutin

dA is safer and less cytotoxic compared with hydroquinone [96]. Based on in vitro experiments against mushroom tyrosinase, it turns out that dA effectively inhibits mushroom tyrosinase with Ki 10 times lower than hydroquinone and 350 times lower than arbutin. The inhibition coefficient of dA, hydroquinone, kojic acid, and arbutinin μM is 0.05, 0.54, 7.70, 17.60, respectively. In another study, dA is still stronger than hydroquinone that becomes the gold standard for melisma treatment. IC50 of dA(17.5+0.5 µmol/l) is lower than hydroquinone (73.7+9.1 µmol/l) when using mushroom tyrosinase assay and an inhibition coefficient of dA and hydroquinone at Ki 21.6+1.0 µmol/l and 83.1+5.9, respectively [97]. dA also could fight against tumour in vitro and in vivo. dA inhibits the proliferation and metastasis of tumour via a p38-mediated mitochondria [98].

Furthermore, dA in hairless guinea pigs shows skin lightening activity immediately and extended, where this activity is reversible after 8 w of discontinuation of topical application of dA. In contrast to the same study, hydroquinone skin-lightening activity has shorter onset but not extended, whereas kojic acid and arbutin show in significant skin lightening effect during the test [97]. Hydroquinone has some side effects with long-term application, such as melanocyte destruction, ochronosis and contact dermatitis [35].

In clinical trials conducted human subjects, topical application of dA in 12 w resulted in significant skin lightening on the subject who has light skin and improvements in solar lenities experienced in the dark-skinned population [64].

Other clinical trials conducted on the subject of 25 men and women ranged from 18-60 y old, for 5 w experiment, with the type of post-exposure test (subjects were given prior to UV exposure for 7 d (tanning process) with a dosage test). The result showed that the percentages of the final tanning in control subjects (who were not given dosage), the subjects who had hydroquinone therapy and the subjects with dA treated are 44.6%, 51.6% and 37.3% respectively [63].

dA is a reversible inhibitor of the tyrosinase enzyme. It shows that the dA does not permanently damage the melanocytes. In further research by Hamed and his team in 2006, the study observed human melanocyte cell cultures. It showed that the maximum concentration of cell viability of dA is 95% higher than hydroquinone. It indicates that dA is not cytotoxic/cytostatic rather than HQ [63, 97].

Some of the previous toxicity tests show that dA is relatively safer than hydroquinone. Oral LD50 in rats as the subject to dA and hydroquinone is>2000 mg/kg and 298 mg/kg, respectively. The skin sensitization test proved that it has no potential to sensitize skin on dA treatment, while hydroquinone treatment shows potential to sensitize the skin. Dermal toxicity tests conducted with rats show that the dermal LD50 dA is more than 2000 mg/kg of body weight, while NOAEL values for hydroquinone is 74 mg/kg/day [99]. Nai-Fang Chang et al. found that UVB-irradiated Arbutin and dA have strong cytotoxicity for the fibroblast cells [100]. Arbutin and dA is irradiated by UVB to form hydroquinone and end of product the toxic compound of 4-benzophenone [101]. dA has LD50 367 mg/kg in males and 314 mg/kg in females rats by serving for 4 d.

The stability of deoxyarbutin

In terms of stability, it is known that dA is thermolabile, especially in an aqueous solvent solution. When dA is stored for 14 d at a temperature of 45 °C, dA levels is plummeted to undetectable. At 25 °C,dA level is decreased from 96.14% in the first day to 49.42% on 21th day. At 4 °C, dA relatively shows a stable condition with concentration at 93.43% up to 21 d [102]. In the same study, dA degradation occurs in an aqueous solvent at high temperatures. Decreased dA levels per unit of time at high temperatures are directly proportional to an increase in hydroquinone levels [103].

In a solution with a solvent containing water within storage conditions at an elevated temperature, free electrons in the solvent can interact with oxygen atoms that lie between phenol group and tetrahydro-2H-pyrans on dA. Thus, it is degraded to hydroquinone and other molecules, such as tetrahydro-2H-pyrans-2-ol. The resulting hydroquinone (colorless) in aqueous solution will be oxidized to benzoquinone which changes the color of the solution to be brownish (fig. 3).

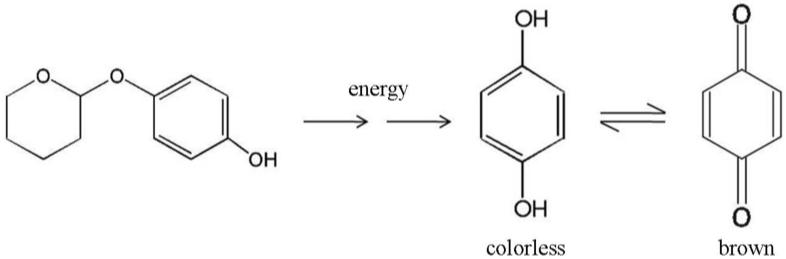

Fig. 3: The dA degradation mechanisms in an aqueous solution becomes hydroquinone (colorless) and benzoquinone (brown)

In an attempt to increase the stability of dA in preparations, some studies have observed dA stability in the system anhydrous emulsion formula with a base polyol-in silicone. The quantity of dA and the accumulation of hydroquinone as dA degradation products in aqueous solution are measured using HPLC [104]. The developed HPLC analytical method meets the validation criteria made by ICH. Muchtaridi et al. perform the analysis of dA using column C-18, UV detector 225 nm, methanol: water (60:40 v/v) as the mobile phase with isocratic elution; the flow rate is at 1 ml/min and the running time is 8 min.

The research demonstrates that the anhydrous emulsion systems with a polyol-in silicone as a base (oil based), improve the stability dA in preparations and lead to delays degradation of deoxy-arbutinin becoming hydroquinone at temperatures of 25 °C and 45 °C [102].

As well as being thermolabile, arbutin and dA in aqueous solution are photolabile and create degradation products, such as hydroquinone. The concentration of hydroquinone increases during UV radiation in an aqueous solution containing arbutin and dA [101]. The release of the o-diphenol product forming deoxyarbutin is predicted be slower than in the case of β-arbutin using molecular modeling methods [105]. It contributes to its oxidation to a quinone before released from the protein into the water phase.

In an effort to increase the stability of arbutin and dA against UVR exposure, Yang and his team (2013) in their study, added Benzophenone-4 in dA aqueous solutions and arbutin aqueous solutions. The treatment proved that it can increase the stability of the two substances against UV radiation exposure although not significant [101]. dA is insoluble in water, but it easily degrades in aqueous conditions. Tofani et al. (2016) formulates nanostructured lipid carriers (NLCs) to increased topical delivery of dA to inhibit tyrosinase during melanogenesis [106].

CONCLUSION

The prospective of dA agent as a depigmentation agenthas a good efficacy, safety and stability. dA is tyrosinase inhibitor with good efficacy and relatively safe. It has higher potential as depigmentation agent than hydroquinone, which has been the gold standard of treatment of hyperpigmentation in the last decade. It has been demonstrated both in vitro and in vivo that the inhibition constants of dA and that IC50are lower than hydroquinone. In terms of security, dA is safer than hydroquinone, which has low potential to be cytotoxic. In addition, based on other toxicity tests, dA is known to be more secure. However, dA is the rmolabile and photo labile. Several attempts have been made to improve the stability, such as making anhydrous emulsion formulations and adding sunscreen agents into the formula preparations. The development strategy and more advanced formulations of dA is required to improve the stability Therefore, not only preparations with dA have good potential and security but also good quality and stability during in storage, due to the effectiveness and safety of an active compound that cannot be achieved in unstable or degraded preparation in storage condition.
