Int J App Pharm, Vol 12, Issue 4, 2020, 192-196Original Article

NEW DOSAGE FORMS FOR THE DELAYED RELEASE OF MESALAZINE TO THE COLON

ANGELIKI SIAMIDI*, MARILENA VLACHOU, MANUEL EFENTAKIS

Section of Pharmaceutical Technology, School of Health Sciences, National and Kapodistrian University of Athens, Zografou 15784, Athens, Greece
Email: asiamidi@pharm.uoa.gr

Received: 13 Apr 2020, Revised and Accepted: 25 May 2020

ABSTRACT

Objective: The aim of the present work was to develop new solid pharmaceutical delivery systems of mesalazine (5-aminosalicylic acid, 5-ASA) for its colon targeted release.

Methods: Four different types of tablets of the same consistency (matrix and three-layered, with 5-ASA and dextran or pectin as excipients) were placed in a hard gelatin capsule. The 5-ASA release behavior from these formulations was compared to the release of the commercially available Asalazin® in three pH aqueous media in the presence of enzymes.

Results: The produced tablet formulations conformed to the Pharmacopoeia standards. The results showed delayed-release (<10%) during the first two hours, in acidic media (pH 1.5), and modified-release thereafter (pH 6 and 7.4). When dextran was used, the drug release showed more extended-release characteristics, in comparison to pectin formulations, due to the formation of a thicker hydrogel.

Conclusion: The new dosage forms could serve as a per os administration alternative dosage form for the delayed release of mesalazine to the colon

Keywords: Mesalazine, Delayed release, Pectin, Dextran, Tablets-in-capsule, Pectinex® Ultra SPL

© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2020v12i4.37816. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Irritable bowel syndrome (IBD) is a group of inflammatory conditions mostly specified in the intestinal area. Crohn's disease (CD) and Ulcerative colitis (UC) are the two most common forms of IBD, which affect millions of people worldwide. Even though UC and CD are two different diseases, they may have similar symptoms, such as abdominal pain, rectal bleeding and diarrhea. Their exact causes remain uncertain, but research suggests that the disease involves various genetic abnormalities, imbalance in intestinal microflora and environmental factors (lifestyle, stress levels, etc.) [1, 2].

Mesalazine (5-aminosalicylic acid, 5-ASA) is a drug substance with anti-inflammatory activity, used as the first-line drug treatment for the management of CD and UC. The exact mechanism of 5-ASA is not defined, but theory suggests that its anti-inflammatory properties are related to the therapeutic effect at the colon area [3]. Research indicates that 5-ASA exerts its effect locally in the inflamed colonic mucosa and not through systematic absorption. Long-term usage of 5-ASA may be accompanied with adverse effects, such as drug intolerance and hypersensitivity. Furthermore, the 5-ASA’s electronic features are altered in the stomach, due to the acidic pH, and therefore, it becomes therapeutically inefficient in the targeted colon site [4] (Campregher, Gasche, 2011). In view of this, researchers are designing novel orally administered 5-ASA formulations, using various excipients that delay the drug release to the targeted area. 5-ASA colon delivery systems can be achieved by various approaches; chemical modification of the drug molecule for prodrug production [5-10], but also pH/time dependent formulations and bacterial degradation [11-15], as a single unit or multiparticulate dosage forms [16-19].

Scientists use multiparticulate dosage forms in order to control the 5-ASA’s release. These pharmaceutical dosage forms, such as pellets and tablets that are further compressed into larger tablets or inserted to capsules, have many advantages, including less inter-and intra-variability and a higher degree of dispersion in the gastrointestinal tract [20, 21]. Multilayer tableting is another approach of drug release modification; multilayer tablets can be consisted of the same or different active pharmaceutical ingredient(s) and/or excipient(s) in each layer, and therefore, provide modified release kinetics. Drug release modification may also be attained by using various polymers [22, 23]. The hydrophilic polymeric excipients take up water, on exposure to aqueous media, and swell to form a gel layer. Using hydrogels, the drug release is controlled by diffusion barriers and surface erosions, depending on the polymeric network structure [24].

When studying drug release in the intestinal area, it is of great importance to mimic the colon area micro-environment. Therefore, buffer solutions containing enzymes that are usually present in the gastrointestinal tract, are used. Many researchers have previously used enzymatic dispersions in dissolution tests in various concentrations; 86600PG/l [25], 44200PG/l [26], 61800PG/l [27, 28], 45600 PG/l [29].

As already mentioned, the objective of the present work is to formulate new delivery systems of 5-ASA for colon targeted release based on the combination of time and bacterial degradation approaches, using capsules filled with tablets. The tablets were composed either of layers or of physical mixtures of excipients (dextran or pectin) and 5-ASA.

MATERIALS AND METHODS

Materials

5-ASA, dextran (from Leuconostoc mesenteroides, av. MW: 5x106-40x106) and pectin were obtained from Sigma-Aldrich Chemie GmbH, Steinheim, Germany. The commercially available drug Asalazin®, 500 mg enteric-coated tablets (Medichrome S. A., Athens, Greece), was obtained from a community pharmacy store. Pectinase from Aspergillus aculeatus (Pectinex® Ultra SP-L) was donated by Novo Nordisk Hellas Ltd, Athens, Greece.

Methods

Formulations’ preparation

Multilayer and matrix tablets (6.5 mm diameter) were produced by direct compression using a hydraulic press (Carver 3393, Carcer Inc, Wabash, USA). The multilayer tablets consisted of three layers; the upper layer was formed from either pectin or dextran (25 mg), the internal layer contained 5-ASA (50 mg), and the lower layer was formed using either pectin or dextran (25 mg). Matrix tablets consisted of a mixture of 5-ASA (50 mg) and either pectin or dextran (50 mg). Four identical tablets were used to fill the hard gelatin (Syndesmos SA, Athens, Greece) and enteric-coated size zero (Capsugel, Colmar, France) capsules.

Characterization of tablets (weight, thickness, crushing strength uniformity and friability test)

The weight uniformity was determined on 10 samples for each tablet formulation; the mean value and the standard deviation (SD) were calculated and expressed in mg. The tablets’ thickness was determined on 10 samples for each tablet formulation on a Vernier caliper; the mean value (±SD) was calculated and expressed in mm.

The tablets’ crushing strength was measured with a hardness tester (Erweka 24992 TBH 28, Erweka Gmbh, Heusenstamm, Germany). Ten samples of each tablet formulation were evaluated; the mean hardness (±SD) was calculated and expressed in kp.

Tablet friability has been determined on 10 samples for each tablet formulation using a friabilator (Erweka, type TA3R Gmbh, Heusenstamm, Germany). The friability was expressed in terms of weight loss and calculated as % of the initial weight; friability under 1% was considered acceptable.

In vitro drug release studies in stimulated gastrointestinal fluids

The release of 5-ASA from each formulation was tested using a dissolution paddle apparatus (PharmaTest-D17, Hainburg, Germany). The consistency of the dissolution media used is depicted in table 1. Samples were withdrawn at predetermined time intervals, filtered and analyzed using a UV-1700 PharmaSpec spectrophotometer (Kyoto, Japan). The dissolution experiments were performed in triplicate. In order to test the effect of the colonic enzymes, the dissolution tests were performed again, but this time with the addition of 45600 PG/l Pectinex® Ultra SPL in the final dissolution medium. To evaluate the dissolution profiles, 5-ASA % release (mean±SD) vs time graphs were constructed using GraphPad Prism 3.0, t20%, t50% t90%, (times at 20%, 50% and 90% 5-ASA release) and the values of Mean Dissolution Time (MDT) [30] and Dissolution Efficiency (D. E. %) [31] were recorded. Furthermore, D. E % results were analyzed using the Student’s t-test (P<0.05) and the comparison indices (difference (f1) and similarity (f2) factors) were also calculated [32, 33].

RESULTS AND DISCUSSION

The results of weight, thickness, crushing strength uniformity and the friability test are depicted in table S1. All formulations were found to meet the Pharmacopoeia standards [34].

As previously reported [35, 36] 5-ASA (fig. 1, structure Ι) in the acidic environment (pH 1.5) is transformed to structure (ΙΙ) due to NH2 protonation. As a result, 5-ASA’s solubility, at this pH, is enhanced (around 3 mg/ml). In the non-acidic environment (pH around 7), its solubility becomes even higher due to its transformation to structure (ΙΙΙ). In this case, its solubility is approximately 18 mg/ml. Conversely, in the pH region 2.2<pH<5.5, its amphoteric structure IV (fig. 1) prevails. The prevalence of the particular structure of 5-ASA, in this pH region, leads to reduced solubility (around 1 mg/ml) [37].The use of enteric-coated tablets delayed the 5-ASA’s initial release; in the first 2 h, in the acidic medium, no drug release was observed. Conversely, hard gelatin capsules dissolved immediately after their contact with the aqueous media releasing the containing tablets instantly.

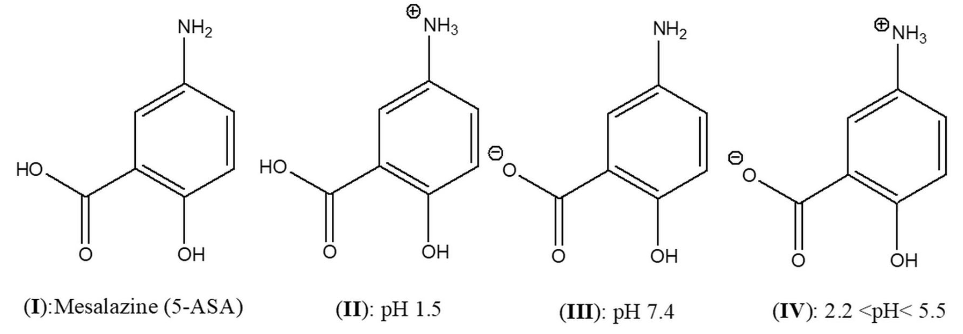

Fig. 1: Chemical structures of 5-ASA at various pHs [35,36]

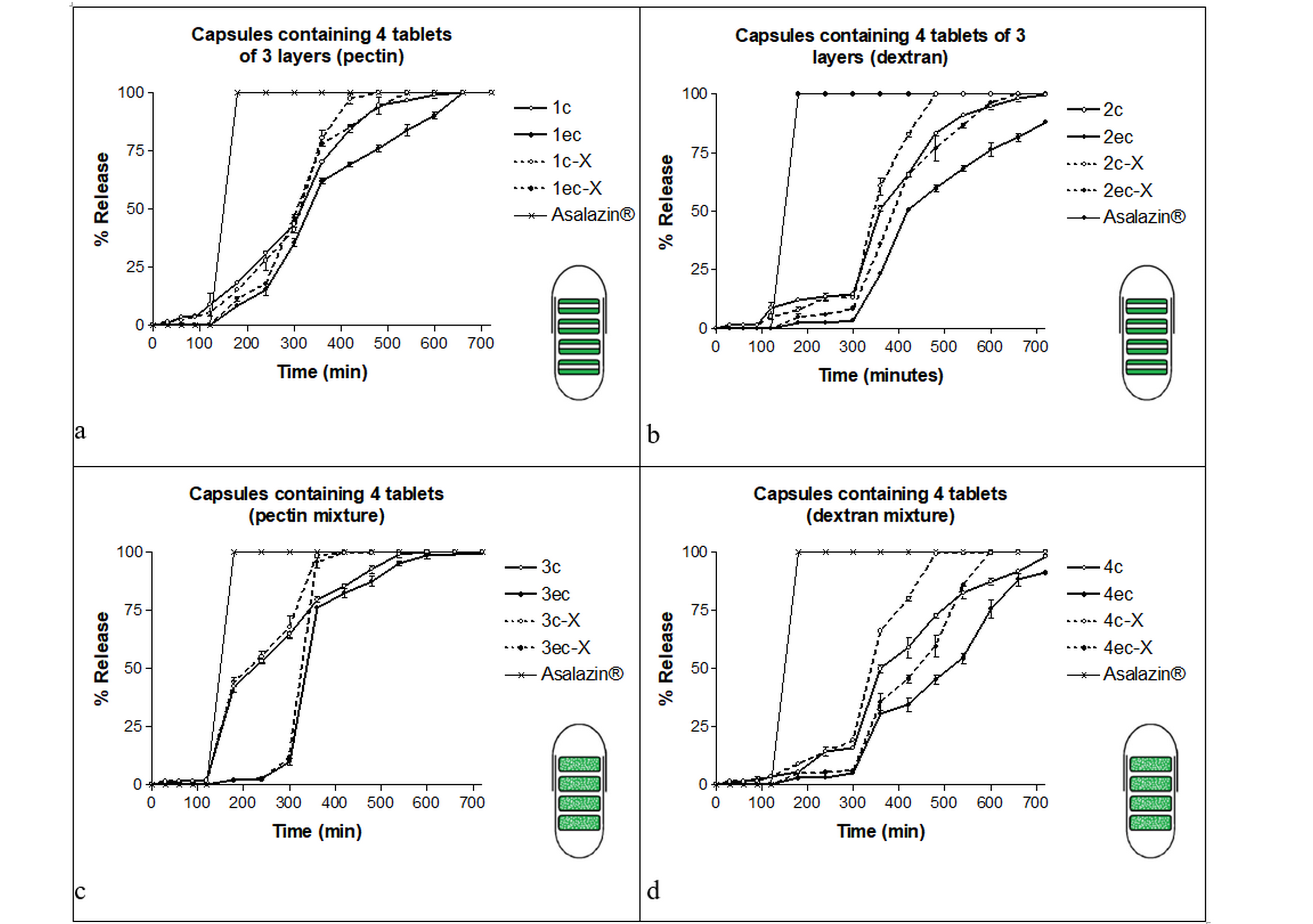

Fig. 2: % Release (mean±SD) (n=3) of 5-ASA vs time (min) from capsules containing four 3-layered tablets with pectin (a) and dextran (b), four tablets containing mixtures of pectin (c) and dextran (d), from simple (○) or enteric-coated capsules (●) and Asalazin® (×) in pH media (—) or in pH media where the enzymatic solution is added (---)

Table 1: Experimental parameters for in vitro drug release

Simulated area of the GI tract pH Final dissolution medium (ml) Solution added: pH/volume (ml) Time from the test start (min)
Stomach 1.5 400 S1: 1.5/400 0-120
Small intestine 7.4 800 S2: 9.4/400 120-300
Large intestine 6.0 1000 S3: 1.5/200 300-720

Pectin and dextran polymers, when in contact with the aqueous fluids, swell and turn into a hydrogel that act as a barrier to drug release. Comparing the drug release through these two different polymeric layers, it could be concluded that pectin produced a thinner layer than dextran allowing for faster drug dissolution. The t20%, t50%, t90% and MDT values were lower when pectin was used (table 2), demonstrating a more rapid drug release. Pectin hydrogels release the entrapped drug through diffusion [38]. Dextran hydrogels showed very promising modified release characteristics, as they also have with other active ingredients, such as hydrocortisone, peptide and protein drugs [39-41].

Table 2: Type of 5-ASA 200 mg formulations

Exp. code Capsule type Excipient Formulation type Pectinex® Ultra SPL t20% t50% t90% MDT D. E.(%)
1c c Pectin

Four

3-layered

Tablets in capsule

 - 200 310 460 330.58 58.25 (±0.64)
1c-X √ 200 310 400 280.65 59.99 (±0.87)
1ec ec - 250 330 600 391.29 49.82 (±0.35)
1ec-X √ 250 310 460 335.98 57.5 (±0.18)
2c c Dextran - 310 360 540 369.24 48.59 (±0.4)
2c-X √ 310 340 460 369.68 52.82 (±0.36)
2ec ec - 355 420 >720 436.78 34.68 (±0.63)
2ec-X √ 340 380 570 428.93 44.59 (±0.74)
3c c pectin Four mixture tablets in capsule - 140 235 475 289.77 64.58 (±0.34)
3c-X √ 140 230 340 258.97 68.19 (±0.87)
3ec ec - 310 330 510 354.52 50.57 (±0.24)
3ec-X √ 310 330 355 351.02 55.41 (±0.17)
4c c dextran - 310 360 660 396.82 44.46 (±0.72)
4c-X √ 310 340 460 334.25 53.58 (±0.24)
4ec ec - 330 530 720 463.75 32.41 (±1.13)
4ec-X √ 330 450 570 451.32 41.48 (±0.86)
Asalazin® - 130 150 160 150.00 79.17 (±0)

c: hard gelatin capsule, ec: enteric-coated capsule) used and Asalazin®500 mg, the experimental conditions during dissolution (presence (√)/absence (-) of Pectinex® Ultra SPL), time at 20%, 50% and 90% of drug release (t20%, t50% and t90%), the Mean Dissolution Time (MDT) and the Dissolution Efficiency D. E.(%) (mean±SD) (Number of experiments, n=3)

Table S1: Results of weight, thickness, crushing strength uniformity and friability test

Formulation Weight (mg) Thickness (mm) Crushing test (kp) % Friability
1 3L-P 101.2±1.2 1.88±0.32 11.58±0.56 0.51
2 3L-D 100.3±0.9 1.81±0.11 12.01±0.43 0.46
3 Matrix-P 101.2±1.3 1.82±0.31 11.94±0.56 0.68
4 Matrix-D 100.1±0.8 1.79±0.24 12.13±0.28 0.75

3L-P: 3layered tablet with pectin, 3L-D: 3layered tablet with dextran, Matrix-P: matrix tablet with pectin, Matrix-D: matrix tablet with dextran. Values indicated in weight, thickness and crushing tests are mean±SD, number of experiments, n=10.

Table S2: f1 and f2 indices and P-value of ANOVA comparison of D. E.(%)

Formulation f1 f2 P-value D. E.(%)
1c vs 1c-X 10.28 54.44 P<0.001
1ec vs 1ec-X 19.46 42.84 P<0.001
2c vs 2c-X 18.88 41.99 P<0.001
2ec vs 2ecX 23.11 39.89 P<0.001
3c vs 3c-X 13.54 49.91 P<0.001
3ec vs 3ec-X 16.65 45.31 P<0.001
4c vs 4c-X 26.02 35.36 P<0.001
4ec vs 4ec-X 26.43 35.37 P<0.001

The fact that at the gastric environment (pH 1.5) the 5-ASA % release from pectin containing capsules is higher than in the respective dextran formulations is probably due to the presence of the methyl ester groups in pectin, which form hydrogen bonds with the-NH2 and-OH groups of 5-ASA, thus facilitating its solubility. In the case of the more esterified pectins, this effect is more pronounced, as the number of the non-esterified-COOH groups is less. Conversly, in the case of dextran, which bears secondary-OH groups, the above hydrogen bond-due solubility enhancing effect is much less important.

In most cases, when matrix tablets were used, the 5-ASA’s release rate was faster than from the 3-layered tablets (comparison of the times t 20%, t 50% and t 90% in table 2). This could be attributed to the gel layer produced from the outer tablet’s layers that are exclusively composed of the polymer, thus retarding the 5-ASA’s release.

Asacol® encapsulates 5-ASA in an enteric coat, which consists of a resin film that is intended to release the active pharmaceutical ingredient only at a designated pH. That way the site of drug release can be controlled. The coating is the methacrylate copolymer Eudragit-S, which allows 5-ASA’s release at pH ≥ 7 [42]. A possible concern with this type of drug delivery systems is that the intestinal pH varies in patients with IBD [43], setting back the 5-ASA released from the pH-dependent enteric coating and reduce its efficacy.

The enzyme-triggered 5-ASA release was evaluated by the addition of an enzymatic solution to the dissolution media; both hydrogels produced by dextran and pectin have a potential for specific delivery to the colon by undergoing degradation at the site, allowing drug release only in the case that microbial enzyme(s) is/are present at the colonic area. Drug release was lower in the medium, which did not contain the enzymatic solution, as the excipients’ gel layer remained thicker, and a longer time was needed for its erosion, resulting to reduced drug release. Conversely, the addition of the enzymatic solution, at 300 min, increased the 5-ASA’s release in all cases (most of f1 and f2 indices showed different release rates and the comparison of D. E.(%) values showed significantly different results, P<0.05 (vide table S2). The increased release noticed was mainly ascribed to the cleavage of the polymeric bonds of pectin and dextran. Similar results have been mentioned in the literature [35, 44]. Asalazin® 500 mg tablets were not tested with the enzymatic solution, as 100% release was achieved within 180 min (fig. 2, table 2).

CONCLUSION

Enzymatically sensitive formulation systems were produced with 5-ASA and pectin or dextran, as excipients. The results showed delayed-release,<10% during the first two hours and modified-release thereafter. When dextran was used, the drug exhibited an extended-release profile, due to the thicker hydrogel produced in comparison to the pectin formulations. The data obtained revealed that the release of 5-ASA, from the 3-layered tablets, is slower when compared to the matrix tablets.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

Authors declare that the work done by the names mentioned in the article and all the liabilities and claims related to the content of the article will be borne by the authors.

CONFLICT OF INTERESTS

The authors declare that no conflict of interest associated with this work.
