Int J App Pharm, Vol 13, Issue 3, 2021, 5-10Review Article

GASTRORETENTIVE FLOATING TECHNOLOGY FOR ERADICATION OF HELICOBACTER PYLORI: AN INSIGHT VIEW

RAKESH PAHWA1*, BIGUL YOGESHVER BHARDWAJ1, ARCHANA SHARMA1, MONA PIPLANI2, MANISH KUMAR3

1Institute of Pharmaceutical Sciences, Kurukshetra University, Kurukshetra, Haryana, 136119 India, 2School of Pharmacy, Maharaja Agrasen University, Baddi, Dist, Solan, Himachal Pradesh, 174103 India, 3M M College of Pharmacy, Maharishi Markandeshwar (Deemed to be University), Mullana, Haryana, 133207 India
Email: rakesh_pahwa2407@yahoo.co.in

Received: 12 Aug 2020, Revised and Accepted: 13 Feb 2021

ABSTRACT

Helicobacter pylori is a virulent human pathogen infecting about 50% of the population worldwide. Being a leading cause of gastric ulcer, duodenal ulcer, gastritis, dyspepsia, gastric tumorigenesis etc., this organism has been the focus of concerted study to establish uncertainty of its genetics, immunopathogenesis and cell biology. Scientists have tried to effectively eradicate this pathogen from the gastrointestinal tract in various manners. Inquest of this venture, gastroretentive drug delivery systems including floating dosage forms have emerged as a boon and offer significantly improved therapeutic effects of different antimicrobial drugs. This article presents an evocative review of the structural features, epidemiological evidences and various pharmacotherapeutics vistas. In addition, various novel gastroretentive dosage forms developed so far to combat Helicobacter pylori infection are also discussed. Comprehensive literature review has been performed for this manuscript by utilizing relevant databases like PubMed, SCOPUS, Web of Science, Science Direct, Google Scholar etc., from 1997 up to the year 2020.

Keywords: Helicobacter pylori, Gastric ulcer, Pharmacotherapeutic vistas, Gastroretentive technology, Floating dosage forms

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2021v13i3.39369. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Helicobacter pylori (H. pylori) is a spiral-shaped, micro-aerophilic and gram-negative bacteria. Campylobacter pyloridis is the earlier name of this pathogen, however; a new class has been introduced and currently, H. pylori is included in the family Helicobacteraceae, helicobacter genus [1, 2]. Helicobacter pylori bacterium was initially identified in human populations in 1906 and successfully cultured in 1982 by Marshall and Warren, who jointly received 2005 Nobel Prize for their research on Helicobacter pylori [3-7]. This pathogen exists in the gastric mucous overlying the epithelium of the stomach, in more than 50 percent population of the entire world [8-12]. Colonization of H. pylori in the gastric region causes chronic gastric inflammation in all infected persons, with the clinical indication in 10-20 percent [1].

Helicobacter pylori infection associated ailments

Infection associated with H. pylori includes peptic ulcers (duodenal ulcers and gastric ulcers), severe, recurrent and atrophic gastritis, gastric B cell lymphoma, gastric adenocarcinoma, intestinal metaplasia, mucosa-associated lymphoid tissue (MALT)-associated lymphoma etc [1, 13-19]. Typhoid fever has also independently associated with H. pylori [20]. Earlier epidemiologic evidence indicates that H. pylori infection increases the risk of gastric cancer. It has also been investigated that bacterium Helicobacter pylori-induced infection is carcinogenic to human population [19, 21-26]. DNA damage caused by this bacterium may lead to the cancer development in the stomach. Earlier studies revealed that genomic regions demonstrate more susceptibility to H. pylori induced DNA disruption and are substantially associated with chromosomal modifications in stomach cancer [27, 28]. Some virulence factors are also responsible for chromosomal changes. Two of the main significant virulence factors include cytotoxin-associated gene A (CagA) and vacuolating cytotoxin (VacA) [5, 29-32]. Multiple findings suggest that Helicobacter pylori infection is correlated with a substantially higher risk of stomach cancer and longer the time interval between detection of Helicobacter pylori and diagnosis of stomach cancer, greater the risk of developing carcinoma [33]. Flagella and spiral structure of H. pylori allows selective adherence to the epithelium through gastrointestinal mucus gel [11, 13, 34]. Drinking water can also be a risk factor for bacterial transmission [35]. Moreover, H. pylori have also been cultured through vomitus, diarrheal stool and saliva [36]. Ailments related to Helicobacter pylori infection is presented in fig. 1.

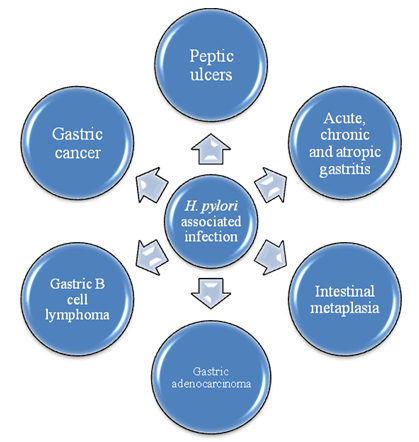

Fig. 1: H. pylori associated various ailments

Immunological defence mechanisms against bacterial proliferation

Several factors produced by mucosa of the stomach inhibit bacterial proliferation. Antibacterial peptides are active against several specific types of bacteria, which include LL37 and β defensins 1 and 2. Lactoferrin also hampers bacterial development. Lactoferricin, a lactoferrin-derived peptide, also has antimicrobial qualities. Lysozyme can also be responsible for bacterial peptidoglycan degradation [37]. By diminishing inflammation grades and bacterial population, the antimicrobial peptide cathelicidin may serve as a natural antibiotic against H. pylori. Another proposed method of managing Helicobacter pylori infection is to use fatty acids, as numerous experiments have demonstrated their antibacterial activity [27]. The binding of H. pylori to gastrointestinal epithelial cells leads to triggering activation of various signalling mechanisms, which enables the effective transmission of toxic substances or other contaminants into gastric epithelium cells [37]. Findings in various animal models suggest that H. pylori's attachment to gastric epithelial cells affects the growth of inflammation in gastric mucosa, production autoantibodies, parietal cell diminution etc [37]. Urease and flagella are two crucial virulence factors for colonization of Helicobacter pylori successfully into the stomach [38]. Urease enzyme produced by Helicobacter pylori is responsible for mononuclear phagocytes activation along with enhancement in production of inflammatory cytokine, which creates favourable environment for bacteria to colonize [39, 40]. Diagnosis of infection is usually performed by diagnostic tests such as stool antigen test, urea breath test, blood antibody test etc [41, 42]. These tests determine whether a bacterial infection may induce ulcer or inflammation of stomach lining and also establish the effectiveness of the treatment strategies [43].

Treatment strategies

Several years ago, dual therapies which combined a proton pump inhibitor with either clarithromycin or amoxicillin were common. A large number of triple or quadruple treatments have also been reported. Triple therapy to eradicate Helicobacter pylori infection includes a metronidazole (or tinidazole), proton pump inhibitor along with clarithromycin. Few probiotic strains may minimize the probability of adverse effects and thus enhance the eradication rate of Helicobacter pylori [15, 24, 44-48]. In between 10-20 percent of cases, the most utilized medication regimens may also struggle. Quadruple therapy based on bismuth remains the primary choice for second-line treatment if not used as first-line therapy [15, 43, 47, 49-53]. Recently, many researchers have an ultimate aim for considering H. pylori genomics for the development of new therapies. One example of this includes developing targeted interventions that eliminate H. pylori without disrupting commensal human bacteria. For example, recent work has identified HtrA and BioV (a synthetic biotin enzyme) as specific to H. pylori. These have potential for allowing the treatment of H. pylori without affecting the host or the resident microbiota [54]. It was also found that eating broccoli sprouts daily for two month can reduces H. pylori infection into the stomach [55]. It was reported that a Korean vegetable Kimichi may also eradicate H. pylori [56].

Sometimes, several therapies to eradicate H. pylori are difficult and complex. Increased and indiscriminate utilization of antibiotics has led to significant failures in treatment [43]. Owing to high antibiotics resistance and inadequate patient compliance, new medications with enhanced efficacy in addition to simpler regimens are desired for the eradication of Helicobacter pylori [53]. Therefore, to attain a high wipeout rate of H. pylori from the stomach, it's obligatory that delivery of antibiotic to the whole surface of the abdomen is achieved and consequently, drug should reach in the desired amount for adequate time to destroy the bacterium. Gastroretentive drug delivery system is employed as a promising technology to provide advantageous results in site-specificity of antibiotics delivery. Retention of the delivery system is also ensured at a particular part of the gastrointestinal tract, wherever it is needed for local delivery and action at specific site [39].

Gastroretentive drug delivery systems

The oral route is recognized as the most preferred route for drug delivery. This route has many inherent advantages like convenience, cost-effectiveness, non-invasiveness, safety and patient compliance [57-59]. However, bioavailability of medicaments delivered through this route can change considerably, particularly if pharmacotherapeutic substances are delivered utilizing conventional types. Such constraints are usually due to inter-and intra-subject variability in the physiology of the gastrointestinal tract, gastrointestinal tract transit period and in certain instances to region-specific (narrow absorption window) of drug [60]. However, modern technical development has resulted into various emerging pharmaceutical strategies, especially controlled release systems to effectively resolve this issue [61, 62]. Due to tremendous therapeutic benefits, orally controlled dosage forms have been developed in the previous few years [63-65]. Gastroretentive technology is one illustration where characteristics such as prolonged gastric retention combined with controlled-release medication dramatically increased patient compliance [61, 66-68].

Extent of drug absorption from duodenum and jejunum is minimal, as transit through this area is fast. This phenomenon drastically limits the success of conventional delivery system [69, 70]. The failure of conventional approaches in gastric retention has contributed to the production of gastroretentive technologies. These delivery systems have been engineered to maintain an extended interval of time in the upper gastrointestinal tract, after which drugs are released into a controlled manner. Prolonged interaction of gastroretentive devices with absorption layer permits improved bioavailability of medicament [39, 71-73]. Such devices are especially useful for drugs predominantly absorbed in the regions of the duodenum and upper jejunum [69]. Various technical strategies have been explored in order to establish delivery systems that can be retained into the stomach. These methods have been suggested for improving retention in upper section of the gastrointestinal tract [74]. These gastroretentive dosage forms are classified into various approaches as shown in fig. 2, such as floating systems [75-77], expandable systems [78, 79], bioadhesive systems [80-83], high-density systems [84, 85], superporous hydrogels [78, 86], magnetic systems [86, 87], dual working systems [88, 89] etc.

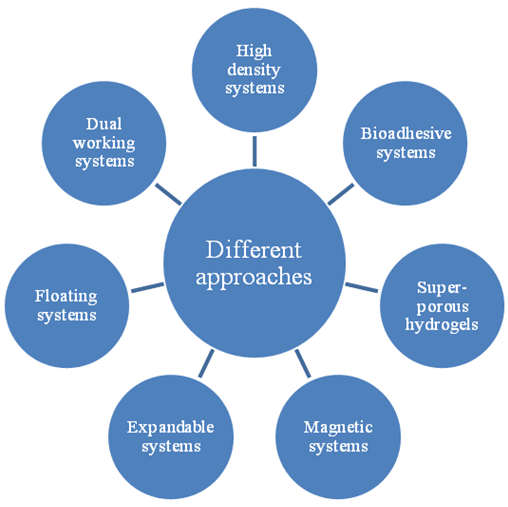

Fig. 2: Different approaches of gastroretentive drug delivery systems

Advantages of gastroretentive strategies

Gastroretentive technologies are gaining popularity due to numerous advantages and patient compliance benefits. Some significant benefits of this system are mentioned in the subsequent section. Various narrow absorption window drugs may show advantageous results after compounding into gastroretentive dosage forms. Maximum drug utilization with limited negative consequences, low dosing frequency thus improved patient compliance besides controlled drug release behavior present the benefits of continuous and uniform blood drug level. The medication concentration variability is also significantly reduced. In addition, side effects based on dosage may also be minimized [90-95].

Salient benefits

Following are some important benefits of gastroretentive delivery systems [95-98].

Current viewpoint on gastroretentive approaches

Various gastroretentive drug delivery systems have been investigated for successful gastric retention. However, alteration in gastric retention time, especially in fed as well as fasted state, is still one of the major challenges for the scientists. Therefore, it is advantageous to explore suitable innovative gastroretentive approaches by overcoming the drawbacks of a particular approach. Various combined approaches might be a beneficial strategy for reducing the irregularity of gastric retention time. Also, coupled working system is less affected due to physiological state of the gut for instance, as in fed and fasting conditions. These advanced systems may ensure delayed gastric empting. Therefore, a study on gastroretentive drug delivery systems in the near future should be with major concern of combining various strategies to achieve desired stomach retention of dosage forms also in fasted condition [39, 89, 99, 100]. The use of newer techniques such as extrusion and amalgamation of various approaches will further create interest in gastroretentive drug delivery systems and it will continue to create interest among pharmaceutical industries and researchers [57]. Various gastroretentive floating drug delivery systems investigated for Helicobacter pylori eradication are portrayed in fig. 3.

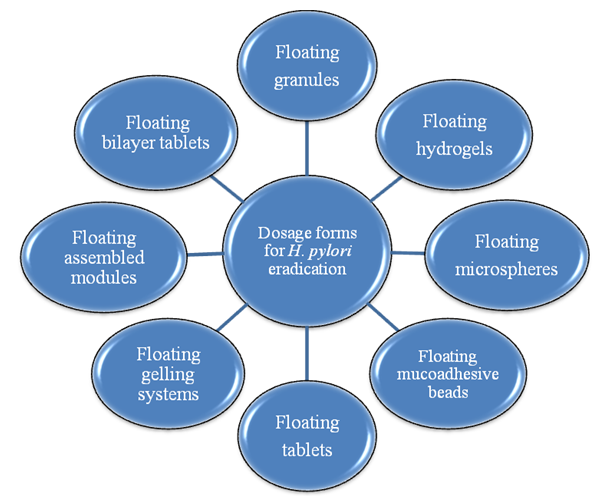

Fig. 3: Various floating dosage forms for eradication of H. pylori

Miscellaneous research considerations on eradication of Helicobacter pylori through gastroretentive techniques have been published. Few of these findings are presented in table 1.

Table 1: Gastroretentive drug delivery approaches for eradication of Helicobacter pylori

S. No. Drug Dosage form Authors Year Ref. (s)
1. Levofloxacin hydrochloride Gastroretentive wafers Li et al. 2020 [101]
2. Amoxicillin trihydrate Floating mucoadhesive alginate beads Dey et al. 2016 [102]
3. Metronidazole Floating pH-sensitive chitosan hydrogel El Mahrouk et al. 2016 [103]
4. Amoxicillin and clarithromycin Floating assembled modules Rossi et al. 2016 [104]
5. Amoxicillin trihydrate Floating mucoadhesive beads Thombre et al. 2016 [105]
6. Clarithromycin Floating mucoadhesive alginate beads Adebisi et al. 2015 [106]
7. Clarithromycin Floating fine granules Aoki et al. 2015 [107]
8. Clarithromycin Floating tablets Ugurlu et al. 2014 [108]
9. Clarithromycin Floating mucoadhesive beads Gattani et al. 2010 [109]
10. Metronidazole Floating alginate beads Javadzadeh et al. 2010 [110]
11. Clarithromycin Gellan gum-based floating beads Rajinikanth et al. 2009 [111]
12. Amoxicillin Gastroretentive minimatrices Badhan et al. 2009 [112]
13. Clarithromycin Mucoadhesive microspheres Jain et al. 2009 [113]
14. Clarithromycin Floating gelling system Rajinikanth et al. 2008 [114]
15. Acetohydroxamic acid Floating gelling system Rajinikanth et al. 2008 [115]
16. Metronidazole Floating alginate beads Ishak et al. 2007 [116]
17. Amoxicillin Intra gastric floating gelling system Rajinikanth et al. 2007 [117]
18. Acetohydroxamic acid Gellan based floating beads Rajinikanth et al. 2007 [118]
19. Amoxicillin Mucoadhesive microspheres Patel et al. 2007 [119]
20. Metronidazole Floating emulsion gel beads Sriamornsak et al. 2005 [120]
21. Acetohydroxamic acid Floating microspheres Umamaheshwari et al. 2003 [121]
22. Acetohydroxamic acid Floating mucoadhesive microspheres Umamaheshwari et al. 2002 [122]
23. Ampicillin Floating sustained release liquid preparation Katayama et al. 1999 [123]
24. Tetracycline and metronidazole Floating tablets Yang et al. 1999 [124]

CONCLUSION

H. pylori is a global pathogen and its infection causes various clinical and pathological effects involving chronic gastritis, peptic ulcer, malignant stomach tumours etc. Development of an efficient gastroretentive dosage form is a real challenge for the eradication of bacterium by delivering suitable antibiotic in the stomach. The present review provides an insight of different aspects of this spiral gram-negative bacterium along with various antibiotic regimens available for the treatment of infection prevailing in all classes of people around the world. Immense potential of promising gastroretentive technologies for eradication of this prevalent contagion are highlighted in the current manuscript. Various research endeavours in the avenue of gastroretentive drug delivery ensuring maximal absorption of the antibiotic for eradication of the bacterium have also been discussed.

FUTURE PERSPECTIVES

Advancements are needed on technical and scientific aspects in this area for the development of novel and versatile gastroretentive dosage forms so as to eradicate the bacterium efficiently and successfully. It is also emphasized that sophisticated research based on enhanced stability profile and prolonged residence time of dosage forms should be investigated to achieve better penetration of antibiotics through the stomach mucus layer to act on H. pylori. Progress in synergistic approaches utilizing superior drug delivery technologies may prove a useful prospect for improved pharmacotherapy of this complex infection. In addition, further additional in vivo studies are required to establish the suitability of gastroretentive formulations for targeting actives to the gastric wall. Moreover, studies regarding antibiotics delivery to target receptor sites on H. pylori or circumvent the adhesion of bacteria to the gastric wall should also be focused.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTERESTS

No conflict of interest
