Int J App Pharm, Vol 13, Issue 6, 2021, 139-143Original Article

PREPARATION AND STABILITY EVALUATION OF LL-37 CREAM

ELIZA MIRANDA1*, KUSMARINAH BRAMONO1, LUDDWI ACHMAD RIZKY2, HAYUN3

1Department of Dermatology and Venereology, Faculty of Medicine, Universitas Indonesia, Depok, Indonesia, 2,3Faculty of Medicine, Universitas Indonesia, Depok, Indonesia
Email: mirandaeliza74@gmail.com

Received: 04 Sep 2020, Revised and Accepted: 03 Sep 2021

ABSTRACT

Objective: The present study aimed to prepare LL-37 in a cream formulation (O/W emulsion) and evaluate its stability by determining the physical changes in the cream and concentration of LL-37 using validated high-performance liquid chromatography.

Methods: The method was conducted at room temperature using a C18 column (5 µm × 250 mm × 4.6 mm) as a stationary phase, a mixture of 0.1% trifluoroacetic acid (TFA)/water (A) and 0.1% TFA/acetonitrile (B) (85:15) as the mobile phase, a flow rate of 1.0 mL/min, and photodiode array set at 228 nm as the detector. The method was validated in compliance with the Association of Official Analytical Chemists and International Conference on Harmonization guidelines. It demonstrated excellent linearity, accuracy, precision, specificity, the limit of detection, and limit of quantitation.

Results: The chromatographic analysis indicated minimal degradation of LL-37 during the 12-week, with a predicted expiry time of 99 and 75 mo stored at 4 °C and 28 °C, respectively.

Conclusion: LL-37 cream establishes good physical characteristics and stabilizes the active ingredient, especially at 4 °C and 28 °C storage. Therefore, the emulsion delivery system of LL-37 cream is harmless and stable as a novel alternative vehicle of LL-37.

Keywords: LL-37, Cream, High-performance liquid chromatography, Stability

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2021v13i6.39639. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Diabetic foot ulcer (DFU) is one of the major complications resulting from diabetes. The prevalence of the disease worldwide is estimated at 6.3% [1]. The treatment of DFU is still challenging and often achieves unsuccessful outcomes. Infection control, pressure relief, wound debridement, and revascularization are the main principles of DFU management [2]. Numerous studies have been conducted to evaluate several therapeutic agents’ promising effects, including an antimicrobial peptide released upon wounding, LL-37, in treating DFU. LL-37 originates from the 18 kDa human cathelicidin antimicrobial protein (hCAP18) [3].

The upregulation of hCAP18/lL-37 expression occurs within several hours after acute wounding, and the protein is released toward the wound edges through basal epidermal keratinocytes [4]. However, although hCAP18 mRNA is highly expressed in chronic ulcer epithelium, the translated protein is absent, suggesting the defects in translation or rapid degradation of mRNA [3, 5]. Moreover, LL-37 antibodies were demonstrated to prevent re-epithelialization in an ex vivo human wound healing model [6]. Thus, hCAP18/lL-37 contributes to the biological process of wound healing. Experimental murine models showed that LL-37 could enhance the wound healing process, although the results showed inconsistencies [7, 8]. The efficacy of topical administration of LL-37 in stimulating wound healing of venous leg ulcers was demonstrated previously [9].

Previous studies that used LL-37 in solution form as the vehicle showed its excellent effectivity. However, pharmaceuticals in solution preparation do not stay on the wound bed and require frequent administration [9, 10]. Cream (O/W emulsion) may stay for an extended period on the wound bed and is more practical for home use. Studies regarding the preparation of LL-37 in the cream have not been explored yet, including its stability. Accordingly, the present study aimed to prepare and investigate the stability of cream containing LL-37, which could be a novel alternative vehicle of LL-37.

MATERIALS AND METHODS

Materials

A pharmaceutical-grade chemical was used for cream preparation (Brataco, Indonesia). The active material, LL-37 (purity>95%), was purchased from Isca Biochemicals (Exeter, UK). The chemicals used for analysis, such as methanol, acetonitrile, and trifluoroacetic acid (TFA), were of chromatographic grade (Merck, Germany), whereas distilled water was obtained from PT. Ikapharmindo Putramas, Indonesia. For the cream stability test experiment, the stability testing chamber (Nuve, TK 120, Turkey) was used. The liquid chromatographic analysis was conducted using an LC 20AD HPLC system and a pump (Shimadzu, Japan), provided with SPD-M20A photodiode array (Shimadzu, Japan), a manual injector (Rheodyne, USA), and XBridge, BEH 300, C18 column (5 µm × 250 mm × 4.6 mm; Waters, USA). Shimadzu LC Solution 1.24 SP2 was operated to process and evaluate the data.

Methods

Cream preparation

Table 1 displays the composition of the cream base (O/W emulsions). A heated solution consisting of glycerin and distilled water was added to the heated mixture of stearic acid, cetyl alcohol, triethanolamine, and liquid paraffin. The resulting mixture was homogenized using an automatic stirrer for 15 min at 3000 rpm. The acidity of the emulsion was measured and adjusted to pH 6.28 by the addition of citric acid. Finally, a solution of LL-37 in distilled water was added to the emulsion and homogenized. The final emulsion contained 0.5 mg/ml LL-37.

Table 1: Compositions of cream base

Ingredients Formulation (%)
Stearic acid 7
Cetyl alcohol 2
Triethanolamine 0.5
Liquid paraffin 20
Glycerin 10
Distilled water 59.5

High-performance liquid chromatography (HPLC)

Preparation of standard solution

LL-37 10 mg was dissolved in 10 ml mobile phase, and the resultant solution was diluted by a similar solvent to obtain a concentration of 0.5 mg/ml.

Preparation of sample solutions

One gram of LL-37 emulsion was dissolved in 10 ml mobile phase, sonicated for 10 min, and then filtered using a 0.45 µm membrane filter.

Chromatographic conditions

The chromatographic conditions were accomplished as per a former report [11] to optimize the ratio of mobile phase compositions. A mixture of 0.1% TFA solution in water (A) and 0.1% TFA solution in acetonitrile (B) was applied as a mobile phase with a flow rate of 1 ml/min. The SPD-M20A photodiode array was operated at 228 nm for the identification and quantification of the analyte. Chromatographic analysis was performed at ambient temperature and 20 µl volume injection and running time of 10 min.

Method validation

Method validation was conducted following the Association of Official Analytical Chemists (AOAC) and International Conference on Harmonization (ICH) guidelines for specificity, linearity, the limit of detection (LOD), the limit of quantitation (LOQ), accuracy, and precision [12, 13].

Specificity

Specificity was tested by analyzing the solvent, mobile phase, cream base, LL-37 emulsion (0.5 mg/ml), and standard solution of LL-37 (0.5 mg/ml). Related peaks were examined for retention times and peak interference.

Linearity, LOD, and LOQ

Five separate concentrations were prepared (0.1, 0.25, 0.5, 0.75, and 1 mg/ml) to evaluate the linearity of the method. The analysis of a single injection from a respective concentration was performed correspondingly. A calibration curve was then constructed from the data, and the correlation coefficient was determined. The LOD and LOQ of LL-37 obtained using this method were derived from the calibration curve using statistical analysis [12, 13]

Accuracy and precision

The method’s accuracy and precision were determined at three different spiked concentration levels (80%, 100%, and 120%) adjacent to the test concentration (LL-37 0.5 mg/ml) by nine determinations (three replicates were prepared using the respective concentrations). The percentage recovery and relative standard deviation (RSD) were estimated for every replicate sample to evaluate accuracy and precision.

Stability test

The stability test was conducted using an accelerated stability test method to explore the effect of storage regarding the emulsion’s chemical and physical substances [14, 15]. The tests were conducted on samples stored in the stability testing chamber at 4 °C±2 °C, 28 °C±2 °C, and 40 °C±2 °C at 75% room humidity. Alterations of liquefaction, color, odor and phase separation were recorded every two weeks, with a total of 12 w. The emulsion pH was determined using a digital pH meter every two weeks of storage. The concentration of LL-37 in the cream emulsion was analyzed using HPLC at 0, 4, and 12 w.

RESULTS AND DISCUSSION

Optimization and validation of HPLC method

Method optimization

The wavelength at 228 nm, the flow rate at 1.0 ml/min, and a mixture of mobile phases A and B (85:15) were achieved for the analysis. The results of the system suitability test of the method showed that the % RSD values for retention time and area under the curve were 0.51% and 0.14%, respectively, with mean tailing factors of 1.57±0.14. The results for % RSD and tailing factor are within the acceptance criteria (fig. 1).

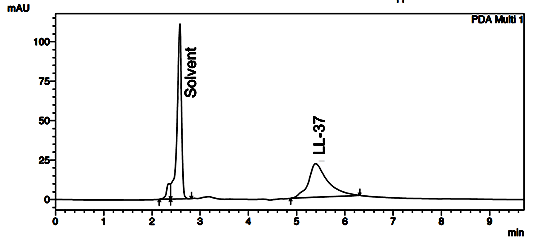

Fig. 1: Chromatogram of LL-37 standard solution

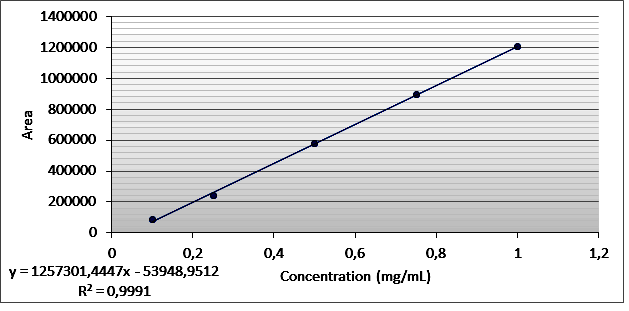

Fig. 2: Calibration curve of LL-37

The LL-37 standard solution chromatogram, LL-37 cream, solvent, matrix, and mobile phase showed no interference on or adjacent to the LL-37 peak by solvent, matrix, or mobile phase (fig. 3), indicating the specificity of the method. To the best of our knowledge, this is the first validation study for LL-37 formulated in cream. The previous study has reported the analysis of LL-37 in polymeric gels using HPLC method, which demonstrated little to no interference. A plausible explanation could be due to the hydrophilic materials of polymers which causes an insignificant reaction with the analytical column. Given the fact that cream (O/W) is similarly hydrophilic, this could attribute to the negligible interaction of the present study [16]. The method’s accuracy, which ranged from 99.28% to 101.50%, was demonstrated using a % recovery study. The precision was determined from % RSD at concentrations of 0.4, 0.5, and 0.6 mg/ml LL-37, with values reaching 0.11%, 0.23%, and 0.65% respectively. These results met the criteria for accuracy and precision [12, 13].

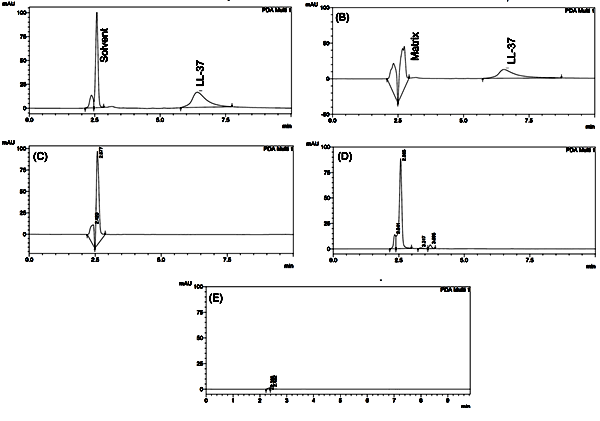

Fig. 3: Chromatogram of (A) LL-37 standard solution; (B) LL-37 cream; (C) matrix; (D) solvent; and (E) mobile phase

Stability of prepared cream

Table 2 demonstrates the alterations of liquefaction, color, and odor. The results showed white emulsions after preparation. No colour changes was detected at different storing temperatures (4 °C, 28 °C, and 40 °C) up to 12 w of observation. The increment in temperature and time influenced the separation of emulsion, which reduced viscosity and resulted in liquefaction. In this study, the liquefaction of emulsions was absent at 4 °C and 28±2 °C storage conditions during 12 w of observation. Liquefaction was observed for the emulsion at 40± °C storage starting at week 4, indicating the emulsion’s instability as reported in another study [17]. The absence of liquefaction at 4 °C and 28 °C storage conditions demonstrated compelling support regarding this emulsion’s stability under cold and room temperatures. A similar pattern of results was obtained with a study using a non-steroidal anti-inflammatory drug cream which demonstrated good physical characteristic within room temperature for 3 mo [18].

Table 2: Physical characteristics of LL-37 cream stored at 4±2 °C, 28±2 °C, and 40±2 °C

Baseline 2 w 4 w 6 w 8 w 10 w 12 w
Liquefaction 4 °C - - - - - - -
28 °C - - - - - - -
40 °C - - + + + + +
Color 4 °C - - - - - - -
28 °C - - - - - - -
40 °C - - - - - - -
Odor 4 °C - - - - - - -
28 °C - - - - - - -
40 °C - - - - - - -

−= Negative/no change; += Positive

The alteration of pH implies the consequence of chemical reactions, providing insights into the outcome’s quality. The ideal pH of human skin varies from 4.5 to 6.0. LL-37 cream preparation should have a pH that is close or within this range to exert its optimal function and possibly gain regulatory approval. The emulsions prepared in this study yielded a pH of 6.28, close to the pH of natural skin. Furthermore, storing the emulsion samples at different temperatures (4 °C, 28 °C, and 40 °C) may continually reduce the pH during the 12 w of observation. Destabilization of the emulsion through hydrolysis occurred during storage at elevated temperatures [13]. These findings are in line with a previous study using an anti-wrinkle cream which demonstrated that higher temperatures resulted in increased viscosity [19]. As evidenced in this study, storing the emulsions at 4 °C, 28 °C, and 40 °C resulted in an acceptably stable pH at nearly 6.0, which is tolerable and gentle to the skin.

The concentration of LL-37 in cream preparation during the 12 w of storage at various temperatures showed minimal degradation (table 3, fig. 4). Linear regression analysis between the ln concentrations of LL-37 at 4 °C, 28 °C, and 40 °C against time indicated that the degradation periods needed by the compound to reach 90% of the initial concentration were 99, 75, and 16 mo, respectively.

Table 3: LL-37 concentration at various temperatures during 12 w of observation

Storage condition Mean LL-37 concentration (mg/ml)
Baseline 4 w 12 w
4 °C 0.492 0.491 0.491
28 °C 0.493 0.492 0.491
40 °C 0.512 0.508 0.500

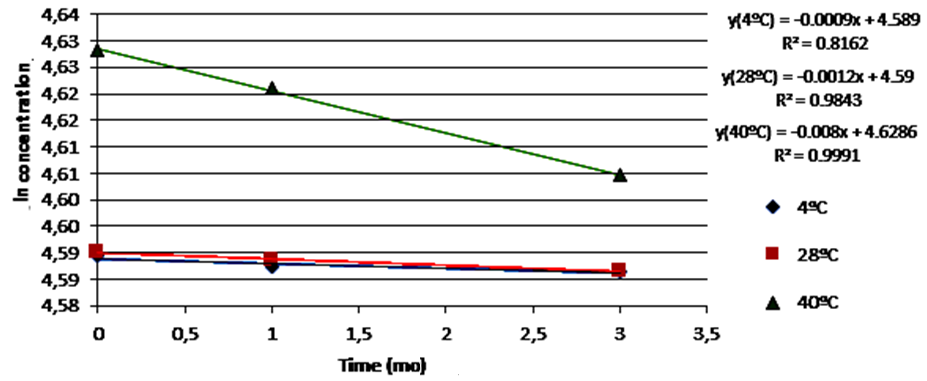

Fig. 4: Linear regression graph of LL-37 stability

CONCLUSION

The preparation and stability study of LL-37 cream has been conducted successfully. Quantitation of LL-37 in cream (O/W emulsion) could be achieved through this HPLC method. Our findings indicate that LL-37 cream (O/W emulsion) establishes good physical characteristics and stabilizes the active ingredient, especially at 4 °C and 28 °C storage. Therefore, the emulsion delivery system is harmless and stable.

ACKNOWLEDGEMENT

The authors would like to express gratitude to the Directorate of Research and Community Engagements Universitas Indonesia for the research grant Tugas Akhir Dosen (TADOK) 2019.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All authors have contributed equally.

CONFLICTS OF INTERESTS

The authors declare no conflict of interest.
