Int J App Pharm, Vol 13, Issue 1, 2021, 253-256Short Communication

HPLC DETERMINATION OF SILDENAFIL IN TABLETS

MIGLENA SMERIKAROVA1, STANISLAV BOZHANOV1*, VANIA MASLARSKA1

1Department of Chemistry, Faculty of Pharmacy, Medical University-Sofia, Sofia, Bulgaria
Email: bozhanov.stanislav@gmail.com

Received: 12 Sep 2020, Revised and Accepted: 24 Oct 2020

ABSTRACT

Objective: The popularity of Sildenafil, the widespread distribution of various products and dietary supplements with added synthetic drugs, requires reliable analysis methods. This research study aimed to develop a simple isocratic HPLC method for the determination of Sildenafil in tablet dosage forms from the local market.

Methods: Separation was carried out at 30 °C, using column LiChrosorb® RP-18 (150 x 4.0 mm, 5 μm) with mobile phase consisting of acetonitrile: methanol: 0.5% triethylamine (15: 26: 59 v/v/v). The detector was set at 290 nm. The flow rate was 1.0 ml/min and the injection volume was 20 μl.

Results: Linear correlation was obtained within the range 6.25–50.0 μg/ml with correlation coefficient (R2) 0.9998. The achieved limits of detection and quantitation were 0.7 and 2.2 μg/ml, respectively.

Conclusion: The developed method can be applied for the quality control of Sildenafil preparations.

Keywords: Erectile dysfunction, Sildenafil, HPLC, Phosphodiesterase inhibitors, Tablets, Drugs

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2021v13i1.39719. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

Erectile dysfunction is a socially significant disorder. It can be caused by both various medical conditions [1] and psychogenic factors [2]. Most of erectile dysfunction treatment approaches are based on phosphodiesterase inhibitors [3]. Sildenafil citrate (chemically known as 1-[[3-(6,7-dihydro-1-methyl-7-oxo-3-propyl-1H-pyrazole [4,3-d] pyrimidin-5-yl)-4-ethoxyphenyl] sulfonyl]-4-methyl piperazine citrate) is a potent and selective phosphodiesterase inhibitor. It is the first phosphodiesterase inhibitor introduced on the market (Viagra®, Pfizer) [4].

The social importance of erectile dysfunction, drug efficacy and easy internet access to Sildenafil (even without a prescription) can lead to unreasonable and uncontrolled use. Moreover, online drug purchases are always a risk, particularly in the case of illegal products that may contain poor-quality drugs or unknown analogs. This is especially dangerous for patients with preconditions for cardiovascular disease and/or concomitantly receiving cardiovascular drugs. On the other hand, healthy foods and dietary supplements have become increasingly popular in recent years. Many dietary supplements (advertised as "natural" or "herbal") are available on the market to help combat erectile dysfunction or improve sexual activity. Low control on such products makes it possible to insert medicines of unclear origin and quality, which in turn lead to health risks [5-8].

The popularity of Sildenafil, the widespread distribution of various counterfeit products and dietary supplements with added synthetic drugs requires analysis methods for analysis.

Various analytical techniques like spectrophotometry [9, 11], Raman spectroscopy [11, 12], thin layer chromatography [13], high performance liquid chromatography [14-23], high performance liquid chromatography-mass spectrometry [24-27] are reported for Sildenafil determination in pharmaceutical preparations [10, 12, 18-20, 22, 23, 25], biological samples [16, 20, 21, 24-27], dietary supplements [3, 5, 13], herbal products [15] and drinks [11].

Where the determination of traces or unknown analogs is necessary, then a highly sensitive technique, capable to provide information on the structure of the target substances is required. On the other hand, when a single substance is determined, conventional techniques are preferable due to their simplicity, accessibility, and relatively lower costs.

This article presents the development of a simple isocratic HPLC method for the determination of Sildenafil in tablet dosage forms obtained randomly from the local market.

The reagents used in this study were Sildenafil citrate (reference substance was obtained by Sigma Aldrich), HPLC grade acetonitrile, and methanol (Merck Ltd., Germany). Sildenafil tablets (50 mg) were obtained randomly from the local market. All other chemical reagents were of analytical grade.

For the preparation of the reference solution, 25 mg (accurately weighed) of Sildenafil were dissolved with the mobile phase in a 100.0 ml volumetric flask. Ten milliliters of this solution were diluted to 100.0 ml with the mobile phase (C = 25 μg/ml).

For sample solution preparation, ten tablets of each formulation were weighed and were crushed to a fine powder. An amount equivalent to 50 mg Sildenafil (1 tablet) was weighed accurately and transferred in a 100.0 ml volumetric flask. Around 50 ml of the mobile phase were added and the mixture was sonicated for 10 min. Then the sample was diluted to 100.0 ml with the mobile phase. The solution was filtered and 5.00 ml were diluted to 100.0 ml with the mobile phase (C = 25 μg/ml).

In this study, a high performance liquid chromatographic system (SHIMADZU Corporation) equipped with an LC-20 AD quaternary pump and autosampler, Shimadzu DGU-20A5 vacuum degasser, and a Shimadzu SPD-20A UV/VIS detector was used for analysis. To optimize the chromatographic conditions, some preliminary studies were conducted.

In these studies, different stationary phases (C8 and C18) were used, as well as mobile phases with different compositions and ratios of the organic and aqueous phases. The combinations of acetonitrile: water and methanol: water in different ratios did not lead to satisfactory results. The effects of organic modifier (triethylamine, 0.3-0.7%), flow rate, column temperature, and wavelength were also investigated. In the end, the optimal conditions achieved were as follows: C18 column (LiChrosorb® RP-18 (150 x 4.0 mm, 5 μm)), at 30 °C and a mobile phase consisting of acetonitrile: methanol: 0.5% triethylamine (15: 26: 59 v/v/v). The detector was set at 290 nm. The flow rate was 1.0 ml/min and the injection volume was 20 μl. The mobile phase and the samples were filtered through a 0.45 μm membrane filter. The data was recorded using Lab Solutions Software. The retention time of Sildenafil was approximately 10 min and was comparable to the retention times from previously published reports [18, 23].

The analytical method was validated according to the International Conference on Harmonization (ICH) guidelines [28].

The specificity of the HPLC method was determined by analyzing the standard drug solution and sample solution. As shown in fig. 1 (standard solution) and fig. 2 (sample solution), there was no interference by the formulation excipients since no other peaks were corresponding to the retention time of the Sildenafil.

The chromatographic parameters for Sildenafil, obtained at optimal experimental conditions, are listed in table 1.

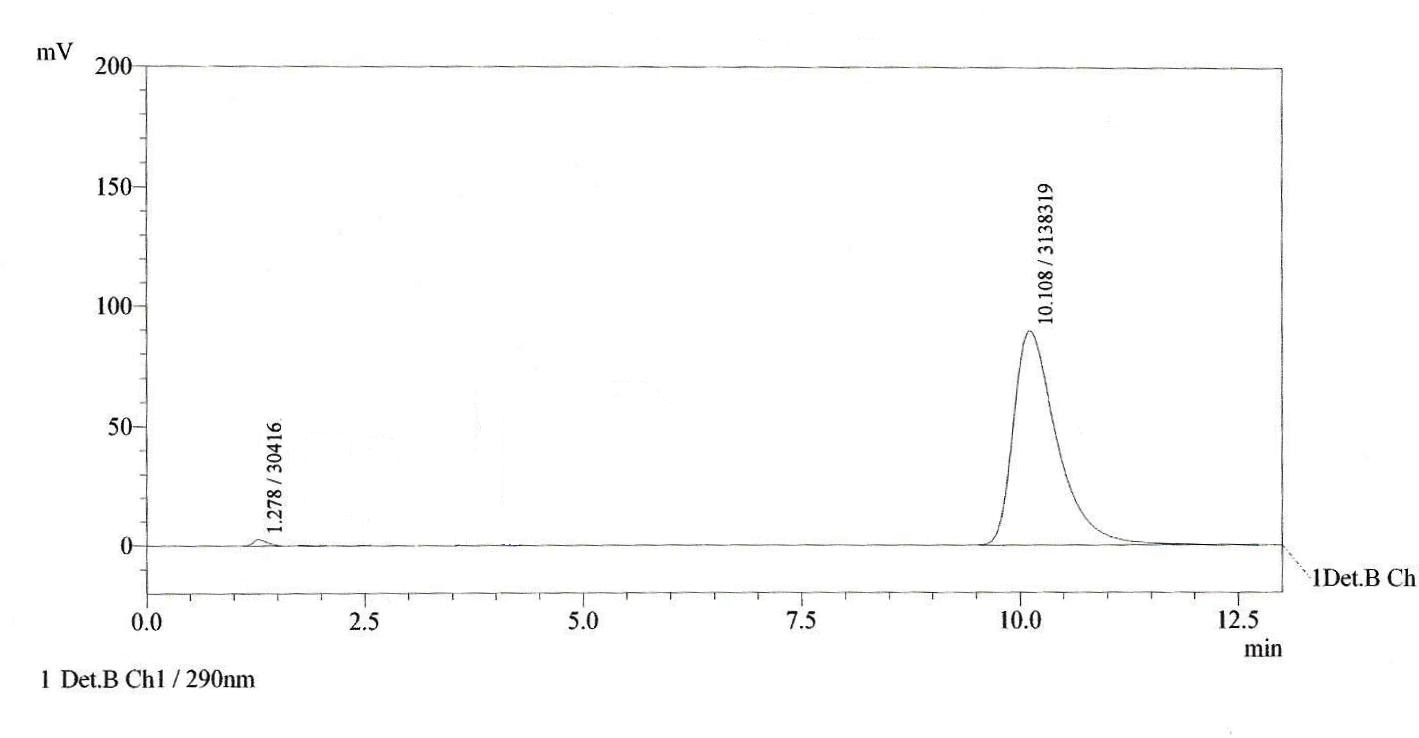

Fig. 1: Chromatogram of Sildenafil standard solution

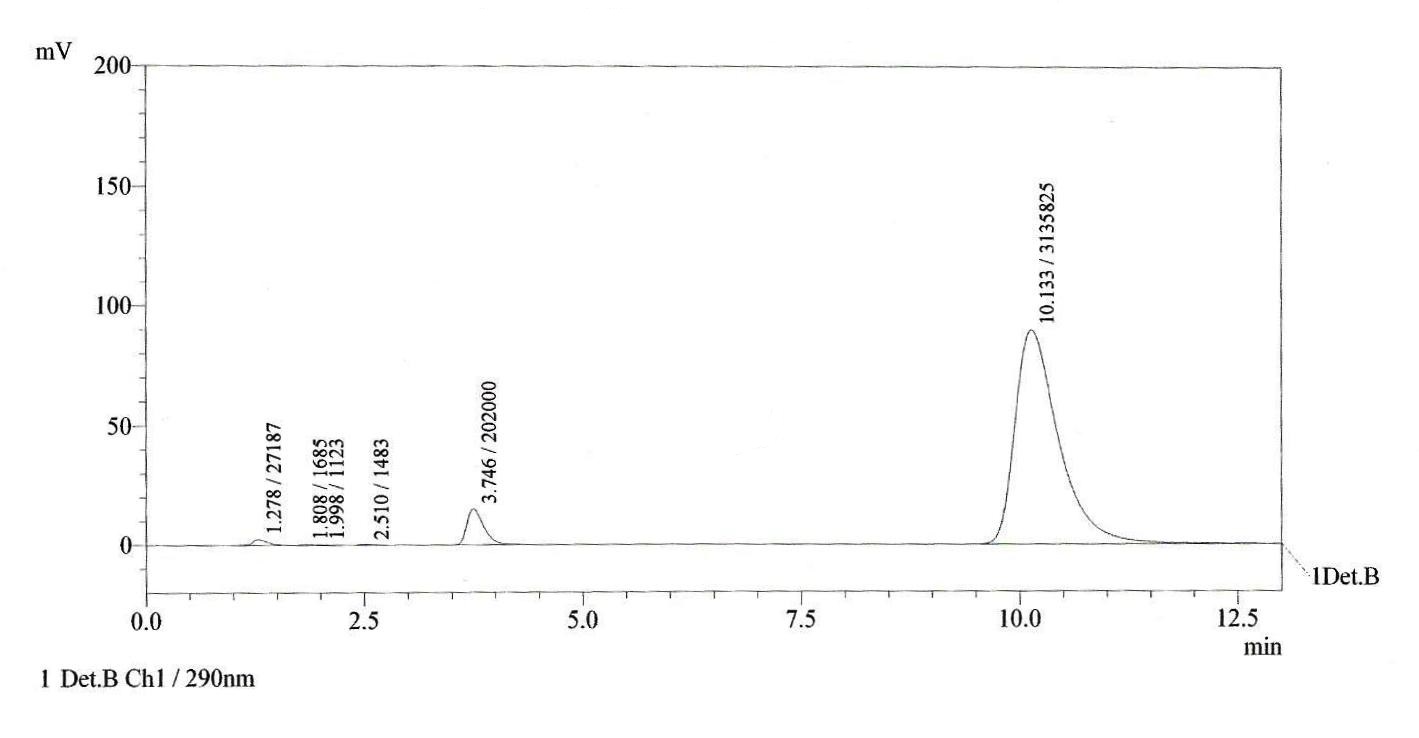

Fig. 2: Chromatogram of Sildenafil sample solution

Table 1: Chromatographic data for the HPLC method

Parameter Sildenafil
Theoretical plates 2126±3.6
Tailing factor 1.64±4.71x10-4
Resolution factor 10.37±0.01
Retention factor 6.92±0.01

*The values are expressed as mean±SD, n=3

Five standard solutions with concentrations within the range 6.25–50.0 μg/ml were used for calibration and linearity study. Each solution was injected five times. The response (peak area) was plotted against the concentration of standard solutions. A linear correlation was obtained and the regression equation was y = 126217.2x–29536.0 with correlation coefficient (R2) 0.9998. Limit of Detection (LOD) and Limit of Quantitation (LOQ) were evaluated based on signal-to-noise ratio and were found to be 0.7 and 2.2 μg/ml, respectively, which are similar to earlier reported [16, 23]. The precision was determined by six successive injections of a sample at the 100% concentration level of the Sildenafil. The RSD (%) values (table 2) for intra-and inter-day precision were found to be 0.16% and 0.65%, respectively, thus indicating that the method is precise. The method accuracy was evaluated by recovery studies. Samples at a concentration range of 50%-150% were prepared and each concentration level was injected in triplicate. The accuracy was expressed as the percentage of analyte recovered (>98%) and RSD (<1%). The results listed in table 3 show good accuracy and indicate that the proposed method is suitable for the quantitative determination of Sildenafil.

Table 2: Precision of the method

Amount taken

(mg/tablet)

 Intra-day Inter-day
Amount found (mg/tablet) Amount found (%) Amount found (mg/tablet) Amount found (%)
50.00 50.09 100.2 50.15 100.3
49.90 99.80 49.95 99.90
49.96 99.92 49.86 99.72
50.04 100.1 50.07 100.1
49.89 99.78 49.79 99.58
49.93 99.86 49.23 98.46
Mean 49.97 99.94 49.84 99.68
±SD 0.081 0.170 0.327 0.649
RSD % 0.161 0.171 0.657 0.652

*The values are expressed as mean±SD, n=6

Table 3: Recovery studies of Sildenafil

Level (%) Amount taken (mg) Amount found (mg) Amount found (%) ±SD RSD (%)
50 25 24.96 99.84 0.048 0.194
100 50 49.43 98.86 0.097 0.194
150 75 74.96 99.95 0.121 0.161

*The values are expressed as mean±SD, n=3

The method was applied for the determination of Sildenafil in tablet dosage forms, randomly obtained from a local market. No significant differences were found between achieved results (table 4) and label claim.

Table 4: Determination of Sildenafil in tablet formulations

Product Amount declared (mg/tablet) Amount found (mg/tablet) Results (%)
Product 1 50 50.08±0.022 100.2
Product 2 50 49.56±0.036 99.12
Product 3 50 49.83±0.046 99.66

*The values are expressed as mean±SD, n=3

CONCLUSION

The isocratic HPLC-UV method, described in this paper, was developed for determination and quantity control of the Sildenafil in tablets. The procedure showed satisfactory run time (12 min), good linearity range (6.25–50.0 μg/ml), and a high degree of accuracy and precision (RSD<1%). The method is simple, easy for implementation, and requires common equipment; therefore, it is cost-effective. It was successfully applied to real samples.

ACKNOWLEDGEMENT

This work is supported by the Bulgarian Ministry of Education and Science under the National Program for Research “Young Scientists and Postdoctoral Students” 2020.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All authors have contributed equally.

CONFLICT OF INTERESTS

The authors declare no conflict of interest.

REFERENCES

  1. Mitidieri E, Cirino G, d’ Emmanuele di Villa Bianca R, Sorrentino R. Pharmacology and perspectives in erectile dysfunction in man. Pharmacol Ther 2020;208:107493.

  2. Dadomo H, Ponzi D, Nicolini Y, Volpi R, Palanza P, Pelosi A, et al. Loss of socio-economic condition and psychogenic erectile dysfunction: the role of temperament and depression. Adapt Hum Behav Physiol 2020;6:57-74.

  3. Lee JH, Park HN, Park OR, Kim NS, Park SK, Hoil Kang H. Screening of illegal sexual enhancement supplements and counterfeit drugs sold in the online and offline markets between 2014 and 2017. Forensic Sci Int 2019;298:10-9.

  4. Patel DN, Li L, Kee CL, Ge X, Low MY, Koh HL. Screening of synthetic PDE-5 inhibitors and their analogues as adulterants: analytical techniques and challenges. J Pharm Biomed Anal 2014;87:176-90.

  5. Jiru M, Stranska-Zachariasova M, Dzuman Z, Hurkova K, Tomaniova M, Stepan R, et al. Analysis of phosphodiesterase type 5 inhibitors as possible adulterants of botanical-based dietary supplements: an extensive survey of preparations available at the Czech market. J Pharm Biomed Anal 2019;164:713-24.

  6. Žuntar I, Krivohlavek A, Kosic Vuksic J, Granato D, Kovacevic DB, Putnik P. Pharmacological and toxicological health risk of food (herbal) supplements adulterated with erectile dysfunction medications. Curr Opin Food Sci 2018;24:9-15.

  7. El-Amrawy F, El-Agouri G, Elnoweam O, Aboelazayem S, El-Mohanad F, Nounou MI. Adulterated and counterfeit male enhancement nutraceuticals and dietary supplements pose a real threat to the management of erectile dysfunction: a global perspective. J Diet Suppl 2016;13:660-93.

  8. Rocha T, Amaral JS, Oliveira MBP. Adulteration of dietary supplements by the illegal addition of synthetic drugs: a review. Compr Rev Food Sci Food Saf 2016;15:43-62.

  9. El-Gindy AE, Shokry E, Farouk M, Abd El-Aziz L. Validated methods for determination of sildenafil citrate in the presence of its potential impurities. J Biomed Sci Res 2010;2:262-78.

  10. Sakur AA, Affas S. Validated spectrophotometric method to determine vardenafil and sildenafil in pharmaceutical forms using potassium iodide and potassium iodate. Int J Pharm Pharm Sci 2017;9:65-9.

  11. Xiao S, He Y. Analysis of sildenafil in liquor and health wine using surface-enhanced Raman spectroscopy. Int J Mol Sci 2019;20:2722.

  12. de Veij M, Deneckere A, Vandenabeele P, de Kaste D, Moens L. Detection of counterfeit viagra® with Raman spectroscopy. J Pharm Biomed Anal 2008;46:303–9.

  13. Saeed SMA, Mohamed MA, Shantier SW, Gadkariem EA, Ismail EMO. Determination of undeclared sildenafil citrate and tadalafil in aphrodisiac herbal preparations by TLC and HPLC. Int J Innov Pharm Sci Res 2015;3:688-96.

  14. Kannappan N, Yada D, Yada D, Shashikanth MR. Method development and validation of stability-indicating methods for assay of tadalafil and sildenafil citrate by HPLC. Int J Chemtech Res 2010;2:329-33.

  15. Al-Amin M, Sultana GNN, Hossain CF. Identification of sildenafil citrate as an adulterant in herbal products using high-performance liquid chromatography with a photodiode array detector. Int J Pharm Pharm Sci 2018;10:15-20.

  16. Sharma N, Rajput P, Thakkar A, Sarma GS. RP-HPLC method development for estimation of sildenafil citrate in tablets and in seminal fluid. J Appl Pharm Sci 2012;2:172-8.

  17. Zaharieva Z, Tanev D, Danalev D. Development and validation of HPLC/DAD method for simultaneously determination of six prohibited substances in model matrices. Acta Chromatogr 2020;32:276-80.

  18. Atipairin A, Woradechakul C, Chee KS, Sawatdee S, Yoon AS. Method validation for determination of sildenafil citrate in an extemporaneous oral suspension. Int J Pharm Pharm Sci 2014;6:131-6.

  19. Ahmed NR, Lottfi SN. High performance liquid chromatographic method for determination of sildenafil citrate (Viagra) in pharmaceutical formulation and industrial effluent sample. Raf J Sci 2013;24:24-31.

  20. Reddy BPK, Reddy YR. Validation and stability-indicating RP-HPLC method for the determination of sildenafil citrate in pharmaceutical formulations and human plasma. E J Chem 2008;5 Suppl 2:1117-22.

  21. Tripathi AS, Sheikh I, Dewani AP, Shelke PG, Bakal RL, Chandewar AV, et al. Development and validation of RP-HPLC method for sildenafil citrate in rat plasma-application to pharmacokinetic studies. Saudi Pharm J 2013;21:317-21.

  22. Dinesh ND, Vishukumar BK, Nagaraja P, Made Gowda NM, Rangappa KS. Stability indicating RP-LC determination of sildenafil citrate (Viagra) in pure form and in pharmaceutical samples. J Pharm Biomed Anal 2002;29:743-8.

  23. Daraghmeh N, Al-Omari M, Badwan AA, Jaber AMY. Determination of sildenafil citrate and related substances in the commercial products and tablet dosage form using HPLC. J Pharm Biomed Anal 2001;25:483-92.

  24. Tracqui A, Ludes B. HPLC-MS for the determination of sildenafil citrate (Viagra) in biological fluids. Application to the salivary excretion of sildenafil after oral intake. J Anal Toxicol 2003;27:88-94.

  25. Ozturk Er E, Ozbek E, Bakırdere S. Accurate and sensitive determination of sildenafil, tadalafil, vardenafil and avanafil in illicit erectile dysfunction medications and human urine by LC with quadrupole-TOF-MS/MS and their behaviors in simulated gastric conditions. J Sep Sci 2019;42:475–83.

  26. Ozturk Er E, Akkaya E, Ozbek B, Bakırdere S. Development of an analytical method based on citric acid-coated magnetite nanoparticles assisted dispersive magnetic solid-phase extraction for the enrichment and extraction of sildenafil, tadalafil, vardenafil and avanafil in human plasma and urine prior to determination by LC-MS/MS. Microchem J 2019;147:269-76.

  27. Ozturk Er E, Akkaya E, Ozbek B, Bakırdere S. A powerful combination of quadruple isotope dilution strategy with dispersive magnetic solid-phase extraction for the accurate and precise multi-analyte determination of tadalafil, sildenafil, avanafil and vardenafil in human plasma and urine samples using LC-ESI-tandem MS. Microchem J 2020;152:104302.

  28. International Conference on Harmonization 2005 ICH harmonized tripartite guideline validation of analytical procedures: text and methodology Q2 (R1) ICH, Geneva; 2005.
