Int J App Pharm, Vol 13, Issue 1, 2021, 233-241Original Article

FABRICATION OF SODIUM ALGINATE/GUM GHATTI IPN MICROBEADS INTERCALATED WITH KAOLIN NANO CLAY FOR CONTROLLED RELEASE OF CURCUMIN

D. GANESH1, P. SURESH2, G. SRINIVAS RAO1*

1Department of Chemistry, GIS, GITAM (Deemed to be University), Visakhapatnam 530045, Andhra Pradesh, India, 2Department of Chemistry, SCNR Government Degree College, Proddatur, Kadapa 516360, Andhra Pradesh, India
Email: sgolagan@gitam.edu

Received: 09 Oct 2020, Revised and Accepted: 12 Dec 2020

ABSTRACT

Objective: The objective of this study is to fabricate sodium alginate (SA)/gum ghatti (GG) microbeads intercalated with Kaolin (KA) nano clay for the sustained release of curcumin (CUR).

Methods: The microbeads were prepared by a simple ionotropic gelation technique. The developed beads were characterized by fourier transform infrared spectroscopy (FTIR), differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), X-ray diffraction (X-RD), and scanning electron microscopy (SEM). Swelling studies and in vitro release studies were investigated under both pH 7.4 and pH 1.2 at 37 °C.

Results: The developed microbeads were characterized by FTIR, which confirms the interaction between CUR, polymeric matrix and KA. DSC and XRD analysis reveals that the CUR has molecularly dispersed in the polymer matrix. In vitro results illustrated that microbeads were influenced by the pH of test media, which might be suitable for intestinal drug delivery. The drug release mechanism was analyzed by fitting the release data into different kinetic equations and n values are obtained in the range of 0.609-0.640, suggesting that the developed microbeads showed the non-Fickian diffusion type drug release.

Conclusion: These results clearly illustrated that the developed KA intercalated polymeric microbeads are potential drug carriers for the controlled release of CUR.

Keywords: Gum Ghatti, Kaolin, Sodium alginate, Curcumin, Microbeads

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijap.2021v13i1.39963. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

In today’s pharmaceutical formulations, polymers play a vital role in the progression of drug delivery technology by offering different types of pharmaceutical dosage formulations such as oral, parenteral, semisolid, controlled and sustained drug delivery systems because it can control the drug release and also it may increase the safety, efficacy, and bioavailability of the drugs with increased patient compliance [1-3]. Over the past few decades, polymeric interpenetrating polymer network (IPN) hydrogel microbeads have been broadly used as an intelligent biomaterial in many biomedical applications such as drug delivery and tissue engineering due to their excellent physical and chemical properties such as high water absorption tendency, high mechanical strength, capable of swelling under physiological conditions, providing a suitable environment for cell adhesion and new bone formation [4-6]. However, hydrogels have few disadvantages such as unconstrained release rate and uncontrolled swelling properties, leading to several side effects. To overcome these problems, certain substances have been introduced into the hydrogels such as clay minerals, surface coating with other polymers such as poly-L-Lysine [7], chitosan [8]. By introducing clay minerals such as Kaolin, montmorillonite into hydrogels, this controls the release rate of hydrogels, minimizing side effects and maintaining the drug concentration at effective levels in plasma over a period of time [9].

During the last few years, a wide range of clay minerals have been used in pharmaceutical and biomedical fields exclusively for controlled drug delivery systems because it can control the efficiency and consistency in dosage formulations and also improve the bioavailability of the drug molecules due to their larger specific surface area and considerable ion-exchange capacity which attributes to their ability to control the efficiency of bioactive molecules [10-12]. Kaolin is a hydrated two-dimensional (2D) aluminosilicate clay mineral which has been extensively used in biomedical related applications such as an activating agent for blood clotting [13], as an ingredient for operation hemostasis [14] and also used in drug delivery systems for prolonged-release, especially of basic drugs because it can act as an active excipient in pharmaceutical dosage forms to increase the efficiency and bioavailability of drug molecules [15]. In fact their medicinal utilities have been discovered by many traditional civilizations (Egyptians, Assyrians, Babylonians, Indians, Chinese), Greeks, Romans and medieval Arab Muslims till the recent times [16].

Curcumin is a yellow bioactive compound obtained from the yellow spice of Curcuma longa, possesses a wide variety of pharmacological properties such as antibacterial, antioxidant, anti-inflammatory, anti-malarial, antifungal antiviral and also enhances anti-tumor activity against different types of cancer cells, including colon, prostate and breast cancers [17-19]. Due to its poor solubility and rapid metabolism, its biomedical applications are limited which results in poor bioavailability [20]. To increase the bioavailability and encapsulation efficiency of CUR, KA clay mineral was used in the present study because KA intercalates with drug molecules by adsorption process, which inturn increases the encapsulation and bioavailability of CUR.

Gum Ghatti (GG) is an anionic polysaccharide obtained from the species Anogeissus latifolia, comprising of 1→6 linked-D-galactopyranose major units and alternating 4-O-subsituted and 2-O-subsituted-d-mannopyranose units along with a single larabinofuranose unit as side chain [21, 22]. GG has widely used in food and pharmaceutical applications, due to its excellent emulsification property, many researchers have shown potential interest in the usage of GG in drug delivery applications as a controlling polymer [23]. Sodium alginate (SA) is a linear anionic polymer consisting of various amounts of 1→4 linked β-D-guluronic acid and α-L-mannuronic acid residues. SA has been commonly used in the food and biomedical applications due to its flexible characters such as biocompatible, biodegradable, inherent hydrophilicity and non-toxic in nature [24]. SA forms three dimensional hydrogel networks through the electrostatic attraction between carboxylic acid groups of guluronic acid residues and divalent ions (Ca2+, Mg2+ and Ba2+) and makes egg-box structure [25]. However, the SA hydrogels have few limitations such as uncontrolled swelling properties and drug release profiles [26]. To overcome these limitations the SA polymer is blended with other polymers, grafting with monomers and incorporation of clay minerals [9].

In the present research work, we focussed on the fabrication of SA/GG microbeads intercalated with KA. The incorporation of KA in the polymer matrix increases the bioavailability of CUR and also controls the release rate of CUR. The developed microbeads were characterized by different techniques such as FTIR, DSC, TGA, X-RD and SEM. The swelling studies and in vitro drug release kinetics were performed in both simulated intestinal fluid and simulated gastric fluid at 37 °C and the results are presented here.

MATERIALS AND METHODS

Materials

Gum Ghatti and Kaolin were purchased from Sigma Aldrich (USA). Sodium alginate and calcium chloride were purchased from Sd. Fine chemicals, Mumbai, India. Curcumin was purchased from Loba Chemicals, Mumbai, India. Millipore water was used throughout the study.

Methods

Synthesis of SA/GG/KA microbeads

CUR encapsulated SA/GG/KA microbeads were prepared by simple gelation technique [27]. SA and GG aqueous dispersions about 2% of each were prepared separately using millipore water. The blends of SA and GG were prepared by mixing varying amounts (i.e. 80:20, 60:40, and 40:60) in double distilled water and stirred well to form homogeneous mixture. To this blend mixture, different amounts of KA (as per given table 1) was added and stirred well up to formation of homogeneous mixture. Then required amounts of CUR was added and stirred to obtain a homogeneous solution. Afterwards the suspension was placed in sonicator for 5 min to get homogenous suspension. The resulting solution was added drop wise in to 5 % CaCl2 solution, where the spherical beads formed instantly were kept for 30 min. The obtained wet beads were collected by decantation, washed three times with double distilled water to remove the drug attached on the bead surface, and finally were dried in air overnight at room temperature. A schematic diagram (fig. 1) for the preparation procedure is given below.

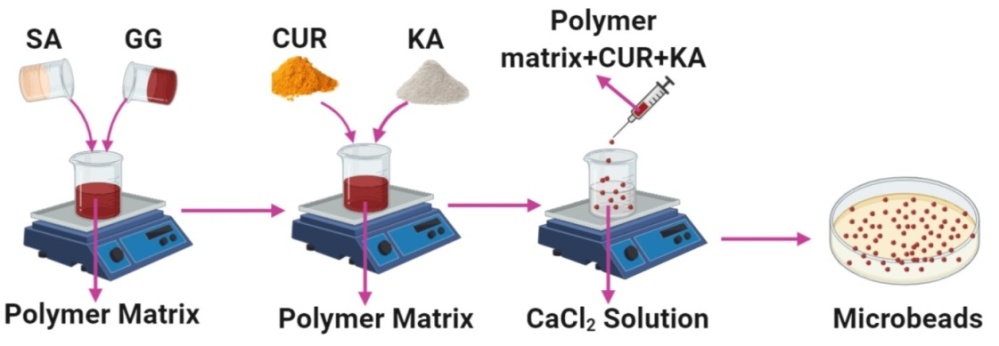

Fig. 1: Schematic procedure for the preparation of CUR loaded SA/GG/KA microbeads

Table 1: Formulation and composition of all samples

Formulation code SA (w/v) GG (w/v) KA Drug (mg)
SG1 80 20 100 100
SG2 70 30 100 100
SG3 60 40 100 100
SG4 60 40 200 100
SG5 60 40 300 100
SG6 60 40 100 150
SG7 60 40 100 200
Placebo 60 40 00 000

Characterizations methods

Intercalation kinetics

To estimate the maximum time required for intercalation of CUR with KA, 25 mg of CUR and 50 mg of KA was weighed and dissolved in 10 ml of double distilled water with continuous stirring at 37 °C. At regular intervals of time (15, 30, 60, 90, 120, 240 and 360 min) the drug solution was filtered and concentration of CUR was assayed using UV spectrophotometer at fixed λmax value of 470.00 nm.

Fourier transform infrared spectral analysis

Fourier transform infrared spectroscopy (FTIR) spectra of SA, GG, CUR, KA, placebo microbeads, and drug loaded microbeads were recorded with FTIR spectrophotometer (model Bomem MB-3000, with Horizon MBTM FTIR software) in the wavelength range of 400–4000 cm-1 to find out the possible chemical interactions between polymers and drug.

Differential scanning calorimetry (DSC)

DSC curves of SA, GG, CUR, KA, Placebo microbeads, and drug loaded microbeads were recorded using Thermogravimetry analyzer (Rheometric Scientific, Model DSC-SP, UK). The analysis was performed by heating the sample from 40 to 600 °C at a heating rate of 10 °C/min under nitrogen atmosphere.

Thermogravimetric analysis (TGA)

Thermogravimetric analysis of SA, GG, CUR, KA, Placebo microbeads, and drug loaded microbeads were carried out using Thermogravimetry analyzer Rheometric Scientific, Model DSC-SP, UK. About 5-7 mg of sample was placed into alumina crucible and the thermo grams were recorded between 40 °C to 600 °C at a heating rate of 10 °C/min under nitrogen atmosphere.

X-ray diffraction (XRD)

The X-ray diffraction of CUR, placebo microbeads, and drug loaded microbeads were performed by a wide angle X-ray scattering diffractometer (Panalytical X-ray Diffractometer, model-X’pert Pro) with CuKα radiation (λ= 1.54060) at a scanning rate of 10 °/min to determine the crystallinity.

Scanning electron microscopy (SEM)

The morphological characterization of microbeads was observed by using SEM (JOEL MODEL JSM 840A) with an accelerated voltage of 20 kV.

Encapsulation efficiency

A known mass of drug loaded microbeads (20 mg) were immersed into 100 ml of phosphate buffer solution (pH 7.4 containing 5 % absolute ethyl alcohol) for 24 h and then vigorously stirred the microbeads to ensure the complete extraction of CUR from the microbeads. Supernatants were filtered and analyzed by ultraviolet (UV) spectrophotometer (LabIndia, Mumbai, India) at the λmax of 470.00 nm with placebo microbeads were used as a blank correction. Concentration of drug was determined by using calibration curve constructed by series of CUR standard solutions. Percentage of encapsulation efficiency was determined by the following formula.

% EE = x 100

Swelling measurements

The swelling behaviour of different formulations was determined gravimetrically in simulated intestinal fluid (pH 7.4) and simulated gastric fluid (pH 1.2) at 37 °C. The % of equilibrium swelling degree was calculated using the following equation:

% swelling degree = x 100

Where Ws is the weight of swollen beads and Wd is the weight of dry beads.

In vitro drug release studies

In vitro drug release studies of different formulations were carried out by using a dissolution tester (Lab India, Mumbai, India) containing eight baskets each with 900 ml of phosphate buffer solution (PBS) maintained at 37 °C, at a rotation speed of 50 rpm to replicate intestinal fluid (pH 7.4) and gastric fluid (pH 1.2) atmosphere respectively. 100 mg of the CUR loaded microbeads were taken in a dialysis bags for the drug release studies. At regular intervals of time, 5 ml aliquot samples were withdrawn, and analyzed using UV spectrophotometer at fixed λmax value of 470.00 nm, and the released drug amount was obtained by using concentration versus absorbance calibration curves. The withdrawn aliquot samples were replenished with equal volumes of PBS to stimulate physiological conditions. The sink conditions were maintained throughout the release study.

Drug release kinetics

The drug release kinetics was analyzed by fitting the data in to kinetic models, which include zeroth, first order, Higuchi and Korsmeyer-Peppas [28-31]. Based on the goodness of data fit, the most suitable model was also determined [32].

RESULTS AND DISCUSSION

Intercalation kinetics

From fig. 2, it was observed that 14.51 % of CUR was intercalated with KA electrostatically within 90 min and remained constant up to 360 min. So, in the following experiments, we will keep 90 min time for interaction between CUR and KA to prevent partial interaction.

FTIR spectral analysis

The FTIR spectra of GG, SA, KA, CUR, placebo microbeads and drug loaded microbeads (SG7) are represented in fig. 3. The FTIR spectra of CUR shows a characteristic broad peak at 3496 cm-1, which corresponds to phenolic O–H stretching vibrations, a peak at 2923 cm-1 is assigned to aromatic C–H stretching vibrations, a peak at 1596 cm-1 corresponds to the stretching vibration of benzene ring skeleton, a peak at 1513 cm-1 corresponds to mixed (C=O) and (C=C) vibration, a peak at 1272 cm-1 is assigned to Ar-O stretching vibrations [20]. The FTIR spectra of KA shows characteristic peaks at 3688 and 3625 cm-1 corresponds to O–H stretching frequency of Si–OH and Al–OH respectively, a peak at 3456 cm-1 assigned to H–O–H stretching frequency of interlayer water, peak at 2360 cm-1 was attributed to C–H stretching frequency, peak at 1596 cm-1 corresponds to O–H adsorbed water, the absorption peaks at 1126 and 902 cm-1 corresponds to Si–O–Si stretching peak [33]. FTIR spectra of SA shows a peak at 3417 cm-1 is responsible for O–H stretching vibrations, a peak at 1596 cm-1 is assigned to C=O stretching vibrations, a peak at 1383 cm-1 corresponds to COO-asymmetric stretching frequency. On comparing the FTIR spectra of placebo microbeads and drug loaded microbeads (SG7), a new peak at 1510 cm-1 was observed, which similar to that of C=C stretching vibration of CUR, suggesting that drug was present in SG7. And also the peak at 1595 cm-1in placebo microbeads was shifted to 1592 cm-1in drug loaded SG7 microbeads, which confirmed that the drug interacts with the polymer matrix. In the case of SG7, the O–H stretching frequency was decreased due to the interaction of KA with active sites of polymer molecules and also a new peak appears at 910 cm-1, which confirmed that the KA intercalates with active sites of polymer matrices and drug molecules [34].

Fig. 2: Effect of time for intercalation of CUR with KA

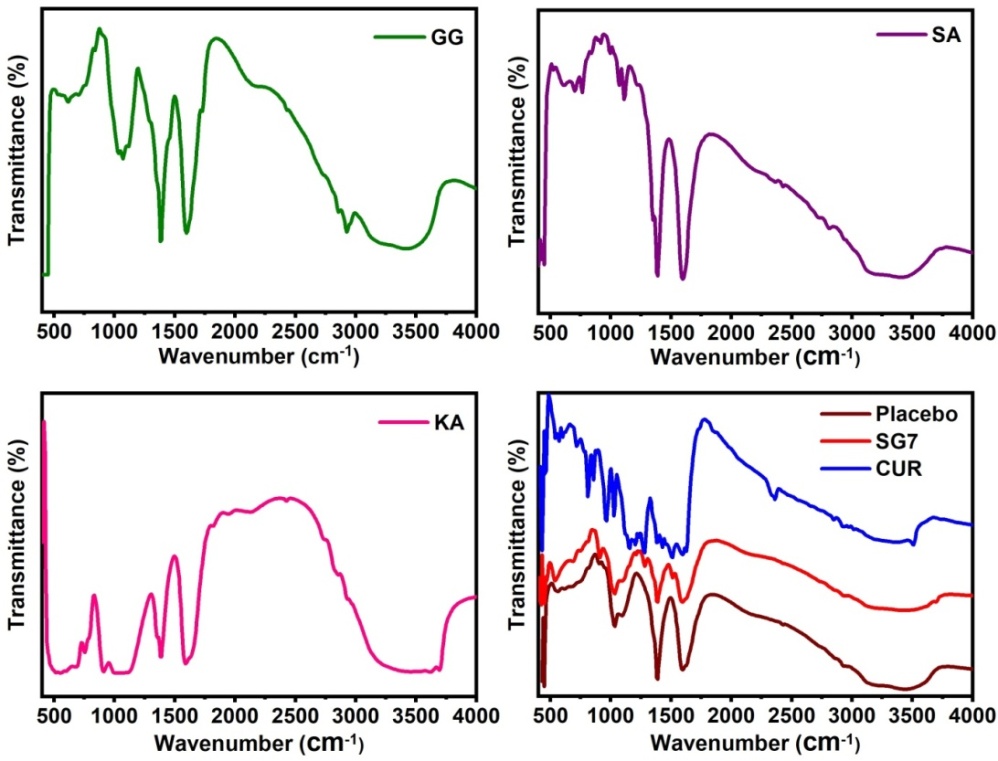

Fig. 3: FTIR spectrum of GG, SA, KA, CUR, placebo microbeads, and drug loaded SA/KA microbeads (SG7)

Thermal analysis

To investigate the interaction of polymer matrix with KA as well as the crystalline nature of encapsulated CUR in the polymer matrix, DSC analysis was performed and the DSC curves were displayed in fig. 4. The thermogram of KA shows a peak at 272 and 496 °C, whereas SG7 microbeads also showed similar peaks like that of KA at 331 and 578 °C but a slight variation was observed, which confirmed that the interaction takes place between active sites of the polymer matrix and KA [15]. The peaks in SG7 were shifted to the higher side due to the interaction between the polymer matrix and KA. DSC curve of CUR shows a sharp peak at 189 °C, whereas such a peak was not observed in SG7 microbeads, which confirmed that the drug was molecularly dispersed in the microbeads [35]. To estimate the thermal stability of developed microbeads TGA analysis was performed and the results are displayed in fig. 4. The TGA curve of GG showed two weight loss steps, the first weight loss step was observed between the regions of 40-162 °C with weight loss of 7%, which is due to the evaporation of water molecules adsorbed on the surface. The second weight loss step with a weight loss of 67% was found in the region of 165–600 °C, which corresponds to the degradation of GG polymer. The thermal decomposition of SA occurs in three consecutive steps. The first weight loss step with weight loss of 17 % was observed in the region of 40–116 °C due to the dehydration process. The next step was observed in the region of 121-214 °C with a loss of 4% followed by the third step with weight loss of 48 % in between the region of 225-600 °C, which is due to the formation of sodium carbonate residue [36]. The TGA curve of CUR showed that the CUR should remain stable up to 168 °C, after that it follows mass loss and being maximum at 391 °C due to total degradation of the compound. In the case of KA, weight loss of 6 % was observed between 40 to 256 °C corresponds to the dehydration of water molecules absorbed in pores and between the silicate layers and followed by weight loss of 13% in between the region of 258-600 °C, corresponds to the loss of structural water. The TGA curve of placebo microbeads showed three weight loss steps. The first weight loss step was found between 40-181 °C with a loss of 22 %, which is due to the dehydration of adsorbed water. The next two steps were observed in the region of 192-295 °C and 305-600 °C with a weight loss of 24 % and 31 %, which indicates the decomposition of the polymer network. In the case of drug loaded microbeads (SG7) three weight loss steps were observed. The first weight loss of 12 % was observed in the region of 42-191 °C, which is ascribed to the evaporation of water molecules adsorbed on the surface of microbeads. The second step was observed in the region of 197-313 °C with a loss of 20 %, followed by weight loss of 18 % in between the region of 321-600 °C, which corresponds to the decomposition of the polymer network. The TGA results suggest that the developed microbeads show an overall improvement in thermal stability.

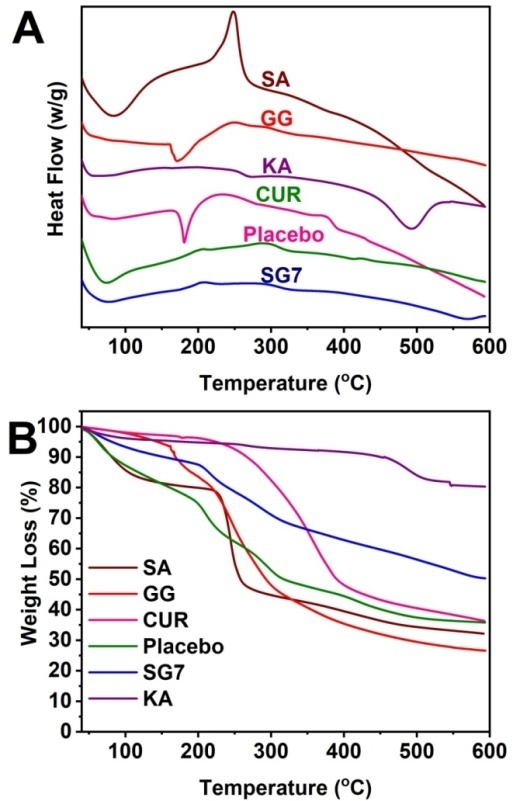

Fig. 4: Thermal analysis (A) DSC and (B) TGA

X-RD analysis

XRD analysis was performed to find out the molecular dispersion of CUR in the polymer matrix and the presence of KA in the microbeads. The diffractograms of CUR, KA, placebo and SG-7 microbeads were presented in fig. 5. The XRD pattern of CUR showed various 2Ө peaks in between 12-28°, which is due to the crystalline nature of CUR. Whereas in SG-7 these peaks were not observed, suggesting that CUR crystalline peaks were merged with the polymer matrix, which indicates that the CUR changes its state from crystalline to amorphous nature. These results suggesting that the CUR has molecularly dispersed in the polymeric matrix. The XRD pattern of KA shows characteristic peaks at 11.95°, 18.34°, 19.97° and 24.84° which is due to the presence of kaolinite, the multiple reflection peak at 26.6° indicates the presence of quartz in kaolin clay. A similar observation was observed by Dewi et al. [37] from their characterization analysis of Kaolin. Similar peaks of KA were observed in the SG-7 microbeads, which indicate the presence of KA in the microbeads.

Fig. 5: XRD patterns of placebo, CUR, KA and SG-7 microbeads

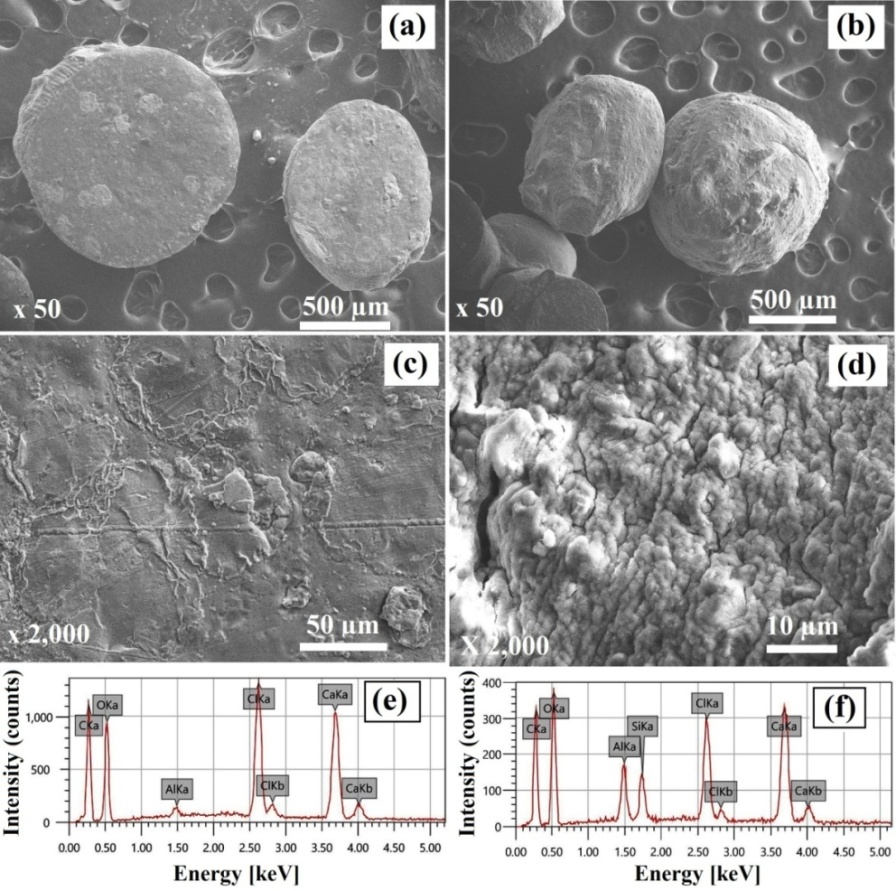

Fig. 6: SEM images of placebo microbeads (a,c) and SG7 microbeads (b,d); EDS analysis of placebo microbeads (e) and SG7 microbeads (f)

SEM and energy-dispersive X-ray spectra (EDS) analysis

To examine the morphological structure in the developed microbeads SEM analysis was performed and the results were displayed in fig. 6. As shown in the fig. 6, the microbeads are spherical having rough surfaces. On comparing the placebo microbeads (fig. 6a and 6c) the surface of SG-7 (fig. 6b and 6d) shows higher roughness, which is due to the presence of KA platelets on the surface of microbeads, this confirms the presence of KA in the microbeads. From the results of SEM images, the average size of microbeads was found to be 800–1500 µm.

To investigate the elements in the microbeads EDS analysis was performed and the results are presented in fig. 6. The EDS spectra of placebo microbeads (fig. 6e) showed C, O, Al, Cl and Ca elemental peaks. Similar peaks were observed in SG-7 (fig. 6f), along with that Na, Al and Si peaks were observed, which confirms the presence of KA in the microbeads. These results are in good agreement with Reddy et al. [15] who found similar peaks of KA from their sodium alginate/gelatin microbeads-intercalated with kaolin nanoclay for controlled release of D-Penicillamine.

Swelling measurements

Swelling degree is one of the main factors of polymeric microbeads in drug delivery systems for the controlled release of drugs. Swelling degree experiments were carried out at pH 1.2 and 7.4 at 37 °C and the results were presented in fig. 7. The swelling degree results reveal that a higher swelling degree was observed at pH 7.4 than at pH 1.2 because at pH 7.4 the carboxylic groups became ionized into COO–ions, which results electrostatic repulsion between COO–groups caused the microbeads to swell. A similar observation was reported by Reddy et al. [6] from their smart karaya gum/sodium alginate semi-IPN microbeads. Hence, the developed microbeads are good promising carriers to deliver drug molecules at the intestine and to avoid gastric release of drugs.

Encapsulation efficiency (% EE)

The percentage of encapsulation efficiency from drug encapsulation studies was found to be between 43 % and 54 % (table 2). The % EE of CUR depends on different parameters such as % of blend composition, the extent of drug loading and the amount of KA. The % EE increased with the increase of SA content in the blend matrix, with increase the % of SA in blend composition, CUR-SA interactions increases consequently % EE increased [38]. As the % of drug loading is increased, % EE also increased this may be due to higher drug concentration, which causes entrapment of more drug molecules in the polymeric matrix leading to higher % EE. As the amount of KA increases in the polymer matrix, the % EE increased this is due to the formation of hydrogen bonding between free–OH groups of KA and CUR.

Fig. 7: Swelling studies of Ca, CaMg, CaBa and CaAl at pH 7.4 and pH 1.2 at 37 °C

Table 2: Encapsulation efficiency (% EE) of all samples

S. No. Formulation code %EE
1 SG1 47±0.8
2 SG2 45±1.9
3 SG3 43±1.6
4 SG4 52±1.1
5 SG5 54±1.5
6 SG6 46±1.3
7 SG7 47±1.2

(Results are expressed as mean±SD, n=3)

Fig. 8: In vitro release profiles of CUR microbeads at 37 °C in pH 1.2

In vitro drug release studies

The in vitro CUR release studies of all formulations were investigated under both pH 1.2 and pH 7.4 at 37 °C and the results are displayed in fig. 8-11. The results reveal that the percentage of CUR release is higher in pH 7.4 rather than pH 1.2, which is due to a higher pH (7.4) the carboxylate group shows less interactions with the buffer media, hence the network becomes slacker, therefore the entrapped drug molecules leached out easily from the polymer matrix. In vitro drug release studies for all formulations at pH 7.4 were discussed in terms of polymer blend variation, drug variation, and KA variation, and the results are displayed in fig. 9 to 11.

Effect of polymer content

To find out the impact of polymer blend composition on % release of CUR was studied at a constant amount of CUR (100 mg) and KA (100 mg). The formulations SG1, SG2 and SG3 have different polymer compositions and their drug release results are displayed in fig. 9. The results suggested SG1 showed a higher release rate than the SG2 and SG3, this is due to SA content increases in the polymer matrix, and swelling of the polymer matrix also increases due to the hydrophilic nature of SA. A similar observation was reported by Madhavi et al. [27] from their drug delivery studies of sodium alginate–locust bean gum IPN hydrogel beads.

Fig. 9: Effect of polymer blend composition on % of CUR release at 37 °C in pH7.4

Effect of KA content

The effect of KA on the release rate of CUR was investigated by varying the extent of KA and the results are displayed in fig. 10. The release rate of SG3 (100 mg), SG4 (200 mg) and SG5 (300 mg) are 74, 72 and 68 % respectively are displayed in fig. 10. The results suggested that the amount of KA increases, the drug release rate decreases. This is because the intercalated drug cannot be exchanged completely with phosphate ions in the buffer solution during the ion exchange process, which results incomplete release process.

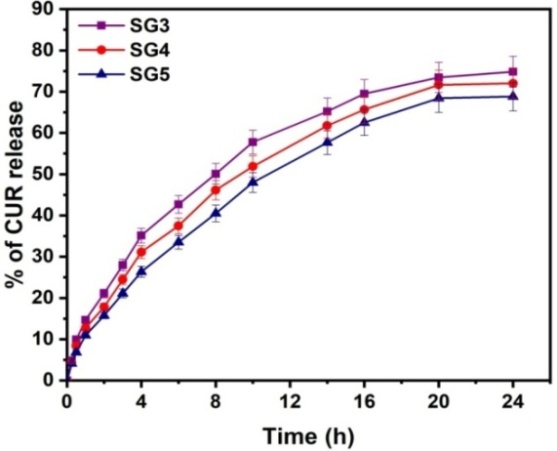

Fig. 10: Effect of KA content on % of CUR release at 37 °C in pH7.4

Effect of drug content

To find out the effect of drug loading on in vitro release profiles was studied at a constant amount of polymer blend composition and KA. The formulations SG3, SG6 and SG7 have different drug concentrations and their drug release results are displayed in fig. 11. The formulation SG7 showed a higher drug release rate than SG6 and SG3. Thus the release rates vary depending upon the amount of drug present in the matrices i.e. release is higher for those formulations having a higher amount of drug and vice-versa.

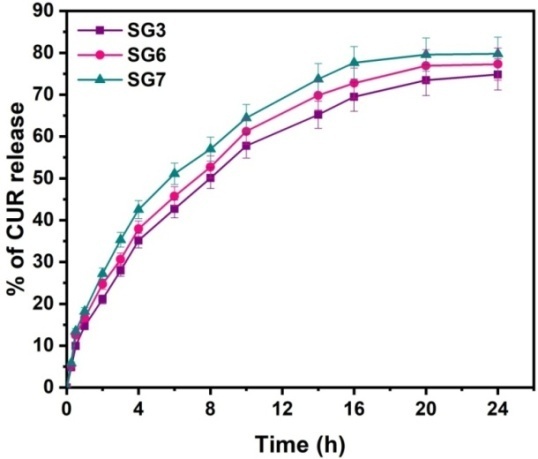

Fig. 11: Effect of drug content on % of CUR release at 37 °C in pH7.4

Drug release kinetics

The obtained in vitro drug release data of CUR loaded microbeads at pH 7.4 were fitted into different mathematical models such as zero order, first order and Higuchi. The release rate constant and correlation coefficient of all formulations are showed in table 3 and fig. 12. The correlation coefficient values of CUR loaded microbeads neither follows zero order nor first order, but the correlation coefficient values were close to the Higuchi model. Therefore, the drug release kinetics of CUR loaded microbeads follows Higuchi model. According to Higuchi model the release of drug from the microbeads, involves the penetration of liquid into the matrix and dissolves the drug, which then diffuses the drug into the exterior liquid through pores or intestinal channels. However, this type of phenomenon is observed in hydrophilic matrix system. Therefore the drug release rate of CUR loaded microbeads show the phenomenon of swelling and erosion of the polymer simultaneously. To understand the drug release mechanism, the data obtained from in vitro drug release studies in PBS (7.4) were fitted into the following Korsmeyer-Peppas equation.

= ktn

Where, Mt is the cumulative release of CUR at time t, Mα is the total amount of CUR in the matrix, k is a characteristic release constant of the drug-polymer system and n is the release exponent indicating the type of drug release mechanism. The results n and k are listed in table 2. For spherical drug carriers, if n<0.43, the drug diffuses from the polymer matrix according to Fickian diffusion; if 0.43<n<0.85, anomalous or non-Fickian type drug diffusion occurs; if n = 0.85, Case-II kinetics is operative; if n>0.85, the mode of drug release follows the super Case-II diffusion. In the present data n values are obtained in the range of 0.609-0.640 indicates non-Fickian type of diffusion process.

Table 3: Release kinetics parameters at pH-7.4 and encapsulation efficiency (% EE) of all samples

Formulation code Korsmeyer-peppas Higuchi First Zero
r2 n r2 k r2 k r2 k
SG1 0.990 0.625 0.957 18.378 0.936 0.0723 0.823 3.165
SG2 0.986 0.628 0.970 17.565 0.941 0.0659 0.849 3.048
SG3 0.984 0.640 0.981 17.029 0.947 0.0614 0.877 2.984
SG4 0.972 0.638 0.988 16.677 0.945 0.0574 0.906 2.955
SG5 0.962 0.609 0.990 16.137 0.956 0.0522 0.927 2.887
SG6 0.981 0.634 0.976 17.405 0.947 0.0658 0.865 3.038
SG7 0.983 0.625 0.964 17.852 0.949 0.0705 0.835 3.084

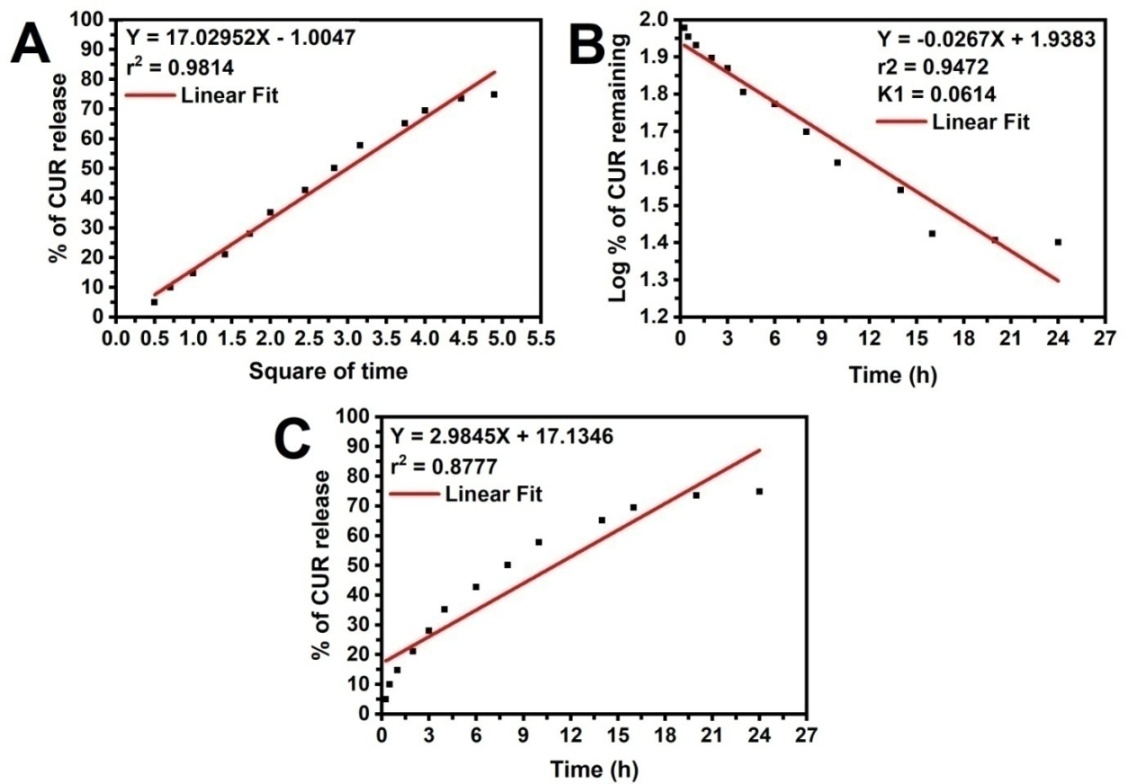

Fig. 12: Evaluation of drug release models in PBS 7.4 at 37 °C (A) Higuchi model (B) first order and (C) zero order

CONCLUSION

In the present study, semi-IPN microbeads were fabricated from SA/GG intercalated with KA by a simple ionotropic technique. Microbeads formation was confirmed by FTIR spectroscopy. DSC and X-RD confirm the molecular level dispersion of CUR into microbeads. Morphological studies reveal that the microbeads were spherical in shape with a rough surface. From the SEM studies, the average diameter of microbeads was found to be 800–1500 µm. Results of the swelling and in vitro release studies confirm that the fabricated microbeads are suitable for interstitial drug delivery. In vitro releases studies fitted into the Peppas equation and followed the non-Fickian diffusion transport. Based on the results, it was suggesting that the developed microbeads were potentially good carriers for the controlled release of CUR.
