Int J App Pharm, Vol 13, Issue 3, 2021, 103-111Original Article

QUALITY BY DESIGN BASED DEVELOPMENT OF ETRAVIRINE SELF MICRO EMULSIFYING DRUG DELIVERY SYSTEM

KAVITHA A. N.1*, JANAKIRAMAN K.2, RAMAN DANG3

1Department of Pharmaceutics, Krupanidhi College of Pharmacy, Bengaluru 560035, Karnataka, India, 2Department of Pharmacy, Faculty of Engineering and Technology, Annamalai University, Tamil Nadu, India, 3Principal, KLE College of Pharmacy, Bengaluru, Karnataka, India
Email: kavithareddykcp@gmail.com

Received: 13 Dec 2020, Revised and Accepted: 03 Mar 2021

ABSTRACT

Objective: The main objective of the present research work was to develop systematically the Self Micro Emulsifying Drug Delivery system of BCS Class IV drug in a Quality by Design framework.

Methods: The quality by design-based formulation development proceeds with defining the Quality Target Product Profile and Critical Quality Attributes of dosage form with appropriate justification for the same. The statistical Mixture design was used for the development of the formulation. The independent variables selected for the design were Oleic acid, Labrasol and PEG 6000, whereas droplet size (nm), emulsification time (sec), % drug loading and % drug release at 15 min were considered as the potential quality attributes of the Self Micro Emulsifying System. The eight different batches of Etravirine-Self Micro Emulsifying systems (ETV-SMEDDS) were prepared and checked for the Critical Quality Attributes. The simultaneous optimization of the formulation was done by the global desirability approach.

Results: The characterization report obtained for all the different batches of formulation was analyzed statistically by fitting into regression models. The statistically significant models determined for droplet size (nm) (R2= 0.96 and p-0.1022), emulsification time (sec) (R2= 0.99 and p-0.0267), % drug loading (R2= 0.93 and p-0.1667) and % drug release at 15 min (R2= 0.96 and p-0.0911) and were statistically significant. The maximal global desirability value obtained was 0.9415 and the value indicates, the selected factors and responses have a good correlation and are significant enough for optimization and prediction of best formulation.

Conclusion: The QbD approach utilized during the development of ETV-SMEEDS facilitated the identification of Critical Material Attributes and their significant impact on the Critical Quality Attributes of SMEDDS. The concept of building quality into product through the QbD application was utilized successfully in the formulation development.

Keywords: Bioavailability, Etravirine, Risk Assessment, SMEDDS, QbD

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2021v13i3.40488. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Pharmaceutical industry is the highly regulated industry and it is controlled by the authoritative regulatory bodies. The regulatory agencies emphasizes on the quality of pharmaceutical products. Quality can be planned and majority of the quality deficiency occur in the way the process is planned and developed [1]. The concept of Quality by Design and its application in the product development was introduced by the quality expert Joseph Moses Juran. The principles of QbD have been used in every industry to improve quality of the product and process [2, 3].

Among the second-generation Non-Nucleoside Reverse Transcriptase Inhibitors (NNRTIs), Etravirine is the first drug and has been recently used for the treatment of HIV infection. Etravirine is used more extensively in comparison to other available first generation NNRTIs due to its activity against NNRTI-resistant HIV-1 [4]. The drug shows its action by binding directly to the reverse transcriptase of HIV-1 and consequently blocks the activity of DNA-dependent and RNA-dependent polymerase [5]. Etravirine belongs to Biopharmaceutical Classification System (BCS) IV and the limited therapeutic potential is due to its low solubility and permeability characteristics. There is a requirement for the development of more bioavailable formulation of ETV to facilitate better clinical outcomes. Self-Micro Emulsifying Drug Delivery (SMEDDS) system is the variant of a lipid-based formulation used for the development of poorly water-soluble drugs. SMEDDS comprises oil, surfactant and cosurfactant, sometimes cosolvent [6]. The in vivo emulsification of SMEDDS takes place once it comes in contact with the GI fluids under the mild agitation provided by the GI motility. SMEDDS finds its potential application in the enhancement of oral bioavailability of poorly water-soluble drugs belonging to BCS Class II and IV [7, 8]. In the present study, the concept of building quality into product through the QbD application was utilized in the development of Etravirine Self Micro Emulsifying Drug Delivery System (ETV-SMEDDS).

MATERIALS AND METHODS

Materials

Etravirine was received as gift sample form Hetero Pvt Ltd, Hyderabad, India. Labrasol, Maisine CC, Labrafil M 1944 CS, Capryol 90 and Transcutol HP were obtained as gift samples from Gattefosse, Saint-Priest Cedex, France. Span 80, Span 20, Oleic acid and PEG 6000 were purchased from Sigma-Aldrich, Germany. All other chemicals used in the present study were of analytical grade.

Methods

Defining the quality target product profile (QTPP) and critical quality attributes (CQA)

The product development through QbD approach advocates on defining the QTPP and it is one of the prerequisites to deliver therapeutic benefits as per label claim. The QTPP for liquid SMEDDS was defined and it is based on the patient-centric (emulsification time, globule size, drug release) and product centric (zeta potential) quality attributes of the drug product. The CQAs were identified from QTPP and they were interlinked to give the desired quality, safety and efficacy to the product, which shows prominent changes when QTPP are altered [9, 10]. The QTPP and CQAs were listed in the table 1 and 2, respectively.

Risk assessment

Risk assessment is a combined effort of identifying and evaluating the factors that may have an impact on the product’s CQAs. The risk assessment tools help in identifying and mitigating the risks and prioritize the risk as high, medium or low based on the impact level. The two qualitative tools used in the present study were Fishbone diagram and Risk Estimation Matrix table. Fishbone diagram (fig. 1) was constructed by using JMP Ver 13.2 software. Fishbone diagram depicts the cause and sub causes affecting the CQAs and risk assessment matrix helps in categorizing the risk. The table 3 represents the risk estimation matrix for ETV-SMEDDS.

Table 1: Quality target product profile of ETV-SMEDDS

QTPP elements Target Justification
Dosage type Lipid-based formulation Enhancement of Bioavailability of poorly water-soluble drugs
Dosage form Capsule Ease of administration
Dosage strength 50 mg Required to show the therapeutic action at the target site
Route of administration Oral Most convenient route for AIDS patients (Patient acceptability)
Packaging Alu-Alu Blister Maximum protection and gives a prolonged shelf life
Product Quality Attributes Physical attributes Formulation must meet the compendial quality standards
Droplet size
Transmittance
Poly dispersibility index
Zeta potential
Emulsification efficiency
Drug content
Drug release
Stability As per the conditions of ICH Q1B Long term stability studies To maintain the therapeutic level of the drug during the shelf life period
Pharmacokinetic parameters Tmax, Cmax, AUC Maximum drug levels in systemic circulation helps to improve the therapeutic efficiency

Table 2: Critical quality attributes of ETV-SMEDDS

Quality attributes of product Target CQA Justification
Physical Attributes Colour Acceptable to patient No
Odor
Appearance
Drug content (mg) NLT 50 mg per dose Yes 50 mg per unit dose of Etravirine is essential to fight against CD4 viral load
Transmittance (%) >90% Yes Better clarity of the formulation confirms the minimization of droplet size
Droplet size (nm) <200 nm Yes The stability of the product and better penetrability through gastro intestinal membrane ensured by the smaller and consistent globule size
Emulsification proficiency (seconds) <120 Yes Emulsification time has the direct correlation with onset of action and influences the size of dispersed particles
Drug release at 15 min >80% Yes Faster the release of drug from the formulation, earlier the onset of action

Fig. 1: Fishbone diagram depicting causes and sub causes affecting ETV-SMEDDS quality attributes

Table 3: Risk estimation matrix table for ETV-SMEDDS

Critical quality attributes
Droplet size

Transmit

tance

 PDI Zeta potential Emulsification time Drug content Drug release
Material Attributes Drug Low Low Low Low Low High Medium
Oleic acid High High High High High High High
Labrasol High High High High High High High
PEG 6000 High High High High High High High
Process Attributes Stirring Time High Medium Low Low Low Low Low
Stirring Speed Medium Medium Low Low Low Low Low
Stirring Temperature Medium Medium Medium Medium Medium Low Low
Sonication High Medium Medium Medium Medium Low Low

Solubility study

The solubility of Etravirine in various oils, surfactants and cosurfactants was checked. To perform the solubility study, the excess amount of drug was added to each excipient (2 ml) and vortexed for 48 h to maintain the equilibrium. The samples were centrifuged at 3000 rpm for 15 min. The supernatant liquid was filtered through a 0.45 µm Millipore® filter and suitably diluted with a solvent mixture of Methanol and Water (1:9) and analyzed at 310 nm using UV Spectrophotometer (UV 1800 Shimadzu). Studies were carried out in triplicates to assure accuracy [11].

Construction of pseudo ternary phase diagram

The objective of constructing Pseudo ternary phase diagrams was to check the concentration ranges of SMEDDS components which could give nano or microemulsion regions. The phase diagrams were constructed by using Prosim® Ternary plot software. The oil (Oleic acid), surfactant (Labrasol) and cosurfactant (PEG 6000) were selected based on the solubility studies. Surfactant and Cosurfactant (Smix) were prepared in different ratios (1:1, 2:1 and 3:1). A varying proportion of Oil and Smix were mixed (1:9, 2:8, 3:7, 4:6, 5:5, 6:4, 7:3, 8:2, and 9:1 respectively) and homogenized by using a vortex mixer. The double-distilled water was added to the mixture at an increment of 5% in the range of 5 to 95 % of total volume, vortexed and allowed to equilibrate [12].

Design of experiments

Design of Experiments (DoE) deals with planning, analyzing and interpreting the factors that control the responses. Mixture design was chosen from the classical category of DoE software based on the convenience and minimal number of runs given by design [13]. For this study, JMP ® Ver 13.2 software was used to create the formulation plan after choosing the appropriate oil, surfactant and cosurfactant. The mixture design was used in the development of SMEDDS formulation because the factors are the proportion of blend. The independent variables (material attributes) considered in the design were Oleic acid, Labrasol and PEG 6000 (table 4). The droplet size (nm), emulsification time (sec), % drug loading and % drug release at 15 min were the dependent variables chosen for the study (table 4). Through the mixture design total of eight different batches of SMEDDS formulations were obtained and subjected for checking the CQAs.

Table 4: Independent and dependent variables and their limits in mixture design

Independent variables
Factors Role Lower value Higher value
Oleic Acid Mixture 0.1 0.23
Labrasol Mixture 0.577 0.675
PEG 6000 Mixture 0.193 0.225
Dependent variables
Variables Goal Lower limit Higher limit
Droplet Size in nm Minimize 100 500
Emulsification time in Sec Minimize 20 60
% Drug loading Maximize 90 100
% Drug release at 15 min Maximize 70 100

Preparation of liquid SEDDS formulation

Eight different batches of ETV-SMEDDS were prepared as per the mixture design. The formulations were developed by dissolving 50 mg of drug in the mixture of Oleic acid, Labrasol and PEG 6000 and followed by heating at 40 °C in a water bath. The same mixture was then vortexed until it became clear and transparent. The prepared formulations were stored in ambient temperature until use [14].

Evaluation of liquid SMEDDS

Droplet size analysis

The droplet size of the prepared ETV-SMEDDS was checked by diluting the sample with double distilled water at the ratio of 1:100 (v/v). The mean droplet size and Polydispersity index (PDI) was measured in triplicates by photon correlation spectroscopy using Malvern Zetasizer Nano-ZS (Malvern Instruments, United Kingdom) [15, 16].

Emulsification time

The self-emulsification time was determined by using USP Type II dissolution apparatus (LABINDIA, DS 8000, MUMBAI).1 ml of the formulation was added dropwise into a 500 ml of double-distilled water, maintained at the temperature of 37±0.5 °C, under mild agitation of paddle (50 rpm). Each formulation is observed visually for clarity, homogenization and for precipitation of drug. The time taken by each formulation to form a clear emulsion was noted in seconds [17].

Drug loading

The pre-concentrated SMEDDS equivalent to 50 mg of Etravine was taken and the drug was extracted by using a small quantity of methanol. The volume was made up to 100 ml with double distilled water. From the stock solution, 0.1 ml was withdrawn and diluted up to 10 ml with double distilled water. The resultant solution absorbance was measured at 310 nm by UV-Visible Spectrophotometer (UV 1800, Shimadzu). The drug content measurements were carried out in triplicates [18].

In vitro drug release studies

In vitro drug release studies were executed in the phosphate buffer (pH 6.8) with 2% Tween 20 using USP-II basket type dissolution apparatus. The temperature of the medium was maintained 37 °C±0.5 and rpm was set to 50. The SMEDDS formulation equivalent to 50 mg of drug was filled into the hard gelatin capsules. The capsules were placed inside the jars with the help of stainless steel sinkers to avoid buoyancy. Samples were withdrawn from the dissolution jars at the time intervals of 5, 10, 15, 30, 45 and 60 min and further diluted with phosphate buffer and analyzed by UV-Visible Spectrometer (UV 1800, Shimadzu) at 310 nm [19].

Model evaluation and validation

Model evaluation was carried out by incorporating the various responses obtained for all the eighth formulations into the design. The data of Droplet size (nm), Emulsification time (sec) % Drug loading and % Drug release at 15 min were statistically analyzed by various multiple regression models. The validation of the design was carried out with the help of Ternary Mixture Profiler. The profilers consist of ternary plot, factor settings with the controls and response settings and its controls. The verification batch was prepared as per the Ternary Mixture Profiler and checked for the predicted CQAs. The lack of differences in the variance between observed and predicted responses indicates the goodness of fit.

Optimization of formulation

The simultaneous optimization of the formulation was done by using the Prediction profiler. Prediction Profiler gives a visual way to see how changing one factor setting impacts the response as well as impacts the other factors in the model. The global desirability function obtained for the model was taken as a key component for optimization. The overall desirability value shows on a scale of zero to one. Optimized formulation (OF) was prepared based on the prediction profiler and was evaluated for the responses. The zeta potential of the optimized formulation was measured by using Malvern Zetasizer Nano-ZS.

RESULTS AND DISCUSSION

Although several works have reported the formulation of ETV SEDDS by OFAT approach either to enhance bioavailability or to attain other formulation goals [20]. A rigorous development of ETV-SMEDDS by QbD approach was not present. Developing sparsely bioavailble drugs in a QbD approach affords the researcher to get sophisticated understanding of risk associated with the formulation and methods to overcome it. The OFAT method reported by earlier researchers might not be tenable for replication; however, this approach adopted by us is rigorous in its approach to development following the QbD paradigm and establishes the likely multivariate relationship for the factors and responses considered for the formulation and its likely outcome in statistically tenable manner.

Risk assessment

The dosage form development under QbD framework involves material evaluation as well as process attributes which have a greater impact on the quality of the drug. The two qualitative risk assessment tools which were used in the present study were Ishikawa diagram and Risk Estimation matrix table. Ishikawa diagram is also called Cause-and-effect/Fishbone diagram, by using this diagram, we identified all the contributing root causes likely to be causing problems in ETV-SMEDDS. In the risk assessment matrix table, each factor was assigned with a risk grade of low, medium or high as per priority and the factors with high risk were selected for the design of the experiment in order to arrive at design space.

Solubility study

The solubility of Etravirine in various oils, surfactants and co-surfactants was checked and the report obtained is presented in fig. 2. The highest solubility of a drug in any lipid would augment its drug loading capacity. Accordingly, on the basis of maximum solubility, Oleic acid (31.2±1.9 mg/ml) was selected as oil phase in the formulation of SMEDDS and it was also reported that oleic acid enhances the intestinal absorption of the drug, which leads to the lymphatic transport of the drug. Labrasol (74 mg/ml) was selected as surfactant based on both emulsification efficiency and solubility of Etravirine. Co-surfactants increase the interfacial fluidity by penetrating into the surfactant film creating void space among surfactant molecules. Among various cosurfactants, PEG 6000 (52.4±1.5 mg/ml) was selected for the formulation development.

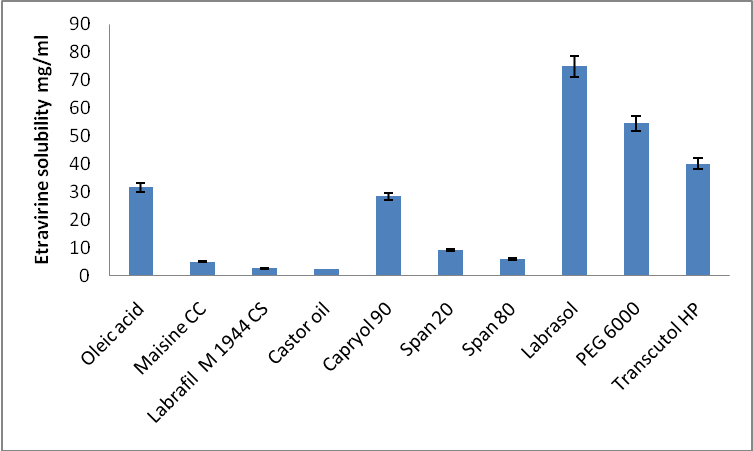

Fig. 2: Solubility study report (mean±SD, n=3)

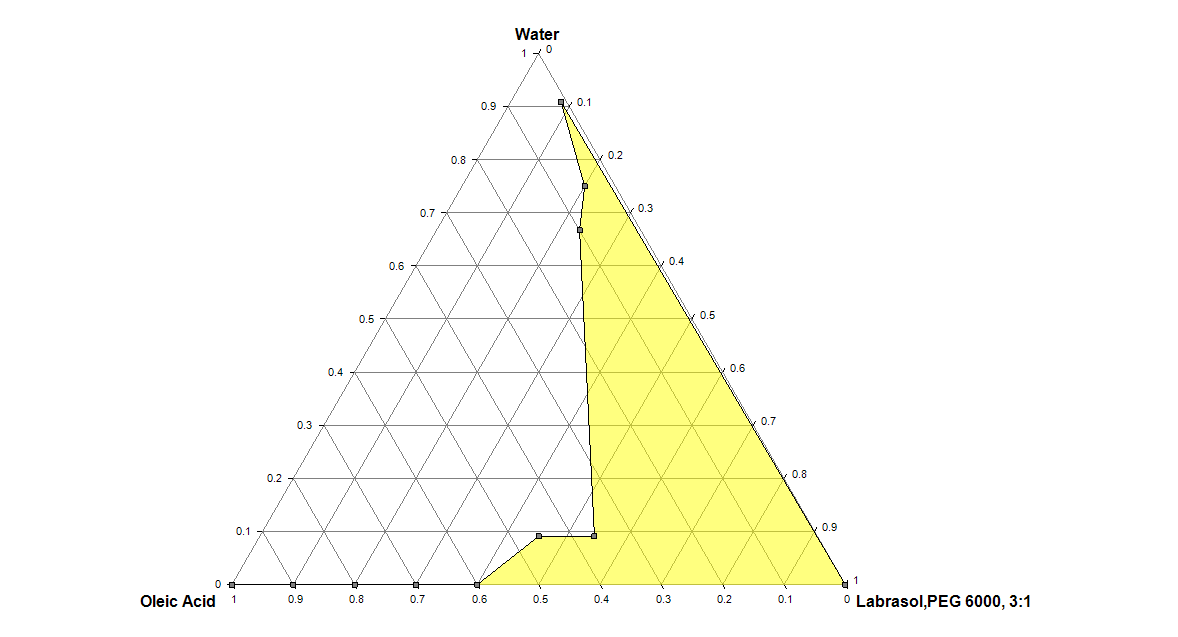

Fig. 3: Pseudo ternary phase diagram

Pseudo ternary phase diagram

The main objective is to study the relationship between the phase behavior relative to the composition, which helps in determining the concentration range of components for the formation of an emulsion. In order to apply DOE for the formulation, it was necessary to identify the highest self-emulsifying region from ternary phase diagrams. Amongst the different combinations, Oleic acid with Labrasol and PEG 6000 at the Smix ratio of 3:1 was able to give a maximal region for stable nano/microemulsion.

Design of experiment

The application of DOE tools is important in achieving quality within the product with minimal experimentation. Hence, Mixture design was employed for 3 factors (oil, surfactant and cosurfactant) and 4 responses (particle size, emulsification time, drug loading and % drug release) and the extreme values drawn from the phase diagram was specified in the design along with the required target values for the responses. Within a few steps of computing the formulation trials initially, an optimal design was selected under mixture design for which randomized run order of 8 default runs was generated by the software. The characterization report obtained for the prepared formulations was integrated to the design matrix in order to plot the known responses and also mainly to predict the not formulated and non-evaluated intermediate combinations of the excipients and to predict a continuous response curve which was later used in optimizing and validating the best formulations with best outcomes.

Characterization of formulations

Droplet size distribution is one of the stability-indicating characteristics of the emulsion. The mean droplet size obtained for all eight formulations was in the range of 257.1 to 667.9 nm. Smaller the droplet size, better is the absorption of the drug and enhances the bioavailability of drug product. The in vitro assessment of self-emulsification was carried out to ensure, the SMEDDS on contact with GI fluids will undergo emulsification spontaneously. The emulsification time required for all the formulations was less than 1 min indicates the minimum requirement of free energy for self emulsification. The % drug content of all the formulations was found to be satisfactory (93.0 to 99.8 %). The in vitro drug release studies showed all formulations released more than 74 % of the drug within 15 min. The formulation EFM8 showed the highest drug release of 91 %, whereas EFM 7 shows the least % drug release of 74 %. The slowdown of drug release may be attributed to reduced diffusion of the drug through the lamellar surfactant/cosurfactant layers, which also increases the microenvironment viscosity.

Table 5: Mixture design formulations and observed responses

Formulation Oleic acid Labrasol PEG 600 Droplet size nm Emulsification time sec % Drug loading % Drug release at 15 min
EFM1 0.116 0.675 0.209 297.84±2.35 26.0±1.0 99.19±0.21 88.74±1.88
EFM2 0.181 0.626 0.193 310.75±5.87 30.33±0.58 98.90±0.30 86.61±2.45
EFM3 0.198 0.577 0.225 380.55±5.39 30.33±0.58 98.11±0.10 85.54±1.77
EFM4 0.132 0.675 0.193 287.28±1.67 27.33±0.58 98.95±0.76 90.16±1.88
EFM5 0.214 0.577 0.209 589.26±3.48 35.33±0.58 94.18±0.65 75.97±0.62
EFM6 0.149 0.626 0.225 293.48±4.92 26.0±0.0 99.04±0.56 90.27±0.74
EFM7 0.23 0.577 0.193 667.74±9.69 40.33±0.58 93.34±0.42 74.78±1.78
EFM8 0.1 0.675 0.225 257.16±2.45 24.0±1.0 99.83±0.16 91.34±0.54

*Data expressed as mean±SD (n=3)

Evaluation of model

The data obtained for all eight formulation batches were integrated in the design to check the model fit. The data obtained was analyzed statistically by fitting multiple regression models with the intercept set to zero. The statistically significant models determined for droplet size (nm) (R2= 0.96 and p-0.1022), emulsification time (sec) (R2= 0.99 and p-0.0267), % drug loading (R2= 0.93 and p-0.1667) and % drug release at 15 min (R2= 0.96 and p-0.0911) were statistically significant. The effects test report and leverage plots obtained for all the individual responses considered in the design are presented in table 6 and fig. 4, respectively. The effects test report obtained for the droplet size indicates Oleic acid (p-0.0069) has a significant effect on the model. The emulsification time depends on both Oleic acid (p-0.0006) and Labrasol (p-0.0072). The % drug loading is influenced by Oleic acid (p-0.0002)and Labrasol (p-0.0008), and similarly, the % drug release also depends on Oleic acid (p-0.0010)and Labrasol (p-0.0038).

The effects summary of the whole model was used to investigate the effect of independent variables on dependent variables. In the graph, the length of each bar shows the effect of variables and the magnitude of the effect on the quality attributes. In the effects summary table the bar presenting Oleic acid and Labrasol crosses the blue vertical line indicating the significance. Hence, the material attributes like Oleic acid and Labrasol considered in the design were having a significant influence on the responses.

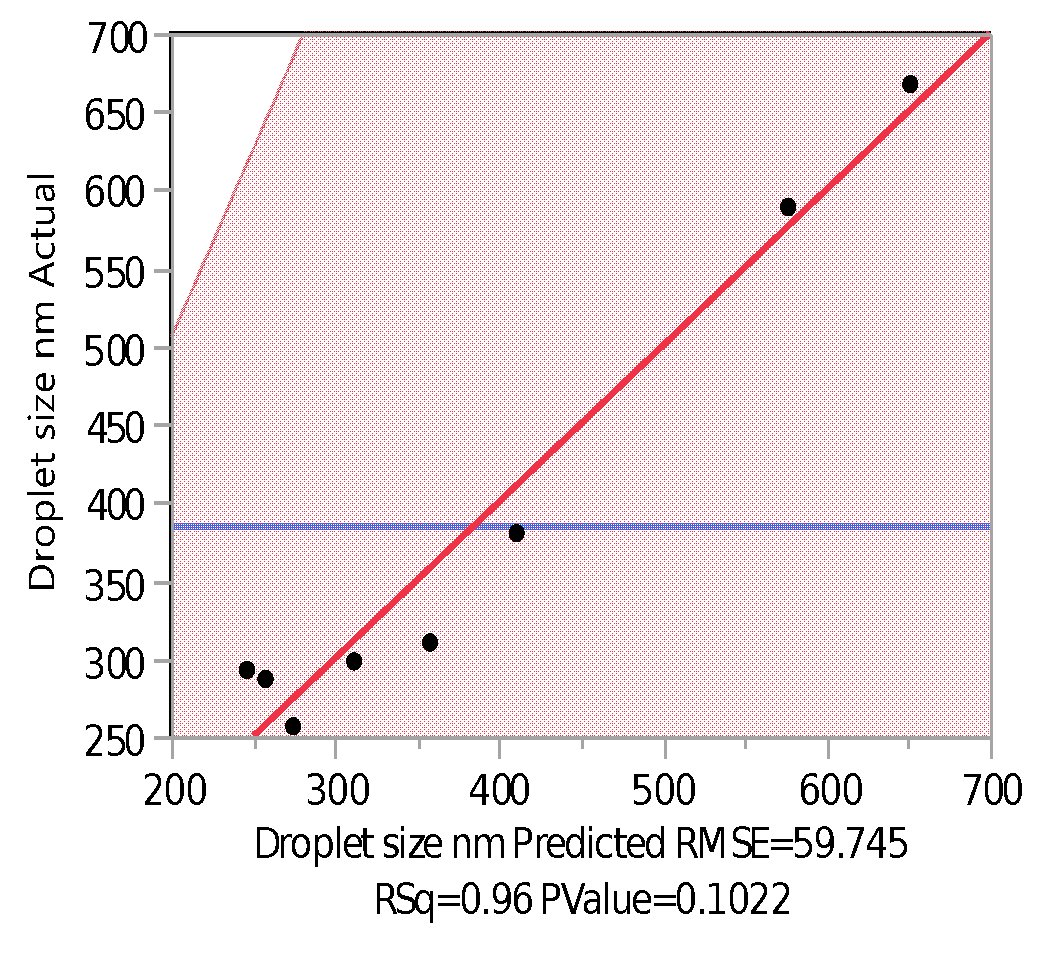

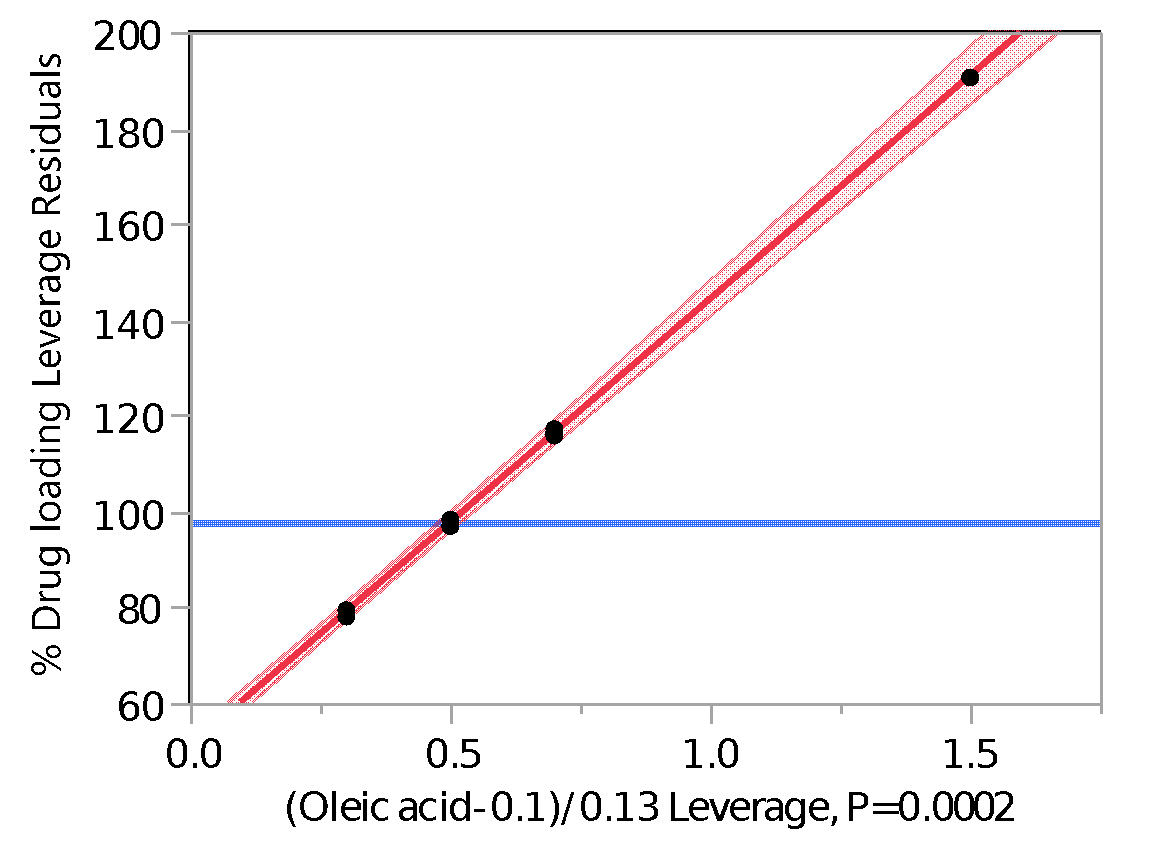

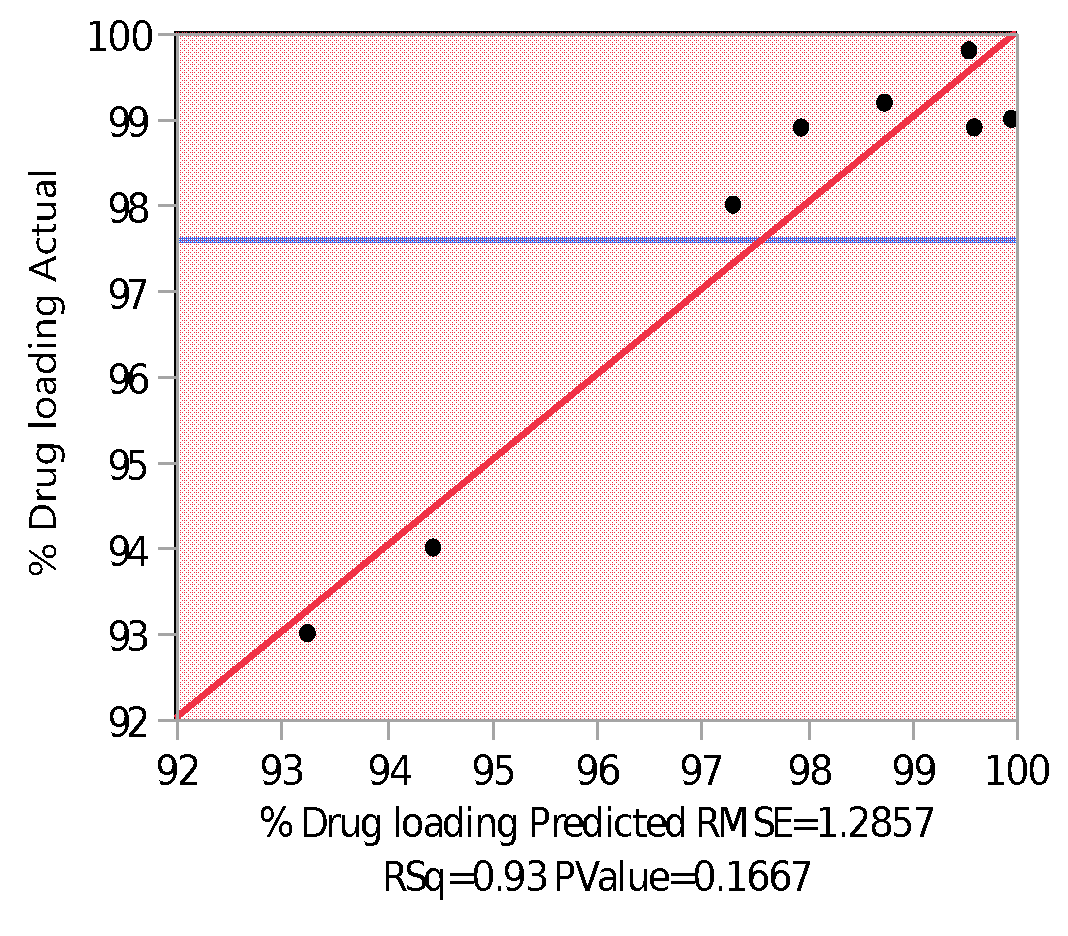

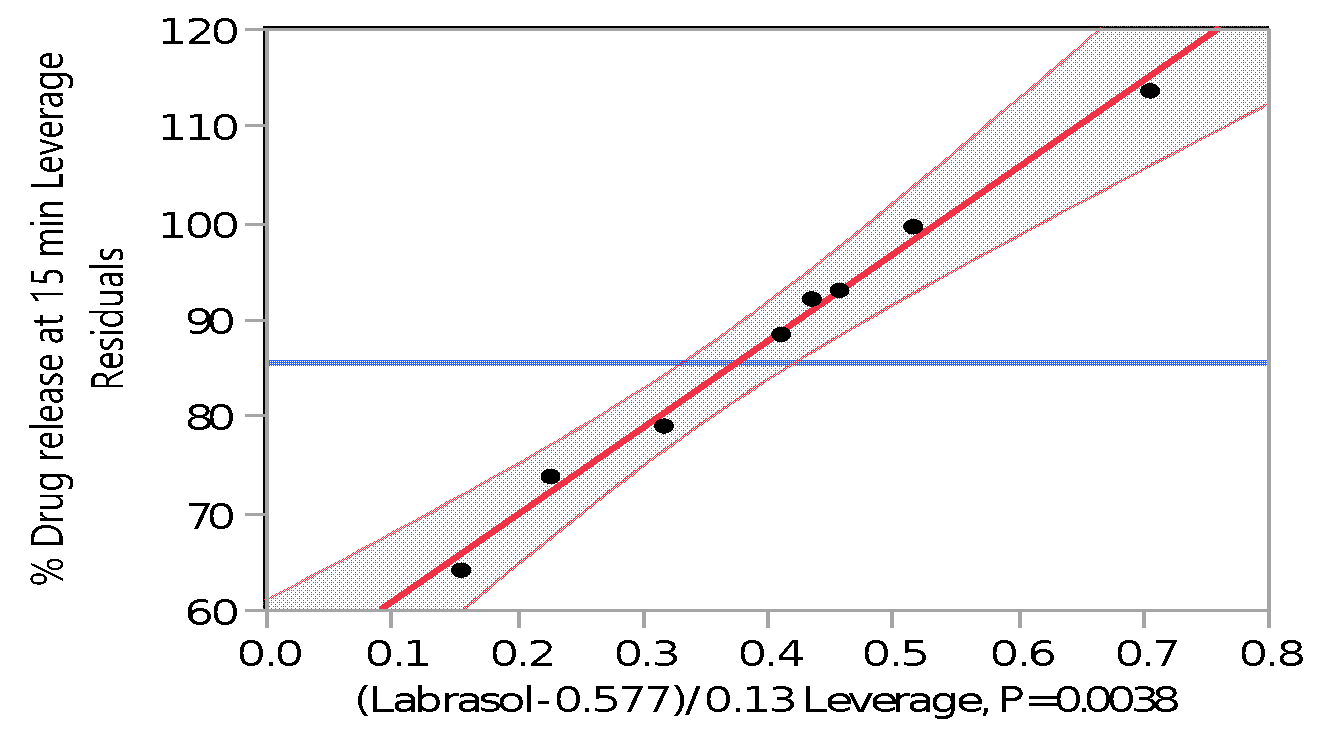

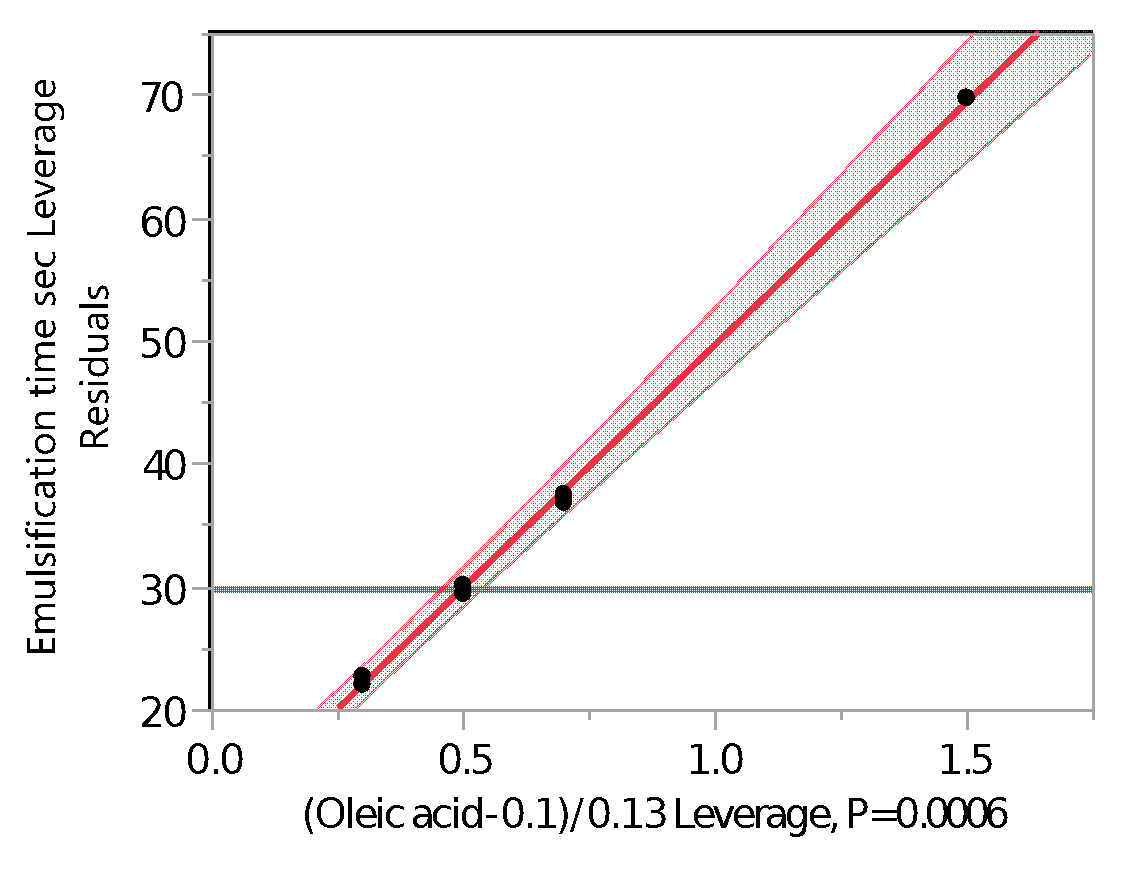

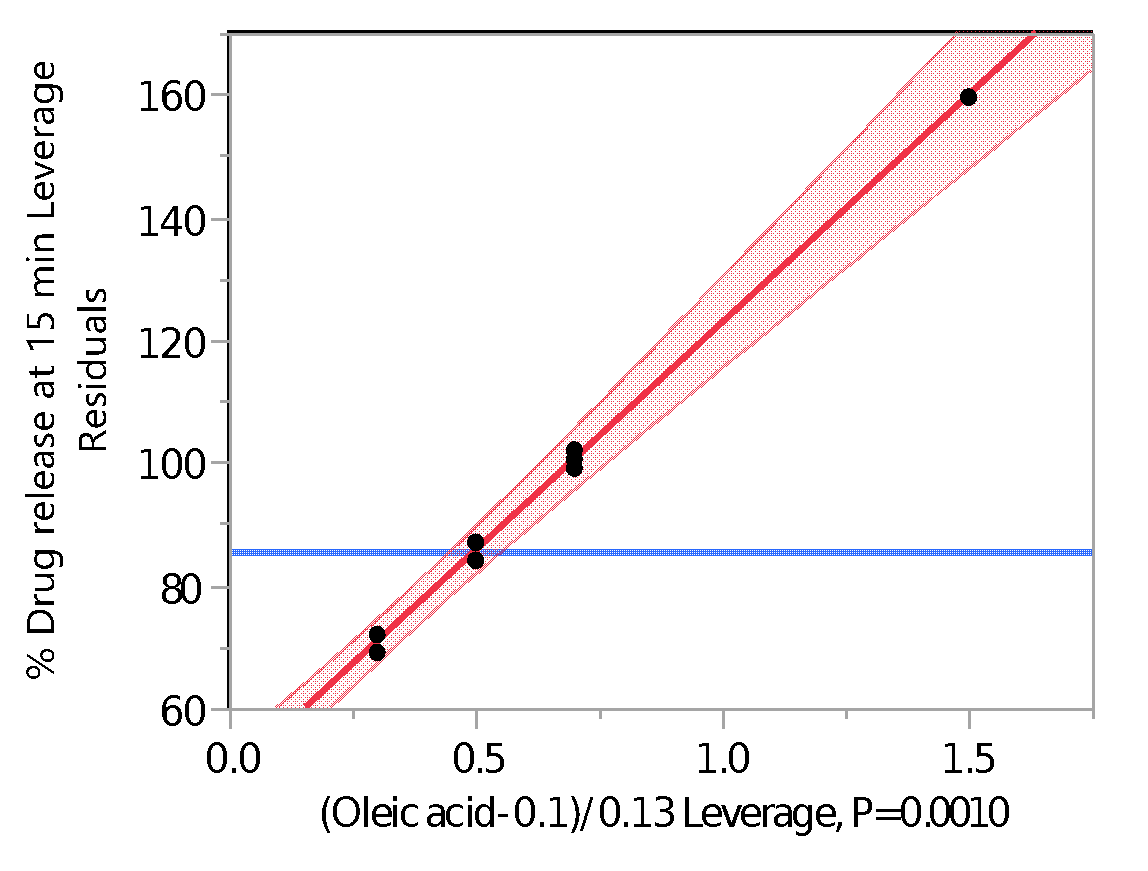

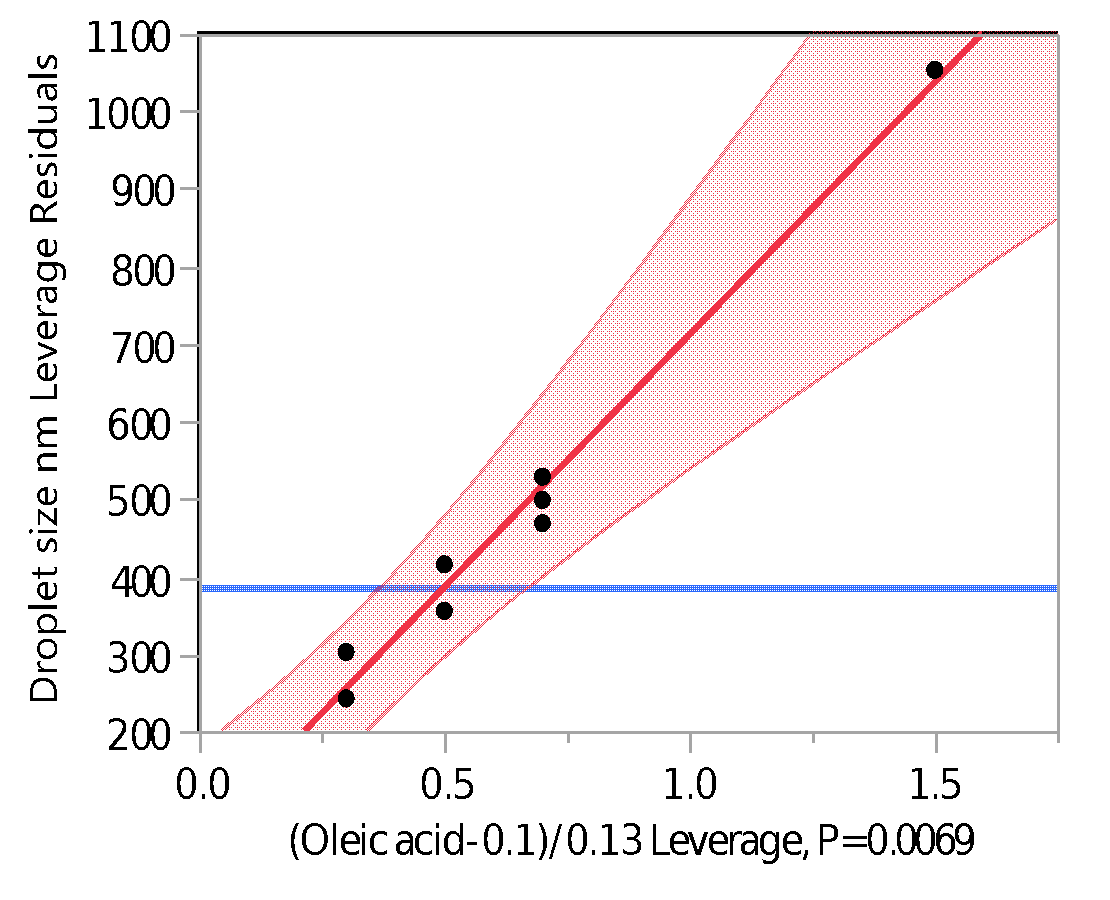

Fig. 4: Actual Vs predicted plots for dependent variables

Table 6: Effects test report for dependent variable

Source Prob>F
Droplet size Emulsification time % Drug load % Drug release at 15 min
(Oleic acid-0.1)/0.13 0.0069* 0.0006* 0.0002* 0.0010*
(Labrasol-0.577)/0.13 0.1492 0.0072* 0.0008* 0.0038*
(PEG 6000-0.193)/0.13 0.4236 0.8434 0.1147 0.1627
Oleic acid*Labrasol 0.2037 0.1299 0.3043 0.1804
Oleic acid*PEG 6000 0.4701 0.8075 0.5337 0.3622
Labrasol*PEG 6000 0.4106 0.6039 0.4843 0.3353

Fig. 5: Leverage plots for dependent variables

Source Log worth P value
(Oleic acid-0.1)/0.13 3.800 0.00016
(Labrasol-0.577)/0.13 3.104 0.00079
(PEG 6000-0.193)/0.13 0.940 0.11474
Oleic acid*Labrasol 0.886 0.12994
Labrasol*PEG 6000 0.475 0.33526
Oleic acid*PEG 6000 0.441 0.36218

Fig. 6: Effects summary report

Table 7: Summary of the model fit

Statistical parameters Droplet size (nm) Emulsification time (sec) % Drug loading % Drug release at 15 min
R Square 0.957788 0.989247 0.929641 0.962495
R Square Adj 0.852257 0.962366 0.753744 0.868733
Root Mean Square Error 59.74549 1.040833 1.285697 2.548653
Mean of Response 385.575 29.75 97.59875 85.505
Observations (or Sum Wgts) 8 8 8 8

Design verification

The design validation was carried out by conducting the experimental batch as per the Ternary mixture profiler (fig. 7). The results obtained for the verification formulation (VF) are presented in table 8 and compared with the predicted values as per the profiler. The numerical immediacy was observed between the predicted and the observed value and indicates validity of the model.

Table 8: Composition of VF and of RTV-SMEDDS

Formulation Oleic acid Labrasol PEG 6000
VF-ETV-SMEDDS 0.130 0.652 0.218
OF-ETV-SMEDDS 0.117 0.659 0.224

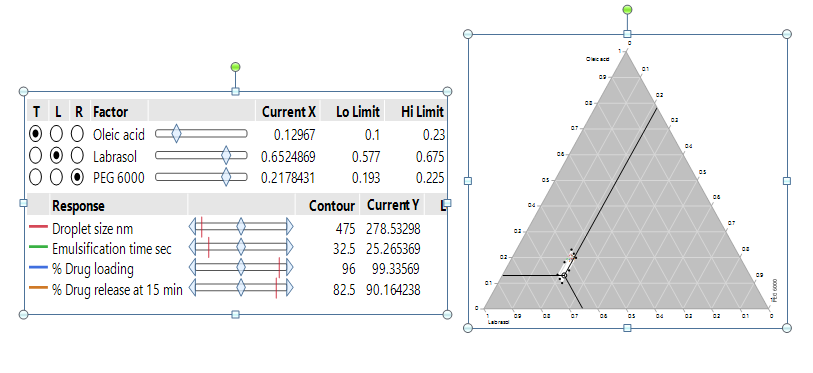

Fig. 7: Mixture profiler report

Optimization of formulation

The global desirability function obtained through the prediction profiler was utilized for the simultaneous optimization of ETV-SMEDDS. The prediction profiler shows a continuous correlation between multiple factors and multiple responses, giving a complete picture of the variability possible within the selected extreme values. The maximal global desirability value was found to be 0.9415. The global desirability values indicates that the selected factors and responses have a good correlation and are significant enough for optimization and prediction of best formulation. The predicted values of droplet size, emulsification time, % drug loading and % drug release at 15 min were 252.55 nm, 24.39 sec, 99.85 % and 91.605 %, respectively, at oil, surfactant and cosurfactant of 0.1169, 0.6594 and 0.2236 respectively. The optimized level of factors yielded a formulation with minimal droplet size, faster emulsification process, maximum drug loading with the faster release of drug from the formulation (table 9). The experimental values and predicted values were in close agreement with each other. This showed the efficiency of the optimization process in predicting the quality attributes of ETV-SMEDD. The zeta potential obtained for the optimized formulation indicates the stearic stability of the formulation and the report obtained is presented in the fig. 11.

Hence the studies shows that the development of ETV-SMEDDS by the application of QbD concept could be a desirable approach in attaining the therapeutic and the formulation goals.

Table 9: Predicted and experimental values obtained for VF-ETV-SMEDDS and OF-ETV-SMEDDS

Formulation Droplet size (nm) % Difference Emulsification time (sec) % Difference % Drug loading % Difference % Drug release at 15 min % Difference
Predicted Experimental Predicted Experimental Predicted Experimental
VF-ETV-SMEDDS 278.53 286.5±4.92 2.86 25.26 26±0.58 2.9 99.33 98.12±0.86
OF-ETV-SMEDDS 252.55 262.2±3.54 3.821 24.39 24±1.0 -1.59 99.85 98.45±0.45

*Data expressed as mean±SD (n=3)

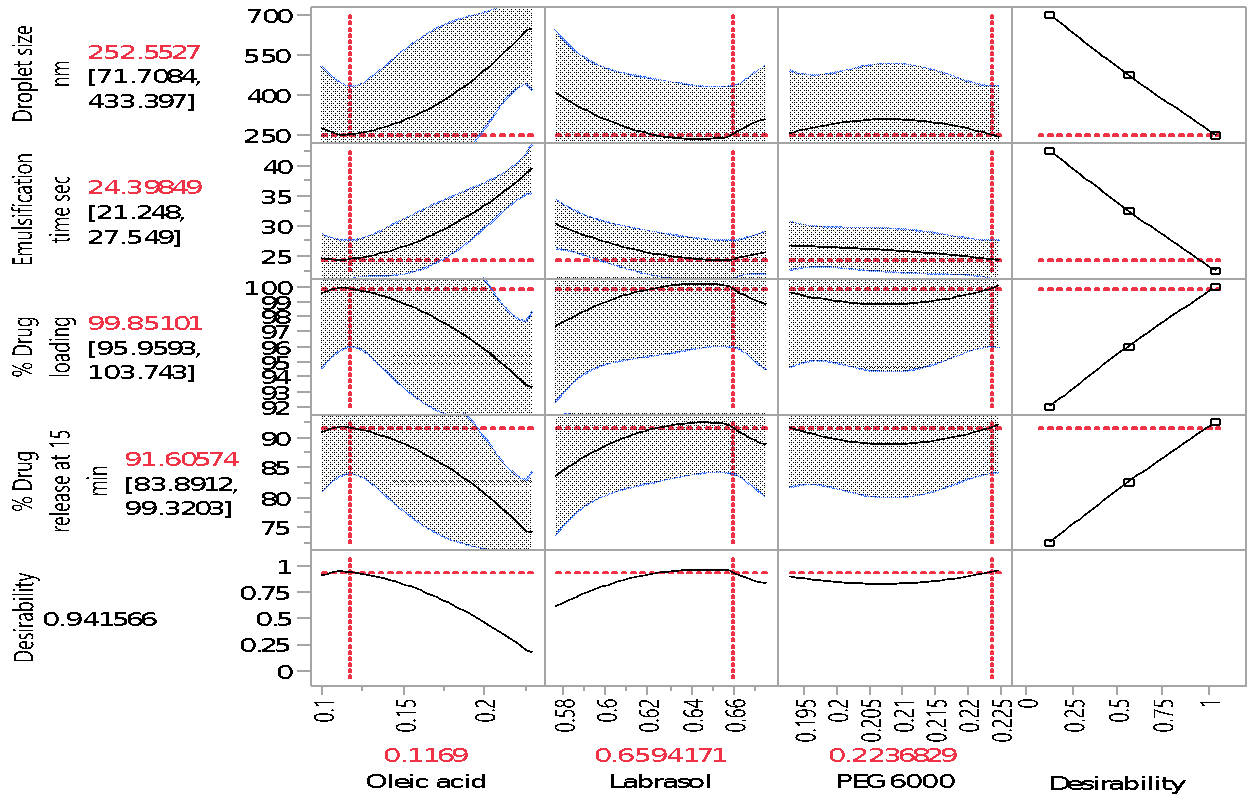

Fig. 8: Prediction profiler

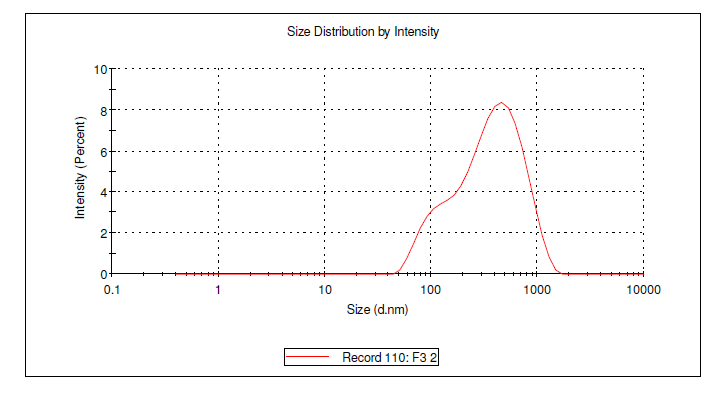

Fig. 9: Droplet size report for VF-ETV-SMEDDS

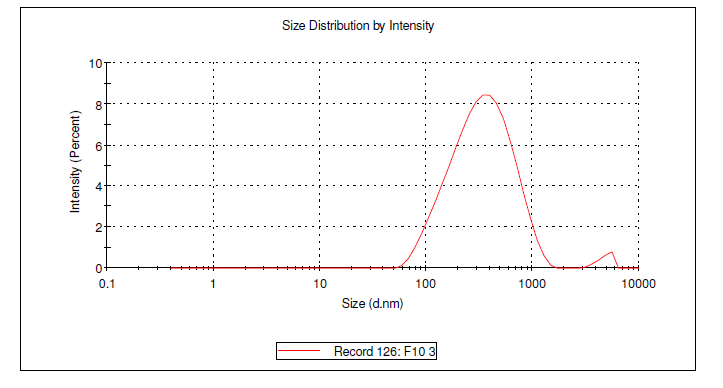

Fig. 10: Droplet size report for OF-ETV-SMEDDS

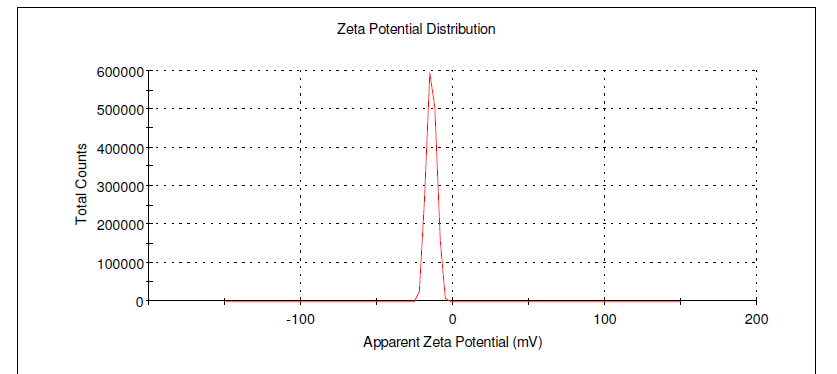

Fig. 11: Zeta potential report for OF-ETV-SMEDDS

CONCLUSION

SMEDDS were a promising approach for the formulation of poorly water-soluble drugs. The predetermined quality characteristics of ETV-SMEDDS were achieved with the implementation of QbD concepts throughout the development process. The detailed analysis of the three independent variables called oleic acid, labrasol, PEG 6000 and their effects on the quality attributes such as droplet size, emulsification time, drug loading efficiency and % drug release was studied with the application of statistical mixture design. This study showed the potential of QbD in SMEDDS development.
