Int J App Pharm, Vol 13, Issue 5, 2021, 351-357Original Article

FORMULATION AND EVALUATION OF TOPICAL NANOEMULGEL OF METHOTREXATE FOR RHEUMATOID ARTHRITIS

SAHELI DAS1, SHARADHA M.1, M. P. VENKATESH1, SUBHASHREE SAHOO1, JOGABRATA TRIPATHY1, D. V. GOWDA1*

1,*Department of Pharmaceutics, JSS College of Pharmacy, JSS Academy of Higher Education and Research, Mysuru 570015, Karnataka, India
Email: dvgowda@jssuni.edu.in

Received: 06 Feb 2021, Revised and Accepted: 22 Jun 2021

ABSTRACT

Objective: The purpose of this study was to develop and evaluate methotrexate-loaded nanoemulgel for topical delivery in the management of rheumatoid arthritis.

Methods: Based on nanoemulsion composition, the pseudo ternary phase diagram was fabricated by using peanut oil, Tween 20 as the surfactant, and PEG 400 being used as a co-surfactant. The methotrexate-loaded nanoemulsion was formulated by using the spontaneous emulsification method. Badam gum was used as a gel matrix in the prepared nanoemulsion to form nanoemulgel. The methotrexate-loaded nanoemulgel was characterized and evaluated for pH, particle size, physical appearance, viscosity, spreadability, TEM, drug content, diffusion study, release kinetics, and stability studies.

Results: The nanoemulgel constituting 8.6% peanut oil, 34.4% of Tween 20 and PEG 400 as Smix (surfactant and co-surfactant mixture), 43% water, and 12.5% w/w badam gum was concluded as optimized formulation. The prepared nanoemulgel was translucent in nature having a particle size of 195.1 nm and zeta potential of-0.278mV. Drug content and drug release for the optimized formulation were found to be 98.11±0.34% and 95.11±0.02% respectively. pH, viscosity, and spreadability were found to be optimum. Stability study data showed that the prepared nanoemulgel was stable at different temperatures varying from-25 to+45 °C.

Conclusion: Methotrexate-loaded nanoemulgel has been successfully formulated for topical drug delivery for the management of rheumatoid arthritis.

Keywords: Methotrexate, Nanoemulgel, Rheumatoid arthritis, Topical delivery, Peanut oil

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2021v13i5.41026. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Rheumatoid arthritis is one of the complex autoimmune disorders associated with chronic inflammatory pain, and swelling of joints, elbows, shoulders, ankles, and other organs of the body [1]. It is based on numerous interacting eco-physiological and genetic factors that make it difficult to learn its pathogenesis and to detect effective treatment. In rheumatoid arthritis disease, the immune system of the body affects its tissues along with joints[2]. In extreme cases, the disease also affects the internal organs of the body [3]. The linings of joints are affected by Rheumatoid arthritis, which causes painful swelling. The long-term inflammation that is related to rheumatoid arthritis may cause erosion of bone and joint deformity. The focal point in the treatment of rheumatoid arthritis is pain reduction, reduction of inflammation, and damage to joints [4-6].

There are different routes of drug administration for the treatment of rheumatoid arthritis such as enteral routes such as oral, buccal, sublingual, and parenteral routes such as intramuscular, intravascular, subcutaneous, and intra-articular, or topical route[4]. In the topical drug delivery system, the drug is introduced onto the surface of the body, by incorporating it into a formulation that can be absorbed. Topical delivery provides several benefits over oral delivery for the treatment of diseases together with allowing easy and continuous delivery of drugs and minimizing the increased drug plasma concentration (Cmax) [7, 9].

However, the drug quantity introduced by dermal application is pretty less because the delivery of drugs through the dermal application is seriously restricted by the incapacity of various drugs to pass through the skin at a therapeutic rate because of the presence of the external stratum corneum membrane barrier. It has been predicted that the system which use nanoparticles to deliver drug may offer a different possible approach for influencing the permeability of drug and it is also feasible that a topical delivery system by using nanoparticles might also cause a selection of their utilization in the treatment of rheumatoid arthritis [8, 9].

The topical delivery systems of drugs involve different types of dosage forms such as liquid, sprays, semisolid and solid powders. The semisolid dosage form, which is most extensively used for topical delivery systems involves creams, ointments, and gels. The gel is a network of cross-linked polymer that is swollen when comes in contact with liquid. The properties of gel rely mostly on the interaction that occurs between the polymer of solid-state and the component of the liquid medium. The formulation of topical gel offers a suitable delivery system for drugs as they cause a low level of greasiness and might be eliminated from the skin without any difficulty. In comparison to cream and ointments, the gel preparation offers higher stability and application properties [8].

Nanoemulsions are heterogeneous colloidal systems in the submicronic scale whereas colloidal particulate structure is taken into consideration as isotropous dispersions which are thermodynamically and kinetically stable that includes two incompatible components viz., water and oil, stabilized by an associate surface layer that includes an acceptable co-surfactant and surface active agent to create a single-stage [9]. The nanoemulsions have recently been categorized into three classes including oil-in-water kind (oil dispersed in water phase), (W/O) (aqueous phase is dispersed in oil phase), and bi-continuous type (microdomains of aqueous phase and oil phase are interconnected in the device). To stabilize these emulsions, both lipophilic and hydrophilic surface-active agents are concurrently used [10]. The nanoemulgel is a nanoemulsion-based hydrogel that is formed by adding nanoemulsion into a matrix of a hydrogel [13, 14]. Nanoemulgel has various useful properties such as easily spreadable, easy to remove, less greasy, cause no staining, longer shelf life, thixotropic, aqueous soluble, bio-friendly, acceptable appearance, and translucent [15-17].

MATERIALS AND METHODS

Materials

Methotrexate was procured from Samarth Life Sciences Pvt. Ltd., Mumbai, India; Peanut oil was procured from fresh mill oil, local market; Tween 20 was purchased from Loba Chemie Pvt Ltd, Mumbai; Polyethylene Glycol 400 was purchased from Leonid Chemicals Pvt Ltd, Bangalore; Benzyl alcohol was purchased from Merck; Badam gum was prepared in the laboratory. Additional excipients and chemical reagents utilized were of laboratory and analytical grade.

UV visible spectrophotometer

A weighed amount of methotrexate nearly 100 mg was dissolved in 100 ml of phosphate buffer of pH(6.8) in a volumetric flask and filtered. Pipette out 1 ml and make it up to 100 ml with the phosphate buffer. Then the λmax of methotrexate was estimated with the help of a UV visible spectrophotometer.

Fourier transform infrared (FT-IR) analysis

The drug-excipient compatibility of the pure drug and the physical mixture was determined using the FT-IR spectrophotometer (8400S, Shimadzu Kyoto, Japan). The pure drug methotrexate and the physical mixture were mixed separately with KBr in mortar and pestle and pressed in KBr press (Technosearch Instrument, Mumbai, India) at the pressure of 5 tons for 5 min to form KBr pellets or thin films and FT-IR spectra recorded in the wavelength range 4000-400 cm-1 [14].

Selection of excipients

The emulgel preparation for topical application should be non-irritant and least sensitive to the skin. To maintain the solubility of the drug in nanoemulsion, the drug must be soluble in the oil phase. The stability of nanoemulsion is maintained by using higher and lower HLB value of surfactant and co-surfactant were considered [15].

Screening of oils, surfactants, and co-surfactants

A primary examination of numerous oils, surface-active agents, and co-surfactants has been completed to check their lodging capacity toward methotrexate. The miscibility of Methotrexate in numerous oils, surface-active agents, and co-surfactants has been identified by adding an extra quantity of drug into 2 ml of decided oil, surface active agent, and co-surfactant one after the other in a separate 10 ml volumetric flask via the use of a vortexing mixer. These volumetric flasks had been stored in an orbital shaker incubator (Remi, CIS24 BL, Mumbai, India) at 25±1.0°C for 72 h to attain a state of equilibrium. The samples which were equilibrated have been taken out from the shaker and centrifugation was done at 3000 RPM over 15 min by the use of centrifuge (Remi, India). Then, the supernatant formed has been taken and performed filtration of supernatant by using a filter paper. The methotrexate concentration has been identified in specific oil using UV-spectroscopy at 259 nm [19, 20].

Construction of pseudo-ternary phase diagram

The pseudo ternary phase diagrams had been constructed by using the method of aqueous titration to determine the region of nanoemulsion and to identify the size of the nanoemulsion region. For the construction of each pseudo-ternary phase diagram, the surfactant was mixed with co-surfactant (Smix) in the ratio of 1:1, 1:2, 1:3, 3:1, and 2:1 (i.e., Km, w/w). Then the part of each Smixhas been combined with the oil in the ratio of 9:1, 8:2, 7:3, 6:4, 5:5, 4:6, 3:7, 2:8, and 1:9 (w/w). By vortexing with vortexer for 5 min, a transparent homogenous mixture of oil and the Smix component had been prepared [18]. Then titration of each mixture was carried out in drop by drop method with distilled water and prominently viewed for clarity of phase and ability to flow. The volume of water at which the transitions from transparency to turbidity occurred was supposed to be the titration’s endpoint. From this titration method, the ratio of surfactant/co-surfactant (Smix) has been determined. These estimated values were utilized to identify the region of the nanoemulsion formulation with the selected amount of oil and surfactant and co-surfactant (Smix). Then the drug effect on the boundary of nanoemulsion that has been obtained from the pseudo ternary phase diagram was checked. The pseudo ternary phase diagram was constructed using the ProSim Ternary Diagram software [21, 22].

Preparation of methotrexate loaded nanoemulgel

Formulation of methotrexate nanoemulsion

Methotrexate (1%) was added to the mixture of tween 20, PEG 400, and peanut oil ratios (table 1) taken from the pseudo ternary phase diagram. The water was then added dropwise to the above solution and stirred at room temperature [21].

Formulation of methotrexate nanoemulgel

A measured amount of badam gum was added to distilled water and mixed it properly using a magnetic stirrer. The stirring was carried out uniformly and the gel was placed in the refrigerator for 24 h. The formulation (F1-F3) was prepared using S3 nanoemulsion containing a Smix ratio of 3:1 given in table 2 [5].

Table 1: Composition of nanoemulsion with selected oil, surfactant, and co-surfactant

Nanoemulsion code Smix* Excipients (%w/w)
Peanut oil Tween20:PEG400 (Smix) Water
S1 1:1 15 45 40
S2 2:1 10 45 45
S3 3:1 10 40 50

Note: Smix represents the ratio of surfactant to cosurfactant.

Table 2: Composition of 0.5% w/w methotrexate-loaded nanoemulgel

S. No. Materials F1* F2* F3*
1 Methotrexate 0.5 0.5 0.5
2 Peanut Oil 12.9 8.6 8.6
3 Tween 20:PEG400 (Smix) 38.7 38.7 34.4
5 Water 34.4 38.7 43
6 Badam Gum (1.5%) 12.5 12.5 12.5
7 Benzyl Alcohol 1.5 1.5 1.5

Note: F1, F2, and F3 represent the formulations of Methotrexate-loaded nanoemulgel.

Evaluation of nanoemulgel

Transmission electron microscope

The size and shape of nanoemulgel were examined by transmission electron microscope (TEM) (Philips CM 10, Philips electron optics, Eindhoven, The Netherlands) with the image software. The drug-loaded emulsion was spread on firmware-coated copper grids and absorbed after complete air drying [24, 25].

Particle size analysis

The particle size of the formulated nanoemulgel was measured using the dynamic light scattering method or photon correlation spectroscopy by using Zeta sizer (ZS 90, Malvern Instrument Ltd, UK). The prepared nanoemugel was diluted with deionized water (1:1000) and measured for the particle size [26, 27].

Measurement of zeta potential

Zeta potential for nanoemulgel was estimated using Zeta sizer (ZS 90, Malvern Instrument Inc, UK) by using an electrophoretic light scattering method. The formulated sample was placed in zeta cells and results were analyzed. The average of three measurements with Standard Deviation (±SD) was reported [26, 28].

Evaluation of nanoemulgel

Physical appearance of nanoemulgel

The formulated nanoemulgel was examined visually for color, pH, homogeneity, stability, and consistency [27].

Determination of pH

The pH of the formulated nanoemulgel was identified by utilizing a digital pH meter. By using distilled water the electrode of the pH meter has been washed and then the electrode was dipped inside the formulation to estimate pH [28].

Viscosity measurement

The viscosity of nanoemulgel was measured by Brookfield Viscometer (Brook field DV II+, USA), with spindle no. 63 at 30-50 RPM [25].

Spreadability study

Spreadability was estimated by calculating the diameter of the spreading of 1g of formulation between two glass plates and for one minute when a standard weight of 20g was employed to the upper plate.

S=

where, S = spreadability (cm. g/sec), M=weight of the upper slide (g), L=length of the glass slide (cm)and T=time taken for separation of slide (sec) [29].

Drug content study

The study of drug content has been performed to estimate the presence of the drug in a certain amount of the prepared formulation. 0.1g of the nanoemulgel has been weighed accurately and dissolved in 25 ml of phosphate buffer (pH 6.8). Then the volumetric flask was placed in an orbital shaker and shaken well to mix it properly. The solution was then filtered, suitably diluted and the absorbance was determined by UV-spectrophotometer at 259 nm [16].

Drug release studies

The release rate of methotrexate from nanoemulgel was performed using Franz diffusion cell (Perme Gear, Bethlehem, PA, USA), with a dialysis membrane of 0.65 µm pore size. The diffusion test apparatus was performed using 900 ml of phosphate buffer of pH 6.8 at 37°C±1°C and 50 RPM for 12 h. The methotrexate-loaded nanoemulgel was employed on the surface of the membrane in the donor chamber. Then the sample (5 ml) was collected at a suitable interval of time (1, 2, 3, 6, 9, and 12hr) from the receptor chamber, and to maintain the sink condition the receptor chamber was restored with buffer media. Then the collected samples were assayed for the measurement of drug content by utilizing a UV-visible spectrophotometer (UV-1800, Shimadzu, Kyoto, Japan) at λmax of 259 nm [30].

Release kinetics

The cumulative drug release data was used to obtain mathematical models (Zero-order release, First-order release, Higuchi, and Korsmeyer-Peppas model) using BCP software [27].

Accelerated stability studies

The stability of the prepared nanoemulgel formulation was estimated using the heating-cooling cycle method and free thaw cycle method [31].

Heating cooling cycle method

In this method, 6 cycles were carried out between the refrigerator temperature (4°C and 45°C) with the storage of the sample at each temperature for at least 48 h [16].

Free thaw cycle

In this method, the prepared nanoemulgel was initially placed in a deep freezer at a temperature of-25°C, then formulation was removed and allowed for thawing at a temperature of 25°C (room temperature). The formulation was then observed for appearance, pH, and a viscosity [23].

RESULTS AND DISCUSSION

Pre-formulation studies

The absorption maxima of methotrexate were estimated at 259 nm in phosphate buffer of pH 6.8.

Fourier transform infrared spectroscopy (FT-IR)

The FT-IR spectrum of pure methotrexate was compared with the FT-IR spectra of drug and excipients as shown in fig. 1. The functional group along with their wavenumbers obtained for both the pure drug and the physical mixture has been listed in table 3. The characteristic IR peaks of pure Methotrexate were found to be at 1446.66 (C-H bending, deformation of CH3), 1637.48 (C=C stretching), 2928.04 (C-H stretching, aliphatic), 3371.63 (O-H stretching) [32]. All these peaks were found to be in the IR spectra of the physical mixture with not so much major shifting. Therefore, both pure drug and the physical mixture were in correlation with all the characteristic IR spectra peaks and the results revealed no chemical interaction between drug and excipients.

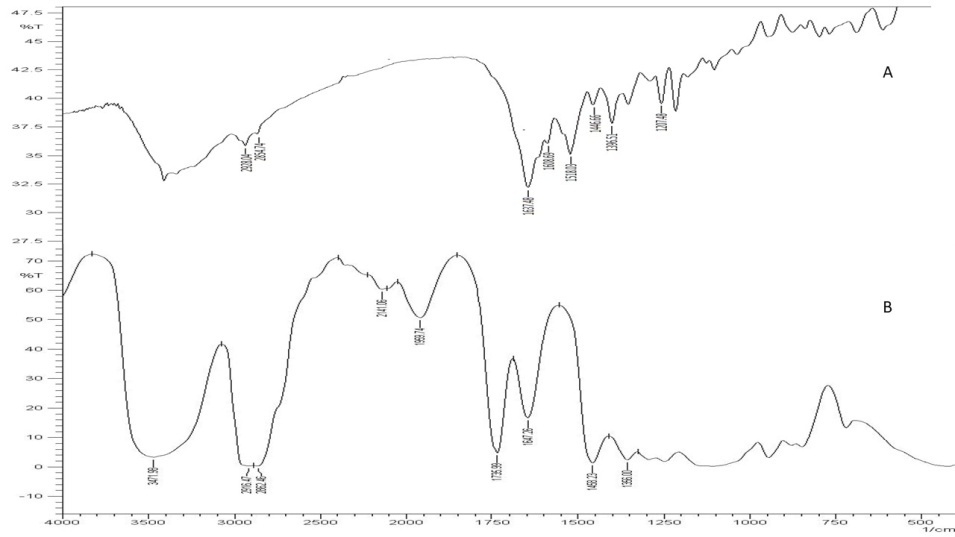

Fig. 1: FT-IR spectra of (A) methotrexate and (B) Physical mixture (Methotrexate+Peanutoil+Tween 20+PEG 400)

Table 3: FTIR spectrum of the pure drug (methotrexate) and the physical mixture

Functional group Pure drug Physical mixture
C=Cstretch 1637.48 1647.26
C-H bend (deformation of CH3) 1446.66 1458.23
C-H stretch (Aliphatic) 2928.04 2916.47
O-H stretch 3371.63 3471.98

Pseudo-ternary diagram

From the pseudo-ternary-phase diagram, it has been observed that there is a slight alteration in the nanoemulsion region with the increase in the surfactant ratio. Hence, according to the pseudo-phase ternary diagram, the S3 formulation, a 3:1 ratio of Smix (Tween 20:PEG 400) was considered. The 1:9 ratio of oil: Smix has been considered as the maximum region of nanoemulsion as depicted in fig. 2.

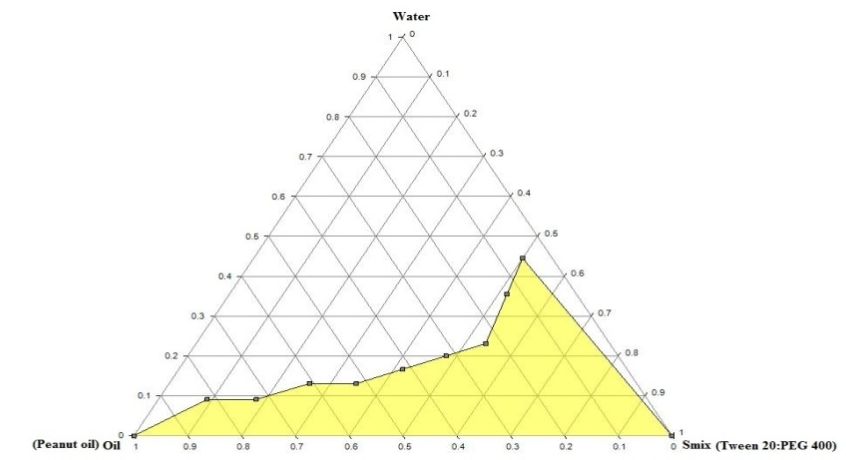

Fig. 2: Pseudo-ternary phase diagram of methotrexate

Evaluation of nanoemulsion

Transmission electron microscope (TEM)

TEM was implied for evaluating particle shape and size of nanoemulgel. The TEM results of optimized formulation F3 revealed that the particle size of methotrexate-loaded nanoemulgel was found to be 195.1 nm, the same when compared with the particle analyzer (fig. 3b), with the uniform shape of particles. The TEM images of nanoemulgel are depicted in fig. 3a.

Particle size analysis

The particle size of the formulation was found to be 195.1 nm and the polydispersity index (PDI) was found to be 0.326 as shown in fig. 3b. As per the thumb rule, the PDI value was found to be monodisperse and ensures stability.

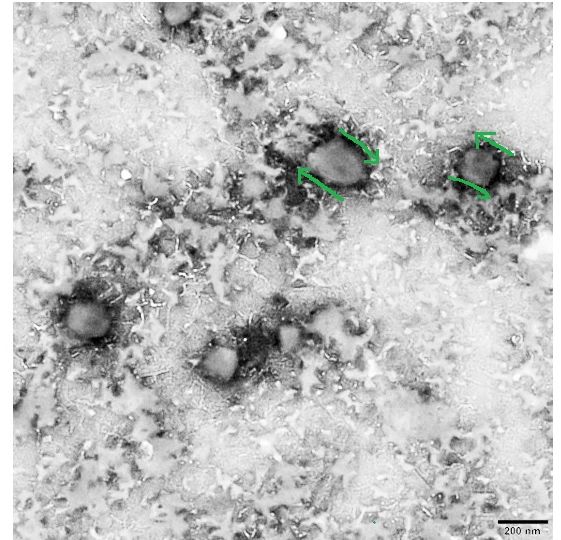

Fig. 3a: TEM image of methotrexate loaded nanoemulgel

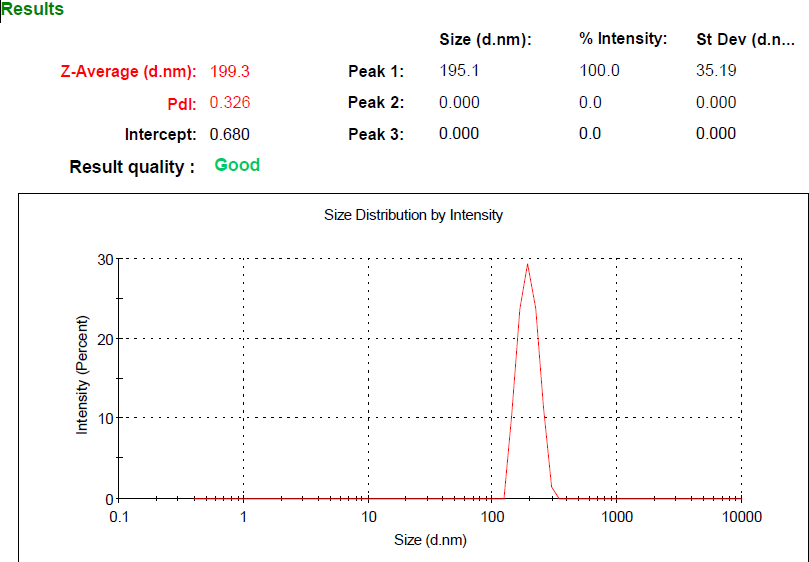

Fig. 3b: Particle size of methotrexate loaded nanoemulgel

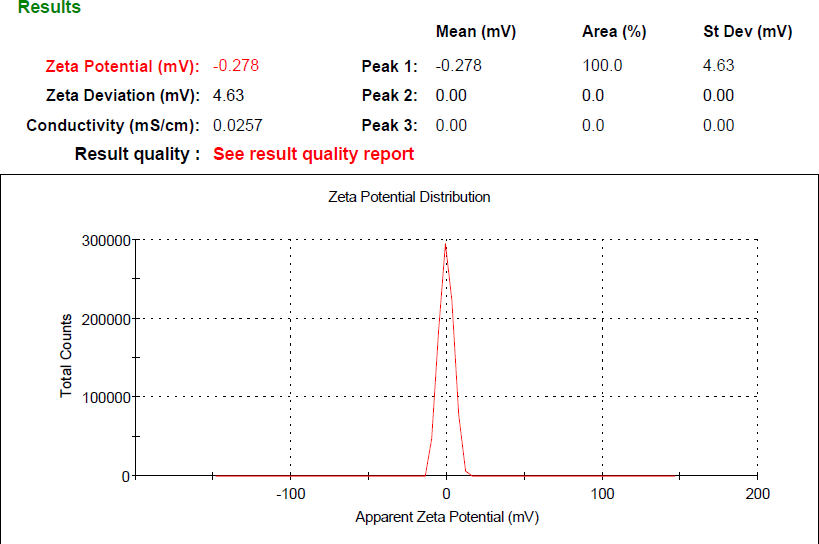

Fig. 4: Zeta potential of methotrexate loaded nanoemulgel

Measurement of zeta potential

The zeta potential of the prepared formulation was–0.278 mV, which was within the limit, and indicates thermodynamic stability as shown in fig. 4.

Evaluation of nanoemulgel

Physical appearance of nanoemulgel

The nanoemulgel prepared using badam gum was yellowish, translucent, and consistent in appearance.

Determination of pH

The pH of these formulations was ranged between 5.8 and 6.7. Which are considered acceptable and less irritable for use in human skin, as human skin pH is 5.5. Therefore, it is feasible to apply on the skin with no irritation.

Viscosity measurement

The viscosity of nanoemulgel was found to be 1533.1cps at 50 rpm, implying the better consistency of the dosage form.

Spreadability study

The spreadability of nanoemulgel was found to be 28.85 g cm/sec. Hence, the range was acceptable.

Drug content study

The drug content of a nanoemulgel was 98.11±0.34%, implying that a significant amount of the drug was loaded in the nanoemulgel.

Drug release study

In vitro drug release of the optimized formula was performed in PBS of pH 6.8 by using a dialysis membrane. The F3 formulation showed burst release initially as compared to the other formulations. The drug release of optimized drug-loaded nanoemulgel (F3) was found to be 95.11% in 12 h when compared to other formulations and is depicted in table 4 and fig. 5.

Release kinetics

The optimized drug-loaded nanoemulgel (F3) showed the highest percentage of drug release of 95.11% when compared to the other formulations and followed first-order kinetics. Therefore, the release profile that followed the diffusion process is the First Order model with an R2value of 0.9915and also achieved a linear relationship as given in table 5.

Accelerated stability studies

Under all storage conditions, the optimized formula has been kept and the physical characteristics have been evaluated. From the stability study, it has been found that the prepared nanoemulgel was physically stable at all storage conditions with no phase separation, caking, and creaming. Hence, the optimized formula is kinetically stable.

Table 4: Data for in vitro drug diffusion studies

Time in hours % Drug diffused (w/w) *
F1 F2 F3
0 0.00 0.00 0.00
1 4.09±0.03 5.12±0.02 7.02±0.05
2 15.06±0.04 15.88±0.03 16.92±0.03
3 22.55±0.05 23.78±0.02 26.63±0.05
6 40.98±0.02 42.01±0.01 44.72±0.02
9 59.12±0.03 58.67±0.04 61.26±0.01
12 80.24±0.01 85.19±0.002 95.11±0.02

NOTE: *Data represented as mean±SD (n=3)

Table 5: Release kinetics at 259 nm

Mathematical model R2 of nanoemulgel (F3)
Zero Order Release 0.9894
First Order Release 0.9915
Higuchi Model 0.9168
Korsmeyer Peppas Model 0.9881

NOTE: R2=Regression coefficient value

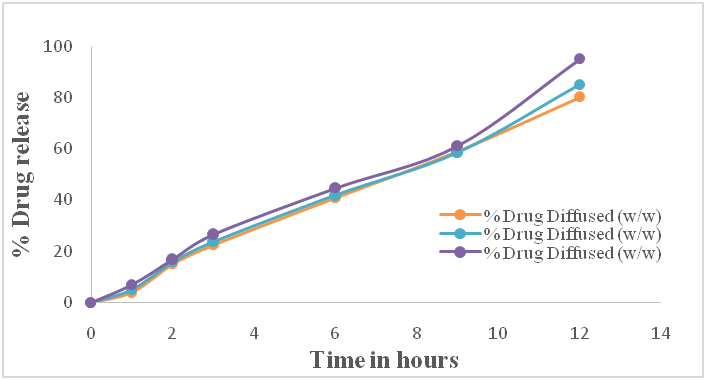

Fig. 5: Graph showing percentage drug diffused of methotrexate and nanoemulgel at 259 nm

CONCLUSION

Topical drug delivery is the preferred route for the local application of the therapeutic drug because of its ease and affordability. It has also gained popularity in recent years among the population due to better patient compliance. Therefore, a potential methotrexate-loadednanoemulgel using peanut oil as the oil phase and badam gum as a gelling agent was formulated successfully and characterized along with an in vitro study. The optimized formulation (F3) showed 95.11% in 12 h which is more than the other formulation and also resulted in better physicochemical properties. The product exhibit a good stability profile at all storage condition mentioned in the methodology. So, from this research study, it has been found that methotrexate is a disease-modifying antirheumatic drug with a better retention time as compared to other drugs. Hence, the study demonstrated that the prepared nanoemulgel was found to be an operative tool in the management of rheumatoid arthritis when applied topically with a longer stability profile.
