Int J App Pharm, Vol 13, Issue 4, 2021, 94-101Original Article

DESIGN, DEVELOPMENT AND IN VITRO EVALUATION OF ERLOTINIB LOADED LIQUORICE CRUDE PROTEIN NANOPARTICLES BY BOX BEHNKEN DESIGN

GEETHA V. S.1,2, MALARKODI VELRAJ2*

1College of Pharmaceutical Sciences, Govt. Medical College, Kozhikode, Kerala, India, 2School of Pharmaceutical Sciences, Vels Institute of Science Technology and Advanced Studies (VISTAS), Vels University, Chennai, Tamil Nadu, India
Email: malarkodisanna@gmail.com

Received: 23 Mar 2021, Revised and Accepted: 28 Apr 2021

ABSTRACT

Objective: To formulate and evaluate Erlotinib loaded Liquorice crude protein (LCP) nanoparticles from the powdered liquorice root (Glycyrrhiza glabra) using Box-Behnken design.

Methods: Erlotinib loaded liquorice crude protein nanoparticles were prepared by desolvation method using ethanol-water (1:2 ratio), Tween-80 (2%v/v) and gluteraldehyde (8% v/v) as cross linking agent. Box-Behnken design with 3 factors, 3 levels and 3 responses was used to optimize the prepared nanoparticles. The independent variables were taken as A) Erlotinib concentration B) LCP concentration and C) Incubation time with responses R1) Drug entrapment efficiency R2) Drug Release and R3) Particle size. The correlation between factors and responses were studied through response surface plots and mathematical equations. The nanoparticles were evaluated for FTIR, particle size and zeta potential by Photon correlation spectroscopy (PCS) and surface morphology by TEM. The entrapment efficiency, and in vitro drug release studies in PBS pH 7.4 (26 h) were carried out. The experimental values were found to be in close resemblance with the predicted value obtained from the optimization process. The in vitro cytotoxicity studies of the prepared nanoparticles in lung cancer cell line (A 549) were studied with different concentrations for 24h.

Results: The average particle size, zeta potential, Polydispersity index (PDI) were found to be 292.1 nm,-25.8 mV and 0.384 respectively. TEM image showed that the nanoparticles dispersed well with a uniform shape and showed not much change during storage. The in vitro drug release showed 41.23% for 26 h in PBS (7.4) and release kinetics showed highest R2value (0.982) for Korsmeyer-Peppas model, followed by 0.977 for Higuchi model. The in vitro cytotoxicity of prepared nanoparticles in A 549 cell line showed good results with different concentrations for 24h.

Conclusion: Erlotinib (Erlo) is a BCS class II drug with poor solubility, poor bioavailability and selective tyrosine kinase inhibitor for non small-cell lung cancer (NSCLC) through oral administration. To improve the oral bioavailability and absorption of molecules, plant protein as carriers is used for developing drug delivery systems due to their proven safety. The optimization variables were Conc of Erlo, Conc. of LCP and Incubation time to get responses as drug entrapment efficiency, drug release and particle size. The compatibility between drug and LCP were evaluated by FTIR.

Keywords: Erlotinib, LCP, Bioavailability, Nanoparticles, Desolvation, Drug release, Box-Behnken design, Cytotoxicity

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2021v13i4.41580. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Erlotinib binds with adenosine triphosphate (ATP) in the epidermal growth factor receptor tyrosine kinase domain and inhibits the autophosphorylation process of tyrosine kinases [1]. This promotes cell apoptosis, inhibits angiogenesis, and prevents proliferation of cells. Thus, by designing a novel delivery system for targeted Erlo delivery, poor solubility, cell selectivity and low bioavailability can be improved [2]. The different encapsulation methods that are used as delivery systems include liposomes, polymeric-based nanoparticles [3, 4], hydrogels, and serum albumin. Among the variety of targeting ligands, hyaluronic acid (HA) and human serum albumin have proven success in lung cancer targeting with in tumour cell lines animal models [5]. Moreover a major problem associated with cancer chemotherapy [6, 7] is the severe side effects resulting from the normal tissue damage, irrespective of the route of administration, which can be overcome by targeted drug delivery [8, 9]. It is aimed to load this drug into a nano drug carrier system, so that it can improve poor solubility and low bioavailability, reduce rapid renal clearance and improve cell selectivity [10, 11]. From the wide variety of proteins generally used to prepare nanoparticles and albumin from various sources (BSA, HSA, ovalbumin, plant proteins), only plant proteins are devoid of antigenicity.

Many experimental studies [12, 13] reported the useful biological properties of Glycyrrhiza glabra [14] such as antioxidant, immune modulatory, anti-viral, anticancer effects and several more. Researchers have identified one kind of protein present in liquorice which can be formulated into nanoparticles [15, 16]. Acute toxicity studies of nano formulations of Glycyrrhiza glabra extract poses no serious health hazard in Swiss albino mice [17].

MATERIALS AND METHODS

Erlotinib Hydrochloride was obtained as a gift sample from Natco Pharma Ltd. Liquorice root fine powder was obtained from Indus valley Bioorganic (100% natural pure liquorice powder) as a gift sample. LCP was extracted, dialyzed and freeze dried to get crude protein. All other reagents were of analytical grade.

Extraction of liquorice crude protein (LCP)

Finely powdered liquorice root was extracted in phosphate buffer (pH 7.2) in 1:5 (w/v) ratio and 100Mm NaCl for 24 h at 4 °C. Coarse filtration and centrifugation is done and proteins were precipitated by salting out method. Impurities were removed by changing pH and dialyzed to remove the excess salt for 2 d with intermittent changing of buffer. The dialyzed liquid was freeze dried to get crude freeze dried LCP extract, which was subjected to various further studies as follows.

Quantification of proteins by lowry assay method

Protein was estimated by Lowry assay method. The blue colour developed by the addition of Folin-ciocalteau reagent to the LCP solution and the colour developed by the biuret reaction of the protein with the alkaline cupric tartarate are measured in the Lowry method. Solubility was studied in different solvents. Fourier Transform Infrared Spectroscopy (FTIR) spectra, surface morphology (SEM) were obtained.

FTIR spectra [18], solubility and UV-calibration curve in pH 7.4 PBS of Erlotinib Hydrochloride [19] were studied. LCP-Erlotinib compatibility studies were also conducted based on FTIR spectra to study the interaction.

Formulation of erlotinib loaded liquorice crude protein nanoparticles

Erlotinib was loaded in the ratio 1:2 (drug: crude protein) and nanoparticles were prepared by desolvation method [20-21] after adjusting the pH to 8 and by the addition of ethanol at a rate of 1 ml per min and under magnetic stirring at 600rpm at room temperature with ethanol-water in ratio 1:2 using 1 ml Tween-80 as surfactant and one drop of gluteraldehyde as cross linking agent. This is followed by ice bath sonication for fifteen minutes. The drug loaded nanoparticles were then separated by centrifugation (10,000 x 2 min) and lyophilized [22].

Experimental design

The Box-Behnken design using Design Expert 11.0.2 software was performed. The independent variables were A) Erlotinib Concentration (%w/v) B) LCP Concentration (%w/v) C) Incubation time (min) and the dependent variables were R1) Drug entrapment efficiency (%), R2) Drug release (%) and R3) Particle size (nm). The goal of optimization was to maximize entrapment efficiency and drug loading efficiency and to minimize particle size (table 1). Based on optimization in Box-Behnken design, contour plots and response surface plots were studied for the effects of independent variables on dependent variables with maximum desirability [23]

Characterization of Erlotinib loaded LCP nanoparticles

The particle size analysis was determined by dynamic light scattering, using a Malvern system, at a temperature 25.0±0.1 °C. The zeta potential of the nanoparticles was determined using a Malvern Zetasizer at 25.0±0.1 °C. Transmission Electron Microscopy (TEM) was performed to characterize the surface morphology of the formed nanoparticles. Determination of drug entrapment efficiency (%) was found out by using centrifugation at 15000rpm for 30 min and supernatant with free drug was measured by UV spectrophotometer at 246 nm.

In vitro studies of drug release from Erlo-LCP nanoparticles were carried out for 26 h in PBS (pH 7.4) using dialysis membrane method. A sample of nanoparticles equivalent to 5 mg of drug was dissolved in 2 ml buffer solution and taken in a dialysis bag (Mw cutoff 10,000–12,000 Da) and then placed in PBS adjusted at 37±0.5 °C under gentle magnetic stirring (60 rpm) in a volume of 10 ml achieving the sink condition. At scheduled time intervals, 2 ml of medium was withdrawn and replaced with an equal volume of fresh medium. The samples were filtered with a membrane filter (0.22μ) and the amount of drug released was quantified by using UV Spectrophotometer at a wavelength 246 nm against blank.

Release kinetics and stability studies were studied. The A 549 cell line was applied as a model cell to assay the cellular cytotoxicity of formulated Erlo-LCP nanoparticles. MTT assay method was used to assess the viability of cells.

RESULTS AND DISCUSSION

Characterization of LCP extract

Solubility: Solubility of liquorice crude protein was studied in different solvents.

Estimation of protein by lowry assay method

Total protein content of the freeze dried sample of LCP extract evaluated by Lowry assay method was found to be 94.75μg/ml [24]

Fourier Transform Infrared Spectroscopy (FTIR):

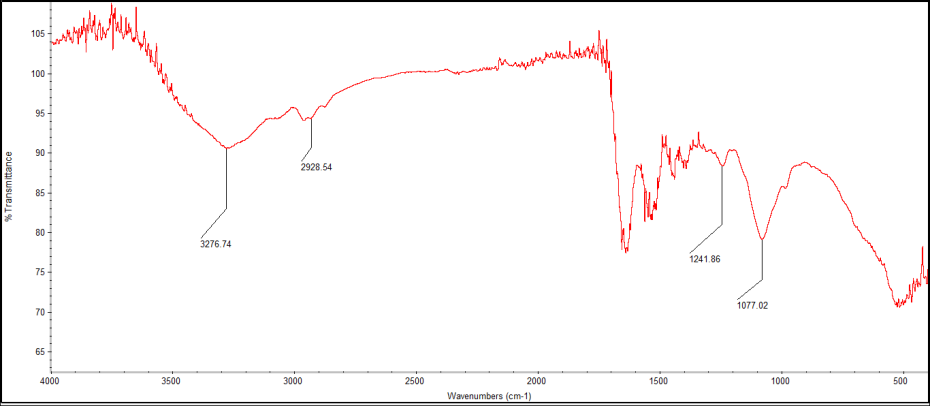

Fig. 1: FTIR spectrum of LCP extract

Fig. 2: SEM image of LCP extract

Table 1: Data for FTIR spectra

Wave number (cm-1) Functional group
3276.74 -NH Stretch.
2928.54 -COOH stretch
1660 C=O bond stretching in peptide
1241.86 In plane C-H bending

Scanning Electron Microscopy image as seen in fig, 2 shows irregular surface.

Characterization of erlotinib hydrochloride

FTIR Spectra of Erlotinib

Characterization of erlotinib-LCP mixture

FTIR spectrum of LCP-erlotinib mixture

FTIR spectra of pure Erlotinib Hydrochloride (fig. 3), LCP Extract (fig. 1) and the mixture of Erlo LCP mixture (fig. 4) are shown.

The characteristic IR absorption peaks of Erlo were all observed in the spectra of pure drug as well as Erlo–LCP mixture. This suggested that no interaction between Erlo and LCP were seen in the mixture.

Optimization using box-behnken design

Table 4 shows 3 factors, 3 responses and 3 levels based Box-Behnken design with 17 formulations which has been applied to study the effect of independent variables on dependent variables [25, 26].

A 3 factor 3 levels based Box-Behnken design with 17 formulations was evaluated to understand the relationship between independent variables and dependent variables (table 5).

Statistical optimization by response surface methodology

The Quadratic model was chosen as the best fit model based on regression coefficient values (R2) very close to 1 (table 6) and based on p-values<0.05, which deemed the model to be significant.

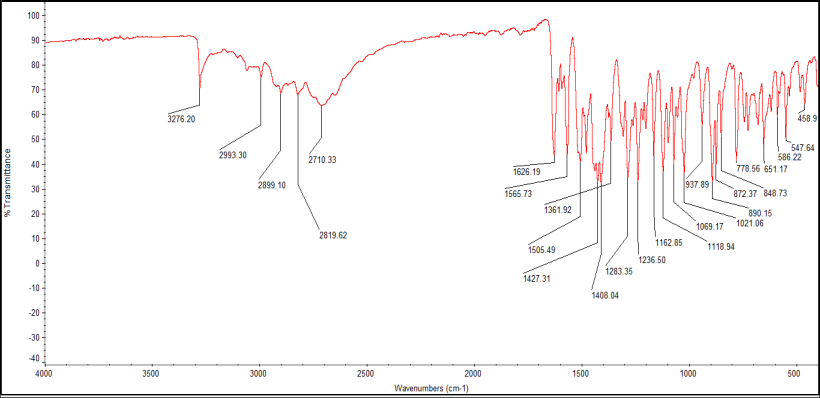

Fig. 3: FTIR spectra of erlotinib

Table 2: Data for FTIR spectra

Wave number (cm-1) Functional group
3276.2 N-H stretch
1626.19 Secondary Amine NH bend
1505.49 C=C, Aromatic Ring
1283.35 C=O stretch

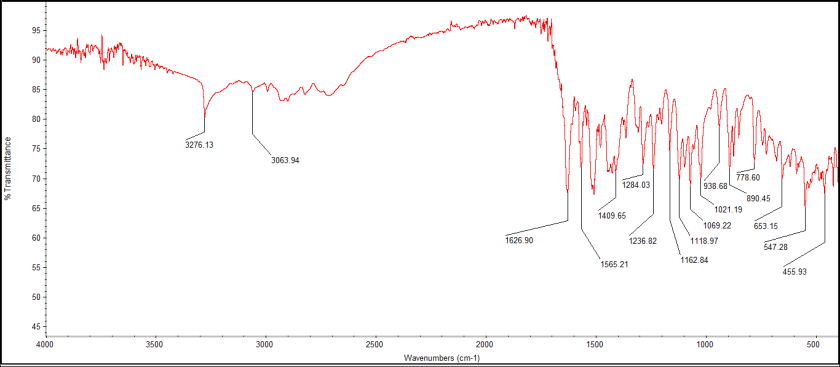

Fig. 4: FTIR spectra of Erlo-LCP mixture

Table 3: Data for FTIR spectra

Wave number (cm-1) Functional group
3276.13 N-H stretch
3063.94 COOH stretch
1626.9 Secondary Amine NH bend
1236.82 NH bending

Table 4: Variables and their constraints in box-behnken design

Independent variables Constraints Dependent variables Goal
Lower limit Upper limit
A: Erlotinib Concentration (%w/v) 1 3 R1: Drug Entrapment Efficiency (%) Maximise
B: LCP Concentration (%w/v) 2 6 R2: Drug Release (%) Minimise
C: Incubation time (hrs) 2 10 R3: Particle size (nm) Minimise

Table 5: Formulations of Erlo-LCP nanoparticles

Factor 1 Factor 2 Factor 3 Response 1 Response 2 Response 3
Std Run A: Erlotinib Conc B: LCP conc C: Incubation time Drug entrapment efficiency (DEE) Drug release Particle size
%w/v %w/v hrs % % nm
12 1 2 6 10 57.21±1.34 26.77±2.15 314.42±0.56
11 2 2 2 10 63.25±2.24 32.73±1.54 310.87±1.21
9 3 2 2 2 61.7±1.85 28.44±0.88 319.27±3.11
7 4 1 4 10 64.66±2.14 34.48±1.37 308.13±1.85
8 5 3 4 10 57.27±1.05 25.78±1.22 309.56±0.56
2 6 3 2 6 63.34±1.55 39.68±3.19 298.67±3.21
10 7 2 6 2 58.76±2.86 23.56±2.56 319.85±2.15
17 8 2 4 6 51.98±3.15 55.58±3.44 275.52±3.66
4 9 3 6 6 59.75±3.05 33.94±1.75 298.34±2.08
5 10 1 4 2 66.12±3.45 29.23±2.01 313.96±1.81
6 11 3 4 2 57.89±2.96 22.41±2.66 314.82±2.95
14 12 2 4 6 52.23±2.85 56.67±1.28 278.95±2.31
13 13 2 4 6 52.65±1.79 52.98±1.91 276.54±3.02
3 14 1 6 6 67.64±3.95 41.46±2.36 301.29±3.37
-1 15 1 2 6 71.42±4.05 46.29±2.74 295.45±2.83
16 16 2 4 6 52.34±3.07 59.65±3.02 276.87±1.23
15 17 2 4 6 53.36±2.65 56.23±1.23 279.64±2.41

*Data are expressed as mean±SD (n=3)

Table 6: Fit statistics showing R2 values

Response R2 Adjusted R2 Predicted R2
R1: Drug entrapment efficiency (%) 0.9965 0.9920 0.9724
R2: Drug release (%) 0.9914 0.9903 0.9843
R3: Particle size (nm) 0.9968 0.9926 0.9892

The predicted R2 value of 0.9724, 0.9843 and 0.9892 were found to be in reasonable agreement with the adjusted R2 value of 0.9920, 0.9903 and 0.9926 respectively. The Model F-values of 220.6, 89.26 and 240.94 implies that the model is significant.

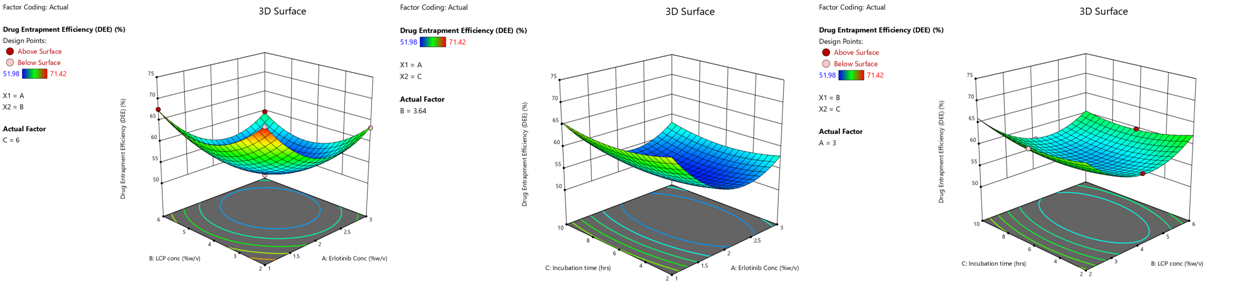

Fig. 5: 3D response surface plots between a) Erlotinib Conc, LCP Conc and drug entrapment efficiency (R1); b) Erlotinib Conc, Incubation time and drug entrapment efficiency (R1); c) LCP Conc, incubation time and drug entrapment efficiency (R1)

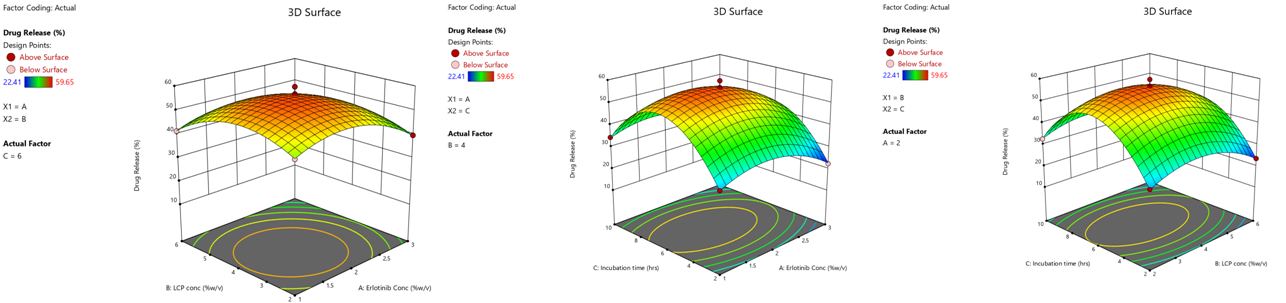

Fig. 6: 3D response surface plots between a) Erlotinib Conc, LCP Conc and Drug Release (R2); b) Erlotinib Conc, Incubation time and Drug Release (R2); c) LCP Conc, Incubation time and drug release (R2)

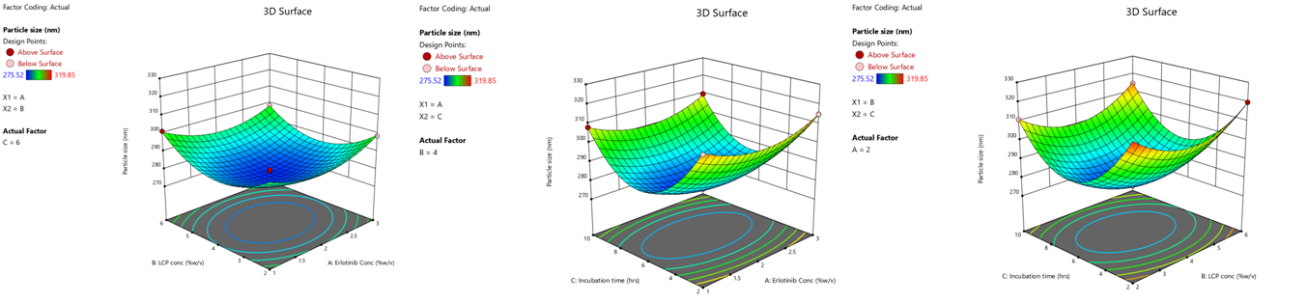

Fig. 7: 3D response surface plots between a) Erlotinib Conc, LCP Conc and Particle size (R3) b) Erlotinib Conc, Incubation time and Particle size (R3) c) LCP Conc, Incubation time and Particle size (R3)

R1 = 52.512-3.94875A-2.0475B-0.26375C+0.0475AB+0.21AC-0.7675BC+7.1365A2+5.889B2+1.8365 C2

R2 = 56.222-3.70625A-2.67625B+2.015C-0.2275AB–0.407AC–0.27BC-7.88975A2-7.98975B2-20.3572C2

R3 = 277.504+0.32A+1.205B-3.115C-1.5425AB+0.1425AC+0.7425BC+8.22425A2+12.7093B2+25.8893C2

Fig. 5a) shows the effect of Erlotinib Conc and LCP Conc on Drug Entrapment Efficiency (R1). The aim of the study was to maximize the EE%. R1 increases with increase in LCP Conc and Incubation time. This observation might be due to the availability of greater amount of polymers for complete encapsulation of drug. However increase in incubation time decrease the EE due to the breakup of nanoparticles due to high shear. Fig. 5b) shows the effect of Erlotinib Conc and Incubation time on R1, which increases with incubation time than with Erlo Conc. Fig. 5c) shows the effect of LCP Conc and Incubation time on R1, which has almost the same significant effect by both factors.

Fig. 6a) shows the effect of Erlotinib Conc and LCP Conc on Drug Release (R2). The goal of the study was to minimize the drug release to get sustained action. As shown in RSM plots drug release was decreased by increase in both the factors. This might be due to the increase in diffusion path length which minimizes the drug release as the polymer conc is increased. Fig. 6b) shows the effect of Erlotinib Conc and Incubation time on R2. Fig. 6c) shows the effect of LCP Conc and Incubation time on R2.

Fig. 7a) shows the effect of Erlotinib Conc and LCP Conc on Particle size (R3). The aim was to minimize particle size of prepared Erlo-LCP nanoparticles as it affects drug release. It was found that particle size was increased with increasing both drug and polymer conc and decreased with increasing incubation time due to high shear forces. Fig. 7b) shows the effect of Erlotinib Conc and Incubation time on R3. Fig. 7c) shows the effect of LCP Conc and Incubation time on R3. The predicted vs actual graphs of responses are shown in fig. 8.

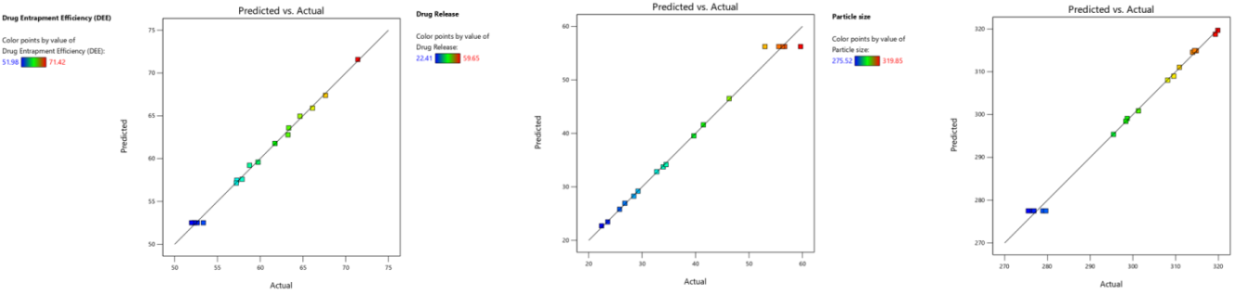

Fig. 8: Predicted vs actual graphs of a) Drug entrapment efficiency (R1); b) Drug release (R2); c) Particle size (R3)

The optimum levels of formulation factors for an optimized formulation based on the Box-Behnken design were 3% w/v of drug Erlotinib, 4% w/v of LCP, 6 h incubation time with predicted values of 286.04 nm for particle size, 55.69% for entrapment efficiency, and 44.62% for drug release.

Particle size, PDI, zeta potential

The mean particle size of nanoparticles formulation was in the range of nm. Formulation of Erlo-LCP nanoparticles showed particle size from 275.52 nm to 319.85 nm. Poly dispersivity index (PDI) of 0.384 (fig. 9) and zeta potential of-25.8mV (fig. 10) were in good range.

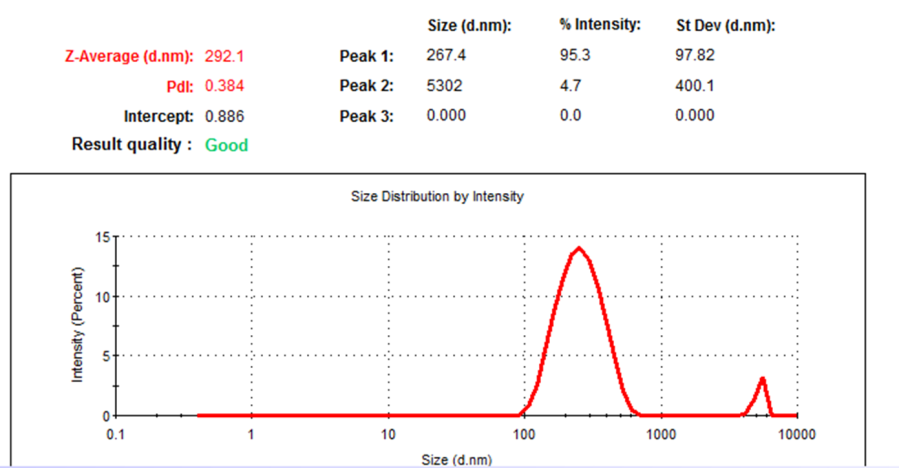

Fig. 9: Particle size analysis and polydispersity index of formulated Erlotinib loaded LCP nanoparticles

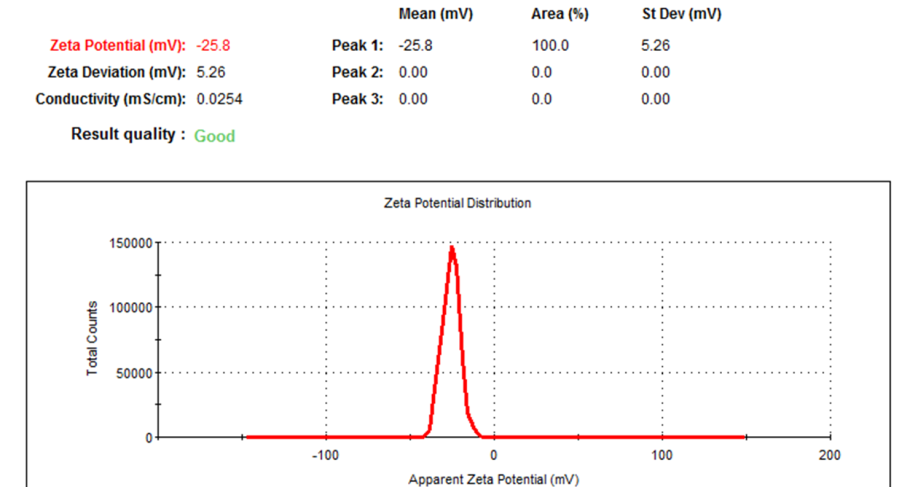

Fig. 10: Zeta potential of formulated Erlotinib loaded LCP nanoparticles

Transmission electron microscopy

Fig. 11: TEM image of optimized nanoparticle

The TEM image (fig. 11) confirmed the uniform size distribution and spherical shape of particles.

In vitro drug release from nanoparticles

The cumulative percentage release of Erlotinib from the optimized formula after a different time period is shown as a graph (fig. 12). The release of Erlotinib follows that of sustained release without initial burst release. After 26hours, the amount of accumulated Erlotinib in PBS at pH7.4 was calculated to be 41.23% of the entrapped drug.

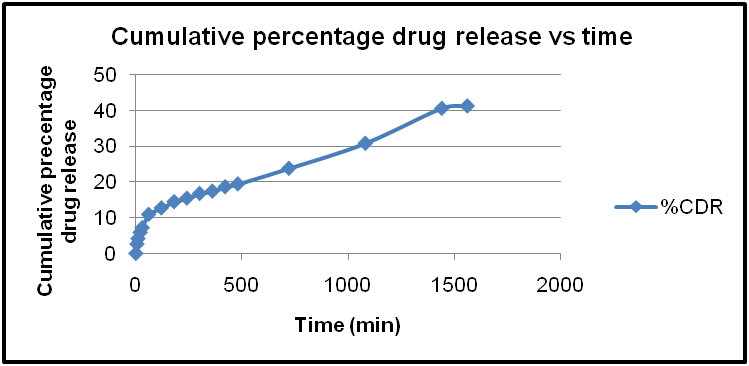

Fig. 12: Drug release profile of erlotinib from erlotinib loaded LCP nanoparticles

In vitro kinetics studies of Erlotinib-LCP nanoparticles-

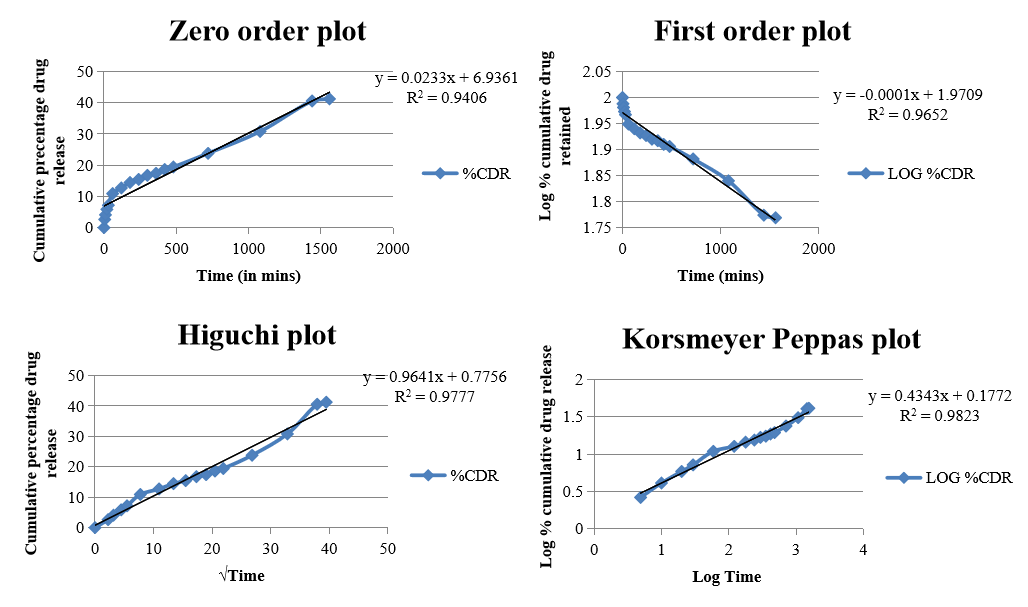

Fig. 13: In vitro drug release kinetics

Table 7: Release kinetics

pH Zero order First order Higuchi Korsmeyer–Peppas
R2 R2 R2 R2
7.4 0.9406 0.9652 0.9777 0.9823

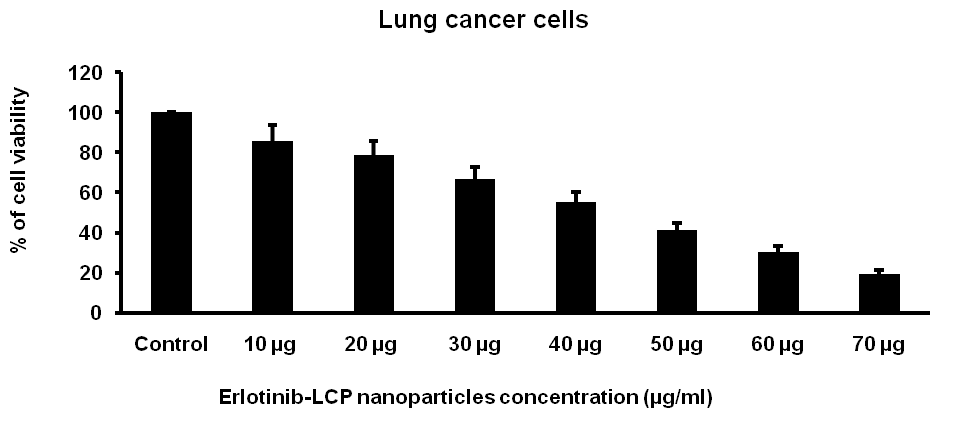

Fig. 14: Effect of formulated nanoparticles on cell viability of lung cancer cells was assessed by MTT assay, *Data are expressed as mean±SD (n=3)

Fig. 15: Morphological changes in control and formulated nanoparticles treated lung cancer cells for 24 h

The in vitro release of Erlotinib from the Erlo-LCP nanoparticles was studied and is shown in fig. 13. The nanoparticle formulation showed a sustained release pattern without any initial burst release, may be due to the dissolution and diffusion mechanisms the drug could be released slowly. The in vitro release kinetics studies [27] of Erlotinib from the Erlo-LCP nanoparticles in PBS (pH 7.4) fits well with Korsmeyer-Peppas model with R2value 0.9823 (table 7).

Stability studies

The optimized Erlo-LCP nanoparticles were stored at 4 °C (which is ideal for protein) for 6 m showed no remarkable changes in particle size, zeta potential and drug content.

In vitro cytotoxicity studies

Cell viability assay, A549 viable cells were harvested and counted using hemocytometer diluted in DMEM medium to a density of 1 × 104 cells/ml was seeded in 96 well plates for each well and incubated for 24 h to allow attachment. The A549 cells were treated with increasing concentration of erlotinib (10-70 µg/ml) for 24 h and the results are expressed as a percentage of the control value in presenting as a cell cytotoxicity ratio for lung cancer cells using MTT assay [28]

Photomicrograph (40x) represents morphological changes in lung cancer cells such as shrinkage, detachment, membrane blebbing and distorted shape induced by erlotinib treatment (20 and 30 µg/ml for 24 h) as compared with control. Control cells showed normal intact cell morphology and their images were captured by light microscope.

CONCLUSION

The present study aimed to extract the liquorice root crude protein by salting out method, followed by centrifugation and dialysis. Formulation of nanoparticles by cost effective desolvation technique was performed followed by optimization by Box-Behnken Design. The results showed that Erlotinib Conc, LCP Conc and Incubation time had a significant effect on drug entrapment efficiency (%), drug release (%) and particle size (nm). FTIR Spectroscopy and TEM were studied and revealed the formation of drug loaded nanoparticles as spherical structures with definite borders. The in vitro drug release and their kinetics were also evaluated and showed drug release pattern as that of Korsemeyer-Peppas model (R2 0.9823). Stability studies conducted at 4 °C for 6 mo confirms the physical and chemical stability of the formulation. MTT assay on A 549 lung cancer cell showed comparable in vitro cytotoxicity of the prepared formulation with IC50 value as 35.50 µg. The cellular cytotoxicity of Erlo-LCP nanoparticles increased significantly under the same incubation condition which may due to the fact that the increase in intracellular drug concentration is by the transportation of nanoparticles with the aid of LCP as carrier. Shen and Li studied the effect of HA/HSA co-modified erlotinib albumin nanoparticles for lung cancer treatment. The overall results of this study indicate that there is a reasonable potential for nano particulate delivery of Erlotinib along with natural LCP (as carrier) in minimizing drug induced toxicity and resistance.
