Int J App Pharm, Vol 13, Issue 6, 2021, 192-198Original Article

ACTIVITY SCREENING AND STRUCTURE MODIFICATION OF ARTOCARPIN AGAINST ACE2 AND MAIN PROTEASE THROUGH IN SILICO METHOD

MUHAMMAD FAUZI1*, ARIS FADILLAH1, FAUZI RAHMAN1, JUWITA RAMADHANI1, KARINA ERLIANTI1, HASNIAH1, YULISTIA BUDIANTI SOEMARI1, ABDUL MALIK2

1Faculty of Pharmacy, Islamic University of Kalimantan, Muhammad Arsyad Al Banjari Banjarmasin South Kalimantan, Indonesia 70123, 2Faculty of Agriculture, Islamic University of Kalimantan, Muhammad Arsyad Al Banjari Banjarmasin, South Kalimantan, Indonesia 70123
Email: fauzi.ozi1294@gmail.com

Received: 29 Jun 2021, Revised and Accepted: 25 Aug 2021

ABSTRACT

Objective: SARS-CoV-2 is a type of coronavirus that causes COVID-19 disease. Currently, the right and effective drug for the treatment of COVID-19 has not been found. Artocarpin in the breadfruit plant (Artocarpus altilis), which was tested, has been shown to have antiviral activity. However, artocarpin has a hydroxyl group that can undergo oxidation within a certain time, thereby reducing the stability of the compound and non-specific antiviral activity.

Methods: In this study, the structural modification of artocarpin was carried out to obtain compounds with anticoronavirus activity with good physicochemical properties. This research was conducted in silico, including molecular docking simulation, bioavailability prediction, and preADMET.

Results: The top 20 modified compounds were selected from each target's top 3 compounds, which had better bond energies compared to the positive control. These 3 compounds have the potential to inhibit ACE2 and Mpro receptors and 1 compound are better at inhibiting both.

Conclusion: From the results of the research conducted, we conclude that the 3 best compounds can be potential candidates that can be developed as COVID-19 therapy.

Keywords: Artocarpin, Breadfruit, Drug discovery and drug development, Structure modification, In silico, Covid-19

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2021v13i6.42571. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

According to the World Health Organization (WHO), more than 80% of the world's population in developing countries uses medicinal plants derived from plants for their basic medical needs [1]. Indonesia is known as a country that is rich in biodiversity, both in the form of crops consumed as food or plants that have the potential to be developed as drugs or medicinal raw materials. Indonesian people have also recognized and used plants as a solution in maintaining and treating health problems [2].

SARS-CoV-2 is a causative agent for COVID-19, which has caused a pandemic that has affected more than 215 countries and regions worldwide [3]. At the beginning of 2021, there were more than 84 million cases worldwide with more than 1.4 million deaths, where the virus was identified as highly contagious with its pathogenicity, which was a global health threat [4]. The increase in COVID-19 cases and the death rate continues to grow rapidly because there is no effective medicine so that recovery is slow [5].

The problems that arise due to SARS-CoV-2 greatly affect the social and economic life of the international world. This virus transmits without knowing anything, either symptomatic or asymptomatic. During the recovery process, viral RNA expression continued for a long time; even in immunosuppressed patients, the healing process took longer [6]. Regulations of drugs available in some countries around 30-50% experience a shortage of stock in the treatment of COVID-19. This is influenced by differences in drug regulations in each country because countries have their own regulations [7]. Thus, the search for new drugs to treat this disease needs to be intensified in relation to the problems that occur.

The process of discovering and developing medicines from natural ingredients is continuously being carried out, one of which is the breadfruit plant. This plant is native to Indonesia and Papua New Guinea which is spread throughout Southeast Asia and Africa [8]. Several studies have conducted studies on plants of the Artocarpus genus, namely as an anticancer [9], antitubercular [10], antioxidants [11], antibacterial [12], antiplatelet [13], antifungal [14], antimalarial [15], anti-aging [16], and cytotoxic [17].

Artocarpin compounds are flavonoids found in breadfruit plants. Artocarpin is a flavone compound that is often found in Artocarpus plants which contain prenyl groups at C-3 and C-6 [12]. Artocarpin has a hydroxyl group that can undergo oxidation within a certain time, thereby reducing the stability of the compound. Therefore, efforts are made to increase the activity and improve the stability of artocarpin compounds as candidates for the COVID-19 drug.

In this study, we used two enzymes as molecular targets, namely the ACE2 receptor from the host cell and the Mpro virus. ACE2 receptors are targeted by SARS-CoV-2 in virus transmission to alveolar cells [18]. ACE2 receptor inhibition will be effective for the treatment of COVID-19. Mpro is a non-structural protein that produces mature proteins from the process of cutting two polyprotein replicates to mediate viral replication and transcription. Through this inhibition of Mpro, the virus replication process can be stopped so that it does not change the ACE2 and SARS-CoV-2 conformations blocked into host cells via ACE2 [19] .

MATERIALS AND METHODS

Ligand preparation and modification

The compounds used are hydroxychloroquine which is an antimalarial and Nelfinavir which is an HIV-1 protease inhibitor, both drugs are used in COVID-19 therapy. Artocarpin compounds in the form of flavonoids from breadfruit plants as ligands and derivatives of artocarpin compounds. The preparation of artocarpin compounds and their modification is carried out by substitution and addition of certain groups. The modified compound to be used must be made manually using the Chem Office 12 program. After the structural creation is complete, the energy minimizes the compound structure and is saved (pdb). The structure of artocarpin can be seen in fig. 1.

Receptor preparations

3D crystal receptor structure data used for molecular docking analysis were obtained from PDB on the website http://www.rcsb.org/pdb/. The receptors used to predict activity were the ACE2 receptor with PDB 1R4L and Mpro PDB 6LU7. Then the receptors were visualized using the Discovery Studio 2016 Client® program. In this program, the downloaded receptors are prepared by removing water molecules and their natural ligands. The result is a pure receptor which is then stored in the Protein Data Bank (pdb) format.

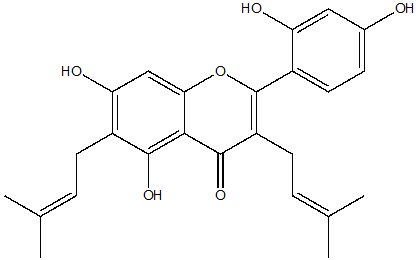

Fig. 1: Artocarpin structure [20]

Docking compounds with receptors

Docking is done using Autodock4 software. (run-autodock) by dock between ligands and receptors to obtain a population of possible orientations and configurations at the active site. Docking is done by setting the grid center for docking to be X = 40.199, Y = 6.024, and Z = 28.489 with grid dimensions 40x40x40 for 1R4L. For 6LU7 the centre of the grid for docking is set X=-9.732 Y=11.403 and Z=68.925 with grid dimensions of 40x40x40. After validation of the docking protocol, virtual screening of the compounds was performed by solid molecular docking into the active sites of the two proteins [21, 22]. During the docking process, the compounds move flexibly and the protein remains rigid. The docking calculation results are viewed in the output in notepad format. Determination of the conformation of the docking test compound is done by selecting the ligand configuration that has the lowest bond energy (the best pose). The position and orientation of the ligand on the macromolecule, as well as the amino acids bound to the ligand, were visualized using the Discovery Studio2016 Client® program to see if the shape matches the mooring site.

Bioavailability prediction and ADMET

Bioavailability parameters are predicted using Chem Draw 12. The Chemical structure of the compound is drawn and then its structure is predicted using parameters of molecular weight, partition coefficient, hydrogen donor and acceptor. These results will determine the route of the drug when it is given to the patient. ADMET parameters are calculated using the preADMET® program which is accessed through the website (https://preadmetbmdrc. kr/adme/). The chemical structure of the compounds is drawn or uploaded in Molfile (mol) format. The program automatically calculates the predictive value of the selected parameters, namely: Human colon adenocarcinoma (Caco-2) cell permeability, Human Intestinal Absorption (HIA), Plasma Protein Binding and carcinogenic properties.

RESULTS AND DISCUSSION

The mortality and morbidity rates from SARS-COV-2 infection are not well known because the case-fatality rate can change over time. The infection rate and the mortality rate continue to increase rapidly and no cure has been found with the right effectiveness for COVID-19, so finding new drugs to treat this disease is very important. Until now, treatment for COVID-19 patients still uses supportive therapy to manage symptoms due to viral infection. Therefore, it is necessary to have potential drug candidates for COVID-19 therapy through natural compounds. Artocarpin is one of the prenylated flavonoid compounds that is most often found in Artocarpus plants. To improve and increase the activity of artocarpin, modifications were made using the addition of a hydroxy group substitution, a prenyl group and a combination of both with alkyl, ester and amide groups [23]. The modification results can be seen in table 1.

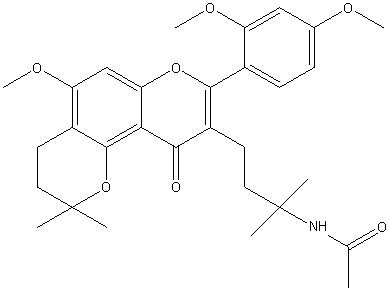

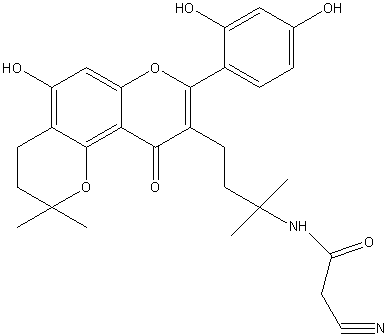

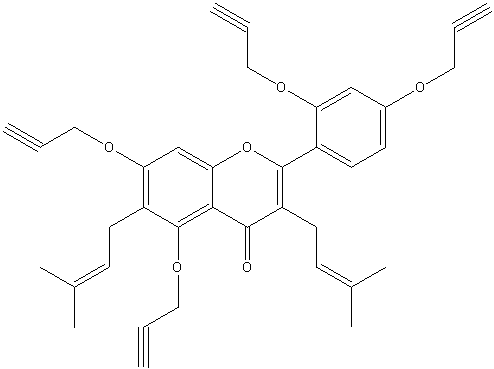

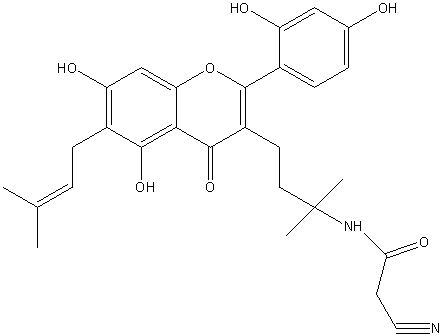

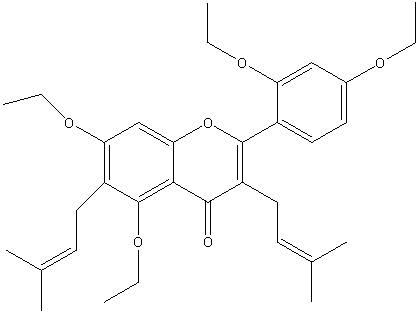

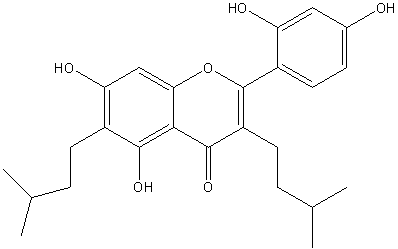

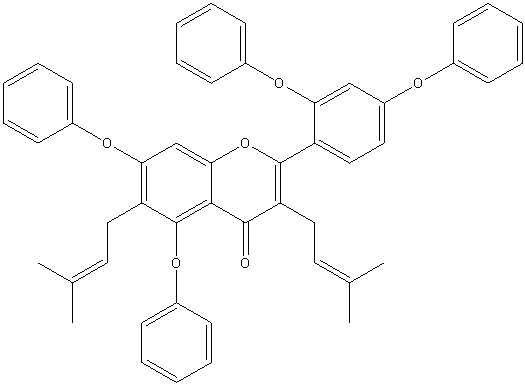

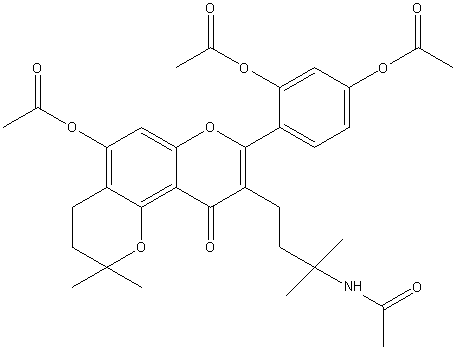

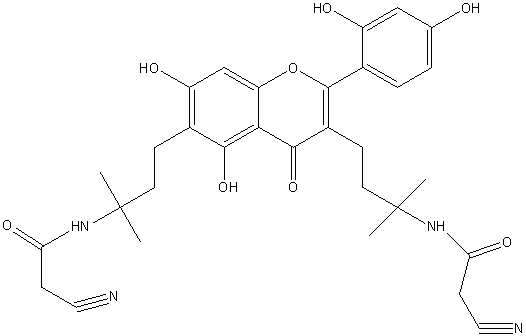

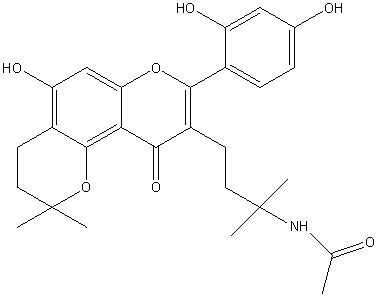

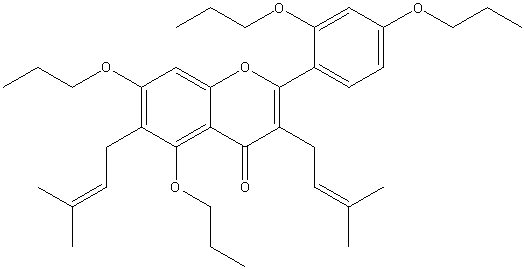

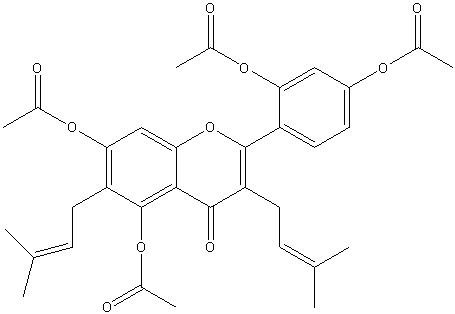

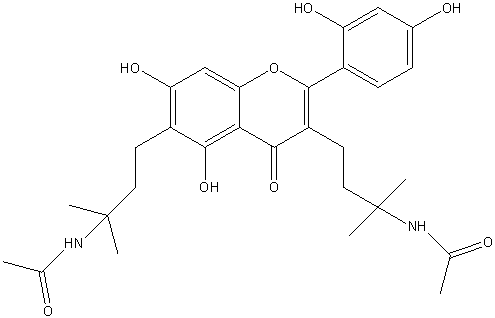

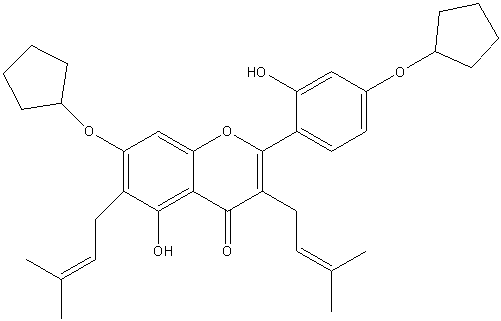

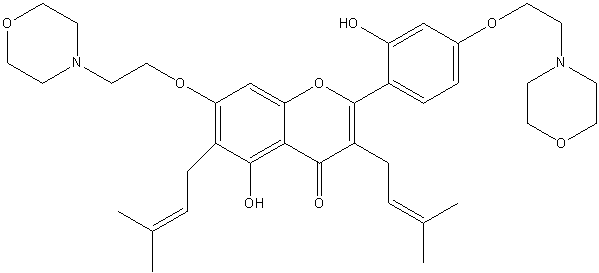

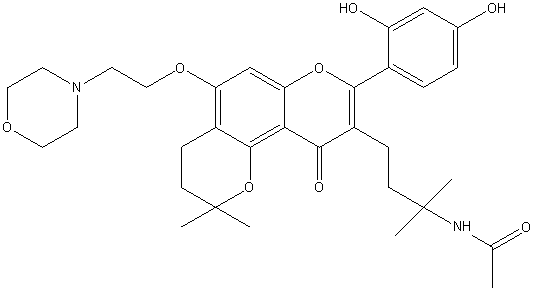

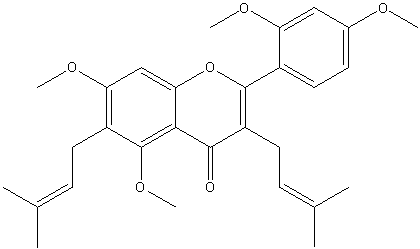

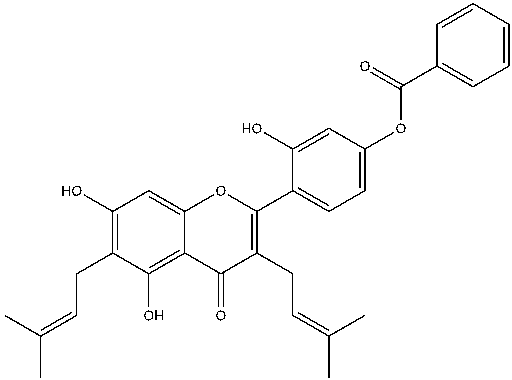

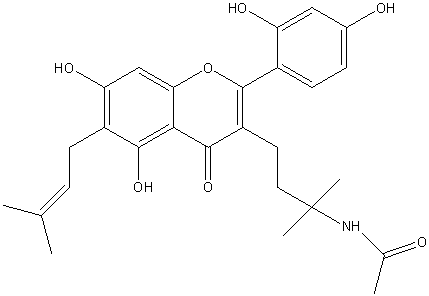

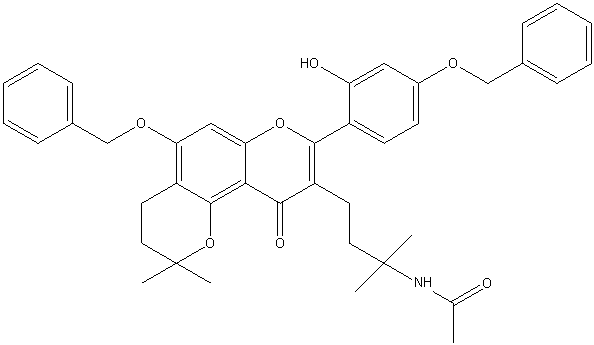

Table 1: Artocarpin derivatives

FIF 1

FIF 2

FIF 3

FIF 4

FIF 5

FIF 6

FIF 7

FIF 8

FIF 9

FIF 10

FIF 11

FIF 12

FIF 13

FIF 14

FIF 15

FIF 16

FIF 17

FIF 18

FIF 19

FIF 20

Simulated docking of the artocarpin molecule and its structural modifications were carried out on the ACE2 and Mpro receptors. The results of molecular docking simulations are shown in table 2. The parameters observed in the first docking results include the analysis of the bond-free energy (∆G) and the inhibition constant (Ki) related to binding affinity. Binding affinity is an important aspect that must be considered in the interaction of ligands and receptors. The results showed that the modified artocarpin compound with the ACE2 receptor was compared with the positive control for hydroxychloroquine, the 3 best-modified rankings were obtained, namely FIF 11=-12.08 kcal/mol and Ki= 1.40 nM, FIF 12=-12.42 kcal/mol and Ki= 0.789 nM., and FIF 17=-13.00 kcal/mol and Ki= 0.294 nM, these three compounds have the lowest energy and strongest inhibition constant than the positive control hydroxychloroquine-7.92 kcal/mol 628.17 nM. The results for the molecular docking simulation of Mpro also obtained the 3 best ranks, namely FIF 1=-11.48 kcal/mol and Ki= 3.83 nM, FIF 7=-12.15 kcal/mol and Ki= 1.25 nM, and FIF 17=-12.35 kcal/mol and Ki= 0.881 nM. The results of docking the positive control of nelfinavir were higher, namely-10.52 kcal/mol and Ki= 19.49 nM. For the artocarpin compound before modification, molecular docking was also carried out to the two receptors, the results were-9.30 kcal/mol and Ki of 151.88 nM with ACE2 receptors and-9.88 kcal/mol and inhibition constant 56.89 nM with Mpro. Experimentally ∆G is directly related to Ki, this is following the equation: ∆G =-RT Ln Ki. Thus, the value of ∆G is can predict the ability of a compound to inhibit protein [24].

Table 2: Binding affinity (∆G) and inhibition constant (Ki)

No Compounds ACE2 Receptor Mpro
ΔG (kcal/mol) Ki (nM) ΔG (kcal/mol) Ki (nM)
1. Artocarpin -9.30 151.88 -9.88 56.89
2. FIF 1 -9.89 56.59 -11.48 3.83
3. FIF 2 -9.67 81.81 -10.04 43.44
4. FIF 3 -10.04 43.56 -10.16 35.72
5. FIF 4 -10.12 38.04 -10.68 14.82
6. FIF 5 -9.54 101.43 -10.16 35.96
7. FIF 6 -8.90 298.14 -9.82 63.19
8. FIF 7 -9.22 173.35 -12.15 1.25
9. FIF 8 -9.18 187.87 -9.78 67.93
10. FIF 9 -10.99 8.76 -11.47 3.93
11. FIF 10 -10.05 42.95 -10.79 12.23
12. FIF 11 -12.08 1.40 -11.07 7.70
13. FIF 12 -12.42 0.789 -11.47 3.89
14. FIF 13 -8.07 1.22 -9.80 65.38
15. FIF 14 -8.72 409.03 -8.87 316.11
16. FIF 15 -10.95 9.40 -11.17 6.50
17. FIF 16 -8.71 410.20 -8.63 471.54
18. FIF 17 -13.00 0.294 -12.35 0.881
19. FIF 18 -11.53 3.52 -10.32 27.38
20. FIF 19 -11.98 1.64 -10.32 27.47
21. FIF 20 -9.45 117.56 -9.47 114.49

In addition, in terms of their bonds with amino acids, the three best compounds have interactions at the active site of the ACE 2 receptor with various amino acids formed form hydrogen bonds. The modified FIF 11 compound binds the amino acid ARG273, the FIF 12 compound binds the amino acids HIS374, TYR515, ARG514, and FIF 17 binds the amino acids GLU402, GLU406, ALA348, ARG273, HIS345. For positive control, the drug hydroxychloroquine binds the amino acids HIS374 and GLU402. The presence of a hydrogen bond between the target amino acid protein glutamine and histidine is responsible for the catalytic activity of the domain at the ACE2 receptor. Then for compounds that interact on the active side of Mpro also bind amino acids, namely FIF 1 binds to amino acids GLY143, FIF 7 binds to amino acids MET165, ARG188, HIS164, CYS145, and FIF 17 binds amino acids ASP187, GLU166, ASN142, LEU141, GLN189, whereas for positive control nelfinavir binds to the amino acids THR190, GLU166, GLN189. The similarity of amino acids between the drug and the positive control became an inhibitor in the viral replication process because it had the same properties as the positive control as an antiviral. The results of the compound interactions are shown in fig. 2.

Table 3: Lipinski’s rule of five prediction

No Compounds molecular weight Log P H Donor H Acceptor
1. Artocarpin 422.17 4.57 4 6
2. FIF 1 481.21 2.78 4 7
3. FIF 2 481.21 3.18 5 7
4. FIF 3 540.25 1.8 6 8
5. FIF 4 506.21 2.98 4 8
6. FIF 5 506.21 3.38 5 8
7. FIF 6 590.24 2.2 6 10
8. FIF 7 590.22 4.47 0 6
9. FIF 8 426.50 5.52 4 6
10. FIF 9 607.24 2.71 1 7
11. FIF 10 523.26 3.57 1 6
12. FIF 11 661.30 6.77 2 5
13. FIF 12 594.29 2.65 3 9
14. FIF 13 478.24 5.62 1 6
15. FIF 14 590.36 8.92 0 6
16. FIF 15 558.30 7.36 2 6
17. FIF 16 574.24 6.48 0 6
18. FIF 17 726.30 12.27 0 2
19. FIF 18 648.34 4.26 2 10
20. FIF 19 526.20 6.44 3 6
21. FIF 20 534.30 6.97 0 6

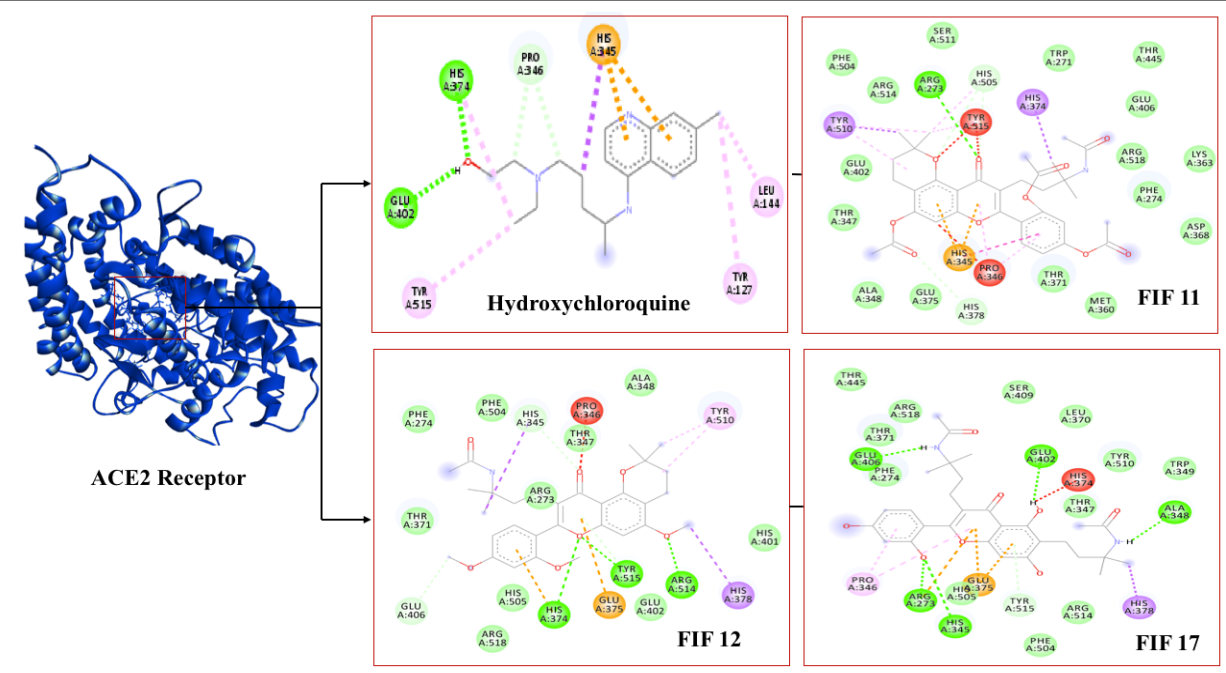

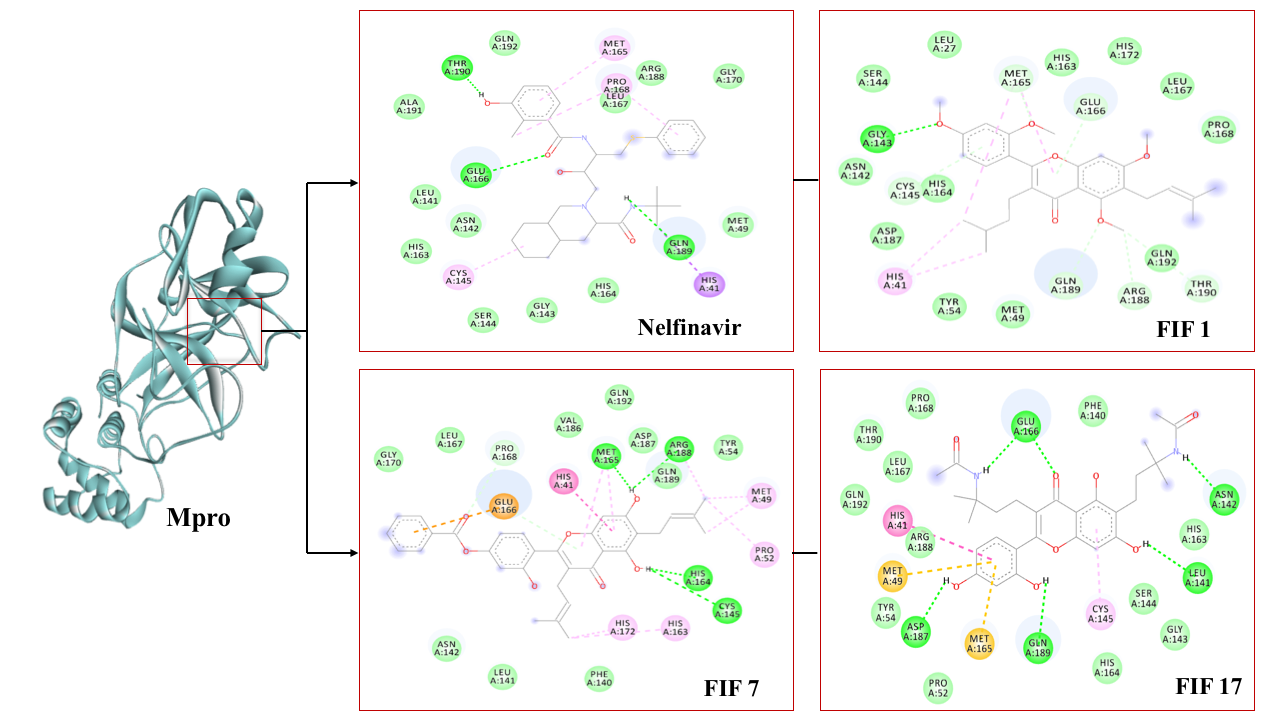

Fig. 2: Best visualization of molecular docking result of drugs and ligand modification with ACE2 and Mpro

Lipinski's Rule of Five is a rule for evaluating the physicochemical properties of compounds to be administered orally [25]. This rule describes the physicochemical properties of the pharmacokinetic phase in the human body. Therefore, in designing drugs to be administered orally, it is expected that they meet Lipinski's Rule of Five. Based on this rule, the results of some compounds do not meet Lipinski's Rule of Five. This is because the compound has a large structure so that when modified has an impact on increasing molecular weight and Log P; the results are shown in table 3. Therefore the 3 best compounds based on the results of molecular docking are not recommended to be given orally because they do not have good bioavailability.

Absorption, distribution, and toxicity are very important in the pharmaceutical field to assess a drug candidate in the body [26]. Absorption parameters consist of HIA (Human Intestinal Absorption) and permeability to Caco-2 cells and distribution parameters, namely PPB (Protein Plasma Binding) and BBB (Blood Brain Barrier) and toxicity parameters consisting of carcinogenic and mutagenic properties (table 4).

Human Intestinal Absorption (HIA) indicates the absorption of drugs by the human intestine. The HIA value of 0-20% indicates that the compound is poorly absorbed, the HIA value of 20-70% indicates that the compound is sufficiently absorbed, and the HIA value of 70-100% indicates that the compound is well absorbed [27]. The values of HIA FIF 1, FIF 7, FIF 11, FIF12, and FIF17 were 88.03%, 98.47%, 98.05%, 97.48% and 98.46%. Artocarpin compounds have a smaller HIA value, namely 89.06% compared to modified FIF compounds, which shows that artocarpin modified compounds can be relatively well absorbed by the intestine.

The Caco-2 cell model has been recommended as a good in vitro model for the prediction of oral drug absorption. A Caco-2 value of less than 4 indicates low drug permeability, a value of 4-70 indicates moderate permeability, and a Caco2 value of more than 70 indicates high permeability [28, 29]. The Caco-2 FIF 1, FIF 7, FIF 11, FIF12, and FIF 17 scores were 19.76, 30.08, 41.15, 44.08 and 48.83, respectively, indicating that these five drug candidates could penetrate the medium cell membrane.

The degree of drug binding to plasma proteins affects the pharmacokinetic profile of the drug and the pharmacodynamic profile of the drug. PPB values ​​of more than 90% indicate strong chemical bonds, while values ​​less than 90% indicate weak chemical bonds [23]. The values ​​of PPB FIF 1, FIF 7, FIF 11, FIF12, and FIF17 were 88.03%, 91.15%, 91.27%, 10.42% and 4.03%, respectively. These results indicate that only a few molecules of the four drug candidates can reach the receptor and one compound is absorbed into the receptor.

Table 4: Pharmacokinetic and toxicity prediction

No Compounds Absorption Distribution Toxicity
HIA (%) Caco2 PPB BBB Mutagenic Carsinogenic
1. Artocarpin 89.06 18.01 100 3.02 + +
2. FIF 1 88.03 19.76 88.03 0.26 - -
3. FIF 2 81.61 19.60 91.64 0.47 - -
4. FIF 3 69.27 19.89 84.18 0.11 - -
5. FIF 4 85.40 18.16 88.75 0.14 - -
6. FIF 5 80.46 19.26 88.47 0.27 - -
7. FIF 6 49.33 19.58 84.59 0.05 - +
8. FIF 7 98.37 30.08 91.15 0.05 - +
9. FIF 8 87.67 18.08 100 3.72 + +
10. FIF 9 97.34 36.04 86.68 0.12 - -
11. FIF 10 96.81 56.02 88.98 0.03 - -
12. FIF 11 98.05 41.15 91.27 0.46 - -
13. FIF 12 97.48 44.08 10.42 0.17 - +
14. FIF 13 97.43 57.22 91.72 0.24 - +
15. FIF 14 97.98 54.11 95.90 12.19 - -
16. FIF 15 98.24 40.94 99.20 16.23 - +
17. FIF 16 97.97 36.23 100 10.26 - -
18. FIF 17 98.46 48.83 100 4.03 - +
19. FIF 18 97.83 38.59 11.02 1.54 + +
20. FIF 19 94.38 22.89 100 4.03 + -
21. FIF 20 97.57 41.26 91.71 1.22 - -

Blood-Brain Barrier (BBB) ​​penetration indicates the concentration of the drug in the brain and blood to avoid CNS side effects. A BBB value of more than 2.0 indicates that the compound can be highly absorbed in the CNS and a BBB value between 2.0-0.1 indicates a moderate absorption rate in the CNS. A BBB value less than 0.1 indicates a low absorption rate in the CNS[30]. The values ​​of BBB nelfinavir, FIF 1, FIF 7, FIF 11, FIF12, and FIF17 were 0.26, 0.05, 0.46, 0.27 and 4.04, respectively. Based on these data, the FIF 17 compound is an ideal compound to target the ACE2 and Mpro receptors which have low absorption in the CNS.

The toxicity of artocarpin and its modified compounds was tested using the Ames test to determine the mutagenicity and carcinogenicity properties using the in vivo method on mice predicted by PreADMET. The Ames test is a biological test that uses bacteria to assess the mutagenic potential of a chemical compound. Based on the Ames test, artocarpin is mutagenic, which indicates that it can cause permanent changes in genes. Artocarpin, FIF 7 and FIF 17 are carcinogenic which can potentially cause cancer. The relationship between mutagenicity and carcinogenicity is that mutations occur only in organs that have the potential to become cancerous.

CONCLUSION

This research was conducted to find novel inhibitor molecules against the two enzymes ACE2 and Mpro. The developed molecule comes from the Artocarpus plant, namely artocarpin, where the structure is fixed to obtain a potential candidate compound. Modifications were made as many as 20 compounds using functional group substitution, then all modifications were predicted in silico. The results of 20 modified compounds had a better activity with each of the 3 compounds having the best potential in inhibiting the two enzymes. Modified compounds FIF 11, FIF 12 and FIF 17 are able to act as inhibitors of ACE2 and FIF 1, FIF 7 and FIF 17 enzymes and are also can act as Mpro inhibitors. FIF 17 compounds can bind more efficiently and provide inhibitor activity to the two enzymes, namely ACE2 and Mpro. Thus, we conclude that these modified results can be used as potential antivirus candidates. This new molecule could be used for further innovation and development of antiviral compounds for COVID-19 therapy.

ABBREVIATION

SARS-CoV-2: Severe Acute Respiratory Syndrome Coronavirus 2; COVID-19: Corana Virus Diseases 2019; ACE2: Angiotensin Converting Enzyme-2; HIV-1: Human Immunodeficiency Virus Type 1; PDB: Protein Data Bank; ADMET: Absorption, Distribution, Metabolism, Excretion and Toxicity; Ki: Inhibition Constant; HIA: Human Intestinal Absorption; PPB: Protein Plasma Binding; BBB: Blood-Brain Barrier; CNS: Central Nervous System

ACKNOWLEDGMENT

This research was funded by the Islamic University of Kalimantan Muhammad Arsyad Al Banjari Banjarmasin. The first author would like to thank the Islamic University of Kalimantan for APBU Uniska 2020/2021 research grant.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTERESTS

Declared none
