Int J App Pharm, Vol 14, Issue 2, 2022, 135-142Original Article

DEVELOPMENT AND CHARACTERIZATION OF PEGYLATED CAPECITABINE LIPOSOMAL FORMULATIONS WITH ANTICANCER ACTIVITY TOWARDS COLON CANCER

M. PADMASREE* , B. A. VISHWANATH

Department of Pharmaceutics, Aditya Bangalore Institute of Pharmacy Education and Research, Yelahanka, Bangalore, 560064, India
Email: padmasree.mpharm@gmail.com

Received: 20 Nov 2021, Revised and Accepted: 06 Jan 2022

ABSTRACT

Objective: Capecitabine is widely used in colorectal cancer treatment and has first-pass metabolism problem. Despite of its promising anticancer potential, capecitabine has not been used due to its poor solubility in water. The purpose of this study was to develop colon targeting capecitabine loaded stealth liposomes, which is a promising technique to avoid first-pass metabolism to achieve the desired bioavailability profile, increased water solubility and sustained release.

Methods: Thin film hydration method was used to prepare capecitabine stealth liposomes. Prepared liposomes were characterized for drug release kinetics, stability studies, cell viability studies to determine the cytotoxic effect and in vivo studies in mice bearing colon carcinoma for evaluation of antitumor potential.

Results: In vitro releases of liposomes were best fitted in the Higuchi matrix kinetic model with an n value from 0.868-0.964, indicating non-fickian release diffusion. Stability data indicated that liposomes were stable for at least 06 mo at 5±3 ° C. inhibiting activity was increased and with a Significant improvement in AUC, MRT and t1/2 observed as 29.65±5.08, µg h/ml for Stealth liposomes compared with the pure capecitabine and the conventional liposomes.

Conclusion: Results suggested that Capecitabine-loaded stealth liposomes can be an effective delivery system for targeting colon cancer.

Keywords: Capecitabine, Stealth liposomes, Colon cancer, Stability, Release kinetic, Sustained release

© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2022v14i2.43658. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Colon cancer is considered much leading cause of deaths in the world. Colon cancer is a very lethal malignant tumor with an increased incidence rate in 40–50 y of age, associated with high morbidity and mortality worldwide [1, 2]. Colon cancer arises from the epithelial cell lining of the colon or rectum in the gastrointestinal tract (GIT) most often it may be a result of a mutation in the Want signaling pathway that falsely increases signaling activity [3, 4]. For colon cancer Chemotherapy, Radiotherapy, and surgery are the Clinical therapeutic strategies. Chemotherapeutic approaches often suffer from multidrug resistance, poor bioavailability, and high system toxicity, which may result in poor efficacy and significant adverse effects [5, 6]. To overcome these problems, different approaches have been attempted by giving “selective” delivery to the affected area. Targeting the drug to only those tissues, cells or organs, which are affected by the disease, would be a better solution. Presently, taking the response to chemotherapy of cancer drug delivery into consideration, methods like nanoscale systems (liposomes, micelles and nanoparticles) is growing steadily [7].

It has enormous applications, like the increase in drug uptake by cancer-affected cells, controlled drug expulsion, and capacity to boost drug stability and increase liposomes solubility [8, 9]. Their desirability lies in the composition, making them biodegradable and biocompatible [10, 11]. Liposomes are being considered widely as drug delivery systems of potential importance ever since the observation of Bangham and coworkers was published. Liposomes are biocompatible, biodegradable, nonimmunogenic and nontoxic [12, 13]. Liposomes made up of phospholipids are weakly immunogenic, biologically inert with low intrinsic toxicity. Drugs having different lipophilicities can also be encapsulated in the liposomes: strong lipophilic drugs can be entrapped almost completely inside the bilayer of lipid; strong hydrophilic drugs are located specifically in aqueous compartment [14, 15]. Liposomes which are composed of a lipid bilayer are used as drug delivery vehicles. Liposomes on the same molecule have both non-polar and polar groups [16]. On in vivo administration of conventional liposomes, they rapidly get cleared from the blood circulation by the macrophages and monocytes. Unlike the conventional liposomes, with PEGylated liposomes hepatosplenic rapid uptake is avoided [17]. Stealth liposomes delay opsonization because of their biocompatible PEG coating on the surface, and hence have comparatively longer blood circulation time, thus giving a possibility in targeting pathogens which are intercellular and macrophages (which are infected) outside the spleen and liver. PEGylated liposomes after a long-term circulation of blood extravasate into the infected tissues and thus act as drug delivery systems with site-specificity [18, 19].

Poly-ethylene glycols are extensively used in the derivatization of therapeutic peptides and proteins, increasing the drug stability, lowering toxicity, increasing solubility half-life, decreasing immunogenicity and clearance. The PEG presence on the liposomal surface avoids the aggregation of vesicle and helps to improve formulations stability [20, 21].

Capecitabine drug has been approved by the Food and Drug Administration (FDA) for colorectal cancer treatment in the year 2005. It is a pro-drug which can be enzymatically converted into 5-fluorouracil in the tumor cells. This 5-fluorouracil inhibits the Deoxyribonucleic acid (DNA) synthesis and slows down the tumor cell growth gradually. The drug capecitabine has a half-life of 38-45 min with frequent dose administration and causes more of adverse effects like angina, hand-foot syndrome, myocardial infarction, diarrhea, stomatitis, nausea, anemia, thrombocytopenia, and hyperbilirubinemia when used in the conventional dosage form. These problems can be overcome by delivering capecitabine in stealth liposomes which can deliver the drug in a very controlled manner using much of the reduced dosing schedule to increase the therapeutic efficiency [22].

MATERIALS AND METHODS

Methods

For the preparation of liposomal formulation, Capecitabine was a received gift sample from Mylon Laboratories, Bangalore, India. DSPC (1,2-dioctadecanoyl-sn-glycero-3-phosphocholine) and PE-PEG 2000(1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[methoxy (polyethylene glycol)-2000] (ammonium salt)) were purchased from Lipoid Germany. All other reagents and chemicals used were of the analytical grade.

Cell lines

HCT116 and HT-29 Cell lines were obtained from NCCS, Ganeshkhind, Pune). RPMI supplemented with a 10% FBS, a 1% penicillin and a 0.16% kanamycin was used to culture Cells are grown in the humidified CO2 incubator at a temperature 37 °C.

Animals

Male mice (20 ± 3 g) were purchased from Venkateswara enterprises, Bangalore. All the animal experiments are performed at the Animal Experimental Center of Aditya BIPER. Protocols approvals were taken from proforma B, for the animal studies and were submitted for the IAEC of Aditya Bangalore institute of pharmacy education and research Bangalore. The Approval no. was 1611/PO/Re/S/12/CPCSEA. A standard diet was fed to animals and they had access to the water and the food ad libitum for a week and were kept in the laboratory environment at 25 °C ± 2 temperatures of before the experiment was started.

Preparation of liposomes

Thin film hydration method was used for the preparation of PEGylated liposomes of capecitabine using varied combinations of phospholipids. The weighed quantity of drug, phospholipids and cholesterol was dissolved in a mixture of anhydrous Ethyl acetate and ethanol (2:1) in a sterile flask with round bottom and is attached to a rotary evaporator subjected to evaporation to get a thin, dry film of lipid. The lipid film is thoroughly dried, and the film was allowed to hydrate using phosphate buffer saline, pH 7.4 above transition temperature and subjected to sonication. The non-entrapped drug was removed by centrifugation; this step is called as liposome purification. The liposomal dispersion after centrifugation was filled in glass vials and covered with special stoppers for lyophilization [23, 24].

In vitro release studies

The capecitabine in vitro release from the PEGylated liposomes is determined by dialysis method. The liposomal dispersion was placed in a dialysis tube (donor compartment), then the tube was immersed in a beaker containing release medium, i.e. phosphate butter saline pH 7.4 and mixed with magnetic stirrer at a speed of 100 rpm to maintain sink condition. The sample (1 ml) was taken at fixed time intervals at 1st, 2nd, 4th, 6th, 12th, 24th, 28th, 30th and 36th hours from release medium and the samples were withdrawn with a replacement of equal volumes of fresh dissolution medium into the cell. By using the UV spectrophotometric method, drug concentrations in the dissolution medium were determined [25, 26].

Drug release kinetic study

The mechanism of the drug release kinetics of dosage forms was analyzed by fitting the obtained formulations into different kinetic equations of zero order, first order, Higuchi model and korsemeyer-peppas model. The best model was considered based on the maximum correlation coefficient value [27].

Stability studies

Stability studies are performed for formulations (optimized) according to ICH guidelines. Formulations are divided into sets of 2 samples each and were stored at 5 °±3 °C, 25 °±2 °C and 60% RH±5% RH in amber-colored sealed glass vials for 6 mo. The liposomal formulated suspensions were observed visually for their appearance, ease of their redispersion, and the sedimentation. The samples were evaluated for their particle size, the drug release and the drug entrapment at the specified time interval’s viz., 0, 1, 3, 6 mo in the triplicates [28, 29].

Cell viability studies

The in vitro antitumor activity of capecitabine-loaded liposomes and pure drug were determined by MTT assay. The MTT assay test was used for the evaluation of the cellular viability, for the determination of the cytotoxic effects of the free and liposomally entrapped capecitabine on the human colorectal carcinoma cellsHCT116 and HT-29. The evaluation of viability of cells was determined by estimating the quantity of colored formazan crystals which are formed while performing the biological test. 1.6 × 103/100 μl cancer cells were transferred aseptically in each well of 96-well plate in triplicates and incubated at 37 °C. Cells were treated with varying amounts of capecitabine and capecitabine stealth liposomes and incubated for 24 h. The Cells are incubated for 24 h time period at a temperature of 37 °C in a CO2 incubator. After a time of incubation, MTT of 20 μl (5 mg./ml. dissolved in PBS) are added into each of the wells and were again incubated for a time period of3 h. Supernatant was removed from the wells after 3 h and a200 μl of the dimethyl sulfoxide was then added for dissolving formazan crystals. Later 96 of the well-plates are shaken slowly and absorbances of the different samples were measured using the ELISA microplate-reader at 295 nm. The cell viability percentage was calculated according to the given following equation [30, 31].

Abs T represents absorbances of the cells treated and Abs C, absorbances of the control cells (Untreated cells).

Cell viability =

In vivo anti-tumor efficacy

Using male albino mice (20–25 g) the Pharmacokinetic studies, were done. In the study, animals were arranged randomly into four groups. Each group was comprised of six animals. 2.5X104 HT-29 cells were suspended in the Phosphate buffer solution and then were subcutaneously injected into the right flank of the mice and, the tumor was allowed to grow. After 7-10 d of tumor implantation, the free-capecitabine, Conventional-liposomes and the stealth-liposomes were administered into the mice with tumor through the tail vein at 10 mg/kg animal body weight. The group I was given a normal saline buffer solution via tail vein of the mice. Similarly, group II, III and IV administered with 10 mg/kg dose of the pure solution of the drug in the saline buffer, the conventional liposomes and stealth liposomes, respectively. After 10 d of the implantation (HT-29) of tumor, when the tumor sufficiently developed and grew with a specific volume, the samples of blood are drawn at intervals of 1h, 6h, 12h, 24h and 48 h from retro-orbital plexus. The amount of capecitabine in each blood sample was measured by using HPLC analysis. The albino mice were sacrificed by euthanasia (Ketamine 90 mg/kg-IP route and xylazine 10 mg/kg-IP route) and the colon region with the tumor removed. This was washed with a normal saline solution and was subjected to homogenization, and then was analyzed by HPLC to estimate capecitabine. Distribution profiles of capecitabine in different organs also including the plasma are analysed by HPLC analysis in this the stationary phase is C18G (250 × 4.6 mm, 5 μm) and the mobile phase is Acetonitrile: methanol (55:45) with a flow rate of 1.0 ml/min, Injection volume: 20 μL and the detection wavelength was295 nm. Capecitabine was estimated using a standard curve. The solution was later injected inside the unit and the chromatogram was then recorded. For measuring In vivo Antitumor Activity, the anti-cancer activity of capecitabine was calculated by estimating its effect of cytotoxicity on the tumor by estimating its dimension in a suited animal model depending on the parameters of tumor volume, and tumor weight [32].

Tissue distribution study

To estimate the pattern of distribution of capecitabine in the biological organs which give assurance for either the localization of the drug to the required tumor site via prolonged circulation or drug uptake by the RES rich organs, like the liver and spleen, which stop the desired localization. Hence, the distribution profile of the capecitabine having, both liposomes conventional and stealth are checked with the use of animal model bearing tumor. Similar manner, like pharmacokinetics section by receiving a 10 mg/kg dose of the pure drug solution in buffer saline, conventional-liposomes and stealth-liposomes after tumor implantation, and when the solid tumor sufficiently grown with a specific volumes mice were sacrificed and the major organs-liver, spleen, kidneys and lungs. The tumors are removed, was washed using the (normal) saline solution and was subjected to centrifugation at a speed of 25000 rpm for duration of 10 min. The aliquots are then analyzed using HPLC to estimate capecitabine content in the various organs, in due respect to the time, by preparing a standard curve of capecitabine [33, 34].

Effect on solid tumor volume

Colon carcinoma cell line, i.e. HT-29 cell line, was diluted using phosphate buffer solution and was subcutaneously injected into the right flank of the mice and tumors were let to develop. After 10 d of tumor implantation, the free capecitabine, the Conventional-liposomes and the stealth-liposomes were injected into the mice having tumor through the tail vein with a dose of 10 mg/kg. The size of tumor and the weight of each individual mouse were monitored from thereon. The Anticancer effect of capecitabine loaded formulation was then evaluated on the basis of changes observed in the volume of tumor and the weight obtained at the chosen time-interval, i.e. when the tumor acquires a particular size after the implantation of HT-29 cell line (at the 10th day) and the administration of the sample. In the selected days of interval, the mice are sacrificed for tumor harvest for determination of the volume of the tumor, two bisecting diameters each of the tumors was measured with the help of slide caliper and calculations are performed using the formula.

V=0.5 X ab2

a=largest of the diameter of the tumor (mm)

b= smallest of the diameter of the tumor (mm) [35, 36].

Effect of the solid tumor weight

By the end of the study, weight profiles of the tumor after treatment using the different forms of capecitabine as, pure capecitabine, optimized conventional and the stealth liposome formulation were analyzed by comparing with measuring the tumor weight, with which implicates the capecitabine anticancer activity [37].

RESULTS AND DISCUSSION

In vitro drug release studies

In vitro dissolution study performed was by using the dialysis method. The release profile of all the formulations is presented in (table 1) and shown in (fig. 1). The maximum percentage of capecitabine release was observed in the formulation F3 CAP and F7CAP. As expected for the liposomes, fast drug release behavior was observed due to the enhanced dissolution and forming of the lipid vesicles as much as the smaller size of the vesicles [25].

Table 1: In vitro drug release profile of capecitabine stealth liposomal formulations

Time in h F1 CAP F2 CAP F3 CAP F4 CAP F5 CAP F6 CAP F7 CAP F8 CAP
1 4.0±0.03 3.9±0.7 9.3±0.2 4.9±0.5 7.3±0.1 5.12±0.5 9.7±0.5 3.05±0.2
2 10.2±0.5 16±0.01 21±0.7 9.5±1.2 11.5±1.8 17±0.26 20±1.6 14±1.4
4 22.5±0.5 23.8±0.04 28.2±0.02 14.6±0.5 24.5±1.1 23.8±0.02 26.2±1 19.4±0.2
6 30.0±0.5 35.7±0.5 31.6±0.4 29.5±0.6 28.6±0.02 32.7±0.5 30.6±1.8 24.5±0.6
12 47.1±0.7 54±0.8 52.6±0.2 37±0.4 51.6±0.6 50±0.1 54.6±0.3 35±1.0
24 53.5±0.1 60±0.54 70±0.05 50.5±0.5 65±0.34 56±0.22 68±1.0 49.5±0.3
28 65.2±0.34 62.4±0.2 77±0.6 56±0.7 72.3±0.27 62.4±1.2 75.3±0.1 54±0.1
30 74.3±0.4 74.4±0.02 90±0.5 66.0±0.6 86±0.12 76.4±0.0 88±0.23 69.0±0.1
36 79.4±0.5 80±0.5 95±0.33 73±0.1 92±0.3 89±0.04 94±0.05 72±0.01

*Data are expressed as mean±SD (n=3)

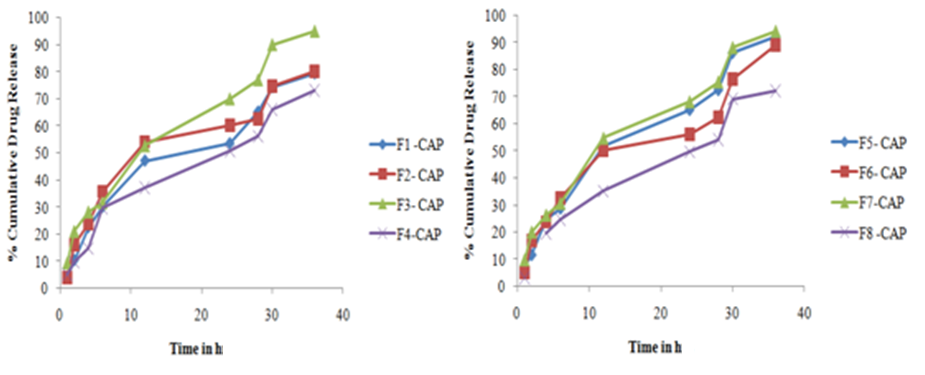

Fig. 1: Mean in vitro drug release profile of capecitabine loaded stealth liposomes

Release kinetic studies

To study the mechanism of drug release, data which were obtained from in vitro drug release studies fitted in kinetic models. The correlation coefficient (𝑅2) was used as a tool for best fitting, regression values for formulation were between (𝑅2) = 0.744 to 0.991 and all the formulations F1 CAP to F8 CAP was best fitted in the Higuchi matrix kinetic model with a n value from 0.868-0.964 indicating non-fickian release diffusion. The n value was higher than 0.5 for stealth liposomes containing capecitabine. The kinetic data of all the formulations are shown in (table 2). The kinetic plots obtained of respective batches are shown in (fig. 2). The drug release pattern was obeying the Higuchi diffusion model. The highest correlation coefficients were found with the Higuchi model (r=0. 0.991) among all models. Drug release profiles of capecitabine stealth liposomes follow a diffusion mechanism. The release of capecitabine stealth liposomes was found to be sustained over a time frame. The model Korsmeyer-Peppas power law equation states type of the diffusion, which was evaluated by n value, which was higher than 0.89, which had implied that drug release from system, follows Super case II transport [38].

Stability studies

Stability studies of optimized formulation, F7 CAP pegylated liposomes, at 25°±2 °C, 60% RH±5% showed no significant changes in the drug release profile. Alteration in the drug release profile of the optimized formulations, when stored at 5±3 °C, was negligible. Entrapment efficiency of the optimized formulation when stored at 5±3 °C was not changed significantly [29]. The formulation was stable at a temperature of 5±3 °C and significant changes in entrapment efficiency of the drug and also the size of the liposomes was not observed and presented in (table 3). No significant changes in physical appearance, particle size, and the size distribution were observed for the formulations during the stability studies at 5±3 °C. However, when the formulation of liposomes was subjected to 25 °±2 °C and 60%±5%, there was a loss of liposomal structure and entrapment efficiency.

Table 2: R2 values of various kinetics models of capecitabine stealth liposomal formulations

Formulation code R2 values
Zero-order First-order Huguchi model Hixson crowell Korsmeyer-peppas Best fit model
R2 n value
F1CAP 0.927 0.956 0.974 0.958 0.853 0.964 Huguchi
F2CAP 0.879 0.936 0.963 0.928 0.807 0.945 Huguchi
F3CAP 0.951 0.905 0.991 0.963 0.744 0.871 Huguchi
F4CAP 0.948 0.963 0.974 0.967 0.855 0.919 Huguchi
F5CAP 0.954 0.92 0.982 0.962 0.820 0.930 Huguchi
F6CAP 0.916 0.864 0.957 0.909 0.795 0.912 Huguchi
F7CAP 0.947 0.909 0.987 0.959 0.745 0.868 Huguchi
F8CAP 0.953 0.961 0.977 0.967 0.831 0.924 Huguchi

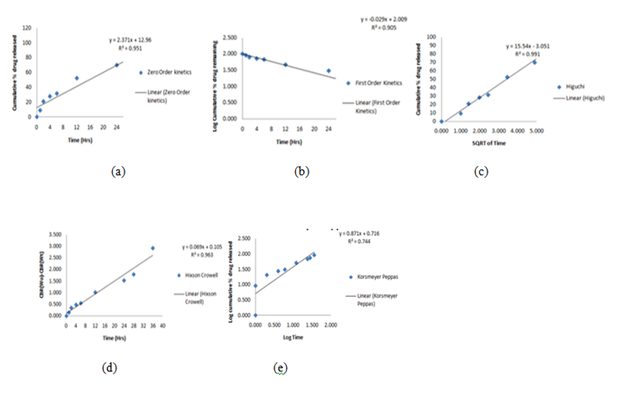

Fig. 2: In vitro drug release kinetic plots of F3 CAP stealth liposomes a). Zero-order, (b) First order. (c). Higuchi, (d). Hixson, (e). Korsmeyer–peppas

Table 3: Stability data of optimized liposomal formulation F7 CAP

Retest time for optimized formulation

Parameters (Changes due to different storage conditions)









Particle size

Entrapment efficiency

In vitro drug release profile (%)

Zeta Potential

Within 0 d









5±3 °C

110±2.61

73±1.2

94±0.05

-12.3±0.83

25±2 ° C/60%±5% RH

110±2.610

73±0.7

94±0.05

-12.3±0.83

Within 1 mo

5±3 °C

112±0.21

72±1.5

92±0.08

-14.5±0.26

25±2 ° C/60%±5% RH

118±1.2

69±1.1

86±1.02

-26.3±0.82

Within 3 mo

5±3 °C

115±0.25

71±0.7

91±0.07

-20.3±0.24

25±2 ° C/60%±5% RH

136±0.13

57±1.1

71±0.8

-31.3±0.36

Within 6 mo

5±3 °C

117±0.72

68±1.0

90±0.18

-15.3±0.64

25±2 ° C/60%±5% RH

154±1.42

51±0.9

63±0.23

-39.3±0.59

*Data are expressed as mean±SD (n=3)*

In vitro anticancer activity

The biological efficacy of capecitabine entrapped in PEGylated formulation was tested on the human colorectal carcinoma cells HCT116, HT-29 by using MTT assay. Significant improvement in drug anticancer activity, in respect to the free drug, was observed and obtained with the help of PEGylated capecitabine loaded liposomes [37]. The inhibiting activity was increased in PEGylated stealth liposomes against HCT116, HT-29 cells when compared to pure capecitabine and represented in (table 4). The improvement in the anticancer efficiency of capecitabine on colorectal carcinoma cells, which was provided by the PEGylated formulation, suggested the protective and long circulation properties of it. At a same level concentration, the modified PEG-liposomal group showed a very strong inhibition of HCT116, HT-29 cells. The obtained results indicated, prolonged circulation of the delivery system can be useful in giving the strongest cytotoxicity against HCT116 cells, HT-29 cells, it showed that the endocytosis mediated by PEG promotes cellular uptake. It can enhance cytotoxic effect of the modified PEGylated liposomes [39].

Table 4: IC50 values (μM) of capecitabine and capecitabine loaded stealth liposomes in human colorectal cell lines

Cell lines Capecitabine Capecitabine loaded stealth liposomes
IC50 IC50
HCT-116 1.96±0.34 0.923±0.12
HT-29 3.56±0.56 1.54±0.42

*Data represented the mean±SD, n=3/group.

Pharmacokinetic study

For assessing the pharmacokinetics of capecitabine loaded optimized-conventional liposomes and stealth liposomes with a dose of 10 mg/kg is administered with the route I. V. to mice carrying HT-29 tumor. Plasma profile of free capecitabine, conventional liposomes, and stealth liposomes shown in the (fig. 3) and pharmacokinetic parameters is given in (table 5). Statistically significant improvement in the AUC total of the formulation was observed and was found to be 29.65±5.08, µg h/ml for Stealth liposomes. Considering the pharmacokinetic profile, after administration of I. V. injection to the animal model comparatively, AUC, MRT and t1/2 of Stealth liposomes was much greater than pure capecitabine and conventional liposomes. This showed the improved residence time and also sustained release of drug from the formulation of Stealth liposomes, as a result of the decreased clearance of capecitabine loaded stealth liposomes. Rapid removal of conventional liposomes by RES represents one of the major drawbacks in drug delivery. This problem was addressed by using long circulated liposomes. Conventional liposomal grafting was done with a biocompatible and inert polymer like the PEG, led to the formation of much protective and a hydrophilic layer on the liposomes surface. The t1/2 of Stealth liposome and MRT increased than Conventional liposomes proved that prolong circulation half-life of Stealth liposomes reduced the chances of rapidity in uptake by the element of Mononuclear Phagocytic system (MPS) by incorporating PEG residue on vesicles which makes liposome formulations much hydrophilic and physiologically more stable.

The relative percent bioavailability of capecitabine was found to be 100 %, 72.1±0.2 and 86.4±3.5 % for pure capecitabine, conventional liposomes and stealth liposomes, respectively. Compared to the pure capecitabine solution, conventional and the stealth liposomes bioavailability has been decreased maybe because that the conventional liposomes may be rapidly are cleared from the systemic circulation, unlike the stealth liposomes have shown little higher values of the relative percentage-bioavailability when compared to the conventional liposomes (F7 CAP) due to long time in systemic circulation. The stealth liposomes altered the pharmacokinetic profile of capecitabine. The serum levels of capecitabine were significantly higher for stealth liposome’s in comparison to free capecitabine [30].

Table 5: Comparative pharmacokinetic profile of pure capecitabine, conventional and stealth liposomes

Pharmacokinetic parameters Units Free capecitabine Conventional liposomes Stealth liposomes
AUC µg/ml 9.61±1.71 12.32±3.45 29.65±5.08
Cmax µg/ml 4.34±0.82 6.23±1.23 11.12±1.32
Vd L 191±0.29 174±1.78 150±0.24
t1/2 H 0.85±0.43 5.32±1.42 12.32±0.11
Ke h-1 0.75±0.03 0.94±0.13 0.07±0.031
Cl ml/min 5.128±0.03 2.35±0.56 0.054±0.25
MRT H 0.95±0.13 3.25±12 11.10±0.36

*Data represented the mean±SD, n=6/group.

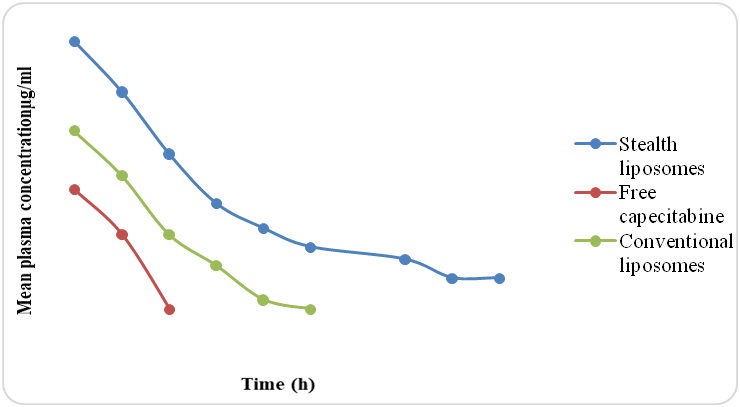

Fig. 3: Mean plasma concentration-time profiles of capecitabine, capecitabine conventional liposmes and capecitabine stealth liposomes in mice bearing colon cancer

Tissue distribution study

Tissue distribution of the pure drug, Conventional liposomes and Stealth liposomes was examined by inoculating HT-29 cell line into the mice. The biodistribution effect of capecitabine was evaluated, followed by the administration of 10 mg/kg of capecitabine injection through i. v., conventional, and stealth-liposomes in the mouse model shown in (table 6). The capecitabineAUC0–t and Cmax µg/ml of stealth liposomes were less in the spleen and liver, and more in the plasma and the tumor tissue when liver, plasma, and tumor tissue between both. The results showed that stealth liposomes decrease capecitabine uptake in the RES-containing organs (liver and spleen) when compared with conventional liposomes. The longer circulation time and a slower release of capecitabine from the stealth-liposomal formulation offered a fair chance, for capecitabine to get attained at the tumor through an increased permeability, the retention (EPR) effect, and also maintain the desired effective therapeutic level of dose for a long time period through depot effects. The stealth liposomes distribution pattern to spleen compared with the conventional capecitabine liposomes. There were much important differences observed in the spleen, was dynamically changed because of the steric stabilization from the inclusion of grafting PEG, which avoided the spleen uptake. In case of the free capecitabine, it was interestingly noted about its rapid appearance in the kidney after 1 h.

The above phenomenon maybe because of the metabolism of capecitabine and a rapid eliminating, through the urine, but the entrapment of the drug into the vesicles protected against the metabolism with a small appearance inside the kidney. Grafting PEG on the stealth-liposome formulations was most promising for avoiding the uptake of capecitabine in the RES rich organs and enhanced the circulation and half-life of capecitabine, small vesicular size and steric stabilization promoted enhanced permeability retention (EPR) by favorably promoting stealth liposomes into the tumor interstitial space and extravasation-effect for maximum localizing the drug into the tumor cells. This kind of accumulation of the liposomes with long-circulation having encapsulated drugs using the EPR effect represents the mechanism of passive targeting, increasing the drug delivery and the therapeutic potential of the drug. The biodistribution studies showed a higher uptake per a gram of tissue of pure capecitabine and conventional liposomes uptake was in the spleen and kidneys followed by the liver. The high uptake in the spleen and the liver was due to a fact that the mentioned organs are a part of mononuclear phagocyte system (MPS), which in turn is responsible, for the filtering of foreign particles from blood circulation [32].

Table 6: Biodistribution parameters of capecitabine in liver, kidney, spleen, lung, tumor and plasma in colon carcinoma induced mice

Capecitabine formulat ion Liver Kidney Spleen Lung Tumor
AUC0-t (µg-h/ml) Cmax µg/ml AUC0-t (µg⋅h/ml) Cmax µg/ml AUC0-t (µg-h/ml) Cmax µg/ml AUC0-t (µg-h/ml) Cma x µg/m l AUC0-t (µg-h/ml) Cmax µg/ml
Pure capecita bine 7.13±1.52 2.05±0.12 6.02±0.97 9.02±0.35 8.02±1.02 10.16±0.53 4.02±0.62 0.85±0.12 9.02±1.71 4.34±0.82
Conventi onal liposome s 19.12±3.83 9.06±2.15 09.32±0.97 7.06±1.05 22.32±4.04 11.12±1.78 06.32±0.4 3.16±1.09 12.32±3.45 6.23±1.23
Stealth liposomes 9.65±1.92 2.05±0.82 5.4±1.86 1.92±0.16 11.65±2.3 3.05±0.82 4,3±0.16 0.81±0.04 29.65±4.12 10.52±1.32

*Data represented the mean±SD, n=6/group

Effect on tumor volume

The Mice, bearing HT-29 tumor are parenterally given free capecitabine, conventional-liposomes, capecitabine loaded stealth-liposomes for cancer therapy. Stealth liposomes 10m g/kg dose and the mice were given a saline solution as a control. The pure form of capecitabine was not of much effect in preventing tumor growth in comparison with the conventional-liposomal treatment; conventional-liposomes displayed a stronger inhibition of tumor having the volume of tumor found as 2.7±0.21 cm3 unlike with pure capecitabine treated tumor volume was 3.2±0.23 cm3 were presented in (table 7). When the tumor was treated using the stealth-liposomes, they provided cellular advantages in terms of the tumor site accumulation of capecitabine because of the PEG coating. Here, stealth liposomes distribution to tumor cells induced interaction to the tumor cell membranes and consequently to promote the effective drug delivery, it reduces the volume of the tumor to 1.1±0.12 cm3after 30 d of study, notably was lower compared to conventional liposomes and the free-drug [37, 39].

Effect on tumor weight

As shown in the table 8 the influence of the formulation, on the tumor’s weight, indicated that, the weight of the tumor was 3 times less compared to (1.4±0.21 gm) the control group, as (7.41±1.22 gm), hence the growth of the tumors was retarded up to 30 d of the study. The same way the influence of the pure-capecitabine and the optimized, conventional liposomal formulation on the weight of tumor was (6.74±1.35 gm to 4.38±0.85 gm) respectively and reported in the. Additionally, capecitabine concentration from stealth liposomes in the tumor was notably high compared with conventional liposomes, which was mostly may be due to targeting nature of stealth liposomes caused much greater accumulation of carrier inside the tumor and also subsequently increasing the drug delivery [37, 39].

Table 7: Effect of pure capecitabine, conventional liposomes, stealth liposomes on tumor volume

Treatment Tumor volume (cm3)
Dose 10 D 15 D 20 D 25Days 30 D
Saline solution 10 mg/kg 1.0±0.23 1.9±0.23 2.6±0.32 3.4±0.11 4.8±0.12
Pure capecitabine 10 mg/kg 0.8±0.27 0.86±0.21 1.7±0.14 2.3±0.12 3.2±0.23
Conventional liposomes 10 mg/kg 0.5±0.21 0.9±0.27 1.2±0.2 1.9±0.23 2.7±0.21
Stealth liposomes 10 mg/kg 0.3±0.15 0.5±0.1 0.7±0.19 1.0±0.21 1.1±0.12

*Data represented the mean±SD, n=6/group.

Table 8: Effect of pure capecitabine (CAP), Capecitabine conventional liposomes (CAP-CL), Capecitabine stealth liposomes (CAP-SL) on tumor weight

Treatment Dose Days Tumor weight (gm)
Saline solution 10 mg/kg 30 7.41±1.22
Pure Capecitabine 10 mg/kg 30 6.74±1.35
CAP-CL 10 mg/kg 30 4.38±0.85
CAP-SL 10 mg/kg 30 1.4±0.21

*Data represented the mean±SD, n=6/group.

CONCLUSION

The results demonstrated that compared with capecitabine, modified-liposomes possessed a notable prolonged circulation time, with high drug concentrations in the plasma compared with free capecitabine and conventional capecitabine liposomes. Liposomes with PEG showed higher uptake by the tumor, but also toxicity was lower inside organs like liver, kidneys, and spleen with PEG in mice with HT-29 colon carcinoma. Capecitabine stealth liposomes showed a prolonged circulation of drug in plasma, has increased the targeting of tumor and also improved therapeutic efficiency.

ACKNOWLEDGEMENT

I would wish to extend my because of Mr. Rahil M Patait, for generous gift of capecitabine (pure drug). I would like to heartfully thank my guide Dr. B A Vishwanath for his continuous, enormous support and encouragement.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

This work was carried out together among all authors. Author MP carried out the experiments analyzed the data. Author BV Supervised the experimental design, Laboratory analysis and major contributor in writing manuscript. All authors read and approved the final manuscript.

CONFLICT OF INTERESTS

The authors declare that they have no conflict of interests.
