Int J App Pharm, Vol 14, Issue 3, 2022, 117-124Original Article
VALIDATED SPECTROPHOTOMETRIC METHODS BASED ON CHARGE TRANSFER COMPLEXATION REACTION FOR THE DETERMINATION OF VALACYCLOVIR HYDROCHLORIDE AS ANTIVIRAL DRUG IN PHARMACEUTICAL FORMULATIONS
ALI H. AMIN1,2
, RAGAA EL SHEIKH3 , AHMED O. YOUSSEF4 , GHADA M. ABDEL FATTAH3 , AYMAN A. GOUDA3*
1Deanship of Scientific Research, Umm Al-Qura University, Makkah, Saudi Arabia, 2Zoology Department, Faculty of Science, Mansoura University, Mansoura, Egypt, 3Chemistry Department, Faculty of Science, Zagazig University, Zagazig, 44519, Egypt, 4Chemistry Department, Faculty of Science, Ain Shams University, Cairo, Egypt
*Email: aymangouda77@gmail.com
Received: 15 Dec 2021, Revised and Accepted: 04 Mar 2022
ABSTRACT
Objective: The present study aims to develop and validate two simple, sensitive, accurate, precise and economical spectrophotometric methods for the determination of valacyclovir HCl (VAL) in pure form and pharmaceutical formulations.
Methods: The developed methods are based on the formation of charge-transfer complex between VAL as n-electron donor and quinalizarin (Quinz) or alizarin red S (ARS) as π-acceptor in methanol to form highly colored chromogens, which showed an absorption maximum at 565 and 540 nm using Quinz and ARS, respectively. The optimization of the reaction conditions such as the type of solvent, reagent concentration and reaction time were investigated.
Results: Under the optimum conditions, Beer’s law is obeyed in the concentration ranges 0.5–16 and 1.0–20 μg/ml using Quinz and ARS, respectively, with good correlation coefficient (r2 ≥ 0.9994) and with a relative standard deviation (RSD% ≤ 0.70). The limits of detection and quantification were found to be 0.15 and 0.30 µg/ml for Quinz and 0.50 and 1.0 µg/ml for ARS.
Conclusion: The methods were successfully applied to the determination of VAL in its pharmaceutical formulations and the validity assesses by applying the standard addition technique. Results obtained by the proposed methods for the pure VAL and commercial tablets agreed well with those obtained by the reported method.
Keywords: Valacyclovir HCl, Spectrophotometry, Quinalizarin, Alizarin red S, Charge transfer reaction, Pharmaceutical formulations
© 2022 The Authors.Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2022v14i3.43906. Journal homepage: https://innovareacademics.in/journals/index.php/ijap
INTRODUCTION
Valacyclovir hydrochloride (VAL) is chemically designated as [(S)-2-[(2-amino-6-oxo-1,6-dihydro-9H-purin-9-yl)methoxy]ethyl-2-amino-3-methylbutanoate] (fig. 1). VAL is an antiviral drug and a prodrug, being converted in vivo to acyclovir. The mechanism of action of VAL is inhibition of the viral DNA polymerase and also involved in the viral DNA chain termination. VAL used for the treatment of herpes simplex virus types, 1 (HSV-1) and 2 (HSV-2) varicella-zoster virus infections, herpes zoster (shingles), and herpes B [1-3].

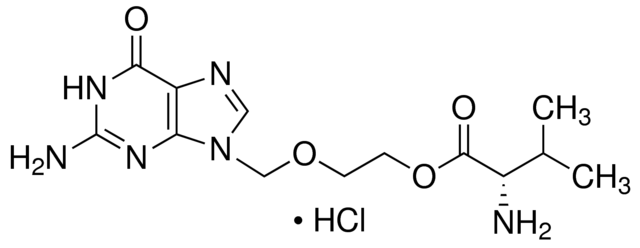

Fig. 1: The chemical structure of valacyclovir HCl (VAL)
The literature survey revealed that several analytical methods have been reported for the determination of VAL in pharmaceutical formulations and biological fluids, including high-performance liquid chromatography [5-10], electrochemical method [11-15], and spectrofluorimetry method [16-18]. These methods are complex and require long and tedious pre-treatment of the samples and laborious clean-up procedures prior to analysis.
A through literature search has revealed that some spectrophotometric methods have been developed for the determination of VAL [19-32] in pure and dosage forms and biological samples. Spectrophotometry is considered as the most convenient analytical technique in quality control laboratories, hospitals and pharmaceutical industries because of its inherent simplicity and low cost, sensitivity and selectivity, significant accuracy and precision. Alizarin derivatives have been used for the spectrophotometric determination of some drugs [33-37].
In the present work, we developed a simple, sensitive, rapid, accurate and validated spectrophotometric method for the determination of VAL in pure form and pharmaceutical formulations. The proposed method involves the formation of a charge transfer complex between VAL and two alizarin derivatives; quinalizarin (Quinz) and alizarin red S (ARS) as chromogenic reagents. The proposed methods have been validated statistically for their accuracy, precision, sensitivity, selectivity, robustness, and ruggedness as per ICH guidelines [38].
MATERIALS AND METHODS
Instrumentation
All absorption spectra were made using Varian UV–Vis spectrophotometer (Cary 100 Conc., Australia) equipped with 5.0 and 10 mm quartz cell was used for absorbance measurements. This spectrophotometer has a wavelength accuracy of±0.2 nm with a scanning speed of 200 nm/min and a bandwidth of 2.0 nm in the wavelength range of 200–900 nm.
Materials and reagents
All chemicals, solvents and reagents used in this work were of analytical reagent or pharmaceutical grade and all solutions were prepared fresh daily. Bidistilled water was used throughout the investigation.
Pure sample of VAL was kindly supplied by EVA Pharma S. A. E., Cairo, Egypt, with a purity of 99.30±1.20% by applying the offical method [1]. Valysernex tablets, labeled to contain 1000 mg VAL per tablet, the product of EVA Pharma, Cairo, Egypt. Valtrovir tablets, labeled to contain 1000 mg VAL per tablet, the product of Hikma Pharma, Amman, Jordon.
Quinalizarin 1,2,5,8-tetrahydroxy-anthraquinone (Quinz) and alizarin red S, 3,4-dihydroxy-9, 10-dioxo-2-anthracene sulfonic acid (ARS) (Sigma-Aldrich) were used without further purification.
Preparation of standard solutions
A standard stock solutions of VAL equivalent to 100 μg/ml and 1.0 × 10−3 mol/l were prepared by dissolving an appropriate weight of pure VAL in methanol in a 100 ml measuring flask. The standard solutions were found stable for at least one week without alteration when kept in an amber coloured bottle and stored in a refrigerator when not in use. Serial dilution with the same solvent was performed to obtain the appropriate concentration ranges.
A stock solutions (0.2%, w/v) and (1.0 x 10-3 mol/l) of Quinz and ARS reagents were prepared by dissolving the appropriate weight of the reagent in approximately 25 ml of methanol, then completed to the mark with methanol in 100 ml volumetric flask. These solutions were stable for at least one week if kept in the refrigerator.
General procedures
Aliquots of the standard VAL working solution in the concentration ranges (0.5-16 μg/ml) and (1.0-20 μg/ml) for Quinz and ARS, respectively were transferred into a set of 10 ml volumetric flasks. To each flask 2.0 ml of (0.2%, w/v) Quinz or ARS solution were added. Then the mixture was shaken in order to promote the reaction and the volume was completed to the mark with methanol. The absorbance of the resulting solutions were measured at 565 and 540 nm for Quinz and ARS, respectively against a reagent blanks prepared simultaneously. The calibration graph was constructed by plotting the absorbance versus the final concentration of VAL. The corresponding regression equation was derived.
Applications to pharmaceutical formulations
The contents of twenty tablets were were crushed, finely powdered, weight out and the average weight of one tablet was determined. An accurate weight of the powdered tablets equivalent to 10 mg of VAL was dissolved in 10 ml methanol with shaking for 5.0 min and filtered using a Whatman No. 42 filter paper. The filtrate was diluted to the mark with methanol for in a 100 ml measuring flask to give and 100 μg/ml stock solution for analysis by the proposed spectrophotometric methods. A convenient aliquot was then subjected to analysis by the spectrophotometric procedures described above. Determine the nominal content of the tablets using the corresponding regression equation of the appropriate calibration graphs.
Stoichiometric relationship
The stoichiometric ratios of the ion-associates formed between VAL and the reagents were determined by applying the continuous variation method [39] at the wavelengths of maximum absorbance. In the continuous variation method, equimolar solutions were employed: a 1.0 x 10-3 mol/l standard solution of VAL and 1.0 x 10-3 mol/l solution of reagent was used. A series of solutions was prepared in which the total volume of VAL and the reagent was kept at 2.0 ml. The drug and reagent were mixed in various complementary proportions (0:2, 0.2:1.8, 0.4:1.6,……….2:0, inclusive) and completed to volume in a 10 ml calibrated flask with the appropriate solvent following the above-mentioned procedure. The absorbance of the prepared solutions was measured at the optimum wavelength for each complex.
Validation procedure
The proposed method was validated according to ICH guidelines [38] concerning linearity, accuracy, precision, the limit of detection (LOD), the limit of quantitation (LOQ), robustness and ruggedness.
Linearity
The linearity of the detector response with the concentrations of VAL was evaluated. Absorbance were plotted versus the corresponding concentration to obtain the calibration graph. Regression data analysis was performed using least-squares linear regression statistical analysis.
LOD and LOQ
ICH guideline [38] describes several approaches to determine the detection (LOD) and quantitation limits (LOQ). These include visual evaluation, signal-to-noise ratio and the use of standard deviation of the response and the slope of the calibration curve. The LOD and LOQ of the developed method were determined by injecting progressively low concentrations of the standard solutions using the developed methods. The LOD and LOQ for the proposed methods were calculated using the following equation [38, 40]:
LOD = 3s/k and
LOQ = 10 s/k
Where s is the standard deviation of ten replicate determinations values of the reagent blank or the standard deviation of intercepts of regression lines and k is the sensitivity, namely the slope of the calibration graph.
Accuracy
The accuracy of the proposed method was evaluated by analyzing three different concentrations (5, 10 and 15 µg/ml) of VAL within the linearity range. The concentrations were obtained from the corresponding regression equation. Accuracy was expressed as the recovery % for VAL.
Precision
The intraday precision (repeatability) for the determination of VAL was carried out by analyzing VAL sample solutions at three concentrations (5, 10 and 15 µg/ml), within the same laboratory, using the same analyst, with the same equipment, in the same day. The inter-day precision (intermediate precision) for the determination of VAL was carried out by analyzing sample solutions at three concentrations using the proposed methods, within the same laboratory, using the same analyst, with the same equipment but on three consecutive days. Precision was expressed as the percentage relative standard deviation (RSD %) for VAL.
Robustness and ruggedness
Robustness was examined by evaluating the influence of small variation of method variables, including the concentration of reagents and reaction time on the performance of the proposed methods. In these experiments, one parameter was changed, whereas the others were kept unchanged, and the recovery percentage was calculated each time.
Methods ruggedness was expressed as the RSD% and was also tested by applying the proposed methods to the assay of drug using the same operational conditions but using three different instruments as well as three different anaysts.
RESULTS AND DISCUSSION
Absorption spectra
The proposed method is based on the charge transfer reaction between VAL and quinalizarin (Quinz) or alizarine red S (ARS) in methanolic medium through two steps: (i) optimization of the experimental conditions in order to achieve both maximum sensitivity and selectivity. This step comprised the evaluation of the effect of the solvent nature, investigation of the influence of the reagent concentration and evaluation of the time required to complete the reaction and; (ii) study and characterization of the reaction, which was carried out by the evaluation of the reaction stoichiometry (Job’s continuous variation method), calculation of the association constant and molar absorptivity in methanol medium and the verification of the proposed reaction mechanism. In order to achieve maximum sensitivity, the effect of some chemical variables such as the type of solvent, reagent concentration and reaction time were evaluated. The reaction was characterized in terms of stability of the product formed and its stoichiometry, and the apparent molar absorptivity and association constants were derived. Best conditions for the analytical determination of VAL were observed in a methanol medium with Quinz and ARS.
At optimum conditions, the radical anion (absorbing species) was formed in the medium immediately after mixing of the reagents and showed maximum absorption at 565 and 540 nm using Quinz and ARS, respectively in the methanol medium (fig. 2 and 3). Thus, these wavelengths was chosen for all further measurements in order to obtain highest sensitivity for the proposed methods. It is important to point out that the Quinz and ARS alone, in methanol medium, exhibits maximum absorption at 491 and 422 nm, respectively. The high difference between maxima of the reagent and the product absorption bands ≥ 74 and 118 nm for Quinz and ARS, respectively allowed the measurement of the products with only a small contribution of the reagents that was added in excess in the medium.

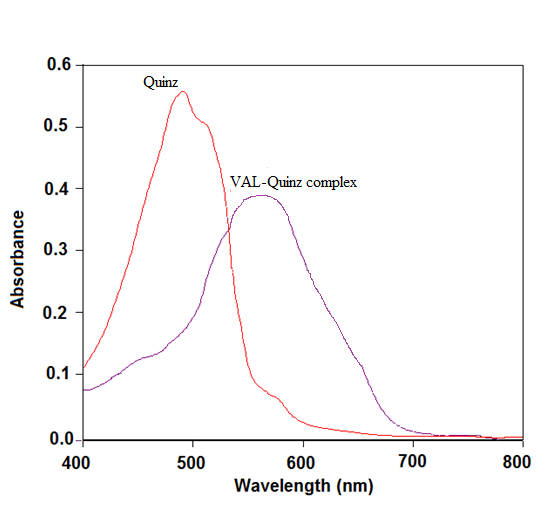

Fig. 2: Absorption spectra for the reaction product of (16 μg/ml) VAL against (0.2%, w/v) Quinz reagent blank solution

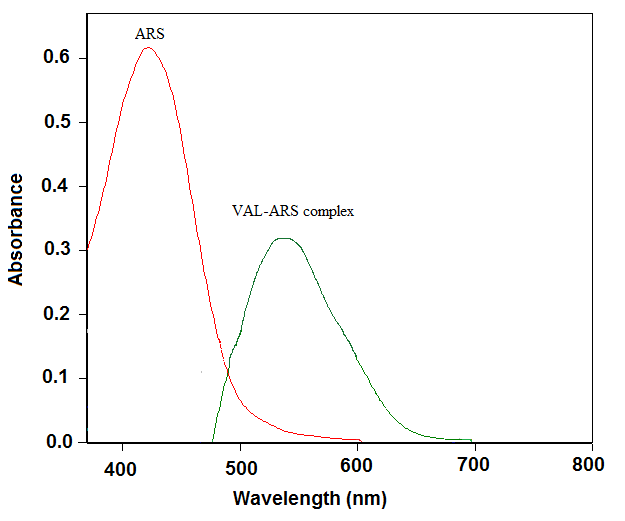

Fig. 3: Absorption spectra for the reaction product of (20 μg/ml) VAL against (0.2%, w/v) ARS reagent blank solution
Evaluation of the effect of the solvent nature
The solvent plays an important role in some charge transfer reactions since it must be able to facilitate the total charge transfer and then allow the complex dissociation and stabilization of the radical anion formed, which is the absorbing species. According to the literature, solvents with high dielectric constant are more effective to execute this task. Taking this fact into account, water would be an excellent solvent for the procedure. However, the poor solubility of the Quinz and ARS in water did not allow its use in the present case. So, the reaction was tested in ethanol, methanol, acetone, DMSO, and acetonitrile media. Although the highest dielectric constant of DMSO and acetonitrile, best sensitivity was achieved with methanol, probably because of the capacity of this solvent to form stable hydrogen bonds with the radical anion. Then, methanol was chosen for further experiments (fig. 4).

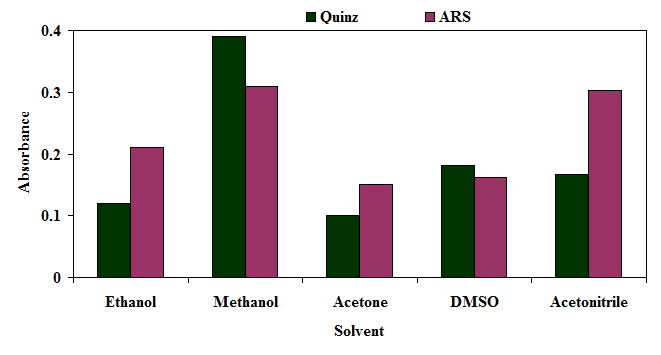

Fig. 4: Effect of different solvents on the charge transfer complex formation obtained against (0.2%, w/v) Quinz or ARS solutions also prepared in each solvent. VAL drug concentration; (16 and 20 μg/ml) for Quinz and ARS, respectively

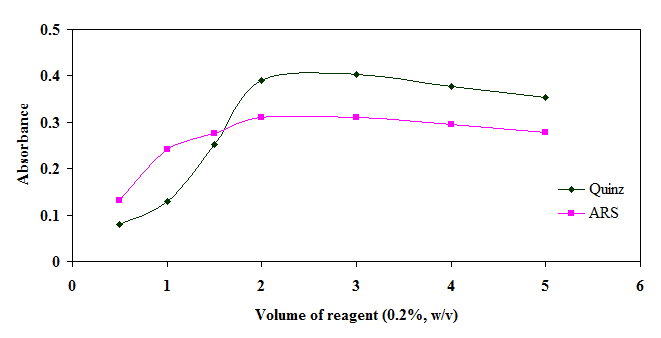

Fig. 5: Effect of (0.2%, w/v) reagent concentration on the absorbance of VAL-reagent complex. VAL concentration; (16 and 20 μg/ml) for Quinz and ARS, respectively
Effect of reagents concentration
In order to achieve this objective, an experiment was performed by varying the concentration of the reagent in the range of 0.5-5.0 ml of (0.2%, w/v) Quinz and ARS solutions, while the VAL concentration was maintained constant. As it can be seen, remarkable increase of the absorbance was verified up to 2.0 ml of (0.2% w/v) Quinz and ARS reagents, respectively, after this point, the absorbance remain constant (fig. 5). Therefore, 2.0 ml of (0.2%, w/v) Quinz and ARS reagents, is a sufficient and optimum reagent volume.
Effect of the reaction time
The optimum reaction time was evaluated by monitoring of the absorbance at optimum wavelengths of a VAL solution containing 16 and 20 μg/ml in case of Quinz and ARS reagents, respectively at ambient laboratory temperature (25±2 °C). Complete colour development and measurements were carried out after 5.0 min of mixing of VAL with the reagents. By increasing the temperature, the absorbance of the charge transfer complex was decrease with a hypochromic shift, until decayed at 50 °C.
Sequence of additions
The most favorable sequence of addition is "VAL-reagent-solvent" for complete colour development, highest absorbance and stability at the recommended wavelength. Other sequences needed longer time in addition to lower stability. The complexes with this sequence remain stable for at least 6.0 h. After this time, absorbance suffered a slight decrease.
Stoichiometric ratio
Job’s method of the continuous variation [39] of equimolar solutions was employed to determine the stoichiometry of the charge transfer reaction in methanol medium. As shown in (fig. 6), the molar ratio which gave maximum absorbance was found to be (1:1) (VAL: reagent). In view of this result a reaction mechanism was proposed considering the transfer of free electron of the nitrogen atom present in one molecule of VAL to the charge-deficient center of Quinz or ARS molecule from the total transfer of charge.
Mechanism verification
Molecular charge-transfer complexes are formed in non-polar solvents while radical anion species are predominant in polar solvents [33-37]. Also, it is believed that the addition of basic compounds that contains a lone pair of electrons, such as VAL results in the formation of charge-transfer complexes of n-π type (Scheme 1). This kind of complexes can be considered an intermediate molecular-association compound that forms a corresponding radical anion in polar solvents. In this case, radical anions results.

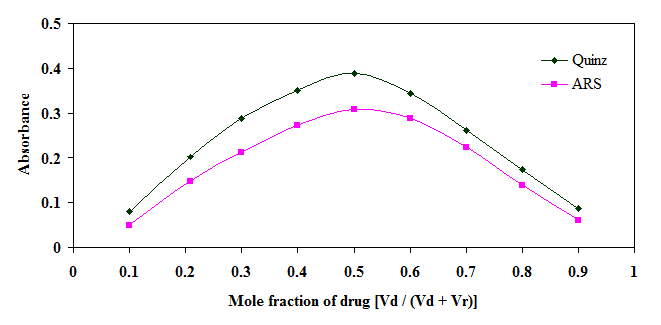

Fig. 6: Application of Job’s method to the reaction between VAL and Quinz and ARS reagents

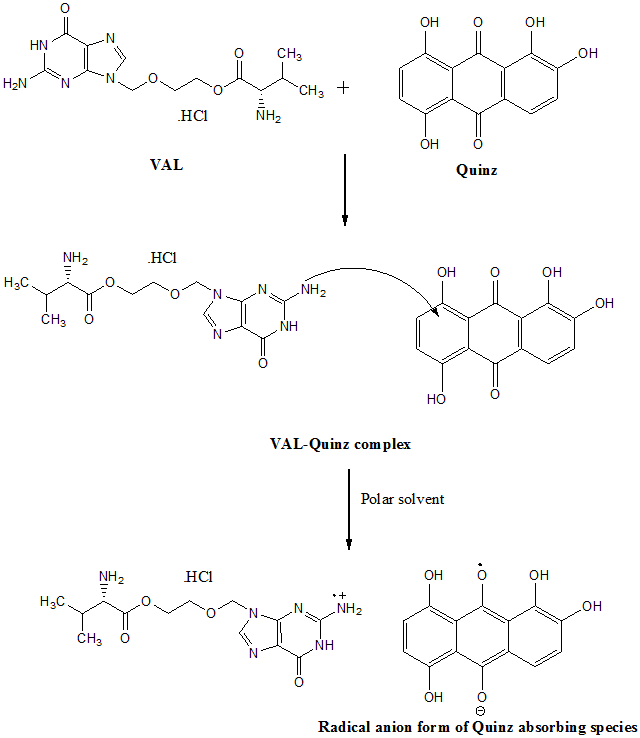

Scheme 1: Possible mechanism of radical anion formation from VAL and Quinz reaction
Method of validation
Linearity
Following the proposed experimental conditions, the relationship between the absorbance and concentration for VAL drug was quite linear in the concentration ranges 0.5–16 and 1.0–20 μg/mlusing Quinz and ARS, respectively. The calibration graph is described by the equation:
A = a+b C …. Eqn. 1.
(where A = absorbance, a = intercept, b = slope and C = concentration in μg/ml) obtained by the method of least squares. Correlation coefficient, intercept and slope for the calibration data are summarized in table 1. The apparent molar absorptivity of the resulting colored charge transfer complexes and relative standard deviation were also calculated and recorded in table 1.
Sensitivity
In accordance with the formula, LODs were found to be 0.15 and 0.30 µg/ml and LOQ were found to be 0.50 and 1.0 µg/ml using Quinz and ARS, respectively.
Accuracy and precision
To evaluate the accuracy as percent relative error (RE%) and precision as relative standard deviation (RSD%) of the proposed methods, solutions containing three different concentrations of VAL were prepared and analyzed in six replicates.
The intra-day precision were performed in the same day and inter-day precision i over five different days (for each level n=6). The percentage relative error (RE%) was calculated using the following equation:
…….. Eqn. 3.
The analytical results obtained from this investigation are summarized in table 2. The low values of the relative standard deviation (RSD%) and percentage relative error (RE%) indicates good precision and accuracy of the proposed methods.
Robustness and ruggedness
The analysis was performed with altered conditions by taking three different concentrations of VAL and it was found that small variation of method variables did not significantly affect the procedures as shown by the RSD% values in the range of 0.50-2.10 %. This provided an indication for the reliability of the proposed methods during its routine application for the analysis of VAL and so the proposed spectrophotometric methods are considered robust.
The inter-analysts RSD% were in the range 0.45-2.20%, whereas the inter-instruments RSD% ranged from 0.50-1.80% suggesting that the developed methods were rugged. The results are shown in table 3.
Table 1: Statistical analysis and analytical data in the determination of VAL using the proposed methods
| Parameters | Quinz | ARS |
| Wavelengths (nm) | 565 | 540 |
| Linearity (µg/ml) | 0.5-16 | 1.0–20 |
| Molar absorptivity ε, (L/mol. cm) x 104 | 1.9365 | 1.4126 |
| Sandal's sensitivity (ng cm-2) | 18.63 | 25.54 |
| Regression Equationa | ||
| Intercept (a) | 0.0148 | 0.0015 |
| Slope (b) | 0.0185 | 0.0193 |
| Correlation coefficient (r) | 0.9994 | 0.9995 |
| mean±SDb | 99.80±1.14 | 99.60±0.74 |
| RSD%b | 1.14 | 0.74 |
| RE%b | 1.20 | 0.77 |
| LOD (µg/ml)c | 0.15 | 0.30 |
| LOQ (µg/ml)c | 0.50 | 1.0 |
| t-test d | 0.23 | 0.50 |
| F-testd | 3.49 | 1.47 |
aA = a+bC, where C is the concentration in µg/ml, A is the absorbance units, a is the intercept, b is the slope. bSD, standard deviation; RSD%, percentage relative standard deviation; RE%, percentage relative error. cLOD, limit of detection; LOQ, limit of quantification; ε, molar absorptivity. dThe theoretical values of t and F at P= 0.05 are 2.571and 5.05, respectively, at confidence limit at 95% confidence level and five degrees of freedom (p= 0.05).
Table 2: Intra-day and Inter-day accuracy and precision data for VAL obtained by the proposed methods
| Method | Taken concentration (μg/ml) | Recovery %a | Precision RSD % a | Accuracy RE %a | Confidence limit b |
| Intra-day | |||||
| Quinz | 4.0 | 99.50 | 0.68 | -0.50 | 3.98±0.028 |
| 8.0 | 99.80 | 1.04 | -0.20 | 7.984±0.087 | |
| 12 | 99.20 | 0.89 | -0.80 | 11.904±0.11 | |
| ARS | 5.0 | 99.30 | 0.53 | -0.80 | 4.996±0.026 |
| 10 | 99.50 | 0.65 | -0.50 | 9.950±0.065 | |
| 15 | 99.10 | 0.82 | -0.90 | 14.865±0.122 | |
| Inter-day | |||||
| Quinz | 4.0 | 99.90 | 0.90 | -0.10 | 3.996±0.038 |
| 8.0 | 99.30 | 0.55 | -0.70 | 7.944±0.046 | |
| 12 | 99.10 | 0.71 | -0.90 | 11.892±0.089 | |
| ARS | 5.0 | 99.60 | 0.65 | -0.40 | 4.98±0.032 |
| 10 | 100.10 | 0.88 | 0.10 | 10.01±0.088 | |
| 15 | 100.40 | 0.93 | 0.40 | 15.06±0.140 |
amean±SE (n=6), RSD%, percentage relative standard deviation; RE%, percentage relative error. bConfidence limit at 95% confidence level and five degrees of freedom (t = 2.571).
Table 3: Results of methods robustness and ruggedness (all values in RSD%) studies
| Methods | Nominal concentration (μg/ml) |
RSD% | |||
| Robustness | Ruggedness | ||||
| Variable alerteda | |||||
| Reagent volume (n=3) | Reaction time (n=3) | Different analysts (n=3) | Different instruments (n=3) | ||
| Quinz | 4.0 | 0.55 | 0.68 | 0.45 | 0.50 |
| 8.0 | 1.20 | 1.15 | 0.90 | 0.97 | |
| 12 | 1.50 | 1.65 | 1.70 | 1.80 | |
| ARS | 5.0 | 1.0 | 0.50 | 0.80 | 0.70 |
| 10 | 1.70 | 1.30 | 1.40 | 1.0 | |
| 15 | 2.0 | 2.10 | 2.20 | 1.55 | |
aVolume of (0.2%, w/v) reagent is (2.0±0.2 ml) and reaction time is (5.0±1.0 min) (after adding reagent) were used.
Recovery studies
To ascertain the accuracy, reliability and validity of the proposed methods, recovery experiment was performed through standard addition technique. This study was performed by spiking three different levels of pure VAL (50, 100 and 150% of the level present in the tablet) to a fixed amount of drug in tablet powder (pre-analysed) and the total concentration was found by the proposed methods. The determination with each level was repeated three times and the percent recovery of the added standard was calculated from:
% Recovery = ([CF–CT])/Cp × 10 …. (4)
Where CF is the total concentration of the analyte found, CT is a concentration of the analyte present in the tablet preparation; CP is a concentration of analyte (pure drug) added to tablets preparations. The results of this study presented in table 4 revealed that the accuracy of the proposed methods was unaffected by the various excipients present in tablets which did not interfere in the assay.
Analysis of pharmaceutical formulations
The proposed methods were applied to the determination VAL in pharmaceutical formulations (tablets). A statistical comparison of the results obtained from the assay of VAL by the proposed methods and the official method [1] regarding accuracy and precision (table 5). When the results were statistically compared with those of the official method by applying the Student's t-test for accuracy and F-test for precision, the calculated t-value and F-value at 95% confidence level did not exceed the tabulated values for five degrees of freedom [40]. Hence, no significant difference between the proposed methods and the reported method at the 95 % confidence level with respect to accuracy and precision.
Table 4: Results of recovery experiments by standard addition method for the determination of VAL in tablets using the proposed methods
| Samples | Taken drug in tablet (μg/ml) |
Pure drug added (μg/ml) |
Valysernex tablets | Valtrovir tablets | ||
Total found (μg/ml) |
Recoverya (%)±SD |
Total found (μg/ml) |
Recoverya (%)±SD |
|||
| Quinz | 6.0 | 3.0 | 8.937 | 99.30±0.36 | 8.964 | 99.60±0.30 |
| 6.0 | 6.0 | 12.024 | 100.20±0.50 | 12.084 | 100.70±0.34 | |
| 6.0 | 9.0 | 15.15 | 101.0±0.85 | 14.85 | 99.00±0.68 | |
| Mean Recovery % | 100.17 | 99.77 | ||||
| SD | 0.85 | 0.86 | ||||
| RSD% | 0.85 | 0.86 | ||||
| ARS | 6.0 | 3.0 | 8.937 | 99.30±0.44 | 9.063 | 100.70±0.38 |
| 6.0 | 6.0 | 12.036 | 100.30±0.60 | 12.012 | 100.10±0.78 | |
| 6.0 | 9.0 | 15.12 | 100.80±1.10 | 14.91 | 99.40±0.50 | |
| Mean Recovery % | 100.13 | 100.07 | ||||
| SD | 0.76 | 0.65 | ||||
| RSD% | 0.76 | 0.65 | ||||
a(n=6).
Table 5: Results of analysis of tablets by the proposed methods for the determination of VAL and statistical comparison with the official method [1]
| Samples | Recoverya (%)±SD | ||
| Proposed methods | Official method [1] | ||
| Quinz | ARS | ||
| Valysernex SR tablets | 100.17±0.85 | 100.13±0.76 | 99.60±0.86 |
| t-valueb | 1.05 | 1.03 | |
| F-valueb | 1.02 | 1.28 | |
| Valtrovir tablets | 99.77±0.86 | 100.07±0.65 | 99.40±0.90 |
| t-valueb | 0.66 | 1.35 | |
| F-valueb | 1.10 | 1.92 | |
a(n=6). bThe theoretical values of t and F are 2.571 and 5.05, respectively at confidence limit at 95% confidence level and five degrees of freedom (p = 0.05).
Comparison between the proposed methods and reported methods
Table 6 shows comparison between the proposed spectrophotometric methods and other reported methods in the literature for the quantification of VAL in pharmaceutical formulations [19-30]. The proposed methods are new, simple, cost effective and selective spectrophotometric methods for the determination of VAL in pharmaceutical dosage forms. The reported methods are less selective, poor sensitivity, depending on critical experimental variables, few methods require a rigid pH control and tedious and time-consuming liquid–liquid extraction step; some other methods have a relatively narrow dynamic linear range, and/or use of expensive reagent or large amounts of organic solvents.
Table 6: Comparison between the reported spectrophotometric methods for determination of VAL
| Methods | Wavelength (nm) |
Beer’s law (µg/ml) |
Molar absorptivity (L/mol. cm) × 104 |
Samples | Reference |
| Zero order UV method | 254 | 5-25 | NA | Bulk and tablet | 19 |
| Brucine–NaIO4 | 543 | 5-110 | 0.4642 | Pharmaceutical formulations and human body fluids | 20 |
| MBTH | 644 | 3-45 | 0.9761 | ||
| Sodium acetate | 251 | 1-80 | NA | Pharmaceutical dosage forms | 21 |
| Phosphate buffer pH 5.0 | 251 | 1-80 | NA | ||
| Phosphate buffer pH 7 | 252 | 1-80 | NA | ||
| borate buffer pH 9.0 | 253 | 1-80 | NA | ||
| 0.1N NaOH | 265 | 1-80 | NA | ||
| Paradimethylamino cinnamaldehyde | 524 | 10-100 | NA | Bulk and its pharmaceutical formulations | 22 |
| Phenyl hydrazine hydrochloride/hexacyano ferrate (III) in acidic medium | 520 | 2-10 | 2.66 | Pure and pharmaceutical dosage forms | 23 |
| Fe3+/1,10-phenanthroline | 5-25 | 0.506 | |||
| MBTH/Fe3+ | 630 | 5-25 | 0.817 | Bulk and tablet dosage form | 24 |
| MBTH/NaIO4 | 624 | 2-10 | 2.83 | ||
| UV/0.1 M sulphuric acid | 255 | 4-12 | NA | Pharmaceutical dosage forms | 25 |
| DDQ | 450 | 20-100 | 0.22 | Pharmaceutical formulations | 26 |
| UV/0.1 M HCl | 255 | 5-25 | 1.0910 | Bulk and tablet dosage form | 27 |
| p-dimethyl aminobenzaldehyde | 388 | 100-500 | NA | Bulk and pharmaceutical dosage forms | 28 |
| Vanillin | 428 | 20-100 | NA | ||
| UV | 274 | 5-50 | 2.69167 | Bulk and tablet dosage forms | 29 |
| UV | 252 | 4-24 | NA | Pharmaceutical dosage form | 30 |
| Quinz | 565 | 0.5-16 | 1.9365 | Pure form and pharmaceutical formulations | The proposed work |
| ARS | 540 | 1.0-20 | 1.4126 |
NA: not available. MBTH: 3-methyl-2-benzothiazolinonehydrazone; NaIO4: sodium periodate; DDQ: 2,5-dichloro-3,6-dihydroxy-1,4-benzoquinone; Quinz: quinalizarin; ARS: Alizarin red S.
CONCLUSION
This work describes the application of charge transfer complexation reaction with two alizarin derivatives for the quantification of valacyclovir hydrochloride (VAL) in pure form and pharmaceutical formulations. Compared with the existing spectrophotometric method, the proposed methods are relatively simple, rapid, cost-effective, sensitive, accurate, and robust for determination of VAL in pure form and pharmaceutical formulations. Moreover, the proposed methods are free from tedious experimental steps such as extraction step, heating and pH adjustment. The most attractive feature of these methods is the relative freedom from interference, by the usual diluents and excipients in amounts higher than their normal existence in pharmaceutical formulations. The statistical parameters and the recovery data reveal good accuracy and precision of the methods. Therefore, the proposed validated methods could be useful for routine quality control assay of VAL in pure form and pharmaceutical formulations.
ACKNOWLEDGMENT
The authors extend their appreciation to the Deputyship for Research and lnnovation, Ministry of education in Saudi Arabia for funding this research work through the project number 20-UQU-IF-P1-001.
AUTHORS CONTRIBUTIONS
Prof. Dr. Ragaa El Sheikh and Prof. Ayman A. Gouda has generated the research idea, interpreted the data and helped to draft the manuscript, helped in check spelling, reducing the plagiarism, interpreting the data, reviewed the manuscript and submit the manuscript for publication. Prof. Dr. Ahmed O. Youssef and Prof. Dr. Ali H. Amin has suggested the research idea and participated in the design of the study. Ms. Ghada M. Abdel Fattah was prepared the solutions, carried out the experiments, interpreted the data and helped to draft the manuscript.
CONFLICTS OF INTERESTS
The authors confirm that this article content has no conflict of interest.
REFERENCES
United States Pharmacopeia. Valacyclovir hydrochloride, USP 41, NF 36, USP Convention 12601, Tweinbrook Parkway, Rockville, MD 20852. Vol. 1; 2018. p. 4264-5.
Smiley ML, Murray A, de Miranda P. Valacyclovir HCl (Valtrex™): an acyclovir prodrug with improved pharmacokinetics and better efficacy for treatment of zoster. Advances in Experimental Medicine and Biology. 1996;4:33-9. doi: 10.1007/978-1-4757-9209-6_4.
Landowski CP, Sun D, Foster DR, Menon SS, Barnett JL, Welage LS, Ramachandran C, Amidon GL. Gene expression in the human intestine and correlation with oral valacyclovir pharmacokinetic parameters. J Pharmacol Exp Ther. 2003;306(2):778-86. doi: 10.1124/jpet.103.051011, PMID 12750437.
Sp ST, MM, ND, DJ. Screening and optimization of valacyclovir niosomes by design of experiments. Int J App Pharm. 2018;10(1):79-85. doi: 10.22159/ijap.2018v10i1.22566.
Sathis Kumar D, Prashanthi BDN, Harani A, Anusha P. Method development and validation of valacyclovir hydrochloride and ritonavir in tablet dosage form using reverse phase high performance liquid chromatography. Jurnal Teknologi. 2015;76(1):39-45. doi: 10.11113/jt.v76.3093.
Deshpande MM, Kasture VS, Mohan M, Chaudhari S. Development and validation of bioanalytical method for the determination of valcyclovir HCl in human plasma by liquid chromatoghraphy. Eur J Anal Chem. 2015;10:106-12.
Patil Pallavi M, Wankhede Sagar B, Chaudhari Praveen D. Stability-indicating hptlc method for estimation of valacyclovir hydrochloride in bulk and pharmaceutical dosage form in presence of its alkaline hydrolysis degradation product. Int J Pharm Biol Sci. 2014:5;P203:186.
Bhavar GB, Pekamwar SS, Aher KB, Chaudhari SR. Development and validation of RP-HPLC method for the determination of valacyclovir hydrochloride and its related substances in tablet formulation. Int J Pharm Sci Rev Res. 2014;25:53-8.
Rasool SK, Naik DV, Prasad Babu D, Nalluri BN. RP-HPLC method for the estimation of valacyclovir in bulk and pharmaceutical formulations. Int J Pharm Pharm Sci. 2012;4:214-18.
Sugumaran M, Bharathi V, Hemachander R, Lakshmi M. RP-HPLC method for the determination of valacyclovir in bulk and pharmaceutical formulation. Pharm Chem. 2011;3:190-4.
Devarushi US, Shetti NP, Bukkitgar SD, Tuwar SM. Electrochemical behavior of an anti-viral drug valacyclovir at carbon paste electrode and its analytical application. Russ J Electrochem. 2018;54(10):760-8. doi: 10.1134/S1023193518100026.
Pınar PT, Senturk Z. Voltammetric investigation of antiviral drug valacyclovir at a boron-doped diamond electrode in different electrolyte media: its determination enhanced by anionic surfactant in pharmaceuticals and biological fluids. Curr Pharm Anal. 2017;13(2):175-87. doi: 10.2174/1573412912666160901102844.
Jain R, Pandey P. Electrocatalytic quantification of antiviral drug valacyclovir. Ionics. 2015;21(12):3279-87. doi: 10.1007/s11581-015-1511-2.
Tarinc D, Golcu A. Electrochemical behavior of valacyclovir and its square wave and differential pulse voltammetric determination in pharmaceuticals and biological fluids. Russ J Electrochem. 2015;51(2):149-58. doi: 10.1134/S1023193515020135.
Uslu B, Ozkan SA, Senturk Z. Electrooxidation of the antiviral drug valacyclovir and its square-wave and differential pulse voltammetric determination in pharmaceuticals and human biological fluids. Anal Chim Acta. 2006;555(2):341-7. doi: 10.1016/j.aca.2005.09.034.
Derayea SM, Omar MA, Mostafa IM, Hammad MA. Enhancement of the sensitivity of valacyclovir and acyclovir for their spectrofluorimetric determination in human plasma. RSC Adv. 2015;5(96):78920-6. doi: 10.1039/C5RA11635J.
Derayea SM, Mostafa IM, Omar MA. Spectrofluorimetric and TLC-densitometric methods for a stability indicating assay of valacyclovir hydrochloride in the presence of its degradation product. RSC Adv. 2014;4(80):42308-15. doi: 10.1039/C4RA06677D.
Caglar S. Determination of valacyclovir hydrochloride in tablets and spiked plasma samples by spectrofluorimetry. J Anal Chem. 2014;69(4):362-6. doi: 10.1134/S1061934814040145.
Lade PD, Patil SV, Kadam SS, Tipugade OB, Nakhare PG. Analytical method development and validation of valacyclovir to estimate from its formulation. Curr Pharm Res. 2019;9:3086-94.
Alhemiary NAF, Al-Hakemi AN. Asimple assay methods development and validation of vancyclovir in blood, urine and pharmaceutical dosage forms by spectrophotometry, Indo. Am J Pharmacol Sci. 2016;3:586-93.
Narendra R, Pavan S, Sravani D, Sumanta M, Ganapathi S. Development and validation of new analytical methods for the estimation of valacyclovir hydrochloride in pharmaceutical dosage form. Pharm Lett. 2016;8:296-303.
Gulimi J. Visible spectrophotometric determination of valacyclovir by using aradimethylaminocinnamaldehyde reagent. Int J PharmTech Res. 2014;6:1036-9.
Siva Ramakrishna V, Ravi Kumar D, Malleswara Rao NVN, Ram Babu C. Method development and determination of valacyclovir HCl in pharmaceutical dosage forms by visible spectrophotometry. Int J PharmTech Res. 2012;4:1009-14.
Siva Ramakrishna V, Sudha Lakshmi PB, Ravi Kumar D, Ram Babu C. Spectrophotometric determination of valacyclovir HCl through oxidative coupling reaction in bulk and its pharmaceutical preparations. Int J PharmTech Res. 2012;4:138-42.
Gowtam Potnuru VMK, Krishna Reddy Y, Arjun CH, Prasanthi P, Ramya Krishna M, Chandra Sekhar E. Spectrophotometric method development and validation of valacyclovir hydrochloride in bulk and pharmaceutical dosage form. Res Rev J Pharm Anal. 2012;1:13-8.
Sudhakar Reddy J, Maqsood Ahmed MS, Chakravarth IE, Prabhavathi K. Spectrophotometric estimation of valacyclovir in pharmaceutical preparations. J Chem Pharm Res. 2011;3:773-6.
Ganesh M, Narasimharao CV, Saravana AK, Kamalakannan K, Vinoba M, Mahajan HS, Sivakumar T. UV spectrophotometric method for the estimation of valacyclovir HCl in tablet dosage form. EJ Chem. 2009;6:814-8.
Reddy DVP, Gurupadayya BM, Manohara YN, Bhaskar VV. Spectrophotometric determination of valacyclovir hydrochloride in bulk and pharmaceutical formulations. Asian J Chem. 2007;19:2797-800.
Babu GS, Babu IS, Kumar NK, Yugandhar NM, Raju C. Spectrophotometric determination of valacyclovir in pharmaceutical formulation. Asian J Chem. 2007;19(4)2797-2800.
Rao PLKM, Venugopal V, Anil Kumar G, Vasanthi B, Shiny D, Jyothi D, Shantha Kumari G. Quantification and method validation for valacyclovir hydrochloride in pharmaceutical dosage forms by absorption spectroscopy. Int J Pharm Chem Sci. 2013;2:1762-4.
Dinakaran SK, Botla DNP, Pothula A, Kasssetti K, Avasarala H, Kakaraparthy R. Spectrophotometric and method development and validation for valacyclovir hydrochloride monohydrate and ritonavir in bulk and tablet dosage form using absorption ratio method. Malays J Pharm Sci. 2013;11:21-9.
Sugumaran M, Jothieswari D. Development and validation of spectroscopic method for estimation of valacyclovir in tablet dosage form. Orient J Chem. 2010;26:163-5.
Gouda AA, Malah ZA. Development and validation of sensitive spectrophotometric method for determination of two antiepileptics in pharmaceutical formulations. Spectrochim Acta A Mol Biomol Spectrosc. 2013;105:488-96. doi: 10.1016/j.saa.2012.12.053. PMID 23352920.
El Sheikh R, Gouda AA, El-Azzazy R. Spectrophotometric study on the charge transfer complex between sumatriptan succinate and some π-acceptors and alizarin derivatives, Chem Ind Chem Eng Quar. 2013;19:529-40.
Gouda AA, El Sheikh R, El-Azzazy RM. Utility of charge transfer and Ion-Pair complexation for spectrophotometric determination of eletriptan hydrobromide in pure and dosage forms. J Chem. 2013;2013:1-9. doi: 10.1155/2013/402164.
Gouda AA, Abd El-Hay SS, Hashem H. Utilization of alizarin derivatives for the sensitive spectrophotometric determination of two proton pump inhibitors in pharmaceutical formulations. Main Group Chem. 2016;15(1):17-34. doi: 10.3233/MGC-150180.
El Sheikh R, Amin AS, Gouda AA, Negeda OS. Sensitive and validated spectrophotometric method for the assay of proton pump inhibitor dexlansoprazole in pure form and pharmaceutical formulations using alizarin derivatives. Int J Res Ayurveda Pharm. 2018;9:76-82.
International conference on harmonization of technical requirements for registration of pharmaceuticals for human use. ICH harmonized tripartite guideline, validation of analytical procedures: text and methodology. Vol. Q2. London: ICH, Complementary Guideline on Methodology; 2005. p. R1.
Renny JS, Tomasevich LL, Tallmadge EH, Collum DB. Method of continuous variations: applications of Job plots to the study of molecular associations in organometallic chemistry. Angew Chem Int Ed. 2013;52(46):11998-2013. doi: 10.1002/anie.201304157.
Miller JN, Miller JC. Statistics and chemometrics for analytical chemistry. 5th ed. Englewood Cliffs: Prentice Hall; 2005.
