Int J App Pharm, Vol 14, Issue 2, 2022, 23-34Review Article

IMPENDING CONTRACEPTIVES THAT MIGHT BE A POSITIVE METHODOLOGY TOWARDS THE MALE CONTRACEPTION

SURENDER VERMA1, DINESH KUMAR2, GAURAV KUMAR1*, AAKASH PARTAP SINGH1

1Institute of Pharmaceutical Sciences, Kurukshetra University, Kurukshetra, Haryana, India 136119, 2Department of Pharmaceutical Sciences, Central University of Haryana, Mahendragarh, Haryana, India 123031
Email: kundugaurav7@gmail.com

Received: 20 Dec 2021, Revised and Accepted: 28 Jan 2022

ABSTRACT

The total population has been developing dramatically; be that as it may, right now, the decisions for male contraception are restricted. This study investigates continuous explores of male contraceptives. This study article is primarily based on the thought of contraception that must be needed toward the increasing population and giving the ideal strategy to control the fertility of humans and animals. This review featured the recent oral male contraceptives that may be revolutionary products in our world as means of contraception. The audit article considers that these contraceptives are customarily utilized for their spermicidal activities and their fundamental hormones of the awkwardness for fertility and the mechanism of activity of the impact of the antifertility of contraceptives. The present study offers up-to-date data gathered on the contraceptives used for anti-fertility activity in males. The goal of this study is to spotlight the work on the anti-fertility effect of contraceptives. Therefore these products can provide options and lowering fertility would be higher than different contraceptives. This article can also assist investigators in developing the newer contraceptive preparation for anti-fertility activity in males. The innovations in this field are important to focus on current, more intense medication having a less detrimental effect on the body function and that can be administrable on its entity, less expensive, and quite reversible.

Keywords: Oral male contraceptive, Male contraception, Spermatogenesis, Antifertility, Male fertility, Natural contraceptives

© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2022v14i2.43941. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Today, overpopulation is a major problem in developing countries and the population of the world is currently about 7.6 billion, and if the present trends continue, it is expected to rise to 11.2 billion in 2100, 8.6 billion in 2030, 9.8 billion in 2050 [1]. In 2001-2011, increasing in the population of our country is greater than the 180 million [2]. Both the government and non-governmental associations are attempting to manage the human populace, although the results are unsatisfactory. One of the possible causes for unsatisfactory results could be the limited availability of contraceptive alternatives in our country [3]. However, Women are the extreme users of contraceptives in the world. Female contraceptives are successful in preventing unplanned pregnancy; nevertheless, some women are unable to utilize these contraceptives due to side effects [4, 5]. As a result, the development of the male contraceptive will aid couples in family planning [6].

The struggle against male contraception by physically preventing the meeting of egg and sperm (condoms, experimental vas occlusion procedures, and vasectomy) or through inhibiting spermatogenesis (hormonal and non-hormonal approaches) [6]. Around 30% of people presently rely upon condoms and vasectomy as male strategies of fertility restriction, even though these strategies have their negative consequences. The major disadvantages of condoms and vasectomy are the inability to reversible and their high failure rate [7]. Men should be able to utilize a contraceptive that is safe, effective, reversible, and fast-acting. Furthermore, it should not interfere with other androgen-dependent processes. And also, the technique of application must be simple and inexpensive. Many herbal or natural extracts have been utilized in the old Ayurvedic medical system to treat various ailments, and this extract has also been employed in maintaining and boosting fertility [8]. Some molecules derived from natural herbs in stages other than clinical development indicate natural products as potential novel medicine sources [9].

MATERIALS AND METHODS

This study was oriented with a wide variant fact of contraception around the world. To date, no further assessment investigated the dose, the components of factors, and method of action of the contraceptives antifertility impact.

Search strategy

Data were collected by searching the keywords: male infertility, oral male contraceptive, male contraception, antifertility, in international databases such as Web of Science (ISI), Pubmed, research gate, Google scholar, Science direct, etc.

Why the need for male contraceptives

The ideal male contraception ought to be sexually independent and act quickly. Several investigations in a variety of nations have been conducted to determine the acceptability of male contraception. Nowadays, it increases the female contraceptive option of 40-45% of worldwide pregnancies not yet planned. Several examinations have been completed to develop hormonal and non-hormonal male contraceptives. An assortment of new molecules is as yet being worked on the oral male contraceptive that has few side effects. The objective is to develop male contraceptive techniques that will permit both men and women [10].

Process of formation of sperm is carried out by the process of spermatogenesis in which two hormones first is luteinizing hormone (LH) which works on Leydig cell for testosterone production and other is Follicle-stimulating hormone (FSH) which works on Sertoli cells for giving nutrition to spermatozoa and protect the cell and both hormones are important in the formation of spermatozoa or sperm. There are various stages involved in the formation of sperm [11, 12].

Mechanism of action for male contraception

Role of hormonal contraception

Hormonal contraception plays an important role in contraceptive techniques. The below fig. (fig. 1) shows how hormonal contraception can occur [11, 12].

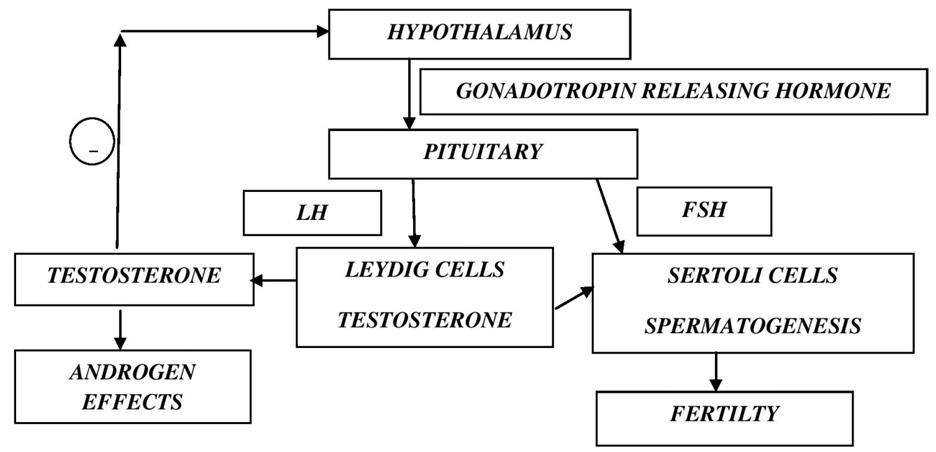

Fig. 1: Flow chart of the hormonal contraception

The journey or life travel of sperm

Spermatogenesis starts in the brain. The hypothalamus issues GnRH which activates the pituitary gland to activate FSH and LH. These hormones then work on Sertoli cells and Leydig cells in the testicle. Many processes are supported by Leydig cells, which create testosterone in the bloodstream. The role of spermatogenesis is supported by Sertoli cells. Sperm goes through the seminiferous tubules and to the epididymis as storage, development to functional sperm, and then transfer from the epididymis through the vas deference to the urethra and ultimately out of the body after the Sertoli cell process called spermiation [13].

Available methods for males as a contraceptive

Condoms

Condom as a barrier method has been used for many years by men all around the world. These are originally made from the animal intestines. Condoms are generally produced using the latex elastic material because these are most effective in the prevention of sexually transmitted diseases like HIV, gonorrhea, etc. But as a disadvantage, condoms have a high failure rate on the improper use and breakage of it which is 4 percent in time [14]. But many men do not like the use of condoms as it reduced sexual pleasure [15]. To reduce the side effect of latex allergies, Polyurethane condoms can be a great option. Although, these condoms are less effective in the prevention of pregnancy as compared to latex condoms because of their loose fit [16].

Vasectomy

Vasectomy is the surgery wherein the vas deference is cut and then ligated, to avoidance of the stream of sperm from the testicle. In the world, about 60 million people have undergone the vasectomy procedure. In the United States, around half a million people have vasectomized annually [17]. As a highly effective method in the conception of males, having disappointment rate of around one percent and lesser serious complications [18]. Vasectomy is only used for men who don’t want any fertile activity in the future. Still, around 4-6 percent of people wish for reversal fertility as a reason for the death of a child and remarriage [19]. As a result of these considerations, vasectomy cannot be recommended as a reversible contraceptive method. But it can be a very satisfactory method that does not interested in a future pregnancy [20].

Withdrawal

It is also known as the coitus interruptus method. This method is a primary method to avoid pregnancy by 4-6 percent of people in the United States [21]. However, the Withdrawal method is not accepted as a contraceptive method by the medical community. A study has attempted to focus on this method that it may be long or short time effective as how it is practiced.

Several efficacy studies that were done in the history of male contraception

Various contraceptives that can be major approaches for men

Triptonide

The researchers Wei Yan et al. found an inventive strategy in which they discovered a new herbal compound that is an impactful, secure and reversible male contraceptive agent in pre-scientific animal models. With immense work in the past decade in developing the male non-hormonal male contraceptive has been restricted. The herb compound called Triptonide is extracted from the plant named Tripterygium wilfordii Hook by chemical synthesis. Triptonide is sometimes used to treat a variety of issues, including inflammatory diseases. i. e rheumatoid arthritis [29]. A single dose of Triptonide causes the sperm minimal quantity and no movement in it with greater penetration and men will be infertile in 3-6 w. But upon cessation of treatment, fertility returned to its normal stages in 4-6 w. Triptonide targets the Plakoglobin and disturbs their relation with SPEM1 during the spermatogenesis process. No toxic effect was found. A group of analyses suggested that Triptonide targets on the very last step of sperm meeting that will produce immotile sperm for fertilization. On the development of immotile sperm, it will not giving any effect on the testis cells. As result, studies on primates will give an idea to suggest effective treatment for human males also and clinical test soon to be developing non-hormonal male reversible contraceptive [29].

N,N-Dimethylacetamide

FDA approved excipient which is found as a male contraceptive agent named as N,N-Dimethylacetamide which is previously used as a pharmaceutical agent for inserted in humans as a type of solvent that can enhance the insoluble drug application. Mainly any excipient does not produce any biological activity but these excipients possess the contraceptive activity which inhibits the process of spermatogenesis and causes infertility in men in recent studies. And can reverse its effect on cessation of treatment. Administration of DMA molecule in rats for eight weeks causes infertility and no pups were born with treated animals. Also does not affect the performance of a hormonal function. Fertility regains upon halted the treatment and after that pups were born. DMA also affects a post-meiotic phase of the spermatogenesis process to gain the reversibility of conception [30]. In studies of bromodomain inhibitor toward affinity of BET protein, JQ1 achieved contraceptive properties in mice. The contraceptive effect was attained to inhibit the testis-specific BRDT protein. At a high dose, JQ1 possesses a side effect that is not tolerated than at that point rather than JQ1, DMA which has a low-affinity bromodomain inhibitor and is tolerated by people and afterward utilized as FDA approved excipients. It mainly targets spermiogenesis via inhibiting BRD4, not BRDT which is a target of JQ1 [31]. DMA has an excellent penetration tendency into the skin and is injected as a drug solubilizer in humans. eg. In chemotherapy, busulfan treatment facilitated in children shows DMA is not toxic and cleared from the body easily and safe for humans. In future studies, DMA can be a great contraceptive if used as a topical gel. DMA depot patch is a great idea as a slow rate drug delivery system.

Immunocontraception

At present, the mechanism of the noticed infertility is not known. Specialists in a few labs are working together for developing a male contraceptive immunization (vaccine) against an antigen present exclusively on spermatozoa (sperm cell). On the off chance that effective, the antibody would give a protected, cost-powerful, and reversible contraception for men. Notwithstanding, introducing such type of vaccine however testing, gives multiple obstacles. The greatest obstacle in fostering an immunocontraception antibody is to distinguish a novel antigen (immunogen) with a significant capacity in the preparation cycle which is exposed to the blood-testis barrier as the host cell's responses to the immunogen that differ among the species. The most difficult test for researchers will be to identify an immunogen that is most sensitive among the majority of males [32]. The gathering has distinguished the “Eppin” molecule which is a human antigen. This protein is available just in the male contraceptive tissues (epididymis and gonads). It is only a few inhibitors of the epididymal serine protease and is described by each Kunitz-type agreement and Whey Acidic Protein (WAP)-type agreement [32]. The sperm have receptors for the Eppin molecule that adheres during development in the epididymis. These Eppin-bound spermatozoa are covered with the protein of the semen liquid known as Semenogelin (Sg). It passes through the vas deferens region and the ejaculatory channel [32, 33]. The restricting of Semenogelin to an Eppin is believed to be a significant defensive occasion that happens in discharged sperm, giving antimicrobial action to the tight sperm’s agglutination into a coagulum. In the course of the liquefaction of the coagulum, Semenogelin hydrolyses which liberates the sperm from it and gives the capacity to be fertile and motile. The hydrolysis of Semenogelin in the coagulum is joined by the activity of prostate-explicit enemy of gen (PSA) which is a serine protease [33]. It had been recommended that the counter Eppin immune response adheres to an Eppin on the surface of a sperm cell that disturbs the arrangement of the Eppin-Semenogelin and the production of spermatozoa in the discharge lose forward motility.

Dr. O'Rand and colleagues had gained ground about a protected and reversible immune contraceptive for males. The bunch revealed that 7/9 monkeys (male) inoculated with an Eppin grew excessive titer antibodies to the immunogen furthermore, got unfertile. 5/7 humans have excessive titer antibodies and get fertile when vaccination used to be halted. Despite the fact that Eppin is a significant immunogen and its standard trial viability (78%) and fractional reversibility (71%) kept a significant concern. A few different potential immunocontraceptive immunogens, exist on plasma layers of sperm and go about as receptors throughout sperm and egg communication during the essential stages of science. To begin with, the assuming receptors are a lot more years from being attempted as immune contraceptives.

Testis kinase

Concerns have been raised about the contraceptive target which is called testis-specific serine/threonine kinases (TSSKs) and, as an outcome, around the advancement of small particle kinase inhibitors, which might hinder fertile activity. Such kinases and the analogs testis-specific serine kinase substrate (TSKS), serine/threonine kinase (SSTK), and TSSK1–4 are the members of a family that are present in the testicles that provide tissue-specific focuses for developing contraceptive formulation [34]. In situ hybridization in rodents has confirmed that TSSK2, SSTK, and TSKS are post-meiotic in action. As a result of this approach, they are potential targets for reversible contraception intermediate along with saving spermatogonia and spermatocytes. This direction showed high throughput screening of TSKS phosphorylation inhibitors yields a variety of targets for contraceptives. Nonetheless, these kinase groups are no longer rigorously testis-specific or might, as a result, be unsuitable for male contraception. Tyrosine kinases, particularly the Src family and subfamilies, are another group of kinases involved in spermatogenesis [35].

11-Beta-Methyl-19-Nortestosterone 17-Beta-Dodecylcarbonate (11βmntdc)

11βmntdc is derived from the 19-nortestosterone compound. 11βmntdc is nontoxic when compared to testosterone and other modified androgens when given orally [36]. In rats, 11βmntdc suppressing the androgen composition and serum gonads and bone mineral density [36]. In a recent study a dose of 100-800 mg, suppressed the testosterone production and was well tolerated. 11βmntdc are having more balanced androgen receptor and progesterone receptor activity. A 28 d trial is still underway with a dose of 200-400 mg 11βmntdc. In the next decade, this promising compound can be suggested as a male pill.

Nestorone (16-Methylene-17alpha-acetoxy-19-Norpregn-4-ene-3,20-Dione)

It is additionally known as segesterone acetate, a progestin that does not have androgenic, estrogen, and glucocorticoid property activity [37]. It is the purest progestin that is suggested as a less toxic male contraceptive when combined with testosterone. A preparation study conducted as Nestorone transdermal (6-8 mg/d) application with testosterone gels (10 mg/d) for 21 d that suppresses the LH and FSH levels in men [37]. Side effects may be seen as acne, increased hematocrit, weight gain, mood change, increased appetite, etc. At present, a clinical trial is under-processed in humans from four continents in 400 couples, men who used the gel daily reached sperm concentrations of fewer than 1 million/ml and entered the 52-w effectiveness phase. Results from this study may be expected in 2021.

7-Alpha-Methyl-19-Nortestosterone (MENT)

It is derived from the 19-nortestosterone. It is tenfold more potent than testosterone alone androgen. MENT is not a 5 alpha reduced product, although it is aromatic to one that binds to the estrogen receptor [38]. In a study, etonogestrel and progestin compare with either combination with MENT implant or with T pellets for every 12 w. It suppresses the sperm concentration. Every effort in developing an implant with an appropriate drug delivery system is under process.

A strategy that is inspired by cocktail preparation

In India, Scientists developed a technology RISUG i. e s sperm blocking process that gives a result of azoospermia and flushed out with the help of sodium bicarbonate or DMSO can reverse fertility. Wang and colleagues injected methoxypoly(ethylene glycol)-modified AuNPs into the testis of male rats. Increasing the temperature of the testis with near-infrared light can give a short-term or permanent contraceptive effect. On the above discussion, a method inspired by colorful layered cocktail design gives an idea for contraception. In this study, a group of four materials or reagents in injected into the vas deference onward the path of sperm swimming marked as:

(1) increase temperature agent/physical barrier PEG-AuNPs;

(2) inhibitor sperm chemical/hydrogel solvent EDTA;

(3) increase temperature agent/physical barrier PEG-AuNPs;

(4) long term affect physical barrier: calcium alginate hydrogel (SA)

All of these components are initially injected in liquid form. After injection, the alginate hydrogel in the base cross-links into a solid, and PEG-AuNPs solidify at 37° C, preventing the end of EDTA. As vas deference is providing enough space for injection within a specific length. When it is important to regain fertility these positions are irradiated by an infrared lamp. (stage 1) On acquiring radiation (stage 2), PEG-AuNPs liquefy into the fluid form and in the middle EDTA mix gradually with PEG solution than the hydrogel gets mix by EDTA (stage 3) and the clear off naturally (stage 4). It must be noticed that as PEG-AuNPs melt even on removing an infrared device, PEG-AuNPs would not solidify and reblock the vas deference again [39]. Further examination such as determining the behavior of an animal, vas deference anatomy, and with HE staining and color reaction in urine identify the melamine concentration are carried out. This preparation (SA/PEG-AuNPs/EDTA) gives the contraceptive effect of reducing sperm vitality and motility. But these ingredients act on sperm differently.

Gendarussa

A plant usually in Indonesia is used as a traditional remedy known as Justicia gendarussa. Men in Papua, New Guinea, use this plant as a contraceptive. And also used in the treatment of pain and inflammation. An active constituent is gendarusin A and B which may be flavonoid present in it. The root and this plant's leaves are boiled in water and then swallowed to explore the contraceptive purpose for 2-3 mo. The mechanism of action is still unknown but several studies conducted to check its efficacy. This drug is still undergoing clinical trials [40].

Adjudin

Adjudin is a derivative of lonidamine. Lonidamine is partially introduced as a chemotherapeutic agent that inhibits Sertoli-spermatids junction [41]. Adjudin is 1-(2,4-dichlorobenzyl)-1H-indazole-3-carbohydra-zide. This drug when taken two times a day reversibly suppresses the spermatogenesis process in rats [42, 43]. Liver inflammation and atrophy of skeletal muscle like side effects were observed in the 29-d study trial [44]. Researchers investigate with FSH-β mutant with adjudin to focus on Sertoli cells to reduce its dose for getting the contraception effect [45].

Adjudin

AF-2383

Gamendazole

H2-Gamendazole

Retinolic acid

Lonidamine

Fig. 2: Chemical structure of some contraceptives

H2-Gamedazole

H2-Gamendazole is a derivative of lonidamine as well as Adjudin that interferes in the maturation of spermatozoa. When a dose of 6 mg/kg is given for a w causes the arrest of spermatogenesis in rats. When given a high dose to rats, it will lead to their death [46]. Due to their high toxicity levels in rats, preclinical testing for humans must be needed.

Retinoic acid receptor antagonists

Vitamin A and its analogs (retinoic acid) are required for the spermatogenesis process [47, 48]. Retinoic acid binds to the retinoic acid receptor (RARs). Retinol is converted into retinoic acid in seminiferous tubules with the aldehyde dehydrogenase pathway. Deficiency and inhibition of vitamin A may be responsible for the arrest of spermatogenesis and termed as contraceptive agents. A RAR antagonist BMS-189453 when given by mouth to rat for 28 d causes inhibits fertility and recovery upon halted of treatment [49]. Liver inflammation can be observed as a side effect. A low dose of BMS-189453 1 mg/kg shows suppression of spermatozoa without toxicity to the liver. WIN 18,446 can be an advantageous male contraceptive that inhibits retinoic acid biosynthesis. Reversible oligozoospermia was observed in men when treated. Vomiting, mood changes, disulfiram reactions, nausea like side effects were noted, when taken with alcohol [50]. It inhibits sperm production with the help of the blocking of aldehyde dehydrogenase ALDH1A1 and ALDH1A2 [51, 52]. Research is ongoing on the development of such compounds which blocks retinoic acid biosynthesis without blocking alcohol metabolism [53]. Results are in under trials if possible it can be a great initiative for the contraceptive of men.

CatSper

CatSper is a calcium channel of sperm [54]. Inhibition of this protein can cause infertility in men because disrupts in calcium level in sperm leads to disrupts the quality of sperm [55]. No in vivo data was observed for this compound and CatSper antagonist to date. But few gatherings are in undertrials showing sperm ion channels as expected male contraceptive [56]. Also, there are some inventions of herbal products which are derived from raw plant or their parts. In this data like safety profile and toxicity value, their mechanism of actions, their effective doses, and their activity were included.

Some herbal products will be a promising approach in male contraception that is mentioned in table 1 and table 2. This table shows us all the related information about these herbal plants.

Table 1: Profile of some natural male contraceptives products

Plant extract Dose Model used Duration Recovery Period Reference
Achyranthes aspera protein 25 mg/kg Mice 5 w N/A [57]
Bergapten 75 mg/kg Rats 8 w N/A [58]
Carica papaya fatty acid 50 mg/kg Langur monkey 12 mo After 60-120 d on withdrawal period [59, 60]
20, 40 mg/kg Rats 21 w After halted treatment 150 d [61]
Cannabis sativa extract 3-6 g/kg Mice 5 w After halted treatment of 45 d and 100% recovery [62, 63]
Camelliasaponin c1 100-400 mg/kg Mice 42 d N/A [64]
Embelin 20 mg/kg Rats 2-4 w After 250 d on halt the treatment [65, 66]
Lupeol acetate 50-60 mg/kg Rats 8-9 w N/A [67]
NB-DNJ 5-2400 mg/kg Mice 42 d In 5 w on halted treatment [68]
NB-DNJ 15 mg/kg Mice 42 d N/A [69]
NB-DGJ 150-600 mg/kg Mice 42 d In 5 w on halted treatment [70]
Oleanolic acid 16 mg/kg Rats 4 w After 14 d on halted treatment [71]
15-30 mg/kg Rats 8 w N/A [72]
Piperine 10 mg/kg Rats 8 w After 60 d on withdrawal period [73, 74]
Solasodine 100 mg/kg Monkey 21 w N/A [65]
Tripterium wilfordii glycosides 10 mg/kg and 20 mg/kg Rats 49-91 d and 28-70 d After 20 d on halted treatment [75]
7.5-45 mg/kg Rats 6 w N/A [76]
Triptolide 0.06 mg/kg Rats 14 d Complete recovery in 4-6 w on halt treatment [77]
Xanthotoxin 150 mg/kg Rats 56 d N/A [58]

Tetrahydrocannabinol

[THC]

 2 mg/kg Rats 4 w Complete recover Leydig cells after treatment in 63 d [78]
ZNF 185 derived peptide 0.08 mg/kg Mice as vaccine 4 times 7 d interval N/A [79]
β–sitosterol [pistia stratiotes] 50 mg/kg Mice 7 w N/A [80]
β–Carophyllene 10 mg/kg Rats 4 w Reversible [81]
α–Amyrin acetate 50-60 mg/kg Rats 8 w N/A [82]
β–sitosterol 0.5-5 mg/kg Rats 2-7 w Later 30 d of withdrawal treatment [83]

Table 2: Mechanism of action of above listed natural male contraceptives

Plant extract Mechanism of action and their result Reference
Achyranthes aspera protein Spermatotoxicity manifests as sperm count motility and abnormalities. Significant differences in testicular actions such as HMG CoA reductase and serum testosterone. [57]
Bergapten

Adult males who have been treated have pituitary glands that are significantly smaller and have low sperm per ejaculate.

Elevated testosterone levels and testicular relative weight. Females bred to dosed adult males needed more time to become pregnant.

 [58]
Carica papaya fatty acid

During 8 w of therapy, total suppression of sperm motility was determined, and this lasted for the whole 12 mo trial period.

Following 4 w of treatment, sperm count, percentage viability, and percentage normal spermatozoa all showed a significant decrease.

Following 30 d of treatment, sperm morphology indicated the predominance of midpiece anomalies.

Sperm functional tests yielded infertile results.

Sertoli cells and germ cells Vacuolization, After 12 mo, there was a loss of cytoplasmic organelles in spermatocytes and spherical spermatids.

 [59, 60]

Throughout 8 w, a total reduction of cauda epididymal sperm viability proportion was associated with a decline in the count of sperm and viability and an increased proportion of defective spermatozoa.

For 8-21 w, few changes in germ cell proliferation into the prostate and vacuolization and pyknotic nuclei in a few epithelial cells of the cauda epididymis were seen.

Every month, a negative fertility test is performed.

 [61]
Cannabis sativa extract (Δ9-THC)

Restrictive changes in testicular weight dropped sperm count, viability, and motility by 14% and lowered the count of sperm, motility, and viability [all doses].

Because of a decrease in testicular enzyme activity, there is a significant decrease in the circulating testosterone stage.

A substantial improvement in the CB1 and CB2 receptors, as well as fatty acid amide hydrolase protein levels, was seen in mice testes as a result of GnRH inhibitory action.

 [62, 63]
Camelliasaponin c1 Sperm counts diminished as the number of unusual spermatozoa continued to rise. As the dosage was increased to 400 mg/kg, the weight of the testicles and their seminiferous tube area steadily decreased. Germ cells were depleted and found to have an asymmetric distribution in seminiferous tubules at all doses. Necrosis can be used to suggest apoptosis in spermatocytes and spermatids. Enzymes involved, as well as superoxide dismutase, glutathione peroxidase, and total antioxidant capability, were drastically decreased, whereas malondialdehyde content was increased in the testicles. [64]
Embelin In the epididymis, motile sperm count Suppression with some changes in the glycolysis activity and energy metabolism enzymes. [65, 66]
Lupeol acetate

The weights of the testicles, seminal vesicle, epididymis, and ventral prostate all diminished.

Sperm number and density were drastically decreased.

Secondary spermatocytes, germ cell pachytene preleptotene, and step-19 spermatid populations all showed a decrease in amount.

The nuclear region of the Leydig cell matures Leydig cell counts.

Sertoli counts and seminiferous tubular size cross-sectional surface region were drastically decreased.

The fructose content of seminal vesicular was also distorted, but the LDL cholesterol material in the testicles was markedly improved.

 [67]

NB-DNJ

NB-DGJ

 15 mg of NB-DNJ and 150, 300, and 600 mg/kg/d of NB-DGJ caused the decline of spermatozoa with standard nuclei and acrosomes but did not result in any epigenetic anomalies in the infants. The percentage of sperm cells that contain S-S-protamines is dramatically lower than in normal mice (caput). After mating among adult males and females, NB-DGJ and NB-DNJ are unable to fertilize oocytes in vitro and produce fewer offspring.

[68]

[69]

[70]
Oleanolic acid The proportion of sperm motility was diminished. When the mated with treated male rats, no further pregnancy occurs. [71]
Piperine A massive decrease in the epididymis weight. Sperm concentration falls. At all levels, there is a massive reduction in sperm motility and viability. Significantly impairs sperm capacitation and maturation by decreasing the activity of superoxide dismutase and catalase. In all doses, groups ED and ED4 repressed the spermatozoa in tissues of the seminal vesicle and epididymis. [73, 74]
Solasodine Impairment with spermiogenesis in late spermatids at stage XI1. Spermatids had been reduced. Immature and mature Leydig cell activity has been reduced and a significant decrease in sperm count of the cauda region [65]
The epithelial size of the cauda epididymis was diminished. The cells atrophied. Total protein and sialic acid levels, as well as glycogen and acid phosphatase activity, have all dropped significantly in the cauda epididymis. [66]
Tripterygium wilfordii glycosides Spermatogenesis and initial nuclear protein synthesis turnover are significantly inhibited in post elongated spermatids. The sperm cells in the epididymis region were reduced, and surviving spermatozoa distorted, with head enlargement, separate head, tail, and curving of the middle portion. [75]
The rate of pregnancy declined as the dose and treatment time increased, reaching 0% at forty d in the 45 mg/kg group. [76]
Triptolide The cauda epididymis sperm concentration was diminished by 84.8 percent, and the proportion of sperm motility diminished. Extreme structural abnormalities were seen in epididymal sperm. Single-layer of cells that consist of Sertoli cells and spermatogonia, lines the flat seminiferous epithelium. [77]
Xanthotoxin Adult males who had been treated had a significantly small size of pituitary glands and less sperm ejaculation. Elevated testosterone levels and increased relative testis weight Females who were mated to injected adult males needed more time to become pregnant. [58]
ZNF185-derived peptide Peptide immunisation restricted the coupling and reproduction of mice, however, no noticeable differences in the number of offspring per litter due to a decrease in sperm count number and its motility, but the amount of unusual sperm was massively increased. There was no harm done to sex organs. [79]

β-sitosterol saponin of Pistia

stratiotes

Weight loss of reproductive organs such as the testicles, seminal vesicle, epididymis. Sperm count and viability, sperm abnormalities, and testosterone level of serum have all been significantly reduced.

Alteration in the seminiferous tubules.

 [80]
β-Caryophyllene Significantly elevated in their weight of the body but does not affect the weight of sex organs. Sperm quantity of Cauda epididymal percentages of presented motile sperm and spermatozoa with normal form were significantly reduced. It has no effect on testicles or the epididymis. [81]
α-Amyrin acetate

The weights of the testicles, epididymis, seminal vesicle, and ventral prostate all diminished.

Sperm motility and density have both been diminished. There has been a drastic reduction in the populations of germ cell pachytene, preleptotene secondary spermatocytes, and spermatids.

The nuclear region of the Leydig cell grows Leydig cell counts. The diameter of the seminiferous, the amount of Sertoli cells, the cross-sectional surface areas were all diminished. The fructose level of seminal vesicular was also depleted, but the cholesterol quantity of the testicles was considerably increased.

 [82]
β-Sitosterol The antifertility activity was shown by increasing daily dose, but there was a marked decline in the weight of testicles and sperm count after long-term treatment at higher and lower doses. The weights of all auxiliary sex organs, besides the caput epididymis, extended upon low doses, including the seminal vesicle, cauda epididymis, dorsolateral prostate, coagulating gland, ventral prostate. In a time-dependent manner, high dose reported decreased the weights of the testicle and auxiliary sex tissues such as the cauda epididymis. [83]

Achyranthes aspera protein

Bergapten and xanthotoxin

Camelliagenin C

Carica papaya fatty acids

Cannabinoids

Embelin

Gossypol

Lupeol acetate and α-Amyrin acetate

N-butyldeoxynojirimycin (NB-DNJ) and N-butyldeoxygalactonojirimycin (NB-DGJ)

Oleanolic acid

Ursolic acid

Piperine

Solasodine

Triptolide

Tripterygium wilfordii glycosides

ZNF185

β sitosterol saponin Pistia straiotes

β sitosterol

Why we have not received the male birth control pill yet?

The male birth control pill is seen as a new era in contraception terms. But it is not like that. Keep this in mind; many researchers have examined the different types of drugs as birth control. In 1960, FDA approved the birth control pill for females in which the hormone estrogen and progestin combine that comes like a revolutionary product in the world. But manufacturing a male birth control pill in this mist seems like a waste. However, this year, numerous scientists said that assembling a male contraception pill is a stage towards the counteraction of accidental pregnancy and lessen the burden of conception in females. Promising another examination has been exhibited the efficacy of a few new details of male contraception. The first is the dimethandrolone undecanoate [DMAU] pill passed through the clinical assessment comparatively a pill 11-beta-MNTDC a novel medication is still in undertrial [36]. Second is NET/T, as an effective gel with a blend of progestin and testosterone which is in progress to analyze the adequacy as a prophylactic in a long manner [37].

But there can be a possibility of a breakthrough in male contraception. Hormonal contraception for men is highly effective and also reversible. There are lots of men who are willing to participate in it and want to share the burden of contraception. Still, options for men are like years away because any drug to be marketed would first have to go through large scale testing. Contraceptives are having longer time action and work continually that why a drug needs to be used for years before it can be proved as effective. And we think it will be a decade that goes toward the male contraception methods and more work to do.

Table 3: List of various contraceptives patents

Patent no. Patent name Inventor/Assignee
DE10027378B4 Procreation prevention Schooo, Andreas, 80686 Munchen DE
DE102012005379A1 Contraception method for men, involves applying heat to epididymis in regular time spacing for fixed duration on fixed increased temperature so that maturity process of sperm is disrupted and sperm die Anmelder Gleich
EP1488784B1 Male contraceptive implant Saleh I. Saleh, Alfred J. Moo-Young
EP1666044B1 Male contraceptive formulation comprising norethisterone A. Rubig, UF. Habeeicht, A. Kamischke, E. Nieschlag, M. Oettel, E. Schillinger
JPH07289576A Lubricant jelly encapsulation condom and its production Tsuguto kaieda
JP4029359B1 Men’s birth control device Kiyoji Sawada
JP3053331U Condom fall prevention ring Seiki Yamanaka
US4972849A Condom (sanitary contraception device) Yong-Yeon Park, Weol-Seon Suh
US20150320586A1 Condom having a form tip KC Nguyen, C. Ngowprasert, C. Netrung, C. Pongthanomsak
US3536066A Human birth control appliance Reginald O Ludwig
US5733565A Male contraceptive implant Alfred J. Moo-Young, Saleh I. Saleh
US20100089406A1 Method and device for male contraception Elena Kachiguina
US5888543 Oral contraceptives Michael J. Gast
US5858405 Oral contraceptive Michael J. Gast
US5063064 Method for inhibiting and destroying spermatozoa Pierre Bourbon, Pierre Lagny, Pierre Billot
WO2008062858A1 Dropping preventive device for male contraceptive device Seji Sawada
WO1997031921A1 Immunosuppressive compounds and method You Mao Qi, John H. Musser, John M. Fidler
WO2014127682A1 Blocking ring type condom Lan Qingtian
WO2009113108A2 Styrene maleic anhydride based formulation for male contraception and prostate cancer Kumar Guha Sujoy
WO2016205539A1 Non hormonal male contraceptive agents and method using same Wei Yan

Acceptance of male contraceptives

Why the production of contraceptives is not continued? One reason for this is that the development of male contraceptives at this time may raise questions regarding their acceptability. However, demand is increased toward the male contraceptive and women forum and other population conferences clear-cut called for recent male contraceptives. In the global population, one-quarter of couples are based totally on practicing male contraception methods. But along with different preferences practicing male contraception is notably grown in Netherland. The proportion of vasectomized men whose better halves were in reproductive age rose from 2%-10.5% in 1975-2008 and 8%-12% in the USA. Higher numbers of vasectomized men were found in the United Kingdom, New Zealand. Comparatively, the uses of condoms in different countries for contraception have an average of 5-6%. According to a survey, 10 y ago in Shanghai and Hong Kong, half of the population of men were willing to use contraceptive pills as daily intake, and in Cape town around 2/3 of men do so [108, 109]. After 50 y of oral female contraceptives, the posture of male contraceptives has been changed. A different survey conducted worldwide showed the willingness to use contraceptive methods [110].

There are some contraceptives patents listed in below table 3.

CONCLUSION

In developing countries, population growth is the major cause of poverty and pollution. Over the years, several different ways of infertility induction have been investigated. These contraceptives can provide options for men and women who have difficulty or do not have access to modern contraceptives, particularly in rural parts of developing countries with a large population, such as India. However, due to insufficient inhibition of fertility or adverse effects, the hunt for an oral, safe, and effective contraception remains important for fertility regulation. From this study, it is clear these contraceptives can play a vital role in the prevention of unplanned pregnancy. These contraceptives may impact the male reproductive system has been studied in animals by way of commentary of changes in weight, histology, and endocrine functions. The researchers have advised that it may additionally be due to the inhibition of synthesis or the release of gonadotropin from the pituitary gland, a direct inhibitory impact of the testis or hormonal activity. The overview consequences confirmed that the above-mentioned contraceptives possess anti-fertility activity in dose based manner. Hence, it is concluded that this assessment may additionally focus the researcher’s interest in medical research which ought to be of fantastic scientific contribution to society.

ABBREVIATIONS

FSH: Follicle-stimulating hormones, LH: Luteinizing hormones, DMSO: Dimethyl sulfoxide, EDTA: Ethylenediaminetetraacetic acid, PEG: Polyethylene glycol, ALDH: Aldehyde dehydrogenase

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTERESTS

Declared none

REFERENCES

  1. Soni PK, Luhadia G, Sharma DK, Mali PC. Antifertility activates of traditional medicinal plants in male with emphasis on their mode action: a review. J Glob Biosci. 2015;4:1165-79.

  2. Kaur R, Sharma A, Kumar R, Kharb R. Rising trends towards herbal contraceptives. J Nat Prod Plant Resour. 2011;1:5-12.

  3. Bajaj VK, Gupta RS. Fertility suppression in male albino rats by administration of methanolic extract of Opuntia dillenii. Andrologia. 2012;44;Suppl 1:530-7. doi: 10.1111/j.1439-0272.2011.01220.x, PMID 21950638.

  4. Sabatini R, Cagiano R, Rabe T. Adverse effects of hormonal contraception. J Reproduktionsmed Endokrinol. 2011;8(1):130-56.

  5. Burrows LJ, Basha M, Goldstein AT. The effects of hormonal contraceptives on female sexuality: a review. J Sex Med. 2012;9(9):2213-23. doi: 10.1111/j.1743-6109.2012.02848.x, PMID 22788250.

  6. Amory JK. Male contraception. Fertil Steril. 2016;106(6):1303-9. doi: 10.1016/j.fertnstert.2016.08.036, PMID 27678037.

  7. Kanakis GA, Goulis DG. Male contraception: a clinically oriented review. Hormones (Athens). 2015;14(4):598-614. doi: 10.14310/horm.2002.1623, PMID 26732151.

  8. Pandey MM, Rastogi S, Rawat AK. Indian traditional ayurvedic system of medicine and nutritional supplementation. Evid Based Complement Alternat Med. 2013;2013:376327. doi: 10.1155/2013/376327. PMID 23864888.

  9. Veeresham C. Natural products derived from plants as a source of drugs. J Adv Pharm Technol Res. 2012;3(4):200-1. doi: 10.4103/2231-4040.104709, PMID 23378939.

  10. Gava G, Meriggiola MC. Update on male hormonal contraception. Ther Adv Endocrinol Metab. 2019;10:2042018819834846. doi: 10.1177/2042018819834846, PMID 30899448.

  11. Plana O. Male contraception: research, new methods, and implications for marginalized populations. Am J Mens Health. 2017;11(4):1182-9. doi: 10.1177/1557988315596361. PMID 26206159.

  12. Dey D, Chatterjee A, Banji D, Bhowmik BB. Current status of male contraception. Am J Phytomed Clin Ther. 2013;1(13):282-90.

  13. Reynolds Wright JJ, Anderson RA. Male contraception: where are we going and where have we been? BMJ Sex Reprod Health. 2019;45(4):236-42. doi: 10.1136/bmjsrh-2019-200395, PMID 31537614.

  14. DʼAnna LH, Korosteleva O, Warner L, Douglas J, Paul S, Metcalf C, McIlvaine E, Malotte CK, RESPECT-2 Study Group. Factors associated with condom use problems during vaginal sex with main and non-main partners. Sex Transm Dis. 2012;39(9):687-93. doi: 10.1097/OLQ.0b013e31825ef325, PMID 22895490.

  15. Fennell J. ’And Isn’t that the point?’: pleasure and contraceptive decisions. Contraception. 2014;89(4):264-70. doi: 10.1016/j.contraception.2013.11.012, PMID 24332430.

  16. Walsh TL, Frezieres RG, Peacock K, Nelson AL, Clark VA, Bernstein L. Evaluation of the efficacy of a nonlatex condom: results from a randomized, controlled clinical trial. Perspect Sex Reprod Health. 2003;35(2):79-86, PMID 12729137.

  17. Haws JM, Morgan GT, Pollack AE, Koonin LM, Magnani RJ, Gargiullo PM. Clinical aspects of vasectomies performed in the united states in 1995. Urology. 1998;52(4):685-91. doi: 10.1016/s0090-4295(98)00274-x, PMID 9763094.

  18. Philp T, Guillebaud J, Budd D. Complications of vasectomy: review of 16,000 patients. Br J Urol. 1984;56(6):745-8. doi: 10.1111/j.1464-410x.1984.tb06161.x, PMID 6534499.

  19. Jequier AM. Vasectomy related infertility: a major and costly medical problem. Hum Reprod. 1998;13(7):1757-9. doi: 10.1093/humrep/13.7.1757, PMID 9740413.

  20. Campbell AD, Turok DK, White K. Fertility intentions and perspectives on contraceptive involvement among low-income men aged 25 to 55. Perspect Sex Reprod Health. 2019;51(3):125-33. doi: 10.1363/psrh.12115, PMID 31449728.

  21. Daniels K, Daugherty J, Jones J, Mosher W. Current contraceptive use and variation by selected characteristics among women aged 15-44: United States, 2011-2013. Natl Health Stat Report. 2015;86(86):1-14. PMID 26556545.

  22. Contraceptive efficacy of testosterone-induced azoospermia in normal men. World Health Organization Task Force on methods for the regulation of male fertility. Lancet. 1990;336(8721):955-9. PMID 1977002.

  23. World Health Organization Task Force on Methods for the Regulation of Male Fertility. Contraceptive efficacy of testosterone-induced azoospermia and oligozoospermia in normal men. Fertil Steril. 1996;65(4):821-9. doi: 10.1016/S0015-0282(16)58221-1, PMID 8654646.

  24. Turner L, Conway AJ, Jimenez M, Liu PY, Forbes E, McLachlan RI, Handelsman DJ. Contraceptive efficacy of a depot progestin and androgen combination in men. J Clin Endocrinol Metab. 2003;88(10):4659-67. doi: 10.1210/jc.2003-030107, PMID 14557437.

  25. Gu Y, Liang X, Wu W, Liu M, Song S, Cheng L, Bo L, Xiong C, Wang X, Liu X, Peng L, Yao K. Multicenter contraceptive efficacy trial of injectable testosterone undecanoate in Chinese men. J Clin Endocrinol Metab. 2009;94(6):1910-5. doi: 10.1210/jc.2008-1846, PMID 19293262.

  26. Gu YQ, Wang XH, Xu D, Peng L, Cheng LF, Huang MK, Huang ZJ, Zhang GY. A multicenter contraceptive efficacy study of injectable testosterone undecanoate in healthy Chinese men. J Clin Endocrinol Metab. 2003;88(2):562-8. doi: 10.1210/jc.2002-020447, PMID 12574181.

  27. Behre HM, Zitzmann M, Anderson RA, Handelsman DJ, Lestari SW, Mclachlan RI, Meriggiola MC, Misro MM, Noe G, Wu FC, Festin MP, Habib NA, Vogelsong KM, Callahan MM, Linton KA, Colvard DS. Efficacy and safety of an injectable combination hormonal contraceptive for men. J Clin Endocrinol Metab. 2016;101(12):4779-88. doi: 10.1210/jc.2016-2141, PMID 27788052.

  28. Soufir JC, Meduri G, Ziyyat A. Spermatogenetic inhibition in men taking a combination of oral medroxyprogesterone acetate and percutaneous testosterone as a male contraceptive method. Hum Reprod. 2011;26(7):1708-14. doi: 10.1093/humrep/der138, PMID 21551452.

  29. Chang Z, Qin W, Zheng H, Schegg K, Han L, Liu X, Wang Y, Wang Z, McSwiggin H, Peng H, Yuan S, Wu J, Wang Y, Zhu S, Jiang Y, Nie H, Tang Y, Zhou Y, Hitchcock MJM, Tang Y, Yan W. Triptonide is a reversible non-hormonal male contraceptive agent in mice and non-human primates. Nat Commun. 2021;12(1):1253. doi: 10.1038/s41467-021-21517-5, PMID 33623031.

  30. Khera N, Ghayor C, Lindholm AK, Pavlova E, Atanassova N, Weber FE. Reversible contraceptive potential of FDA approved excipient N, N-dimethylacetamide in male rats. Front Physiol. 2020;11:601084. doi: 10.3389/fphys.2020.601084. PMID 33240111.

  31. Wisniewski A, Georg GI. BET proteins: investigating BRDT as a potential target for male contraception. Bioorg Med Chem Lett. 2020;30(6):126958. doi: 10.1016/j.bmcl.2020.126958.

  32. O’Rand MG, Widgren EE, Wang Z, Richardson RT. Eppin: an effective target for male contraception. Mol Cell Endocrinol. 2006;250(1-2):157-62. doi: 10.1016/j.mce.2005.12.039, PMID 16423450.

  33. O’Rand MG, Widgren EE, Hamil KG, Silva EJ, Richardson RT. Epididymal protein targets: a brief history of the development of epididymal protease inhibitor as a contraceptive. J Androl. 2011;32(6):698-704. doi: 10.2164/jandrol.110.012781, PMID 21441428.

  34. Garside DA, Gebril A, Alssadi M, Nimmo N, Mullen AB, Ferro VA. An update on the potential for male contraception: emerging options. Open Acess J Contracept. 2013;4:1-11.

  35. Kierszenbaum AL. Tyrosine protein kinases and spermatogenesis: truncation matters. Mol Reprod Dev. 2006;73(4):399-403. doi: 10.1002/mrd.20456, PMID 16432822.

  36. Thirumalai A, Page ST. Recent developments in male contraception. Drugs. 2019;79(1):11-20. doi: 10.1007/s40265-018-1038-8, PMID 30588563.

  37. Sitruk Ware R, Nath A. The use of newer progestins for contraception. Contraception. 2010;82(5):410-7. doi: 10.1016/j.contraception.2010.04.004, PMID 20933114.

  38. Sundaram K, Kumar N. 7alpha-Methyl-19-nortestosterone (MENT): the optimal androgen for male contraception and replacement therapy. Int J Androl. 2000;23(S2);Suppl 2:13-5. doi: 10.1046/j.1365-2605.2000.00004.x.

  39. Bao W, Xie L, Zeng X, Kang H, Wen S, Cui B, Li W, Qian Y, Wu J, Li T, Deng K, Xin HB, Wang X. A cocktail-inspired male birth control strategy with physical/chemical dual contraceptive effects and remote self-cleared properties. ACS Nano. 2019;13(2):1003-11. doi: 10.1021/acsnano.8b06683, PMID 30698012.

  40. Widyowati R, Agil M. Chemical constituents and bioactivities of several Indonesian plants typically used in jamu. Chem Pharm Bull (Tokyo). 2018;66(5):506-18. doi: 10.1248/cpb.c17-00983, PMID 29710047.

  41. Cheng CY. Toxicants target cell junctions in the testis: insights from the indazole-carboxylic acid model. Spermatogenesis. 2014;4(2):e981485. doi: 10.4161/21565562.2014.981485, PMID 26413399.

  42. Grima J, Silvestrini B, Cheng CY. Reversible inhibition of spermatogenesis in rats using a new male contraceptive,1-(2,4-dichlorobenzyl)-indazole-3-carbohydrazide. Biol Reprod. 2001;64(5):1500-8. doi: 10.1095/biolreprod64.5.1500, PMID 11319158.

  43. Cheng CY, Mruk D, Silvestrini B, Bonanomi M, Wong CH, Siu MKY, Lee NP, Lui WY, Mo MY. AF-2364 [1-(2,4-dichlorobenzyl)-1H-indazole-3-carbohydrazide] is a potential male contraceptive: a review of recent data. Contraception. 2005;72(4):251-61. doi: 10.1016/j.contraception.2005.03.008, PMID 16181968.

  44. Mok KW, Mruk DD, Lie PP, Lui WY, Cheng CY. Adjudin, a potential male contraceptive, exerts its effects locally in the seminiferous epithelium of mammalian testes. Reproduction. 2011;141(5):571-80. doi: 10.1530/REP-10-0464, PMID 21307270.

  45. Mruk DD, Wong CH, Silvestrini B, Cheng CY. A male contraceptive targeting germ cell adhesion. Nat Med. 2006;12(11):1323-8. doi: 10.1038/nm1420, PMID 17072312.

  46. Tash JS, Chakrasali R, Jakkaraj SR, Hughes J, Smith SK, Hornbaker K, Heckert LL, Ozturk SB, Hadden MK, Kinzy TG, Blagg BS, Georg GI. Gamendazole, an orally active indazole carboxylic acid male contraceptive agent, targets HSP90AB1 (HSP90BETA) and EEF1A1 (eEF1A), and stimulates Il1a transcription in rat sertoli cells. Biol Reprod. 2008;78(6):1139-52. doi: 10.1095/biolreprod.107.062679, PMID 18218611.

  47. Vernet N, Dennefeld C, Rochette-Egly C, Oulad-abdelghani M, Chambon P, Ghyselinck NB, Mark M. Retinoic acid metabolism and signaling pathways in the adult and developing mouse testis. Endocrinology. 2006;147(1):96-110. doi: 10.1210/en.2005-0953, PMID 16210368.

  48. Koubova J, Menke DB, Zhou Q, Capel B, Griswold MD, Page DC. Retinoic acid regulates sex-specific timing of meiotic initiation in mice. Proc Natl Acad Sci USA. 2006;103(8):2474-9. doi: 10.1073/pnas.0510813103, PMID 16461896.

  49. Chung SSW, Wang X, Roberts SS, Griffey SM, Reczek PR, Wolgemuth DJ. Oral administration of a retinoic acid receptor antagonist reversibly inhibits spermatogenesis in mice. Endocrinology. 2011;152(6):2492-502. doi: 10.1210/en.2010-0941, PMID 21505053.

  50. Roth MY, Amory JK. Beyond the condom: frontiers in male contraception. Semin Reprod Med. 2016;34(3):183-90. doi: 10.1055/s-0036-1571435, PMID 26947703.

  51. Amory JK, Muller CH, Shimshoni JA, Isoherranen N, Paik J, Moreb JS, Amory DW, Evanoff R, Goldstein AS, Griswold MD. Suppression of spermatogenesis by bisdichloroacetyldiamines is mediated by inhibition of testicular retinoic acid biosynthesis. J Androl. 2011;32(1):111-9. doi: 10.2164/jandrol.110.010751, PMID 20705791.

  52. Paik J, Haenisch M, Muller CH, Goldstein AS, Arnold S, Isoherranen N, Brabb T, Treuting PM, Amory JK. Inhibition of retinoic acid biosynthesis by the bisdichloroacetyldiamine win 18,446 markedly suppresses spermatogenesis and alters retinoid metabolism in mice. J Biol Chem. 2014;289(21):15104-17. doi: 10.1074/jbc.M113.540211, PMID 24711451.

  53. Chen Y, Zhu JY, Hong KH, Mikles DC, Georg GI, Goldstein AS, Amory JK, Schönbrunn E. Structural basis of ALDH1A2 inhibition by irreversible and reversible small molecule inhibitors. ACS Chem Biol. 2018;13(3):582-90. doi: 10.1021/acschembio.7b00685. PMID 29240402.

  54. Ren D, Navarro B, Perez G, Jackson AC, Hsu S, Shi Q, Tilly JL, Clapham DE. A sperm ion channel required for sperm motility and male fertility. Nature. 2001;413(6856):603-9. doi: 10.1038/35098027, PMID 11595941.

  55. Qi H, Moran MM, Navarro B, Chong JA, Krapivinsky G, Krapivinsky L, Kirichok Y, Ramsey IS, Quill TA, Clapham DE. All four CatSper ion channel proteins are required for male fertility and sperm cell hyperactivated motility. Proc Natl Acad Sci USA. 2007;104(4):1219-23. doi: 10.1073/pnas.0610286104, PMID 17227845.

  56. Lishko PV. Contraception: search for an ideal unisex mechanism by targeting ion channels. Trends Biochem Sci. 2016;41(10):816-8. doi: 10.1016/j.tibs.2016.08.002, PMID 27545067.

  57. Anuja MN, Nithya RN, Rajamanickam C, Madambath I. Spermatotoxicity of a protein isolated from the root of Achyranthes aspera: a comparative study with Gossypol. Contraception. 2010;82(4):385-90. doi: 10.1016/j.contraception.2010.04.011, PMID 20851234.

  58. Diawaraa MM, Chavez KJ, Simpleman D, Williams DE, Franklin MR, Hoyer PB. The psoralens adversely affect reproductive function in male wistar rats. Reprod Toxicol. 2001;15(2):137-44. doi: 10.1016/s0890-6238(01)00118-6, PMID 11297873.

  59. Lohiya NK, Manivannan B, Mishra PK, Pathak N, Sriram S, Bhande SS, Panneerdoss S. Chloroform extract of Carica papaya seeds induces long-term reversible azoospermia in langur monkey. Asian J Androl. 2002;4(1):17-26. PMID 11907624.

  60. Lohiya NK, Manivannan B, Goyal S, Ansari AS. Sperm motility inhibitory effect of the benzene chromatographic fraction of the chloroform extract of the seeds of Carica papaya in langur monkey, Presbytis entellus entellus. Asian J Androl. 2008;10(2):298-306. doi: 10.1111/j.1745-7262.2008.00331.x, PMID 18097528.

  61. Pathak N, Mishra PK, Manivannan B, Lohiya NK. Sterility due to inhibition of sperm motility by oral administration of benzene chromatographic fraction of the chloroform extract of the seeds of Carica papaya in rats. Phytomedicine. 2000;7(4):325-33. doi: 10.1016/S0944-7113(00)80051-3, PMID 10969727.

  62. Banerjee A, Singh A, Srivastava P, Turner H, Krishna A. Effects of chronic bhang (cannabis) administration on the reproductive system of male mice. Birth Defects Res B Dev Reprod Toxicol. 2011;92(3):195-205. doi: 10.1002/bdrb.20295, PMID 21678546.

  63. Mandal TK, Das NS. Testicular toxicity in cannabis extract treated mice: association with oxidative stress and role of antioxidant enzyme systems. Toxicol Ind Health. 2010;26(1):11-23. doi: 10.1177/0748233709354553, PMID 19942653.

  64. Li J, Wang Z, Shi D, Chen Y. Adult exposure to Sasanguasaponin induces spermatogenic cell apoptosis in vivo through increased oxidative stress in male mice. Toxicol Ind Health. 2010;26(10):691-700. doi: 10.1177/0748233710377771, PMID 20627992.

  65. Gupta S, Sanyal SN, Kanwar U. Antispermatogenic effect of embelin, a plant benzoquinone, on male albino rats in vivo and in vitro. Contraception. 1989;39(3):307-20. doi: 10.1016/0010-7824(89)90063-2, PMID 2714091.

  66. Agrawal S, Chauhan S, Mathur R. Antifertility effects of embelin in male rats. Andrologia. 1986;18(2):125-31. doi: 10.1111/j.1439-0272.1986.tb01749.x, PMID 3717601.

  67. Gupta RS, Bhatnager AK, Joshi YC, Sharma MC, Khushalani V, Kachhawa JB. Induction of antifertility with lupeol acetate in male albino rats. Pharmacology. 2005;75(2):57-62. doi: 10.1159/000086947, PMID 16015025.

  68. Spoel Van Der AC, Jeyakumar M, Butters TD, Charlton HM, Moore HD, Dwek RA, Platt FM. Reversible infertility in male mice after oral administration of alkylated imino sugars: A nonhormonal approach to male contraception. Proc Natl Acad Sci USA. 2002;99(26):17173-8. doi: 10.1073/pnas.262586099, PMID 12477936.

  69. Suganuma R, Walden CM, Butters TD, Platt FM, Dwek RA, Yanagimachi R, van der Spoel AC. Alkylated imino sugars, reversible male infertility-inducing agents, do not affect the genetic integrity of male mouse germ cells during short-term treatment despite induction of sperm deformities. Biol Reprod. 2005;72(4):805-13. doi: 10.1095/biolreprod.104.036053, PMID 15576825.

  70. Gupta V, Hild SA, Jakkaraj SR, Carlson EJ, Wong HL, Allen CL, Georg GI, Tash JS. N-Butyldeoxygalactonojirimycin Induces Reversible Infertility in Male CD Rats. Int J Mol Sci. 2019;21(1). doi: 10.3390/ijms21010301. PMID 31906257.

  71. Rajasekaran M, Bapna JS, Lakshmanan S, Ramachandran Nair AG, Veliath AJ, Panchanadam M. Antifertility effect in male rats of oleanolic acid, a triterpene from Eugenia jambolana flowers. J Ethnopharmacol. 1988;24(1):115-21. doi: 10.1016/0378-8741(88)90142-0, PMID 3199836.

  72. Mdhluli MC, Van der Horst G. The effect of oleanolic acid on sperm motion characteristics and fertility of male wistar rats. Lab Anim. 2002;36(4):432-7. doi: 10.1258/002367702320389107, PMID 12396287.

  73. Chinta G, Periyasamy L. Reversible anti-spermatogenic effect of piperine on epididymis and seminal vesicles of albino rats. Drug Res. 2016;66(8):420-6. doi: 10.1055/s-0042-108186, PMID 27281446.

  74. Chen X, Ge F, Liu J, Bao S, Chen Y, Li D, Li Y, Huang T, Chen X, Zhu Q, Lian Q, Ge RS. Diverged effects of piperine on testicular development: stimulating leydig cell development but inhibiting spermatogenesis in rats. Front Pharmacol. 2018;9(244):244. doi: 10.3389/fphar.2018.00244, PMID 29643806.

  75. Jing X, Cheng W, Guo S, Zou Y, Zhang T, He L. Toxic effects of Tripterygium wilfordii Hook F on the reproductive system of adolescent male rats. Biomed Pharmacother. 2017;95:1338-45. doi: 10.1016/j.biopha.2017.09.038, PMID 28938525.

  76. Xiong J, Wang H, Guo G, Wang S, He L, Chen H, Wu J. Male germ cell apoptosis and epigenetic histone modification induced by Tripterygium wilfordii Hook F. PLOS ONE. 2011;6(6):e20751. doi: 10.1371/journal.pone.0020751, PMID 21698297.

  77. Ma B, Qi H, Li J, Xu H, Chi B, Zhu J, Yu L, An G, Zhang Q. Triptolide disrupts fatty acids and peroxisome proliferator-activated receptor (PPAR) levels in male mice testes followed by testicular injury: A GC-MS based metabolomics study. Toxicology. 2015;336:84-95. doi: 10.1016/j.tox.2015.07.008. PMID 26219505.

  78. Alagbonsi IA, Olayaki LA. Role of oxidative stress in Cannabis sativa-associated spermatotoxicity: evidence for ameliorative effect of combined but not separate melatonin and vitamin C. Middle East Fertil Soc J. 2017;22(2):136-44. doi: 10.1016/j.mefs.2016.12.004.

  79. Fan S, Zhao Y, Pan Z, Gao Z, Liang Z, Pan Z, Feng W. ZNF185‐derived peptide induces fertility suppression in mice. J Pept Sci. 2018;24(10):e3121. doi: 10.1002/psc.3121, PMID 30270484.

  80. Singh K, Dubey BK, Tripathi AC, Singh AP, Saraf SK. Natural male contraceptive: phytochemical investigation and anti-spermatogenic activity of Pistia stratiotes Linn. Nat Prod Res. 2014;28(16):1313-7. doi: 10.1080/14786419.2014.900772, PMID 24666370.

  81. Al-Alami ZM, Shraideh ZA, Taha MO. Beta-caryophyllene as putative male contraceptive: enhances spermatogenesis but not spermiogenesis in albino rats. Med Chem Res. 2015;24(11):3876-84. doi: 10.1007/s00044-015-1428-3.

  82. Gupta RS, Bhatnager AK, Joshi YC, Sharma R, Sharma A. Suppression of fertility in male albino rats following α-amyrin acetate administration. Pharm Biol. 2004;42(2):98-104. doi: 10.1080/13880200490510793.

  83. Malini T, Vanithakumari G. Antifertility effects of beta-sitosterol in male albino rats. J Ethnopharmacol. 1991;35(2):149-53. doi: 10.1016/0378-8741(91)90066-m, PMID 1809820.

  84. Sharma V, Chaudhary U. An overview on indigenous knowledge of Achyranthes aspera. Crit Rev. 2015;2(1):7-19.

  85. Diwan R, Malpathak N. Furanocoumarins: novel topoisomerase I inhibitors from Ruta graveolens L. Bioorg Med Chem. 2009;17(19):7052-5. doi: 10.1016/j.bmc.2009.04.023. PMID 19736019.

  86. Ye Y, Yang Q, Fang F, Li Y. The camelliagenin from defatted seeds of Camellia oleifera as antibiotic substitute to treat chicken against infection of Escherichia coli and Staphylococcus aureus. BMC Vet Res. 2015;11(1):214. doi: 10.1186/s12917-015-0529-z, PMID 26282272.

  87. Krishna KL, Paridhavi M, Patel JA. Review on nutritional, medicinal and pharmacological properties of papaya (Carica papaya Linn.). Nat Prod Radiance. 2008;7(4):364-73.

  88. Gv A, DP, RS, B SK. A review on medical advantages and chemical constituents of Carica papaya Linn. Asian J Pharm Clin Res. 2018;11(9):53-7. doi: 10.22159/ajpcr.2018.v11i9.26992.

  89. Lohiya NK, Pathak N, Mishra PK, Manivannan B. Reversible contraception with chloroform extract of Carica papaya Linn. seeds in male rabbits. Reprod Toxicol. 1999;13(1):59–66.

  90. Pertwee RG. Pharmacological actions of Cannabinoids. Handb Exp Pharmacol. 2005;168(168):1-51. doi: 10.1007/3-540-26573-2_1, PMID 16596770.

  91. Carvalho RK, Guimarães FS, Costa RM. Chronic exposure to cannabidiol induces reproductive toxicity in male swiss mice. J Appl Toxicol. 2018:1-9.

  92. Radhakrishnan N, Gnanamani A, Ab M. A potential antibacterial agent embelin, a natural benzoquinone extracted from Embelia ribes. Biol Med. 2011;3(2):1-7.

  93. Mirghani MES, Che Man YBC. A new method for determining Gossypol in cottonseed oil by FTIR spectroscopy. J Am Oil Chem Soc. 2003;80(7):625-8. doi: 10.1007/s11746-003-0749-2.

  94. Yu ZH, Chan HC. Gossypol as a male antifertility agent--why studies should have been continued. Int J Androl. 1998;21(1):2-7. doi: 10.1046/j.1365-2605.1998.00091.x, PMID 9639145.

  95. Liu YX. Control of spermatogenesis in primate and prospect of male contraception. Arch Androl. 2005;51(2):77-92. doi: 10.1080/01485010490485768, PMID 15804862.

  96. Varshney A, Goyal MM. Phytochemical study on the leaves of Alstonia scholaris and their effects on pathogenic organisms. Anc Sci Life. 1995;15(1):30-4. PMID 22556718.

  97. Kanase V, Mane DJ. A pharmacognostic and pharmacological review on Alstonia scholaris. Asian J Pharm Clin Res. 2018;11(12):22-6. doi: 10.22159/ajpcr.2018.v11i12.28124.

  98. Bhagour K, Arya D, Gupta RS. A review: role of medicinal plants in managing population concern. Boll Environ Pharmacol Life Sci. 2015;5(1):15-21.

  99. Andersson U, Butters TD, Dwek RA, Platt FM. N-butyldeoxygalactonojirimycin: a more selective inhibitor of glycosphingolipid biosynthesis than N-butyldeoxynojirimycin, in vitro and in vivo. Biochem Pharmacol. 2000;59(7):821-9. doi: 10.1016/s0006-2952(99)00384-6, PMID 10718340.

  100. Goswami S, Mishra K, Singh RP, Singh P. Sesbaniasesban, a plant with diverse therapeutic benefits: an overview. J Pharm Res Educ. 2016;1(1):111-21.

  101. Chattopadhyay D, Arunachalam G, Ghosh L, Rajendran K, Mandal AB, Bhattacharya SK. Antipyretic activity of Alstonia macrophylla wall ex a. dc: an ethnomedicine of Andaman Islands. J Pharm Pharm Sci. 2005;8(3):558-64. PMID 16401402.

  102. Gupta PC. Reversible contraceptive potential of harad in male albino mice. Int J Pharm Pharm Sci. 2016;9(1):288-96. doi: 10.22159/ijpps.2017v9i1.15638.

  103. Wida T, Hz E, Sari IP, Rizal DM. The effect of ethanol extract of Piper nigrum l. fruit on reproductive system in adult male wistar rats: a study of FSH, LH, testosterone level and spermatogenic cells. Indones J Pharm. 2018;29(3):136-44.

  104. Shao FS, Wang GW, Xie H, Zhu X, Sun J, A J, Ie HX, Hu XZ. Pharmacokinetic study of triptolide, a constituent of immunosuppressive chinese herb medicine, in rats. Biol Pharm Bull. 2007;30(4):702-7. doi: 10.1248/bpb.30.702, PMID 17409506.

  105. Huynh PN, Hikim APS, Wang C, Stefonovic K, Lue YH, Leung A, Atienza V, Baravarian S, Reutrakul V, Swerdloff RS. Long-term effects of triptolide on spermatogenesis, epididymal sperm function, and fertility in male rats. J Androl. 2000;21(5):689-99. PMID 10975416.

  106. Zhang S, Qiu W, Wu H, Zhang G, Huang M, Xiao C, Yang J, Kamp C, Huang X, Huellen K, Yue Y, Pan A, Lebo R, Milunsky A, Vogt PH. The shorter zinc finger protein ZNF230 gene message is transcribed in fertile male testes and may be related to human spermatogenesis. Biochem J. 2001;359(3):721-7. doi: 10.1042/0264-6021:3590721, PMID 11672448.

  107. Saha P, Majumdar S, Pal D, Pal BC, Kabir SN. Evaluation of spermicidal activity of Mi-saponin A. Reprod. Reprod Sci. 2010;17(5):454-64. doi: 10.1177/1933719110361378, PMID 20220105.

  108. Page ST, Amory JK, Bremner WJ. Advances in male contraception. Endocr Rev. 2008;29(4):465-93. doi: 10.1210/er.2007-0041, PMID 18436704.

  109. Martin CW, Anderson RA, Cheng L, Ho PC, Spuy Van Der ZM, Smith KB, Glasier AF, Everington D, Baird DT. Potential impact of hormonal male contraception: cross-cultural implications for development of novel preparations. Hum Reprod. 2000;15(3):637-45. doi: 10.1093/humrep/15.3.637, PMID 10686211.

  110. Heinemann K, Saad F, Wiesemes M, White S, Heinemann L. Attitudes toward male fertility control: results of a multinational survey on four continents. Hum Reprod. 2005;20(2):549-56. doi: 10.1093/humrep/deh574, PMID 15608042.
