Int J App Pharm, Vol 14, Issue 6, 2022, 28-33Review Article

IN VIVO MONITORING STRATEGIES FOR EVALUATION OF FLOATING DRUG DELIVERY SYSTEMS

SWATI SAINI1, BIGUL YOGESHVER BHARDWAJ2, JATIN CHHABRA1, MANISH KUMAR3, RAKESH PAHWA1*

1Institute of Pharmaceutical Sciences, Kurukshetra University, Kurukshetra, Haryana, 136119, India, 2School of Pharmaceutical Sciences, Shoolini University, Solan, Himachal Pradesh, 173229, India, 3M M College of Pharmacy, Maharishi Markandeshwar (Deemed to be University), Mullana, Ambala-133207, Haryana, India
Email: rakesh_pahwa2407@yahoo.co.in

Received: 20 Jul 2022, Revised and Accepted: 21 Sep 2022

ABSTRACT

In recent years, various advancements have been introduced in the development of controlled drug release devices for resolving different physiological problems for example, gastric retention inconsistency along with erratic gastric emptying time. Gastroretentive delivery formulations receive considerable attention to overcome these drawbacks and in optimizing the absorption of different medicaments. Gastroretentive technologies considerably extend the stomach retention time of dosage forms with increased bioavailability as well as therapeutic efficacy. Gastroretention can be successfully achieved utilizing gastric floating system. The rationale of the present manuscript focuses on current advancements of gastric floating systems so as to accomplish appropriate drug bioavailability and, subsequently drug targeting to the stomach. In vivo evaluation parameters, especially pivotal imaging techniques including roentgenography, gamma scintigraphy, gastroscopy, magnetic marker monitoring, magnetic resonance imaging, ultrasonography, 13C octanoic acid breath test etc. have been emphasized in this manuscript for monitoring drug formulation behavior which extensively revolutionized thorough understanding in the avenue of improved bioavailability of gastroretentive systems.

Keywords: Gastroretentive technologies, Floating drug delivery systems, Gastric retention, In vivo imaging, Salient advantages

© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2022v14i6.45906. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

In order to accomplish and sustain optimum drug concentration in the body, the rationale for developing any delivery system is to target active molecule to the site of action. Among diverse routes, oral route is generally the popular, potential and efficient route intended for administration of therapeutic agents [1-3]. According to recent research, there is growing curiosity in innovative delivery formulations that can be retained in stomach for sustained as well as consistent time period. Gastroretentive drug delivery systems are one of the novel strategy in this avenue [4-6]. Gastroretentive systems are configured for delivering therapeutic agents to the GIT in manner that disadvantages associated with conventional dosage types can be resolved [7-11]. Gastroretentive drug delivery system significantly improved patient compliance due to attributes like enhanced gastric retention time coupled with precise drug release for extended time period and ultimately increased bioavailability and decreased drug waste. Targeting of drug to the stomach and upper small intestine is also achievable in an efficient manner [1, 8, 12-16]. Successful designing of floating formulations is one of the thriving strategies in enhancing dosage residence in the stomach.

Floating systems are recognized as low density systems for floating over the gastric content and thus remains buoyant in gastric region for an extended time without disrupting gastric emptying process, thereby increasing the retention of dosage type at the drug absorption site, especially in the stomach region. The aim of formulating buoyant systems is to render the dosage forms less dense as compared to gastric fluids so as to allow it for floating in a successful manner [17-20]. To ensure advantageous bioavailability and superior therapeutic effectiveness of drugs, prolonged stomach retention of the delivery system is a significant process. Floating drug delivery systems are appropriate for therapeutic molecules with less stability and poor solubility in intestinal fluids. Floating drug delivery systems are categorized according to the usage of formulation variables such as effervescent and non-effervescent. Further, effervescent systems are classified as gas generating systems and osmotically controlled drug delivery systems and non-effervescent systems are classified as hollow microspheres, alginate beads, microporous compartment systems and colloidal gel barrier systems etc [2, 13, 21-25]. The pertinent literature was collected from comprehensive search on various databases like PubMed, ScienceDirect, Google Scholar and others utilizing several keywords, including “floating systems”, “in vivo imaging”, “gastroretentive technology” and many others. Referred publications in the English language accessed till June 2022 were chosen for this manuscript. Floating drug delivery systems are efficiently described in fig. 1.

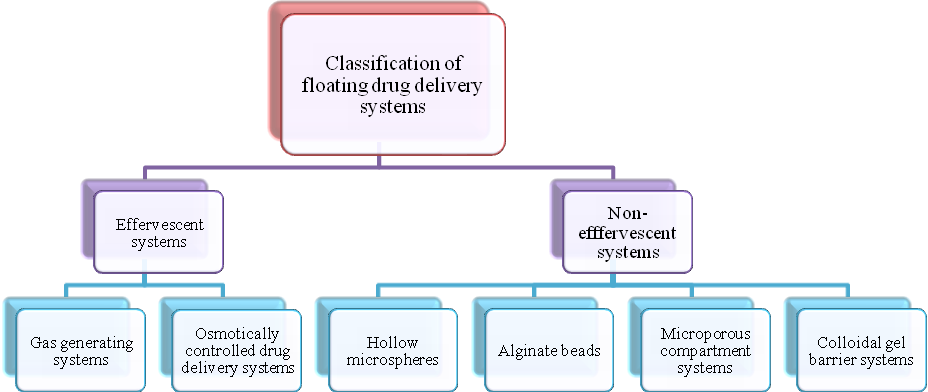

Fig. 1: Classification of floating drug delivery systems [25]

Significant advantages

Following useful advantages of floating drug delivery systems are represented pictorially in the fig. 2 [20, 26, 27].

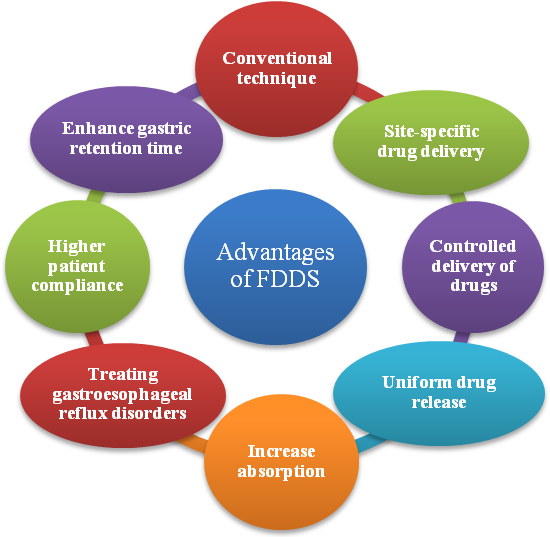

Fig. 2: Unique advantages of FDDS [18]

Numerous physiological and pharmaceutical factors affect the residence time of dosage form in the stomach. To ensure the effective release of drugs from gastroretentive systems, the dosage type needs comprehensive and meticulous assessment for optimum gastroretentive ability. This can be evaluated either explicitly by in vivo imaging technology or through measuring different crucial parameters. In vivo imaging assessment techniques are regarded as the most accurate and consistent methodologies. In vivo imaging evaluation result may also advances the prospect of obtaining a patent of any new gastroretentive drug delivery systems. Biorelevant approaches can also be implemented to reduce the probability of formulation failure in clinical trials [6, 28, 29].

In vivo evaluation techniques

Numerous in vivo imaging approaches are available to assess the gastroretentive performance of dosage types. These are roentgenography, gamma-scintigraphy, gastroscopy, 13C octanoic acid breath test, ultrasonography, magnetic resonance imaging, magnetic marker monitoring etc [28, 30-32]. Important in vivo imaging techniques are shown in fig. 3.

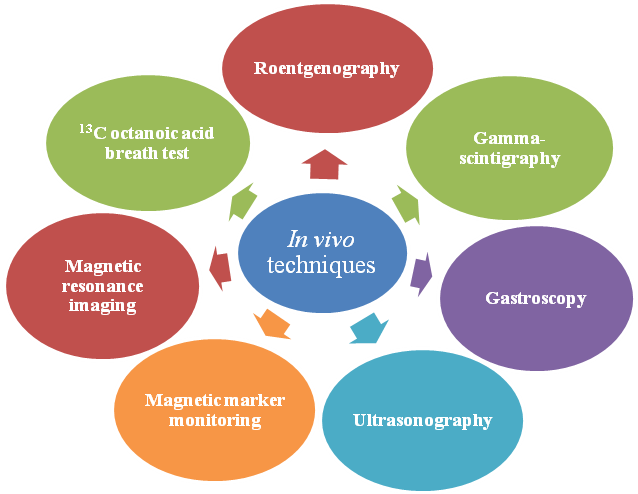

Fig. 3: In vivo imaging evaluation techniques [28]

Roentgenography

X-ray procedure is the most commonly employed tool for testing internal systems of human volunteers, beagle/mongrel dogs or albino rabbits. Compared with other approaches, it is one of the simplest and cheapest method. The study is conducted under fed and fasting conditions. Barium sulphate is a commonly employed radio-opaque marker inserted into the dosage form and X-ray imaging can be obtained at different intervals for illustrating positioning of in vivo environment of gastroretentive dosage type. Both floating time and gastro resident time of the systems are recorded. The chief disadvantage of this method is exposure to X-rays by volunteers which relies on the exposure period, frequency in addition to repetitions needed for verifying the effectiveness. High exposure condition to X-rays effect is considered as harmful risk to the human [4, 28].

Gamma-scintigraphy

Gamma-scintigraphy, a popular non-invasive technique utilizing gamma-emitting radioisotopes compounded into controlled release dosage forms has become a significant technique for gastrointestinal transit period evaluation. During preparation, a small amount of stable isotope i.e. 152Sm is compounded into dosage forms. In a neutron source, dosage form is irradiated for converting the isotope into a gamma-emitting material such as 153Sm [31, 33]. With images obtained from gamma camera, gastric emptying times can be revealed [34-36]. The gamma scintigraphic imaging is started just after dosing and then anterior images of the abdomen are performed after regular interval [30, 37]. High safety aspect owing to comparatively less radiation doses is the foremost and impressive benefit of this approach. However, some disadvantages of this approach include exposure to ionizing radiation, low sensitivity to several inserted markers, high cost etc. Also, drawbacks of gamma scintigraphy includes some ethical constraints that healthy subjects exposed to radiation without any personal benefit, low temporal and spatial resolution along with limited topographic information [32, 38, 39, 40-42].

Gastroscopy

Gastroscopy, a effective type of peroral endoscopy utilized for diagnosis and monitoring of gastroretentive systems. This approach comprises of optical fibre along with a video camera to assess dosage form position. This approach is appropriate and pivotal for different types of gastroretentive systems. For assessing the gastroretentive evaluation using peroral endoscopy, camera device should enter the volunteer body at regular time interval, concerning the gastroenterologist intervention for the whole assessment test. There are several challenging aspects of this process, such as invasiveness, the possibility of contamination and cross infection, expensive etc. which contributed to the restricted gastroscopy utilization [11, 29, 43].

Ultrasonography

Ultrasonic waves are utilized to provide images of some abdominal organs to determine the formulations intragastric position. Ultrasonic waves are reflected at significantly differing acoustic impedances across an interface in this approach, allowing imaging. An electronic equipment receives the reflected echoes and evaluates their intensity level. Findings can be viewed as either static photos or moving image of an interior body part. However, the disadvantage of this strategy is that some dosage forms may not reveal a satisfactory response. Also, this approach is less popular owing to lack of ultrasound traceability at the intestine and some dosage forms may not exhibit a sharp acoustic mismatch [6, 28, 31].

Magnetic marker monitoring

Formulation is magnetically labelled along with the addition of iron powder within dosage type and subsequently, images may be obtained using an extremely responsive bio-magnetic instrument of measurement. Method does not involve radiation and is thus not much hazardous than other reported methods. However, formulative improvements are still needed in this technique, such as iron powder incorporation which impact the performance and efficacy of gastroretentive drug delivery systems [28].

Magnetic resonance imaging

Magnetic resonance imaging (MRI) is an imaging technology and is also non-invasive. In this technique, investigations can be carried out with a commercial 1.5 Tesla whole body imager. In order to generate accurate images of bone, soft tissues, organs, and nearly every inner body components, magnetic resonance imaging utilizes strong magnetic field, radio frequency signals along with computers. Images may be examined on a computer display during the investigational study [11, 40]. In gastrointestinal research, magnetic resonance imaging has been the most useful and attractive method of investigation of stomach emptying, motility as well as intragastric delivery of macronutrients along with active molecules. This particular magnetic resonance imaging technique consists of various useful advantageous features such as lack of ionizing irradiation, high temporal and spatial resolution, high soft tissue contrast, supra-magnetic and harmless paramagnetic, magnetic resonance imaging contrast agents etc. which may be used exclusively for improving or restraining the fluids and tissues signal and therefore allowing improved description and investigation of organs. However, temporal resolution of traditional magnetic resonance imaging measurements is reasonably low [6, 44-46].

13C Octanoic acid breath test

Octanoic acid, a medium-chain fatty acid which is absorbed by the upper portion of small intestine, transported rapidly to the liver and oxidised instantaneously to form CO2 and is exhaled out. 13C octanoic acid can be incorporated into gastro retentive systems. Octanoic acid produces CO2 owing to reaction in the stomach and emerges into the air. The “carbon atom” in octanoic acid, which essentially forms CO2 can be substituted with 13C isotope. Therefore, time until 13CO2 gas is detected in breath can be regarded as dosage form stomach retention period. No response will be obtained and without release of CO2 as dosage form transit to intestine. Major drawbacks of this test include lack of accuracy in comparison to scintigraphy, challenging mathematics for calculations, the requirement of multiple sampling, and extended sampling times etc. [47, 48].

Miscellaneous research efforts concerning with in vivo imaging characterization of floating dosage types have been reported. Some important results are meticulously depicted in table 1.

Table 1: In vivo characterization of floating dosage types

S. No. Drug Floating dosage form Method of preparation In vivo technique Authors Year Ref.(s)
1 Vildagliptin Floating microspheres - X-ray imaging Kumari et al. 2021 [49]
2 Moxifloxacin Floating matrix tablets - X-ray imaging Sheikh et al. 2020 [50]
3 Valsartan Floating matrix tablets Direct compression X-ray imaging Rahamathulla et al. 2019 [51]
4 Itraconazole Floating microspheres/beads

Ionotropic

gelation

 Gamma scintigraphy Gokbulut et al. 2018 [52]
5 Calcium ion Floating tablets Direct compression Gamma scintigraphy Sharma et al. 2017 [53]
6 Metformin hydrochloride

Hydrodynamically

balanced matrix tablets

 Wet granulation Gamma scintigraphy Razavi et al. 2015 [54]
7 Metformin hydrochloride Floating tablets Wet granulation Gamma scintigraphy Razavi et al. 2015 [55]
8 Ascaridole Floating tablets Direct compression Gamma scintigraphy Zhao et al. 2015 [56]
9 Bergenin and cetirizine dihydrochloride Floating tablets - Gamma scintigraphy He et al. 2012 [57]
10 Riboflavin Floating beads - Gamma scintigraphy Yao et al. 2012 [58]
11 Ciprofloxacin hydrochloride Floating matrix tablets Direct compression X-ray imaging Tadros et al. 2010 [59]
12 Atenolol and lovastatin Floating tablets Direct compression Roentgenography Kulkarni et al. 2009 [60]
13 Levodopa and carbidopa Floating minitablets Direct compression Gamma scintigraphy Goole et al. 2008 [61]
14 Diltiazem hydrochloride Floating microspheres Ionotropic gelation Gamma scintigraphy Ma et al. 2008 [62]
15 Propranolol hydrochloride Floating tablets Direct compression Magnetic resonance imaging Strubing et al. 2008 [63]
16 Clarithromycin Floating tablets Wet granulation Radiographic studies Nama et al. 2008 [64]
17 Metformin Floating capsules - Gamma scintigraphy Ali et al. 2007 [65]
18 Celecoxib Floating capsules Physical blending Gamma scintigraphy Ali et al. 2007 [66]
19 Verapamil hydrochloride Floating pulsatile capsule - Gamma scintigraphy Zou et al. 2007 [67]
20 Repaglinide Floating microspheres Solvent diffusion technique Gamma scintigraphy Jain et al. 2006 [68]
21 Orlistat Floating microspheres Solvent evaporation Gamma scintigraphy Jain et al. 2006 [69]
22 - Floating beads - Gamma scintigraphy Stops et al. 2006 [70]
23 Riboflavin Floating beads - Gamma scintigraphy Stops et al. 2006 [71]
24 Riboflavin Floating microballons Solvent diffusion Gamma scintigraphy Sato et al. 2004 [72]
25 Amoxicillin Polyionic complex gastroretentive hydrogels -

13C octanoic

acid breath test

 Torrado et al. 2004 [73]
26 Riboflavin Floating hollow microballons Emulsion Solvent diffusion - Sato et al. 2003 [74]
27 - Floating tablets -

Magnetic resonance

imaging

 Steingotter et al. 2003 [42]
28 - Floating beads Freeze-drying Gamma scintigraphy Whitehead et al. 1998 [75]
29 - Floating resin beads Ion exchange resin Gamma scintigraphy Atyabi et al. 1996 [76]
30 Theophylline Floating tablets - Gamma scintigraphy Desai et al. 1993 [77]
31 Propranolol hydrochloride Hydrodynamically balanced capsules - Gastroscopy Khattar et al. 1990 [78]
32 - Floating tablets, capsules and pellets - Gamma scintigraphy Davis et al. 1986 [79]

Therefore, significant and incessant research efforts have been done worldwide for in vivo imaging monitoring of innovative floating systems. Several in vivo strategies are available for the evaluation of gastro retentive floating dosage forms with site-specificity and unique drug release kinetics in the GIT region for achieving appropriate therapeutic needs.

FUTURE PERSPECTIVES

To assess in vivo gastric residence aspects, a variety of imaging methods frequently utilized involves gamma scintigraphy, roentgenography, ultrasonography, magnetic marker monitoring, magnetic resonance imaging etc. Different in vivo imaging monitoring approaches includes the use of radiation and exposure materials that need to be replaced with less hazardous materials in order to lessen the adverse impact of these substances. Improvements are also required so that more accurate in vivo imaging procedures should be risk-free, offer patient convenience and comfort, and get rid of various adverse effects. Additional sophisticated developments in dynamic scanning and imaging will improve the imaging technique more perfectly, particularly in the case of magnetic resonance imaging. New marker designs for magnetic resonance imaging should also be well exploited. Furthermore, ultrasound used in ultrasonosonography and gamma emitting radioisotopes in gamma scintigraphy need to be focused more precisely. Additionally, the utilization of advanced technologies which possesses all efficient characteristics for the successful imaging of gastroretentive delivery systems would be a suitable and promising futuristic endeavour in this vistas. It is also emphasized that further progress and technological advancements in the various in vivo imaging methodologies offers immense benefits to researchers in the avenue of gastroretentive floating systems.

CONCLUSION

Drugs having narrow absorption window in gastrointestinal tract is often restricted by reduced bioavailability, owing to inadequate drug release as well as less retention time at the absorption region. Gastroretentive systems revealed tremendous potential to enhance therapeutic efficacy and bioavailability of drugs to overcome constraints linked with conventional formulations. Among various promising approaches of gastroretentive technology, floating systems is one of the flourishing avenues for improving the drug residence into the stomach. This review provides insight into the significant characterization of floating drug delivery systems. Various in vivo imaging assessment techniques for comprehensive and effective analysis of gastroretentive drug delivery systems are summarized in this article along with their various salient advantages. Several research endeavours in the domain of in vivo imaging assessment methodologies for enhanced optimum efficacy of gastroretentive systems have also been distinctly presented.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All authors have equally contributed.

CONFLICT OF INTERESTS

No conflict of interest.
