Int J App Pharm, Vol 15, Issue 2, 2023, 10-22Review Article

MICRONEEDLES A POSSIBLE SUCCESSOR TECHNOLOGY FOR TDDS: A PATENT ANALYSIS

BHUPINDER KAUR1*, NISHANT THAKUR1, MANISH GOSWAMI2

1Department of Pharmaceutics, University Institute of Pharma Sciences, Chandigarh University, Gharuan, Mohali, Punjab, India, 2Saraswati Group of Colleges, Gharuan, Mohali, Punjab, India
Email: bhupinder21990@gmail.com

Received: 14 Dec 2022, Revised and Accepted: 25 Jan 2023

ABSTRACT

The market size for transdermal drug delivery systems was assessed at USD 5.9 billion in 2020 and is expected to reach USD 8.4 billion by 2028, expanding at a compound annual growth rate (CAGR) of 4.5% from 2021 to 2028. Micro Jet injectors, iontophoresis, electroporation, sonophoresis, microneedles, powdered injection, surface ablation, jet injectors and stripping by tape are some of the methods that enhance the delivery and ease of administration of larger molecules which is the major hindrance in case of Transdermal drug delivery system (TDDS). This type of delivery offers immediate delivery and avoids lag time. Microneedles are hollow cannulas inserted into the skin at 50 µm to 500 µm. The microneedle drug delivery systems market is projected to register a CAGR of 7.8% during the forecast period of 2022-2027. The microneedle drug delivery systems market is segmented by product type (solid, hollow, coated, and dissolvable), application (drug delivery, vaccine delivery, dermatology, and other applications), and geography (North America, Europe, Asia-Pacific, Middle-East and Africa, and South America). This review summerizes the recent patents granted in the area of micro-needling in the year 2022 and also the commercial market of microneedles until now.

Keywords: TDDS, Microneedles, Patents, Skin, Commercial market

© 2023 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2023v15i2.47076. Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

The ultimate objective of any sort of drug product delivery system is to deliver an adequate therapeutic dose of medication to the target site in the body for anticipated action while maintaining the desired drug concentration inside the body. The therapeutic effectiveness of a medicine is strongly affected by the route of delivery [1-3]. A topical drug delivery system is a local drug delivery system that delivers topical drugs via the skin to treat skin disorders [4,5]. If the drug substance is non-electrolyte and has a favourable lipid/water partition, the skin absorption of the drug is increased. FDA has proposed a topical drug categorization system (TCS) based on the effective Biopharmaceutics Classification System (BCS) for oral immediate-release solid dose formulations [6]. There are three evaluation criteria and four classes in all as shown in fig. 1. Qualitative (Q1), quantitative (Q2), and in vitro release (IVR) rate similarity are the three parameters (Q3) [7].

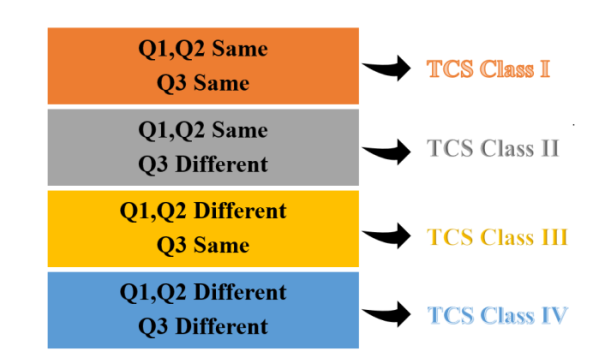

Fig. 1: TCS System for topical drug delivery system [7]

One of the most current topical routes being studied is transdermal drug delivery, which offers several potential benefits over traditional oral or parenteral administration, such as the elimination of pain, discomfort, and poor compliance associated with injections; the prevention of drug degradation in the stomach; the avoidance of first-pass liver metabolism; the possibility of increased bioavailability; the maintenance of relatively constant blood concentrations; and the elimination of drug degradation in the stomach [8]⁠. Transdermal delivery is possible only with molecules less than 500 DA and adequate lipophilic balance [9]. In transdermal delivery, the drug is carried across the skin from applied patches by different mechanisms [10-15]⁠. Technically the drug can pass the skin barrier actively or passively depending upon the various external permeation enhancers [16-22]⁠. Based on their research, Prausnitz and Langer have divided the development of transdermal drug administration into four main eras [23]. By adopting patch-based technologies that rely on natural dispersion, the first generation aimed to provide modest drug loads. The second generation focused on activating medication delivery using chemical precursors [24-26]. The third generation includes electroporation, thermal ablation and microneedles which may precisely target the drug upon penetration into the stratum corneum. In the fourth generation sensing modalities are combined with microneedles for drug administration to precisely control the release of pharmacological substances [27]. More than 35 transdermal products have been authorised for sale in the United States, and roughly 16 active components have been authorised for usage globally [28-30]. From 2020s estimated USD 5.9 billion, the transdermal drug delivery systems market is predicted to grow to USD 8.4 billion by 2028, at a CAGR (compound annual growth rate) of 4.5 per cent as shown in fig. 2 [31].

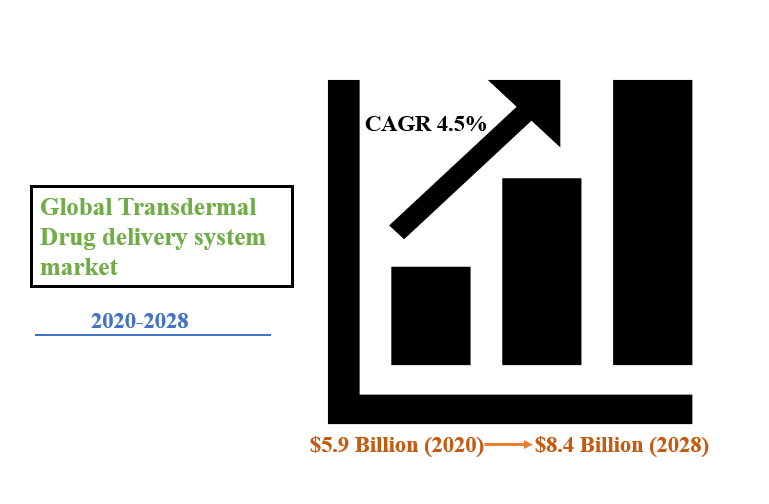

Fig. 2: The global market size of transdermal drug delivery system [31]

But fast transport is always the choice for researchers⁠. Many such investigatory methods are under clinical trials. As Stratum corneum the primary barrier for drug absorption via the skin restricts the transdermal administration of drugs with high molecular weights and/or high water solubility [32-35]. Therapeutic peptides and proteins with a high molecular weight, such as anti-cancer drugs, hormones, growth factors, vaccines, analgesics, anti-hypertensives, thrombolytics, and many others present particular difficulties for transdermal distribution. Therefore, there has been a concentrated effort to explore and create novel ways for enhancing the Stratum corneum barrier's permeability [36, 37] ⁠Micro Jet injectors, iontophoresis, electroporation, sonophoresis, microneedles, powdered injection, surface ablation, jet injectors and stripping by tape are some of the methods that enhance the delivery and ease of administration of larger molecules⁠. This type of delivery offers immediate delivery and avoids lag time [38-42]. The machine-related parameters can be adjusted as per individual needs. Numerous manuscripts have reviewed different types of transdermal drug delivery technologies so, the conclusion from most of those papers state the usage of microneedles as recent advancement in the area of topical drug delivery system [43]. Several review articles have also explored specific technologies, such as the various methods for fabricating microneedles or the devices that are presently being utilised in clinical trials or may be employed shortly [44]. It is safe to presume that the most important features of Microneedles research have been covered in reviews and research papers. Nonetheless, there are few attempts to assess the trend in the development of microneedle technology [45]. In other words, it is unclear from the literature how slowly or quickly the development of microneedle-based technologies is proceeding. Furthermore, it is unclear from the existing data what method could be used to quantify the trends and, if the trend could be quantified correctly, considering that microneedles-based research is still relatively new in comparison to other transdermal drug delivery systems [46]. Microneedles can be considered to be a micron scale hybrid between transdermal drug delivery system and hypodermic syringes to overcome limitations that are associated with the individual application. Microneedles are hollow cannulas inserted into the skin at an external length of 50 µm to 500 µm [47-50]. Microneedle patches are tested for the delivery of vaccines and larger peptides in the body ⁠[51]. The active response is observed while delivering drugs via microneedles. Microneedles deliver the drug into the body at a specific rate and painlessly [52-54]. They do not stimulate the underlying pain-stimulating needles ⁠ and are adjusted as per the need of the drug molecule for their effective delivery. Microneedles utilize microscopic needles which protrude into the skin and then deliver the medicament for a prescribed period as shown in fig. 3 [55]. During the forecast period of 2022-2027, the market for microneedle drug delivery systems is expected to grow at a CAGR of 7.8 %. The microneedle drug delivery systems market is segmented by product type (solid, hollow, coated, and dissolvable), application (drug delivery, vaccine delivery, dermatology, and other applications), and geography (North America, Europe, Asia-Pacific, Middle-East and Africa, and South America) [56-62]. Henry and co-workers conducted the first trials for the microneedle and deliver calcein into the body at three different rates however the experiment was interrupted due to the leakage from the microneedle array [28]. After this, McAllister and co-workers administered insulin and other molecules by this method into the cadaver skin and determined the permeation [29]. Silicon wafers with reactive iontophoresis was used for the preparation of the microneedles [63, 64]. In June 2021, PharmaTher and TSRL entered a co-development agreement to develop microneedle patch delivery technology for psychedelics and antivirals. The alliance has committed to commercialize a patented hydrogel-forming microneedle patch delivery technology [65-69]. In August 2020, Zosana Pharma Corporation partnered with EVERSANA, a commercial service provider in the life science industry, to commercialize and distribute Qtrypta in the United States. Qtrypta is an intracutaneous patch coated with the drug Zolmitriptan for the acute treatment of migraine [70-76]. The materials that have been used to fabricate their range from metal, glass, silicon and biodegradable polymers (polydimethylsiloxane) and silk fibroin [77]. Under this review paper, we would be discussing the recent patents granted for different types of microneedles in 2022 and also the commercial market of microneedles.

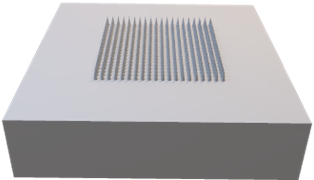

Fig. 3: 3D CAD diagram of microneedles [147]

Types of microneedles

Microneedles can form pores in the skin, allowing the drug to flow directly from the epidermis to the dermis [78]. Unlike conventional hypodermic needles, the microneedle does not irritate the patient's nerves, hence increasing patient compliance [79]. Microneedles are divided into four structural categories: solid microneedles, coated microneedles, dissolving microneedles, and hollow microneedles as shown in fig. 4 [80].

The drug delivery principle of these microneedles (respectively) are the “poke and patch” approach, the “coat and poke” approach, the “poke and release” approach, and the “poke and flow” approach [81].

Solid microneedles

Microneedles can create pores in the skin, allowing drugs to flow directly through the epidermis and into the dermis [82]. In contrast to conventional hypodermic needles, the microneedle enhances tolerating consistency because it does not irritate nerves [81].

Coated microneedles

Coated microneedles, which are coated with drug substances at their tips via dipping, gas-jet drying, ink-jet printing, or spraying, have solved the complex problem of solid microneedles [82]. The mechanism of coated microneedles for drug delivery is the "coat and poke" method. The microneedle patch is put into the skin, and the drug-coated microneedle tips subsequently release their contents into the skin.

Dissolving microneedles

Dissolving microneedles have several advantages over their solid and coated counterparts, including their ease of production, their usefulness, and their high drug loading [83]. Dissolving microneedles often work on the "coat and poke" principle, wherein the medication is contained in the microneedle tips and is released as the microneedle firmly penetrates the skin [84].

Hollow microneedles

Hollow microneedles, which offer the maximum degree of portion precision, are uncommon compared to other microneedle structures[85]. Otherwise empty microneedles can be used to securely inject drugs under the skin at weight-driven flow rates. Microneedles like these are typically produced using MEMS processes such as laser micromachining, lithographic patterning, microfabrication, and X-beam photolithography, on a metal or silicon substrate. Additionally, since the "poke and flow" delivery method of empty microneedles makes them ideal for blood extraction [86], they have been widely used for this purpose.

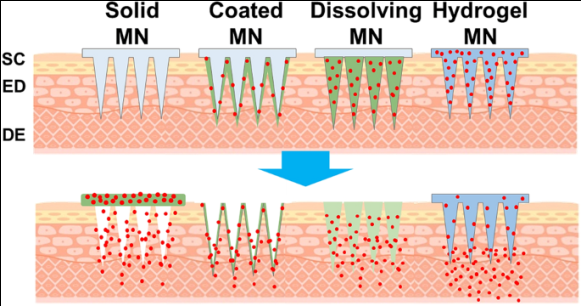

Fig. 4: Types of microneedles [145]

Methods

This analysis focuses on 2022 patent filings that are relevant to the topic at hand. To begin, we choose the keywords by consulting the MeSH (Medical Subject Headings) used to index papers in PubMed. Patents were searched by looking for the terms "microneedle" or "microneedle" and "drug delivery systems" anywhere in the title, abstract, or full text, as these terms were thought to be relevant to microneedle arrays that contain pharmaceutical compositions focused on potential clinical treatments. As a result, we removed any patents that were either not available, duplicates, or not published in English. From the European Patent Office (Espacenet) and the World Intellectual Property Organization databases, a grand total of 88 patents uncovered (WIPO). For this review, we focused on a subset of these patents-42 in total-that discuss various aspects of microneedles, including their categorization, materials, formulations, chemicals or medications, and stages of development. In addition to the United States and China, the patents came from a wide variety of other nations that are members of the Patent Cooperation Treaty (PCT) (CN).

Trends ın the development of mıcroneedles-based drug delıvery system

We looked at several forms of delivery microneedles to spot patterns. The transdermal route accounts for the vast majority of microneedle patents. It is important to consider both the target molecule and the targeted indication when deciding where to implant the microneedle. Injecting a molecule with a microneedle increases its permeability into the skin, allowing it to reach the living epidermis and/or dermis. Drugs and vaccinations against cancer, for example, can be delivered precisely where they are needed using microneedles, such as in the suprachoroidal area of the eye or under the tongue. The two most common types of microneedles used for delivery are solid (>30%) and hollow (>30%). Next came dissolvable and coated microneedles, each of which was mentioned in 18%-19% of delivery-related patents. Trends in the development of microneedles-based drug delivery system are shown in fig. 5 and 6.

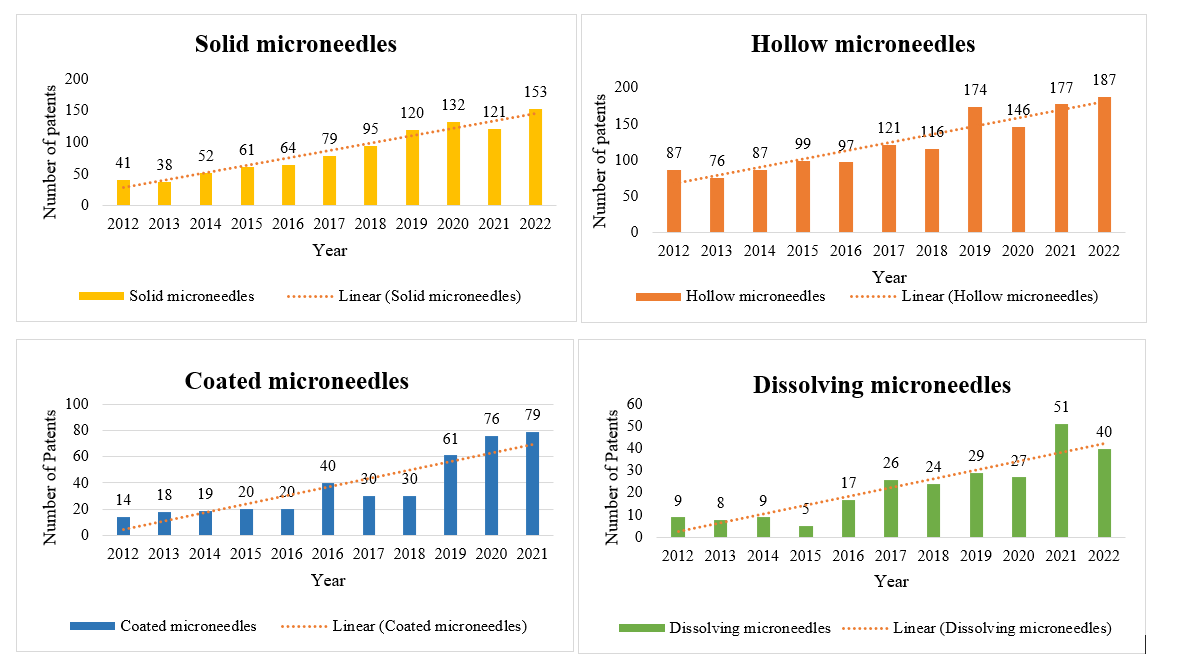

Fig. 5: Changing trend of patents related to types of microneedles from the year 2012-2022 [153]

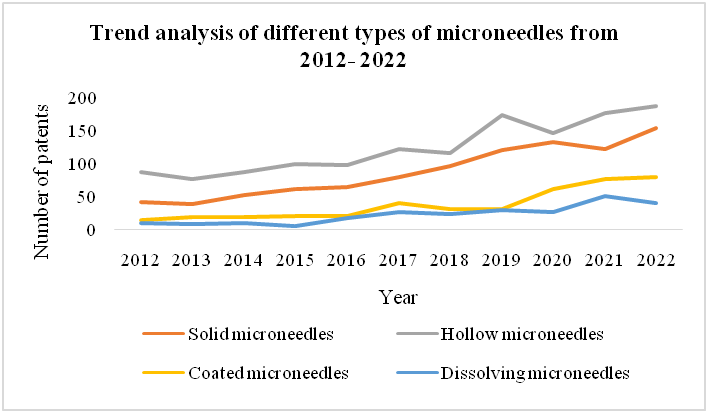

Fig. 6: Trend analysis of different types of microneedles from years 2012-2022 [153]

Commercıal microneedles ın the market by 2022

Different categories of microneedles are present in the market which serve different roles and are formulated to deliver different therapeutic and cosmaceutical responses. Clinical findings showing that a Trivalent Influenza Vaccine based using Zosano Pharma's transdermal microneedle technique is as immunogenic as a higher-dose intramuscular injection were published by the company in 2022. The findings also showed that the vaccine was successfully delivered via their microneedle method, resulting in antibody levels that matched all three of the EMEA's recommendations for influenza vaccination efficacy. Researchers at Pharma Ther released promising findings on their LSD microneedle patch in 2021. These findings may encourage the business to move on with phase 2 clinical studies of LSD in 2022. TSRL and PharmaTher announced their partnership to create microneedle patches in June 2021. The new cooperation and collaboration would be used to collect and pool resources and intelligence to create intradermal delivery systems for medicinal applications. Both firms contributed to the creation of the microneedle delivery method. In the year 2020, PharmaTher had licenced microneedle technology from the University of California, and TSRL had begun developing microneedle prototype patches with assistance from the prestigious National Institute of Allergy and Infectious Diseases. The Austrian Institute of Technology announced in June 2021 a partnership with In-Vision and DirectSens to launch the NUMBAT research project, which utilised high-resolution DLP 3D printing to create an array and group of polymeric microneedles for minimally invasive and less painful glucose monitoring. Monitoring glucose levels is critical for persons with diabetes. In the next years, this event is anticipated to have a favourable effect on the market. Aesthetics Biomedical, a leading producer of aesthetics products, said in June 2021 that it had acquired FDA permission for its Vivace RF Micro-needling device, which will be used at both 1MHz and 2MHz frequencies. The innovative micro-needling method was designed and created to provide patients with more luminous skin. Influenza in healthy adults of working age contributes greatly to this disease's socioeconomic burden. Intanza® 9 g (Sanofi Pasteur) is a microneedle-delivered intradermal trivalent inactivated influenza vaccine approved in 2009 for the prevention of seasonal influenza in individuals aged 18 to 59. The microneedle method reliably and reproducibly distributes the vaccine to the dermis. According to clinical studies, Intanza 9 g is similarly immunogenic and well tolerated in individuals of working age as a typical intramuscular inactivated trivalent vaccination. Local responses to Intanza 9 mg, primarily erythema, are transient, typically mild or moderate, and have no effect on acceptance. At least 95% of both vaccine recipients and prescribers believe Intanza 9 g to be satisfactory, especially because of its short needle and speedy administration. Because Intanza® 9 g provides an alternative to intramuscular vaccines, it may contribute to an increase in influenza vaccination rates [87]. The MicroCor system from Corium employs dissolving microstructures (microneedles) for needle-free delivery of biologics through the skin. When a quick beginning of action is desired, this technology can potentially be used with small molecules. MicroCor PTH(1-34) product candidate contains the authorised osteoporosis medicine Forteo® (teriparatide [rDNA origin] injectable) manufactured by Eli Lilly. Forteo requires a daily self-administered injection, the disposal of sharps (needles), and refrigeration. MicroCor PTH(1-34) has passed Phase 2a clinical study with success. We have also demonstrated the capability to include a wide variety of compounds, including small molecules, peptides, proteins, monoclonal antibodies, and vaccines, into the MicroCor system. The MicroCor drug-in-tip technology, combined active therapeutic medicines with patented polymer and excipient combinations to produce arrays of solid-state biodegradable microstructures. These arrays are created specifically to maximise the local or systemic distribution of medicinal or preventative substances. Upon application, MicroCor arrays penetrate the surface layers of the skin and dissolve or biodegrade. MicroCor can lessen or eliminate the bleeding and discomfort associated with conventional injections. In addition, by delivering vaccines to the higher layers of skin, which are rich in antigen-presenting cells, MicroCor has the potential to generate a more strong and more persistent immune response. In certain instances, this may allow us to develop a vaccine that permits dosage sparing and/or the omission of adjuvants. Corium has created GMP manufacturing facilities, quality systems for scale-up, and cost-effective production procedures to support preclinical and clinical research projects [88]. The skin provides the biggest immunological barrier against infection and is an easily accessible place for immunisation, notwithstanding the difficulty of intradermal (ID) injection. MicronJetTM is a microneedle that consistently injects antigens extremely close to the dendritic cells of the skin. Trivalent virosomal-adjuvanted influenza vaccine was used in a dose-sparing intradermal injection research with 280 healthy adult volunteers. ID injection of 3 µg using the MicronJetTM was well tolerated and demonstrated a statistically larger geometric mean fold rise than the same dose ID injection using a conventional needle (Mantoux technique) for the H1N1 and B strains or a 15 µg intramuscular (IM) injection for the H3N2 strain. Thus, the immune response appears to rely partially on the injection device and route. The MicronJetTM may permit dose-sparing while providing a greater response to influenza immunisation; more clinical evaluation is warranted [89]. Valeritas, Inc., a medical technology company focused on the development and commercialization of new drug delivery solutions, gained CE Mark certification and ISO 13485: 2003 Quality Management System Certification for its V-GoTM Disposable Insulin Delivery Device. The V-Go is intended to provide uncomplicated basal-bolus therapy for insulin-dependent individuals [90]. A High-Density Microarray Patch is the foundation of Vaxxas's technological platform (HD-MAP). The HD-MAP material from Vaxxas is easily manufactured by injection moulding to make small patches with thousands of extremely short (0.25 mm) micro projections. Vaxxas has created innovative methods that allow vaccines to be applied to micro projections sterile conditions. The HD-MAP efficiently distributes the vaccine through its microprojections to the dense populations of immune cells just beneath the skin's surface. Microprojections also activate natural immuno-cellular alarms, resulting in fast vaccine component transport to lymph nodes and a robust immune response. [91] Zosano Pharma Corporation (NASDAQ: ZSAN), a clinical-stage speciality pharmaceutical business, today reported favourable Phase 2 clinical trial results for its patented, quick onset, transdermal ZP-Glucagon patch for severe hypoglycemia. The purpose of Phase 2 clinical study was to compare the safety and efficacy of the ZP-Glucagon patch to the current standard of care in treating insulin-induced hypoglycemia in Type 1 diabetic adults [92]. The eDermaStamp® by Dermaroller® creates micro-injuries of the epidermis and dermis that are minimally invasive and do not result in open wounds or ablative damage. After a short time, the puncturing channels shut, and these micro-injuries initiate the body's wound-healing, resulting in an increase in collagen formation in the treated skin. The eDermaStamp® by Dermaroller® induces the formation of new tissue by encouraging the regeneration of healthy cells in precisely targeted locations exhibiting indications of age. It minimises wrinkles effectively, tightens and thickens the skin, and-probably most impressively-fills and smoothes scars [93]. CosMED Pharmaceutical Co. Ltd. (CosMED) is an RandD-driven company that specialises in the creation of transdermal therapeutic systems, such as transdermal medicine, cosmetics, medical adhesives, and laboratory equipment for transdermal investigations. MicroHyala® is an innovative and one-of-a-kind microneedle product. Since November 2008, CosMED has created microneedle cosmetics, which are the first microneedle products to be commercially successful. Using MicroHyala® technology, CosMED competes in the transdermal vaccination and protein drug markets [94]. As an alternative method for the delivery of vaccines, microneedle patches are attracting growing attention. Using TheraJect's microneedle technology, an approved seasonal influenza vaccine from 2007 to 2008 was produced into dissolvable microneedles in this study (VaxMat). The microneedles' tips were composed of antigens combined with trehalose and sodium carboxymethyl cellulose [95]. Pain-free, blood-free, minimally invasive transdermal drug delivery systems for large molecules to the Epidermis, Syringe Delivery is Obsolete for Numerous Pharmaceuticals and Vaccines DrugMAT is more effective than existing transdermal Patches since it reliably transports even the largest molecules of drug amenable to Proteins, Vaccines, etc. Generally, cosmetics, genetic materials, and other applications employ dissolving microneedles. DEBIOTECH creates cutting-edge medical devices utilising micro and nanotechnology, microelectronics, and novel materials. DEBIOTECH focuses specifically on implantable and non-implantable drug delivery and diagnostic devices. DEBIOTECH's main competency is the identification of innovative technologies and the creation of new devices in this field. Then, these gadgets are licenced by multinational pharmaceutical and medical device corporations [96]. DEBIOTECH is a world-renowned leader in the field of MEMS (MicroElectroMechanical Systems)-based drug delivery. In addition to Nanoject Microneedles for intradermal injection (CTI Medtech Award 2008), the company is developing a patch pump for continuous subcutaneous infusion of insulin (Swiss Technology Award 2006) [97]. The BD SoluviaTM pre-fillable microinjection system is an integrated glass pre-fillable syringe system with a 1.5 mm x 30-G BD microneedle. This design enables intradermal administration of the vaccination. The Macroflux® technology utilises a tiny patch and applicator to provide a needle-free method for tranthe sdermal delivery of therapeutic proteins, peptides, and vaccinations. It combines painless and easy drug administration with quick drug delivery and good bioavailability. The patch consists of a thin titanium screen with drug-coated microprojections that, when applied to the skin, form superficial routes through the skin's outer layer to facilitate the movement of molecules. Prior to its spin-off, Macrofluy completed early clinical trials with five different medicines in over 300 participants [98]. Micro-injuries to the epidermis (outer layer of skin) and dermis (middle layer of skin) are created by the Dermapen microneedling pen's segmented microneedle delivery system (the inner layer of skin). Consequently, the micro traumas stimulate the body's intrinsic capacity for repair. Each Dermapen tip is equipped with 12 needles and our exclusive SureSpaceTM and SafLok technologies. Consequently, these safety measures are present in each Dermapen needle tip and pen. In addition, by utilising SureSpaceTM and SafLokTM microneedling pen technologies, practitioners can provide their patients with the safest possible microneedling therapy while achieving the best microneedling results [99, 100]. The 3MTM Hollow Microstructured Transdermal System is compatible with a broad range of drug quantities (up to 2 ml) and molecular types, so long as liquid stability is maintained. This technique combines passive, patient-friendly transdermal distribution with the versatility of parenteral injections. In addition to tiny molecules, the 3M Hollow Microstructured Transdermal System is designed for intradermal delivery of liquid formulations, such as proteins and peptides. Microneedles that are hollow are capable of delivering up to 2 ml of high-value biological compositions [101]. Seventh Sense Biosystems, Inc. (7SBio), creators of the world's first push-button blood collection device, announced today that it’s TAP® II blood collection equipment has obtained CE mark clearance from the European Commission. This authorization enables consumers and patients in the European Union to access quick, convenient, and more comfortable home blood collection at the touch of a button [102, 148]. Microneedle patches are garnering significant attention as an alternate strategy for the delivery of vaccines. Using TheraJect's microneedle technology, an approved seasonal influenza vaccine from 2007 to 2008 was produced into dissolvable microneedles in this study (VaxMat). The tips of the microneedles were constructed of antigens combined with trehalose and sodium carboxymethyl cellulose. The patches comprising 15 µg per strain of influenza antigen were carefully characterised to ensure the antigen's stability after fabrication into microneedles. The Symphony continuous glucose monitoring system might be the first "noninvasive" glucose monitor to successfully reach the market, according to the report. According to the report, there is a high demand on the market for patients and medical experts to employ in their practises and surgical procedures. As the number of diabetic patients rises, the usage of a needle to test blood glucose is becoming obsolete, and an effective continuous monitoring device is becoming increasingly needed [102]. Details of commercial microneedles in the market are given in table 1, fig. 7.

Table 1: Commercial microneedles in the market

S. No. Company Product Mechanism Use

Becton Dickinson/Sanofi

Pasteur

 Intanza® Pre-filled injection system Ready-to-use influenza vaccine intradermal injectors
Corium International, Inc. MicroCor® Dissolvable microneedle Device Transport big molecules like proteins, peptides, and vaccinations, as well as smaller ones.

NanoPass

Technologies, Ltd.

 MicronJetTM Hollow microneedle Device It can be attached to a conventional syringe and used to inject medication, protein, or immunizations without causing any discomfort.
Valeritas, Inc. Micro-TransTM Microneedle device It is effective for dermal medication delivery regardless of drug size, drug structure, drug charge, or patient skin features.
Vaxxas, Inc. NanopatchTM Vaccine-coated microneedle device Used in vaccine delivery
Zosano Pharma ZP Patch Drug-coated microneedle Patch Used in glucagon delivery
Derma spark, Canada Dermaroller® Metallic microneedle array Used for the treatment of acne, stretch marks, and alopecia. enhanced medication absorption (minoxidil, hyaluronic acid, etc.).
CosMED Pharmaceutical Co. Ltd., Japan MicroHyala® Dissolvable microneedle patch Its anti-wrinkle properties are due to the hyaluronic acid it contains, which is absorbed by the skin.
TheraJect Inc., USA VaxMat® Dissolvable microneedle patch Macromolecules such as proteins, peptides, and vaccines can be transported with this method.
TheraJect Inc., USA Drugmat® Dissolvable microneedle patch It rapidly penetrates the stratum corneum and releases hundreds of milligrammes of medication into the epidermal layer.
Debiotech, Switzerland Nanoject® Microneedle array-based device Interstitial fluid diagnostics and drug delivery via intradermal and hypodermic routes
Becton Dickinson, USA Soluvia® Hollow microneedle array For precise intradermal delivery of medications and vaccines, use this prefillable microinjection device.
Zosano Pharma Inc., USA Macroflux® Metallic microneedle array Delivery of peptides and vaccines
Dermapen Dermapen® Microneedle array-based device Used to treat a variety of skin problems, including acne, stretch marks, and hair loss; it improves medicine absorption.
3M Corp., USA Microstructured transdermal patch Hollow microneedle arrays It can transfer liquid formulations with varying thicknesses.
Seventh Sense Biosystems, Inc. TAP 2 CTM Microneedle penetration/blood sampling Blood sampling unit
TheraJect TheraJectTM Patch Dissolvable microneedle device For those acquainted, TheraJect, Inc. is a biopharmaceutical company in the preclinical organisation devoted to the distribution of pharmaceuticals and vaccinations in an innovative transdermal method that doesn't require the use of needles
Echo. Therapeutics, Inc.

Symphony®

Continuous

Glucose Monitor

 Glucose monitoring The Symphony ® CGM System is a wireless, non-invasive (needle-free), continuous glucose monitoring system.

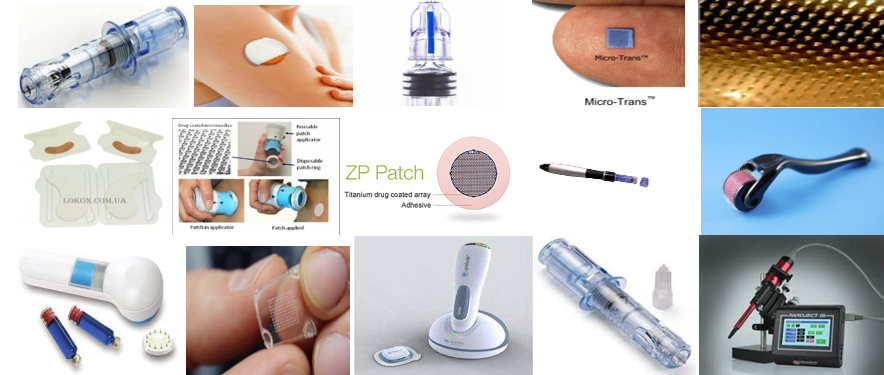

Fig. 7: Commercial microneedles in the market [146]

Patents in mıcro needlıng technology in the year 2022

The inventors, firms, countries of protection, materials, formulations, chemicals or pharmaceuticals, and development status of the selected patents for the fabrication of microneedles arrays are listed in table 2.

Patents in microneedles technology depending upon the application of microneedles in disease targeting and treatment

Yu Yun Long and colleagues identified a composition that would enhance wound healing via micro needling. The composition was formulated using 0.01-0.1 parts tannic acid, 0.001-0.002 parts AgNO3, and 4–10 parts Rhizoma bletillae polysaccharide [103]. Chen Kuen Ren et al., researched microneedle arrays that provided a minimally invasive platform for the administration of ocular medications [104]. A composition for a microneedle patch capable of delivering therapeutically active substances to a perilesional region for the treatment of a skin disease was disclosed by Waldman Reid et al. [105] who further revealed a method for the treatment of a skin ailment that involves the perilesional application of a dissolvable microneedle patch including microneedles, a therapeutically active drug, and a biodegradable polymer. Natalie Artzi et al. described techniques for treating a skin disorder as well as methods for locally reducing an immune response in the tissues of such patients. Methods included contacting a microneedle array composed of a degradable hyaluronic acid polymer with a disulfide bond, a therapeutic agent and applying pressure on the microneedle array that penetrated the skin surface, thereby releasing the therapeutic agent beneath the skin surface while simultaneously capturing it for subsequent analysis [108]. Rhee Yun Seok et al. devised a microneedle patch device for providing a significant quantity of drugs continuously to the skin. A microneedle patch provided by one aspect of the present invention increased drug content per unit area (1 cm2) to a maximum of 100 mg compared to existing microneedles and therefore had a higher drug content per unit area than an existing transdermal absorption agent that was capable of delivering the drug into the body for a short time (within 24 h) and other for a long time (approximately three days or more) via micropores formed by microneedles [112]. The method of administering a dual therapeutic and cosmetic agent discovered by Xu Bai et al. allows for the transdermal application of a single agent with both therapeutic and cosmetic applications. Transdermal delivery was accomplished by administering a dual therapeutic and cosmetic substance to the recipient's skin in conjunction with a microneedle array [113]. Yan Qinying et al., the invention pertains to pharmaceutical preparations and, more specifically to a microneedle for treating psoriasis via percutaneous delivery of lipidosome, as well as a method for preparing the microneedle [119]. Su Jian Yu et al., present a plum slice and borneol soluble micro-needle eyed patch and its preparation technique for eliminating under-eye puffiness. The eyed pad made by the innovation was simple to prepare, effective at removing the pouch, user-friendly, and highly portable [124]. Yingli et al., the invention describes a device for administering medication to the meibomian glands. The device includes a handle, a treatment head, and a meibomian gland drug delivery patch [136]. Tamayol Ali et al., the invention relates to wound healing formulations and method which consists of microneedle arrays and devices for treating wounds and bacterial infections [144].

Patents in micro needling depending upon the technology innovation

Ahn Jun Young et al., reported a microneedle biosensor and a method for its fabrication [106]. Praharaj Seemit et al., developed a technique for additive manufacturing that was used to create a support layer with microneedle protrusions [107]. Dean Kamen et al., developed a microneedle containing delivery device for providing a therapeutic drug to a patient, having a base comprising a first side with a skin-adhering faced and a second side with a reservoir section [109]. The floating microneedle assembly created by Mccaffrey et al., was detached from the device and protected by a pump housing [110]. The microneedle assembly would administer liquid medication to the user. Matthew Hopcroft et al., [111] created a sensor for aiding the study of biological specimens in vivo employing a stiff needle with a protruding initial end for skin penetration. The invention of Chang Sobin et al., provides microneedle delivery adapter devices and methods of administering drugs using the devices, including methods for inducing an immune response in a subject by administering an immunising composition containing a Sars-Cov-2 pathogen to the subject's skin [114]. Shimizu Hiroko et al., created a needle applicator for feeding a liquid through a plurality of microneedles or adjacent to them onto a surface [115]. Kim Seong Ok and colleagues created the microneedle assembly [116]. Kwak Min Kyu et al., intended to invent a composition for the treatment of atopic dermatitis comprising a nanosized bee pollen extract as the active ingredient and a microneedle patch used the same, and more specifically, a composition for the treatment of atopic dermatitis comprising a nanosized bee pollen extract as the active ingredient [117]. Qian Hongliang et al., innovation revealed a double-response double-layer cross-linked insulin-controlled delivery microneedle and a technique for its fabrication. The microneedle comprises a backing layer part and a needle tip part, wherein the backing layer part was made from a soluble polymer solution and an insulin drug delivery system was arranged in the needle tip part [129]. Pei Haifeng et al., the invention relates to the field of medical equipment more specifically to a revolutionary double-layer medicine balloon [139]. Alary Marc et al., a precise array of distinct microneedles may be produced using a film with first and second, externally facing main surfaces [142]. Aksit Aykut et al., the subject matter disclosed relates to a system and technique for the transmembrane administration of therapeutic drugs to the inner ear. The system comprises several microneedles that could be given to the rounded window membrane by a delivery device, such as a catheter which was capable of penetrating the rounded window membrane in a controlled manner to form temporary and self-closing perforations [143].

Table 2: Patents in microneedling technology in the year 2022

S. No. Key invention Patent no. Applicant Date Inventor Reference

Microneedle for promoting wound healing

CN114668778A

 Southwest National University 19-04-2022 Yu Yunlong; Zeng Rui, Qu Yan, Yang Xiao [103]

Microneedle array with an interlocking feature

WO2022197452A2

 University Washington State [US] 22-09-2022 Chen Kuen Ren, Amer Maher [104]

Perilesional treatment of skin conditions

WO2022204255A1

 Veradermics 29-09-2022 Waldman Reid [105]

Microneedle biosensor and manufacturing method for the same

WO2022149754A1

 Albiti Inc [KR] 14-07-2022 Ahn Jun Young, Jang Eun Hee [106]

System and method for manufacturing microneedle assemblies with medicaments

US2022305736A1

 Xerox Corp [US] 29-09-2022 Praharaj Seemit, Liu Chu-Heng, Herrmann Douglas K, Lefevre Jason M, Mcconville Paul J [107]

Microneedles and methods for treating the skin

WO2022183126A1

 Brigham and Womens Hospital Inc [US], Massachusetts Inst Technology [US] 29-09-2022 Artzi Natalie, Dosta Pere, Puigmal Nuria, Solhjou Zhabiz, Yatim Karim, Azzi Jamil [108]

Medical agent dispensing systems, methods, and apparatuses

US2022273924A1

 Deka Products Lp [US] 01-09-2022 Kamen Dean, Lanigan Richard [109]

Drug delivery device including pump with floating microneedle assembly

US2022273927A1

 Insulet Corp [US] 01-09-2022 Mccaffrey Maureen, Cardinali Steven, O'connor Jason [110]

Needle sensor and method of manufacturing the same

US2022273240A1

 Laxmi Therapeutic Devices Inc [US] 01-09-2022 Hopcroft Matthew [111]

Microneedle patch system for transdermal drug delivery

WO2022177205A1

 Nat University Gyeongsang Iacf [KR] 25-08-2022 Rhee Yun Seok, Song Sangbyeong, Lee Jaemin, Song Chanwoo, Noh Inhwan [112]

Method of administering a dual therapeutic and cosmetic agent

US2022265589A1

 Nanomed Skincare Inc [US] 25-08-2022 Xu Bai [113]

Systems and methods for administering vaccine composition using modular multi-vial microchannel delivery adapter devices

WO2022173863A1

 Aquavit Pharmaceuticals Inc [US] 18-08-2022 Chang Sobin, Nevrivy Daniel,Sankaranarayan Saiprasad [114]

Needle applicator and puncture injection kit

WO2022168713A1

 Shiseido Co Ltd [JP] 11-08-2022 Shimizu Hiroko, Obana Takakazu, Yoshimura Mika, Ogai Noriyuki, Toda Yasuhiro [115]

Microneedle assembly

KR102425556B1

 Daewoong Therapeutics [KR] 29-07-2022 Kim Seong Ok, Youn Young Sook, Kim Jae Heon [116]

Composition for treating atopy comprising nanosized bee pollen extract as an active ingredient and a microneedle patch using the same

KR20220104429A

 Eulji University Industry Academy Coopera 26-07-2022 Kwak Min Kyu, Lee Yun Kyung [117]

Polyglycerol, complex gel composition containing said polyglycerol, drug delivery microneedle including said complex gel composition, and methods for producing same

WO2022154055A1

 Kanagawa Institute Of Industrial Science And Tech [JP], University Nat Corp Tokyo Medical and Dental [JP] 21-07-22 Matsumoto Akira, Miyazaki Takuya [118]

Microneedle for treating psoriasis through percutaneous delivery of lipidosome and preparation method of microneedle

CN114432230A

 Zhejiang Industrial University 06-05-2022 Yan Qinying, Fang Min, Yang Gensheng, Weng Jiaqi; Shen Shulin, Wang Yan [119]

Slow-release microneedle patch and preparation method thereof

CN114668712A

 Shenzhen College 24-03-2022 Gao Yunhua, He Meilin, Yang Guozhong, Zhang Suohui [120]

Preparation method of a hollow microneedle patch, hollow microneedle patch and injection device

CN114344699A

 University Sichuan 11-01-2022 Gou Maling, Li Rong [121]

Degradable slow-release composite microneedle for treating food allergy and preparation method thereof

CN114668709A

 University Chinese Agricultural 28-06-2022 Che Huilian, Zhang Erkang, Zeng Binghui, Liu Guirong, Yao Lu, Wang Qi [122]

Soluble Superoxide Dismutase microneedle patch with anti-ageing effect

CN114259458A

 Shanghai Hu Yang Biotechnology Co Ltd 04-01-2022 Dong Liang, Chen Yongli, Zhang Shan, Zhang Yanyan, Gan Miao [123]

Plum slice and Borneol soluble micro-needle eye patch for removing eye puffiness and preparation method thereof

CN114366700A

 Xinxiang Shenzhen Science and Tech Co Ltd 19-04-2022 Su Jianyu, Fan Penghui, Lyu Manxia, Hou Yuchao, Wang Yanjiao [124]

Soluble microneedle and manufacturing method thereof

CN114558242A

 Youmicro Pearl Ha Biotechnology Co Ltd 31-05-2022 Leng Gang, Lee Sung Guk, Ma Yonghao [125]

Polydopamine photothermal conversion effect microneedles and preparation method thereof

CN114504727A (B)

 Guangzhou Nali Biotechnology Co Ltd 17-05-2022 Chen Yanbiao, Chen Jiali, Tang Cong,Li Sidong [126]

Glucagon-loaded wearable device for treating hypoglycemia

CN114376569A

 University Zhejiang 19-01-2022 Zheng Chao, Yu Xiang, Tanie; Zhang Yikai, Wang Shengyao, Ye Shu, Hu Yepeng [127]

Silicon-based ice microneedle and preparation method thereof

CN114588527A

 University Suzhou 7-06-2022 Su Xiaodong, Cheng Wei, Zou Shuai, Ni Mengfei, Dai Longfei [128]

Double response double layer cross-linked insulin controllable delivery microneedle and preparation method thereof

CN114569706A

 Chinese Pharmacology University 03-06-2022 Qian Hongliang, He Mujiao, Li Qihang, Ma Yuhong, Chen Wei, Huang Dechun [129]

Rapid separation type liposome composite sustained-release microneedle and preparation method thereof

CN114569583A

 Medium Mountain University 08-03-2022 Zeng Xiaowei, Yang Yao, Hu Jingwen, Huang Ping, Yang Li, Hou Ailin, Lin Jiachan [130]

Microneedle array enzyme composite electrode and preparation method thereof

CN114569124A

 Southern Hospital of Southern Medical University 08-03-2022 Zhou Cuiping, Li Xu, Liu Zhaobin [131]

A method for manufacturing a microneedle

KR102427901B1

 Daewoong Therapeutics [KR] 02-08-2022 Kang Yoonsik, Im Jiyeon, Eum Jaehong, Lee Booyong, Kim Donghwan, Kang Bokki [132]

Macromolecular soluble microneedle patch and preparation method thereof

CN114515267A

 University Wuhan Tech 20-05-2022 Hu Ping, Liu Yang, Fan Lihong, Zhang Xingui, Chen Tiantian, Tong Zexin [133]

Composite microneedle balloon and preparation method thereof

CN114470341A

 Nanjing Tympanic Building Hospital 02-03-2022 Zhao Yuanjin, Zhang Xiaoxuan, Cheng Yi, Zhang Dagan, Shang Yixuan [134]

Microneedle female die, the preparation process of microneedle female die, microneedle patch and preparation process of microneedle patch

CN114454392A

 Youmicro Pearl Ha Biotechnology Co Ltd 28-01-2022 Lee Sung Guk, Leng Gang, Ma Yonghao, Yang Jian [135]

Device for delivery of drug to meibomian glands

CN114081716A

 Shenzhen Hospital of Southern Medical University 22-01-2022 Li Yingli, Liao Sizhao, Su Wenhua, Zhao Pengyue, Li Xue, Yang Meiqing, Gao Na, Zhou Lili [136]

Bacteria-responsive microneedle patch as well as preparation method and application thereof

CN114432276A

 University Changzhou 27-01-22 Wang Jianhao, Lei Xiaoling, Zhou Xinpei, Li Mengjin, Qiu Lin, Zhou Shuwen, Cui Pengfei, Wang Cheng, Gao Zihan [137]

Dissoluble microneedle containing active microalgae, microneedle patch, preparation method and application

CN114557954A

 Australia University 03-03-2022 Wang Ruibing, Zhang Qingwen, Wang Zeyu [138]

Novel double-layer medicine balloon

CN114569868A

 Military And Western War Area General Hospital For Chinese People Liberation 03-06-22 Pei Haifeng, Mou Dong, Peng Ke, Wang Zhen, Wang Xiong, Wang Peng, Li Jing [139]

Microneedle immunotherapeutic multi-component system and a method for vaccination

US2022023605A1

 Microneedles Inc [US] 27-01-2022 Zvezdin Vasilii, Pavlov Andrei [140]

Methods and compositions for microflillng the skin with hyaluronic acid using microchannel technology

US2022257494A1

 Aquavit Pharmaceuticals Inc [US] 18-08-2022 Chang Sobin [141]

Microneedle arrays and methods for making and using

US2022111189A1

 Johnson and Johnson Consumer Inc [US] 14-04-2022 Alary Marc, Hopson Peyton, Liu Jan-Joo, Lunde Erik, Patel Bharat, Morano Emanuel [142]

Microneedles to deliver therapeutic agent across membranes

US2022176096A1

 University Columbia [US] 09-06-2022 Aksit Aykut, Lalwani Anil K, Kysar Jeffrey W, West Alan [143]

Drug delivery using microneedle arrays

US2022273926A1

 University Nebraska [US] 01-09-2022 Tamayol Ali, Derakhshandeh Hossein, Mostafalu Pooria [144]

Patents in microneedles technology according to the nature of the chemical constituents

Che Huilian et al., created bacteriostatic sprays and disclosed a degradable slow-release composite microneedle and method for its manufacture for treating food allergy. The composite microneedle consists of a base and a needle tip with anti-allergic drugs included in the needle tip material [122]. A superoxide dismutase-soluble microneedle patch with an anti-ageing effect was disclosed by Dong Liang et al. who worked on anti-ageing superoxide dismutase soluble microneedle patch which consisted of a backing layer and a needle tip layer consisting of soluble microneedles arrayed on the backing layer. Compared to other procedures for making soluble microneedles, freeze-drying was utilised [123]. Chen Yanbiao et al., described a polydopamine microneedle with a photothermal conversion action and its preparation process. The microneedle had a shell and a cavity when the shell was formed by crosslinking a temperature-sensitive polymer, the cavity was prepared in a laser pore-forming mode and the cavity was used for loading polydopamine nanoparticles and an active drug [126]. Zheng Chao et al., the invention provides a glucagon-loaded wearable device for treating hypoglycemia which comprised of housing which comprised of an upper cover, a bottom shell and watchbands arranged on two sides used for fixing the wearable device on the surface of human skin, the controlled module, the lifting module and the drug delivery module [127]. Su Xiaodong et al., disclosed a silicon-based ice microneedle and a method for its preparation. The silicon-based ice microneedle comprises a silicon wafer and a number of micron needle-shaped structures formed on the silicon wafer and distributed in an array, hollow structures penetrating through the tops of the micron needle-shaped structures to the bottom of the silicon wafer, and ice soluble needle tips [128]. Zeng Xiaowei et al., the invention pertains to microneedle drug delivery systems and more specifically to a quick separation typed liposome composite sustained-release microneedle and its manufacturing process [130]. Hu Ping et al.’s current invention relates to a polymer-soluble microneedle patch and a method for its preparation, when mass ratio of polyvinyl alcohol to the tannic acid in the polyvinyl alcohol-tannic acid composite material was 12: 2 [133, 151]. Lee Sung Guk et al., invention pertains to the field of microneedles The microneedle consists of a PDMS forming groove and a defoaming film, with several microneedle protrusions arrayed in the PDMS forming groove. In addition, the defoaming film adhered to the upper PDMS forming groove [135, 152]. Wang Jianhao et al., invented microneedle patches, bacterial responsive drug-loaded nanoparticles, and a polymer matrix [137]. Chang Sobin et al., provided an effective amount of hyaluronic acid in solid form forming the hyaluronic acid in an aqueous solution and delivering the solution comprising hyaluronic acid to the subject's skin [141].

Patents in microneedles technology according to the modification of the category of microneedling

Matsumoto Akira et al., examined mechanical strength for puncturing the skin and strong drug-releasing capabilities after puncturing the skin with a micro-needle patch. The needle included a complex gel composition including polyglycerol and a copolymer comprising a Phenyl Boronate based monomer unit which was capable of retaining a drug and had drug-permeable properties [118]. Gao Yunhua et al., the invention disclosed an implanted microneedle patch and a technique for its production. Initially, the invention disclosed an implantable slow-release microneedle comprising a needle pointed, a needle body, and a base when the needle pointed comprised a needle-pointed centre layer and a needle-pointed outer layer [120]. Gou Maling et al., invention proposed a method for preparing a hollow microneedle patch and an injection device. The hollow microneedle array diagram and the bottom plate diagram were loaded into a digital light processing (DLP) system, the hollow microneedles were then generated according to the hollow microneedle array diagram, followed by the formation of the bottom plate. According to the method, a microneedle patch of large size and good quality could be manufactured swiftly, and the patch's structure could be precisely regulated and controlled [121]. Leng Gang et al., the invention relates to a soluble microneedle and its method of manufacture [125]. Zhou Cuiping et al., the invention offers a microneedle array enzyme composite electrode and a technique for its manufacture; it is related to the biomedical engineering sector [131]. Kang Yoonsik et al., invented a mould in which one or more microneedle engraved parts were formed, including a tip engraved part and a reservoir engraved part communicating with the tip engraved part, and a raw material containing a pharmacological component in the microneedle engraved part which was the embodiment of the present invention [132]. Zhao Yuanjin et al., the invention includes a composite microneedle balloon together with a technique for its preparation. The composite microneedle balloon comprises a medical balloon, a primary coating, and a secondary coating, wherein the surface of the medical balloon was coated with the primary coating and the secondary coating was uniformly distributed on the surface of the primary coating [134, 150]. Wang Ruibing et al., invention discloses a dissolvable microneedle containing active microalgae, a microneedle patch, a preparation technique, and an application which related to microneedle technology and microalgae preparations. The dissolving microneedle patch based on the active microalgae produced oxygen in the deep layer of the skin via photosynthesis by delivering the active microalgae in order to achieve local treatment, and it was biocompatible, painless, minimally invasive, and adaptable [138]. Zvezdin Vasilii et al., formed a dissolvable microneedle drug delivery system includes a fixation component with an opening window area and at least two replaceable and/or dissolvable inner matrices that fit successively into the window area. The fixation component consisted of an array of microneedles attached to its base, to secure the delivery system to the skin [140].

Current and future developments

It has been established that microneedles are potent devices that can considerably improve the efficacy of transdermal medication administration. The primary advantages of Microneedles systems are their painless method of drug delivery for a vast array of compounds, their high patient compliance, and their possibility for self-administration. Even though numerous Microneedle designs have been found to improve drug administration, there is still a need for Microneedles that can form micro-conduits/micro-pores with greater accuracy and reproducibility, to accommodate the difference in individual skin types and skin elasticity. Therefore, the various patents presented in this article have the potential to be utilised by patients for constant and reliable penetration into biological tissue throughout the device's lifetime with minimal inter-individual variability. Because ease of use is one of the primary selling advantages of conventional transdermal patches. Microneedles should ideally be reasonably inexpensive, reusable, portable, and simple to use by all patients, regardless of age or level of expertise. Lastly, it should be mentioned that few Microneedles are currently commercially accessible. Therefore, engineering, pharmaceutics, and the healthcare professions are faced with the difficult task of transforming patented innovations into clinically approved devices before widespread usage of Microneedles.

CONCLUSION

Our largest organ, the skin, serves as an intriguing and distinctive interface between the outside world and us. Since several years ago, it had been possible to administer drugs via intact skin. The fact that microneedle research in the US is one of the most successful novel research areas in drug delivery today is proof of the success of the microneedle drug delivery technology. Drugs like protein, peptides, vaccines, glucagon, minoxidil, and hyaluronic acid are already commercialised as microneedles. The US market for microneedles is currently rising at a rate of more than 7% CAGR yearly, and it is continuing to increase. The natural skin barrier's restriction on the penetration of foreign substances has inspired pharmaceutical scientists to develop a variety of strategies to modify the cutaneous membrane's permeability in order to obtain therapeutic levels of the active chemicals in the systemic circulation. The simplest and most extensively researched method among these is to employ microneedles to reversibly reduce the skin's barrier resistance. Numerous micro-needling procedures that have been used to facilitate the passage of active ingredients across skin have been documented in a plethora of research reports and patents in the scientific literature. Pharmaceutical companies examine several types of micro-needling technologies and their applications, but these are never published in scientific journals since they are patented by the investigators. Consequently, a thorough examination of patents is always required as part of any literature search on a specific subject. The current article has made an effort to cover the most recent micro-needling patents issued in 2022. Even though the information might not be complete, it might be helpful to point other researchers who are interested in transdermal skin treatments in the right direction. The patents have been awarded in a variety of areas, such as those pertaining to inventors, enterprises, nations offering protection, materials, procedures, chemicals, or pharmaceuticals, the stage of development of the chosen patents for the creation of microneedle arrays, and so forth. According to the use of microneedles in the targeting and treatment of diseases, the majority of patents for microneedle technology have been issued. The readers are also urged to do a thorough analysis of the microneedling patent landscape in light of technological advancements, chemical composition, and technological modifications.

FUNDING

This work was carried out under the financial support received from the Ministry of Science and Technology, Department of Science and Technology New Delhi, Govt of India (File No SP/YO/063).

AUTHORS CONTRIBUTIONS

Concept–Bhupinder Kaur.; Design–Bhupinder Kaur.; Supervision–Nishant Thakur.; Resources–Nishant Thakur; Data Collection and/or Processing–Manish Goswami.; Literature Search–Bhupinder Kaur, Nishant Thakur.; Writing–Bhupinder Kaur.; Critical Reviews–Manish Goswami

CONFLICT OF INTERESTS

The authors declared no conflict of interest

REFERENCES

  1. Brown MB, Martin GP, Jones SA, Akomeah FK. Dermal and transdermal Drug Delivery Systems: current and future prospects. Drug Deliv. 2006;13(3):175-87. doi: 10.1080/10717540500455975, PMID 16556569.

  2. Murthy SN, Shivakumar HN, CHAPTER. 1-topical and transdermal drug delivery. In: Kulkarni VS, editor. Personal care and cosmetic technology, handbook of non-invasive drug delivery systems. William Andrew Publishing; ISBN 9780815520252; 2010. p. 1-36.

  3. Benson HA. Transdermal drug delivery: penetration enhancement techniques. Curr Drug Deliv. 2005;2(1):23-33. doi: 10.2174/1567201052772915, PMID 16305405.

  4. Nagdev SA, Agrawal O, Rageeb Md, Usman Md. Transdermal drug delivery system: an overview. Res J Pharm Technol. 2022;15(3):1371-7. doi: 10.52711/0974-360X.2022.00229.

  5. Stanekzai A, Sudhakar CK, Zhakfar AM, Karan VS. Recent approaches in transdermal drug delivery system. Res J Pharm Technol. 2019;12(9):4550-8. doi: 10.5958/0974-360X.2019.00783.2.

  6. Rastogi V, Yadav P. Transdermal drug delivery system: an overview. Asian J Pharm. 2012;6(3). doi: 10.4103/0973-8398.104828.

  7. Alkilani AZ, McCrudden MT, Donnelly RF. Transdermal drug delivery: innovative pharmaceutical developments based on disruption of the barrier properties of the stratum corneum. Pharmaceutics. 2015;7(4):438-70. doi: 10.3390/pharmaceutics7040438, PMID 26506371.

  8. Marwah H, Garg T, Goyal AK, Rath G. Permeation enhancer strategies in transdermal drug delivery. Drug Deliv. 2016;23(2):564-78. doi: 10.3109/10717544.2014.935532, PMID 25006687.

  9. Kogan A, Garti N. Microemulsions as transdermal drug delivery vehicles. Adv Colloid Interface Sci. 2006;123-126:369-85. doi: 10.1016/j.cis.2006.05.014, PMID 16843424.

  10. Jeong WY, Kwon M, Choi HE, Kim KS. Recent advances in transdermal drug delivery systems: a review. Biomater Res. 2021;25(1):24. doi: 10.1186/s40824-021-00226-6, PMID 34321111.

  11. Alkilani AZ, McCrudden MT, Donnelly RF. Transdermal drug delivery: innovative pharmaceutical developments based on disruption of the barrier properties of the stratum corneum. Pharmaceutics. 2015;7(4):438-70. doi: 10.3390/pharmaceutics7040438, PMID 26506371.

  12. Anod HV, Gupta NV, Gowda DV, MM. Preparation and evaluation of simvastatin transdermal film. Int J App Pharm. 2018;10(5). doi: 10.22159/ijap.2018v10i5.26657.

  13. Scheindlin S. Transdermal drug delivery: past, Present, Future. Mol Interv. 2004;4(6):308-12. doi: 10.1124/mi.4.6.1, PMID 15616157.

  14. Kalia YN, Guy RH. Modeling transdermal drug release. Adv Drug Deliv Rev. 2001;48(2-3):159-72. doi: 10.1016/s0169-409x(01)00113-2, PMID 11369080.

  15. ChanderJhawat V, Saini V, Kamboj S, Maggon N. Transdermal drug delivery systems: approaches and advancements in drug absorption through skin. Int J Pharm Sci Rev Res. 2013;10:47-56.

  16. Ranade VV. Drug delivery systems. 6. Transdermal drug delivery. J Clin Pharmacol. 1991;31(5):401-18. doi: 10.1002/j.1552-4604.1991.tb01895.x, PMID 2050824.

  17. Subedi RK, Oh SY, Chun MK, Choi HK. Recent advances in transdermal drug delivery. Arch Pharm Res. 2010;33(3):339-51. doi: 10.1007/s12272-010-0301-7, PMID 20361297.

  18. Rizwan M, Aqil M, Talegaonkar S, Azeem A, Sultana Y, Ali A. Enhanced transdermal drug delivery techniques: an extensive review of patents. Recent Pat Drug Deliv Formul. 2009;3(2):105-24. doi: 10.2174/187221109788452285, PMID 19519571.

  19. Fukushima K, Ise A, Morita H, Hasegawa R, Ito Y, Sugioka N. Two-layered dissolving microneedles for percutaneous delivery of peptide/protein drugs in rats. Pharm Res. 2011;28(1):7-21. doi: 10.1007/s11095-010-0097-7, PMID 20300802.

  20. Ito Y, Hirono M, Fukushima K, Sugioka N, Takada K. Two-layered dissolving microneedles formulated with intermediate-acting insulin. Int J Pharm. 2012;436(1-2):387-93. doi: 10.1016/j.ijpharm.2012.06.047, PMID 22750407.

  21. Rao R, Mahant S, Chhabra L, Nanda S. Transdermal innovations in diabetes management. Curr Diabetes Rev. 2014;10(6):343-59. doi: 10.2174/1573399810666141124110836, PMID 25418713.

  22. Kim YC, Park JH, Prausnitz MR. Microneedles for drug and vaccine delivery. Adv Drug Deliv Rev. 2012;64(14):1547-68. doi: 10.1016/j.addr.2012.04.005, PMID 22575858.

  23. Prausnitz MR. Microneedles for transdermal drug delivery. Adv Drug Deliv Rev. 2004;56(5):581-7. doi: 10.1016/j.addr.2003.10.023, PMID 15019747.

  24. Ita K. Transdermal delivery of drugs with microneedles-potential and challenges. Pharmaceutics. 2015;7(3):90-105. doi: 10.3390/pharmaceutics7030090, PMID 26131647.

  25. Park JH, Allen MG, Prausnitz MR. Biodegradable polymer microneedles: fabrication, mechanics and transdermal drug delivery. J Control Release. 2005;104(1):51-66. doi: 10.1016/j.jconrel.2005.02.002, PMID 15866334.

  26. Bariya SH, Gohel MC, Mehta TA, Sharma OP. Microneedles: an emerging transdermal drug delivery system. J Pharm Pharmacol. 2012;64(1):11-29. doi: 10.1111/j.2042-7158.2011.01369.x, PMID 22150668.

  27. Van der Maaden K, Jiskoot W, Bouwstra J. Microneedle technologies for (trans)dermal drug and vaccine delivery. J Control Release. 2012;161(2):645-55. doi: 10.1016/j.jconrel.2012.01.042, PMID 22342643.

  28. Henry S, McAllister DV, Allen MG, Prausnitz MR. Microfabricated microneedles: A novel approach to transdermal drug delivery. J Pharm Sci. 1999;88(9):948. doi: 10.1021/js990783q, PMID 10479360.

  29. McAllister DV, Allen MG, Prausnitz MR. Microfabricated microneedles for gene and drug delivery. Annu Rev Biomed Eng. 2000;2:289-313. doi: 10.1146/annurev.bioeng.2.1.289, PMID 11701514.

  30. Gill HS, Prausnitz MR. Coated microneedles for transdermal delivery. J Control Release. 2007 Feb 12;117(2):227-37. doi: 10.1016/j.jconrel.2006.10.017, PMID 17169459.

  31. Ling MH, Chen MC. Dissolving polymer microneedle patches for rapid and efficient transdermal delivery of insulin to diabetic rats. Acta Biomater. 2013;9(11):8952-61. doi: 10.1016/j.actbio.2013.06.029, PMID 23816646.

  32. Henry S, McAllister DV, Allen MG, Prausnitz MR. Microfabricated microneedles: a novel approach to transdermal drug delivery. J Pharm Sci. 1998;87(8):922-5. doi: 10.1021/js980042+, PMID 9687334.

  33. Wang M, Hu L, Xu C. Recent advances in the design of polymeric microneedles for transdermal drug delivery and biosensing. Lab Chip. 2017;17(8):1373-87. doi: 10.1039/c7lc00016b, PMID 28352876.

  34. Indermun S, Luttge R, Choonara YE, Kumar P, Du Toit LC, Modi G. Current advances in the fabrication of microneedles for transdermal delivery. J Control Release. 2014;185(1):130-8. doi: 10.1016/j.jconrel.2014.04.052, PMID 24806483.

  35. Bhatnagar S, Dave K, Venuganti VVK. Microneedles in the clinic. J Control Release. 2017 Aug 28;260:164-82. doi: 10.1016/j.jconrel.2017.05.029, PMID 28549948.

  36. Waghule T, Singhvi G, Dubey SK, Pandey MM, Gupta G, Singh M. Microneedles: A smart approach and increasing potential for transdermal drug delivery system. Biomed Pharmacother. 2019;109:1249-58. doi: 10.1016/j.biopha.2018.10.078, PMID 30551375.

  37. Tsioris K, Raja WK, Pritchard EM, Panilaitis B, Kaplan DL, Omenetto FG. Fabrication of silk microneedles for controlled-release drug delivery. Adv Funct Mater. 2012;22(2):330-5. doi: 10.1002/adfm.201102012.

  38. Cheung K, Das DB. Microneedles for drug delivery: trends and progress. Drug Deliv. 2016 Sep;23(7):2338-54. doi: 10.3109/10717544.2014.986309, PMID 25533874.

  39. Escobar Chavez JJ, Bonilla Martinez D, Villegas Gonzalez MA, Molina Trinidad E, Casas Alancaster N, Revilla Vazquez AL. Microneedles: A valuable physical enhancer to increase transdermal drug delivery. J Clin Pharmacol. 2011;51(7):964-77. doi: 10.1177/0091270010378859, PMID 21148047.

  40. Ma G, Wu C. Microneedle, bio-microneedle and bio-inspired microneedle: a review. J Control Release. 2017;251:11-23. doi: 10.1016/j.jconrel.2017.02.011, PMID 28215667.

  41. Kim YC, Park JH, Prausnitz MR. Microneedles for drug and vaccine delivery. Adv Drug Deliv Rev. 2012;64(14):1547-68. doi: 10.1016/j.addr.2012.04.005, PMID 22575858.

  42. Serrano Castaneda P, Escobar Chavez JJ, Rodriguez Cruz IM, Melgoza LM, Martinez Hernandez J. Microneedles as enhancer of drug absorption through the skin and applications in medicine and cosmetology. J Pharm Pharm Sci. 2018;21(1):73-93. doi: 10.18433/jpps29610, PMID 29510800.

  43. Larraneta E, Lutton REM, Woolfson AD, Donnelly RF. Microneedle arrays as transdermal and intradermal drug delivery systems: materials science, manufacture and commercial development. Materials Science and Engineering: R: Reports. 2016;104:1-32. doi: 10.1016/j.mser.2016.03.001.

  44. Schoellhammer CM, Blankschtein D, Langer R. Skin permeabilization for transdermal drug delivery: recent advances and future prospects. Expert Opin Drug Deliv. 2014;11(3):393-407. doi: 10.1517/17425247.2014.875528, PMID 24392787.

  45. Davidson A, Al-Qallaf B, Das DB. Transdermal drug delivery by coated microneedles: Ggeometry effects on effective skin thickness and drug permeability. Chem Eng Res Des. 2008;86(11):1196-206. doi: 10.1016/j.cherd.2008.06.002.

  46. He X, Sun J, Zhuang J, Xu H, Liu Y, Wu D. Microneedle system for transdermal drug and vaccine delivery: devices, safety, and prospects. Dose Response Dose Response. 2019;17(4):1559325819878585. doi: 10.1177/1559325819878585, PMID 31662709.

  47. Gill HS, Prausnitz MR. Coating formulations for microneedles. Pharm Res. 2007;24(7):1369-80. doi: 10.1007/s11095-007-9286-4, PMID 17385011.

  48. Kim YC, Quan FS, Compans RW, Kang SM, Prausnitz MR. Formulation and coating of microneedles with inactivated influenza virus to improve vaccine stability and immunogenicity. J Control Release. 2010;142(2):187-95. doi: 10.1016/j.jconrel.2009.10.013, PMID 19840825.

  49. Grace JM, Marijnissen JCM. A review of liquid atomization by electrical means. J Aerosol Sci. 1994;25(6):1005-19. doi: 10.1016/0021-8502(94)90198-8.

  50. Angkawinitwong U, Courtenay AJ, Rodgers AM, Larraneta E, McCarthy HO, Brocchini S. A novel transdermal protein delivery strategy via electrohydrodynamic coating of PLGA microparticles onto microneedles. ACS Appl Mater Interfaces. 2020;12(11):12478-88. doi: 10.1021/acsami.9b22425, PMID 32066234.

  51. Tarbox TN, Watts AB, Cui Z, Williams RO 3rd. An update on coating/manufacturing techniques of microneedles. Drug Deliv Transl Res. 2018 Dec;8(6):1828-43. doi: 10.1007/s13346-017-0466-4, PMID 29288358.

  52. Boehm RD, Miller PR, Daniels J, Stafslien S, Narayan RJ. Inkjet printing for pharmaceutical applications. Mater Today. 2014;17(5):247-52. doi: 10.1016/j.mattod.2014.04.027.

  53. Uddin MJ, Scoutaris N, Klepetsanis P, Chowdhry B, Prausnitz MR, Douroumis D. Inkjet printing of transdermal microneedles for the delivery of anticancer agents. Int J Pharm. 2015;494(2):593-602. doi: 10.1016/j.ijpharm.2015.01.038, PMID 25617676.

  54. Boehm RD, Miller PR, Schell WA, Perfect JR, Narayan RJ. Inkjet printing of amphotericin B onto biodegradable microneedles using piezoelectric inkjet printing. JOM. 2013;65(4):525-33. doi: 10.1007/s11837-013-0574-7.

  55. Haj Ahmad R, Khan H, Arshad MS, Rasekh M, Hussain A, Walsh S. Microneedle coating techniques for transdermal drug delivery. Pharmaceutics. 2015;7(4):486-502. doi: 10.3390/pharmaceutics7040486, PMID 26556364.

  56. Hao Y, Li W, Zhou XL, Yang F, Qian ZY. Microneedles-based transdermal drug delivery systems: a review. J Biomed Nanotechnol. 2017;13(12):1581-97. doi: 10.1166/jbn.2017.2474, PMID 29490749.

  57. Martanto W, Davis SP, Holiday NR, Wang J, Gill HS, Prausnitz MR. Transdermal delivery of insulin using microneedles in vivo. Pharm Res. 2004 Jun;21(6):947-52. doi: 10.1023/b:pham.0000029282.44140.2e, PMID 15212158.

  58. Li WZ, Huo MR, Zhou JP, Zhou YQ, Hao BH, Liu T, Zhang Y. Super-short solid silicon microneedles for transdermal drug delivery applications. Int J Pharm. 2010 Apr 15;389(1-2):122-9. doi: 10.1016/j.ijpharm.2010.01.024, PMID 20096759.

  59. Omolu A, Bailly M, Day RM. Assessment of solid microneedle rollers to enhance transmembrane delivery of doxycycline and inhibition of MMP activity. Drug Deliv. 2017;24(1):942-51. doi: 10.1080/10717544.2017.1337826, PMID 28618841.

  60. Chen Y, Chen BZ, Wang QL, Jin X, Guo XD. Fabrication of coated polymer microneedles for transdermal drug delivery. J Control Release. 2017;265:14-21. doi: 10.1016/j.jconrel.2017.03.383, PMID 28344014.

  61. Lee JW, Park JH, Prausnitz MR. Dissolving microneedles for transdermal drug delivery. Biomaterials. 2008;29(13):2113-24. doi: 10.1016/j.biomaterials.2007.12.048, PMID 18261792.

  62. Ita K. Dissolving microneedles for transdermal drug delivery: advances and challenges. Biomed Pharmacother. 2017;93:1116-27. doi: 10.1016/j.biopha.2017.07.019, PMID 28738520.

  63. Davis SP, Martanto W, Allen MG, Prausnitz MR. Hollow metal microneedles for insulin delivery to diabetic rats. IEEE Trans Biomed Eng. 2005;52(5):909-15. doi: 10.1109/TBME.2005.845240, PMID 15887540.

  64. Ita K. Ceramic microneedles and hollow microneedles for transdermal drug delivery: two decades of research. Journal of Drug Delivery Science and Technology. 2018;44:314-22. doi: 10.1016/j.jddst.2018.01.004.

  65. Ashraf MW, Tayyaba S, Nisar A, Afzulpurkar N, Bodhale DW, Lomas T, Poyai A, Tuantranont A. Design, fabrication and analysis of silicon hollow microneedles for transdermal drug delivery system for treatment of hemodynamic dysfunctions. Cardiovasc Eng. 2010;10(3):91-108. doi: 10.1007/s10558-010-9100-5, PMID 20730492.

  66. Vinayakumar KB, Hegde GM, Nayak MM, Dinesh NS, Rajanna K. Fabrication and characterization of gold coated hollow silicon microneedle array for drug delivery. Microelectron Eng. 2014;128(5):12-8. doi: 10.1016/j.mee.2014.05.039.

  67. WM, JSM OK, RK, PMW, JM O. Microinfusion using hollow microneedles. Pharm Res. 2006 Jan;23(1):104-13.

  68. Shawgo RS, Richards Grayson ACR, Li Y, Cima MJ. BioMEMS for drug delivery. Curr Opin Solid State Mater Sci. 2002;6(4):329-34. doi: 10.1016/S1359-0286(02)00032-3.

  69. Forvi E, Bedoni M, Carabalona R, Soncini M, Mazzoleni P, Rizzo F. Preliminary technological assessment of microneedles-based dry electrodes for biopotential monitoring in clinical examinations. Sensors and Actuators A: Physical. 2012;180:177-86. doi: 10.1016/j.sna.2012.04.019.

  70. Davis SP, Prausnitz MR, Allen MG. Fabrication and characterization of laser micromachined hollow microneedles. In: Transducers. Vol. 2; 2003. p. 1435-8. doi: 10.1109/SENSOR.2003.1217045.

  71. Hong X, Wei L, Wu F, Wu Z, Chen L, Liu Z, Yuan W. Dissolving and biodegradable microneedle technologies for transdermal sustained delivery of drug and vaccine. Drug Des Devel Ther. 2013;7:945-52. doi: 10.2147/DDDT.S44401, PMID 24039404.

  72. Ye Y, Yu J, Wen D, Kahkoska AR, Gu Z. Polymeric microneedles for transdermal protein delivery. Advanced Drug Delivery Reviews. 2018 Mar;127:106-18. doi: 10.1016/j.addr.2018.01.015, PMID 29408182.

  73. Teo MA, Shearwood C, Ng KC, Lu J, Moochhala S. In vitro and in vivo characterization of MEMS microneedles. Biomed Microdevices. 2005;7(1):47-52. doi: 10.1007/s10544-005-6171-y, PMID 15834520.

  74. El-Laboudi A, Oliver NS, Cass A, Johnston D. Use of microneedle array devices for continuous glucose monitoring: a review. Diabetes Technol Ther. 2013;15(1):101-15. doi: 10.1089/dia.2012.0188, PMID 23234256.

  75. Kolli CS, Banga AK. Characterization of solid maltose microneedles and their use for transdermal delivery. Pharm Res. 2008;25(1):104-13. doi: 10.1007/s11095-007-9350-0, PMID 17597381.

  76. Wu X, Chen Y, Gui S, Wu X, Chen L, Cao Y, Yin D, Ma P. Sinomenine hydrochloride-loaded dissolving microneedles enhanced its absorption in rabbits. Pharm Dev Technol. 2016;21(7):787-93. doi: 10.3109/10837450.2015.1055766, PMID 26122959.

  77. Chen B, Wei J, Iliescu C. Sonophoretic enhanced microneedles array (SEMA)-improving the efficiency of transdermal drug delivery. Sensors Actuators, B Chem. 2010;145(1):54-60. doi: 10.1016/j.snb.2009.11.013.

  78. Bal SM, Caussin J, Pavel S, Bouwstra JA. In vivo assessment of safety of microneedle arrays in human skin. Eur J Pharm Sci. 2008;35(3):193-202. doi: 10.1016/j.ejps.2008.06.016, PMID 18657610.

  79. Ventrelli L, Marsilio Strambini L, Barillaro G. Microneedles for transdermal biosensing: current picture and future direction. Adv Healthc Mater. 2015;4(17):2606-40. doi: 10.1002/adhm.201500450, PMID 26439100.

  80. Qiu Y, Gao Y, Hu K, Li F. Enhancement of skin permeation of docetaxel: a novel approach combining microneedle and elastic liposomes. J Control Release. 2008;129(2):144-50. doi: 10.1016/j.jconrel.2008.04.019, PMID 18538885.

  81. Wing D, Prausnitz MR, Buono MJ. Skin pretreatment with microneedles prior to pilocarpine iontophoresis increases sweat production. Clin Physiol Funct Imaging. 2013;33(6):436-40. doi: 10.1111/cpf.12053, PMID 23701521.

  82. Ameri M, Kadkhodayan M, Nguyen J, Bravo JA, Su R, Chan K, Samiee A, Daddona PE. Human growth hormone delivery with a microneedle transdermal system: preclinical formulation, stability, delivery and PK of therapeutically relevant doses. Pharmaceutics. 2014;6(2):220-34. doi: 10.3390/pharmaceutics6020220, PMID 24838219.

  83. Ito Y, Yoshimitsu J, Shiroyama K, Sugioka N, Takada K. Self-dissolving microneedles for the percutaneous absorption of EPO in mice. J Drug Target. 2006;14(5):255-61. doi: 10.1080/10611860600785080, PMID 16882545.

  84. Singh I, Morris AP. Performance of transdermal therapeutic systems: effects of biological factors. Int J Pharm Investig. 2011;1(1):4-9. doi: 10.4103/2230-973X.76721, PMID 23071913.

  85. Tuan Mahmood TM, McCrudden MT, Torrisi BM, McAlister E, Garland MJ, Singh TR, Donnelly RF. Microneedles for intradermal and transdermal drug delivery. Eur J Pharm Sci. 2013;50(5):623-37. doi: 10.1016/j.ejps.2013.05.005, PMID 23680534.

  86. Prausnitz MR, Langer R. Transdermal drug delivery. Nat Biotechnol. 2008;26(11):1261-8. doi: 10.1038/nbt.1504, PMID 18997767.

  87. Leroux Roels I, Weber F. IntanzaWeber F (®) 9 µg intradermal seasonal influenza vaccine for adults 18 to 59 y of age. Intanza (®) 9 µg intradermal seasonal influenza vaccine for adults 18 to 59 years of age. Hum Vaccin Immunother. 2013;9(1):115-21. doi: 10.4161/hv.22342, PMID 23442585.

  88. Cosaco. Corium Inc.-delivering innovative transdermal solutions; 2022. Available from: https://corium/about-us.html#:~:text=Solutions%20That%20Transform%20Careandtext=Corium%20is%20a%20commercial%2Dstage,their%20families%2C%20and%20their%20caregivers. [Last accessed on 12 Oct 2022]

  89. Levin Y, Kochba E, Kenney R. Clinical evaluation of a novel microneedle device for intradermal delivery of an influenza vaccine: are all delivery methods the same? Vaccine. 2014;32(34):4249-52. doi: 10.1016/j.vaccine.2014.03.024, PMID 24930715.

  90. Fierce Biotech. CE mark approval for the V-GoTM disposable insulin delivery device; valeritas receives European CE mark approval for the V-GoTM disposable insulin delivery device | Fierce biotech; 2011. Available from: https://www.fiercebiotech.biotechPublishing/valeritas-receives-european-ce-mark-approval-for-v-gotm-disposable-insulin-delivery-device.com [Last accessed on 12 Oct 2022]

  91. Vaxxas. Vaxxas: technology platform; 2021. Available from: https://www.vaxxas.com/technology-platform [Last accessed on 12 Oct 2022]

  92. Zosano Pharma. Globe newswire, zosano pharma announces positive phase 2 results for its zp-glucagon patch program for treatment of severe. Hypoglycemia; 2012.

  93. Derma spark: Dermaroller Micro Needling-DermaSpark Products Inc; 2022. Available from: DermarollerMicroNeedling-DermaSparkProductsInc.

  94. Kansai Bio Venture view; 2001. Available from: kinkibio-venture.kansaibio-ventureviewCosMEDpharmaceuticalColo.Ltd.Com [Last accessed on 12 Oct 2022]

  95. Kommareddy S, Baudner BC, Oh S, Kwon SY, Singh M, O'’Hagan DT. Dissolvable microneedle patches for the delivery of cell-culture-derived influenza vaccine antigens. J Pharm Sci. 2012;101(3):1021-7. doi: 10.1002/jps.23019, PMID 22190403.

  96. Therajet. Welcome to TheraJect, Inc; 2022.

  97. Nanotech; 2011. NanoTech: Exhibition. Available from: nanotech-montreux.com. [Last accessed on 12 Oct 2022]

  98. Soluvia BD. BD Soluvia™ pre-fillable microinjection system-BD; 2011. [Last accessed on 12 Oct 2022]

  99. Zosano Pharma. Launch of macroflux corporation | Zosano pharma corporation; 2011. [Last accessed on 12 Oct 2022]

  100. Dermapen. Dermapen® | The World’s most advanced microneedling device; 2022. [Last accessed on 12 Oct 2022]

  101. Dick LA. Innovatıve drug delivery technology to meet evolving need of biologıcs and small molecules. Available from: 3M_HR.pdf (ondrugdelivery.com). [Last accessed on 12 Oct 2022]

  102. Marking CE. Seventh sense biosystems. Vol. II. 2021. Seventh Sense Biosystems Expands to European Markets for Consumer Blood Collection with TAP. Available from: yourbiohealth.com. [Last accessed on 12 Oct 2022]

  103.  Yu Yunlong Y, Zeng Rui Z, Qu Yan Q, Yang Xiao Y, Southwest National University. Microneedle for promoting wound healing. China Patent CN114668778A; 2022 Apr 19.

  104. Ren C Kuen. Amer, Maher: University Washington State [US]. Microneedle array with an interlocking feature. European Patent WO2022197452A2; 2022 Sep 22.

  105. Waldman Reid; Veradermics. Perilesional treatment of skin conditions. European Patent WO2022204255A1; 2022 Sep 29.

  106. Young AJ, Hee JE, Albiti Inc. Microneedle biosensor and manufacturing method for same. European Patent WO2022149754A1; 2022 Aug 14.

  107. Seemit P, Chu Heng L, Herrmann Douglas K, Lefevre Jason M, Mcconville Paul J, Xerox Corp. System and method for manufacturing microneedle assemblies with medicaments. US Patent US2022305736. Vol. A1; 2022 Sep 29.

  108. Natalie A, Pere D, Nuria P, Zhabiz S, Karim Y, Jamil A. Massachusetts inst technology [US]. Microneedles and methods for treating the skin, European patent WO2022183126A; 2022 Sep 29.

  109. Dean Kamen, Richard L, Deka Products Lp. Medical agent dispensing systems, methods, and apparatuses. US Patent US2022273924A; 2022 Sep 1.

  110. Mccaffrey Maureen, Cardinali Steven, O'Connor Jason. Insulet corporation. Drug delivery device including pump with floating microneedle assembly. US Patent US2022273927. Vol. A1; 2022 Sep 1.

  111. Hopcroft Matthew H. Laxmi therapeutic devices inc [US]. Needle sensor and method of manufacturing the same. US Patent US2022273240. Vol. A1; 2022 Sep 1.

  112. Rhee Yun Seok RY, Song Sangbyeong S, Lee Jaemin L, Song Chanwoo S, Noh Inhwan N, Nat University, Gyeongsang Ia cf. Microneedle patch system for transdermal drug delivery. European patent WO2022177205A1; 2022 Aug 25.

  113. Bai X, Nanomed Skincare Inc. Method of administering a dual therapeutic and cosmetic agent. US Patent US2022265589. Vol. A1; 2022 Aug 25.

  114. Chang Sobin C, Nevrivy Daniel N, Sankaranarayan Saiprasad S, Aquavit pharmaceuticals Inc. Systems and methods for administering vaccine composition using modular multi-vial microchannel delivery adapter devices. European Patent WO2022173863A1; 2022 Aug 18.

  115. Hiroko S, Takakazu Obana, Mika Y, Noriyuki O, Toda. Yasuhiro; shiseido Colo. Ltd [JP]. Needle applicator and puncture injection kit. Korea Patent KR102425556B1; 2022 Aug 11.

  116. Ok KS, Sook YY, Heon KJ, Daewoong Therapeutics [KR]. Microneedle assembly. Korea Patent KR102425556B; 2022 Jul 11.

  117. Kwak Min Kyu KM, Lee Yun Kyung LY, Eulji University Industry Academy. Coopera. Composition for treating atopy comprising nanosized bee pollen extract as an active ingredient and a microneedle patch using the same. Korea Patent KR20220104429A.; 2022 July 26.

  118. Matsumoto Akira, Miyazaki TakuyaMT. Kanagawa institute of industrial science and tech [JP], university nat corp Tokyo medical and dental [JP]. Polyglycerol, complex gel composition containing said polyglycerol, drug delivery microneedle including said complex gel composition, and methods for producing same. European Patent WO2022154055A1; 2022 July 21.

  119. Yan Qinying Y, Fang Min F, Yang Gensheng Y, Weng Jiaqi W, Shen Shulin S, Wang Yan W, Zhejiang Industrial University. Microneedle for treating psoriasis through percutaneous delivery of lipidosome and preparation method of microneedle. China Patent CN114432230A; 2022 May 6.

  120. Gao Yunhua G, He Meilin H, Yang Guozhong Y, Zhang Suohui, Shenzhen College. Slow-release microneedle patch and preparation method there of. China Patent CN114668712A; 2022 March 24.

  121. Gou Maling G, Li Rong L, University Sichuan. Preparation method of hollow microneedle patch, hollow microneedle patch and injection device. China Patent CN114344699A; 2022 Jan 11.

  122. Che Huilian C, Zhang Erkang Z, Zeng Binghui Z, Liu Guirong L, Yao Lu Y, Wang Qi W. University chinese agricultural. Degradable slow-release composite microneedle for treating food allergy and preparation method thereof. China Patent CN114668709A; 2022 June 28.

  123. Dong Liang D, Chen Yongli C, Zhang Shan Z, Zhang Yanyan Z, Gan Miao G. Shanghai Hu Yang Biotechnology Co Ltd. Soluble superoxide dismutase microneedle patch with anti-aging effect. China Patent CN114259458A; 2022 Jan 4.

  124. Su Jianyu S, Fan Penghui F, Lyu Manxia L, Hou Yuchao H, Wang Yanjiao W. Xinxiang Shenzhen science and tech Colo. Ltd. Plum slice and borneol soluble micro-needle eye patch for removing eye puffiness and preparation method thereof. China Patent CN114366700A; 2022 April 19.

  125. Leng Gang L, Lee Sung Guk LS, Ma Yonghao M, Youmicro Pearl Ha YP, Biotechnology Co Ltd. Soluble microneedle and manufacturing method there of. China Patent CN114558242; 2022 May 31.

  126. Yanbiao C, Jiali C, Cong T, Li Sidong, Guangzhou Nali Biotechnology Co Ltd. Polydopamine photothermal conversion effect microneedle and preparation method thereof. China Patent CN114504727A (B); 2022 May 17.

  127. Zheng Chao Z, Yu Xiang, Tanie, Zhang Yikai Z, Wang Shengyao W, Ye Shu Y, Hu Yepeng, Uuniversity Zhejiang. Glucagon loaded wearable device for treating hypoglycemia. China Patent CN114376569A; 2022 Jan 19.

  128. Su Xiaodong S, Cheng Wei C, Zou Shuai Z, Ni Mengfei N, Dai Longfei D, University Suzhou. Silicon based ice microneedle and preparation method thereof. China Patent CN114588527A; 2022 June 7.

  129. Hongliang Q, Mujiao H, Qihang L, Yuhong M, Wei C, Dechun H. Chinese pharmacology university double response double layer cross-linked insulin controllable delivery microneedle and preparation method thereof, CN114569706A; 2022 Jun 6.

  130. Zeng Xiaowei Z, Yang Yao Y, Hu Jingwen H, Huang Ping H, Yang Li Y, Hou Ailin H, Lin Jiachan, Medium Mountain Uuniversity. Rapid separation type liposome composite sustained-release microneedle and preparation method thereof. China Patent CN114569583A; 2022 March 8.

  131. Yoonsik K, Jiyeon I, Jaehong E, Booyong L, Donghwan K. Kang bokki; southern hospital of Southern medical university. A method for manufacturing a microneedle. Korea Patent KR102427901B1; 2022 Mar 8.

  132. Cuiping Z, Xu L, Zhaobin L, Daewoong Therapeutics. Microneedle array enzyme composite electrode and preparation method thereof. China Patent CN114569124A; 2022 Aug 2.

  133. Hu Ping H, Liu Yang L, Fan Lihong F, Zhang Xingui Z, Chen Tiantian C, Tong Zexin, University Wuhan Tech. Macromolecular soluble microneedle patch and preparation method thereof. China Patent CN114515267A; 2022 May 20.

  134. Zhao Yuanjin Z, Zhang Xiaoxuan Z, Cheng Yi C, Zhang Dagan Z, Shang Yixuan S, Nanjing Tympanic Building Hospital. Composite microneedle balloon and preparation method thereof. China Patent CN114470341A; 2022 March 2.

  135. Lee Sung Guk LS, Leng Gang L, Ma Yonghao M, Yang Jian Y, Youmicro Pearl Ha YP, Biotechnology Co Ltd. Microneedle female die, preparation process of microneedle female die, microneedle patch and preparation process of microneedle patch. China Patent CN114454392A; 2022 Jan 28.

  136. Li Yingli L, Liao Sizhao L, Su Wenhua S, Zhao Pengyue Z, Li Xue L, Yang Meiqing Y, Gao Na, Zhou Lili, Shenzhen Hospital of Southern Medical University. Device for delivery of drug to meibomian glands. China Patent CN114081716A; 2022 Jan 22.

  137. Wang Jianhao W, Lei Xiaoling L, Zhou Xinpei Z, Li Mengjin L, Qiu Lin Q, Zhou Shuwen Z, Cui Pengfei, Wang Cheng, Gao Zihan, University Changzhou. Bacteria responsive microneedle patch as well as preparation method and application thereof. China Patent CN114432276A; 2022 Jan 27.

  138. Wang Ruibing W, Zhang Qingwen Z, Wang Zeyu W, Australia University. Dissoluble microneedle containing active microalgae, microneedle patch, preparation method and application. China Patent CN114557954A; 2022 March 3.

  139. Pei Haifeng P, Mou Dong M, Peng Ke P, Wang Zhen W, Wang Xiong W, Wang Peng W, Li Jing, Military, Western War Area General Hospital For Chinese People Liberation. Novel double-layer medicine balloon. China Patent CN114569868A; 2022 June 3.

  140. Vasilii Z, Andrei P, Microneedles Inc. Microneedle immunotherapeutic multi-component system and a method for vaccination. US Patent US2022023605. Vol. A1; 2022, Jan 27.

  141. Sobin C. Aquavit pharmaceuticals Inc [US]. Methods and compositions for microflillng the skin with hyaluronic acid using microchannel technology. US Patent US2022257494. Vol. A1; 2022, Aug 18.

  142. Marc A, Peyton H, Jan Joo L, Erik L, Bharat P, Emanuel M. Johnson and Johnson Consumer Inc. Microneedle arrays and methods for making and using. US Patent US2022111189. Vol. A1; 2022, Apr 14.

  143. Aykut A, Lalwani Anil K, Kysar Jeffrey W. West alan. University Columbia. Microneedles to deliver therapeutic agent across membranes. US Patent US2022176096. Vol. A1; 2022, Jun 9.

  144. Ali T, Derakhshandeh Hossein MP, University Nebraska. Drug delivery using microneedle arrays. US Patent US2022273926. Vol. A1; 2022, Sep 1.

  145. Jung JH, Jin SG. Microneedle for transdermal drug delivery: current trends and fabrication. J Pharm Investig. 2021;51(5):503-17. doi: 10.1007/s40005-021-00512-4, PMID 33686358.

  146. Aldawood FK, Andar A, Desai S. A comprehensive review of microneedles: types, materials, processes, characterizations and applications. Polymers. 2021;13(16):2815. doi: 10.3390/polym13162815, PMID 34451353.

  147. Kaur B, Thakur N, Goswami M. Evaluating the impact of solid microneedles on the transdermal drug delivery system for Ɣ-Oryzanol. International Journal of Applied Pharmaceutics. 2022;14(6):34-41.

  148. Lakshmı VL, MS U, MA. An assessment on Buccal mucoadhesive drug delivery system. Int J Appl Pharm. 2021 Nov 7:13(6):66-74.

  149. Pund A, Magar M, Ahırrao Y, Chaudharı A, Amrıtkar A. 3D printing technology: A customized advanced drug delivery. Asian J Pharm Clin Res. 2022 Aug 7;15(8):323-33. doi: 10.22159/ajpcr.2022.v15i8.45136.

  150. Kamaraj R, Manju M. Biosimilar current status in India. Asian J Pharm Clin Res. 2017 Jan 1;10(1):25-8. doi: 10.22159/ajpcr.2017.v10i1.14814.

  151. MNJ, Chandrakala V, Srinivasan S. An overview: recent development in transdermal drug delivery. Int J Pharm Pharm Sci. 2022 Oct 1;14(10):1-9.

  152. Dukare MV, Saudagar RB. Needle-free injection system. Int J Curr Pharm Sci. 2018 Mar. 15;10(2):17-24. doi: 10.22159/ijcpr.2018v10i2.25885.

  153. ESPACENET-Patent search; 2023. Available from: Espacenet–patent search. [Last accessed on 16 Jan 2023]
