Int J App Pharm, Vol 16, Issue 1, 2024, 150-160Original Article

MODIFIED CYCLODEXTRIN-BASED THERMOSENSITIVE IN SITU GEL FOR VORICONAZOLE OCULAR DELIVERY AGAINST FUNGAL KERATITIS

SUNITHA SAMPATHI1*#, SRAVYA MADDUKURI2#, RAMDAS RAMAVATH3, SUJATHA DODOALA4 VIJAYA KUCHANA5

1*Department of Pharmacy, School of Pharmacy, Vishwakarma University, Pune-411048, Maharashtra, India. 2GITAM School of Pharmacy, GITAM Deemed to be University, Hyderabad-502329, India. 3Department of Pharmaceutics, National Institute of Pharmaceutical Education and Research, Balanagar, Hyderabad-500037, India. 4Institute of Pharmaceutical Technology, Sri Padmavathi Mahila Visvavidyalayam-517502, Tirupati, Andhra Pradesh, India. 5TKR College of Pharmacy, Meerpet, Hyderabad, Telangana 500097, India
*Corresponding author: Sunitha Sampathi; *Email: s.sunitha@vupune.ac.in

Received: 10 Jul 2023, Revised and Accepted: 11 Nov 2023

ABSTRACT

Objective: Fungal keratitis is a severe corneal infection. The present study aims to design and formulate an inclusion complex of Voriconazole-Sulfobutyl ether-beta-cyclodextrin (V-SBECD) loaded thermosensitive in-situ gel to improve solubility, therapy efficacy, durability and reduce the dose-related side effect.

Methods: Poloxamer 407, a thermosensitive polymer along with hydroxypropyl methylcellulose (HPMC E 15), were used as gelling agents; the formulations with poloxamer (16% w/v) and HPMC E15 (1 and 1.5 % w/v) led to a consistent in-situ gel at 37 °C. The formulations were evaluated for drug content, pH, gelation temperature, viscosity, sterility test, antifungal studies, and cell lines studies.

Results: The molar ratio of the drug to SBECD (1:3), showing 42-fold increase in solubility, was chosen to prepare the inclusion complexes using the lyophilization method. The stability constant was found to be 721-m. ATIR peaks, DSC thermograms and NMR spectra indicate the inclusion behavior of Voriconazole and SBECD. In vitro and ex-vivo studies demonstrated that optimized formulation sustained the drug release for over 12 h. Cellular cytotoxicity on Human corneal epithelial cells showed that V-SBECD formulations do not cause corneal epithelial damage after 24 h. In-situ gel and marketed formulation have shown a markable reduction in the growth of the Aspergillus Niger. The optimized SBECD-loaded in-situ gel formulation (F10) did not vary significantly in pH, drug content, viscosity, and % cumulative drug release, signifying stable formulations when tested at 4, 25, and 40 °C.

Conclusion: The research findings envisaged V-SBECD in-situ gel formulation as a concrete strategy to treat severe fungal keratitis.

Keywords: Human corneal epithelial cell lines, In-situ gels, Poloxamer, Sol-gel temperature, Voriconazole-sulfobutyl ether-beta-cyclodextrin

© 2024 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2024v16i1.48817 Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Fungal keratitis is an infection and inflammation of epithelial and stroma cells of the cornea. It can result in scarring and visual loss if left untreated. The current treatment strategies for fungal infections of the eye include oral antifungal therapy and administering antifungal eye drops hourly to bi-hourly [1].

Topical administration for treating ophthalmic infections, especially eye drops, remains the most potent approach. However, limited volume, corneal barriers, and tear turnover rate pose potential limitations for drug administration to the eye [2, 3].

In general, the systemic bioavailability of ocular delivery systems usually ranges from 0.1-5 %. Even though a combination of oral and ocular medications is used to treat fungal keratitis, the treatment regimen remains ineffective because of the low bioavailability of the drug.

Voriconazole is a Biopharmaceutical classification system (BCS) class-II and is available in the market as Voriconazole (oral) for eye infections, which includes Vfend, vorilex, and voritrol [4]. Previous studies reported extreme drying and scaling of the oral cavity with abdominal pain in corneal chemical burn patients when treated with 200 mg oral voriconazole and topical Voriconazole. The reason behind supplementing oral medication with eye drop therapy is the incredibly low bioavailability owing to the shape and limited capacity of the eye. However, topical Voriconazole was well tolerated. Hence, a strategy has to be devised that can have high systemic availability when administered solely by topical route. In severe fungal keratitis, patients admitted to hospitals are generally administered ophthalmic Voriconazole, which is a reformulate I. V. voriconazole; however, precipitation of the drug as needle-shaped crystals was noticed when instilled into the eye, leading to severe irritation, and burning, due to its low solubility in tear fluid [5, 6]. As the tear volume in the eye is meagre, a practical approach to upsurge the solubility of the drug in such a low volume is desirable, for which solid dispersion can be considered.

Even though cyclodextrin (CD) and derivatives will enhance the solubility, the low residence time of the instilled drug solution requires repeated administration, which increases the treatment cost and drug loss [7].

Of the various approaches to improve corneal permeation, bioavailability, and prolonged drug release, in-situ gels are fascinating, as they undergo a sol-gel transition after administration and have a satisfactory residence time.

Till date, no voriconazole topical inventions were approved by USFDA or EMA. VFEND®, a parenteral commercial of voriconazole, contains solubilizing agent-β (SBECD). Cyclodextrin facilitates the formulation of the solution and enhances its clinical properties. 5-15 % of SBECD has been successfully used for ocular drug delivery. Hence, we have employed a strategy of incorporating the SBECD-voriconazole inclusion complex into an in-situ gel.

MATERIALS AND METHODS

Materials

Voriconazole (M. W. = 349.3, purity>95% purity, Batch No.: VZ0300416; Expiry date: May 2023) was a gift from MSN Laboratories Pvt Ltd, Hyderabad, India. Sulfobutyl ether-beta-cyclodextrin (SBECD) was procured from Cydex Pharmaceuticals Inc, Kansas, U. S. Poloxamer 407 was obtained from Sigma Aldrich, Bangalore, India. Benzalkonium chloride, sodium chloride, and disodium hydrogen orthophosphate were procured from SD Fine Chem Ltd, Mumbai, India. Sodium hydroxide and sodium bicarbonate were obtained from Finar Chemical Ltd, Ahmedabad, India. HPMC E15, calcium chloride, and potassium dihydrogen phosphate were obtained from Loba Chemie Pvt. Ltd, Mumbai, India. All the remaining reagents and solvents used for experimental work are of analytical grade.

Methods

HPLC method development of voriconazole

HPLC analysis for Voriconazole was carried out by an isocratic, reverse-phase high-performance liquid chromatography system (Waters 2996 HPLC system) with a Photodiode Array Detector (PDA) [8]. Chromatographic separation was done using Waters column (5 µm, 4.6 × 250 mm) maintained at room temperature, and the flow rate was 1 ml/min. A standard calibration curve was plotted in a 5-30 µg/ml concentration range at λmax 255 nm.

Phase solubility studies

This study was conducted in triplicate to investigate the outcome of Sulfobutyl ether-beta-cyclodextrin (SBECD) on the solubility of Voriconazole, utilizing the method described by Higuchi and Connors [9, 10]. An aqueous solution of SBECD of different concentrations (1, 4, 8, 16, 20, 24 mmol) was added to an additional amount of Voriconazole and agitated (SI-300 test incubate shaker, Lab-companion.) at 25 °C for 72 h. After reaching the steady, the solution was filtered using a 0.45 µ filter, centrifuged, and diluted. Analysis was done chromatographically using a 2 µm (50×2.1 mm) C-18HT column with a transition flow of water: acetonitrile (95:5, v/v) and 0.05 % formic acid. The flow rate during analysis was 0.7 ml/min. The concentration (in mmol) of Voriconazole vs. concentration (mM) of the SBECD plot can be used to extrapolate the slope and stability constant calculations [11].

Where: S0 was the equilibrium solubility of Voriconazole in water.

Procedure for preparation of voriconazole in-situ gel (cold method)

In brief, the accurately weighed required quantity of poloxamer 407 was dissolved in 10 ml of cold double distilled water (4 °C) and kept in the refrigerator for 12 h [12]. Then, weighed amounts of drug and excipients were added to the soaked polymer solution and stirred well [13]. The pH of the formulation was adjusted to 7.4 with 0.1N sodium hydroxide (NaOH). The compositions of the various in-situ gels are given in table 1. All the in-situ gel formulations were subjected to sol-gel transition temperature using a cone and plate MCR 102 rheometer (Anton Paar) with a diameter of 40 mm. The compositions of in-situ gel whose transition temperature was close to ocular temperature (35-37 °C) were selected for the loading drug inclusion complex.

Preparation of voriconazole/SBECD inclusion complex loaded (V-SBECD) into an In-situ gel

Voriconazole and SBECD in 1: 3 Milli Molar quantities were dissolved separately in 10 ml of double distilled water. The resultant mixed solution was frozen at-20 °C. The frozen mixture was then freeze-dried using a freeze dryer (New Brunswick Scientific, Germany) at-52 °C to-54 °C under a vacuum for 8 h (Heto dry Winner, Germany). The resulting freeze-dried product was incorporated into the optimized in-situ gel systems. Table 1 shows different compositions of in-situ gels.



Table 1: Composition of Formulations excipients along with their concentrations used in voriconazole in situ gel

Ingredients Concentration(%w/v)
Formulation code F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
Voriconazole 0.3 - - -
Lyophilized Inclusion Complex of Voriconazole: SBECD - - - - - - - - - 1:3 mmol 1:3 mmol 1:3 mmol
Poloxamer 407 15 15 15 16 16 16 17 17 17 16 16 17
HPMC E15 0.5 1 1.5 0.5 1 1.5 0.5 1 1.5 1 1.5 0.5
NaCl 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Benzalkonium chloride 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01
Distilled water q. s. to 10 ml

Characterization of voriconazole SBECD inclusion complex loaded(V-SBECD) In-situ gel

Attenuated total reflectance-FTIR analysis (ATR-FTIR)

I. R. spectra of Voriconazole, SBECD, physical mixture (PM), and inclusion complex were noted on an I. R. spectrophotometer (Perkin-Elmer 1600, V-650 Jasco) in the range of 4000-400 cm−1 wavenumber to study interactions [14, 15].

Differential scanning calorimetry (DSC)

DSC analysis of Voriconazole, SBECD, PM, and inclusion complex was conducted (Mettler Toledo DSC 821). Dry nitrogen was pumped into the sample cell at 10 ml/min. Up to 10 mg samples were placed in pans with a pinhole and aluminium crimping, then scanned at 10 °C/min from 25-300 °C [16].

Nuclear magnetic resonance spectroscopy (NMR)

1H NMR experiments were performed using a Bruker MSL 400 with a high-power static probe and solenoid coil spectrophotometer operating at 400 MHz. NMR spectroscopy of Voriconazole, SBECD, PM, and inclusion complex was carried out. These samples were dissolved in Dimethyl sulfoxide (DMSO) in an unsealed NMR tube [17].

Scanning electron microscopy (SEM)

SEM (FEI Quanta 250 FEG, Netherlands) was used to scan the surface morphology of simple Voriconazole, SBECD, PM, and inclusion complex). Samples were mounted on an aluminum stub with Au using an ion sputter in a vacuum coater and inspected under a microscope with an Everhart–Thornley detector running at 5 kV at 10000–85000 X magnification [18].

Physico-chemical evaluation

The prepared formulations' parameters, like general appearance, color, and clarity, were visually evaluated. The prepared formulations' pH was measured using a calibrated pH meter.

Sol-gel transition temperature

Gelation temperature was performed according to Repka et al. [19]. 1 ml aliquots of prepared formulations were transferred in a test tube, and the test tube was sealed with a parafilm and immersed in a water bath at 4 °C The temperature of the bath was increased in increments 1 °C and left to equilibrate for 15 min at each new temperature setting. The samples were examined for gelation, which is considered to have occurred when the meniscus would no longer move when tilted more than 90°; that temperature was considered the gelation temperature of the formulation. All the experiments were performed in triplicate. The rheological properties of the prepared formulations were determined using a spinning cone and plate rheometer MCR 102 (Anton Paar) with a diameter of 0.05m. The experiment was performed by maintaining a constant gap of 0.08 mm between geometry and Peltier. The graph of viscosity vs. temperature was plotted for all prepared formulations at different temperatures to determine the gelation temperature. A Peltier P-PTD 200 (Anton Paar) was used to regulate the temperature on the lower plate. An initial 1-2 min stabilization period was given to achieve constant temperature using a Peltier system to control the temperature. The sample was placed on the Peltier plate and analyzed at a temperature range of 15-45 °C [20].

Drug content

The drug content of voriconazole SBECD inclusion complex loaded (V-SBECD) in-situ gels was determined. A measured formulation volume was diluted for 300 µg/ml concentration. A completely dissolved formulation was used as a sample and was analyzed by HPLC.

Rheological studies

Rheological properties of the plain in-situ gel were determined using a spinning cone and plate rheometer MCR 102 (Anton Paar) with a 40 mm diameter. The experiment was performed by maintaining a constant gap of 0.08 mm between geometry and Peltier. The viscosity vs. shear rate graph was plotted for all in-situ gel formulations (F1 to F9). Peltier P-PTD 200 (Anton Paar) was installed at the lower plate to control the temperature. The sample was placed on the Peltier plate and analyzed at a shear rate of 0-100 rpm [21].

Sterilization of in-situ gel using autoclave

The optimized formulation was sterilized by autoclaving at 121 °C under a pressure of around 15 psi for 20 min. The effect of autoclaving on physicochemical properties was studied before and after autoclaving.

Preparation of simulated tear fluid (STF) (pH7.4)

The STF was prepared by dissolving 2.08 g of sodium bicarbonate, 6.78 g of sodium chloride, and 0.084 g of calcium chloride in 1000 ml milli-Q water and adjusting the pH to 7.4 with 0.1N HCl.

In vitro drug release study of voriconazole SBECD inclusion complex in-situ gel

An in vitro drug release study of in-situ gels was carried out by placing a dialysis membrane soaked in STF (pH 7.4) between the donor and receptor compartment of a glass Franz diffusion cell. The receptor compartment was filled with 25 ml STF and deaerated. An aliquot of optimized formulation (1 ml) was placed on the dialysis membrane. The apparatus was maintained at 37 °C and stirred at 50 rpm using a magnetic stirrer. The study was conducted for eight hours. At respective time points (1,2,3,4,5,6, 7, 8 and 12 h), aliquots were withdrawn, replaced by an equal volume of dissolution medium, and analyzed by HPLC.

Ex-vivo corneal permeation study

Ex-vivo corneal permeation studies were performed for the optimized formulation F10 and pure drug as per the approved protocol (NIP/01/2018/PE/262). The separation of goat cornea was followed as per the method reported by Nair A et al., 2009. Goat eyeballs in their entirety were obtained from a local slaughterhouse, and the corneas were meticulously separated from the attaching tissues. It was immediately stored in STF at 4 °C prior to the experiment. The cornea (0.8 cm2) was fixed between the donor and receptor compartment so the anterior surface faces the donor compartment. For drug analysis, the procedure adopted in the in vitro study was followed [22].

Release kinetics

The data obtained from in vitro drug release studies of optimized drug-inclusion complex loaded formulations was fitted to various mathematical models like zero-order, first-order, Higuchi, and Peppa’s to find out the best fitting model and thereby predict the release pattern of In-situ gels [23].

Cytotoxicity studies

Cytotoxicity study was carried out on Human corneal epithelial cells [HCEP] for four formulations, i.e., V-SBECD In-situ gel formulation, plain Voriconazole, marketed formulation and Sulfobutyl ether-beta-cyclodextrin and observed till 24 h followed by harvesting to check for the viability rate of the cells.

Cell culture and drug treatment

In two 25 cm flasks, HCEP cultures were incubated in a 10% FBS-DMEM medium at 37 °C. When the HCEP cells were in the logarithmic phase (80% fullness), 10 % FBS-DMEM medium and the mentioned four viz. In-situ gel formulation, plain drug, marketed formulation, and SBECD were added to each flask, and the cells were grown in the same circumstances.

Morphological observations

HCEP cells were inoculated into 24-well plates and grown in 10% FBS-DMEM media at 37 °C in a humid environment with 5% CO2 for morphological observations. An inverted phase-contrast microscope (EclipseTS100) was used to observe the state of growth and morphology of cells after 24 h.

Cell viability assay

MTT (methyl thiazolyl tetrazolium) assay was used to examine the vitality of cells at 0 and 24 h. In a nutshell, HCEP cells were injected at a density of 1x104 cells per well into 96-well plates along with respective samples. Exactly 20 μl of 5 g/l MTT was added to each well at a 2-4 h interval, followed by a 4 h incubation at 37 °C in the dark. The liquid in each well was replenished with 150 μl DMSO to dissolve the formed formazan crystals. A Multiskan GO microplate reader (Thermo Fisher Scientific) was used to measure the absorption of each well at 490 nm, followed by IC50 estimates [24].

Antifungal activity test

The agar well diffusion method was employed to estimate the antifungal activity of formulations.

Four holes were aseptically punched on a cork borer on a sterilized and solidified potato dextrose agar plate. The underside of the Petri plate was marked to label the wells. Approximately 20 µl of the indicator organism (Candida Albicans (ATCC 10231) and Aspergillus Niger (ATCC 16404)-Sourced from Himedia labs) was aseptically spread onto the agar plate. The plate was left undisturbed for 5 min. Formulations of 10 µl concentration (stock solution of same was prepared in methanol) were filled in the appropriate wells. The plates were then incubated at 25 °C for 72-96 h. Zones of inhibition were measured in millimeters (mm) using a ruler on the underside of the plate.

Stability studies

Optimized sterile in-situ formulations were subjected to stability testing. As per ICH guidelines, formulations were kept at 4, 25 and and 40 °C for three months. Samples were withdrawn and estimated for visual appearance, pH, drug content, rheology, and in vitro release [25].

RESULTS AND DISCUSSION

Analytical method development

Standard calibration curve by HPLC

HPLC method development of Voriconazole was carried out using acetonitrile and phosphate buffer (1:1) as mobile phase. Voriconazole's retention time was 7 min at a flow rate of 1 ml/min. The results showed good linearity (R2=0.999) within the scanned concentration range at λmax 255 nm [26]. The data of concentrations and peak area is given in suppl table 1 and the calibration curve is shown in suppl fig. 1.

Phase solubility studies

Phase solubility data to evaluate Voriconazole in SBECD is given in suppl table 2. The results indicated a linear (r2=0.983) association between voriconazole solubility and concentration of SBECD, as shown in fig. 1. Conferring to Higuchi and Connor’s, the A. L. type (linear increased drug solubility as a function cyclodextrin concentration) phase solubility curve was observed [27]. The molar ratio of the drug to SBECD (1:3), showing a 42-fold increase in solubility, was chosen to prepare the inclusion complexes using the lyophilization method. The stability constant was found to be 721-m.

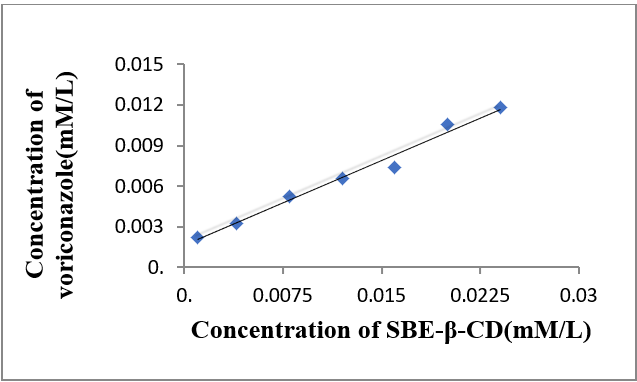

Fig. 1: Phase solubility graph of voriconazole with SBE-β-CD

Preparation of in-situ gel formulations

In-situ gels were prepared by soaking poloxamer 407 and HPMC E15 overnight in cold double distilled water. Voriconazole (0.3 % w/v) was added, with continuous stirring, into a beaker containing gel using a magnetic stirrer (200 rpm). The remaining excipients were added to the drug-loaded gel while stirring to form a homogenous system. The compositions of the prepared in-situ gels are mentioned in table 1. After in-situ gels(F1-F9) were prepared, sol-gel transition temperatures were measured using an Anton Paar rheometer. The in-situ gels whose transition temperature was close to ocular temperature (35-37 °C) were loaded with freeze-dried Voriconazole–SBECD inclusion complex (F10-F12).

Characterization and evaluation

Sol-gel transition temperature

Anton Paar rheometer was used to envisage sol-gel transition temperature. The data on sol-gel transition temperature is shown in table 2, and the rheogram is shown in fig. 2. All the formulations showed different transition temperatures based on the polymer concentration of poloxamer and HPMC E15. Among the various formulations, the formulations containing low concentrations of poloxamer (16 % w/v) and higher concentrations of HPMC E15 (1 and 1.5 % w/v) led to a consistent in-situ gel at 37 °C. The concentration of poloxamer (17 % w/v) with 0.5 % of HPMC E 15 also resulted in a consistent gel. The addition of HPMC E 15 had a significant impact on the mucoadhesive strength of the gel. At lower concentrations of poloxamers, the poly-propylene-oxide groups interact to form the core of the hydrophobic micelles, whereas the poly-ethylene-oxide groups occupy the micelle shell. At a temperature of 37 °C, it favors interaction between groups. An increase in temperature causes polymer desolvation and aggregation of micelles, forming a gel. This reversible process can be significantly exploited to formulate in-situ gel formulations [28]. The transition temperature study was performed at 15-45 °C. Formulation F10, F11, and F12 transition temperatures were like ocular surface temperature [29, 30]. Hence, these gels were selected for further loading with SBECD-drug complex instead of plain Voriconazole.

Table 2: Sol-gel transition temperatures of VCZ in-situ gels

Code Transition temperature
F1 No gelation
F2 No gelation
F3 29.5±0.35 °C
F4 31.5±0.35 °C
F5 34.5±0.35 °C
F6 36.5±1.76 °C
F7 35.5±1.06 °C
F8 28.5±1.06 °C
F9 27±1.41 °C

*n=3, mean±SD

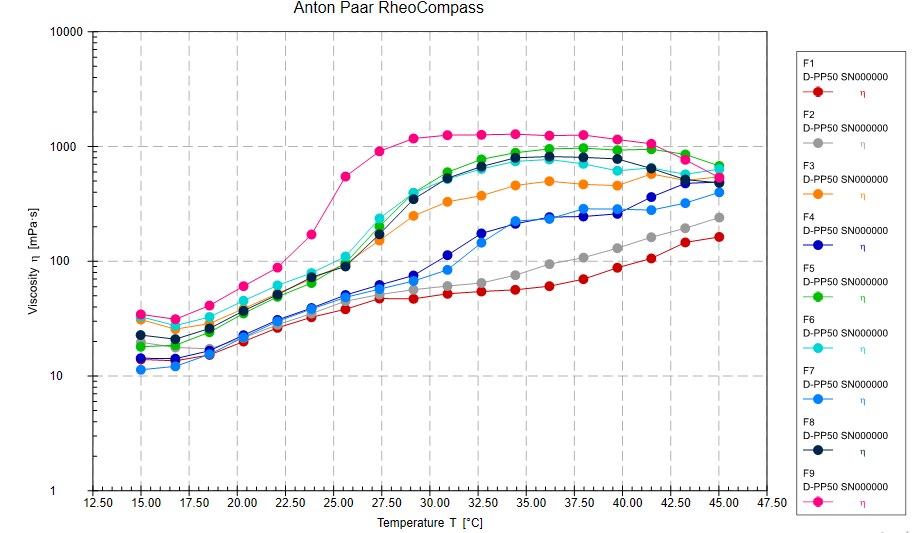

Fig. 2: Rheogram of voriconazole in situ gel

Fig. 3: ATR-IR spectra of voriconazole, SBE-β-CD, physical mixture, and inclusion complex

ATR-FTIR spectroscopy

The ATR-IR spectra of Voriconazole show characteristic peaks at OH (3200-3600 cm-1), C-H alkane (2800-3000 cm-1), C=C aromatic (1400–1600 cm-1), and C-N aryl (1250-1360 cm-1). The complex of the drug and SBECD did not show any noteworthy change in these characteristic peaks, indicating complexation [18]. The ATR-IR (Bruker, OPUS) peaks of Voriconazole, SBE β-CD, PM, and inclusion complex are shown in fig. 3.

Differential scanning calorimetry (DSC)

The addition of cyclodextrin molecules to a cavity may alter medicinal compounds' melting or decomposition points. DSC was used to investigate the melting temperatures of the drug, SBECD, and complex (fig. 4). Voriconazole thermograms showed a sharp endothermic peak at 134 °C, consistent with the drug's melting point. A broad endothermic peak was identified in the thermograms of SBECD at 80 °C, which could be attributed to dehydration, and was followed by a decomposition peak at 275 °C. The thermograms of the physical combination were created by superimposing endothermic peaks from various species. The endothermic peak at 134 °C had vanished, and the endothermic peak at 275 °C had moved to a broad peak between 220 and 256 °C, according to the thermograms of the inclusion complex [31].

Nuclear magnetic resonance spectroscopy (NMR)

Chemical shift variations in NMR spectroscopy indicate a change in the electronic settings of protons after the guest molecule is included in the cyclodextrin. Slight chemical shift variations (Δδ) in the complexes are due to non-covalent bonds between interiors of host molecules and Voriconazole rather than covalent chemical bonds [32–34]. The inclusion behaviour of Voriconazole and SBECD could be seen in 1H NMR spectra of Voriconazole (fig. 5a), SBECD (fig. 5b) and complex of SBECD-voriconazole (fig. 5d). Chemical shifts were listed in suppl table 3.

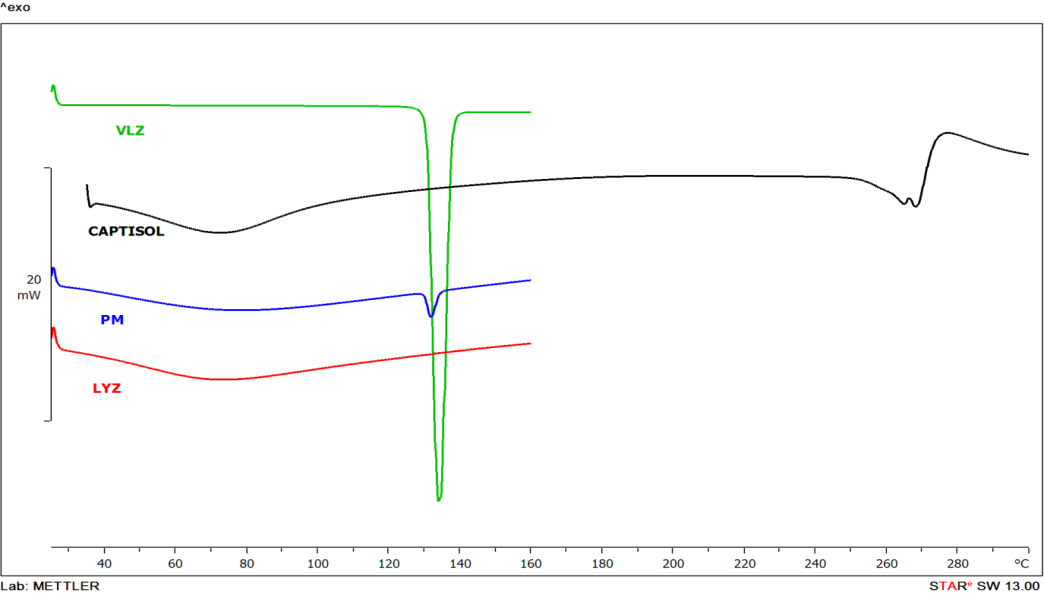

Fig. 4: DSC thermograms of voriconazole, SBE-β-CD (Captisol), physical mixture and inclusion complex

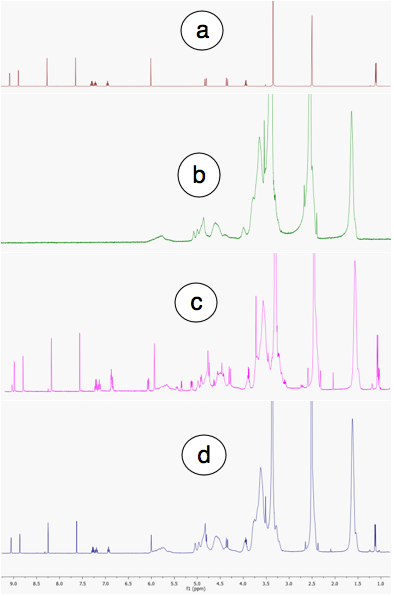

Fig. 5: 1H NMR spectra of (a) VCZ(b) SBE-b-CD(c)PM and (d) Inclusion complex

Scanning electron microscopy (SEM)

To envisage deviations in the surface morphology of Voriconazole and SBECD when complexed, SEM images were studied as shown in fig. 6a. Pure antifungal voriconazole was crystal-shaped, while SBECD were different-sized spheres (fig. 6b). The PM upheld the unique morph of free species, with only adherence of drug crystals to the surface of SBECD (fig. 6c). However, an irregular block structure was seen with inclusion complexes (fig. 6d), distinct from free moieties, confirming the complexation [35].

Fig. 6: SEM images of voriconazole, SBE-β-CD, physical mixture, and inclusion complex at 1000x

Evaluation of ophthalmic in-situ gel

ATR-IR spectroscopy

An interaction study was performed with an ATR-IR spectrophotometer ranging from 4000 cm-1 to 400 cm-1. The characteristic peaks at 3195.66 (OH. group), 3392.3 (NH. group), and 1364 cm-1 (S=O group) were evident in fig. 7a and b. These characteristic peaks and the absence of new peaks in the formulation and PM indicate the absence of chemical interaction between the drug and excipients.

Physico-chemical evaluation

The prepared formulation's general appearance, color, and clarity were visually evaluated. All formulations were clear, colorless, and free from visible particles. A calibrated pH meter was used to read the pH values, ranging from 6.5 to 7.4 [36]. The data is shown in table 3.



Fig. 7a: ATR-IR spectra of VCZ, SBE-β-CD, Pluronic F-127and HPMC

Fig. 7b: ATR-IR spectra of NaCl, benzalkonium chloride, In-situ formulation, and PM

Table 3: Physicochemical evaluation of various formulations

Code Clarity pH*
F1 Clear, colorless solution free from visible particles 7.23 (±0.12)
F2 7.37 (±0.74)
F3 7.24 (±0.14)
F4 7.43 (±0.05)
F5 7.36 (±0.45)
F6 7.26 (±0.16)
F7 7.46 (±0.11)
F8 7.34 (±.10)
F9 7.29 (±0.05)
F10 7.35 (±.12)
F11 7.38 (±.19)
F12 7.32 (±.0.9)

*n=3, mean±SD

Drug content

The drug content of the optimized formulation was done, and the data is given in table 4. The drug content ranges from 83% to 98%.

Rheological studies

Viscosity was determined by Anton Paar rheometer. All the formulations showed different viscosity based on polymer concentration. The viscosity study was performed in the shear rate range of 0-100 rpm, and the data is shown in table 4. An insight obtained from the data presented in table 5 is that the viscosity of formulations, especially those containing optimum amounts of poloxamer 407 and HPMC E15, show an intensification in viscosity with a rise in energy supplied to the system in the form of rpm. This might indicate sol-gel transformation because of energy supply to the system [37, 38]. At physiological temperatures, the viscosity of thermoresponsive in-situ gels increases due to aggregation between polyethylene oxide groups and polypropylene moieties to form micelles. When the concentration and temperature exceed critical micellar concentration (CMC) levels, hydration of surrounding polypropylene oxide groups occurs with dehydration of polyethylene oxide core groups. As a result of hydration, an increase in viscosity might be observed. The rheogram is presented in fig. 8 [39, 40].



Fig. 8: Rheogram of voriconazole in situ gel

Table 4: Evaluation parameters (clarity, pH, and drug content) for optimized formulations

Code Clarity pH Drug content (%)
F10 Clear 7.35(±.12) 83(±2.4)
F11 Clear 7.38(±.19) 90 (±3.2)
F12 Clear 7.32(±.0.9) 98(±1.53)

n=3, mean±SD

Table 5: Viscosity of in-situ gel formulations at different rpm

Formulations

The viscosity of in situ gel (at 50 rpm)

The viscosity of in situ gel (at 100 rpm)

F1

109 (±0.85)

123 (±0.75)

F2

72 (±0.93)

92 (±0.82)

F3

133 (±0.76)

157 (±0.96)

F4

73 (±0.58)

92 (±1.14)

F5

191 (±1.53)

265 (±1.23)

F6

221 (±0.78)

262 (±0.95)

F7

99 (±0.97)

159 (±1.1)

F8

154 (±1.34)

221 (±0.65)

F9

779 (±0.76)

790 (±1.24)

F10

174 (±0.68)

225 (±1.64)

F11

225 (±0.89)

250 (±1.22)

F12

110 (±0.55)

175 (±0.72)

N=3, mean±SD

Sterilization of in-situ gel using autoclave

The optimized formulations F10, F11, and F12 were autoclaved at 121 °C and 15 lb pressure for 20 min. The drug content and pH of formulations were examined before and after autoclaving. The data is given in table 6. It was found that the formulation's pH remained the same, and a nominal percentage reduced drug content. The slight decrease in the drug content might be due to drug hydrolysis that could have happened when the formulation is exposed to autoclaving conditions [41]. The studies indicated that in-situ formulations were stable regarding pH and drug content even after autoclaving at 121 °C and 15 lb pressure for 20 min.

Table 6: Data of pH and drug content before and after autoclaving sterilization

Formulation code Before autoclaving (n=3) After autoclaving(n=3)
pH Drug content (%) pH Drug content (%)
F10 7.26(±0.35) 83(±2.4) 7.02(±0.35) 82.5(±1.5)
F11 7.36(±0.16) 90 (±3.2) 7.23(±0.16) 87.3(±0.9)
F12 7.34(±.40) 98(±1.53) 7.19(±.40) 86.9(±0.2)

*n, =3, mean±SD

In vitro drug release studies

In vitro drug release study was performed using the Franz diffusion apparatus for plain drug and optimized complex-loaded in-situ gel formulations under simulated eye conditions using STF pH 7.4 at 35 °C and 200 rpm [42]. The drug released from plain drug was less than 25%, whereas the formulations loaded with drug-SBECD complexes released more than 70 % in 12 h. The drug release from formulations is considerably improved due to the inclusion of Voriconazole in the host SBECD, a potent solubility enhancer, and the process of freeze drying adopted in complexation. It was also noted that poloxamer facilitates the formation of transparent gels at physiologically relevant temperatures only in the 15-20 wt% range. The graphical representation of the release profile is shown in fig. 9.

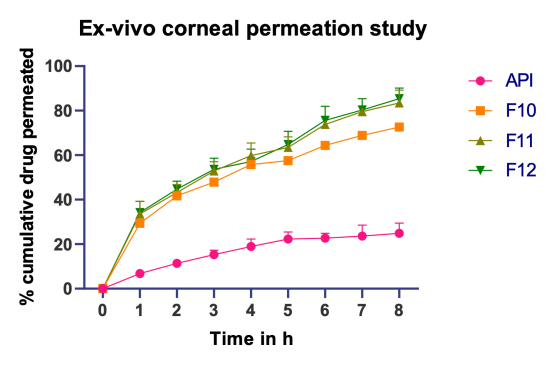

Fig. 9: In vitro drug release profile of plain drug, formulations F10, F11, and F12. Error bars indicate SD values of triplicate

Ex-vivo corneal permeation study

To mimic the ocular environment, goat cornea was used for an eight-h permeation experiment [43, 44]. Formulation F 12 showed 82 % release, and the plain drug had 24% release at the end of 8 h. Compared to plain drug, in-situ gel formulation F 12 was more permeable in goat cornea, owing to the surfactant properties of poloxamer; the amount of drug permeable was represented in fig. 10. It was evident that drug permeation was three times higher in SBECD complex-loaded Voriconazole than Voriconazole. These results align with earlier reports [45], where the in-situ gels have tremendously improved the trans-corneal permeation of other drugs.

Fig. 10: Ex vivo corneal permeation study
Note: Error bars indicate SD values of triplicate

The release pattern from SBECD complex-loaded voriconazole gels predicted that the release followed the Higuchi mechanism, suggesting that the amount of drug released over time is proportional to the square root of time. The Higuchi release pattern suggests that drug release takes place in one dimension, and drug particles are much smaller than the matrix involved in the system [46].

Cytotoxicity and cell viability studies

Cytotoxicity study used Human corneal epithelial cells with in-situ gel formulation, Voriconazole-plain drug, marketed formulation, Sulfobutyl ether β-cyclodextrin. The cells were observed for 24 h, followed by harvesting to check for the viability rate, shown in fig. 11 and 12 [47-49]. Cytotoxicity study of in-situ gel of Voriconazole and other formulation components used for cell studies are given in table 7, and the MTT cell viability image is given as suppl fig. 2.

In-situ gel formulation contains 0.028 mg voriconazole and 0.528 mg Sulfobutyl ether-beta-cyclodextrin per 1 ml. The cell viability at this concentration of gel formulation was found to be 93.8%, which is slightly less than the pure form of Voriconazole (0.02 mg/ml–97%) as well as the pure form of Sulfobutyl ether-beta-cyclodextrin (0.2 mg/ml–95.9%) together. The marketed formulation (Voriconazole = 0.027 mg/µl and Sulfobutyl ether-beta-cyclodextrin = 0.426 mg/ml) showed 87.3% viability. This first run data suggests that the in-situ gel formulation is similarly cytotoxic as that of the pure drug or marketed formulation. Voriconazole below 0.025 mg/ml was reported to have no cytotoxic effect on HCEP cell lines. Hence, from the study, Voriconazole in-situ gel using SBECD can be proved to be safe. However, in vitro cell line studies cannot be immediately transferred to humans as the drainage rate is 1-2μl/min and thereby, In vitro-In vivo correlation (IVIVC) may not be established [50].



Table 7: Percentage cell viability of control, in-situ gel, voriconazole pure drug, marketed formulation, and SBECD

Code Composition/Compound Concentration Cell viability
A Control Medium 100 %
B In-situ gel formulation Voriconazole-0. 02 mg, SBECD-0.0558 mg 93.80%
C Voriconazole 0.02 mg 97%
D Marketed formulation Voriconazole-0.027 mg, SBECD-0.426 mg 87.30%
E Sulfobutyl ether-beta-cyclodextrin (SBECD) 0.2 mg 95.90%

Antifungal efficacy studies

The antifungal efficiency of the Voriconazole in-situ formulation was evaluated against organisms including Candida Abicans and Aspergillus Niger [51]. In-situ gel and marketed formulation have shown a markable reduction in the growth of the Aspergillus Niger (25 mm). In comparison, they have only shown meager antifungal activity against candida albicans (2.5 mm). Notably, the pure drug also has a similar kind of antifungal activity against Aspergillus Niger and Candida Albicans. The Zone of inhibition images is shown in fig. 13.

Stability studies

According to ICH guidelines, stability studies were performed at 4, 25, and 40 °C for the optimized SBECD-loaded in-situ gel formulation (F10). The samples were evaluated for visual appearance, pH, drug content, viscosity at 50 rpm, and % cumulative drug release at the end of 12 h, on the initial day, just after preparation, and up to three months [52, 53]. There was not much difference in pH, drug content, viscosity, and % cumulative drug release signifying stable formulations [54, 55]. The results obtained are tabulated in table 8.

Table 8: Stability study parameters (pH, drug content, viscosity and % drug release) of in-situ gel formulation F10 at 4 °C, 25 °C, and 40 °C

F10 Initial On 45th day On 90th day
4 °C pH 7.36 (±0.45) 7.02 (±0.35)
Drug content (%) 94.3 (±4.53) 94.3 (±3.92)
Viscosity at 50 pm 195 (±8.33) 205 (±10.23)
% Cumulative drug release 46.97 (±4.23) 46.8 (±3.83)
25 °C pH 7.36(±0.45) 7.02(±0.35)
Drug content (%) 94.3(±4.53) 94.1(±3.92)
Viscosity at 50 pm 193 (±9.23) 200 (±11.23)
% Cumulative drug release 48.15 (±4.53) 49.25(±4.3)
40 °C pH 7.36 (±0.45) 7.02(±0.35)
Drug content (%) 94.3(±4.53) 94.1(±3.92)
Viscosity at 50 pm 190 (±10.23) 198 (±8.23)
% Cumulative drug release 48.15 (±4.53) 49.25(±4.3)

n=3, mean±SD

CONCLUSION

In the present study, V-SBECD in-situ gels were successfully formulated as a novel topical alternative for treating fungal keratitis. The freeze-dried V-SBECD complexes were incorporated into thermo-reversible mucoadhesive in-situ gels formulated using poloxamer 407 as a gelling agent and HPMC E15 as a viscosity enhancer. The V-SBECD complex formation is based on the internalization of the drug's di fluoro phenyl ring into the cavity of the host-SBECD. The prepared formulations were evaluated for drug content, pH, gelation temperature, in vitro drug release, ex-vivo permeation studies, sterility tests, cell lines studies and for antifungal studies.

The formulation was stable for up to three months when stored at room temperature. In vitro studies demonstrated that SBECD-loaded voriconazole in-situ gels have sustained drug release. The cell line studies displayed that SBECD and voriconazole concentrations used in the formulations are not causing any corneal epithelial damage. However, long-term studies using human corneal endothelial cell studies and clinical studies are needed to prove the safety and efficacy of formulation that can help treat ocular fungal keratitis. Our study revealed that SBECD-loaded voriconazole in-situ gels can be an alternative approach to conventional eye drops and ointments. Hence, developing an in-situ gel provides ease and decreases the frequency of administration, resulting in patient acceptance in the treatment of fungal keratitis.

AUTHORS CONTRIBUTIONS

Conceptualization, Sunitha Sampathi; methodology, Sunitha Sampathi and Ramdas Ramavath; data curation, writing-original draft preparation Sravya Maddukuri and Sunitha Sampathi; Pharmacological investigations, review and editing Sujatha Dodoala, review and editing Vijaya Kuchana. All authors have read and agreed to the published version of the manuscript.

ACKNOWLEDGMENT

The authors are grateful to NIPER, Hyderabad, and GITAM University, Hyderabad, for providing facilities to carry out the present work.

FUNDING

Nil

LIST OF ABBREVIATIONS

V-SBECD–lyophilized inclusion complex of Voriconazole-Sulfobutyl ether-beta-cyclodextrin

SBECD-Sulfo butyl ether-beta-cyclodextrin

FBS–DMEM-Fetal Bovine Serum-Dulbecco's Modified Eagle Medium

GIT–Gastrointestinal tract

HCEP–Human corneal epithelial cell line

NaOH–Sodium hydroxide

STF-Simulated tear fluid

AUTHORS CONTRIBUTIONS

All authors are contributed equally.

CONFLICT OF INTERESTS

The authors declare no conflict of interest.

REFERENCES

  1. Lee SJ, Lee JJ, Kim SD. Topical and oral voriconazole in the treatment of fungal keratitis. Korean J Ophthalmol. 2009;23(1):46-8. doi: 10.3341/kjo.2009.23.1.46, PMID 19337480, PMCID PMC2655737.

  2. Diaz Tome V, Garcia Otero X, Varela Fernandez R, Martin Pastor M, Conde Penedo A, Aguiar P. In situ forming and mucoadhesive ophthalmic voriconazole/HPβCD hydrogels for the treatment of fungal keratitis. Int J Pharm. 2021;597:120318. doi: 10.1016/j.ijpharm.2021.120318, PMID 33540021.

  3. Mofidfar M, Abdi B, Ahadian S, Mostafavi E, Desai TA, Abbasi F. Drug delivery to the anterior segment of the eye: a review of current and future treatment strategies. Int J Pharm. 2021;607:120924. doi: 10.1016/j.ijpharm.2021.120924. PMID 34324989, PMCID PMC8579814.

  4. Dupuis A, Tournier N, Le Moal G, Venisse N. Preparation and stability of voriconazole eye drop solution. Antimicrob Agents Chemother. 2009;53(2):798-9. doi: 10.1128/AAC.01126-08, PMID 19001119, PMCID PMC2630666.

  5. Sampathi S, Sharma J, Kaur R, Saini V. Design, development, and characterization: in situ gels of lomefloxacin hydrochloride for ocular drug delivery. World J Pharm Pharm Sci. 2014;3:2350-64.

  6. Makwana SB, Patel VA, Parmar SJ. Development and characterization of in-situ gel for ophthalmic formulation containing ciprofloxacin hydrochloride. Results Pharma Sci. 2016;6:1-6. doi: 10.1016/j.rinphs.2015.06.001, PMID 26949596.

  7. Sravya M, Deveswaran R, Bharath S, Basavaraj BV, Madhavan V. Development of orodispersible tablets of candesartan cilexetil-β-cyclodextrin complex. J Pharm (Cairo). 2013;2013:583536. doi: 10.1155/2013/583536, PMID 26555987, PMCID PMC4590806.

  8. Srinubabu G, Raju ChA, Sarath N, Kumar PK, Rao JV. Development and validation of a HPLC method for the determination of voriconazole in pharmaceutical formulation using an experimental design. TalantaTalanta. 2007;71(3):1424-9. doi: 10.1016/j.talanta.2006.04.042. PMID 19071468.

  9. Higuchi T, Phase KAC. Solubility techniques. Adv Anal Chem Instrum. 1965;4:117-212.

  10. Saokham P, Muankaew C, Jansook P, Loftsson T. Solubility of cyclodextrins and drug/cyclodextrin complexes. Molecules. 2018;23(5):1161. doi: 10.3390/molecules23051161, PMID 29751694, PMCID PMC6099580.

  11. Wacker M, Seubert A. Determination of stability constants of strong metal–ligand complexes using anion or cation exchange chromatography and atomic spectrometry detection. J Anal At Spectrom. 2014;29(4):707-14. doi: 10.1039/c3ja50358e.

  12. Deshkar SS, Palve VK. Formulation and development of thermosensitive cyclodextrin-based in situ gel of voriconazole for vaginal delivery. J Drug Deliv Sci Technol. 2019;49:277-85. doi: 10.1016/j.jddst.2018.11.023.

  13. Pawar P, Kashyap H, Malhotra S, Sindhu R. HP-β-CD-voriconazole in situ gelling system for ocular drug delivery: in vitro, stability, and antifungal activities assessment. BioMed Res Int. 2013;2013:341218. doi: 10.1155/2013/341218, PMID 23762839, PMCID PMC3665163.

  14. Wei Y, Zhang J, Memon AH, Liang H. Molecular model and in vitro antioxidant activity of a water-soluble and stable phloretin/hydroxypropyl-β-cyclodextrin inclusion complex. J Mol Liq. 2017;236:68-75. doi: 10.1016/j.molliq.2017.03.098.

  15. Khare A, Singh I, Pawar P, Grover K. Design and evaluation of voriconazole loaded solid lipid nanoparticles for ophthalmic application. J Drug Deliv. 2016;2016:6590361. doi: 10.1155/2016/6590361, PMID 27293896, PMCID PMC4880687.

  16. Xu J, Zhang Y, Li X, Zheng Y. Inclusion complex of nateglinide with sulfobutyl ether β-cyclodextrin: preparation, characterization and water solubility. J Mol Struct. 2017;1141:328-34. doi: 10.1016/j.molstruc.2017.03.116.

  17. Barbosa TM, Morris GA, Nilsson M, Rittner R, Tormena CF. 1H and 19F NMR in drug stress testing: the case of voriconazole. RSC Adv. 2017;7(54):34000-4. doi: 10.1039/C7RA03822D.

  18. Sun X, Yu Z, Cai Z, Yu L, Lv Y. Voriconazole composited polyvinyl alcohol/hydroxypropyl-β-cyclodextrin nanofibers for ophthalmic delivery. PLOS ONE. 2016;11(12):e0167961. doi: 10.1371/journal.pone.0167961. PMID 27974859.

  19. Mendonsa NS, Murthy SN, Hashemnejad SM, Kundu S, Zhang F, Repka MA. Development of poloxamer gel formulations via hot-melt extrusion technology. Int J Pharm. 2018;537(1-2):122-31. doi: 10.1016/j.ijpharm.2017.12.008, PMID 29253585, PMCID PMC5798890.

  20. Mandal S, Thimmasetty MK, Prabhushankar G, Geetha M. Formulation and evaluation of an in situ gel-forming ophthalmic formulation of moxifloxacin hydrochloride. Int J Pharm Investig. 2012;2(2):78-82. doi: 10.4103/2230-973X.100042, PMID 23119236, PMCID PMC3482769.

  21. Derkach SR, Kolotova DS, Voron’ko NG, Obluchinskaya ED, Malkin AY. Rheological properties of fish gelatin modified with sodium alginate. Polymers (Basel). 2021;13(5):13(5):743. doi: 10.3390/polym13050743, PMID 33673621, PMCID PMC7957763.

  22. Wang XQ, Liu YL, Lin LF, Song JZ, Luo YT, Li H. [Rheology and in vitro release properties of thermosensitive in situ gel of yihuang decoction and its common gel for vaginal use]. Zhongguo Zhong Yao Za Zhi. 2020;45(3):539-47. doi: 10.19540/j.cnki.cjcmm.20191001.308, PMID 32237511.

  23. Asasutjarit R, Thanasanchokpibull S, Fuongfuchat A, Veeranondha S. Optimization and evaluation of thermoresponsive diclofenac sodium ophthalmic in situ gels. Int J Pharm. 2011;411(1-2):128-35. doi: 10.1016/j.ijpharm.2011.03.054, PMID 21459137.

  24. Sayed EG, Hussein AK, Khaled KA, Ahmed OA. Improved corneal bioavailability of ofloxacin: biodegradable microsphere-loaded ion-activated in situ gel delivery system. Drug Des Devel Ther. 2015;9:1427-35. doi: 10.2147/DDDT.S80697, PMID 25792803.

  25. Destruel PL, Zeng N, Brignole Baudouin F, Douat S, Seguin J, Olivier E. In situ gelling ophthalmic drug delivery system for the optimization of diagnostic and preoperative mydriasis: in vitro drug release, cytotoxicity and mydriasis pharmacodynamics. Pharmaceutics. 2020;12(4):360. doi: 10.3390/pharmaceutics12040360, PMID 32326492, PMCID PMC7238180.

  26. Khattab A, Marzok S, Ibrahim M. Development of optimized mucoadhesive thermosensitive pluronic based in situ gel for controlled delivery of latanoprost: antiglaucoma efficacy and stability approaches. J Drug Deliv Sci Technol. 2019;53:101134. doi: 10.1016/j.jddst.2019.101134.

  27. Vamsi Krishna M, Dash RN, Venugopal P, Reddy BJ, Sandeep P, Madhavi G. Development of a RP-HPLC method for evaluation of in vitro permeability of voriconazole in the presence of enhancers through rat skin. J Saudi Chem Soc. 2017;21(1):1-10. doi: 10.1016/j.jscs.2013.07.003.

  28. Dos Santos C, Buera Mdel P, Mazzobre MF. Phase solubility studies of terpineol with β-cyclodextrins and stability of the freeze-dried inclusion complex. Procedia Food Sci. 2011;1:355-62. doi: 10.1016/j.profoo.2011.09.055.

  29. Soliman KA, Ullah K, Shah A, Jones DS, Singh TRR. Poloxamer-based in situ gelling thermoresponsive systems for ocular drug delivery applications. Drug Discov Today. 2019;24(8):1575-86. doi: 10.1016/j.drudis.2019.05.036, PMID 31175956.

  30. Pereira GG, Dimer FA, Guterres SS, Kechinski CP, Granada JE, Cardozo NSM. Formulation and characterization of poloxamer 407®: thermoreversible gel containing polymeric microparticles and hyaluronic acid. Quim Nova. 2013;36(8):1121-5. doi: 10.1590/S0100-40422013000800008.

  31. Jain D. Newer trends in in situ gelling systems for controlled ocular drug delivery. JAPLR 2016;2(3). doi: 10.15406/japlr.2016.02.00022.

  32. Patel VP, Damasiya HM, Kapupara P, Ashara KC. Temperature-dependent in situ gel of clotrimazole: an experimental study. Folia Med (Plovdiv). 2019;61(2):266-76. doi: 10.2478/folmed-2018-0073, PMID 31301667.

  33. Zhao R, Sandstrom C, Zhang H, Tan T. NMR study on the inclusion complexes of β-cyclodextrin with isoflavones. Molecules. 2016;21(4):372. doi: 10.3390/molecules21040372, PMID 27043500, PMCID PMC6273401.

  34. Pessine FB, Calderini A, Alexandrino GL. Cyclodextrin inclusion complexes probed by NMR techniques. Magn Reson Spectrosc. 2012;3:264. doi: 10.5772/32029.

  35. Upadhyay SK, Kumar G. NMR and molecular modelling studies on the interaction of fluconazole with beta-cyclodextrin. Chem Cent J. 2009;3:9. doi: 10.1186/1752-153X-3-9, PMID 19664263, PMCID PMC2739844.

  36. Chen Y, Liu Y, Xie J, Zheng Q, Yue P, Chen L. Nose-to-brain delivery by nanosuspensions-based in situ gel for breviscapine. Int J Nanomedicine. 2020;15:10435-51. doi: 10.2147/IJN.S265659, PMID 33380794, PMCID PMC7767747.

  37. AS, Ahmed MG, Gowda Bh J. Preparation and evaluation of in-situ gels containing hydrocortisone for the treatment of aphthous ulcer. J Oral Biol Craniofac Res. 2021;11(2):269-76. doi: 10.1016/j.jobcr.2021.02.001, PMID 33717865.

  38. Barse R, Kokare C, Tagalpallewar A. Influence of hydroxypropylmethylcellulose and poloxamer composite on developed ophthalmic in situ gel: ex vivo and in vivo characterization. J Drug Deliv Sci Technol. 2016;33:66-74. doi: 10.1016/j.jddst.2016.03.011.

  39. Al Khateb K, Ozhmukhametova EK, Mussin MN, Seilkhanov SK, Rakhypbekov TK, Lau WM. In situ gelling systems based on pluronic F127/Pluronic F68 formulations for ocular drug delivery. Int J Pharm. 2016;502(1-2):70-9. doi: 10.1016/j.ijpharm.2016.02.027, PMID 26899977.

  40. Negut I, Visan AI, Popescu C, Cristescu R, Ficai A, Grumezescu AM. Successful release of voriconazole and flavonoids from MAPLE-deposited bioactive surfaces. Appl Sci. 2019;9(4). doi: 10.3390/app9040786.

  41. Siafaka PI, Ustundag Okur N, Mone M, Giannakopoulou S, Er S, Pavlidou E. Two different approaches for oral administration of voriconazole loaded formulations: electrospun fibers versus β-cyclodextrin complexes. Int J Mol Sci. 2016;17(3):282. doi: 10.3390/ijms17030282, PMID 26927072, PMCID PMC4813146.

  42. Rafael D, Andrade F, Martinez Trucharte F, Basas J, Seras Franzoso J, Palau M. Sterilization procedure for temperature-sensitive hydrogels loaded with silver nanoparticles for clinical applications. Nanomaterials (Basel). 2019;9(3):380. doi: 10.3390/nano9030380, PMID 30845683, PMCID PMC6474025.

  43. Rencber S, Karavana SY. Development and in vitro evaluation of voriconazole nanoparticle formulation for mucosal application. Turk J Pharm Sci. 2018;15(2):142-8. doi: 10.4274/tjps.54265, PMID 32454653, PMCID PMC7228014.

  44. Mohanty B, Mishra SK, Majumdar DK. Effect of formulation factors on in vitro transcorneal permeation of voriconazole from aqueous drops. J Adv Pharm Technol Res. 2013;4(4):210-6. doi: 10.4103/2231-4040.121416, PMID 24350052, PMCID PMC3853698.

  45. Mehta MR, Surve SA, Menon MD. Novel nasal in situ gelling system for treatment of sinusitis. Indian J Pharm Sci. 2009 Nov;71(6):721-2.

  46. Wu Y, Liu Y, Li X, Kebebe D, Zhang B, Ren J. Research progress of in situ gelling ophthalmic drug delivery system. Asian J Pharm Sci. 2019;14(1):1-15. doi: 10.1016/j.ajps.2018.04.008, PMID 32104434, PMCID PMC7032175.

  47. Wu Y, Liu Y, Li X, Kebebe D, Zhang B, Ren J. Research progress of in situ gelling ophthalmic drug delivery system. Asian J Pharm Sci. 2019;14(1):1-15. doi: 10.1016/j.ajps.2018.04.008, PMID 32104434, PMCID PMC7032175.

  48. Han SB, Shin YJ, Hyon JY, Wee WR. Cytotoxicity of voriconazole on cultured human corneal endothelial cells. Antimicrob Agents Chemother. 2011;55(10):4519-23. doi: 10.1128/AAC.00569-11, PMID 21768517, PMCID PMC3187006.

  49. El-Emam GA, Girgis GNS, El-Sokkary MMA, El-Azeem Soliman OA, Abd El Gawad AEGH. Ocular inserts of voriconazole-loaded proniosomal gels: formulation, evaluation and microbiological studies. Int J Nanomedicine. 2020;15:7825-40. doi: 10.2147/IJN.S268208, PMID 33116503, PMCID PMC7567543.

  50. Schmidt K, McLaren A, Pauken C, McLemore R. Voriconazole is cytotoxic at locally delivered concentrations: a pilot study. Clin Orthop Relat Res. 2013;471(10):3165-70. doi: 10.1007/s11999-013-2860-7, PMID 23436188, PMCID PMC3773160.

  51. Sobolewska B, Guerel G, Hofmann J, Tarek B, Bartz Schmidt KU, Yoeruek E. Cytotoxic effect of voriconazole on human corneal epithelial cells. Ophthalmic Res. 2015;54(1):41-7. doi: 10.1159/000371712, PMID 26065470.

  52. Rosowski EE, He J, Huisken J, Keller NP, Huttenlocher A. Efficacy of voriconazole against aspergillus fumigatus infection depends on host immune function. Antimicrob Agents Chemother. 2020;64(2):e00917-9. doi: 10.1128/AAC.00917-19, PMID 31740552, PMCID PMC6985743.

  53. Konatham M, Gorle MT, Pathakala N, Bakshi V, Mamidisetti YD, Chinthakindi P. In situ gel polymers: a review. Int J App Pharm. 2021;13:86-90. doi: 10.22159/ijap.2021v13i1.39504.

  54. Sarada K, Firoz S, Padmini K. In situ gelling system: a review. Int J Curr Pharm Rev Res. 2014;15(5):76-90.

  55. Parthibarajan R, Gowrishankar NL, Rajitha M, Vinaykumar A, Himavanthu M, Ramesh K. Formulation and evaluation of voriconazole floating tablets. Asian J Pharm Clin Res. 2012;5(3):180-4.

  56. Yang Q, Zhang Y, Liu X, Wang N, Song Z, Wu K. A comparison of the effects of benzalkonium chloride on ocular surfaces between C57BL/6 and BALB/c mice. Int J Mol Sci. 2017;18(3):509. doi: 10.3390/ijms18030509, PMID 28245636.
