Int J App Pharm, Vol 16, Issue 3, 2024, 14-21Reviewl Article

AUTOMATION IN ANALYTICAL CHEMISTRY: THE ROLE OF AI IN CHROMATOGRAPHY

SHISHIR KUMAR PRASAD, DIVEKAR KALPANA*

1Department of Pharmaceutical Chemistry, College of Pharmaceutical Sciences, Dayananda Sagar University, Bengaluru-562112, India
*Corresponding author: Kalpana Divekar; Email: kalpana-sps@dsu.edu.in

Received: 03 Jan 2024, Revised and Accepted: 09 Mar 2024

ABSTRACT

Artificial Intelligence (AI) has facilitated significant breakthroughs in drug discovery, the design of materials, and organic synthesis. The advancements in the latter group are especially remarkable due to the abilities of the latest computational methods (molecular design algorithms) that enable the exploration of extensive chemical spaces and enhance research in fields such as predicting molecule properties, designing molecules, retrosynthesis, predicting reaction conditions, and predicting reaction outcomes. A literary review was conducted following PRISMA guidelines. This study aimed to review existing data on the application of AI in separation chromatography. The evolution and utilization of AI in the pharmaceutical industry and its future aspects were articulated in this study. The utilization of AI can completely transform the field of chromatography analysis by facilitating expedited, more precise, and more effective data processing. By automating chromatography analysis, AI can enhance efficiency and minimize the potential for human mistakes. This advancement enables scientists to dedicate their efforts towards addressing intricate and demanding analytical issues. With the evolution of technology and the increasing adoption, we can anticipate more progress in chromatography analysis and analytical chemistry.

Keywords: Artificial intelligence, Chromatography, Pharmaceutical sciences, Separation and Purification

© 2024 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijap.2024v16i3.50290 Journal homepage: https://innovareacademics.in/journals/index.php/ijap

INTRODUCTION

Chromatography is a crucial separation technique for high purities in food, soil, water and pharmaceutical samples. Preparative chromatography is an established technology in biopharmaceutical manufacturing that is crucial in achieving high-quality separation and purification [1]. Historically, preparative chromatography was established through laborious laboratory experiments that required significant amounts of time and materials [2, 3]. However, the manual operational process is tedious, time-consuming, and susceptible to human error [4]. Further, more than these methods are needed to meet the current demands of efficient and customized pharmaceutical manufacturing within shorter timeframes for development [5]. Hence, there is a demand for more expeditious approaches to process development, which enhance the pharmaceutical industry's understanding of processes [6, 7]. A practical method to address this goal is to employ process modelling for the development. Models are constructed using mathematical equations that accurately represent physical and biological aspects of the process, which significantly enhances comprehension [8, 9]. Therefore, there is a need for rapid and precise methods to determine model parameters with minimal effort [10, 11].

AI is an emerging discipline focused on utilizing computer systems to solve issues by executing algorithms that imitate the cognitive functions of the human brain. AIis emulating human cognitive processes via machines, particularly computer systems. Most contemporary AI algorithms can establish connections between inputs and outputs, adjust their behaviour based on environmental cues, and subsequently make decisions, enhancing the likelihood of delivering precise responses. AI's primary benefit includes extracting significant and impartial information from datasets that are either extraordinarily huge or highly intricate, beyond the analytical capabilities of humans, and giving better and more precise predictions [12]. In addition, the increased processing capacity of computers, coupled with the advancement of robust algorithms and their availability through open-source platforms (such as APIs, frameworks, and training data), has facilitated the utilization of AIin various scientific domains [13-17]. AI has facilitated significant breakthroughs in drug discovery [18, 19], drug safety [20], the design of materials [21-23], and organic synthesis [24]. The advancements in the latter group are especially remarkable due to their ability to apply new computational methods (molecular design algorithms) that enable the exploration of extensive chemical spaces and enhance research in fields such as predicting molecule properties [25], designing molecules [26], retrosynthesis [27], predicting reaction conditions [28], and predicting reaction outcomes [29].

Additionally, it can facilitate the automation of analyzing extensive datasets, enhance the precision and uniformity of data analysis, detect and rank areas for further investigation, optimize the configuration of separation experiments, gain a deeper comprehension of the intricate connections among various components in a mixture, and expedite the advancement of novel separation techniques and technologies. Despite notable progress in education, the development of easy-to-use frameworks, and the availability of pre-trained neural networks, applying AI for analytical methods has yet to be thoroughly studied and remains poorly understood. The issues highlighted can be attributed to the discrepancy between the current academic training and the complex nature of modern algorithms used in data science. Utilizing machine learning algorithms with less intricate data can potentially overcome challenges in analytical chemistry [18, 21-24]. Preparative chromatography is a well-established biopharmaceutical manufacturing technology that provides high-quality separation and purification. An effective strategy to address this goal is employing process modelling for development. Models are constructed using mathematical representations of physical and biological phenomena to enhance understanding of the process. This leads to reduced development time and the ability to use model-based process control methods and optimization [30]. Given the context, a comprehensive literary analysis was undertaken to comprehend the incorporation of AI in separation chromatography.

Methodology

Reputed databases, such as PubMed and Google Scholar, were searched for the research articles published in chromatography and AI using a search strategy.

Search strategy

The secondary data was obtained using a search strategy developed with keywords such as “Separation chromatography” and "Analytical chemistry and artificial intelligence”. “Chromatography and AI” were used. The study approach adhered to the PRISMA principles, prioritising transparency and reproducibility. This ensured that every step, from the search strategy to data synthesis and reporting, was clearly and thoroughly documented. The obtained publications underwent a thorough screening process, where their titles and abstracts were carefully examined to discover potentially relevant studies. The eligibility of full-text articles was evaluated based on predetermined criteria for inclusion and exclusion. Systematic data extraction involves gathering relevant information from each chosen study, such as study design, sample size, methodology, outcomes, and significant findings. The quality of the included papers, particularly in systematic reviews and meta-analyses, was evaluated using quality assessment methods or checklists. The inclusion criteria included studies comprised of research and review articles published between 2018 and 2023 and articles published in English Language and Peer-reviewed journals. Articles not available in full text or required payment, those published before the selected time, and in languages other than English were excluded.

Evolution of AI in chromatography

Over the last fifty years, analyzing and comparing large amounts of data from chromatography of natural and complex products, including essential oils, flavours and fragrances, pharmaceuticals, and petroleum products, have required manual methods due to unpredictable and nonlinear variations in retention times (RT). These datasets typically contain 20 to 1000 or more peaks. The issue has been resolved using software that employs neural algorithms, enabling the automated processing of intricate chromatograms [31].

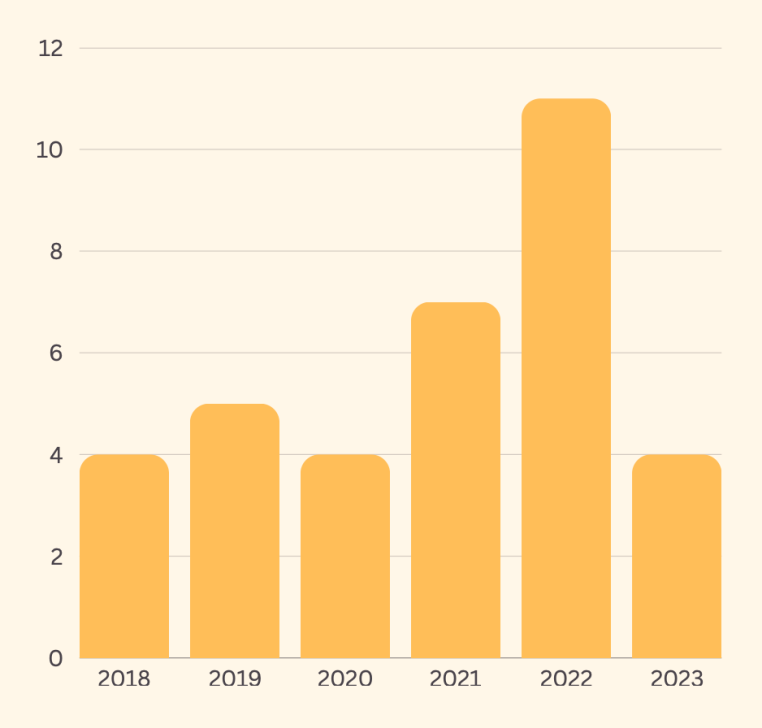

Fig. 1: Bar chart showing the number of publications related to the application of AI in chromatography
Source: Pubmed, keywords used: chromatography and AI, year: 2018-2023

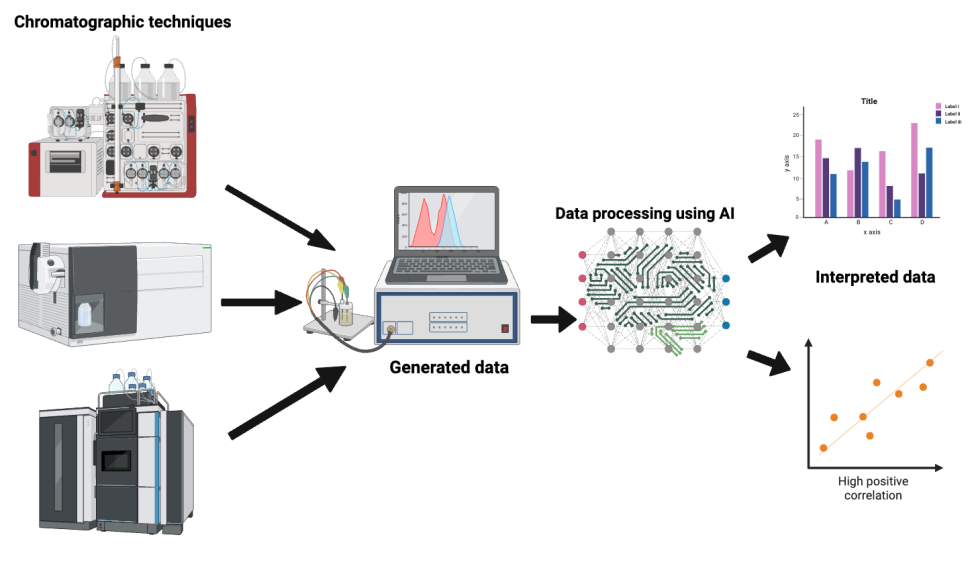

Fig. 2: Automatic data interpretation using AI in different chromatographic techniques
Source: Author generated

Evolution of high throughput process development (HTPD)

Introduction to the concept of model-based approaches. HTPD facilitated expedited and comprehensive screening of conditions, hence augmenting knowledge. Model-based HTPD has played a crucial role in the (bio)pharmaceutical business, specifically in chromatography. Chromatography is the primary method used for purifying protein subunit vaccines. The majority of vaccine purification methods rely on heuristics. For instance, when purifying hepatitis A virus from mammalian cell cultures, the initial step involves using low-cost anion-exchange chromatography to capture the product and eliminate significant impurities. The final step in the downstream process involves a polishing and desalting step using size-exclusion chromatography. Currently, there are several commercially available chromatographic mechanistic models software, such as GoSilico (now part of Cytivia, formerly known as ChromX), Aspen Chromatography, DelftChrom, CADET, and ChromaTech. While equilibrium and binding capabilities of membrane chromatography are typically restricted, membrane chromatography surpasses conventional packed bed chromatography in terms of productivity and bed utilization at high flow rates and short residence times [32].

A crucial chromatography element is the capacity to create a chromatograph using artificial intelligence. This allows for the automatic development of an analytical method for High-Performance Liquid Chromatography (HPLC). This means that the ideal composition of the mobile phase can be chosen from scouting tests, and the optimal operating parameters can be adjusted to achieve the desired analytical results. The chromatographic approach can also provide qualitative information about the peaks, particularly for an unidentified mixture, based on the chromatogram. To achieve this objective, essential equations for the retention of undissociated solutes, weak organic bases, weak acids, and amphoteric substances in liquid-solid chromatography were derived by considering variations in the composition of the mobile phase. The software RVPKLC-83 was designed to compute the parameters of these equations based on empirical data, and the accuracy of the equations was experimentally confirmed. The OMPCLC-83 programme was created to forecast the most favourable composition of the mobile phase. A HPLC equipment fitted with a fast-scanning Ultra Voilet (UV) detector system was utilized. The ChgrA-83 programme is currently under development to determine peak purity and detect unresolved peaks [33].

Preparative and process chromatography is a flexible procedure used to separate, purify, and refine a wide range of molecules, particularly those that are highly similar and complex, such as sugars, diastereomers, isomers, plant extracts, enantiomers, and rare earth metal ions. Bio-chromatography is an ever-expanding area of application that involves a wide range of complex molecules, including peptides, proteins, Monoclonal Antibodies (mAbs), fragments, Virus Like Particles (VLPs), and even mRNA vaccines. In addition to chemical diversity, separation processes encompass selective affinity ligands, hydrophobic contact, ion exchange, and mixed modes. Bio-chromatography ranges from a few kilogrammes to 100,000 tonnes per year, with column diameters typically ranging from 20 to 250 cm. Therefore, there is a requirement for a multifunctional and efficient tool that can be used for both process design and operation optimization, as well as process control [30].

Extensive experimentation is frequently required to ascertain the best solvent system in mixed solvent extraction. Centrifugal Partition Chromatography (CPC) is a liquid-liquid preparative chromatographic separation technique commonly employed in pharmaceutical and natural product purifications. It often necessitates using a solvent system including three or more components. To get the desired results, it is necessary to use multi-stage hybrid solutions with different components when dealing with complicated feedstocks, such as lignin depolymerization products. AIoffers significant potential for improving the complex process of selecting solvents. The training dataset can be obtained and organized from numerous sources, including academic publications, printed handbooks, and online archives. Machine learning can be utilized to create quantitative structure-property relationship (QSPR) models. These models establish a connection between the molecular structure of solvents and solutes and their physicochemical properties and extraction performance. They can predict the behaviour of untested combinations of solvents and solutes, providing valuable information on the most favourable solvents for specific extraction tasks [34].

AI approaches have significantly increased the accuracy of predicting retention in chromatographic procedures. AI can effectively analyze large data sets and simplify the identification and separation of substances. Multiple methodologies have been documented for the prediction of retention in various chromatographic techniques. Consistent findings have shown that deep learning models surpass linear machine learning models in terms of accuracy and efficacy, particularly in liquid and gas chromatography. The most commonly used method for predicting retention factors of various substances in thin-layer chromatography is Support Vector Machine-based neural networks. Cheminformatics, chemometrics, and hybrid techniques were utilized for the modelling and proved more dependable in retention prediction than traditional models. The Quantitative Structure Retention Relationship (QSRR) is a promising approach for predicting the retention of analytes in various chromatographic methods and identifying the optimal separation procedure. By integrating QSRR with AI-driven methodologies, these methods showcased the benefits of achieving more accurate retention predictions [35].

Used in the food industry

Recently, Phyto-control, a French company, has collaborated with Fujitsu (a Japanese company) to automate chromatographic techniques using AI. AI-enhanced chromatography offers quick sample analysis without any human error. Food products must be accurately analyzed to prevent contaminants from being introduced into the supply chain. If the contaminant-detecting process is weak, entire populations could be affected. As stated above, chromatography is one of the most reliable techniques for analyzing food samples, i.e., processed and raw products.

According to a recent World Health Organization (WHO) study, approximately 0.4 million people die annually due to the ingestion of contaminated food. Besides Phyto-control, Virtual Control, a Hong Kong-based company, has developed AI technology and machine learning-based software to provide analytical solutions in laboratory testing. In the case of Virtual Control, AI has been integrated with gas chromatography and mass spectrometry (GC/MS) platforms. The integrated product is ACIES, which has enhanced laboratory testing accuracy, efficiency, and productivity. This technology can benefit various industries, including agriculture, food, the environment, and applied materials [36].

A study conducted by Aghili et al. in 2022 presented a method to determine the odour characteristics of edible vegetable oils by analyzing their volatile aromas using an electronic olfactory device. This investigation collected odour profiles for eight different concentrations of sunflower and canola oil combined with sesame oil. The samples were analyzed simultaneously using GC-MS. The chemometric approaches, such as Linear Discriminant Analysis (LDA), Principal Component Analysis (PCA), Support Vector Machine (SVM), Quadratic Discriminant Analysis (QDA), and Artificial Neural Networks (ANN), were used to analyze the data collected from the electronic nose. The electronic olfactory system effectively identified a subtle deception involving a mixture of 25% sunflower oil and 75% sesame oil despite the difficulty of detecting it through the gas chromatography-mass spectrometry method. This implies that the existing technique can detect and quantify occurrences of fraudulent activities related to edible oil to improve efficiency and monitoring and ensure the safety of eating edible vegetable oils [36].

Leite et al., 2019, created two models, Radial Basis Function (RBF) and MIP, using MATLAB and integrated them into High-Performance Liquid Chromatography, which is employed to detect the lactose concentration following the absorption process. The RBF and MIP models offer superior efficiency, speed, and simplicity. When comparing RBF with MIP, it is shown that RBF requires more neurons in each layer for various tasks. However, RBF requires more hidden layers of neurons [37].

Further, Viejo et al., 2022, developed two ANN models to evaluate the quality of beer and to forecast: i) the peak area (PA) of 17 distinct volatile aromatic compounds (Model 1) obtained through GC–MS, and ii) the intensity of ten sensory descriptors collected from a sensory session involving 12 trained panellists. The ANOVA results indicated significant disparities among the utilized samples, demonstrating the e-nose's ability to differentiate between them. The ANN models produced highly accurate results, with correlation values of R = 0.97 (Model 1) and R = 0.93 (Model 2) [36]. Another study by Warren-vega et al., 2023 developed a novel AIapproach to explore the relationship between the physicochemical profile and colour gained during the 100% agave Tequila maturation phase. The findings demonstrate using artificial intelligence-based techniques as a supplementary approach for assessing quality control in aged beverages [39].

Uses in healthcare

The application of three AI techniques, namely Hammerstein-Wiener (HW), multilayer perceptron (MLP), and SVM, in qualitative properties prediction of an anti-Alzheimer agent using high-pressure liquid chromatography technique, demonstrated the promising capability of AI-based models in modelling the qualitative properties of the anti-Alzheimer agent. By observing the varying outputs of AI-based models over different time intervals, it became clear that combining the outputs of these models, known as ensembling, is necessary. Thus, the simple average ensemble and support vector machine ensemble (SVM-E) were utilized to improve the performance capabilities of the basic models [40].

In a recent publication, an AI-based solution for chromatographic data processing in the pharmaceutical industry was developed and applied using a "Digital by design" managerial approach. The authors, from Merck Serono (Italy) and Bosch Global Software Technologies Private Limited (India), proposed a potential GxP framework for using AI across the healthcare industry. The project was executed under a Digital Innovation Management framework, ensuring the involvement of stakeholders and decision-makers from proof of concept through proof of feasibility and finally to proof of value [41].

Further, De Vooght-Johnson, 2021, developed an artificial intelligence-based model for improving the prediction of peak perfection of an anti-oxidant Isoquercetin, where the RT was predicted using two individual nonlinear AI models, namely ANN and Adaptive Neuro-Fuzzy Inference System (ANFIS), along with Multi Linear Regression (MLR) Analysis, a traditional linear model. In addition, the models were improved by using different ensemble techniques, specifically the simple average ensemble (SAE) and two types of ANFIS ensembles: the adaptive neuro-fuzzy inference system grid-partitioning ensemble (ANFIS-GPE) and the adaptive neuro-fuzzy inference system subclustering ensemble (ANFIS-SCE) [42].

Usman et al., 2020 used four models in a different study to predict the RT and PA of isoquercitrin (extracted from various plant species) using HPLC: ANFIS, ANN, SVM, and MLR. The simulation uses the standard concentration, the composition of the mobile phases (MP-A and MP-B), and the pH as the input variables. The performance efficacy of the models was evaluated using the relative mean square error (RMSE), determination coefficient (DC), mean square error (MSE), and correlation coefficient (CC). The findings of this investigation demonstrate that all four models can precisely forecast the qualitative and quantitative attributes of the bioactive chemical. Through a predictive comparison, it was ascertained that M3 demonstrated the utmost prediction accuracy among the three models.

Further examination of the findings indicated that ANFIS–M3 outperformed the other models and is the most efficient model for forecasting PA. Nevertheless, ANN–M3 proved its value. It emerged as the superior model for tR simulation due to its high projected accuracy, establishing it as a dependable tool for qualitative and quantitative determination [43].

The results showed that the developed AI architecture could automate the chromatographic peak integration process with high accuracy and efficiency. The AI model learned the analytical variations in the chromatographic profiles related to the peak shapes, baseline drift, operator variations, and RT shifts. This allowed the algorithm to predict new chromatographic profiles' RT and peak shape, integrating them with high accuracy. The results of this study suggest that AI has the potential to revolutionize chromatographic peak integration. AI algorithms can be used to automate the process of peak integration, significantly improving the accuracy and efficiency of the process. This could lead to significant benefits for the biopharmaceutical industry, including improved patient safety and reduced cost.

Future of AI in Chromatography

Shortly, membrane materials with increased binding capabilities will be developed, potentially resolving the limitation on surface area per unit volume of resin. The biopharmaceutical business finds the progress in membrane chromatography technology highly intriguing. Chromatography uses two phases that do not mix to extract and separate components from mixtures. Combining HT methods with statistical or mathematical/thermodynamic models is a convenient approach for characterizing these systems [44].

Current process modelling methods have the challenge of requiring complex laboratory experiments to determine and validate model parameters. To have a broader range of uses in everyday project tasks, the technique must be more efficient and demand less exertion from individuals who are not experts in chromatography. Due to significant advancements in artificial intelligence, novel approaches have been developed to meet this requirement. Once the ANN has undergone training, it can be utilized to predict the isotherm parameters of unfamiliar components, provided that they fall within the limits of its training data. This provides the opportunity to significantly decrease the amount of experimental and computational work required, allowing those without expertise to complete model parameter estimations accurately.

Moreover, this approach provides the chance to obtain real-time parameter estimations for controlling the chromatographic process. This is possible because of its fast computation times and outstanding accuracy. Subsequent research will explore the expansion of the artificial neural network's capabilities to estimate more model parameters and isotherms. This will be done to achieve a model-based autonomous process operation in conjunction with the process analytical technology approaches [30].

Continuing with this pursuit results in the complete conversion of the plant into a digital format, sometimes called the digital twin. Therefore, there is a need for a rapid and precise method to determine model parameters with minimal effort [30]. When used with optimization algorithms, AI can aid in examining solution spaces with several dimensions and determine the most advantageous compromises between conflicting objectives, such as extraction efficiency, selectivity, environmental effect, and cost. The rapid progress in AI and its use in this crucial domain present promising prospects, including enhanced sorbent material design, refined extraction solvent selection, and optimized process operating conditions. Using artificial intelligence, scientists and engineers can fundamentally restructure separation processes, revolutionize several industries, and significantly contribute to achieving a more sustainable future [45].

Comparison between traditional and AI-based approach

AI has revolutionized chromatography by streamlining method development, improving data analysis, enhancing accuracy, and increasing the speed and efficiency of analysis. It has opened up new possibilities for various industries for advanced research, process optimization, and quality control. However, it is essential to note that while AI-based methods offer advantages, they should be validated and optimized using traditional methods to ensure reliability and accuracy [23-25].

Table 1: Comparison between traditional and AI-based approach

Aspect Traditional analytical method development Ai-added method development Source of the data
Time Time-consuming Faster [11]
Expertise required High skilled analysts Less expertise required [11]
Trial and error Iterative process Reduced trial and error [11]
Cost Expensive Cost-effective [11]
Sample size Limited sample size Larger sample size [11]
Optimization Manual optimization Automated optimization [11]
Flexibility Less flexible More flexible [11]
Data analysis Manual interpretation Automated data analysis [11]
Accuracy Human error-prone Improved accuracy [11]
Scalability Limited scalability Scalable [11]

Use of AI models in different chromatographic techniques

ANN in process chromatography

In the chromatography process, numerous approaches for modelling and optimizing this technique have been proposed and put into practice [46]. Instead of solely focusing on established techniques, researchers investigate novel approaches, such as applying machine learning algorithms. These tools include the Partial Least Squares (PLS) method and ANN [47], which are recognized as universal approximators [48].

ANN have diverse applications

They can be predictors for process analytical technology (PAT) sensor data or substitute approaches such as the PLS algorithm. ANN can also be employed to ascertain model parameters rather than minimizing the sum of most minor square errors between experimental and simulated datasets. In addition, ANNs can be employed to adjust the process and model parameters of the digital twin based on real-time operational data. ANN can also be applied in process models, including hybrid models. An all-encompassing framework for comprehensive process design and operation has already been devised [49, 50].

Many studies on ANNs utilized as regressors are employed for process optimization. An ANN is initially constructed to forecast specific values. Next, a conventional optimization algorithm is employed to optimize using the inputs and outputs of the ANN. Some examples include the studies conducted by Golubović et al. [51], Nagrath et al. [52], and Pirrung et al. [53]. In their study, Golubović et al. [51] employed ANNs to optimize the retention factor of mycophenolate mofetil (MFM) and its breakdown products. The ANN utilized buffer composition, flow rate, and column temperature to predict the retention factors. The dataset utilized was experimental and consisted of 33 samples. The dataset was based on the Central Composite Design (CCD), which can detect both linear and quadratic effects. The ANN surpassed the performance of the normal MLR and allowed for a decrease in the time of the experiment from 6.2 min to 5.2 min. The limits of this approach may include constraints on the area and information of the CCD design space, as well as the required experimental effort. Conducting these tests on a large-scale preparative chromatography may potentially be unfeasible. Conversely, this strategy does not require knowledge or modelling of the process. No prior knowledge of artificial neural networks is required, as the network was optimized through iterative experimentation.

Nagrath et al. [52] employed simulated data, as opposed to Golubović et al. [51], to address the limitations of experimental data. This approach is particularly advantageous when dealing with increasingly intricate tasks. According to Nagrath et al. [52], the increasing number of parameters has become a significant problem in optimization processes that rely purely on mechanical models, as suggested by Narayanan et al. [54]. The factors contributing to this issue are local minima and the total computational time. Hence, it is suggested that ANNs be employed to predict the target variable to optimize preparative chromatography. The proposed method for separating three components involved manipulating the simulations' gradient slope, feed load, flow rate, and column length. The impact of these factors on the desired outcomes, such as yield, production rate, and maximum concentration, was assessed to establish a training dataset.

Furthermore, an additional dataset was generated to account for less stringent conditions, mitigating the potential bias of zero productivity on the middle component due to its overlap with the left and right components. Moreover, this approach demonstrated favourable optimization outcomes and significantly profited from reduced calculation durations. However, prior knowledge is essential for modelling the process and generating appropriate data for training the ANN, as demonstrated by the additional dataset for the middle component. Furthermore, while the ANN may exhibit adaptability for the taught system, it necessitates a thorough retraining process when applied to other systems or different numbers of components. Hence, it is imperative to consider the additional exertion required for data formulation, creation, and ANN training to make a well-informed choice between the ANN methodology and the traditional approach.

Deep Neural Network (DNN) for chromatography

Deep learning is a crucial aspect of chemistry's most advanced AI technologies. It is relied upon due to its capacity to process vast amounts of data effectively. Hence, deep learning significantly advantages from extensive and varied datasets (mainly when the connections between the input and output data are intricate); thus, it must also be appropriate for our datasets. Aside from the abundance and diversity of data, it is crucial to consider the appropriate modification of the DNN method (such as type, topology, and hyperparameter values), as it directly impacts the accuracy. Various specialized adaptations have been effectively created for neural networks. Consequently, our attention is directed towards the following options that possess potential and are well-suited for our problem-solving objectives:

DISCUSSION

Developing algorithms (of varying complexities) to analyze large volumes of data and extract meaningful information and patterns from even minute differences in individual measurements has been a prevalent trend in the literature. The primary catalyst for the early advancements in AI was likely its application in image recognition, vibrational spectroscopy, and mass spectrometry [63]. Analyzing chromatography data can be laborious, monotonous, and error-prone, posing difficulties in consistently obtaining precise results. AI can significantly enhance the chromatography analysis process. AI can carry out tasks that usually necessitate human intelligence, such as sensing, reasoning, and learning. Using AI methodologies, chromatography analysis can be mechanized, optimized, and enhanced in precision and effectiveness.

An application of AI in chromatography analysis involves the development of machine learning models capable of predicting the characteristics of unidentified samples using existing data. For instance, when employing chromatography equipment to segregate a blend of substances, a machine-learning model can be used to identify the peaks associated with each component and forecast its characteristics, such as molecular weight, polarity, and solubility. Implementing this approach can substantially decrease the duration and exertion needed to analyze chromatography data, enhancing the outcomes' precision and dependability. AI can also be advantageous in chromatography analysis by facilitating the creation of automated systems that can enhance the efficiency of the chromatography process. AI algorithms can determine the most effective separation conditions, including the selection of stationary phase, mobile phase, and gradient elution parameters, to attain the utmost resolution and sensitivity. AI can be employed for real-time monitoring and control of the chromatographic process, allowing for timely alterations to the circumstances to achieve optimal performance.

Furthermore, AI may be utilized to create data processing algorithms capable of extracting significant insights from the vast volumes of chromatography data produced in contemporary analytical laboratories. AI algorithms can detect patterns and trends in data, such as the correlations between the characteristics of various chemicals or the alterations in the composition of a mixture over time. Such analysis can yield significant knowledge about the fundamental chemistry of the sample and aid in detecting possible contaminants or impurities.

Various AI algorithms, such as ANN, DNN models like FFNN’s [55], CNNs [51, 56-61], LSTM [61], and RNNs [64], can be widely used to enhance the efficiency and accuracy of chromatography. Additional research is required to enhance the AI models to adapt them to specific chromatographic methods and substances utilized in analysis.

CONCLUSION

To summarise, AI can transform chromatography analysis by facilitating expedited, more precise, and more effective data processing. AI can streamline the chromatographic analysis process, saving time and minimizing the potential for human error. This enables scientists to dedicate their attention to intricate and demanding analytical issues. With the ongoing evolution and increasing technology adoption, we can anticipate additional progress in chromatography analysis and the broader realm of analytical chemistry.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

SKP-Conceptualization, Data collection, reviewing, manuscript writing, DK-Planning, Supervision, Reviewing Manuscript. All authors reviewed the results and approved the final version of the manuscript.

CONFLICT OF INTERESTS

Declared none
