Int J Curr Pharm Res, Vol 8, Issue 1, 24-27Original Article

IN VITRO BEHAVIOUR OF PLASMODIUM FALCIPARUM STRAINS BY ALKALOIDS AND TANNINS EXTRACTED FROM ROOT OF MITRAGYNA INERMIS, A MEDICINAL PLANT

KUMULUNGUI BRICE SERGE^1*, ONDO-AZI ALAIN SERGES¹, MEWONO LUDOVIC², OTOGO N’NANG ELVIS^1,3, AKAGAH BERNARDIN³, FUMOUX FRANCIS⁴, TRAORÉ ALFRED⁵

¹Laboratoire de Sciences des Aliments-URAB, Université des Sciences et Techniques de Masuku. BP 941, Franceville, Gabon, ²Laboratoire d’Immunologie, de Microbiologie Appliquée et d’Hygiène, Ecole Normale Supérieure, B. P. 440 Libreville, Gabon, ³Laboratoire Alpha Chemica, Faculté de Pharmacie, Université Paris-Sud 11, Paris, France, ⁴Pharmacogénétique des Maladies parasitaires, EA 864, IFR 48, Faculté de Pharmacie, Université de la Méditerranée, Marseille cedex 5, France, ⁵Centre de Recherche en Sciences Biologiques, Alimentaires et Nutritionnelles, Laboratoire de Biotechnologie, Université de Ouagadougou 03 BP7131 Ouagadougou Burkina Faso
Email: kumulungui@yahoo.fr

Received: 20 Oct 2015, Revised and Accepted: 10 Dec 2015

---

ABSTRACT

Objective: Mitragyna inermis (Willd.) O. Ktze is a plant belonging to the Rubiaceae family. It is used in West Africa by traditional healers for treatment of accesses febrile generally bound to access malaria, but also to treat several other pathologies. We have collected a medicinal plant, Mitragyna inermis root, currently used for malaria treatment in Burkina-Faso.

Methods: Alkaloids and Tannins were extracted by using conventional methods and antimalarial activities were tested.

Results: After extracted Alkaloids and Tannins, the in vitro culture of Plasmodium falciparum strain isolated from infected patients showed that the alkaloids extracts presented an excellent antiplasmodial activity on P. falciparum strain (IC₅₀ = 2.36 and 2.56 µg/ml respectively) after 24 and 48h of incubation at 37 °C. On the other hand, the tannins extract no presented antiplasmodial activity (IC₅₀>100 µg/ml) but presented an important maturity of P. falciparum strains, letting foretell a possible use of the polyphenolic compounds by P. falciparum as a source of cellular carbon and energy.

Conclusion: These results although exploratory are of fundamental importance for the research in biochemistry and medicine for find new antimalarial prototypes.

Keywords: Mitragyna inermis, Malaria, Roots, Tannins, Alkaloids, Plasmodium falciparum.

---

© 2016 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)

INTRODUCTION

Malaria remains a major public health problem in tropical developing countries, particularly in Africa [1]; leading to more than 219 million cases each year and mostly children less than five years [2]. The Plasmodium falciparum parasite is becoming resistant to standard antimalarial drugs, which need a continuous effort of research for new antimalarial drugs. The topic of new antimalarial drugs from traditional medicines has been largely reviewed in recent years [3]. In this view, plants resources are potential targets for research and development of alternative malarial drugs, with novel modes of action [4].

Plants are a rich source for new drugs and one of the promising approaches on malaria research is the investigation of plants activity used by traditional healers [5, 6]. In Africa, a considerable portion of the population uses plants for fever or malaria treatment, without any scientific evidence of efficacy and safety.

Mitragyna inermis (Willd.) O. Ktze is a plant belonging to the Rubiaceae family, commonly used to treat malaria and several other pathologies [7]. The inhibition effect of those compounds on Plasmodium falciparum, in particular, is still demonstrated. Since the appearance of chemio-resistances of Plasmodium falciparum to the commonly used anti-malaria drugs, the researchers of the developing countries are showing a particular interest on medicinal plants rich on alkaloids as a source of new anti-malaria drugs.

If the antifungal and antibacterial properties of tannins have been demonstrated, it is not the case for their anti-parasitic properties. Until now, through the few studies achieved to this subject, it comes out again that the tannins have a weak anti-parasitic activity on Plasmodium falciparum [8, 9].

Indeed, it remains important to underline that certain microorganisms seems to be nevertheless indifferent or, can degrade the tannins [10]. In particular, the tannins that are able to be hydrolyzed (Gallo tannins) via the enzyme tannase (acyl-tannin hydrolase), this enzyme is produced by a range saprophyte fungi such as Aspergillus and Penicillium [11], but also the yeast of the gender Candida. The condensed tannins (catechic) have been considered as less or non-bio-degradable and the rare work has demonstrated that the Aspergillus and Penicillium might degrade apple’s tannins or the procyanidin like structure, the condensed tannins constituents [12, 13]. Several bacteria of the Bacillus, Pseudomonas and Klebsiella genera have been shown to use the gallotannins as an organic source of carbon [14].

This article greats the results demonstrating an eventual biodegra-dability of roots alkaloids and tannins extracts of Mitragyna inermis by the Plasmodium falciparum strains on in vitro culture; although we were looking for the activity of alkaloids and tannins extracts.

MATERIALS AND METHODS

Plant material

The roots of Mitragyna inermis were harvested in the surrounding flora of the city of Ouagadougou and dried at ambient temperature (25 to 30 °C). They are carried out in a semi-industrial grinder and are finely pulverized. The obtained powder is preserved in the tightly plastic bags.

Biological materials

The biological material is constituted of the Plasmodium falciparum strains isolated from five infected children aged of 2 to 7 y from the Barogo village, situated at seven kilometers from the city of Ouagadougou, after having collected the information concerning a possible malaria treatment or prophylaxis of the children before the exam previously.

The selected subjects showed a blood parasite density ranging from 500 and 10000 trophozoites/µl of blood. For each children, 10 to 15 mL of blood are collected in a vacutainer tube containing an anticoagulant (EDTA 0.025 %), and transported as quick as possible to the laboratory for culture initiation.

The mixture was centrifuged at 2000 g for 7 min; at 25 °C. The serum was collected and heated in a water bath at 56 °C for 30 min. The pellet containing the infected red blood cells was put on RPMI-1640 medium up to an hematocrit of 10%, supplemented with autologous serum, HEPES buffer, sodium bicarbonate, streptomycin and L-glutamine.

150 µl of cellular pellet were introduced in each microplate wells and 50 µl of plant extract added. The microplate was sealed with parafilm, and incubated for 24 to 48 h at 37 °C, under CO₂ enriched atmosphere. After incubation, thin blood smears were colored with Giemsa and read under a photonic microscope. The trophozoites and schizontes were quantified as per µl of blood. The maturation and inhibition percentage (%) of the schizontes growth are given using the following formulas:

Preparation of crude extracts

The air dried plants were powdered using a semi-industrial crusher. Alkaloids were extracted according to method described [15], modified as follows: after humidification with NH₄OH (12.5%), alkaloids were extracted using petroleum ether and treated with H₂SO₄ (5%). The acid aqueous solution was washed with hexane, alkalinized with Na₂CO₃ (10%), and extracted with chloroform. The organic solution was washed with water, dried over Na₂SO4, and evaporated. Alkaloid bases were dissolved in acetone with Hydrochloric acid (HCl) vapour. The presence of hydro chlorate alkaloid residue was confirmed using the Mayer and Dragendorff test.

The powder was de-lipided and tannins were extracted using acetone. After elimination of pigments, the acetone was evaporated, and the tannin precipitates were characterised by FeCl₃ in accordance with CEE recommendations [16]. Quantitative studies were conducted using gravimetric analysis. For in vitro antiplasmodial activity, stock solutions of alkaloids and tannins at 5.000 µg/ml were prepared after filtration using 0.22 mm Millipore membrane. A chloroquine stock was prepared at 1.000 µg/ml.

Antiplasmodial activity

A chloroquine-sensitive strain (3D7) and chloroquine resistance strain (W2) of P. falciparum were continuously cultured according to a modified method [17].

The antimalarial activity was assessed by incubating parasites cultures with four concentrations (1250, 125, 12.5 and 1.25µg/ml) of each plant extracts for 24h and 48h, and all tests were conducted in duplicate in a 96 well flat-bottom culture plate (Costar, UK). Chloroquine diphosphate (Sigma) was used as a positive control and drug-free medium as a negative control. After incubation, thin blood films were prepared and stained with Giemsa; two trained microscopists determined the number of infected red blood cells per well independently. In case of a more than 10% discrepancy, a third reading was done. The IC50 value which represents the amount of the compound required to inhibit 50% of the parasite growth of the drug-free control was then calculated. The curves of % of the inhibition = f(-log[plants extract ]) follows a polynomial regression to order 2. According to several authors [17], IC50 were classified as follows: (1) IC50 less than 5 µg/ml, the extract was considered highly active, (2) from 5 to 10 µg/ml, the extract was considered moderately active, and (3) over 10 µg/ml, the extract was considered inactive.

RESULTS AND DISCUSSION

Quantitative and qualitative analyses of plant extracts

The qualitative analysis showed that Mitragyna inermis roots are rich in alkaloids and tannins. Quantitative analysis showed that Mitragyna inermis roots present 0.4±0.02% of alkaloids and 5±0.03% of tannins. The quantitative study demonstrated that the tannin contents obtained by spectrophotometric method were 0.08% and alkaloids content determined using by gravimetric method was 0.29%. Those results are in line with that obtained using qualitative analysis.

Pharmacodynamic studies of alkaloids and tannins of Mitragyna inermis

Inhibitory effect of alkaloids on in vitro plasmodium falciparum culture

The results obtained for the inhibitory test on Plasmodium falciparum strains growth are presented in table 1. The quantification of the inhibitory effect of plant extracts is based on the IC₅₀ (Concentration of 50% inhibitory growth of parasites) value.

The probate analysis of the relationship between the algorithmic dose and the percentage inhibition of the Plasmodium falciparum strains (schizonts’) growth called, log(curve/probate), gave a regression curve from which the CI₅₀ can be calculated.

The alkaloids extracts from Mitragyna inermis root, presented after 24 and 48h of incubation respectively 2.35µg/ml and 2.56µg/ml. The curve: % inhibition = f (-log [alkaloids]), after 24 and 48h of incubation is presented in fig. 1A and fig. 1B.

According to [17] work, the inhibitory effect of plant extracts on Plasmodium falciparum is excellent if its CI₅₀ is less than 0.05 mg/ml. From our study, the alkaloids from Mitragyna inermis roots with CI₅₀ of 0.027 and 0.013 mg/ml after 24 and 48 h of incubation, respectively; can be considered as highly inhibitory of the growth rate of Plasmodium falciparum in vitro [18]. This result is not surprising since the role of alkaloids (quinine, chloroquine, artemisinin) is well established on the prophylactic and curative treatments of malaria.

Activatory effect of tannins on in vitro Plasmodium falciparum culture

The results showing the activatory role of tannins on the Plasmodium falciparum strains in vitro are presented in table 2.

In the absence of a reliable method of quantification of the Plasmodium falciparum strains maturation in the presence of tannins, fig. 2 presents the curve:

% inhibition = f (-log [alkaloids]).

Table 2 above and fig. 2 permits let us appreciate the maturation of the schizonts of Plasmodium falciprum. This maturation is characterized by the increase of the number of schizonts to the concentrations of 0.05 and 0.005 mg/ml of tannins compare to the control (number of schizonts obtained in the absence of the active compound).

Such a result suggests the hypothesis of a possible biodegradation of the tannins by plasmodium and by way of consequence the use of this polyphenolic compound by the hematozoaire of malaria as a cellular carbon source. It remains important nevertheless to specify that this result has been obtained, whereas we were looking at the schizonticidal effect of the tannins on the Plasmodium falciparum culture. From then on, several complementary studies must be done, most important being the kinetics of deterioration of the tannins by the parasite.

The method of biodegradation of the tannins by the loss of the astringent power seems to be the more indicated, since the loss of the astringency of the tannins in the presence of a microorganism can justify its biodegradability [14].

However, a spectrophotometric method can be put to profit to follow the kinetics of deterioration of the tannins, from the moment these compounds absorb at a given wavelength. Finally, we insist once besides, on the preliminary character of these results.

Table 1: Number of P. falciparum strains (schizontes) per µl of blood after 24h incubation with various of concentrations of alkaloids from Mitragyna inermis roots (% of inhibition is reported as IC50 values)

	P. falciparum strains number/µl before Alkaloids using
Alkaloids extracts	Isolate1	Isolate2	Isolate3	Isolate4	Isolate5	Total	%Inhibition	IC50 (µg/ml)
Concentrations in	1480	2780	1060	540	9750	15610
µg/ml (log)	P. falciparum strains number/µl after Alkaloids using
1250 (3,09)	0	0	0	0	0	0	100
125 (2,09)	0	0	8	0	8	16	100	2.35
12.5 (1,09)	820	1006	840	164	3480	6310	60
1.25 (0,09)	1068	1270	1060	264	7430	11092	29

Table 2: Number of P. falciparum strains (schizontes) per µl of blood after 24h incubation with various of concentrations of tannins from Mitragyna inermis roots (% of maturation is reported as IC50 values).

		P. falciparum strains number/µl before Tannins using
	Tannins extracts	Isolate1	Isolate2	Isolate3	Isolate4	Isolate5	Total	%Maturation	IC50 (µg/ml)
	Concentrations in	1480	2780	1060	540	9750	15610
	µg/ml (log)	P. falciparum strains number/µl after Tannins using
	1250 (3,09)	1306	2446	933	475	8730	13890	89
	125 (2,09)	1820	3392	1293	659	11900	19064	122	>100
	12.5 (1,09)	2312	4337	1654	842	14920	24065	154
	1.25 (0,09)	2850	5238	2035	1037	18440	29600	189

Fig. 1: Antimalarial activity of alkaloids of Mitragyna inermis roots after incubation for 24h (A) and 48h (B) at 37 °C

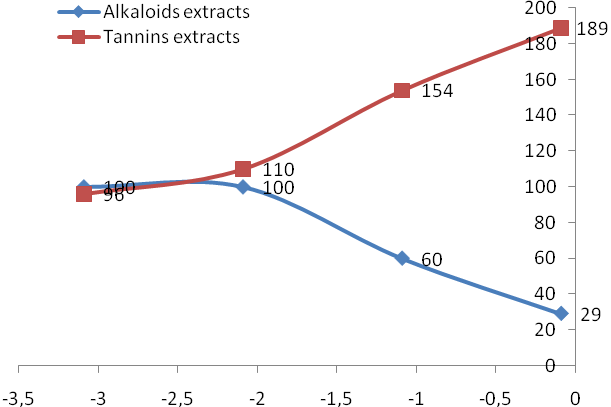

Fig. 2: Cinetic on number of P. falciparum strains (schizonts) and percentage (%) maturation as log [alkaloids]

CONCLUSION

The alkaloids are complex enough organic substances of raw formula, containing a tertiary nitrogen atom that confers them an alkali reaction from where the name alkaloid is coming from. Several of those alkaloid compounds are parasitic, the case of quinine isolated from Cinchona, is the first anti-malaria of natural origin and it is very poisonous for the malaria hematozoaire.

The study showed the anti-malarial activity of the alkaloids from roots of Mitragyna inermis, observed during our survey. It is important to undertake deeper research, especially in knowing the exact nature of the active compounds responsible for the Plasmodium falciparum strains activity. Pharmacological and pharmacokinetic studies of this drug will be done, with the goal of clearly administrate a posology, to provide to a human being with efficient product free of secondary effects.

Oppositely, the study presented a biodegradation of the tannins by P. falciparum is of fundamental importance, since, if one succeeds in confirming the use of the tannins by Plamodies as a cellular carbon source, it would bring on the fundamental research, a larger knowledge of the pharmacological role of the tannins on the microbial metabolism. On the medical plan, the use of the tannins as source of carbon by Plasmodium could enrich the composition of the culture medium of this in vitro parasite, regularly used in the study of the chimiosensitivity of Plasmodium falciparum with regard to the anti-malaria commonly used: the case of the WHO micro test (World Organization of Health), often used to value the chloroquine-resistance of Plasmodium falciparum.

CONFLICT OF INTERESTS

Declared none

REFERENCES

1. Titanji VPK, Zoufou D, Ngemeneya MN. The antimalarial potential of medicinal plants used for the treatment of malaria of cameroonian folk medicine. Afr J Tradit Complementary Altern Med 2008;5:302-21.
2. WHO World malaria report. Genevia, Suisse; 2013. p. 2.
3. Bourdy G, Willcox ML, Ginburg H, Rasoanaivo Ph, Graz B, Deharo E. Ethnopharmacology and malaria: new hypothetical leads or old efficient antimalarial? Int J Parasitol 2008;38:33-41.
4. Muregi FW, Chlabra SC, Njagi ENM, Lang’at-Thoruur CC, Njue WN, Orago ASS, et al. In vitro antiplasmodial activity of some plants used in Kissii, Kenya against malaria and their potential chloroquine effect. J Ethnopharmacol 2003;84:235-9.
5. Rasoanaivo P, Ratsimamanga-Urverg S, Ramanitrahasimbola D, Rafatro H, Frappier F, Rakoto-Ratsimamanga A. Screening of plant extracts from Madagascar to search for antimalarial activity and chloroquine potentiating effect. J Ethnopharmacol 1999;64:117-26.
6. Madureira MC, Martins AP, Gomes M, Paiva J, Cunha PC, Rosario V. Antimalarial activity of medicinal plants used in traditional medicine in sao tomé and principal islands. J Ethnopharmacol 2002;81:23-9.
7. Ake-Assi L, Guinko S. Plants used in traditional medicine in West Africa Edition Roche, Suisse; 1991. p. 151.
8. Coulibaly M. Contribution à l’étude in vitro de l’activité antiplasmodique d’extrait de huit plantes médicinales du Burkina Faso. Thèse de Doctorat de Spécialité, Université de Ouagadougou; 1996.
9. Kumulungui BS. Les bases naturelles et pharmacologiques de la résistance au Plasmodium falciparum: étude de l’activité antiplasmodique de quelques plantes utilisées en pharmacopée traditionnelle dans le traitement du paludisme au Burkina Faso. DEA; Université de Ouagadougou; 1997.
10. Lewis JA, Starkey RL. Décomposition of plant tannins by some soil microorganisms. Soil Sci 1996;107:235-41.
11. Dhar SC, Bose SM. Purification, crystallization and physico-chemical properties of Tannase of Aspergillus niger. Leather Sci 1964;11:27-38.
12. Chandra T, Krishnamurthy V, Madhavakrishna W, Nayudamma Y. Astringency in fruits: microbial degradation of wood apple tannin. Leather Sci 1973;20:269-73.
13. Grand WD. Microbial degradation of condensed tannins. Science 1976;193:1137-9.
14. Deschamps AM. Evaluation de la dégradation de deux types de tanins condensés par les bactéries isolées d’écorces en décomposition. Can J Microbiol 1985;31:499-502.
15. Lannuzel A, Michel PP, Caparros-Lefebvre D, Abaul J, Hocquemiller R, Ruberg M. Toxicity of annonaceae for dopaminergic neurons: potential role in atypical parkinsonism in guadeloupe. Mov Disord 2002;17:84-90.
16. Bruneton J. Pharmacognosie, Phytochimie, Plantes Médicinales. 2ème édition. Lavoisier Tech. Et Doc; 1993.
17. Deharo E, Bourdy G, Quenevo C, Munoz V, Ruiz G, Sauvin M. A search for natural bioactive compounds in Bolivia through multidisciplinary approach. Part V. Evaluation of the antimalarial activity of plants used by the Tacana Indians. J Ethnopharmacol 2001;77:91-8.
18. Kumulungui BS, Ondo-Azi AS, Mintsa Ndong A, Fumoux F, Traoré A. In vitro antiplasmodial activity of seven plants commonly used against malaria in Burkina Faso. J Med Plants Res 2012;6:2284-8.
