Int J Curr Pharm Res, Vol 9, Issue 3, 127-132Original Article
SYNTHESIS, SPECTRAL AND MOLECULAR MODELING STUDIES OF COUMARIN DERIVATIVES
P. VIJAY BHASKAR, A. RAMACHANDRAIAH*
Department of Chemistry, National Institute of Technology Warangal, Warangal, Telangana, India, 506004
Email: podarillu1@yahoo.co.in
Received: 03 Jan 2017, Revised and Accepted: 31 Apr 2017
ABSTRACT
Objective: To synthesize the 3-{2-[N'-(1-Pyridin-2-yl-ethylidene)-hydrazino]-thiazol-4-yl} coumarins and study their spectral and molecular properties by using the spectroscopy and molecular modeling techniques.
Methods: Spectroscopy and Molecular modeling techniques
Results: The spectral behavior of 3-{2-[N'-(1-Pyridin-2-yl-ethylidene)-hydrazino]-thiazol-4-yl} coumarins (1.1-1.3) in aqueous buffers of varied pH is presented. Spectrophotometry was utilized to study its proton and electron transfer characteristics with the support of molecular modeling studies. An excellent analytical method of assaying of (1.1-1.3) has been developed in Spectrophotometry at pH = 6. Molecular modeling on various acid-base conjugates of (1.1-1.3) and their several conformers has been carried out to arrive at the thermodynamic and conformational issues to correlate the spectral and electrochemical observations.
Conclusion: Electron transfer (ET) has been increasingly implicated as a biochemical pathway for the pharmacologic action of a variety of biological active compounds. These studies helps to understand the active form of the biological active compounds may have a catalytic function as an intermediary in passing electrons from a donor, such as DNA, protein, or an ET chain, to an acceptor, thereby exercising an influence on normal or aberrant ET chains, ion movements, membrane potentials, and oxidative stress. The actual agent may be the biological active compounds itself or a derived metabolite, such as a metal complex, oxidative product, or protonated form.
Keywords: Coumarin, Acid-base equilibria, Molecular modeling, Isosbestic points, Conformers
© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2017v9i3.19984
INTRODUCTION
Coumarin derivatives are of interest because of their physiological, photodynamic, anticoagulant, spasmolytic, bacteriostatic and antitumor activity. They are also extensively used as analytical reagents. Coumarins and their derivatives have been studied extensively for their complexation with metal ions. A number of dioxouranium(VI) and titanium(IV) complexes with hydroxycoumarins, e. g., 3-hydroxycoumarin and 7,8--dihydroxy-4-methylcoumarin, etc., have been studied spectrophotometrically and it has been observed that depending upon pH, 1:1, 1:2 and 1:3 complexes are formed in the solution. Hydrazinyl thiazol coumarins are extended derivatives of the chromone-2-one nucleus and find numerous therapeutic applications [1-6]. These schiff bases have evinced considerable research interest among chemists for their versatile spectral behaviour with a mechanism that varies with the solvent, pH, [7-10].
Keeping the few and importance of the Coumarin few 2-Acetyl pyridine derivative of Coumarin were synthesized. The detail synthesis and purification of 3-{2-[N'-(1-Pyridin-2-yl-ethylidene)-hydrazino]-thiazol-4-yl}coumarin and extraction of pure samples of the remaining four drugs are summarized here below.
3-{2-[N'-(1-Pyridin-2-yl-ethylidene)-hydrazino]-thiazol-4-yl} coumarin compound and its bromine derivatives were synthesized according to the reported procedure [5]. The chemical structure of this series is shown below. In this paper, we present the detailed spectral, and molecular modelling investigations of some selected schiff bases shown in 1.1, 1.2 and 1.3.
The procedure of the synthesis of 3-{2-[N'-(1-Pyridin-2-yl-ethylidene)-hydrazino]-thiazol-4-yl}coumarins, is presented here briefly as a typical case.
A mixture of 3-(2-bromoacetyl)coumarin (0.01 moles) and thiosemicarbazide (0.01 moles) was placed in a flask to which was added 10 ml of 2-acetyl pyridine and stirred for 30 min at room temperature. The solventless reaction mixture was eventually washed with methanol and the washings were collected and kept for standing overnight. The crystalline solid separated was filtered and recrystallized from methanol again. The details of acid–base spectral, electrochemical and molecular modeling studies of 1.1-1.3 are presented in this paper.
These compounds have been characterized by IR, UV-Visible, NMR and spectral analysis. The physical and analytical data of these compounds are collected in table 1.
The IR, UV-Visible, NMR and Mass spectra for 1.1 are shown in fig. 1-4 and corresponding data is presented in table 2 respectively.
MATERIALS AND METHODS
The electronic spectra and other photometric measurements of the compounds and reaction mixtures were recorded on an Analytic Jena Specord Model 250 (spectrophotometer). The 1 cm path length cuvetts were kept in double-walled constant temperature cuvett holder to keep the sample solutions at a constant temperature. An INSREF model cryostatic constant temperature circulating liquid bath was used for thermostatting the cuvette frame and the containers of solutions.
IR spectra was taken on Perkin Elmer FT-IR model. 1H NMR spectra of 3-{2-[N'-(1-Pyridin-2-yl-ethylidene)-hydrazino]-thiazol-4-yl} coumarin was taken on Bruker Avance 300 mHz Fourier Transform Nuclear Magnetic Resonance Spectrometer with Tetramethylsilane (TMS) as an internal reference. Mass Spectra was taken on Waters Quattro Micro LC-MS/MS Spectrometer at 3.25 eV.
The pH of the buffers, stock solutions and reaction mixtures were measured by an Orion Model EA 940 Expandable Ion Meter equipped with 91-01 Ag|AgCl, combined glass electrode. Molecular Modelling studies were performed by using the Chemoffice Pro Ultra 8.0 version.
RESULTS AND DISCUSSION
Spectral studies of 1.1-1.3
Infrared spectra
The Fourier transform infrared spectra (FTIR) have been recorded for 1.1-1.3 and a typical one is posted in fig. 1. The compounds 1.1-1.3 are expected to show stretching frequencies related to-C=N-and-C=O (lactone) besides several others. The peak at ~1700 cm-1 is due to lactone group and that at ~1605 cm-1 is due to–C=N-group.
Fig. 1: FTIR spectrum of 1.1 in its KBr pellet
Proton NMR spectra
Fig. 2 shows the NMR spectral pattern of 1.1. The multiplet at δ 7.3-8.3 is due to aromatic protons and one azomethine proton. The doublet at δ 8.5 is due to the protan on C5 of thiazole. The NH proton (D2O exchangeable) appeared as a singlet at δ 11.50. The–CH3 proton appeares as a singlet at δ 2.4. The other two compounds also have shown similar NMR spectra compatible to their structures. Important NMR data are presented in table 2.
Fig. 2: Proton NMR spectral pattern of 3.1 (DMSO-d6) mass spectral studies
The mass spectrum of 1.1 is shown in fig. 3. Molecular ion of 1.1 is at m/z 363. Relevant mass spectral data are placed in table 3.
Fig. 3: Mass spectrum of 1.1
Table 1: Analytical data of 1.1, 1.2 and 1.3
| Compound | Molecular formula | Colour | Mol.Wt | Kax109 | M. P (oC) | Elemental Analysis@ | ||
| C% | H% | N% | ||||||
| 1.1 | C19H14N4O2S | Light | 362.0 | 3.981 | 305 | 65.70 | 4.11 | 17.51 |
| Yellow | (62.97) | (3.89) | (15.46) | |||||
| 1.2 | C19H13N4O2SBr | Dark | 439.9 | 5.011 | 295 | 51.60 | 2.73 | 9.50 |
| Yellow | (51.77) | (2.97) | (12.70) | |||||
| 1.3 | C19H12N4O2SBr2 | Light | 517.9 | 6.310 | 308 | 43.79 | 2.13 | 8.06 |
| Brown | (43.87) | (2.33) | (10.77) |
@Values in the parentheses are calculated for the formulae
Electronic spectra and acid-base equilibria
The electronic spectrum of a methanolic solution of 1.1 is shown in fig. 4. Two distinct electronic transitions observed at ~299 and ~347 nm. These bands are tentatively assigned to π → π*and n → π* transitions respectively of the azomethine group, predominately.
The electronic spectra of 1.1 in various aqueous buffers are shown in fig. 5. The spectra exhibit a small amount of bathochromic shift with increased pH. The spectra of the other compounds are similar to this one.
There are three potentially basic nitrogen atoms in 1.1-1.3, viz, the pyridinic, thiazolic and the hydrazenic schiff base nitrogens. The hydrazenic hydrogen has been reported to be usually acidic and that it undergoes Wolf-Kischner kind of transformation [11]. It may be tentatively suggested that the compounds exhibit acid-base equilibria as in Scheme 1. Even though it is likely that 1.1 is triply protonated to render 1H33+, the pKa of the latter (1H33+) might be very low due to columbic repulsions. Instead, the species, 1H22+, must be very stabilized by intramolecular hydrogen bonds and tautomerism, as indicated in Scheme 1.
Fig. 4: Electronic spectrum of 1.1 in methanol (1.85 x 10-5 M)
Fig. 5: UV-Vis spectra of 1.1 (1.65 x 10-5 M) at pH (a) 2.17, (b) 5.35, (c) 7.85, (d) 9.64 and (e) 10.28
Scheme 1
Whether the nitrogens are protonated or not, the π→ π* and n→ π* transitions may hardly be influenced because the electron pairs of all sp2 nitrogens are orthogonal to the ring systems. Thus, one expects a poor effect of pH on the low energy uv-visible spectral profile of 1.1. Fig. 5 is indicative of this fact.
Molecular modelling done on all these species also gave varied values for the HOMO and LUMO energies but the energy gap between the HOMO and LUMO of 1.1 and hence, λmax were found to be marginally variable with acid-base conjugate species. By plotting absorbance at ~ 350 nm with pH, we evaluated the pKa (for 1H+) and pKb (for 1.1). The spectral and thermodynamic data of 1.1-1.3 are presented in table 3.
Coordination chemistry of 1.1-1.3
Compounds, 1.1-1.3, have several coordinating centers or atoms such as azomethine, heterocyclic nitrogens and phenolic or carbonyl oxygen that can bind to metal ions. These compounds are expected to be potential bidentate ligands.
Most of the heterocyclic drugs owe their pharmacokinetic mechanism to electron transfer process often catalyzed by metalloenzymes. Metal coordination alters the electrochemical behaviour of ligand. Similarly the electrochemistry of the metal ion, in turn, would be modified upon coordination.
We have made an investigation into the metal-ligand interactions of 1.1-1.3. UV-Visible spectrophotometry has been utilized to elucidate and confirm the possible complexation that occurs between the compounds 1.1-1.3, and Cu2+ion. The spectral pattern of the complex must be different from those of the corresponding pure ligand and metal. The spectra of the ligand in the absence and in presence of metal are shown in fig. 6.
The spectral profiles reveal that there could be a complexation between Cu2+, Ni2+, Co3+ion and the coumarin ligands. The fig. 7 shows the formation of the complexation between Co3+ion and the coumarin ligands. The electrochemical behaviour in the absence and in the presence of metal would indicate the way in which the metal ion coordinates to the ligand molecule. AJob’s plot also gave the M: L ratio as 1:2. The Job’s plot is shown in fig. 8 and plausible structure for the complex shown in fig. 9.
Table 2: Spectral data of 1.1, 1.2 and 1.3
| Compound | Molecular formula |
UV-visible | Infrared spectral data(ΰ, cm-1) |
|||
| Spectr al data λ (nm) | Exocyclic -C=N- | Lactone-C=O- | NMR spectral data (δ ppm) | Mass spectral data (m/z) | ||
| 1.1 | C19H14N4O2 S | 347 | 1596 | 1720 | δ 11.6 (s), δ 8.6 (m), δ 8.1(d), δ 7.8 (m), δ 7.6 (t), δ 7.3 (m), δ 2.4 (s) | 363.2 |
| 1.2 | C19H13N4O2 SBr | 342 | 1664 | 1716 | (s), δ 7.5 (m), δ 7.7 (m), δ 7.3 (m), δ 2.5 (s) | 441.3 |
| 1.3 | C19H12N4O2SBr2 | 340 | 1557 | 1732 | (d), δ 8.4 (s), δ 8.1 (d), δ 8.0 (s), δ 7.8 (d), δ 7.7 (m), δ 7.6 (d), δ 2.8 (s) | 520.3 |
Table 3: Spectral and thermodynamic data of 1.1#
| Compound | Low () | High () | Iso () | pKa | pKb | Ka x 105 | Go |
| 1.1 | 351.6 | 399.1 | 367.3 | 4.4 | 9.6 | 3.981 | 25.12 |
| (5405) | (2276) | (3756) | |||||
| 1.2 | 349.0 | 401.4 | 365.3 | 4.3 | 9.7 | 5.011 | 24.55 |
| (5303) | (2232) | (3639) | |||||
| 1.3 | 354.5 | 402.2 | 369.6 | 4.2 | 9.8 | 6.310 | 23.98 |
| (5292) | (2198) | (3617) |
# in nm; (in lit mol-1 cm-1); Ka and Go (in kJ mol-1) are for the process, 1H+1; low and high are wavelengths below and above the isosbestic wavelength, iso, respectively

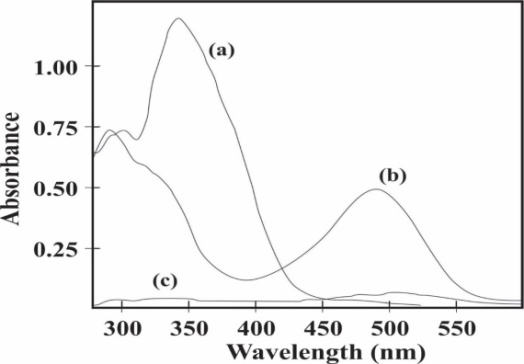

Fig. 6: Electronic Spectral profile of (a) 1.1 (3.1 x 10-4 M) and (b) L2-Cu]2+(3.1 x10-4 M) Complex and (c) Cu+2 solution (1.65 x 10-4 M) where L = 1.1-1.3

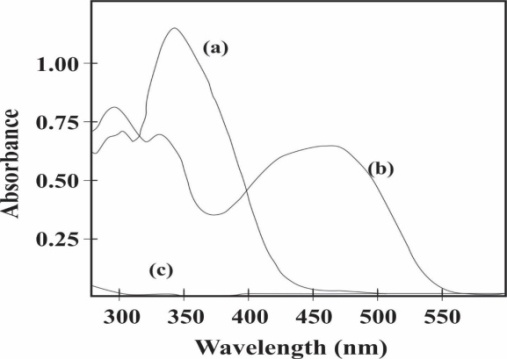

Fig. 7: Electronic Spectral profile of (a) 1.1 (3.74 x10-5 M) and (b) [L2-Co]3+(3.74 x10-5 M) complex and (c) Co3+solution (1.87 x 10-5 M) where L = 1.1-1.3

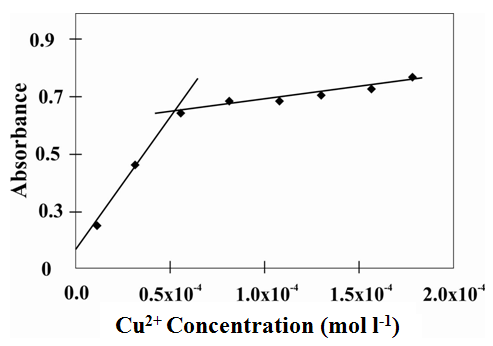

Fig. 8: Job’s plot for complexation of 1.1 with Cu2+(Ligand concentration 1.1 x10-4 M)

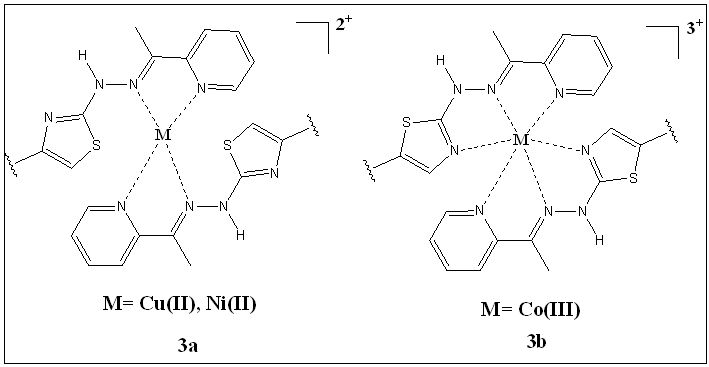

Fig. 9: Possible coumarin Schiff base complexes with Cu2+, Ni2+and Co3+
Assaying of 1.1-1.3
The acid-base equlibria features of 1.1-1.3 suggest reliable spectrophotometric analysis of 1.1. Our studies suggest up 10 nanomolar sensitivity acidic buffers. In fig. 10 is shown a typical medium range calibration plot obtained for 1.1.
Fig. 10: The calibration plot of 3.1 in buffer of pH = 6
Molecular modeling
Molecular modeling studies have been done on the present series of compounds, 1.1-1.3, to understand the stability, intramolecular hydrogen bonding and conformational analysis to verify the mechanisms proposed for the thermodynamic, spectroscopic and electrochemical behavior of the compounds. The energy minimized structures of 1.1 in their stereographical projections generated by MM2 of Chem Office Ultra software are shown in fig. 11 and the numbering pattern is followed as shown in stable conformer. Thermodynamic parameters are calculated for the protonated and deprotonated and unprotonated forms of compounds 1.1-1.3. These values are presented in table 4.
The conformational analysis was done on all LH32+, LH, L-forms of 1.1 was done. For this purpose, a systematic energy search of the molecule was done at several conformational positions around each rotatable but noteworthy single bond.
From many conformers thus generated, the least energy conformer chosen by energy minimization using MM2. It was observed that coumarin ring deviates from coplanarity with the central thiazole ring while hydrazine pyridine ring is nearly perpendicular to the thiazole ring (fig. 11). The steric energies and heats of formations were calculated for every 20 degrees of rotation around selected-C-N-bond and-N-N-bond. The plot of torsional angle vs torsional energy plots of 1.1 are shown in fig. 12.
The quantum mechanical HOMO-LUMO orbital energy calculations have been used for computing the expected gas-phase electronic transitions. These values are also collected in table 6 along with the experimental spectral data. But for the parent species, 3.1, the theoretical and experimental absorption maxima are in great agreement. The HOMO-LUMO molecular orbital surfaces and their energies are shown in fig. 13.
Fig. 12: Conformational analysis of 1.1 around a)-C12-C8-, b)–N17-C15-and c)-N17-N18
Fig. 11: Energy minimized 1.1 generated from energy minimization through MM2 calculations (hydrogen
LUMO
HOMO
Fig. 13: HOMO, LUMO molecular orbitals of 1.1
Table 4: Molecular modeled thermodynamic, dipole moment, dihedral angle () and spectral data of 1.1, 1.2 and 1.3
| Property | System# | LH22+ | LH+ | |||||||
| LH33+ | AP | AT | PT | A | P | T | L | L- | ||
| Hof | 1.1 | 150.9 | 62.7 | 49.0 | 33.4 | 6.6 | 7.2 | 3.1 | 16.6 | 19.1 |
| (kJ mol-1) | 1.2 | 159.5 | 65.6 | 55.6 | 37.4 | 11.0 | 10.1 | 6.6 | 18.3 | 19.7 |
| 1.3 | 162.5 | 67.8 | 58.3 | 40.0 | 13.0 | 11.8 | 8.9 | 19.7 | 21.1 | |
| Dipole | 1.1 | 4.1 | 6.0 | 3.4 | 3.4 | 3.4 | 5.4 | 2.6 | 2.8 | 6.8 |
| Moment | 1.2 | 6.0 | 7.9 | 5.5 | 5.2 | 5.4 | 7.1 | 5.1 | 5.0 | 7.7 |
| (DB) | 1.3 | 7.0 | 9.0 | 6.6 | 6.3 | 6.5 | 8.2 | 6.2 | 6.0 | 8.8 |
| 2.6 | 11.1 | 12.0 | 5.1 | 25.1 | 10.9 | 7.7 | 21.5 | 6.8 | ||
| 1.1 | 13.3 | 45.0 | 18.2 | 14.1 | 26.7 | 2.4 | 10.7 | 12.3 | 11.4 | |
| Dihedral | 8.9 | 0.3 | 4.1 | 6.0 | 25.6 | 8.3 | 31.3 | 36.1 | 89.0 | |
| Angles | 1.2 | 29.7 | 7.9 | 8.4 | 6.4 | 25.7 | 10.1 | 11.3 | 1.9 | 7.1 |
| 7-8-12-13; | 14.8 | 46.0 | 18.0 | 4.5 | 27.1 | 1.9 | 9.2; | 1.7 | 9.9 | |
| 14-15-17- | 7.9 | 37.7 | 8.4 | 10.1 | 27.3 | 7.7 | 33.1 | 22.9 | 95.6 | |
| 18; | 1.3 | 30.1 | 8.8 | 8.3 | 6.5 | 27.2 | 11.2 | 8.7 | 0.5 | 5.8 |
| 18-19-21-22 | 15.8 | 46.3 | 19.0 | 3.0 | 28.1 | 2.0 | 9.7 | 1.7 | 9.7 | |
| (deg) | 6.9 | 38.0 | 9.8 | 9.6 | 29.3 | 7.4 | 32.6 | 23.0 | 97.2 | |
| 2.5 | 1.7 | 1.1 | 2.4 | 1.8 | 2.2 | 2.9 | 3.2 | 0.9 | ||
| 1.1 | 482 | 692 | 1070 | 502 | 676 | 541 | 411 | 370 | 1332 | |
| $ (eV) | 1.2 | 2.6 | 1.5 | 1.0 | 2.1 | 1.6 | 2.2 | 2.6 | 3.3 | 0.8 |
| max (nm) | 456 | 771 | 1175 | 582 | 747 | 551 | 456 | 365 | 1577 | |
| 1.3 | 2.6 | 1.6 | 1.0 | 2.0 | 1.7 | 2.6 | 2.6 | 3.1 | 0.8 | |
| 451 | 765 | 1158 | 585 | 707 | 449 | 455 | 380 | 1546 |
# A, P and T mean hydrazone, pyridine and thiazole nitrogen sites respectively; $ energy gap between LUMO and HOMO orbitals of the modeled global minimum energy structure
CONCLUSION
In this study 3-{2-[N'-(1-Pyridin-2-yl-ethylidene)-hydrazino]-thiazol-4-yl,} coumarins were synthesized and the structures were characterised by UV, IR, NMR and Mass techniques. The electronic transfer characteristics were studied by using the Spectroscopy and Molecular modeling studies.
ACKNOWLEDGEMENT
The authors would like to thank Department of chemistry, NITW, Warangal for providing the facility to carry out of this research work.
CONFLICT OF INTERESTS
Declare none
