Int J Curr Pharm Res, Vol 9, Issue 5, 67-74Original Article


OPTIMIZATION AND CHARECTERIZATION OFINTRACELLULAR ORANGE FLUORESCENT PIGMENT FROM BACILLUS ENDOPHYTICUS (AVP-9(Kf527823)

MANTRI SAI RAM1, NOKKU PRADEEP KUMAR2, C. V. S. BHASKAR3. AMRUTHA V. AUDIPUDI4*

1,2,4Department of Microbiology, Acharya Nagarjuna University, Guntur 522510, A. P. India, 3Department of Botany. V. R College, Nellore 523001, A. P, India
Email: audipudi_amrita@yahoo.com

Received: 20 May 2017, Revised and Accepted: 22 Jul 2017

ABSTRACT

Objective: Our study aimed to characterize and optimize the physico-chemical properties which render the high yield of intracellular orange fluorescent pigment (IOFP) and its antibacterial activity against clinical pathogens.

Methods: Intracellular orange fluorescent pigment (IOFP) extracted from Bacillus endophyticus AVP-9(Kf527823) a rhizobacteria of chilli agricultural field using different solvent systems, fractioned by TLC and analyzed for absorption maxima. Purified pigment was screened for antimicrobial activity against clinical pathogen, Optimization of cultural conditions for maximizing the yield of pigment and compared the yield in different broth media.

Results: AVP-9(Kf527823) showed circular, large orange color colonies which fluoresced orange under U. V light,. Intracellular pigment affectively extracted in acetone showed a bright fluorescent orange spot on the TLC plate, and absorption maxima at 493 nm. Antibacterial activity of isolated pigment showed highest zone of inhibition against E. coli and least to Pseudomonas. Maximum yield of the pigment was achieved in modified nutrient brot (MNB)h medium containing 2% w/v nutrient broth containing1% w/v glucose,1% w/v peptone and0.5% methionine at 35 °C and pH 7.0 with 48 h of incubation period. The yield was observed maximum in MNB. Compared to lactose broth, Tryptone soya broth and peptone water.

Conclusion: Bright fluorescent orange pigment of Bacterium avp-9(Kf527823) with absorption maxima at 493 indicating that the pigment shows the characters of carotenoids. Yield maximum in MNB and its potential antibacterial activity needs further investigation for pharmaceutical applications.

Keywords: Fluorescent pigment, Anti bacterial activity, Optimization, Morphological

© 2017 The Authors. Published Published Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2017v9i5.22142

INTRODUCTION

Soil microbial communities are the most complex, diverse and important assemblages of organisms in the biosphere and they are an important source for the search of novel antimicrobial agents and molecules with biotechnological importance such as microbial pigments that can be used as natural colorants as well as antimicrobial agents in place of antibiotics [1]. The demand for new antibiotics continues to rise due to the rapid emergence of antibiotic resistant pathogens causing life threatening infections in spite of considerable progress in the fields of chemical synthesis and engineered biosynthesis of antimicrobial compounds [2]. This changing pattern of diseases and the emergence of resistant bacterial strains to currently used antibiotics continuously put demand on the drug discovery scientists to search for novel antibiotics such as microbial pigments [3]. Pigments of various colors are synthesized to protect the cells of micro-organisms from the injurious effect of light rays of visible and near ultraviolet range [4]. These pigments are synthesized by various types of microorganisms as secondary metabolites and not often found in all types of organisms [5-6]. Microorganisms produce various pigments like carotenoids, melanins, flavins, quinones, prodigious and more specifically mole-skin, violacein or indigo [7]. Carotenoid is an organic pigment that is noted in most of the plants and microorganisms which are essential to plants for photosynthesis, and protection against destructive photo oxidation [8].

Carotenoids are generally not manufactured by the animal, although one species of aphid is known to have acquired the genes for carotenoid synthesis from fungi, by mechanism of horizontal gene transfer. Human beings are unable to synthesize carotenoid and must obtain through diet. There are over 600 known carotenoid and is split into two classes as hydrocarbon carotenes (alpha-carotene, beta-carotene and lycopene) and Xanthophylls (lutein, astaxanthin, canthaxanthin and zeaxanthin). Carotenoid are highly colored (red, orange and yellow) and their color is directly related to their structure. Carotenoid plays an important role in human health. Numerous dietary studies have shown that carotenoid combat various types of cancers, macular eye diseases and cardiovascular problem and other diseases because of provitamin a function [9]. Carotenoids are potent biological antioxidants that can absorb the excited energy of singlet oxygen onto the carotenoid chain leading to the degradation of the carotenoid molecules but preventing other molecules or tissues from being damaged [10]. Fluorescent pigmented bacterium belongs to genus bacillus are gram positive rod shaped bacteria able to grow on one-carbon compounds (e. g. glucose) as well as on a wide range of cultivation substrates as sole source of carbon and energy [11]. Their distinctive pigmentation is due to carotenoids, which render them to be tolerant to extreme light condition and radiation. In recent years, due to their different applications in the fields of industrial, agriculture, and bioremediation, these florescent pigments attracted much attention. Inspired by these facts, the aim of this research was to characterize and optimize the physico chemical properties to attain high production of fluorescent pigment from avp-9(Kf527823) and evaluate the antimicrobial activity against human pathogenic bacteria.

MATERIALS AND METHODS

Characterization of AVP9

The Bacillus endophyticus AVP-9((Kf527823) was isolated from agricultural field of Guntur district, A. P India. Colony morphology, biochemical and physiological characterization aid in identifying and classifying organism into taxonomic groups were evaluated [12].

Extraction of intracellular orange fluorescent pigment (IOFP)

A 1000 ml of conical flasks containing 500 ml of nutrient broth (g/l) was prepared and used, 24 h old inoculum (1%) was in addition to the flasks and incubated at 37 °C in a sterile condition to 48h. After 48h of incubation, the medium was centrifuged at 10,000 x g for 10 min at 4 °C. Pigment was extracted from cell pellets by shaking with different solvents, and it was sonicated. Debris was removed by centrifugation at 10,000 x g for 20 min at 4 °C. The solvent extracts of the pigment was evaporated at room temperature and it was dissolved in approximately 1 ml of solvents and transferred into fresh sterile micro tubes. It was again evaporated at room temperature to concentrate the pigment.

Thin layer chromatography and spectrophotometry

Fractionation of Crude Pigment by thin layer chromatography with acetone was done using silica gel GF254 as absorbent and solvent system chloroform: ethyl acetate (3:1). Cell pellet was dissolved in 1 ml of acetone and centrifuged (10000g) and absorption spectrum of the acetone extract was recorded at λ350 to λ800in spectrophotometer [13].

Optimization of growth and pigment production

Optimization for the production of fluorescent pigment from AVP-9 (Kf527823) was made with nutrient broth. One fifty ml conical flask containing 50 ml of nutrient broth (g/l) was prepared and sterilized separately. 48 h old inoculum (1%) was added to each of the flasks and incubated at 37 °C in a sterile condition. After 48 h of incubation period, broth was taken for pigment extraction [14-17]. Effect of temperature was carried out at 4 °C, 15 °C, 25 °C, 30 °C, 35 °C, 37 °C and 40 °C keeping all other conditions at their standard levels. Optimum incubation period for the production of fluorescent pigment was set out at 16h, 24h, 36, 48, 60 and 72, at 12h interval. The effect of inoculum size on growth and pigment production was determined by taking different cell concentrations (0.5, 1.0 and 1.5%) different flasks. The selected strain was inoculated in nutrient broth having different pH such as 3, 4, 6, 7, 8, 9and10. Growth and pigment production was measured at 450 nm.

Different carbon sources such as glucose, dextrose, sucrose, fructose, lactose and maltose were supplemented in the nutrient broth and inoculated with the isolate and were incubated at 35 °C for 48hr. Different nitrogen sources such as Tryptone, beef extract ammonium chloride, peptone, sodium nitrate and sodium nitrite were supplemented separately to a final concentration of 0.1% (w/v) in nutrient broth. Different amino acids such as cysteine, leucine, methionine, tryptophan, histidine, glutamine and proline (0.5%, final concentration) were dissolved in the nutrient broth. Effect of carbon source, nitrogen source and amino acids ongrowth and pigment production was measured 450 nm.

Antimicrobial activity

Antimicrobial activity of the pigment extracted by acetone from fermented broth pellet after centrifugation (nutrient agar medium consisting of1% (g/l agar),: 5% (g/l) peptone, 5% (g/l)NaCl,,10% (g/l glucose and: 3% (g/l beef extract andpH 7.0.) was dissolved in DMSO and tested for antimicrobial activity by agar cup plate technique [18] using streptomycin as a positive control and DMSO as a negative control against the test organisms viz. Escherichia coli ATCC 8739, Shigellaflexneri ATCC 12022, Salmonella typhi ATCC 65154 Micrococcus lutea, Staphylococcus aureus ATCC 25923, Pseudomonas aeruginosa ATCC 27853, Vibrio cholera ATCC 15748 and Protius vulgaris. The zone of inhibition was measured after 24hour incubation [19].

Minimum inhibitory concentrations (MIC) of pigment was performed by agar-cup diffusion method. The crude pigment extract was dissolved in different concentrations ranging from highest concentration of 10,000 μg/ml and then dilution were performed at concentration of 5000 μg/ml, 4000 μg/ml, 3500 μg/ml, 3000 μg/ml, 2500 μg/ml, 2000 μg/ml, 1500 μg/ml, 1000 μg/ml, 750 μg/ml, 500 μg/ml and 250 μg/ml. MIC value of extract (IOFP) was determined against eight different human pathogens belonging to both gram positive and gram negative groups such as Escherichia coli ATCC 8739, Shigellaflexneri ATCC 12022, Salmonella typhi Micrococcus lutea, Staphylococcus aureus ATCC 25923, Pseudomonas aeruginosa ATCC 27853, ATCC 65154, Vibrio cholera and Protius vulgaris ATCC 15748. Bacterial suspensions of the test organism were prepared in sterilized Mueller-Hinton broth. Then 50 μl of the extract was added to each well. Culture medium without samples and others without microorganisms were used in the testsaspositive and negative control. Plates were incubated at 37 °C for 20-24 h and MIC was measured by zone of inhibition [20].

RESULTS AND DISCUSSION

Isolation and screening of AVP-9 (Kf527823) for fluorescent pigment

AVP-9 colony was purified by quadrant streak inoculation and screened for fluorescent pigment (fig. 1). Under UV light of longer wave length (fig. 1). Microscopic examination of the isolate showed gram positive rod shaped bacteria that occurred singly or in rosettes [fig. 2]

Biochemical analyses revealed that the fluorescent bacterium avp-9(Kf527823) shows the following characteristics based on this, the isolate is belonging to the genus bacillus [table 1].

Fig. 1: [a] Purified bacterium observed under daylight (b) Purified bacterium observed u. v daylight

Fig. 2: Microscopic observation of AVP9

Table 1: Morphological and bio-chemical test results

Morphological characteristics
Size Small
Shape circular
Colour Orange
Grams staining Positive rods
Motility Motile
IMViC tests
Indole Negative
MR Positive
VP Negative
Citrate Negative
Sugar fermentations
Glucose A+/G-
Sucrose A+/G-
Fructose A+/G-
Maltose A+/G-
Lactose A-/G-
Arabinose A-/G-
Innisitol A-/G-
Mannitol A+/G-
Sorbitol A-/G-
Dulcitol A-/G-
Decarboxylation reactions
Ornithin
Arginine Negative
Lysine Positive
Creatinine Positive
Malonate Negative
Enzymatic reactions
Amylase Negative
Urease Negative
Catalase Positive
Oxidase Positive

A-Acid and G-Gas

Optimization of growth and pigment production

Production of growth and fluorescent Pigment is strongly influenced by physical factors such as temperature, pH, incubation time, inoculum, and media components, especially carbon, nitrogen sources and amino acids. It is important in order. A study of the influence of various physico-chemical parameters was necessaryto find out optimized media for the production of fluorescent Pigment. In present study, initially one parameter was assessed and it was then incorporated at its optimized level in the subsequent experiments using nutrient broth medium.

Effect of temperature

In this optimization study 4, 15, 25, 30, 37 and 40 °C was the temperatures selected. There was less fluorescent pigment production was observedat 25 °C, 30 °C. 40 °C and 37 °C respectively and no pigment production were observed when incubated at 40 °C and 15 °C. The maximum O. D (0.98) was observed when incubated at 35 °C, and the maximum cell density was observed for 35 °C and no growth was observed at 40 °C (fig. 3).

Effect of incubation time

Optimization of fluorescent Pigment production was initiated by incubating the selected strain at different time durations of 12 h equal intervals. The selected isolate showed maximum growth 1.71 at 72 h and less 0.51 at 12 h. Maximum fluorescent Pigment production 1.48 at 48 h and less 0.21 at 12 h showing that, further increase in temperature reduces the pigment production (fig. 4)

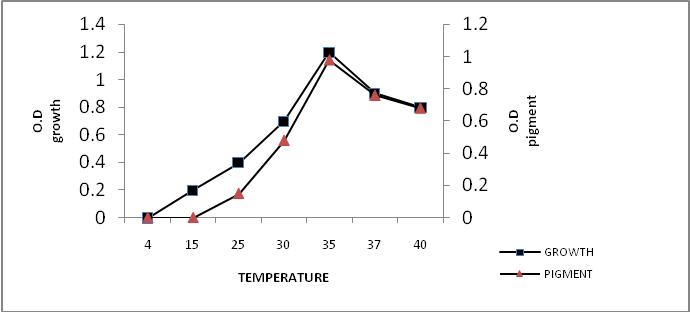

Fig. 3: Effect of temperature on production of Growth and fluorescent Pigment by avp-9 showing maximum growth and pigment production at 35 °C and no growth at 4 °C no pigment production at both 4 and 15 °C

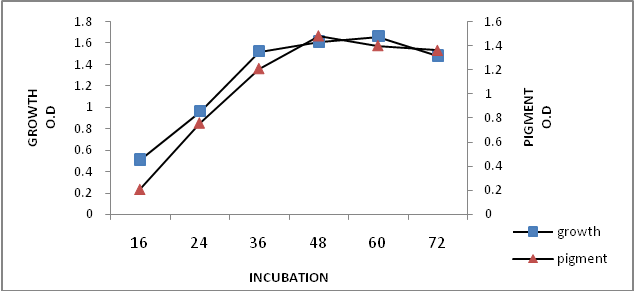

Fig. 4: Effect of Incubation time on production of fluorescent pigment by avp-9 (Nutrient broth; temperature 35 °C; incubation period 48h; results are mean of independent experiments±SD and are expressed as O. D at 450 nm

Effect of inoculums size

An investigation for further increase in growth and fluorescent Pigment production, the effect of various inoculum sizes was studied. To evaluate the effect of inoculum size, varied cell concentrations (0.5, 1.0 and 1.5%) were added to separate flasks and then carried out as described in materials and methods. Growth and fl. Pigment production varied with inoculum level and showed a parabolic nature in the studied range (fig. 3). The maximum growth was at 1.5% inoculum, and fluorescent Pigment production was maximum at 1.0% and further decreased in increased inoculum concentration fig. 5.

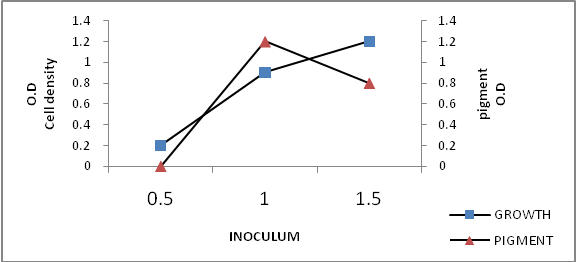

Fig. 5: Effect of inoculum size (1%) on production of fl. Pigment by AVP-9 (Nutrient broth; inoculum 1%; temperature 35 °C; incubation period 48 h; results are mean of independent experiments±SD and are expressed as O. D at 450 nm

Effect of pH

Selected potential bacterial strain were subjected to various concentrations of pH ranging from 3.0 to 10.0 were taken for the study of an interval of pH 1.0. Maximum growth at 1.30 at ph 7.0 and decreased further increases the pH beyond 7.0. No growth was registered at ph range of 4–5. Maximum pigment 0.96 and reduced further increases the pH beyond 7.0. No pigment was recorded at ph range of 4-5. fig. 6

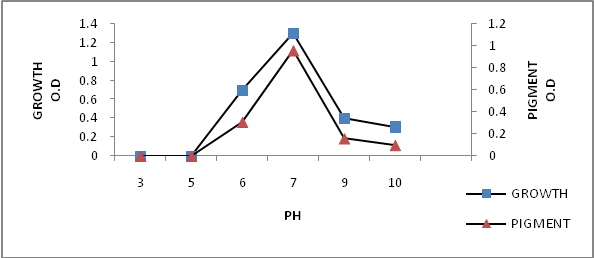

Fig. 6: Effect of pH on production of growth and pigment by avp-9(Nutrient broth; inoculum 1%; temperature 35 °C; incubation period 48 h; and ph 7.0. results are mean of independent experiments±SD and are expressed as O. D at 450

Role of different carbon sources

Effect of glucose, dextrose, sucrose, fructose, lactose and maltose as a carbon source has largely influenced the selected strain for the fluorescent Pigment production. Maximum Growth was observed 1.7 for glucose and less 1.12 for dextrose. Maximum fluorescent Pigment production 1.51in glucose and no pigment were produced in the remaining sugars. In the present study, the maximum fl. Pigment was observed in the medium containing glucose as the carbon source. fig. 7.

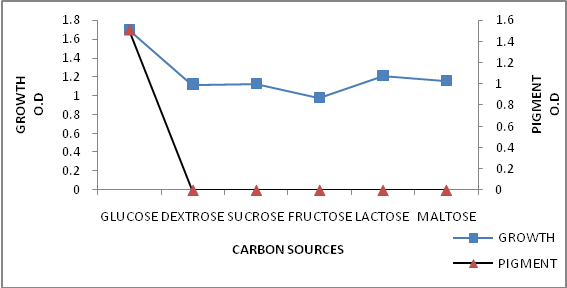

Fig. 7: Effect of carbon sources on production growth and fl. Pigment by AVP-9(Nutrient broth; inoculums 1%; temperature 35 °C; incubation period 48h; PH at 7.0, 1% glucose. results are mean of independent experiments±SD and are expressed as O. D at 450 nm

Effect of various concentrations of glucose

Glucose concentration of 1.5% was optimum for cell growth and optimum pigmentation 1.2 is at the concentration of 1.0%. [fig. 8]. Glucose, usually an excellent carbon source for growth, interferes with the synthesis of many secondary metabolites. Because of parallels with the well-known suppression by glucose of catabolic enzymes that use less-preferred substrate, this has been referred to as ‘catabolite repression’. In many secondary metabolite pathways, the enzymes subject to control by the carbon source are known.

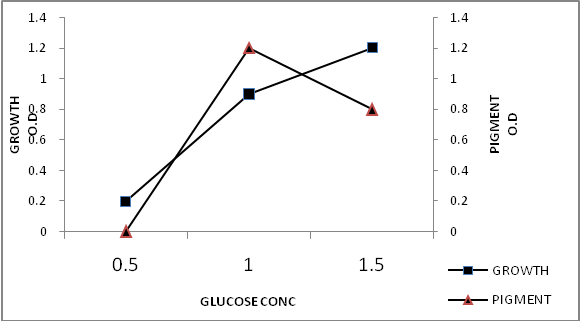

Fig. 8: Effect of various glucose concentration on growth and pigment by avp-9 (Nutrient broth; inoculum 1%; temperature 35 °C; incubation period 48 h, ph 7.0; carbon glucose

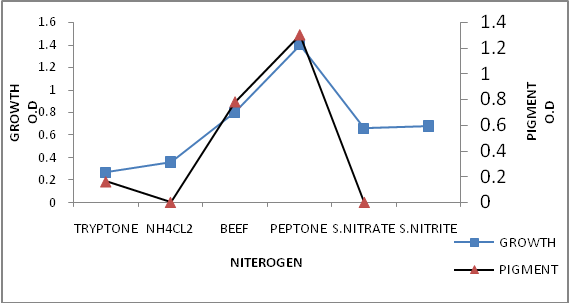

Fig. 9: Effect of Nitrogen sources on production of growth and pigment by avp-9 (Nutrient broth; inoculum 1%; temperature 35 °C; incubation period 48 h; ph 7.0; carbon glucose; nitrogen peptone; results are mean of independent experiments±SD and are expressed as O. D in nm

Role of different nitrogen sources

Different nitrogen sources viz., Tryptone, ammonium chloride, beef extract, peptone, sodium nitrate, and sodium nitrite. Nitrogen source is critical to the organism for growth and pigment production. Peptone supported maximum growth and pigment production. Maximum growth observed at 1% peptone and minimum 0.27 is at 1% Tryptone. Maximum pigment was produced 1.30 at 1% peptone and less 0.16 at 1% Tryptone were as no pigment was found in sodium nitrate, sodium nitrite and ammonium chloride [fig. 9]. Various nitrogen sources studied by for the fluorescent pigment production. The present study revealed that the growth and fluorescent pigment production was very low when incorporated with various inorganic nitrates. Skilled production was noticed in the case of peptone supplemented medium. This may be explained by containing of amino acids, vitamins and coenzyme to promote the production of growth and fluorescent pigment.

Effect of different amino acids

In order to examine the effect of different amino acids sources, leucine, proline, methionine, histidine, glutamine and cysteine were tested. Maximum growth 1.12 at 0.5% methionine and less 0.41 at 0.5% cysteine. Maximum pigment 1.60 at 0.5% methionine and less cysteine 0.36 was registered. (fig. 10).

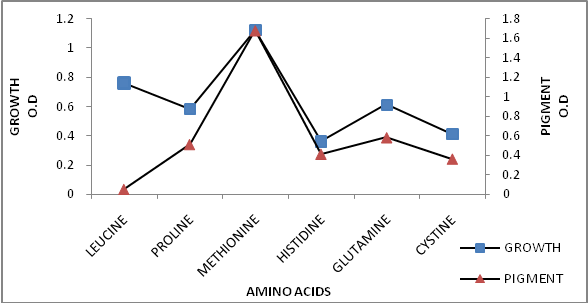

Fig. 10: Effect of amino acids on production growth and fl. pigment by avp-9 (Nutrient broth; inoculum 1%; temperature 35 °C; incubation period 48 h; ph 7.0; carbon glucose; nitrogen peptone; amino acids methionine; results are mean of independent experiments±SD and are expressed as O.D. in 450 nm

Effect of different media on fl. pigment production

Among the Medias tested for fluorescent Pigment production, viz., modified nutrient broth, lactose broth, Tryptone soya broth and peptone water, the isolate showed maximum O. D1.17 at 450 nm, compared to 1.01 in peptone water, 0.88 in Tryptone soya broth and no pigment production were noticed lactose broth. Cell density of modified nutrient broth showed 1.48, 0.98 in Tryptone soya broth, 0.61 in peptone water and least cell growth 0.40 noticed in lactose broth. Comparing the results, modified nutrient broth showed highest fl. Pigment production. Hence, the modified nutrient broth has been chosen for further studies (fig. 11) [21].

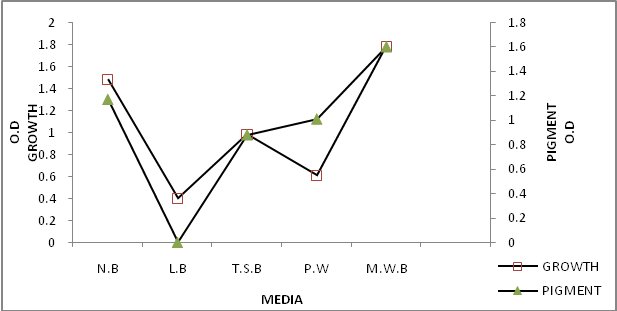

Fig. 11: Effect of various medias on production of growth and fl. Pigment by avp-9, showing maximum growth and pigment production on modified nutrient broth were as fever growth and nopigment production on lactose broth

Extraction of pigment

Different solvents such as acetone, ethyl acetate, butanol, hexane and chloroform were utilized to extract the pigment from the centrifuged pellet. Acetone has been found to be the most suitable solvent to extract the pigment. The detail procedure for extraction and fractionation of the pigment is stated as in materials and methods fig. [12].

Thin layer chromatography of the crude pigment was extracted with acetone and purified using silica gel as absorbent and solvent system chloroform: ethyl acetate (3:1), gives one bright orange spot of Rf value 0.55 which fluoresced orange yellow under light. [fig. 12A]. and named as intracellular fluorescent pigment (IOFP).

Fig. 12: [a] Bright orange pigment extracted with acetone, [b] pigment fluoresced bright, [c] Yellow orange under long wavelength of u. v light

The UV-Visible absorption of sample IOFP gives peak at 493 nm which indicate the presence of carotenoid pigment. Further studies are required to analyze the carotenoid sample (fig. 12b)

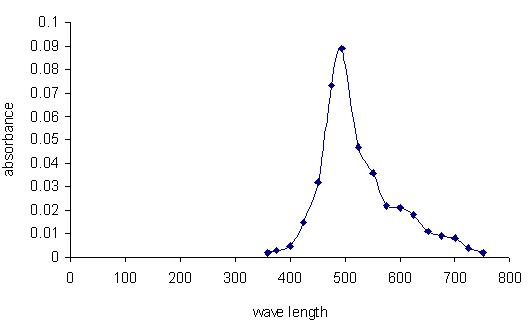

Fig. 12B: Absorption spectra of purified fluorescent pigment1OFP of AVP9 from 350 nm to 760 nm showing absorption maxima at 493 nm

Antimicrobial activity

Dried pigment fraction IOFP obtained by fractionation of the crude pigment was dissolved in DMSO (1000μg/ml) and tested for antimicrobial activity by agar cup plate technique [17] against the test organisms using DMSO as a control. It was observed fraction IOFP show antibacterial activity against E. coli, Shigellaflexneri, Micrococcus. lutea,Staphylococcus aureus, Pseudomonas aeruginosa, Salmonella typhi, Vibrio cholerae,and Protius vulgaris. [table 2]

MIC of the pigments

0MIC value was determined for IOFP which showed better anti-bacterial activity. The MIC value of the pigment against Gram-positive and Gram-negative bacteria ranged from 500 to 2,000 μg/ml. Lowest MIC value (500 μg/ml) was found against only gram negative bacteria. MIC value was much higher than control antibiotic, Streptomycin (30 μg/ml). Considering the impurities and complex composition of the extracted pigment. MIC value against the pathogens included in this study was promising though Streptomycin had much lower MIC value [table 3].

Table 2: Antimicrobial property of the fraction IOFP

Pathogens

Zone of inhibition(mm)

IOFP 1000(µg/ml)

 Streptomycin 1000 (µg/ml) positive control DMSO 1000(µg/ml) positive control
E. coli 45 48 00
Shigella flexneri 35 52 00
Micrococcus. lutea 42 47 00
Staphylococcus aureus 50 34 00
Pseudomonas aeruginosa 23 40 00
Salmonella typhi 36 39 00
Vibrio cholerae 33 30 00
Protius vulgaris 26 35 00

A Excluding the diameter of the well which is 6 mm.

Table 3: Minimum inhibitory concentration of the fractions IOFP

Pathogens Mic value (µg/ml) IOFP 1000(µg/ml) Streptomycin 1000(µg/ml)
E. coli 500 10
Shigella flexneri 2000 10
Micrococcus. lutea 2500 15
Staphylococcus aureus 1500 10
Pseudomonas aeruginosa 1000 20
Salmonella typhi 1500 10
Vibrio cholerae 1500 25
Protius vulgaris 1000 10

CONCLUSION

In the present study, distinctive pigmentation of fluorescent bacterium Bacillus endophyticus AVP-9(Kf527823) is due to the presence of carotenoid group, which renders them to be tolerant to extreme light conditions and radiation. Based on the morphological and biochemical properties, the isolated bacterium was identified as bacillus spp. The effects of important parameters such as temperature, pH, and carbon source on growth and pigmentation were studied and optimum range of each parameter was achieved. The optimum condition for growth and pigmentation in modified nutrient broth was considered to be 35˚C, pH 7.0, with1.0% of glucose. The organism was mass multiplied these optimum conditions and pigment was extracted solvent extraction method as acetone serves as capable solvent which gives distinctive band on preparative TLC plate with Rf value of 0.55. The sample was measured in U. V/Vis Spectrophotometry and found to be maximum at 493 nm, which indicate the presence of carotenoid pigment, which had ability of having anti-bacterial activity. Scope for further research would be the purification and characterization of carotenoid pigments obtained from AVP9.
