Int J Curr Pharm Res, Vol 9, Issue 5, 168-172Original Article


PREFORMULATION STUDIES USING LACTOSE IN DEVELOPMENT OF SOLID ORAL DOSAGE FORM: A GRAPHICAL REPRESENTATION USING SeDeM METHOD

IMRAN TADWEE*1, SADHANA SHAHI2, ZAHED ZAHEER1

1Y. B. Chavan College of Pharmacy Rouza Buagh, Aurangabad 431001, 2Goverment College of Pharmacy Opp. Government Polytechnic Osmanpura, Aurangabad 43100 (MH) India
Email: imran.tpharma@gmail.com

Received: 22 May 2017, Revised and Accepted: 22 Jul 2017

ABSTRACT

Objective: The objective of the study is to evaluate and present lactose scientifically as an excipient of choice in formulation development of solid orals dosage form for direct compression method. Present work will establish the ability of lactose as an excipient to be the choice of candidate while developing formulation having poor flow API using direct compression process. In addition to this different type of lactose is processed using secure development method (SeDeM) in order to evaluate best suitable type of lactose amongst its different type.

Methods: Lactose anhydrous, lactose monohydrate and Lactose spray dried (SD) were employed for evaluation using SeDeM method, twelve different selected pharmacotechnical parameters were determined experimentally and were treated mathematically and expressed in the graphical representation as SeDeM diagram. Parameter index, parameter profile index and good compression index values were calculated.

Results: Good compression index was found to be 6.06,5.72,6.83 parameter index was 0.25, 0.42, 0.17 and parameter profile index found to be 6.36,6.01,7.18 for lactose anhydrous, lactose monohydrate and Lactose SD respectively.

Conclusion: This research work reveals that data obtained will be useful for the pharmaceutical industries while formulating the drug product and will reflect the scientific characteristics of this excipient as well. This will enable the availability of values obtained after performing SeDeM studies on lactose to scientific society based on the results researchers can use establised data and statistics in their pre-formulation studies to incorporate lactose with confidence and can be justified scientifically in the development formulation of the direct compression process and API having poor flow. Results indicating good direct compression characteristics of the all 3 type of lactose, and Lactose SD can be preferred amongs these 3 types.

Keywords: Lactose, SeDeM, Preformulation Studies, Galanic Method, Direct Compression, Powder flow

© 2017 The Authors. Published Published Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2017v9i5.22165

INTRODUCTION

Today's regulatory environment, every aspect of formulation needs to be justified before the regulatory agency for commercialisation of the drug product, considering this compulsory aspect every pharma establishment is developing formulation scientifically which can satisfies regulatory expectations in various regulatory submissions. Now Quality by design approach has become an essential part for the formulation, while in product development report selection of excipient needs to justify. This quality checks may exists mainly considering the safety of a patient. The lactose having the quantitatively wide scope or range of usage in formulation stated in FDA’s Inactive Ingredient Database, lactose is widely used as an excipient in the formulation development of solid oral dosage one can use around 735 mg per dosage unit in case of tablet dosage form [1]. Lactose is preferred due to its characteristic of as good flow aid, diluent, dry powder inhaler carrier, lyophilization aid, capsule filler etc. Lactose is availble as anhydrous, monohydrate etc based on the requirements various grades are commercially available in the excipient industries, where anhydrous lactose is preferred for composition which contains API sensitive to moisture. Anhydrous lactose occurs as white to off-white crystalline particles or powder, which contain anhydrous b-lactose and anhydrous a-lactose. Anhydrous lactose typically contains 70–80% anhydrous b-lactose and 20–30% anhydrous a-lactose Adverse reactions to lactose are largely due to lactose intolerance, which occurs in individuals with a deficiency of the intestinal enzyme lactase, and is associated with oral ingestion of amounts well over those found in solid dosage forms [2]. Lactose has molecular formula C12H22O11 and melting point is 201-202 °C [3].

SeDeM method

SeDeM Method is used in the pre-formulation studies which emphasis always on the physical properties of drug substances related to its suitability in the direct compression process. While in this article we are highlighting the advantage of lactose with good physical properties for its application or usage in the formulation with its statistics obtained after performing 12 test of SeDeM method, SeDeM is a reliable method for pre-formulation studies and as a quality control tool for studying the batch-to-batch reproducibility of API and Excipients. Furthermore, it establishes the notion that blending poorly compressible drugs with suitable ingredients followed by SeDeM studies could be used as a method for identifying best excipient and calculating the maximum amount of excipient required for direct compression of API which is having poor flow [4].

The SeDeM method is based on the experimental study and quantitative determination of the characterization parameters of powdered substances that provide the necessary information about the ability of a substance to be used for direct-compression technology. The considered parameters are as follows: bulk density (Da), tapped density (Dc), interparticle porosity (Ie), Carr index (IC), cohesion index (Icd), Hausner ratio (IH), angle of repose (a), flowability (tn), loss on drying (%LoD), hygroscopicity (%H), particle size (%Pf) and homogeneity index (Iq). These parameters were determined by validated experimental methods and processed for fitting into SeDeM diagram method and analyzed for studying the suitability of the powder for direct compression. Hence, SeDeM diagram method could be described as a mathematical and graphical representation of powder characteristic parameters for studying direct compression suitability of various active and inactive ingredients [5-7]. The details 12 tests of SeDeM and their units, equations factors are explained in table 1 and fig. 1

MATERIALS AND METHODS

Lactose unhydrous, Lactose monohydrate and Lactose SD excipient is obtained from Wockhardt Pharmaceuticals Aurangabad as a gift sample pharmacopoeia methodologies are used to calculate parameters of SeDeM, as well as a common strategy used in pharmaceutical technology development, is applied for constructing the SeDeM Diagram. The methods used for each test are described below [6].

Bulk density (Da)

Bulk density was calculated in accordance with the method described in section 2.9.15 of European Pharmacopoeia [8]. The total volume in bulk density measurements included particle volume, inter-particle void volume and internal pore volume.

Tapped density (Dc)

Tapped density was calculated in accordance with the method described in Section 2.9.15 of European Pharmacopoeia [9]. It was determined by applying a controlled packing force to the sample and included the interstitial volume and pore volume in its calculations. Graduated cylinder (Voluminometer) was employed for density measurements and the volume taken was the value obtained after 2500 strokes using a settling apparatus.

Inter-particle porosity (Ie)

The inter-particle porosity of the drug powder was calculated by the following equation

Ie = Dc-Da/Dc X Da

Carr index (IC %)

It was computed from Da and Dc using the following equation

IC = (Dc-Da/Dc) x 100

Cohesion index (Icd)

The cohesion index was determined by directly compressing the drug powder under study using an eccentric press. The hardness (N) of the obtained tablets was determined and the mean hardness was calculated.

Hausner ratio (IH)

This was calculated from Da and Dc using the following expression IH = Dc/Da.

Angle of repose (α)

It is the three-dimensional angle formed by cone like a pile of the material during the determination. The angle of the cone formed was calculated after the product was passed through a funnel with the following dimensions: funnel height 9.5 cm, an upper diameter of spout 7.2 cm, internal diameter at the bottom, narrow end of spout 1.8 cm. The funnel was placed on a support at 20 cm from table surface, centred over a millimetre-grid sheet on which two intersecting lines were drawn, crossing at the Centre. The narrow end of the funnel spout was plugged and the funnel was filled with the product under study until it was flushed with the top end of the spout when smoothed with a spatula.

Thereafter, the plug was removed and the powder was allowed to fall onto the millimetre sheet. The radius of the cone base was measured with a slide caliper and the mean value (r) was calculated. Additionally, the cone height (h) was measured and the angle tangent value (α) of the cone was calculated employing the following equation, scale of flow ability mentioned in table 2.

tan α = h/r

Flow ability (tn)

The flow rate described herein as flow ability was determined in accordance with the method described in Section 2.9.16-2 of European Pharmacopoeia [9] as the time for a fixed amount of powder to flow through a glass tunnel with 0.85 cm orifice diameter. It was expressed in seconds and tenths of a second per 100 grams of sample, with the mean value of three determinations always being taken.

Loss on drying (%HR)

This is determined by the loss on-drying test carried out in accordance with General Method 2.2.32 in European Pharmacopoeia [8]. Lactose anhydrous was dried in a convection oven at 105 °C±2 °C until a constant weight is obtained.

Hygroscopicity (%H)

The hygroscopicity of a powder is its equilibrium moisture content after being exposed to air humidity under given conditions. It was determined by calculating the increase in sample weight after being kept in a humidifier at an ambient relative humidity of 76%±2% and a temperature of 22 °C±2 °C for 24 h.

Percentage of particles measuring<50 μ (%Pf)

Particle size was determined by means of the sieve test in accordance with the General method 2.9.12 of European Pharmacopoeia [9] and was expressed as the % of particles that pass through a 0.05 mm (ASTM# 270) sieve when vibrated for 10 min at speed 10 using a sieve vibrator.

Homogeneity index (Iθ)

The method for determination of Iθ was based on General method 2.9.12 of European Pharmacopoeia for determining particle size by means of the sieve test [9][10]. The grain size of a 100 g sample was determined by submitting a sieve stack to vibration for 10 min at the speed 10 using a sieve vibrator. Sieve sizes used were: 0.355, 0.212, 0.100 and 0.05 mm. (ASTM# 45, #70, #140 #270 respectively) the percentage of product retained in each sieve and the quantity that passes through the 0.05 mm sieve were calculated. The percentage of fine particles (<50 μ) determined previously in a separate operation was considered. The following equation was then applied to the data obtained:

Where,

Iθ = relative homogeneity index; Fm = percentage of particles in the majority range;

Fm-1 = percentage of particles in the range immediately below the majority range;

Fm+1 = percentage of particles in the range immediately above the majority range;

n = order number of the fraction under study, within a series, with respect to the majority fraction;

dm = the mean diameter of particles in the majority fraction;

dm-1 = the mean diameter of particles in the fraction of the range immediately below the majority range;

dm+1 = mean diameter of the particles in the fraction of the range immediately above the majority range.

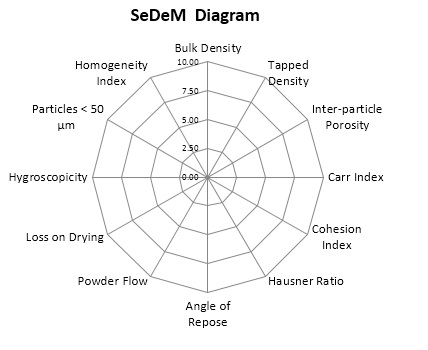

Fig. 1: 12 Tests of SeDeM diagram

Table 1: Parameters and factors for radius calculation used in SeDeM diagram method

Parameter (symbol) Unit Equation Limit Value Radius Factor Applied
Bulk Density (Da) gm/ml Da= P/Va 0-1 0-10 10v
Tapped Density (Dc) gm/ml Dc= P/Vc 0-1 0-10 10v
Interparticle porosity (Ie) - Ie= DC-Da/Dc x Da 0-1.2 0-10 10v/1.2
Carr index (Icd) % IC = (Dc-Da/Dc) 0-50 0-10 10-(v/5)
Cohesion index (IC) N Experimental 0-200 0-10 v/20
Hausner Ration (IH) - IH=Dc/Da 3-0 0-10 10-(10v/3)
Angle of repose (α) - Α =tan-1h/r 50-0 0-10 10-(v/5)
Flowability (tn) S Experimental 20-0 0-10 10-(v/2)
Loss on Drying (% LOD) % Experimental 10-0 0-10 10-v
Hygroscopicity (%H) % Experimental 20-0 0-10 10-(v/2)
Particles ˂50 m (%Pf) % Experimental 50-0 0-10 10-(v/5)
Homogeneity index (Iϴ) - Eq. (1) 0-0.02 0-10 500v

Acceptable limits

To establish powder suitability for direct compression, given mathematical indices equation 1, 2 and 3 are calculated based on SeDeM diagram.

. . . . (1)

. . . (2)

Where

No. p ≥ 5: Indicates the number of parameters whose value is equal to or higher than 5

No. Pt: Indicates the total number of parameters studied

Acceptable limit is when IP ≥ 0.5 Parameter profile index (IPP) = Mean r of all the parameters Acceptable limit is when IPP ≥ 5

C] Good compression index (GCI) = IPP x f. . . (3)

Where, f is a reliability factor and f = polygon area/circle area Acceptable limit is when IPP ≥ 5

All above described 12 test of SeDeM and evaluation of acceptable limits were calculated for all 3 types of lactose 1) Lactose unhydrous, 2) Lactose Monohydrate and 3) Lactose SD

RESULTS AND DISCUSSION

The experiments were performed in duplicate to ensure suitability of method and statistically significant results, followed by calculating the mean value of the parameters. As described in table 1, conversion factors could be applied to the respective parametric values to obtain the radius (r). Experimental value the mean of experimental values (V) and the respective mean of radius values (R) of different flow parameters were obtained of lactose shown in the table 3. Also, the type of flow can be compared with the limits given in USP shown in table 2 scale of flowability. These calculated radius values were graphically expressed on a regular circle graph (histogram) by plotting the radius values. The SeDeM diagrams were then drawn by connecting the radius values with linear segments. The void age fractions of tapped and loosely packed powder beds have been known to be related semi empirically to the size distribution, shape, and density of the constituent particles[7,10]. Result obtained is tabulated in table 3 and 4.

Table 2: Scale of flowability as per USP

Flow characters Carr index Hausner ration Angle of repose
Excellent ≤ 10 1.00-1.11 25-30
Good 11-15 1.12-1.18 31-35
Fair (Aid not needed) 16-20 1.19-1.25 36-40
Passable (May hang up) 21-25 1.26-1.34 41-45
Poor (Must agitate/vibrate) 26-31 1.35-1.45 46-55
Very Poor 32-37 1.46-1.59 56-65
Very Very Poor ˃ 38 ˃1.60 ˃66

Table 3: Experimental and radius values

S. No.

Parameter(Symbol)

 Acceptable value limit Acceptable radius limit Value obtained (V) Corresponding radius (R)
Lactose anhydrous Lactose monohydrate Lactose SD Lactose anhydrous Lactose monohydrate Lactose SD
1 Bulk Density (Da) 0-1 0-10 0.65 0.685 0.698 6.51 6.85 6.98
2 Tapped Density (Dc) 0-1 0-10 0.88 0.859 0.891 8.77 8.59 8.91
3 Interparticle porosity (Ie) 0-1.2 0-10 0.40 0.30 0.31 3.30 2.46 2.59
4 Carr index (Icd) 0-50 0-10 25.77 20.26 21.66 5.15 4.05 4.33
5 Cohesion index (IC) 0-200 0-10 111.00 91.00 148.00 5.55 4.55 7.40
6 Hausner Ration (IH) 3-0 0-10 1.35 1.25 1.28 8.26 8.73 8.62
7 Angle of repose (α) 50-0 0-10 26.00 39.00 21.00 4.80 2.20 5.80
8 Flowability (tn) 20-0 0-10 9.00 15.00 7.00 5.50 2.50 6.50
9 Loss on Drying (% LOD) 10-0 0-10 0.77 2.25 1.01 9.23 7.75 8.99
10 Hygroscopicity (%H) 20-0 0-10 0.50 0.75 1.57 9.75 9.63 9.22
11 Particles ˂50 m (%Pf) 50-0 0-10 15.00 21.00 11.00 7.00 5.80 7.80
12 Homogeneity index (Iϴ) 0-0.02 0-10 0.01 0.02 0.02 2.50 9.00 9.00

*Average value of 2 readings (N=2)

Table 4: Acceptance limit values

S. No. Parameter Lactose unhydrous Lactose monohydrate Lactose SD
1 Parametric index (IP) 0.5 0.5 0.5
2 Parametric profile index (IPP) 6.36 6.01 7.18
3 Good compression index (GCI) 6.06 5.72 6.83

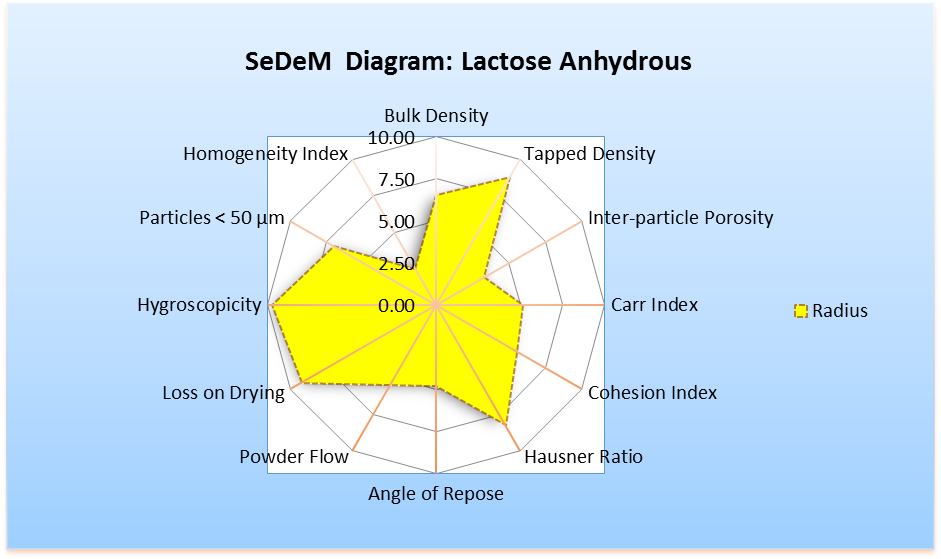

Fig. 2: SeDeM diagram of lactose anhydrous

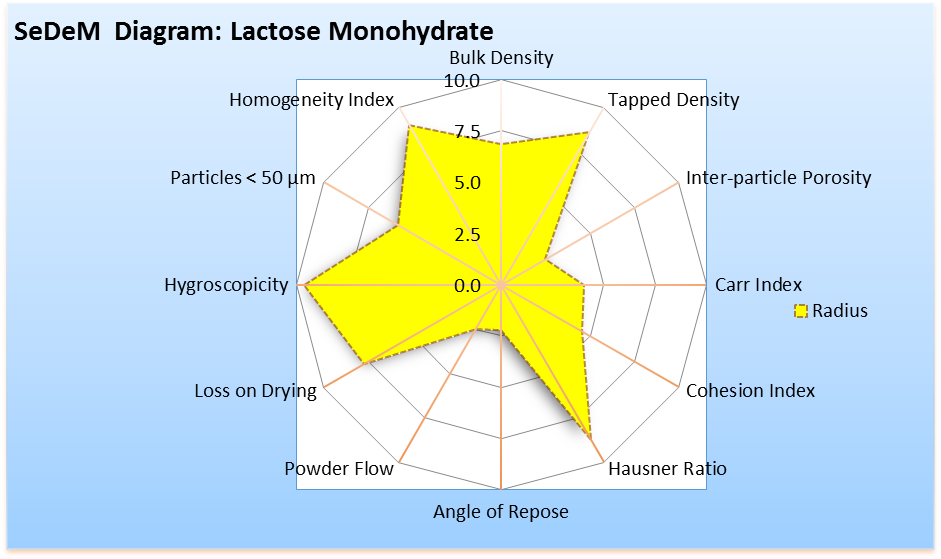

Fig. 2: SeDeM diagram of lactose monohydrate

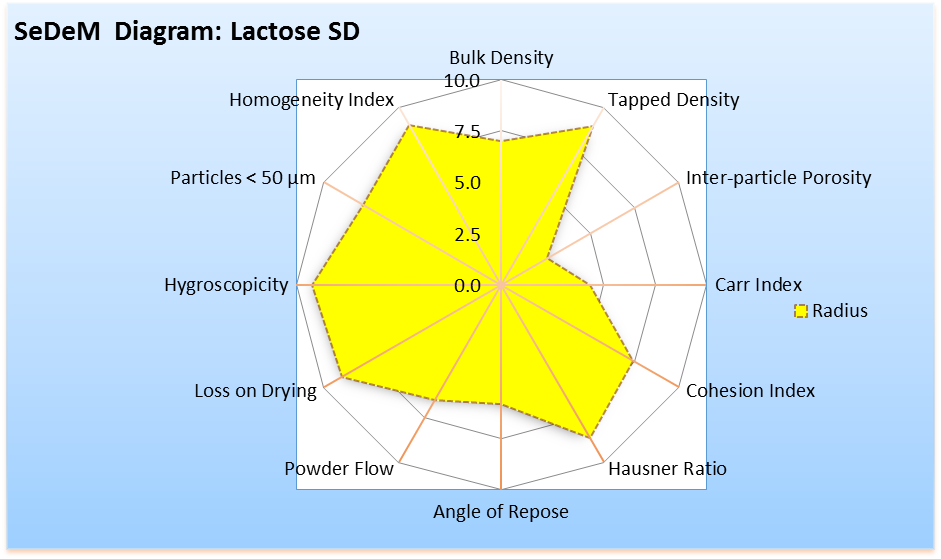

Fig. 2: SeDeM diagram of lactose SD

CONCLUSION

SeDeM parameters studied on different types of lactose, study results indicate all types of lactose are a suitable candidate for direct compression as all are having IPP value more than 5. The values of the Parametric index (IP), Parametric profile index (IPP) and Good compression index (GCI) shows that Lactose SD can be a preferred choice of excipient than other types of lacotse excipient. All above 3 types of lactose can be incorporated with API having poor flow. Values applied in SeDeM diagram which reveals that 10 of 12 parameters having radius equals to or more than 5 which indicates that L: actose SD is the choice of excipient for masking poor flow property of drug substances. Based on the result obtained Lactose SD is recommended to be used in the formulation. In line of these observations SeDeM diagram method could be seen as a useful pre-formulation tool for galenic characterization excipients with respect to their suitability for direct compression, also establishes a reliable method for pre-formulation studies, this method also enables to provide the justification of use of excipient.

ACKNOWLEDGMENT

We thank to principle Government College of Pharmacy and Y. B. Chavan College of Pharmacy Aurangabad for support and institutional facility.

CONFLICT OF INTERESTS

All Authors have none to declare
