Int J Curr Pharm Res, Vol 9, Issue 6, 90-93Original Article


DESIGN AND CHARACTERISATION OF TRANSDERMAL PATCHES OF PHENFORMIN HYDROCHLORIDE

PRATIK SWARUP DAS*, PUJA SAHA

Pharmacy Institute, Noida Institute of Engineering and Technology
Email: pratikswarupdas@gmail.com

Received: 23 Aug 2017, Revised and Accepted: 13 Oct 2017

ABSTRACT

Objective: In present work was designed to develop suitable transdermal matrix patches of Phenformin hydrochloride using various hydrophilic (HPMC) and hydrophobic (EUDRAGID) polymers as matrix formers.

Methods: Transdermal patches containing Phenformin hydrochloride were prepared by the solvent casting evaporation technique.

Results: Revealed that prepared patches showed good physical characteristics, no drug-polymer interaction and no skin irritation was observed. The in vitro release study revealed that F3 formulation showed maximum release in 24 h. Formulation F3 was subjected for accelerated stability studies. The F3 formulation was found to be stable as there was no drastic change in the Physico-chemical properties of the patches, which was also confirmed by FTIR.

Conclusion: Thus conclusion can be made that stable transdermal patches of Phenformin hydrochloride have been developed. F1, F2, F3, F4 formulations showed highest cumulative percentage drug release of 98.13%, 95.50%, 98.65%, 97.21% were obtained during in vitro drug release studies after 24 h. The release of Phenformin hydrochloride appears to be dependent on lipophilicity of the matrix. Moderately lipophillic matrices showed the best release. The predominant release mechanism of the drug through the fabricated matrices was believed to be by a diffusion mechanism. Based upon the in vitro dissolution data the F3 formulation was concluded as optimized formulation.

Keywords: Phenformin hydrochloride, Ethylcellulose, Sodium alginate, Polyethene glycol

© 2017 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2017v9i6.23437

INTRODUCTION

Transdermal drug delivery is one of the most promising methods for drug application. Increasing numbers of drugs are being added to the list of therapeutic agents that can be delivered to the systemic circulation via skin [1-2]. The main advantages of this system are that there is controlled the release of the drug and the medication is painless. The drug is mainly delivered to the skin with the help of a transdermal patch which adheres to the skin [3]. The TDDS has potential advantages of avoiding hepatic first-pass metabolism, maintaining constant blood level for a longer period of time resulting in a reduction of dosing frequency, improved bioavailability, decreased gastrointestinal irritation that occurs due to local contact with gastric mucosa and improved patient compliance [4-5]. Recently it is evident that the benefits of intravenous drug infusion can be duplicated, without its hazards, by using the skin as the port of drug administration to provide continuous transdermal drug infusion into the systemic circulation. Skin consists of membrane barriers, which are mainly composed of lipids and proteins [6-7]. The penetration across epithelial borders is a slow process due to the effect of the barrier properties. The skin, in particular, the stratum corneum, possesses a barrier to drug penetration due to its high density (1.4 g/cm2 in dry state), its low hydration of 15 to 20%. The barrier function is further facilitated by the continuous replacement of stratum corneum, thereby limiting the topical and transdermal bioavailability.

Transdermal drug delivery system attracts many scientists around the world [8]. Transdermal therapeutic systems are designed for controlled drug delivery through the skin into systemic circulation maintaining consistent efficacy and reducing the dose of the drug and its related side effects [9-10]. There are a number of routes by which a molecule can cross the stratum corneum, these are, intercellular, transcellular and appendageal but the intercellular route is considered to be the major pathway for permeation of most drugs across the stratum corneum [11]. The skin as a site of drug delivery has numbers of significant advantages over many other routes of drug administration, including the ability to avoid problems of gastric irritation, pH, and emptying rate effects; avoid hepatic first pass metabolism thereby increasing the bioavailability of drug; reduce the risk of systemic side effects by minimizing plasma concentrations compared to oral therapy; provide a sustained release of drug at the site of application; rapid termination of therapy by removal of the device or formulation, the reduction of fluctuations in plasma levels of drugs and avoids pain associated with injections [12-14].

Phenformin is a biguanide hypoglycemic agent with actions and uses similar to those of Metformin. Although it is generally considered to be associated with an unacceptably high incidence of lactic acidosis, often fatal, it is still available in some countries. Phenformin is an agent belonging to the biguanide class of antidiabetics with antihyperglycemic activity. Phenformin is not used clinically due to the high risk of lactic acidosis that is associated with its use. A biguanide hypoglycemic agent with actions and uses similar to those of metformin. Although it is generally considered to be associated with an unacceptably high incidence of lactic acidosis, often fatal, it is still available in some countries. (From Martindale, The Extra Pharmacopoeia, 30th ed, p290).

MATERIALS AND METHODS

Materials

Phenformin hydrochloride was obtained as gift sample from Hetero labs. Pvt india. Eudragit RS100 and Ethyl cellulose were procured from AR chemicals. Other excipients used were of standard pharmaceutical grade and all chemical reagents used were of analytical grade.

Methods

Preparation of transdermal patch

Transdermal patches containing Phenformin hydrochloride were prepared by the solvent casting evaporation technique. The drug Phenformin hydrochloride was dissolved in methanol. Polymers HPMC, Ethylcellulose, Sodium alginate and ERS100 were taken in a boiling tube, to this add Phenformin hydrochloride drug which was previously dissolved in methanol. About 30 ml of a solvent mixture of dichloromethane: methanol (1:1) was added and vortexed. Sufficient care was taken to prevent the formation of lumps. The boiling tube was set aside for 4 h to allow the polymer to swell. Polyethylene glycol was taken as a plasticizer (15%v/w of dry polymer weight), and added to the mixture and mixed well. It was set aside for 2 h to exclude any entrapped air and was then transferred into a previously cleaned Petri plate (40 cm2), drying of patches was carried out in a vacuum oven at room temperature. Dried patches were packed in aluminium foil and stored in a desiccator for further evaluation [15-17].

Evaluation parameters

Physical appearance [18]

The prepared patches were found to be uniform, smooth, flexible and homogenous.

Table 1: Formulation design of phenformin hydrochloride transdermal patches

S. No. Formulation Ingredients (gms)
code Drug (mg) HPMC Ethylcellulose Eudragit Sodium alginate
1 F1 100 100 900 - -
2 F2 100 900 100 - -
3 F3 100 - - 100 900
4 F4 100 - - 900 100

Folding endurance [19-20]

The folding endurance numbers of all the Phenformin hydrochloride patches are 180–292. The folding endurance number gives the mechanical property of the patches, high folding endurance number indicate that has high mechanical property. The folding endurance number was increased with increasing the HPMC content. These results indicated that the patches would not break and maintain their integrity with general skin folding when applied.

Thickness of the film [21]

Thickness was changed from batch to batch in individual strips of medicated patch carry uniform thickness, which indicates that total medicated patch carry uniform thickness.

Weight uniformity [22]

The mean weights of all the prepared patches. The weights are in the range of 401.9–539. The formulation patches showed maximum weight which was found within the permissible limits

. Drug content [23]

The drug content analysis of the prepared formulations has shown that the process employed to prepare the patches was capable of giving uniform drug content with minimum batch variability. All the patches were found to have drug content in the range of 90–101%. So the method employed i.e. solvent evaporation method is satisfactory for the preparation of Phenformin hydrochloride transdermal patches.

In vitro release study [24-25]

Phosphate buffer pH 7.4 containing 0.5% SLS was used as a medium for the release studies and good linearity was observed in the plotted standard graph with a correlation coefficient of 0.999. The drug release profiles of Phenformin hydrochloride patches containing different ratios of polymers HPMC, Eudragit E100, and Ethylcellulose. It was cleared from the release profiles of formulations, that the drug release was governed by polymer nature and content. The formulations F1, F2, F3, and F4 showed the maximum release when comparing with other formulations due to the high concentration of HPMC polymer. The release was decreased as the concentration of hydrophobic polymer increase.

Stability studies [26]

Optimized formulations F3 was selected for accelerated stability studies as per ICH guidelines. The patches were observed for colour, appearance and flexibility for a period of three months. The folding endurance, weight, drug content, % cumulative drug release of the formulation was found to be decreasing. This decrease may be attributed to the harsh environment (40 °C) maintained during the studies.

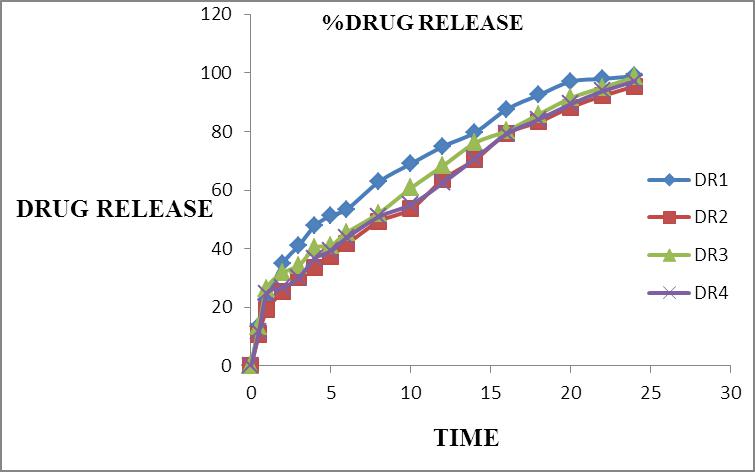

Fig. 1: Drug release formulations

RESULTS

Table 2: Physicochemical evaluation of phenformin hydrochloride patches

Formulation code Weight (mg) Thickness (mm) Folding endurance Drug content (%)
F1 473.9±1.66 0.89±1.88 292±4.72 101
F2 430±1.58 0.86±1.72 290±2.51 99
F3 486±0.89 0.81±1.55 289±3.46 99.64
F4 501.7±2.50 0.85±0.99 291±3.18 98.86

Table 3: In vitro drug release profiles of phenformin hydrochloride transdermal patch (F1-F4)

Time (h) % Cumulative drug released
F1 F2 F3 F4
0 0 0 0 0
0.5 13.56±1.43 10.65±1.44 13.48±1.27 11.79±2.1
1 22.72±1.87 19.27±1.49 26.50±1.33 24.67±1.8
2 34.94±1.26 25.49±1.77 31.71±1.45 26.627±1.22
3 41.16±1.33 30.28±1.29 34.36±1.72 30.18±1.38
4 47.88±1.89 33.63±1.39 40.25±1.63 36.71±1.59
5 51.33±2.0 37.46±2.1 41.07±1.82 39.20±1.66
6 53.46±2.3 41.60±1.27 45.53±1.25 43.76±1.91
8 62.87±1.67 49.35±1.71 52.15±1.19 50.92±1.83
10 69.01±1.31 53.61±1.33 60.71±1.32 55.08±1.77
12 74.93±1.56 63.49±1.92 68.30±1.83 62.48±1.45
14 79.70±1.19 70.45±1.68 76.11±1.95 70.81±1.21
16 87.64±1.88 79.33±1.18 80.27±1.18 79.23±1.07
18 92.49±1.3 83.80±1.22 85.93±2.5 84.16±1.55
20 97.08±1.99 88.34±1.82 91.44±2.41 89.42±1.91
22 98.01±1.25 92.20±2.39 95.09±1.85 93.82±1.05
24 98.93±1.71 95.50±2.81 98.65±1.90 97.21±1.02

Table 4: Stability studies of optimized formulations at 40±2 °C and 75±5% RH for 3 mo

Time in d Drug content (%) Folding endurance Physical appearance % cumulative drug release
0 98 285 No change in color 97
90 97.1 281 Slight yellowish color 96.35

Stability studies

Optimized formulations F3 was selected for accelerated stability studies as per ICH guidelines.

CONCLUSION

Results revealed that prepared patches showed good physical characteristics, no drug-polymer interaction and no skin irritation was observed. The F3 formulation was found to be stable as there was no drastic change in the Physico-chemical properties of the patches, which was also confirmed by FTIR. This conclusion can be made that stable transdermal patches of Phenformin hydrochloride have been developed. F1, F2, F3, F4 formulations showed highest cumulative percentage drug release of 98.65%, 95.50%, 98.93%, 97.21% were obtained during in vitro drug release studies after 24 h. The release of Phenformin hydrochloride appears to be dependent on lipophilicity of the matrix. Moderately lipophilic matrices showed the best release. The predominant release mechanism of the drug through the fabricated matrices was believed to be by a diffusion mechanism. Based upon the in vitro dissolution data the F3 formulation was concluded as optimized formulation.

CONFLICT OF INTERESTS

Declared none
