Int J Curr Pharm Res, Vol 10, Issue 2, 56-59Original Article

QUANTITATIVE STRUCTURE–PHARMACOKINETICS MODELING OF THE UNBOUND CLEARANCE FOR NEUTRAL DRUGS

ZVETANKA ZHIVKOVA

Faculty of Pharmacy, Medical University, Sofia, Bulgaria
Email: zzhivkova@pharmfac.mu-sofia.bg

Received: 26 Dec 2017, Revised and Accepted: 05 Feb 2018

ABSTRACT

Objective: Prediction of pharmacokinetic behaviour of new candidate drugs is an important step in drug design. Clearance is a key pharmacokinetic parameter, controlling drug exposure in the body. It depends on numerous factors and is frequently restricted by plasma protein binding. The study is focused on the development of quantitative structure-pharmacokinetic relationship (QSPkR) for the unbound clearance (CLu) of neutral drugs.

Methods: The dataset consisted of 117 neutral drugs, divided into training set (n = 94) and external test set (n = 23). Chemical structures were encoded by 113 theoretical descriptors. Genetic algorithm and step-wise multiple linear regression were applied for model development. The model was evaluated by cross-validation in the training set and external test set.

Results: Significant, predictive and interpretable QSPkR model was developed with explained variance r2 = 0.617, cross-validated correlation coefficient q2LOO-CV = 0.554, external test set predictive coefficient r2pred = 0.656, and root mean square error in prediction RMSEP = 1.89. The model was able to predict CLu for 56% of the drugs in the external test set within the 2-fold error of experimental values.

Conclusion: The model reveals the main molecular features governing CLu of neutral drugs. CLu is favoured by lipophilicity, the presence of fused aromatic rings, ester groups, dihydropyridine moieties and nine-member ring systems, while polarity, molecular size and strong electron withdrawing atoms and groups as substituents in aromatic rings affect negatively CL

Keywords: QSPkR, Clearance, Unbound clearance, In silico modelling, Prediction of ADME

© 2018 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2018v10i2.25849

INTRODUCTION

Prediction of pharmacokinetic (PK) behaviour of new candidate drugs became a mandatory step in drug discovery process over the last two decades. Drug clearance (CL) is important pharmacokinetic (PK) parameter characterizing the ability of the body to eliminate the drug. It controls both half-lives, whence it is a major determinant of the dosage rate required for maintaining desired therapeutic concentration in multiple drug administration [1].

Several approaches have been developed for prediction of drug CLbased on in vivo data from preclinical species and allometric scaling, in vitro experiments, physiologically based, or in silico modelling. A brief review on the current state of methodology was published recently [2]. One of the most frequently applied techniques is quantitative structure–pharmacokinetics relationship modelling (QSPkR). QSPkR is a method of choice at very early stages of drug development as it can be based solely on easily computed molecular descriptors and allows predictions to be made even on virtual structures. It enables the screening of large databases of potential drug candidates and the choice of compounds with acceptable, if not ideal, PK properties.

Several reports have been published recently on QSPkR modeling of total plasma CL [3–9], as well as for renal CL [10–12]. It is difficult to compare their predictive performance because of the incomplete description of the model’s algorithms and validation procedures and the different statistical metrics used. Some of the models were applicable only for ionized molecules [6], others showed different predictive accuracy for drugs of different ionization type [7, 10]. There was an agreement in three points:

Given the above, development of separate QSPkR models according to the ionization type of the drugs seems reasonable as it could reveal the most significant structural features governing CL of drugs of different classes. The effect of plasma protein binding (PPB) could be avoided by the development of QSPkR for the unbound CL (CLu = CL/fu, where fu is the unbound fraction of the drug in plasma). CLu is independent on PPB and is determined solely by molecular structure. Recently we published QSPkR models for CLu of anionic and cationic drugs [17, 18]. The present study is focused on QSPkR modelling of CLu for neutral molecules.

MATERIALS AND METHODS

The dataset consisted of 117 neutral molecules with available data for fu, extracted from the largest available database for key PK parameters following iv administration of drugs in human [19]. A drug was considered as neutral if the fraction ionized as an acid (fA) or as a base (fB) at pH 7.4 didn’t exceed 3%. Drugs with fB>3% were classified as bases provided that fB was considerably higher than fA. The fractions ionized at pH 7.4 were calculated as previously described [17, 18]. The mol-files of the drugs were derived from several public databases–Drug Bank, Chemical Book, or ChEBI [20–22].

The values of CLu varied between 0.35 and 37,368 (mean 634 ± 3,896, median 17.68), and they were logarithmically transformed in order to achieve close to normal distribution. Thus, logCLu varied between-0.46 and 4.57 (mean 1.35, median 1.25). With respect to CLu values, the drugs in the dataset could be classified into three groups:

The whole dataset was divided into training and test sets. To this end, the molecules were arranged in an ascending order according to their CLu values and one of every five drugs was allocated to the different subset. The first four subsets composed the training set for QSPkR model development (n = 94), and the fifth subset (n = 23) was used as a test set for external validation.

Chemical structures of the compounds were encoded by 113 molecular descriptors calculated with ACD/logD version 9.08 (Advanced Chemistry Development Inc., Ontario, Canada) and MDL QSAR version 2.2 (MDL Information Systems Inc, San Leandro, CA). Several types of descriptors were computed: physicochemical (logP, logD7.4, PSA, dipole moment), constitutional (number of atoms and groups of given type, rings, circles, hydrogen bond donors and acceptors, etc.); geometrical (volume, surface, ovality), electro topological state and connectivity indices, etc. The most significant descriptors were selected by genetic algorithm (GA) and stepwise linear regression (SWR). Both GA and SWR were implemented in the MDL QSAR package.

A number of successful QSPkR models were developed using multiple linear regression (MLR) and different combinations of descriptors. The goodness-of-fit was assessed using standard statistical metrics such as explained variance (r2), root mean squared error (RMSE), Fisher criteria (F), etc. Drugs which logCLu values were predicted with residuals not obeying normal distribution law were considered as outliers and were removed before building the final model.

Predictive ability of the developed QSPkR model was evaluated by internal leave-one-out cross-validation (LOO-CV) on the training set, and by the external test set not involved in any step of model development. The following statistical metrics were calculated: cross-validated coefficient for the training set (q2LOO-CV), prediction coefficient for the external test set (r2pred), mean fold error of prediction (MFEP), and root means square error of prediction (RMSEP), briefly described recently [2].

RESULTS AND DISCUSSION

The best QSPkR in terms of statistics given below:

n = 90r2 = 0.617RMSE = 0.600F = 22.32

Predictive ability of the model was assessed by LOO-CV on the training set and external validation on the independent test set. The CV squared correlation coefficient q2LOO-CV = 0.554 and external validation r2pred= 0.656and RMSEP = 0.460meet the accepted criteria for good predictive QSAR models [23, 24]. The model was able to predict the CLu of 56% of the drugs in the external test set within the 2-fold error of experimental values. Six drugs were identified as outliers: four–from the training set, and two–for the test set. The plot of the observed vs. predicted values of CLu is shown in fig. 1. The regression line is very close to the line logCLu,obs = logCLu,pred, which is a prove for a good predictive QSPkR model [24].

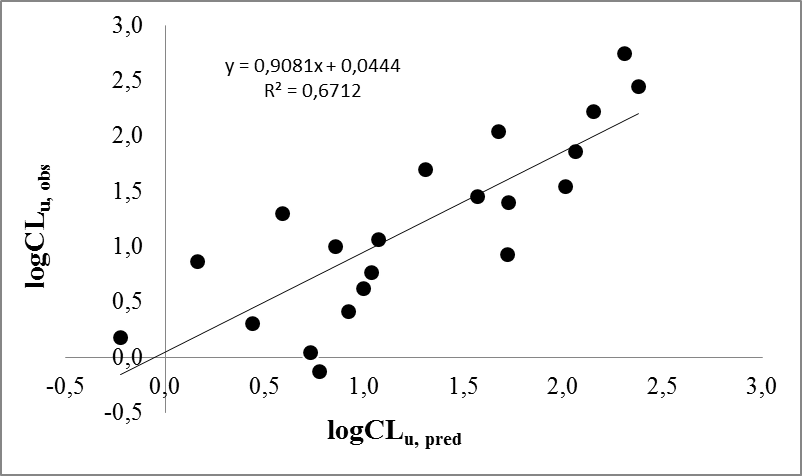

Fig. 1: A plot of observed vs predicted by the QSPkR model values of logCLu

The regression equation and regression coefficient are shown

The descriptors in the developed QSPkR model have clear physical meaning and give insight to the main structural features governing CLu of neutral drugs. Descriptors logP, SaaaC_acnt, Sdss C_acnt and xch4 contribute positively, while Qs and Hmin disfavor CLu. Lipophilicity (expressed as logP) is the most important factor accounting for about 40% of the explained variance for logCLu. This is in agreement with the previous QSPkRs, and is quite reasonable as lipophilicity is a prerequisite for the main processes involved in drug elimination: uptake in the clearing organs and interactions at enzyme binding sites. Descriptor Saaa C_acntrepresents the number of aromatic C-atoms infused rings. This descriptor was found to affect positively PPBof both basic and neutral drugs [25, 26]. The positive effect of Saaa C_acnt on CLu may be due to the lowfu. Indeed, 60% of the drugs, containing aaaC atoms, have fu<0.1. On the other hand, the presence of aromatic rings is a prerequisite for hydrophobic, van der Waals, CH-π and π-π interactions in the binding sites of plasma proteins [27, 28], and the same interactions may be involved in the binding with transport proteins and metabolizing enzymes. Descriptor SdssC_acnt encodes the number of C-atom connected with two simple and one double bond. It is presented in 78 molecules as>C=O or>C=C<, and 13 of them are high-CLu drugs. Among them are several dihydropyridine calcium channel blockers (isradipine, numodipine, nitrendipine, etc.) with common structural features: two>C=O as a part of ester groups, and four>C=C<in dihydropyridine moiety. They are extensively metabolized mainly via aromatization of the dihydropyridine moiety and oxidation of the two ester groups [29]. Fluticasone propionate also contains 4 dssC-atoms, one of which–part of fluoro methyl carbothioate group, which is metabolized extensively by liver CYP3A4 hydrolysis to inactive carboxylic acid metabolite [20]. Descriptor xch9 accounts for the presence, number and substituents in a 9-member ring system. The values of xch9 are higher for aromatic and non-saturated heterocycles. Aromatic structures are generally considered as more susceptible to oxidative metabolism. Qsrepresents molecular and group polarity index. It correlates significantly with molecular weight and surface and has high values for large molecules with many aromatic and non-aromatic rings. Majority of the large molecules in the dataset contain huge number hydrophilic atoms and groups like C=O,-OH,-NH, NO2, etc. and a large polar surface area (PSA), which is unfavorable for drug metabolism [30]. Descriptor Hmin signifies the less polar H-atom in the molecule. It has low values for H-atoms in aliphatic chains and high values for H-atoms in aromatic rings with electronegative substituents like F, Br, Cl, SO2R, etc. It is well known, that the presence of Cl-substituents increases metabolic stability by preventing aromatic hydroxylation and glucuronidation of phenols [31]. Involvement of substituents–strongly electron with-drawing atoms and groups such as CF3,-SO2NH2, etc. is one of the recent strategies for improving metabolic stability by deactivation of aromatic rings again oxidative metabolism [32, 33].

Six drugs were identified as outliers from the QSPkR model. Four of them are very high CL drugs despite of the extensive PPB. They have extremely high CLuvalues (1,875–37,368 ml/min/kg), and were highly under-predicted. All they are subjected to extensive metabolism. Clevidipine butyrate is rapidly metabolized via hydrolysis by esterases in blood and extravascular tissues [34]. Maxipost undergoes N-glucuronidation and O-dealkylation to a metabolite, covalently bound to HSA [35]. Propofol metabolizes extensively in both liver and kidney, mainly by hydroxylation and glucuronidation [36, 37]. Estradiol undergoes extensive metabolism mainly by aromatic hydroxylation [38]. Decitabine is also very high CL drug (CL = 130 ml/min/kg), /however, it is essentially unbound in plasma. It undergoes hydrolysis and deamination mediated by cytidine deaminase in the liver, granulocytes, intestinal epithelium, and whole blood [39]. Its outlier behaviour may be due to the extremely low lipophilicity (logP =-1 93). Meprobamate is the only drug which is over-predicted by the model. It has very low CL = 0.6 ml/min/kg and is completely unbound in plasma. It metabolizes to hydroxymeprobamate, meprobamateglucosyluronide and glucuronide conjugates, and 10-12% of a dose is excreted unchanged in urine [40]. Most probably, the low CL is due to the slow uptake in the liver as the drug is fairly hydrophilic (logP = 0.7).

CONCLUSION

A significant, validated and interpretable QSPkR model for the unbound plasma CL of neutral drugs is developed. The model is able to predict the CLu of 56% of the drugs in the independent external test set within the 2-fold error of experimental values. The descriptors in the model reveal molecular features, important for CLu. CLu is favored by lipophilicity, the presence of fused aromatic rings, ester groups, dihydropyridine moieties, and nine-member ring systems, while polarity, molecular size and strong electron withdrawing atoms and groups as substituents in aromatic rings affect negatively CL.

AUTHORS CONTRIBUTIONS

All the author have contributed equally

CONFLICT OF INTERESTS

Declared none
