Int J Curr Pharm Res, Vol 11, Issue 5, 65-71Original Article

OPTIMIZATION AND CHARACTERIZATION OF PEG-PCL-PEG TRIBLOCK COPOLYMER AS CARRIER OF DRUG USING FULL FACTORIAL DESIGN

ZYNOPSICHA ARMATAZAKA¹, T. N. SAIFULLAH SULAIMAN^2#, ABDUL KARIM ZULKARNAIN²

¹Faculty of Pharmacy, Gadjah Mada University, Yogyakarta 55281 Indonesia, ²Departement of Pharmaceutics, Faculty of Pharmacy, Gadjah Mada University, Yogyakarta 55281 Indonesia
Email: tn.saifullah@gmail.com

Received: 17 May 2019, Revised and Accepted: 16 Jul 2019

---

ABSTRACT

Objective: Triblock copolymer of poly(ethylene glycol)-poly(ɛ-caprolactone)-poly(ethylene glycol) (PEG-PCL-PEG, PECE) was applicated as hydrophobic drug. This study aims to optimization and characterization of PECE triblock copolymer as carriers of hydrophobic drug (ketoprofen).

Methods: Triblock copolymer of PECE was prepared with varying composition ratio of PEG and PCL by ring-opening and coupling reaction. The characteristics of triblock copolymer were characterized using FTIR and DSC. Variation composition ratio of poly(ɛ-caprolactone) (PCL)/poly(ethylene glycol) (PEG) and ratio PECE/drug as factors for optimization using full factorial design. Ketoprofen was loaded into PECE triblock copolymer micelles by emulsification and solvent evaporation method. Responses were measured particle size, entrapment efficiency (EE) and drug solubility.

Results: The result of this study showed that a higher ratio of PCL/PEG and ratio of PECE/drug, reducing particle size, increasing EE and improving drug solubility. The optimum formula obtained by ratio of PCL/PEG is 2:1 and ratio of PECE/drug is 40:1 with particle size is 356,967±9,142 nm, EE is 57,751±0,437%, drug solubility is 32,648±0,200 µg/ml and zeta potential-18,867±2,578 mV. A full factorial design was applied to determine the optimum formula for the PECE triblock copolymer as drug carriers.

Conclusion: The PECE triblock copolymer was preparated using ring-opening polymerization method with Sn(Oct)₂ as a catalyst and then continued the reaction with HMDI as coupling agent. Ketoprofen was loaded into PECE triblock copolymer using methods emulsification and solvent evaporation.

Keywords: Ketoprofen, Triblock copolymer, PCL PEG, Full Factorial

---

© 2019 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open-access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2019v11i5.35706

INTRODUCTION

The polymers used in drug formulations is biodegradable polymers that mean they can be degraded by metabolic reaction in the body. Polymer in drug formulation can be used in the form of triblock copolymer. Biodegradable polymers that can be used in drug delivery such as poly(ɛ-Caprolactone) (PCL) and poly(ethylene glycol) (PEG) [1]. Triblock copolymers have advantages such as can be applied as a carrier of hydrophilic or hydrophobic drugs, can be varied arrangement of polymer blocks, and can be used for improving drug solubility or controlling drug release [2]. The application of triblock copolymer with the composition of PCL and PEG has existed previously as drug delivery system of drug that has a low solubility (hydrophobic). The triblock copolymer will take the hydrophobic drug into aqueous by forming a nano-sized polymer micelle spontaneously. The hydrophilic block will interact with aqueous solution while the hydrophobic block will be the core-shell that contains hydrophobic drugs so can increase the solubility of the drug [3].

Ketoprofen is a nonselective non-steroid anti-inflammatory (NSAID) drug used for a mild to moderate pain relievers such as pain in dysmenorrhea, headache, osteoarthritis and rheumatoid arthritis. Ketoprofen has low solubility properties about 0,010 mg/ml in pure water at (22-24 °C) and high permeability with log P value is 3,31. The calculation of dose per solubility (D/S) with the dose is 100 mg obtain that 10 L (>250 ml) of water was needed to dissolve the dose of drug. Based on that physicochemical properties the drug including in class II of Biopharmaceutical Classification System (BCS) according to WHO [4]. Therefore, ketoprofen can be used as a model of hydrophobic drugs.

The aim of this study is to optimization and characterization of PEG-PCL-PEG (PECE) triblock copolymer as ketoprofen drug delivery system. PECE triblock copolymer is an analog of commercial polymer that is Poloxamer (PEO-PPO-PEO). Poloxamer has weakness such as non-biodegradable polymer, its mean that polymer does not can be degraded in the body so can cause of toxicity [2]. PECE triblock copolymer expected to be safer to use in drug formulation and has a potential for drug delivery system, so need to be done optimum formula to form a PECE triblock copolymer. In addition, it aims determine the influence of variation ratio of PCL/PEG and ratio of PECE/drug on particle size, EE and drug solubility mathematically with factorial design.

MATERIALS AND METHODS

Materials

Methoxy-poly (ethylene glycol) ~2000 (mPEG ~2000), ɛ-caprolactone (ɛ-CL), hexamethylene diisocyanate (HMDI), stannous octoate (Sn(Oct)₂), petroleum ether and dichloromethane was purchased from Sigma-Aldrich (Singapore), Ketoprofen (PT. Combiphar, Bandung, Indonesia).

Methods

Preparation of the PEG-PCL-PEG (PECE) triblock copolymer: PECE triblock copolymers were prepared by ring-opening polymerization of ɛ-CL using Sn(Oct)₂ as catalyst and continued by coupling reaction using HMDI as coupling agent is illustrated in fig. 1. In the first step amount of mPEG, ɛ-CL, and Sn(Oct)₂ were introduced into a 50 ml filter flask under vacuum. The mixture was reacted with magnetic stirrer at 120 °C for 6 h. After that HMDI was added into the mixture and continued the reaction at 80 °C for 6 h. After reaction, the results obtained was purified with dissolved in dichloromethane and then precipitated with cold petroleum ether. Purification was repeated twice. The PECE triblock copolymer was dried in room temperature after that dried polymer was storage in airtight container [5].

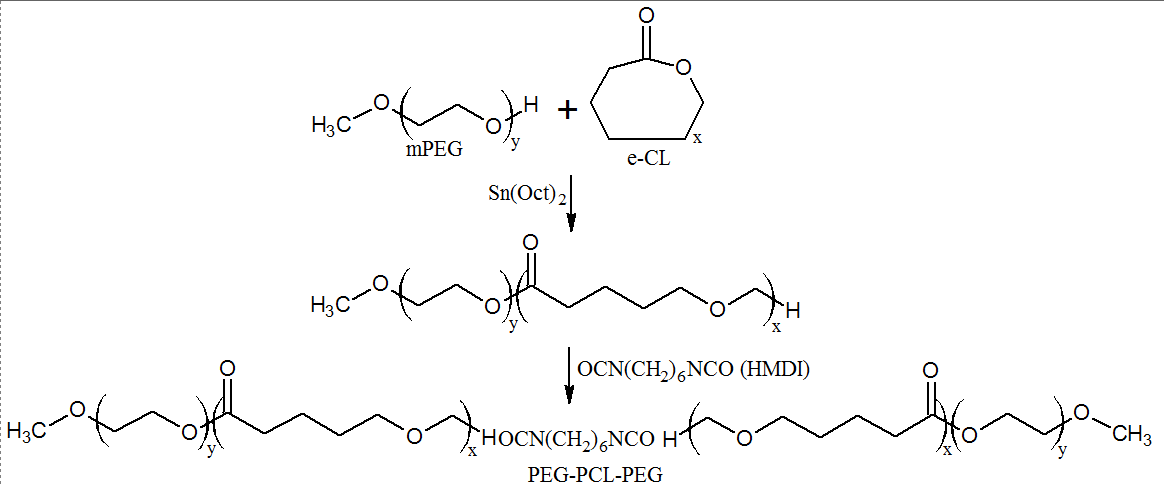

Fig. 1: Schematic formation of the PECE triblock copolymer

Preparation of the PECE triblock copolymer loaded ketoprofen: Weighed as much as 10 mg of ketoprofen and PECE polymer was subsequently dissolved in dichloromethane. Then added 100 ml water to form emulsions. Emulsions are stirred at 25^○C to dichloromethane evaporated perfectly. The solution was then centrifuged with a speed of 4000 rpm for 1 h. Deposits have been rinsed with water 2 times.

Full factorial design for optimization: The experimental design used is full factorial design with 2 levels of low (-1) and high (1) and 2 factors (2²). The factors used are the ratio of PCL/PEG (X₁) and ratio of PECE/drugs (X₂). Tests used in response include particle size (Y₁), entrapment efficiency (EE) (Y₂) and drug solubility (Y₃) (table 1) [6, 7].

Table 1: Factorial design for optimization PECE triblock copolymer

Code	Factors	Level
		Low (-1)	High (1)
X1	Ratio of PCL/PEG	0,5	2
X2	Ratio of PECE/drug	10:1	40:1
Responses		Target
Y1	Particle size (nm)	Minimize
Y2	Entrapment efficiency (EE) (%)	Maximize
Y3	Drug solubility (µg/ml)	Maximize

Characterization of PECE triblock copolymer

The structure of mPEG₂₀₀₀, ɛ-CL, and formation of triblock copolymer were confirmed by Fourier Transform Infrared Spectroscopy (FTIR) Nicolet iS10 in a wavelength range of 500-4000 cm^-1 [8].

The thermal analysis by Differential Scanning Calorimetry (DSC) on the sample of triblock copolymer. Samples were given temperature treatment starting from 26^○C temperature to be heated to 90^○C. Temperature change speed of 10^○C/min [5].

Measurement responses for optimization:

Particle size and zeta potential measurement

PECE triblock copolymer loaded ketoprofen was dissolved in water and stirring for 1 h. The solution taken and measured particle size and zeta potential using Particle Sizer Analyzer (PSA) at 25^○C and scattering angle 90.

Measurement of entrapment efficiency (EE)

Weighed 10 mg of ketoprofen and PECE triblock copolymer was subsequently dissolved with dichloromethane. Solution added 100 ml of water slowly and stirring until dichloromethane evaporated. The solution is filtered with filter until 1 ml is obtained. The solution added NaOH 0.1 N to 10 ml and then read the absorbance with UV-Vis spectrophotometer at the maximum wavelength of ketoprofen. The calculation of entrapment efficiency is following equation: ((Initial concentration of drug–Concentration of drug was measured)/Initial concentration of drug) x100%.

Measurement of drug solubility

PECE triblock copolymer was loaded ketoprofen with certain comparison is dissolved with 100 ml water. The solution was stirring for 24 h at a speed of 60 rpm. The solution was taken and added NaOH 0.1 N to 10 ml and then read the absorbance with UV-Vis spectrophotometer at the maximum wavelength of ketoprofen.

RESULTS AND DISCUSSION

Preparation of the PEG-PCL-PEG (PECE) triblock copolymer

PECE triblock copolymer was prepared by 2 stages of reactions. The first reaction is the ring opening reaction on ɛ-CL structure with the Sn(Oct)₂ as catalyst and the merger with mPEG resulting PEG-PCL diblock copolymer. Second reaction that is coupling reactions blocked PEG-PCL with a coupling agent HMDI so formed PEG-PCL-PEG triblock copolymer. Based on the factorial design (table 1) that the PECE triblock copolymer was prepared with PCL/PEG ratio of 0.5:1 and 2:1, and PECE/drug ratio of 10:1 and 40:1. PECE triblock copolymer which resulting is a form white coarse powder.

Characteristics of PECE triblock copolymer

Chemical characterization with FTIR aims to confirm the formation of PECE triblock copolymer structure. The result of characterization by FTIR is presented in fig. 2. Spectra FTIR (a) is a spectra of ɛ-CL. This spectra show there are functionally groups of hydrocarbons and a carboxylic acid. The result of the hydrocarbon functional group is that there is a peak on the wavenumber 2933.54 cm^-1, 2862.85 cm^-1and 733.35 cm^-1because of vibration strain asymmetrical and symmetrical from CH₂ and vibration from swings chains hydrocarbons, respectively. In addition, there is a peak at 1476.30 cm^-1and 1438.00 cm^-1because of vibration deformation CH₃ and vibration asymmetrical CH₂ scissor, respectively. While functional group of carboxylic acid show at around 3300-2500 cm^-1for O-H group, at 1723.19 cm^-1for C = O group, on 1288.78-1224.76 cm^-1 for C-O group, and on 961.29-890.98 cm^-1for deformation O-H group [9].

Spectra (b) is a spectra from a single polymer mPEG₂₀₀₀. This spectra show there is a peak in the around at 3400-3600 cm^-1, that is characteristic of group hydroxyl terminal on the structures. In addition, there is a peak at 2880.81 cm^-1and 1098.57 cm^-1, that is characteristics from group C-H and C-O on the structures [9].

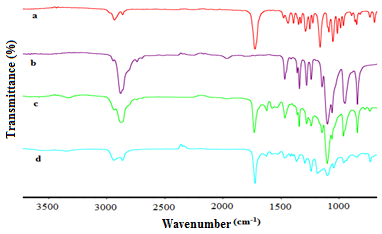

Fig. 2: Spectra FTIR of (a). ɛ-CL, (b). mPEG2000, (c). PECE triblock copolymer 0.5:1, and (d). PECE triblock copolymer 2:1

Spectra of the triblock copolymer is shown on spectra (c) and (d). PECE triblock copolymer ratio of PCL/PEG is 0.5:1 shown on the spectra (c) indicating that there is a peak at 2877.62 cm^-1 that occur because asymmetric of the CH₃ group. The peak at 1239.25 cm^-1 and 1101.57 cm^-1 for C-O-C group strain vibration and the COO group, respectively. The stretch vibrations of the C = O group appear at 1730.29 cm^-1 which is the characteristic of the ester group. While the spectra (d) is the PECE triblock copolymer ratio of PCL/PEG is 2:1. The spectra shows that there is a peak at 2937.59 cm^-1and 2864.29 cm^-1 for asymmetric and symmetrical strain of the CH₂, respectively. In addition, there is a peak at 1100.54 cm^-1 and 1363.36 cm^-1 that indicate there is a vibration strain of C-O-C group and COO group. There is a peak at 1722.08 cm^-1 which occurs due to a group strain of C = O. The both of spectra do not have peak at 2250 cm^-1-2270 cm^-1which is characteristic that the NCO group structure of the HMDI compounds reacts perfectly with the OH group on the reaction. There is a peak at 1576.15 cm^-1 in PECE triblock copolymer ratio of 0.5:1 and 1574.97 cm^-1 on ratio of 2:1 is characteristic of the N-H group vibration as a sign that the formation of PECE triblock copolymer [9].

The characterization of thermal analysis of the PECE triblock copolymer is carried out with the Differential Scanning calorimetry (DSC). Analyses thermal aims to do find out the melting point of triblock copolymer. The thermal analysis curve (DSC) is shown in fig. 3.

The (a) and (b) curves are the thermal curves of mPEG2000 and ɛ-CL. Both curves indicate that there is only a single peak melting point of the compound that is at temperatures 53.34 °C and 37.66 °C that each is a melting point of the compound mPEG2000 and ɛ-CL. The (c) and (d) curves are the thermal curves of the PECE triblock copolymer with a ratio of PCL/PEG are 0.5:1 and 2:1. The thermal curve of the PECE triblock copolymer indicates the existence of 2 peaks of melting point temperature although the peak is not clearly separated. The low melting point temperature of both curves is at 50.98 °C and 45.64 °C, which is the temperature of the melting point of the PCL block in the crystal phase and the high melting point temperature peak is at 54.78 °C and 53.81 °C as melting point for the mPEG block in the crystal phase. The thermal properties of a single polymer and the PECE copolymer triblock that produce curves with a single peak and multiple-peak are also reported in previous studies [8, 10].

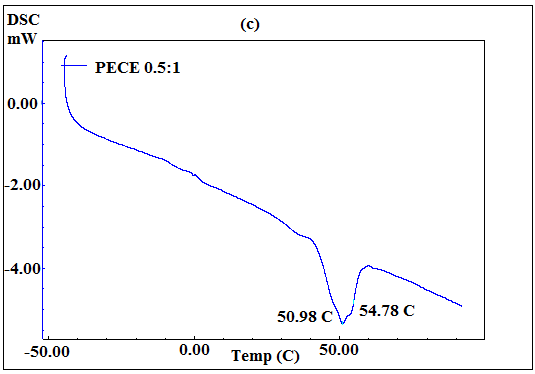

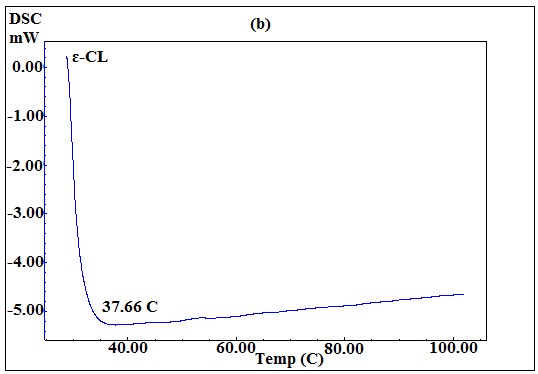

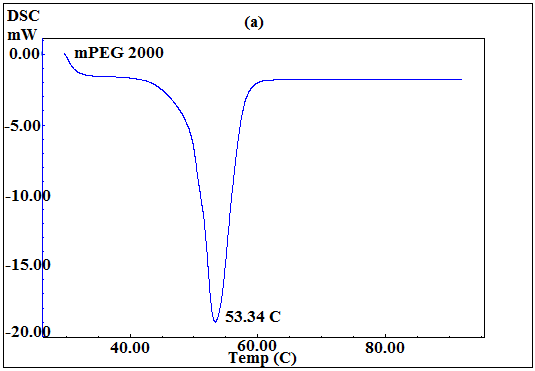

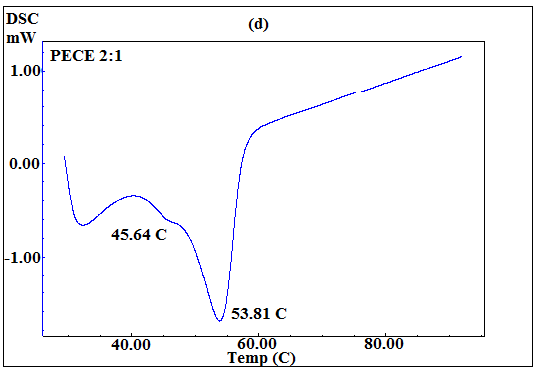

Fig. 3: Analysis thermal of (a). mPEG2000, (b). ɛ-CL, (c). PECE triblock copolymer 0.5:1, and (d). PECE triblock copolymer 2:1

Influence of the factors on the responses

Particle size

PECE triblock copolymer with PCL/PEG ratio of 2:1 has a smaller particle size compared to the PECE triblock copolymer with a ratio of 0.5:1. A higher PCL composition compared to PEG can decrease the size of the PECE triblock copolymer particles. These results differ from the previous research results that a decrease in the properties of hydrophilicity in a copolymer triblock can increase the particle size [11]. However, it is expressed in other studies that the greater the molecular weight of the PEG in the PECE triblock copolymer can provide a stabilization effect of the colloidal steric on its hydrophiles so that with a low PEG composition can lower the particle size [6, 12]. Graphic influence ratio of PCL/PEG on particle size can be seen in fig. 4.

Higher of PECE/drug ratio of 40:1 has a smaller particle size than the ratio of 10:1. This is due to the core part of the hydrophobic copolymer that is enlarged by the drug that is ensnared by the copolymer [13]. Additionally, an increase in the number of drugs in a limited micelle copolymer may cause adsorption of drug molecules on the outer surface of the micelle core so as to increase the particle size [14]. Graphic influence ratio of PECE/drug on the particle size can be seen in fig. 4.

The interaction between factors of PCL/PEG ratio and PECE/drug ratio affects the particle size decline. The greater of PCL/PEG ratio and PECE/drug ratio then the resulting particle size is smaller. A greater ratio of PCL/PEG and PECE/drug can reduce particle size by lowering the effects of colloidal steric stability caused by the weight of large PEG molecules and due to the formed micelle copolymer can ensnare drug adequately, respectively [12, 14]. Effect of interactions between factor ratio of PCL/PEG and PECE/drug on the particle size response is depicted with a contour plot in fig. 5.

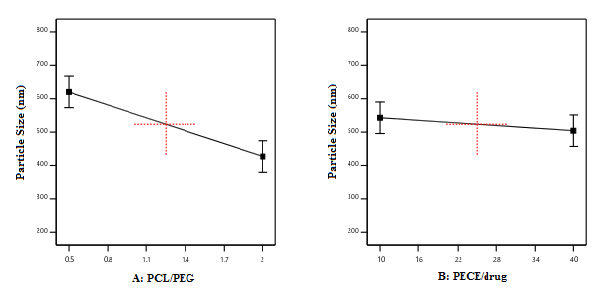

Fig. 4: Graphic influence ratio of PCL/PEG and PECE/drug on the particle size

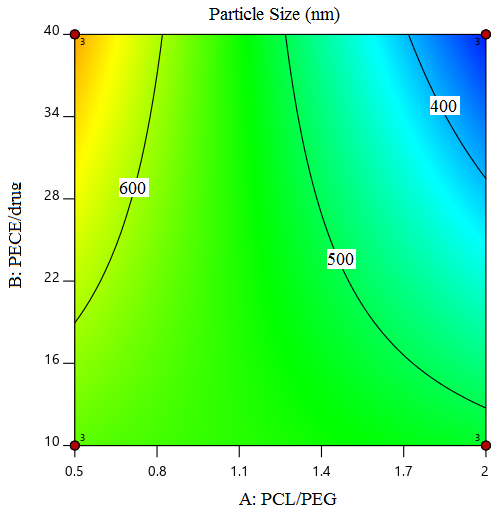

Fig. 5: Contour plot effect of interactions factor ratio of PCL/PEG and PECE/drug on the particle size

Entrapment efficiency (EE)

PECE triblock copolymer with PCL/PEG ratio of 0.5:1 has a smaller EE compared to PCL: PEG ratio of 2:1. The ability to ensnare the drug in a PECE triblock copolymer that has a smaller PCL composition will be decreased. It is related to the increase of the hydrophobic block on the triblock copolymer will increase its interactions with hydrophobic drugs so can increase the ability to ensnare drugs [8]. Graphs the effect of PCL: PEG ratio on the EE can be seen in fig. 6.

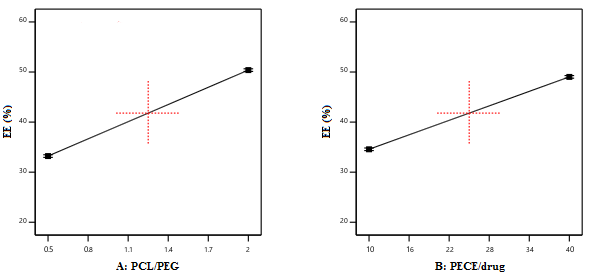

Fig. 6: Graphic influence ratio of PCL/PEG and PECE/drug on the EE

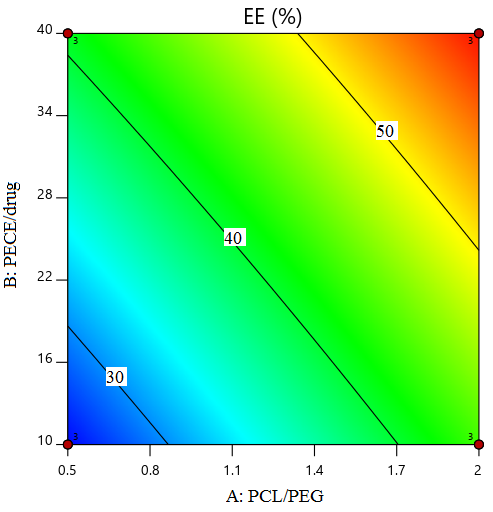

Fig. 7: Contour plot effect of interactions factor ratio of PCL/PEG and PECE/drug on the EE

PECE triblock copolymer with PECE/drug ratio of 10:1 has a smaller EE compared to ratio of 40:1. Larger PECE composition will contain more hydrophobic copolymer blocks so the ability to ensnare hydrophobic drugs will increase. Lower PECE/drug ratio will occur precipitation of drug so EE that is reached also has low. Precipitation of the drug can occur because the core of the micelle is experiencing saturation by the drugs when the number of drugs larger by the number of copolymer. Graphs influences ratio of PECE/drug on the EE can be seen in fig. 6.

The interaction factors of PCL/PEG ratio and PEG/drug ratio affects on EE decline. The greater of PCL: PEG ratio and PECE/drug ratio can lower the PECE triblock copolymer ability to ensnare the drug. It is possible because in a large ratio to the two factors of the micelle copolymer have suffered saturation so that EE values are constant or can decrease [15]. Contour plot influence of interaction two factors can be seen in fig. 7.

Solubility

Drug solubility in the PECE triblock copolymer with PCL/PEG ratio of 2:1 greater than in the PCL: PEG ratio of 0.5:1. A larger composition ratio is a larger number of PCL, so drug that can be snared in a copolymer will also be greater. In contrast, the smaller PCL/PEG ratio will contain fewer drugs due to the slight number of PCL. Graphs influences the ratio of PCL/PEG on the drug solubility can be seen on the fig. 8.

PECE/drug ratio of 40:1 more dissolving of the drug than the ratio of 10:1 is indicated by the greater value of drug solubility. This is due to the composition of PECE triblock copolymer which more will ensnare more drugs into the micelle copolymer so that the drug will be more dissolved. Graphs influences ratio of PECE/drug on the solubility the drug can be seen in fig. 8.

The interaction of PCL/PEG ratio and PECE/drug ratio factors has an influence on increased solubility of the drug. The higher PCL/PEG ratio and PECE/drug ratio will increase the drug solubility. The influence of the interaction of both factors on the solubility of the drug according to its influence on each factor. Contour plot influence of interaction two factors on the drug solubility can be seen in fig. 9.

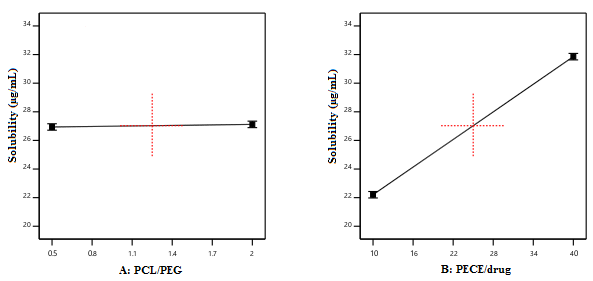

Fig. 8: Graphic influence ratio of PCL/PEG and PECE/drug on the drug solubility

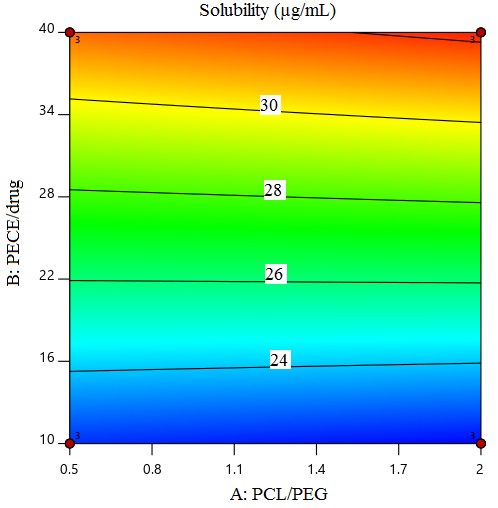

Fig. 9: Contour plot effect of interactions factor ratio of PCL/PEG and PECE/drug on the drug solubility

Table 2: Analysis of variance, parameter fit statistic, and regression coefficient for all responses

Analysis of variance (p-value)
Parameter	Particle size (nm)	EE (%)	Solubility (µg/ml)
Model	0.0027	<0.0001	<0.0001
A-PCL/PEG	0.0015	<0.0001	0.3796
B-PECE/drug	0.3706	<0.0001	<0.0001
AB	0.0090	0.0127	0.0159
Fit Statistic
R2	0.8139	0.9992	0.9967
Adjusted R2	0.7441	0.9989	0.9955
Predicted R2	0.5813	0.9982	0.9926
Adeq Precision	8.1533	139.7987	52.2755
Regression Coefficient
Intercept	523.62	41.80	27.03
A-PCL/PEG	-96.87	8.58	0.0912
B-PECE/drug	-19.43	7.23	4.83
AB	-70.18	-0.3613	0.2988

Responses model analysis

The analysis aims to determine the model mathematically to illustrate the influence of factors on the responses. Result of variance analysis, parameter fit statistic, and regression coefficient for all responses presented in table 2.

Results analysis of variances (ANOVA) indicates that the model for all responses is significant (p<0.05). The determination coefficient (R²) represents the percentage of the model can predict the influence of the factor on a response. This result shows that model on particle size, EE and drug solubility can predict 81.93%, 99.92% and 99.67%, respectively. The difference between the Predicted R² and Adjust R² values is less than 0.2 and Adeq. Precision value is more than 4 which means that the resulting model can be used to demonstrate the effect of factors on the responses.

This model will explain the influence of factors on the responses with the mathematical equation of the regression coefficient (table 2). Coefficients have a positive or negative sign that will illustrate the influence of factor on the responses. A positive sign means that the higher the factor will increase the response, while the negative sign shows that the response will decline as the factor increase (16).

Optimum formula PECE triblock copolymer as drug carrier

The optimum formula chosen is the formula with the highest desirability value of 0.949. The optimum formula is the PCL/PEG ratio of 2:1 and PECE/drug ratio of 40:1 with the predictive response of particle size is 337.33 nm, EE is 57.247%, and drug solubility is 32.244 µg/ml. Response measurement in optimum formula is done confirmation to know the difference in response value of measurement result with prediction value. Comparison of predicted response value with measurement results presented in table 3.

Table 3: Comparison of predicted response value vs measurement results

Responses	Prediction	Measurement	p-value
Particle size (nm)	337,133	352,3 351,1 367,5	0,064
Entrapment Efficiency (EE)	57,247	57,2466 58,0030 58,0030	1,000
Drug solubility (µg/ml)	32,244	32,4962 32,5719 32,8744	0,073
Zeta Potential (mV)	-	-21,2 -19,3 -16,1	-

The result of the comparison indicate that the all responses have the same value as the predicted value (p>0.05). the results stated that the optimum formula in this study was confirmed.

CONCLUSION

The PECE triblock copolymer was preparated using ring-opening polymerization method with Sn(Oct)₂ as a catalyst and then continued the reaction with HMDI as coupling agent. Ketoprofen was loaded into PECE triblock copolymer using methods emulsification and solvent evaporation. The optimization study to obtain the optimum formula of PECE triblock copolymer was loaded ketoprofen has been successfully carried out using the full factorial design. The formula optimum selected were ratio of PCL/PEG 2:1 and ratio of PECE/drug 40:1 with characteristic observed particle size is 356,967±9,142 nm, EE is 57,751±0,437%, drug solubility is 32,648±0,200 µg/ml and zeta potential-18,867±2,578 mV.
