Int J Curr Pharm Res, Vol 12, Issue 3, 84-86Original Article


ULTRASOUND ASSISTED GREEN SYNTHESIS OF 2-FURAN-2-YL-4H-CHROMEN-4-ONES FROM CHALCONES

GOPAL K. KAKADE1, SURESH G. VEDPATHAK2*

1Department of Chemistry MSP Mandal’s Arts, Science and Commerce College, Kille-Dharur 413606 Maharashtra, India, 2*Department of Chemistry, S. M. Dnyandeo Mohekar College, Kallam, 413507 Maharashtra, India
Email: sureshvedpathak@gmail.com

Received: 18 Jan 2020, Revised and Accepted: 22 Mar 2020

ABSTRACT

Objective: To report the ultrasound-assisted synthesis of some bioactive 2-furan-2-yl-4H-chromen-4-one derivatives

Methods: Oxidative cyclization of chalcones using iodine in dimethyl sulfoxide for the synthesis.

Results: Some bioactive 2-furan-2-yl-4H-chromen-4-one derivatives were synthesized from corresponding chalcones in the presence of iodine in dimethyl sulfoxide under ultrasound irradiation at ambient reaction conditions.

Conclusion: The use of ultrasound irradiation gave the advantages of higher yields, lower reaction time and simplicity compared to conventional methods for the synthesis of 2-furan-2-yl-4H-chromen-4-one derivatives.

Keywords: Chromen-4-one, Chalcones, Iodine, Ultrasound irradiation

© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2020v12i3.38312. Journal homepage: https://innovareacademics.in/journals/index.php/ijcpr

INTRODUCTION

Ultrasound-assisted organic synthesis is another "Green" method used in many organic synthetic pathways for high efficiency, low waste, and low energy requirements. With high-intensity sound or ultrasound, radiation produces acoustic cavities, which can create extreme physical and chemical conditions in the cold fluid. The driving force for such synthesis has many benefits to clean and safe technologies for the environment, which reduces the production of source waste with better yields and selection, thereby increasing the recovery and quality of the product for crystallization and product recovery and refining processes. Sonication allows the use of non-activated and crude reagents as well as an aqueous solvent system; therefore it is friendly and non-toxic. Ultrasound is widely use for improving the traditional reactions that use expensive reagents, strongly acidic conditions, long reaction times, high temperatures, unsatisfactory yields and incompatibility with other functional groups [1]. In this context, the use of ultrasound to accelerate reactions has proven to be a particularly important tool for meeting the Green Chemistry goals of minimization of waste and reduction of energy requirements [2].

Chromones and chromen-4-ones, benzoannelated γ-pyrone [3, 4], are considered as privileged structures [5] widely distributed in nature known for their potential pharmacological activities [6-9]. An efficient synthetic route has been reported for the synthesis of 2-alkyl-substituted chroman-4-ones [10]. The incorporation of various functional groups to present highly substituted structures have successfully carried via distinct PD-mediated cross-coupling reactions [11, 12], Mannich reactions [13], and a SmI2-KHMDS-mediated Reformatsky type reaction [14]. Recently, some substituted chromone and chroman-4-one derivatives have been reported as potent and highly selective SIRT2 inhibitors [15]. As part of our ongoing research in the field of green chemistry directed synthesis, we herein wish to report a straightforward and conveniently efficient alternative protocol for the synthesis of diversely functionalized furan substituted chromen-4-ones from chalcones under ultrasound irradiation.

MATERIALS AND METHODS

Commercially available AR grade chemicals were used for synthesis. 1H NMR and 13C NMR spectra were recorded on 400 MHz Varian Mercury plus 400 MHz FT NMR spectrometer in CDCl3 using signals for residual protons and carbon atoms of the solvent as the references. Melting points were determined on the melting point apparatus (Model MP-96) and were not corrected. The progress of the reaction and purity of the product was monitored by TLC on Merck Silica gel 60 F254 UV-254 plates.

General procedure for the synthesis of chalcones

Chalcones were prepared by method reported in literature [16]. To a solution of substituted 2-hydroxyacetophenone (0.1 mol) in ethanol (15 ml), substituted heterocyclic aldehyde (0.1 mol) was added. To this mixture aqueous potassium hydroxide (60%) was poured gradually with constant stirring and continues the stirring for 1.5 h. After complete addition, the reaction mixture was kept for 14-16 h at room temperature. The potassium salt of chalcone was separated by ice-cold 10% hydrochloric acid (20 ml). The separated solid was filtered and washed with ice-cold water (2x30 ml) till the washing was neutral to litmus. Recrystallized the compound with ethanol and dried at room temperature.

General procedure for the synthesis of 2-furan-2-yl-4H-chromen-4-ones

To a solution of chalcone (0.01 mol) in 20 ml dimethyl sulfoxide, catalytic quantity of iodine was added. The mixture was then placed in an ultrasonic bath for the periods shown in table 1, at 20-25 °C. The progress of the reaction was monitored by TLC. After completion of the reaction, the reaction mixture was poured on ice-cold water; the separated solid was filtered washed with cold water followed by a dilute sodium-thiosulphate solution. The product was crystallized from ethanol.

RESULTS AND DISCUSSION

The intermediate, chalcones were synthesized by reacting equimolar amounts of furfuraldehyde with different 2-hydroxyacetophenones in the presence of 10% potassium hydroxide in ethanol by Claisen-Schmidt condensation. The cyclization of chalcones was then achieved by using catalytic amount of iodine in dimethyl sulfoxide under ultrasound irradiation (Scheme 1). The starting materials 3a-g on ultrasound irradiation afforded compounds 4a-g within a few minutes in better yields than the conventional method (table 1). The use of ultrasound irradiation gave the advantages of higher yields, lower reaction time and simplicity compared to conventional methods.

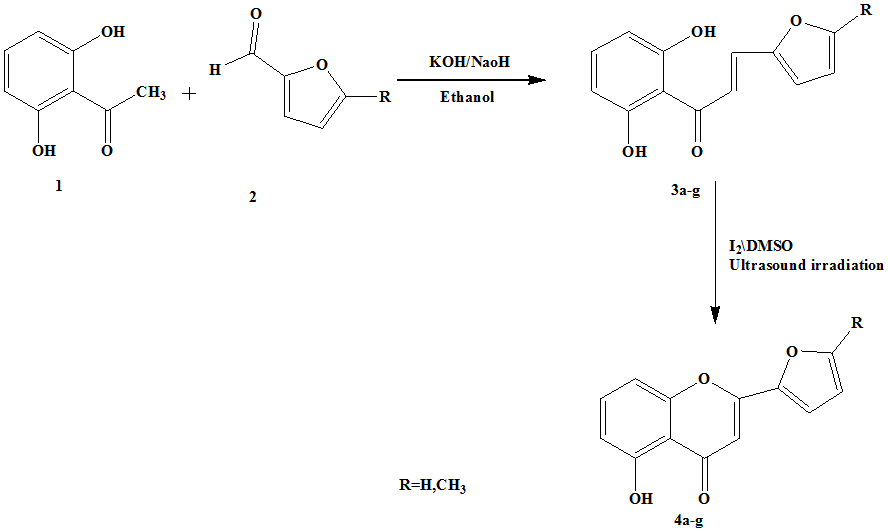

Scheme 1: Synthesis of 2-(5-substituted-furan-2-yl)-4H-chromen-4-ones

Table 1: Properties of compounds 4a-g

Entry Structure Reaction time (min) Color

Molecular

weight

 M. P ˚C

Yield

%
4a 30 Yellowish-brown 242 219-220 82
4b 45 Coffee brown 228 271-272 73
4c 50 Pale yellow 245 274-275 70
4d 35 White 272 179-180 82
4e 40 White 272 115-116 77
4f 55

Off

white

 247 143-144 78
4g 70 White 281 192-193 69

All the compounds were characterized by using IR, and 1H NMR data. Generally, the flavones and flavonols exhibit absorption in 320-380 nm regions and 240-270 nm regions [17]. Compound 4a showed two absorption bands in the range of 339 nm for carbonyl group and 258 nm for hydroxyl group. The IR spectra of 4a revealed broad band for α, β-carbonyl group absorption at νmax 1691 cm-1 and a broad band at 1097 cm-1 due to the presence of ether linkage (C-O-C). 1H NMR spectra of 4a revealed chemo selectivity of the cyclo condensation. The presence of a singlet at 6.71 reveals the presence of pyrone ring. All the δ values of protons are in accordance with the reported values.

13C NMR spectrum of compound 4a revealed fourteen distinctive carbon signals at δC 14.1, 109.3, 110.1, 110.4, 110.9, 112.3, 113.2, 136.9, 145.2, 154.7, 158.3, 162.2, 168.6, 181.9. Finally, in the mass spectrum, molecular ion peak is observed at m/z 242[M+], 243 [M++1] and 244 [M++2] confirms the structure of the compound 4a. The compound 4b-g are the same as obtained by the reported conventional procedure. The spectral analysis of these compounds is in accordance with the reported values [17, 18].

CONCLUSION

A general and green method has been developed for the synthesis of 2-(5-substituted-furan-2-yl)-4H-chromen-4-ones from furan substituted chalcones in dimethyl sulfoxide in the presence of iodine as catalyst under ultrasound irradiation at ambient conditions. The use of ultrasound irradiation gave the advantages of higher yields, lower reaction time and simplicity compared to conventional methods.

FUNDING

Dr. Babasaheb Ambedkar Marathwada University Aurangabad

AUTHORS CONTRIBUTIONS

Both the authors have contributed equally.

CONCLUSION OF INTERESTS

The authors confirm that this article content has no conflict of interest.

REFERENCES

  1. Puri S, Kaur B, Parmar A, Kumar H. Applications of ultrasound in organic synthesis-a green approach. Curr Org Chem 2013;17:1790-828.

  2. Cintas P, Luche JL. Green chemistry: the sonochemical approach. Green Chem 1999;1:115-25.

  3. Saengchantara ST, Wallace TW. Chromanols, chromanones, and chromones. Nat Prod Rep 1986;3:465-75.

  4. Cottiglia F, Dhanapal B, Sticher O, Heilmann J. New chromanone acids with antibacterial activity from Calophyllum brasiliense. J Nat Prod 2004;67:537-41.

  5. Horton DA, Bourne GT, Smythe ML. The combinatorial synthesis of bicyclic privileged structures or privileged substructures. Chem Rev 2003;103:893-930.

  6. Bhat AS, Whetstone JL, Brueggemeier RW. Novel synthetic routes suitable for constructing benzopyrone combinatorial libraries. Tetrahedron Lett 1999;40:2469-72.

  7. Bauvois B, Puiffe ML, Bongui JB, Paillat S, Monneret C, Dauzonne D. Synthesis and biological evaluation of novel flavones-8-acetic acid derivatives as reversible inhibitors of aminopeptidase N/CD13. J Med Chem 2003;46:3900-13.

  8. Kim HP, Son KH, Chang HW, Kang SS. Anti-inflammatory plant flavonoids and cellular action mechanisms. J Pharmacol Sci 2004;96:229-45.

  9. Gaspar A, Matos MJ, Garrido J, Uriarte E, Borges F. Chromone: a valid scaffold in medicinal chemistry. Chem Rev 2014;114:4960-92.

  10. Friden Saxin M, Pemberton N, Andersson KD, Dyrager C, Friberg A, Grotli M, et al. Synthesis of 2-alkylsubstituted chromone derivatives using microwave irradiation. J Org Chem 2009;74:2755-9.

  11. Dahlen K, Wallen EAA, Grotli M, Luthman K. Synthesis of 2,3,6,8-tetrasubstituted chromone scaffolds. J Org Chem 2006;71:6863-71.

  12. Dahlen K, Grotli M, Luthman K. A scaffold approach to 3,6,8-trisubstituted flavones. Synth Lett 2006;6:897-900.

  13. Wallen EAA, Dahlen K, Grotli M, Luthman K, Synthesis of 3-aminomethyl-2-aryl-8-bromo-6-chlorochromones. Org Lett 2007;9:389-91.

  14. Ankner T, Friden Saxin M, Pemberton N, Seifert T, Grotli M, Luthman K, et al. KHMDS enhanced SmI2-mediated reformatsky type α-cyanation. Org Lett 2010;12:2210-3.

  15. Friden Saxin M, Seifert T, Landergren MR, Suuronen T, Lahtela Kakkonen M, Jarho EM, et al. Synthesis and evaluation of substituted chroman-4-one and chromone derivatives as sirtuin 2‑selective inhibitors. J Med Chem 2012;55:7104-13.

  16. Sylvie, Richard DF, John H, Alex K, Nicholas JL. Potent antimitotic and cell growth inhibitory properties of substituted chalcones. Bioorg Med Chem Lett 1998;8:1051-6.

  17. Shastri RA. Synthesis and antimicrobial activity of some novel pyrazoline and flavones derivatives derived from furan chalcone. World J Pharm Res 2015;4:642-51.

  18. Khandapu BK, Mutchu BR, Thripuram VD, Polam N, Anandam R, Navudu R, et al. Reaction of O-methylated flavones with semicarbazide: serendipitous selective demethylation. Org Commun 2018;11:116-22.
