Int J Curr Pharm Res, Vol 12, Issue 6, 67-73Original Article


FORMULATION AND EVALUATION OF ACARBOSE PELLETS BY EXTRUSION SPHERONIZATION TECHNIQUE

DILIP M. R.*, J. JOYSA RUBY

Acharya and BM Reddy College of Pharmacy, Bangalore, Karnataka, India
Email: dilipmr456@gmail.com

Received: 10 Jul 2020, Revised and Accepted: 08 Sep 2020

ABSTRACT

Objective: The objective of our work is to formulate and evaluate acarbose pellets for sustain drug delivery. The present study was aimed to develop sustain drug delivery system of acarbose pellets by extrusion spheronization technique using different polymers like Hydroxypropyl methyl cellulose, chitosan, ethylcellulose, microcrystalline cellulose. Pelletization of acarbose was done to achieve sustain drug release profile suitable for oral administration.

Methods: The acarbose pellets were prepared by extrusion spheronization technique. The Fourier transform-infrared spectrum (FT-IR) and Differential scanning calorimetry thermogram of pure drug and drug-polymer blend showed the stable character of acarbose in the pellets. The prepared pellets were evaluated for different quality control parameters like particle size analysis, drug content, and Drug release characteristics.

Results: The results obtained from different quality control parameters are within acceptable range and In vitro dissolution studies indicated that drug release from pellets follows zero-order kinetics with sustain release drug release up to 12 h with the use of ethyl cellulose as a sustain release polymer and mechanism of drug release is non-fickian. The formulated pellets were stable with respect to their physicochemical characters and drug content over a period of 60 d at accelerated stability condition.

Conclusion: From present study, it was concluded that formulation of acarbose pellets by this will be a promising technique for the preparation of pellets to sustain drug release for the treatment of diabetes with better patient compliance.

Keywords: Acarbose, Sustain drug delivery, Pellets, Extrusion spheronization technique, In vitro drug release

© 2020 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (http://creativecommons.org/licenses/by/4.0/)
DOI: http://dx.doi.org/10.22159/ijcpr.2020v12i6.40286. Journal homepage: https://innovareacademics.in/journals/index.php/ijcpr

INTRODUCTION

Diabetes mellitus is a type of metabolic and endocrine disease. It is not only long term chronic plasma hyperglycaemia but also accompanied by a variety of adverse complications [1, 2]. Among these complications, cardiovascular complications are some of the most harmful because of their high mortality and morbidity; type II diabetes is associated with a cardiac syndrome, which is characterized by ventricular contractile dysfunction and fibrosis. Insulin is a hormone produced within the pancreas, which enables frame cells to take in glucose, to show into power. If the body cells do no longer absorb the glucose, the glucose accumulates in the blood, leading to vascular, nerve, and other complications [3, 4]. Modified-release drug delivery systems are designed to control the release of drug from the dosage forms. Development of controlled-release formulations has become a challenge to the pharmaceutical technologists, especially for highly water-soluble drugs with constant rate of release [5]. In order to avert repeated administration of unit dosage forms (immediate-release tablets and capsules), extended-release formulations have been produced to maintain the therapeutic level of drug in the plasma and to avoid toxic concentration [6]. Research on oral controlled release preparations has become a topic of interest in the field of new drugs for the treatment of diabetes because traditional preparations can easily reach excessive blood levels, which causes blood glucose to drop too fast and can lead to hypoglycemia, resulting in dizziness and even coma [7]. Although the drug released from the controlled release formulation is slow, such a formulation is capable of controlling a stable blood concentration and prolonging the duration of action, thereby improving oral bioavailability. Previous studies have shown that pellets have technical and unique clinical advantages. As a drug-loading system, pellets provide therapeutic advantages such as the lower risk of side effects [8, 9].

Pellets can be defined as small, free-flowing, round or semi-spherical strong devices, normally from about 0.5 mm to at least 1.5 mm [10], and supposed typically for oral administration, synthetic by using the agglomerates of fine powders or granules of bulk drugs and excipients using appropriate processing equipment. Pellets are produced either by an extrusion/spheronization technique [11, 12]. Hydroxypropyl methylcellulose (HPMC) and cellulose ether are widely used to control the release of drug. Use of single hydrophilic polymer is not justified in case of highly water-soluble drugs because it diffuses out rapidly through the water-filled pores of matrix [13-15]. Hydrophobic polymer glycerides and ethyl cellulose (EC) are used for such drugs. Release of drug through the matrix can be further modified by forming coating layer on the granules [16]. The chance of dose dumping is a major problem when highly water-soluble drug is formulated as matrix dosage form, so development of sustained-release pellets is one of the unique advantages of reducing such problem [17-19].

MATERIALS AND METHODS

Acarbose was obtained from Yarrow Chem Mumbai, India. Microcrystalline cellulose, Hydroxypropyl methylcellulose was obtained from Yarrow Chem, Mumbai, India. Ethylcellulose was obtained from Karnataka fine chemicals, Bangalore, India.

Preparation of pellets

A uniform powder mixture of all the ingredients by the addition of distilled water. The dough was then passed through the extruder (1.5 mm) (Shakti) at 50 rpm for 5-10 min to form cylindrical extrudates, which were subsequently broken into smaller cylindrical rods and rounded in to spherical pellets by means of fast rotating friction plates in spheronizer at 800–900 rpm for 40 min and finally dried at 40 °C for 2 h [20].

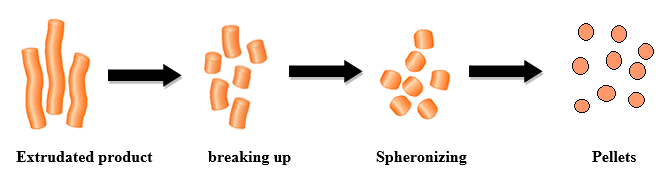

Fig. I: Formulation of pellets

Table I: Formulation chart of Acarbose

Formulations Drug (g) HPMC K4M (g) Chitosan (g) EC (g) MCC (g) Water (ml)
F1 1.3 g - - 1.3 g 7.4 g q. s
F2 - - 2.6 g 6.1 g q. s
F3 - - 3.9 g 4.8 g q. s
F4 1.3 g - - 7.4 g q. s
F5 2.6 g - - 6.1 g q. s
F6 3.9 g - - 4.8 g q. s
F7 - 1.3 g - 7.4 g q. s
F8 - 2.6 g - 6.1 g q. s
F9 - 3.9 g 4.8 g q. s

EC= Ethylcellulose, MCC= Microcrystalline cellulose

Evaluation of pellets

Percentage yield: The yield was determined by weighing the drug-loaded pellets and then finding out the percentage yield with respect to weight of input material i.e., the weight of drug and polymer used. Percentage yield is determined by using the mentioned formula [21].

Flow properties

Angle of repose

The Flowability of pellets formed was assessed by measuring angle of repose (Granulator tester Erweka GT) and compressibility index [22].

Angle of repose was calculated by

θ = tan-1(h/r)

Compressibility index was calculated by determining bulk density and tapped density (Electro lab tap density tester, USP) of pellets using the equation:

Friability

Accurately weighed sample (5 g pellets) was placed in the drum of Electrolab friabilator (USP XXIII) and rotated for 100 times. The sample was removed, sieved to remove broken pellets and weighed accurately to determine the percentage weight loss of pellets [23].

Particle size analysis

In the case of pellets, shape and size distribution are important parameters during tableting, capsule filling operation and also for good coating efficiency. Particle size distribution of pellets was evaluated by sieve analysis. Fixed weight of pellets was sieved through a nest of sieves (750–1400 µm) on a vibratory sieve shaker (Vin syst Model AS 200 digit, Retsch, Germany) and the percentage weight of pellets retained on each of the sieves was determined. The procedure was carried out three times for each batch.

Analysis of drug content

Around 1 g of Acarbose pellets was placed in a mortar and then grinded into fine powder using a pestle. Resulting powder was accurately weighed drug equivalent to 50 mg was dissolved in 100 ml phosphate buffer of pH 6.8. 1 ml of the above solution was further diluted to 100 ml filter through 0.45 µm Millipore filters. The concentration of acarbose in the filtrate was determined by using UV visible spectrophotometer [24].

Physiochemical interaction studies: DSC

The Compatibility of acarbose–excipient compatibility was assessed using differential scanning calorimetry (DSC). DSC scans of the pure drug acarbose and F2 were carried out using DSC (Mettler). The calorimetric measurements were made with an empty cell as the reference. The scans were taken under a nitrogen atmosphere over a temperature range of 150–290 °C.

Physiochemical interaction studies: FTIR

The compatibility of Acarbose, acarbose and excipient was confirmed by FT-IR spectroscopy. Samples were prepared in KBr discs using KBr press. The scanning wavenumber range was 400-4000 cm-1

In vitro drug release studies

To study the in vitro dissolution profile, pellets equivalent to 50 mg of Acarbose were filled in hard gelatin capsules. Dissolution studies were carried out initially at gastric pH (pH 1.2) for 2 h followed by phosphate buffer pH 6.8 for the rest of the study, using USP dissolution apparatus type II (basket type) (Electrolab, Mumbai, India). Freshly prepared buffers were used as dissolution media with 50 rpm paddle rotation at 37±1 °C. 5 ml of samples were withdrawn on definite time intervals and immediately replaced with an equal volume of fresh buffer. Filtered each 5 ml withdrawal sample filtered through Whattman filter paper, and then measure the absorbance at 208 nm using UV Visible spectrophotometer and finally calculate the amount of drug release [25].

In vitro release kinetic studies

Zero-order kinetics

The zero-order rate Eq. describes the release of the drug from the system is independent of its concentration.

Qt = Qo+Ko t

Where ‘Qt’ corresponds to the amount of drug dissolved in time‘t’, ‘Qo’ is an initial amount of drug in the solution which is often zero and ‘Ko’ is zero-order release rate constant [26].

First-order kinetics

The first order Eq. describes the release of the drug from the system is concentration-dependent.

Log C = log Co–kt/2.303.

Where Co is the initial concentration of drug and k is the order constant [27].

Higuchi’s model

Higuchi model was developed on the basis of Fick’s law and it describes the fraction of drug release from a tablet is proportional to the square root of time as given below.

Qt = KH √t

Where ‘KH’ is the Higuchi’s rate constant, and ‘Qt’ is the amount of drug released at time‘t’.

Korsmeyer-peppas model

It describes the drug release from the polymeric system in which release deviates from Fickian diffusion, as expressed in the following equation [28].

Mt/M∞ = Kt n

Dissolution study of marketed formulation

The in vitro dissolution studies were performed using USP type II dissolution apparatus (paddle) at 50 rpm. Dissolution media were USP buffer solutions at pH 6.8 (phosphate buffer solution). The medium was maintained at 37±0.5 °C. 5 ml of dissolution sample was withdrawn at 0, 10, 20, 30, 40, 50 and 60 min and replaced with equal volume to maintain sink condition. Samples were filtered and assayed by UV spectroscopic method at 208 nm. The concentration of each sample was determined from a calibration curve obtained from pure samples of acarbose [29].

Stability studies

Stability of a drug has been defined as the stability of a particular formulation, in a specific container, to remain within its physical, chemical, therapeutic and toxicological specifications throughout its shelf life. The selected formulation was filled in capsule shell and packed in tightly closed container and finally kept in a stability chamber (Thermo lab, scientific equipment ltd.) maintained at 40±2 °C/ 75±5%RH for two months. At the end of each month, the drug content, in vitro dissolution studies were performed [30].

RESULTS

Fourier transforms infrared spectroscopy (FTIR)

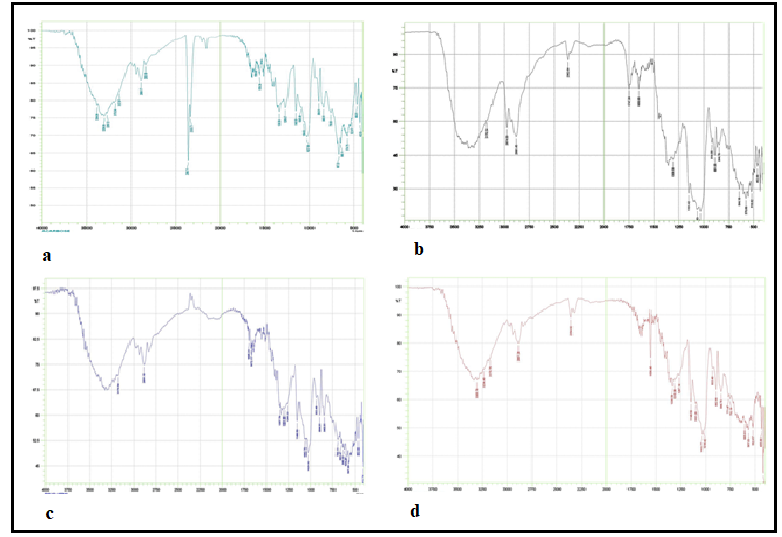

Fig. 2: FTIR spectra of a) Acarbose, b) Acarbose and EC, c) Acarbose and chitosan, d) Acarbose and HPMC K4M

DSC studies

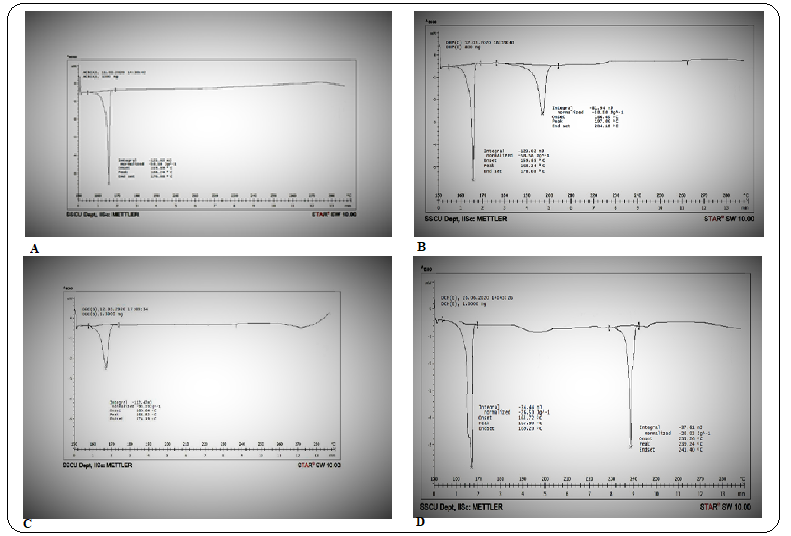

Fig. 3: DSC Thermogram of A) Acarbose B) Acarbose+EC C) Acarbose+HPMC K4M D) Acarbose+chitosan

Flow properties of the pellets, percentage yield, friability drug content and particle size analysis

Table 2: Evaluation parameters of F1–F9

S. No. Evaluation parameters*±SD
Percentage yield (%) Particle size (µm) Carr’s index Angle of repose ( °) Hausner’s ratio
F1 85 850-1400 16.41±0.5 27.14±1.00 1.07±0.02
F2 89 1000-1400 22.67±0.11 30.05±0.82 1.07±0.06
F3 86 1000-1400 15.1±0.13 29.08±2.44 1.10±0.04
F4 79.8 710-1000 19.8±0.4 27.85±1.17 1.06±0.05
F5 79.2 710-850 20.19±0.6 27.36±0.03 1.08±0.01
F6 83.6 710-1400 15.06±0.7 28.07±0.73 1.08±0.01
F7 76 850-1400 8.06±0.4 27.51±0.39 1.07±0.05
F8 89 850-1000 9.11±0.7 27.82±2.03 1.08±0.05
F9 83 850-1000 13.5±0.9 29.56±1.74 1.10±0.04

Table 3: Evaluation parameters of F1–F9

S. No. Evaluation parameters*±SD
Friability Drug content (%)
F1 0.34±0.05 93.65±0.60
F2 0.40±0.04 96.00±0.10
F3 0.58±0.05 94.02±0.06
F4 0.40±0.07 89.04±0.06
F5 0.60±0.05 94.85±0.05
F6 0.48±0.05 84.38±0.10
F7 0.34±0.06 95.95±0.09
F8 0.34±0.01 92.72±0.05
F9 0.40±0.03 82.96±0.08

The values are expressed in mean±SD

In vitro drug release studies

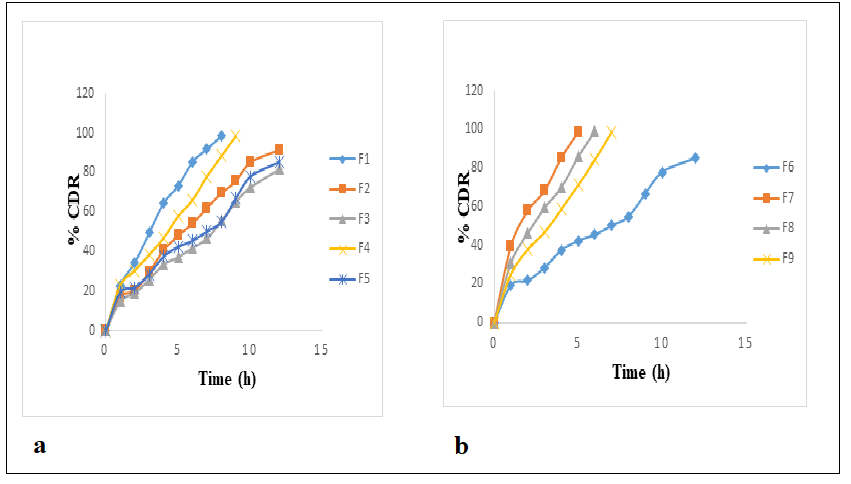

Fig. 4: a) Cumulative drug release data of F1-F5b) Cumulative drug release data of F1-F5

Kinetic parameters for drug release

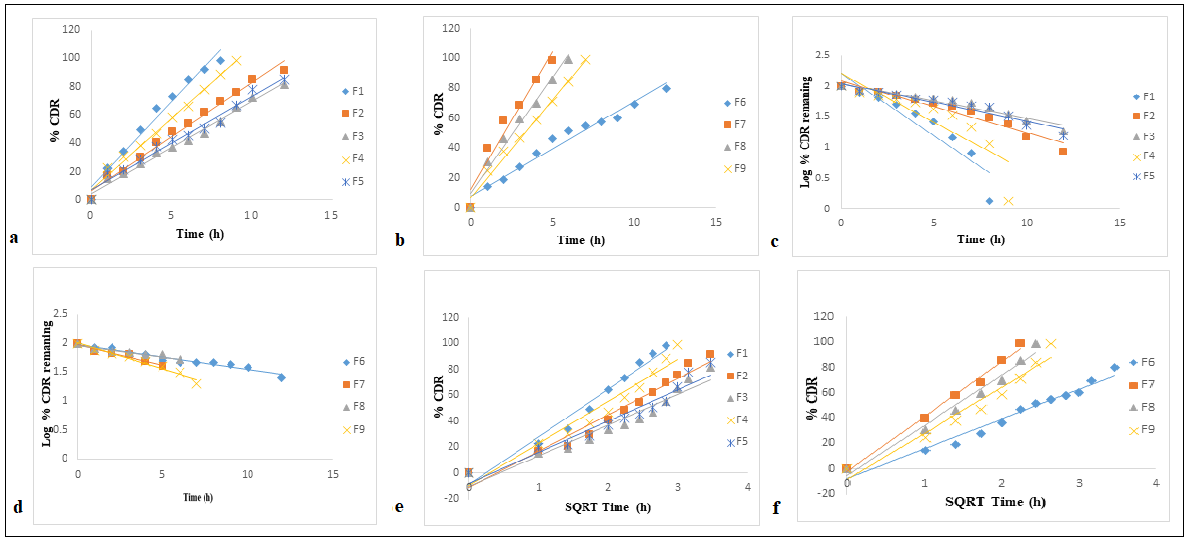

Fig. 5: a) Zero-order release kinetics of F1-F5 b) Zero-order release kinetics of F6-F9, c) First order release kinetics of F1-F5 d) First order release kinetics of F6-F9, e) Higuchi plot of F1-F5 f) Higuchi plot of F5-F9

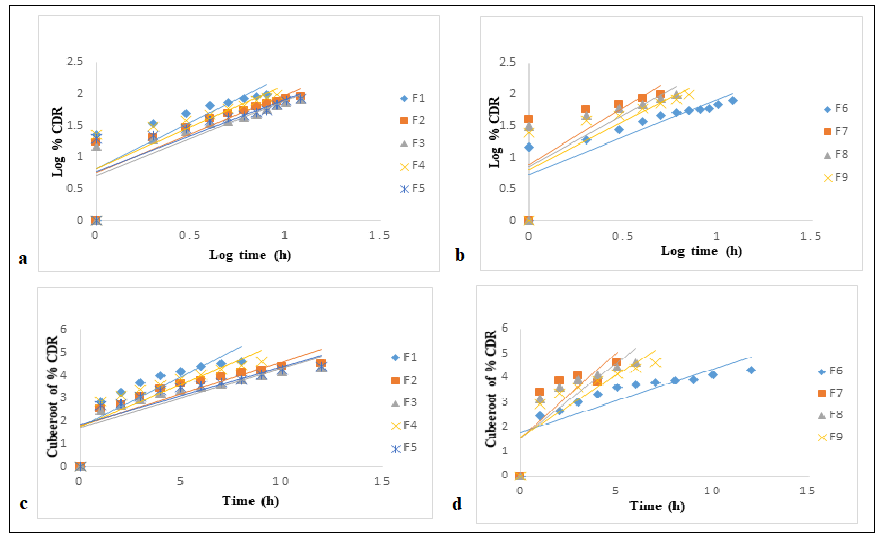

Fig. 6: a) Korsmeyer peppas plot of F1-F5 b) Korsmeyer peppas plot of F6-F9, c) Hixson crowell plot of F1-F5 d) Hixson crowell plot of F6-F9

Dissolution study of marketed formulation

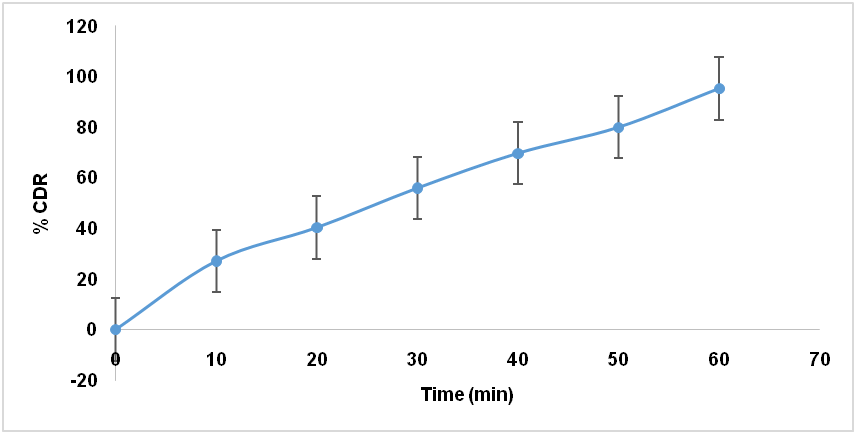

Fig. 7: Dissolution profile of the marketed formulation

Stability studies

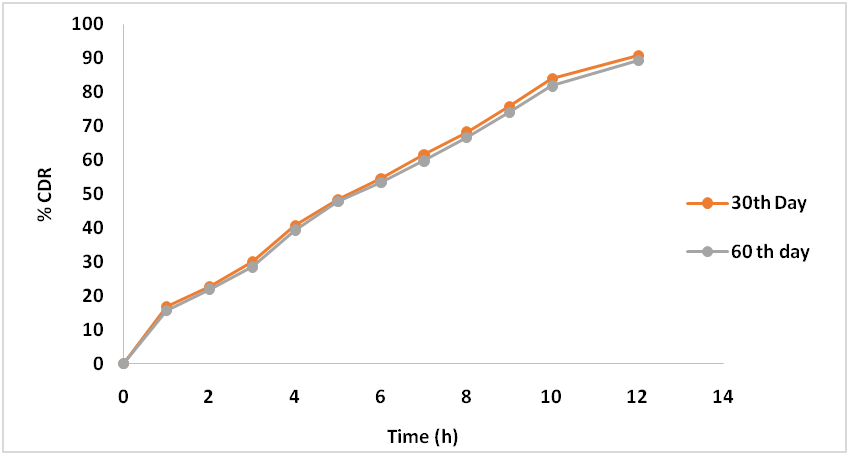

Fig. 8: In vitro drug release profile of F2 after stability studies

DISCUSSION

Fourier transforms infrared spectroscopy (FTIR)

The compatibility between the drug and polymer was performed by FTIR spectrum. The position of peak in FTIR Spectra of pure acarbose is compared with polymer and excipients. FTIR spectra of acarbose, physical mixture of acarbose and EC, acarbose and HPMC K4M, acarbose and chitosan combination are shown in (fig. 2), respectively. IR spectrum of acarbose shows the prominent peaks of (C-N Stretch) 1336 cm-1, (N-H Stretch) 3384 cm-1, (C-O Stretch) 1269 cm-1, (O-H Stretch) 3299 cm-1, (C-H Stretch) 2889 cm-1, (N-H Bend) 1558 cm-1. It was found that the characteristics peaks of the drug were preserved in all scan done in a combination of polymers. Hence it was concluded that the drug can be used with the selected polymer without causing instability in the formulation.

DSC studies

DSC thermogram of acarbose alone showed endothermic peak at 166 °C, corresponding to the melting point of acarbose. An endothermic peak corresponding to the melting point of acarbose was present in the physical mixture of acarbose with ethyl cellulose. There was no change in the peak of acarbose, which suggested clearly that there was no interaction between drug and polymers and drug was existed in its unchanged form. The results were shown in (fig. 3).

Flow properties of the pellets

The values of the angle of repose were between 27.14±1.00 to 30.05±2.44, which are within the normal acceptable range. Formulation F1 had lowest angle of repose and larger particle size as compared to the formulation F2 having highest angle of repose and smaller particle size. It showed that decrease in the particle size leads to a higher angle of repose.

The Carr’s index of formulated pellets was found to be in the range of 8.06±0.4-22.67±0.11 formulation F7 have low Carr’s index of 8.06±0.4 had larger particle size whereas F2 having bulk density of 22.67±0.11. The Hausner’s ratio of formulated pellets were found to be in the range of 1.06-1.10, indicating the good flow characteristics of the pellets. The improved micropolitics properties of the prepared pellets suggest that they can be easily handled and filled into capsules for effective delivery (table 2).

Percentage yield, friability and drug content

The physical evaluation of acarbose pellets showed practical food yield (76-90 %); the low yield of pellets from extrusion spheronization technique might be due to mixture of drug and polymer might stick to the wall of the extruder. result were tabulated in (table 2). The friability was found to be within the limit (<1.000) for all the batches of acarbose pellets (table 3) suggesting that the formulation having required strength and resistibility. The uniformity of drug content is a pharmaceutical analysis parameter for the quality control of capsules or tablets. The drug content of all the formulations was determined. The highest drug content was in F2 (96.00±0.10 %) whereas lowest in F9 (82.96±0.08 %) and result were tabulated in (table 3).

Particle size analysis

Particle size analysis of different formulations was done by using sieve shaker. The particle size was found to be in the range of 710-1400 µm. So the average particle size for all the formulations were within the range (table 2).

In vitro drug release studies

In vitro release testing is an important analytical tool that is used to investigate and establish product behavior during the various stages of drug product development. In vitro drug release studies was carried out for 12 h for formulation (F1-F9). Concentration of release retarding polymer was increased in definite amount for the preparation of different batches of acarbose pellets, which showed that an increase in concentration of EC retards the release of drug from the pellets with time and hence, increase in % cumulative drug release up to 12 h. The amount of cumulative drug release at the end of 12 h was found to be highest in F2 (91.5121±0.10) formulation in pH 6.8. The % CDR vs time of drug is graphically represented in (fig. 4)

Kinetic parameters for drug release

The kinetic studies for drug release of all formulations F1-F9 were done. For this purpose, the regression coefficient of respective formulation was determined by plotting variables as per model (Zero order, First order, Higuchi model, Hixson crowell and Korsmeyer peppas model). It was concluded that the best fitting kinetic model for F2 formulation which is showing maximum regression coefficient of 0.9888 was found in zero-order and ‘n’ values was found to be less than 0.5 showed non-fickian release pattern. The results are shown in (fig. 5 and 6).

Dissolution study of marketed formulation

Dissolution study of the marketed formulation was performed in order to compare with formulated pellets to know the drug release behaviour of acarbose pellets. Marketed formulation shows 95 % of drug release within 60 min. The results are shown in (fig. 7).

Stability studies

A stability study is important method to develop a new product and establish the shelf-life of a product. Stability testing studies shows that a pharmaceutical product can be stored at normal and accelerated conditions without any degradation. Stability studies were carried out for the most satisfactory formulation F2 at 40±2 °C/75±5%RH for two months after the first month and second-month samples were evaluated for drug content and in vitro drug release. On the basis of stability data it concluded that there were no significant changes in result obtained during stability studies, thus indicating that formulation is stable under specified temperature and humidity condition. The results are shown in (fig. 8).

CONCLUSION

The objective of the present study was to formulate and evaluation of pelletized drug delivery of an antidiabetic drug (Acarbose) which is an alpha-glucosidase inhibitor to implement a design of experimental principles in developing a formulation having better stability, high production, feasibility and better patient acceptability.

Drug characterization studies such as melting point, FTIR, DSC, UV analysis were carried out. Acarbose pellets were prepared by extrusion spheronization technique; formulated pellets were subjected for various evaluation such as flow property, percentage yield drug content and in vitro drug release studies. Pellets of F2 shows the drug release of 91.512±0.98. Thus the F2 formulation was selected as the most satisfactory and was fitted into various in vitro drug release kinetic models. The best fit model was zero order in case of all the formulations rather than first order. The drug release kinetics follows Korsmeyer peppas model and mechanism of release was found to be non fickian. In immediate release dosage forms dose dumping is major problem in order to overcome this problem sustain release pellets were formulated.

Acarbose pellets shows more significant sustain release than immediate release tablets. Stability studies was carried out for F2 showed that there was no significant changes in drug content, in vitro drug release after two months of the prepared formulation indicating the prepared acarbose pellets is stable. From present study it was concluded that formulation of acarbose pellets by this will be a promising technique for the preparation of pellets to sustain drug release for the treatment of diabetes with better patient compliance.

ACKNOWLEDGEMNET

The author would like to thank the co-author J Joysa ruby for supporting and Acharya and BM Reddy College of Pharmacy for providing the facility for completing this research work.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTRESTS

The author declares no conflict of interest.
