Int J Curr Pharm Res, Vol 13, Issue 4, 93-97Original Article


DESIGN AND MOLECULAR DOCKING OF SULFONAMIDE DERIVATIVES

KAMALLOCHAN BARMANa*, GARGI DASb, JUN MONI KALITAa, PAYAL DASGUPTAa

aGirijananda Chowdhury Institute of Pharmaceutical Science (GIPS), Hatkhowapara, Azara, Guwahati, Assam, India, 781017, bHimalayan Pharmacy Institute, Majhitar, East Sikkim, 737136
*Email: barmankamallochan@gmail.com

Received: 03 May 2021, Revised and Accepted: 25 Jun 2021

ABSTRACT

Objective: Sulfonamides are a sulfa-related group of antibiotics, which are used to treat bacterial infections and some fungal infections. Some sulfonamides are also devoid of antibacterial activity, such as thiazide diuretics, etc. In this study, an effort was made to find out some novel and potent Sulfonamide derivatives as diuretic agents.

Methods: Here, 30 three-dimensional sulphonamides are designed and docking simulation with PDB ID 1AZM which was downloaded from www. rcsb. org. All the molecules were also screened through a preliminary property filter (Molinspiration Property Calculator).

Results: Among the 30 different molecules designed, 5 molecules were found to have a very good affinity towards the target protein.

Conclusion: These molecular properties define if a molecule can be orally active in our body.

Keywords: Docking, Sulphonamide, SAR

© 2021 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijcpr.2021v13i4.42752 Journal homepage: https://innovareacademics.in/journals/index.php/ijcpr

INTRODUCTION

Molecular docking is an attractive scaffold to understand drug biomolecular interactions for the rational drug design and discovery, as well as in the mechanistic study by placing a molecule (ligand) into the preferred binding site of the target-specific region of the DNA/protein (receptor) mainly in a non-covalent fashion to form a stable complex of potential efficacy and more specificity. The information obtained from the docking technique can be used to suggest the binding energy, free energy, and stability of complexes. At present, a docking technique is utilized to predict the tentative binding parameters of the ligand-receptor complex. The main objective of molecular docking is to attain a ligand-receptor complex with optimized conformation and to possess less binding free energy [1, 2].

A sulfonamide is a functional group (a part of a molecule) that is the basis of several groups of drugs, which are called sulphonamides, sulfa drugs, or sulpha drugs. The original antibacterial sulfonamides are synthetic (non-antibiotic) antimicrobial agents that contain the sulfonamide group. Some sulfonamides are also devoid of antibacterial activity, e. g., the anticonvulsant sultiame. The sulfonylureas and thiazide diuretics are newer drug groups based upon the antibacterial sulphonamides [3].

The discovery of sulphonamide diuretic i. e, thiazide diuretics in 1957-58 was the beginning of a new era in the treatment of edema and hypertension. In general, diuretics such as carbonic anhydrase inhibitors, thiazides, and loop diuretics are sulfonamide compounds. Loop diuretics are considered safer and high ceiling diuretics. Their efficacy has a linear relationship with their doses, to the contrary of thiazides which are low-ceiling diuretics. These properties can be attributed to the reason that the sulphonamide derivative shows diuretic activity [4, 5].

Thiazides are sulfonamide-related organic acids that are secreted into the proximal tubule by an organic secretory mechanism.

MATERIALS AND METHODS

The various kind of software which are used. Marvin sketch is used to design 2D and 3D structures of molecules as described in table 1. Molinspiration property calculatorb is used to determine the physicochemical property predictions. Arguslab It is used for docking study of the designed molecule.

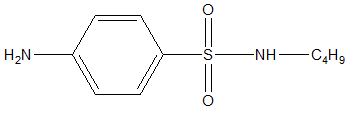

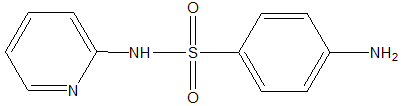

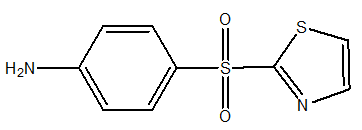

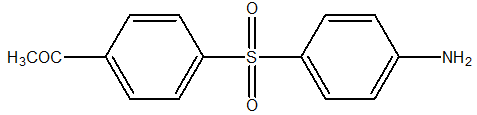

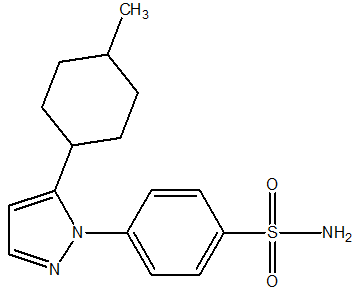

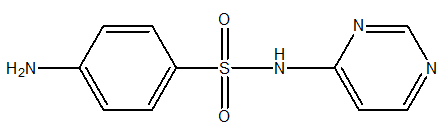

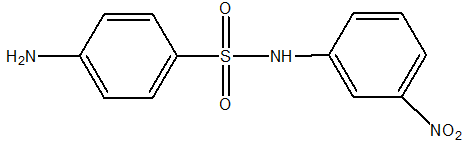

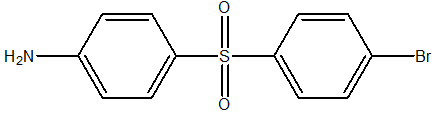

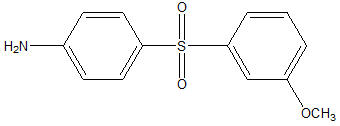

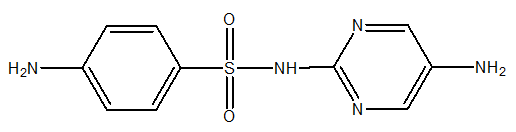

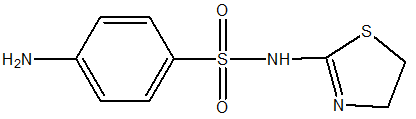

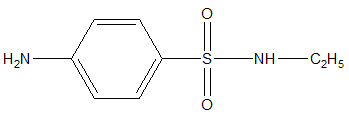

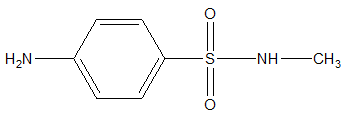

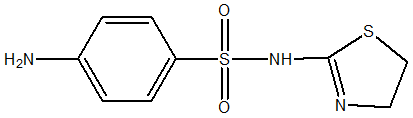

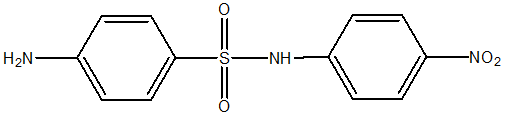

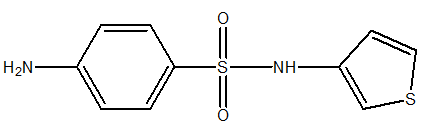

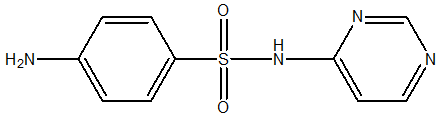

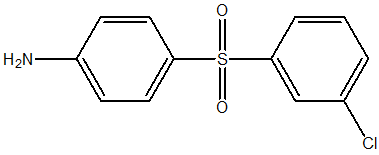

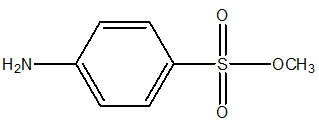

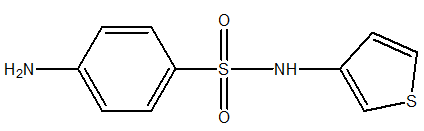

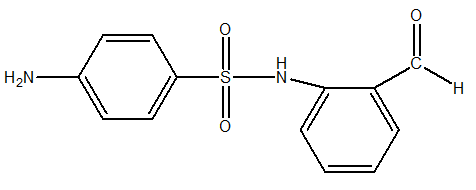

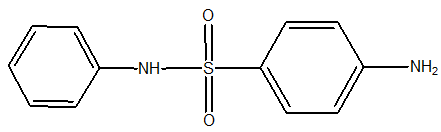

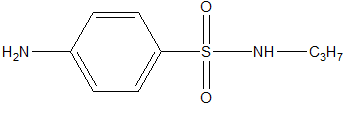

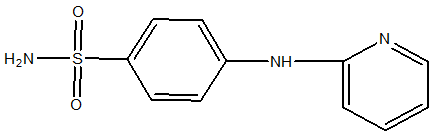

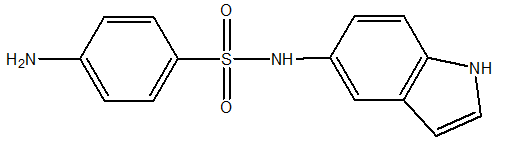

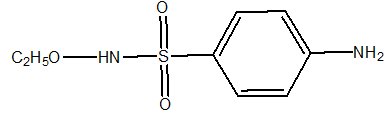

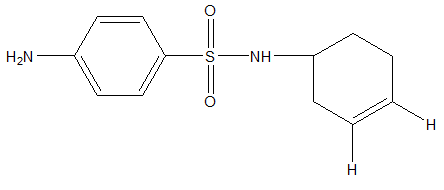

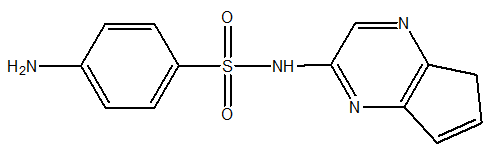

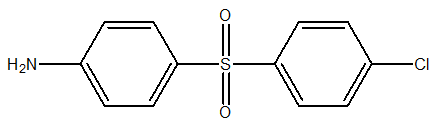

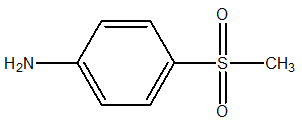

Table 1: Molecule and the structure

Molecule Structures
S1A
S1B
S1C
S1D
S1E
S1F
S1G
S1H
S1I
S1J
S1K
S1L
S1M
S1N
S1O
S1P
S1Q
S1R
S1S
S1T
S1U
S1V
S1W
S1X
S1Y
S1Z
S1Zi
S1Zii
S1Ziii
S1Ziv

Lipinski's rule of five also known as Pfizer's rule of five or simply the Rule of five (RO5) is a rule of thumb to evaluate drug-likeness or determine if a chemical compound with a certain pharmacological or biological activity has properties that would make it a likely orally active drug in humans [6, 7]. Here in the present study, a java-based online platform (molinspiration property calculator) was used to calculate the molecular properties like lipophilicity (miLogP), Total Polar Surface Area (TPSA), No of atoms, Molecular Weight(MW), No. of Oxygen and Nitrogen, No. of OH and NH, and the number of rotatable bonds were predicted.

Table 2: Predicted physicochemical properties of designed molecules

Molecule mi LogP No. of atoms M. W. No. of O and N No. of OH and NH No. of violations
S1A 1.67 19 273.31 4 2 0
S1B 1.51 20 285.32 4 2 0
S1C 0.20 15 226.26 5 3 0
S1D 1.72 17 249.29 5 3 0
S1E 1.37 16 254.34 4 3 0
S1F 0.92 16 238.27 5 3 0
S1G -0.34 12 181.22 3 2 0
S1H -0.02 17 250.28 6 3 0
S1I 1.62 18 257.31 3 2 0
S1J 2.53 17 267.74 3 2 0
S1K 1.71 20 293.30 7 3 0
S1L 1.52 19 276.32 5 3 0
S1M 2.67 17 312.19 3 2 0
S1N 0.06 13 197.22 4 2 0
S1O 1.74 20 293.30 7 3 0
S1P 0.38 16 257.34 5 3 0
S1Q 0.85 18 263.32 5 5 0
S1R 2.04 23 329.43 5 2 0
S1S 1.98 20 287.34 5 4 0
S1T 2.51 17 267.74 3 2 0
S1U 1.07 15 240.31 4 2 0
S1V 1.26 20 288.33 6 3 0
S1W -0.20 18 265.30 7 5 0
S1X 1.78 17 248.31 4 3 0
S1Y 0.88 17 249.29 5 3 0
S1Z 1.50 17 252.34 4 3 0
S1Zi -0.14 13 196.23 4 3 0
S1Zii 0.24 14 210.26 4 3 0
S1Ziii 0.51 15 224.28 4 3 0
S1Ziv 0.78 16 238.31 4 3 0

Cut off values: miLogP: 5, TPSA: 400 c Å, MW: 500 Dalton, No of O, N: 10, No of OH, NH: 5, Volume: 800 c Å.

Receptor preparation and washing

A structure of sulfonamide drug complexed with human carbonic anhydrase I (PDB entry code: 1AZM) was obtained from a protein data bank provided by www. rcsb. org. Water molecules were removed and ligand and cofactors were allowed to retain. Protein was cleaned to remove any extra conformation and the binding site was analyzed. Finally, the protein was prepared according to the requirements of the docking protocol [8].

Structures of the designed ligands were prepared by the Marvin sketch tool as supported by Sanjeevani online program [9]. Then the 3D structures of the ligands were imported to the Arguslab workplace and energy minimization was done by adding hydrogens and CharmM forcefield. Further possible ligand conformations were generated by considering an in silico PH of 7-7.4 [10, 11].

Docking

Prepared Ligand was then docked at the active site of the enzyme protein using dock a ligand protocol keeping full flexibility of both the ligand and the protein [12, 13]. A greed consideration of 0.4 Å was applied while docking and the binding energy of the best pose were recorded [14]. Further binding pose of the ligand was refined and the number of hydrogen bonds formed and the amino acid responsible for individual hydrogen bonds was determined [15, 16].

Table 3: Binding energy of docked molecules

Molecule (-) Binding energy kcal/mol
S1A 9.85
S1P 9.32
S1H 9.10
S1F 9.09
S1K 9.04
S1W 9.02
S1N 8.90
S1C 8.87
S1G 8.80
S1M 8.79
S1I .70
S1J 8.69
S1T 8.69
S1B 8.55
S1Z 8.53
S1X 8.50
S1Y 8.49
S1Zi 8.44
S1Zii 8.33
S1Q 8.32
S1Ziv 8.24
S1E 8.24
S1S 8.05
S1U 8.02
S1Ziii 7.79
S1D 7.28
S1L _
S1O _
S1R _
S1V _

RESULTS AND DISCUSSION

The present study results in a systematic and rational plan of work that was carried out to overcome the different problems of the classical approach of drug discovery. Among the 30 different molecules designed, 5 molecules were found to have a very good affinity towards the target protein as shown in fig. 1 to fig. 5. The binding pose of the 5 probable active molecules is depicted below.

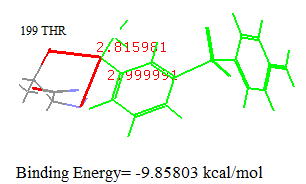

Fig. 1: Binding pose of S1A

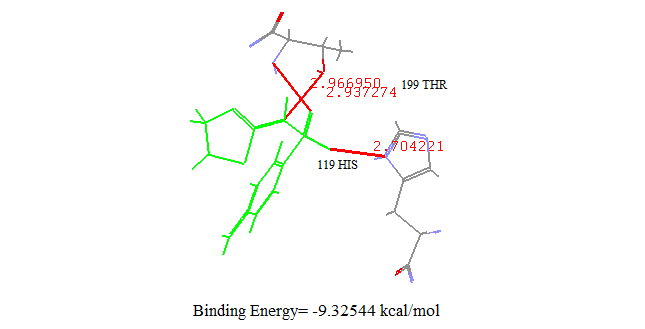

Fig. 2: Binding pose of S1P

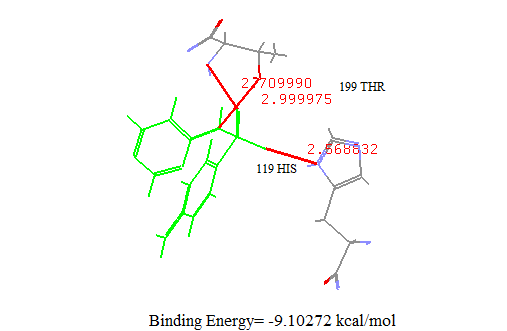

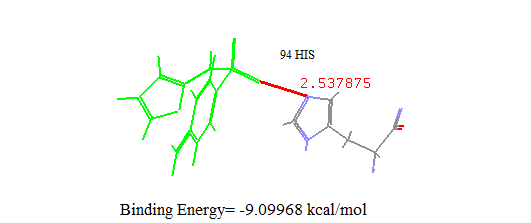

Fig. 3: Binding pose of S1H

Fig. 4: Binding pose of S1F

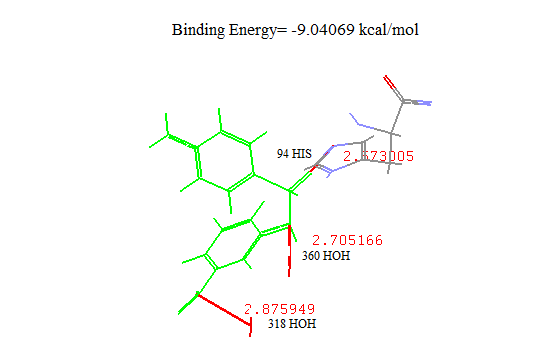

Binding energy =-9.04069 kcal/mol

Fig. 5: Binding pose of S1K

CONCLUSION

In the present study, an effort was made to find out some novel and potent sulfonamide derivatives as diuretic agents. Arguslab, a free to user software was used to dock the designed molecules at the enzyme active site. The three-dimensional enzyme (Carbonic anhydrase I) with PDB ID 1AZM was downloaded from https://www. rcsb. org and used for the docking studies. All the molecules were also screened through a preliminary property filter (Molinspiration Property Calculator), where certain molecular properties like Molecular Weight, LogP value, No of Hydrogen Bond Donor, No of Hydrogen Bond Acceptor, TPSA, and No of Atoms were calculated. These molecular properties define if a molecule can be orally active in our body.

Out of 30 designed molecules, five designed molecules viz. S1A, S1P, S1H, S1F, and S1K were found to be active and can be used for further studies.
