*1,2,5Department of Pharmaceutical Analysis, RBVRR Women's College of Pharmacy, Barkatpura, Hyderabad 500027, India, 3Pharmaceutical Analysis, Department of Pharmacy, University College of Technology, Osmania University, Hyderabad 500007, Telangana, India, 4Principal, Mother Teresa College of Pharmacy, NFC Nagar, Ghatkesar, Medchal (Dist), Hyderabad, TS, India
*Email: [email protected]
Received: 05 Nov 2021, Revised and Accepted: 10 Jan 2022
Objective: To develop simple, accurate, precise UV Spectrophotometric method for the simultaneous estimation of Sitagliptin and Metformin in tablet dosage form.
Methodols: The method is based on the determination of Sitagliptin and Metformin in tablet using simultaneous equation method. Sitagliptin exhibits maximum absorbance at 267 and Metformin exhibits maximum absorbance at 237 nm using distilled water as diluents.
Results: The calibration curve was linear in the range of 10-300 µg/ml for Sitagliptin and 4-14µg/ml for Metformin. The %RSD were within the limit i.e., less than 2%. The % recovery of the proposed method was found to be 97.12-99.46% for Sitagliptin and 98.15-99.85% for Metformin. The LOD of the proposed method was 0.397μg/ml for Sitagliptin and 0.8952µg/ml for Metformin. The LOQ was 1.2951μg/ml for Sitagliptin and 2.7159μg/ml for Metformin.
Conclusion: A simple, accurate, precise UV Spectrophotometric method for the simultaneous estimation of Sitagliptin and Metformin in tablet dosage form.
Keywords: UV Spectrophotometric method, Sitagliptin, Metformin, simultaneous estimation
© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijcpr.2022v14i2.1963 Journal homepage: https://innovareacademics.in/journals/index.php/ijcpr
Sitagliptin is chemically (R)-4-oxo-4-[3-(trifluoromethyl)-5,6-dihydro [1,2,4] triazolo [4,3-a]pyrazin-7(8H)-yl]-1-(2,4,5-trifluorophenyl) butan-2-amine . It is an oral dipeptidyl peptidase-4 (DPP-4) inhibitor used in conjunction with diet and exercise to improve glycemic control in patients with type 2 diabetes mellitus. Sitagliptin inhibits DPP-4 which leads to increased levels of glucagon-like peptide-1 (GLP-1) and glucose-dependent insulinotropic polypeptide (GIP), decreased levels of glucagon, and a stronger insulin response to glucose. This enzyme splits the incretins GLP-1 and GIP, gastrointestinal hormones released in response to a meal .

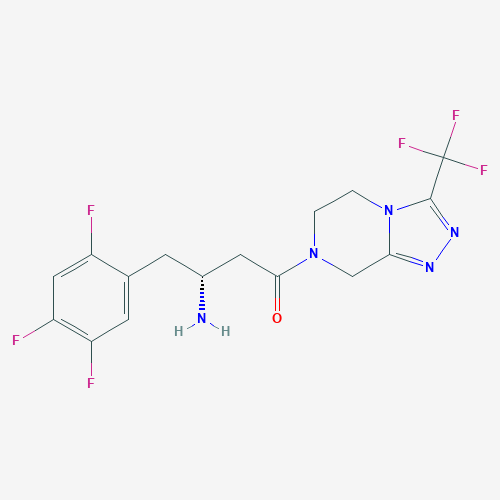

Fig. 1: Sitagliptin phosphate
Metformin is chemically, 1, 1-dimethyl biguanide hydrochloride . Metformin is an antihyperglycemic agent of the biguanide class, used for the management of type II diabetes. It is a first line agent for the treatment of type 2 diabetes that can be used alone or in combination with sulfonylureas, thiazolidinediones, incretin-based drugs, sodium glucose cotransporter-2 inhibitors, or other hypoglycemic agents. Metformin is considered an antihyperglycemic drug because it lowers blood glucose concentrations in type II diabetes without causing hypoglycemia. Metformin is commonly described as an insulin sensitizer leading to a decrease in insulin resistance and a clinically significant reduction of plasma fasting insulin levels. Bio analytical, HPLC, HPTLC and UV-visible spectrophotometry methods have been reported for its individual determination of Metformin and in combination with other drugs [4-7].
Fig. 2: Metformin hydrochloride
Sitagliptin Phosphate and Metformin Hydrochloride are available in combined dosage forms as film coated tablets (JANUMET). Each tablet contains 50 mg of Sitagliptin Phosphate and 500 mg of Metformin Hydrochloride. The combination of Metformin and sitagliptin has been shown to be safe, effective and well-tolerated treatment for type II diabetes .
Chemicals and reagents
Sitagliptin and Metformin hydrochloride API was gifted by pharma company, Hyderabad, Telangana, India. The marketed formulation, JANUMET 50 mg/500 mg was procured from the local market, distilled water.
Double beam UV spectrophotometer; Model: SL 210; Make: ELICO. The output signal was checked and the acquisition and integration of data was performed using spectral treats Software on a computer. Contech electronic balance and labline sonicator was used during the experimentation.
Preparation of sitagliptin standard stock solution
10 mg of Sitagliptin was accurately weighed and transferred into 10 ml of volumetric flask and the volume was made up to the mark with distilled water to obtain the concentration of 1000µg/ml.
Preparation of metformin hydrochloride standard stock solution
10 mg of Metformin hydrochloride was accurately weighed and transferred into 10 ml of volumetric flask and the volume was made up to the mark with distilled water to obtain the concentration of 1000µg/ml.
Determination of λmax
10µg/ml solution of Sitagliptin and Metformin hydrochloride were prepared from the standard stock solution and scanned in the range of 200-400 nm. Sitagliptin and Metformin hydrochloride showed maximum absorbance at 267 nm and 237 nm respectively.
Validation is the process of “establishing documented evidence” which provides high degree of assurance that a specific activity will consistently produce desired results or product meeting its predetermined specifications and quality specifications.
From the standard stock solution of Sitagliptin pipette out 0.1-3μg/ml to obtain the concentration of 10-300μg/ml.
From the standard stock solution of Metformin pipette out 0.04-0.14μg/ml to obtain the concentration of 4-14μg/ml.

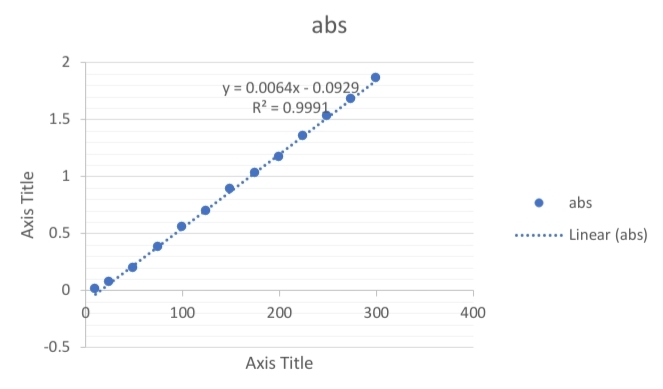

Fig. 4: Calibration curve of sitagliptin
Table 1: Results of quantitative determination of sitagliptin
|1.||Absorbance maximum (nm)||267|
|2.||Linearity and range (μg/ml)||10-300μg/ml|

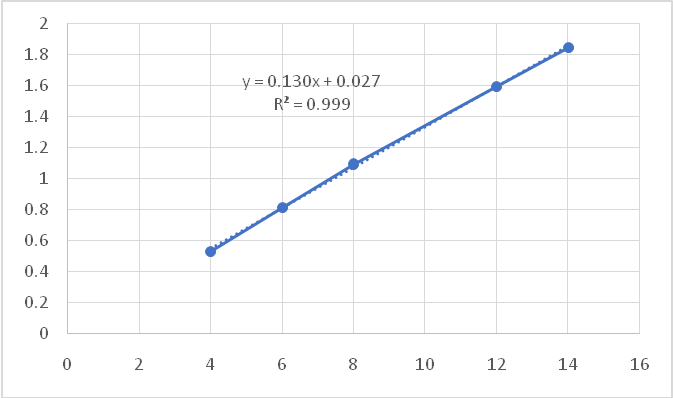

Fig. 5: Calibration curve of metformin
Table 2: Results of quantitative determination of metformin
|1.||Absorbance maximum (nm)||237|
|2.||Linearity and range (μg/ml)||4-14μg/ml|
The precision of the proposed method was estimated in terms of inter-day and intra-day precision wherein the standard solution was observed for 6 times respectively. The results shown below indicating %RSD of less than 2% each level clearly indicate that the proposed method was precise enough for the analysis of drug.
% RSD = (SD of measurement/mean value of measurement) x 100
Table 3: Results of sitagliptin precision studies
|Concentration||Intra-day precision (%RSD)||Inter-day precision (%RSD) Day 1 D 2|
Table 3a: Results of metformin precision studies
|Concentration||Intra-day precision (%RSD)||
Inter-day precision (%RSD)
The accuracy of the method was determined by performing recovery studies by spiking standard solution to that of sample solution at three different levels i.e., 50%, 100%, 150% was injected.
The robustness of an analytical procedure is a measure of its capacity to remain unaffected by small, but deliberate variations in method parameters and provides an indication of its reliability during normal usage.
The ruggedness of the proposed method was evaluated by varying conditions different analyst and different instrument (“ELICO SL 210" and "SYSTRONIC 2203"). The %RSD was calculated. The low values of %RSD obtained by changing the conditions indicates that the method was rugged and the results were presented below.
Table 4: Results of sitagliptin accuracy studies
|Level||Amount of standard added (μg/ml)||Pre-analysed sample (μg/ml)||% Recovery|
Table 4a: Results of Metformin accuracy studies
|Level||Amount of standard Added (μg/ml)||Pre-analysed sample (μg/ml)||% Recovery|
Table 5: Results of sitagliptin robustness
Table 5a: Results of metformin robustness
Table 6: Results of sitagliptin ruggedness
Table 6a: Results of metformin ruggedness
Limit of detection: DL= 3.3*σ/S
Where σ = the standard deviation of the response S = the slope of the calibration curves the slope S may be estimated from the calibration curve of the analyte.
Table 7: Results of LOD
Limit of quantification
L. O. Q=10 σ/S
Where σ = the standard deviation of the response
S = the slope of the calibration curves the slope S may be estimated from the calibration curve of the analyte.
Table 8: Results of LOQ
Five tablets were accurately weighed and the average weight was determined. Then the tablets were grounded to a fine powder using clean and dry pestle and mortar. A quantity equivalent to 5 mgof Sitagliptin and 50 mg of Metformin was transferred to a 500 ml volumetric flask and dissolved in insufficient water. The contents were Ultra-Sonicated for 15 min and made up to the volume to obtain the concentration of 100µg/ml and filtered through Whatmann filter paper. Absorbance of these solutions was measured at 267 nm and 237 nm, and concentration of Sitagliptin and Metformin in the sample solution was determined using following equation:
Cx = A2ay2-A1ay2/ax2ay1-ax1ay2
Where CX and Cy are the concentration of Sitagliptin and Metformin respectively, ax1 and ax2 are the absorptivity values of Sitagliptin at 267 and 237 nm respectively, ay1 and ay2 are the absorptivity values of Metformin at 267 and 237 nm respectively. A1 and A2 are the absorbances of diluted sample at 267 and 237 nm respectively.
Cx = A2ay2-A1ay2/ax2ay1-ax1ay2
= 1.6476 μg/ml
Cy = A1ax2-A2ax1/ax2ay1-ax1ay2
= 9.9184 μg/ml
Table 9: Simultaneous data sitagliptin and metformin
|Absorbance maxima λ 1 (267)||Absorbance maxima λ (237)|
|Janumet 50 mg/500 mg||0.5060(A1)||0.5020(A2)|
|Absorbance of sitagliptin||1.389||0.0227|
|Absorbance of metformin HCl||0.0446||0.2491|
|Absorptivity of sitagliptin||0.1389(ax1)||0.00227(ax2)|
|Absorptivity of metformin||0.00249(ay1)||0.00446(ay2)|
A simple and selective Spectrophotometric method was developed for the simultaneous estimation of Sitagliptin and Metformin in pharmaceutical dosage form. The developed method was validated as per ICH guidelines.
I want to acknowledge our beloved principal Prof. M. Sumakanth RBVRR women’s college of pharmacy for giving me the opportunity for performing the research work.
All the authors have contributed equally.
Arige SS, Arige SD, Lakshmana Rao A. Development and validation of sitagliptin and simvastatin tablets by using RP-HPLC method. Int J Appl Pharm Sci. 2017;4(1):36-43.
Kamlesh G, Tripathi CD, Kumar S. J Assoc Phys India. September 2013;61:645-9.
MS, DS, CP, BS, CM. Method development and validation of metformin, glimepiride and pioglitazone in tablet dosage form by RP-HPLC. Int Res J Pharm. 2013;4(8):250-4. doi: 10.7897/2230-8407.04850.
Kolte BL, Raut BB, Deo AA, Bagool MA, Shinde DB. Simultaneous determination of metformin in combination with rosiglitazone by reversed-phase liquid chromatography. J Chromatogr Sci. 2004;42(2):70-3. doi: 10.1093/chromsci/42.2.70.
Sahoo PK, Sharma R, Chaturvedi SC. Simultaneous e stimation of metformin hydrochloride and pioglitazone hydrochloride by RPHPLC method from combined tablet dosage form. Indian J Pharm Sci. 2010;70:383-6.
Jain D, Jain S. Simultaneous estimation of metformin hydrochloride, pioglitazone hydrochloride, and glimepiride by RP-HPL C in tablet formulation. Journal of Chromatographic Science. 2008;46(6):501-4.
Agrawal YK, Gogoi PJ, Manna K, Bhatt HG, Jain VK. A supercritical fluid chromatography/tandem mass spectrometry method for the simultaneous quantification of metformin and gliclazide in human plasma. Indian J Pharm Sci. 2010;72(1):50-7. doi: 10.4103/0250-474X.62231, PMID 20582190.
Nyola N, Jeyabalan GS. Method development of simultaneous estimation of sitagliptin and metformin hydrochloride in pure and tablet dosage form by UV–vis spectroscopy. World J Pharm Pharm Sci. 2012;1(4):1392-401.
