Int J Curr Pharm Res, Vol 14, Issue 3, 17-21Review Article


ALKAPTONURIA SYNDROME-A REVIEW

P. UJWALA RAMA CHANDRA, V. USHA RANI, G. SIREESHA DEVI, B. AMURUTHAVALLI, M. TRINADHA RAO

Department of Pharmacology, Adarsa College of Pharmacy, G. Kothapallli 5333285
Email: ujju1128@gmail.com

Received: 28 Aug 2022, Revised and Accepted: 10 Oct 2022

ABSTRACT

Alkaptonuria, also called endogenous ochronosis, and also called as Black Urine Disease, is a rare metabolic autosomal recessive disorder. It occurs by complete inhibition of homogentisic acid oxidase enzyme having its deposition in various tissues. Alkaptonuria is caused due to deficiency of homogentisic acid oxidase involved in the metabolism of tyrosine. Dark discolouration of urine, ochronosis at cartilage and connective tissues, arthritis at the third of fourth decade of life, renal stone disease, spontaneous tendon rupture etc. May be seen in alkaptonuria. Disease severity varies among individual patients, even between siblings, and increase with age because of homogentisic acid accumulation. Usually, life span is not shortened in AKU, but the quality of life is severely effected. Several studies have suggested that Nitisinone may be effective in the treatment of alkaptonuria. Characteristically, the excess HGA means sufferers pass dark urine, which upon standing turns black. This is a feature present from birth. Over time patients develop other manifestations of AKU, due to the deposition of HGA in collagenous tissues, namely ochronosis and ochronotic osteoarthropathy. Although this condition does not reduce life expectancy, it significantly affects the quality of life. The natural history of this condition is becoming better understood, despite gaps in knowledge. Clinical assessment of the condition has also improved along with the development of potentially disease-modifying therapy. Furthermore, recent developments in AKU research have to lead to new understanding of the disease, and further study of the AKU arthropathy has the potential to influence therapy in the management of osteoarthritis.

Keywords: Black urine disease, Rare disease, Ochronosis, Ochronotic pigment

© 2022 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijcpr.2022v14i6.2060 Journal homepage: https://innovareacademics.in/journals/index.php/ijcpr

INTRODUCTION

Alkaptonuria [AKU] [1], also known as ‘’BLACK URINE DISEASE’’, is a rare genetic inherited disorder that was first described by Sir Archibald Edward Garrod in 1902. He termed as an ‘inborn error of metabolism. AKU is an ancient disease; scientists have found evidence in the Egyptian mummy Harwa dates 1500 BC. However, the term alkaptonuria was used first time in1859 in a female patient who had a reducing compound detected in urine. Later this compound was identified as homogentisic acid. Alkaptonuria [AKU] is often considered an autosomal recessive condition with an estimated frequency ranging from 1:250,000 live births in the USA to 1:19,000 in Slovakia. Alkaptonuria is caused by mutation of homogentisate 1, 2-dioxygenase [HGD] gene Alkaptonuria prevents the body from fully breaking down two protein building blocks [amino acids] called tyrosine and phenylalanine. It results in a build-up of a chemical called homogentisic acid in the body. This can turn urine and parts of the body a dark colour and lead to a range of health problems over time. One of the earliest signs of the condition is dark-stained nappies, as homogentisic acid causes urine to turn black when exposed to air for a few hours.

The rare inherited disorder that occurs due to deficiency of homogentisic acid [HGA], resulting in the triad of dark-colored urine, ochronosis and ochronotic arthropathy. Alkaptonuria is a rare autosomal recessive disorder of inborn error of metabolism as a result of metabolism as a result of deficiency of the homogentisic acid oxidase enzyme. It was one of the first disorder in humans found to confirm with the principles of Mendalian recessive inheritance. It is a hereditary disorder [2] and results from absence of HGD gene, the enzyme predominantly produced by hepatocytes the liver and kidney is responsible for the breakdown of homogentisic acid [HGA] an intermediate in tyrosine degradation pathway. It is a very rare disease with a prevalence of alkaptonuria is 1 per 100,000 to 250, 000. The prevalence of the disease in the United States is 1case in one million population. The major features of alkaptonuria are the presence of dark urine, an ochronosis-a buildup of dark pigment in connective tissues such as cartilage, skin and arthritis of the spine and larger joints. Other features of this condition can include heart problems, kidney stones and prostate stones. Symptoms usually develop in people over 30 y old, although the dark discoloration of the urine is present from birth. It occurs in one in 250,000 people but is more common in Slovakia and Dominican Republic.

It is a classic example of a rare monogenic autosomal recessive disease characterized by high circulating homogentisic acid [HGA]

1. In AKU, mutations of a gene coding for homogentisate dioxygenase

2. Cause a block in the metabolism of tyrosine

3. Accumulation of HGA, leading to a painful multisystemic disease

Normally from birth, homogentisic aciduria can be observed in patients, which manifests by darkening of the urine upon standing. Other related symptoms like ocronosis of collagenous tissue and severe ochronotic. Disease severity varies among individual patients, even between siblings and increases with age because of ongoing HGA accumulation. Usually, lifespan is not shortened in AKU, but the quality of life is severely affected, mainly due to the painful destruction of joints, as their mechanical properties are altered due to ochronosis. The rare inherited genetic disease caused by a mutation in HGD gene, if a person inherits an abnormal copy from both parents [it is a recessive condition], the body accumulates an intermediate substance called homogentisic acid in the blood and tissues. Homogentisic acid and it’s oxidized from alkapton are excreted in the urine, giving it an unusual dark colour.

Genetic basis of alkaptonuria

1. Homogentisic acid [HGA] and its oxidized product benzoquinone acetic acid [BQA], commonly known as ‘alkapton’ [3] are excreted in ‘urine’-hence the name Alkaptonuria.

2. In this condition, the patient’s urine exhibits a characteristic black colour upon exposure to air.

3. Alkaptonuria is inherited as an autosomal recessive trait characteristic.

4. Recessive genetic disorders occurs when a person inherits the same abnormal gene for the same trait for both parents. This means that in order to get the disease, both parents must have a copy of the defective gene, which in this case is the HGD gene.

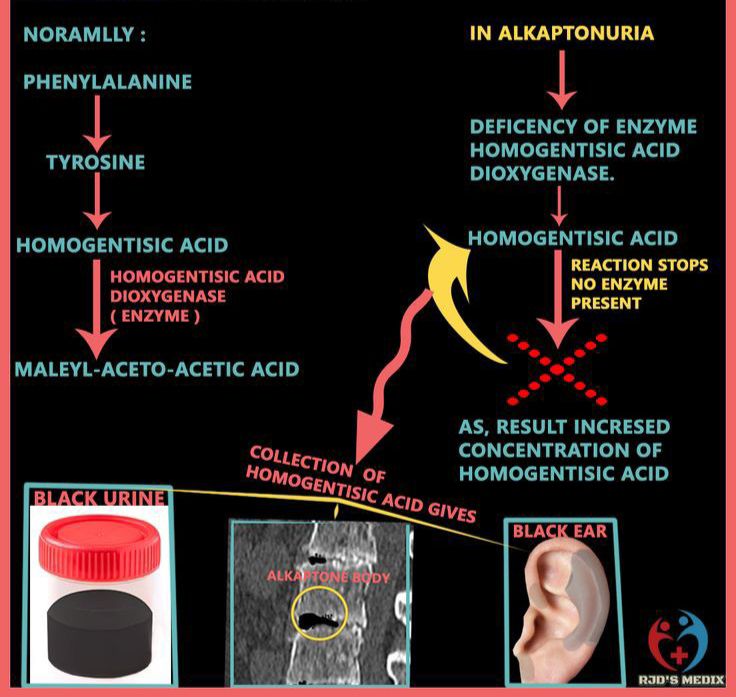

Fig. 1: Alkaptonuria, genetic disorder effecting metabolic pathway of amino acid

History

The name Alkaptonuria is derived from the Arabic word ‘Alkali’ [meaning alkali] and the Greek word meaning ‘to suck up oxygen greedily in alkali’. The name was created by Boedeker [4] in 1859 after he discovered unusual reduring properties in the urine of the patient. Garrods use of AKU in the croonian lectures brought the condition into the spotlight in 1908, yet many descriptions of the triad of features associated with AKU, and documentation of this condition began in the 16th and 17th centuries. The earliest clinical case of AKU was found in the Egyptian mummy Harwa, which is belived to date back as far as 1500BC.

Ochronosis was first described and named by Virchow in 1866, because, under microscopy, the HGA pigment was approved to be ochere [yellow/black] in colour.

How alkaptonuria is inherited

Each cell in the body contains 23 pair of chromosomes. These carry the genes that inherit from your parents. One of each pair of chromosomes is inherited from each parent, which means [exception of sex chromosomes] there are two copies of each gene in each cell. The gene involved in alkaptonuria in HGD gene. This provides instructions for making an enzyme called homogentisate oxidase, which is needed to break down homogentisic acid. When they need to inherit two copies of the faulty HGD gene [one from each parent] to develop alkaptonuria. The chances of this are slim, which is why the condition is rare. The parents of a person with alkaptonuria will often only carry one copy of the faulty gene themselves, which means that they will not have any signs/symptoms of the condition.

Diagnosis

The diagnosis of alkaptonuria is made upon the identification of characteristic symptoms, a detailed patient history through clinical evaluation and specialized tests. Identification of vastly elevated levels of homogentisic acid in the urine is indicative of alkaptonuria. Alkaptonuria should be suspected in individuals with dark urine, it may be advisable to rule out the disorder for all individuals with osteoarthritis, especially those with an early onset of symptoms. Testing of a urine sample for the presence or absence of HGA is the gold standard for confirmation of the diagnosis. Urine colour change upon alkalinisation is unpredictable and not specific for AKU. Chromatographic techniques [6] are necessary to reliably confirm the presence of HGA. Measurement of HGA in random urine is sufficient for establishing diagnosis of AKU. Genetic diagnosis would determine whether patients are homozygous/compound heterozygote’s, in addition they could facilitate family counseling especially in area of high prevalence. Family history is important while diagnosis of alkaptonuria.

Fig. 2: The reaction of urine on alkalinization

Laboratory diagnosis

1. The urine test for HGA is the standard gold test to diagnose alkaptonuria. The amount of homogentisic acid in the 24 h urine is detected via gas. Chromatography–mass spectrometry [GC-MS] [7] analysis. The amount of HGA excreted each day in patients with AKU is usually between1and 8 grams. The changes in urine color are non-specific.

2. Molecular genetic testing can identify the bialleic abnormalities in HGD and other mutation that can help in family counselling.

3. Various imaging modalities like CT scan or MRI help in assessing the severity of joint involvement.

4. 2D-Echocardiography [8] can detect valvular abnormalities.

5. CT Angiogram can detect calcification of coronary vessels.

Etiology

Homogentisate 1, 2 dioxygenase [HGD] expresses in various tissues in the body such as the kidney, liver, small intestine. HGD plays an important role in the tyrosine pathway [9] by converting homogentisic acid [HGA] to maleylacetoacetate. HGD is a 445 amino based protein mapped to chromosome 3q13.33. Mutation in the HGD gene leads to a deficiency of the HGD enzyme resulting in the accumulation of homogentisic acid [HGD].

These mutations occur in specific parts of the exons. The normal HGD has a six-subunit called a hexamer arranged in two trimer, each containing an iron atom. Various mutations may affect the function, structure, or solubility of HGD. Rarely this genetic disorder can be inherited in an autosomal dominant manner; other defects in other genes probably are responsible in these cases.

Epidemiology

Alkaponuria is a rare disease with worldwide [10] prevalence. The global prevalence of alkaptonuria is 1 per 100,000 to 250,000. The prevalence of the disease in the United States is 1 case in one million populations According to the AKU society and the Develop AKU are consortium, the number of alkaptonuria patients in the U. S. is 92. it is mainly reported in the African population. The disease affects both men and women equally, although the disease severity is more in men.

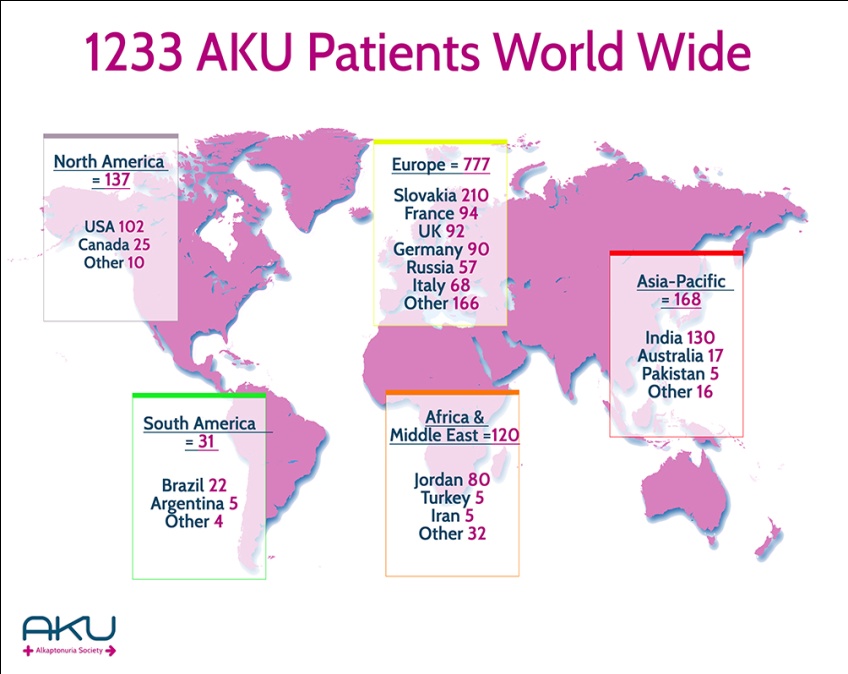

Fig. 3: Alkaptonuria worldwide prevalence

Pathophysiology

The homogentisic acid oxidase is involved in the metabolism of the tyrosine and phenlalanine. Tyrosine is mainly necessary for specific functions, such as melanin, hormone and several protein, but the most majority is unused and finally generate acetoacetate and malate in AKU; the HGD cannot form 4-maleylacetoacetate [11] from homogentisic acid in the, therefore, the level of homogentisic acid in the blood will rise 100 times than normal, even through the kidneys eliminate a plentiful amount. The HGD converts to benzoquinone acetic acid, which produce polymers that match the skin pigment melanin. These accumulation is called ochronosis. Ochronotic pigment deposits bind to connective tissues [12] of various organs leading to the destruction of joints, valves, and intima of vessels. The pathological effects of ochronosis include arthritis, increased incidence of renal, prostatic, gall bladder stone, ruptures of muscle, tendons, and ligaments.

Histopathology

Histopathology examination shows heperkeratosis, hypergranulosis with fibro-elastic degeneration of collagen. Increased levels of homogentisic acid [HGA] shows intracelluar and extracellular ochronotic pigmentation on electron microscopy [13].

Clinical features

AKU has three distinct clinical features-homogentisic aciduria, ochronosis and ochronotic osteoarthropathy [14]. Each feature is present at various stages in life; the earliest detection is HGA in urine. The passing of black urine is the only manifestation of the condition known is pediatrics, leading to 21% of patients being diagnosed with it before one year of age. HGA plasma levels in AKU suffers range between 0.018-0.165 mm [15] in comparison to non-AKU suffers plasma levels of 0.014-0.071 mm. The darkening of urine occurs because the HGA pigment oxidizes to Benzoquinone acetate [BQA], which forms a melanin-like polymer that slowly turns urine black. Ochronosis develops as the BQA [16] accumulates both intra and extra-cellularly in connective tissue. This feature is commonly observed in the third to fourth decades of life.

Causes

Alkaptonuria is caused by a mutation of the homogentisate 1, 2-dioxygenase (HGD) gene. The HGD gene contains instructions for creating (encoding) an enzyme known as homogentisate 1, 2-dioxygenase. This enzyme is essential for the breakdown of homogentisic acid. Mutations [17] of the HGD gene result in deficient levels of functional homogentisate 1, 2-dioxygenase, which, in turn, leads to excess levels of homogentisic acid. Although homogentisic acid is rapidly cleared from the body by the kidneys, it also slowly accumulates in the various tissues of the body, especially connective tissue such as cartilage. Over time (rarely before adulthood), it eventually changes the colour of the affected tissue to a slate blue or black. Long-term, chronic accumulation of homogentisic acid eventually weakens and damages affected tissue and leads to many of the characteristic symptoms of alkaptonuria.

Alkaptonuria is inherited as an autosomal recessive trait. Recessive genetic disorders occur when an individual inherits the same abnormal gene for the same trait from each parent. If an individual receives one normal gene and one gene for the disease, the person will be a carrier for the disease but usually will not show symptoms. The risk for two carrier parents to both pass the defective gene and, therefore, have an affected child is 25 percent with each pregnancy. The risk to have a child who is a carrier like the parents is 50 percent with each pregnancy. The chance for a child to receive normal genes from both parents and be genetically normal for that particular trait is 25 percent. The risk is the same for males and females.

The Causes of black urine could be food, few, health conditions and consumption of medicines. Some of the major causes are:

Food-related changes

If the change in your urine colour is due to food, it is not a cause for concern, as once you avoid consuming that particular food, the colour of urine returns to normal often, if the reason is food, you would have consumed a considerable portion of food that may have reacted chemically with your urine [18], causing the dark brown/black clour of urine.

Medicines

When food/medicines are the causes of black urine, you may consider avoiding the use of that particular food/using alternative medicine. However, if they are not the cause, then certain underlying health conditions such as alkaptonuria

Alkaptonuria

In this condition, due to some mutations in the HGD gene, the normal functioning of the enzyme homogentisate 1, 2-dioxygenase is hindered. As a result, an intermediate product namely homogentisic acid gets, accumulated in the blood and tissues. Homogentisic acid and it’s oxidized from alkapton [19] are excreted through urine, which makes the color of urine black.

Affected population

Alkaptonuria affects males and females in equal numbers, although symptoms tend to develop sooner and become more severe in males. More than 1,000 affected individuals have been reported in the medical literature. The exact incidence of alkaptonuria is unknown. In the United States it is estimated to occur in 1 in 250,000-1,000,000 live births [20]. Alkaptonuria has been reported in all ethnic groups. Areas with increased frequencies of the disorder have been identified in Slovakia, the Dominican Republic and Germany.

Signs and symptoms

There are several symptoms and signs of alkaptonuria, which are briefly highlighted below:

In some cases calcification of the coronary blood vessels may also occur

Dark stains on a baby’s diaper are one of the earliest sign of alkaptonuria.

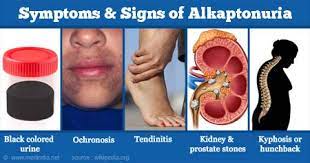

Fig. 4: Symptoms of alkaptonuria

Treatment

No treatment modality has been unequivocally demonstrated to reduce the complications of alkaptonuria. Main treatment attempts have focused on preventing ochronosis through the reduction of accumulating homogentisic acid. Alkaptonuria is a lifelong condition–there's currently no specific treatment or cure. However, a medicine called nitisinone [26] has shown some promise, and painkillers and lifestyle changes may help you cope with the symptoms.

There are very few options for the treatment of alkaptonuria. Since there are currently no licensed medicines for alkaptonuria, the main focus is providing symptomatic relief [27], preventive measures, and supportive care. Some of the treatment strategies are briefly highlighted below

Case report

Male patient [32], 52 y old, sought medical assistance complaining about the progressive appearance of hyperchromic papules on the lateral edge of the second finger of both hands for a period of 2 y. He also complained about the darkening of urine, sperm and underwear for 20 y with recent worsening. He is obese and hypertensive, currently using enalapril. He already underwent some orthopedic procedures, such as: knee arthroscopy, lumbar spine arthrodesis and Achilles tendon tenorrhaphy two, eight and fifteen years ago, respectively. According to his family history, his sister presented "Coca-Cola color" in her diapers, during early childhood. At the dermatological examination: grayish spot in the sclera, grayish blue papules on the bilateral extensor surface of the second finger, periurethral hyperpigmentation, generalized chromonychia. Radiography of vertebral column showed calcification of lower and lumbar intervertebral discs, reduction of disc spaces and posterior arthrodesis with a metal rod.

Fig. 5: Grayish spot in sclera

Fig. 6: Grayish blue papules in the extensor surface of second finger

Fig. 7: Radiography of vertebral column showing calcification of lower and lumbar thoracic intervertebral discs, reduction of disc spaces and posterior arthrodesis with steel rod

Radiography of the vertebral column showing calcification of lower and lumbar thoracic intervertebral discs, reduction of disc spaces and posterior arthrodesis with steel rod with the goal of clarifying the diagnosis an incisional biopsy of the second finger papule [33] was performed as well as test for homogentisic acid in the urine, which resulted positive.

Fig. 8: Hyperkeratosis, hypergranulosis, irregular acanthosis basophilic fibrilar elastotic degeneration of collagen in the upper dermis

Fig. 9: With greater magnification, degenerated and fractured collagen fibers with ochre pigment deposit in clusters is observed

The histopathological exam evidenced hyperkeratosis, hypergranulosis, irregular acanthosis, and basophilic fibrilar elastotic degeneration of collagen in the upper dermis. At higher m At higher magnification, fractured and degenerated collagen fibers with deposit of ochre pigment in clusters can be observed. Hyperkeratosis, hypergranulosis, irregular acanthosis, basophilic fibrilar elastotic degeneration of collagen in the upper dermis with greater magnification, degenerated and fractured collagen fibers with ochre pigment deposit in clusters is observed [fig. 9]. These findings were compatible, therefore, with endogenous ochronosis or alkaptonuria. Given these results, treatment with vitamin C 500 mg twice a day was started together with monitoring by other specialties such as orthopedics, ophthalmology and cardiology. The patient was advised to avoid diets rich in phenylalanine, tyrosine and protein.

13-year-old boy presented to paediatric nephrology clinic with blackish discoloration of urine since infancy. Examination revealed bluish black discoloration of bilateral sclera and ear cartilage; however, he had no symptoms of ochronotic osteoarthropathy. Genetic test pointed towards alkaptonuria. Currently, he is on regular follow-up and is being treated with vitamin C to delay the progression of the disease. Early diagnosis with appropriate intervention delays the onset of complications and preserves the quality of life of the patient.

CONCLUSION

Alkaptonutia is an inherited condition that causes urine to turn black when exposed to air. Another characteristics is the development of arthritis in adulthood which causes physiological, neurological and psychological effects. Early diagnosis, understanding of disease prognosis and emphasis on mental health could improve the Quality of life of patients affected by this rare disease.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTERESTS

Declared none
