Int J Curr Pharm Res, Vol 15, Issue 1, 30-41Original Article


DEVELOPMENT AND EVALUATION OF MICROSPONGE GEL OF AN ANTIFUNGAL DRUG

GUNASHEELA S., V. CHANDRAKALA, S. SRINIVASAN

Department of Pharmaceutics, East Point College of Pharmacy, Rajiv Gandhi University of Health Sciences, Bidarahalli, Bengaluru-49, Karnataka, India
Email: gunasheelasri99@gmail.com

Received: 13 Oct 2022, Revised and Accepted: 20 Dec 2022

ABSTRACT

Objective: The objective of the present study was to compare the release effect of Luliconazole from different polymeric (Hydrophilic and Hydrophobic) microsponges prepared using varying concentrations. The best microsponge was selected and incorporated into different gel (Natural and synthetic) and drug release is determined and compared with marketed formulation.

Methods: Polymers such as EC, HPMC, Eudragit RSPO and PVA as emulsifier, and solvent DCM is used as solvent. Microsponge were prepared by using the quasi emulsion solvent diffusion technique. FTIR was studied to estimate the incompatibility. Microsponges were evaluated for SEM, particle size, drug content, and In vitro diffusion studies. Optimized microsponge incorporated gel was prepared by using different gel (flax seed gel and Aerosil gel) were evaluated for pH, spreadability, extrudability, drug content and in vitro diffusion studies.

Results: Theresults obtainedshowed no physical-chemical incompatibility between the drug and the polymers. EC, HPMC and EC combination was found to be a suitable polymer compared to Eudragit RSPO and other combination in preparation of microsponge. From the evaluation of microsponge, the optimized F1 formulations was incorporated into different gel (flax seeds, aerosil) and compared with marketed formulation in which MG-I (flax seed gel) was considered as good topical anti-fungal microsponge gel based on there physical parameters and drug release kinetics.

Conclusion: Microsponge and microsponge gel were successfully prepared for Luliconazole and their evaluation studies of each dosage form revealed that topically applied microsponge gel possess immense potential to control the release rate of medicament to improve the bioavailability as well as patient compliance.

Keywords: EC, HPMC, Eudragit RSPO, Gel topical drug delivery

© 2023 The Authors. Published by Innovare Academic Sciences Pvt Ltd. This is an open access article under the CC BY license (https://creativecommons.org/licenses/by/4.0/)
DOI: https://dx.doi.org/10.22159/ijcpr.2023v15i1.2069 Journal homepage: https://innovareacademics.in/journals/index.php/ijcpr

INTRODUCTION

Microparticulate drug delivery system

Microparticles are small spherical entities with a diameter ranging from 1-1000m size range in the form of free-flowing powders. They are developed from different components as inorganic, polymeric and minerals [1]. In addition, MP’s can be exist in various structural design,for example, microgranules, micro pellets, microcapsules, microsponges, microemulsions, magnetic MP’s and lipid vesicles as liposomes and niosomes [2].

Porous materials can be classified according to their pore sizes: microporous materials (less than 2 nm), mesoporous materials (2–50 nm), macro-porous materials (50–200 nm), and giga-porous materials (more than 200 nm). The diversities in pore sizes meet requirements in many practical applications and are intensively studied for their promising virtues [3].

Microsponge drug delivery system

The Microsponges technology was developed by Won in 1987 and the original patents were assigned to advanced polymer system. This company developed a large number of variations of the technique and applied to the cosmetic as well as over the counter (OTC) and prescription pharmaceutical product. At present, this technology has been licensed to Cardinal Health, for use in topical products [4, 5].

The microsponges Delivery system (MDDS) is a polymeric system consisting of porous microspheres. They are tiny sponge like spherical particles that consist of a myriad of interconnecting voids within a non-collapsible structure with a large porous surface through which active ingredient are released in a controlled manner [6]. The size of the micro sponge’s ranges from 5-300 µm in diameter and a typical 25 µm sphere can have up to 250000 pores and an internal pore structure equivalent to 10 feet in length, providing a total pore volume of about 1 ml/g for extensive drug retention [7-13].

Fungal infection [14-18]

A fungal infection is also known as mycosis. Fungi are microorganisms characterized by a substance in their cell walls called chitin. Some fungi, like many types of mushrooms, are edible. Other types of fungi, like aspergillus, can be extremely dangerous and lead to life-threating diseases. Fungi reproduce by releasing spores that can be picked up by direct contact or even inhaled. The prevalence of fungal infections of the skin has increased rapidly, affecting around 40 million people in developing as well as under developed countries across the globe. Fungal infections can affect various parts of the body and thus, are, named accordingly. The etiological agents comprise of dermatophytes and yeast infections, involving Candidiasis and Pityriasis versicolor. In case of children, tinea capitis and tinea corporis are the most frequent type of fungal infections demonstrated; whereas in adults, tinea pedis and tinea versicolor are the prevalent form of infections. Candida species invade the deeper tissues and reach to the systemic circulations leading to life-threating systemic Candidiasis infection. Fungal infections (mycoses) can be both superficial and systemic. However, superficial mycosis of the skin is among the most commonly occurring human infectious disease observed in clinical practice. Superficial and systemic fungal infections have been treated well by both topical and systemic therapies.

The two classes of antifungal medications used most commonly to treat tinea cruris are the azoles and the Allylamines. Azoles inhibit the enzyme lanosterol 14-alpha-demethylase, an enzyme that converts lanosterol to ergosterol, which is an important component of the fungal cell wall. Membrane damage results in permeability problems and renders the fungus unable to reproduce. Allylamines inhibit squalene epoxidase, which is an enzyme that convertssqualene to ergosterol, resulting in the accumulation of toxic levels of squalene in the cell and cell death [19, 20].

MATERIALS AND METHODS

Materials

Drug luliconazole and polymers are (ethylcellulose, HPMC k15, eudragit RSPO), solvent (dichloromethane), emulsifier (PVA), preservative(sodium benzoate), gelling agents (aerosil,flaxseeds gel). Luliconazole was obtained by glenmark bangalore private limited as gift samples. All the excipients were of laboratory grade. Double distilled water was used throughtout the study. The microsponge were prepared by the quasi-emulsion solvent diffusion method.

Methods

Microsponges containing luliconazole were prepared by Quasi emulsion solvent diffusion method using ethyl cellulose, Hydroxy propyl methyl cellulose, eudragit RSPO as polymer. Internal organic phase was prepared by dissolving polymers like ethyl cellulose, Hydroxy propyl methyl cellulose, eudragit RSPO and drug in dichloromethane. External phase was prepared by PVA and 100 ml water and dissolved completely by using magnetic stirrer. The organic phase was added dropwise to the continuous stirring aqueous phase to form the discrete droplets at stirring speed 570rpm for 1hr. The solution was filtered in vacuum filter using Whatmann filter paper and dried for 24 h at room temperature and determine production yield [21-22].

Preparation of microsponge gel

Preparation of gel [23-24]

Flax seeds gel: (Natural gelling agent)

Aerosil gel: (Synthetic gelling agent)

Preparation of microsponge gel

50 mg of optimized microsponge was added to prepared each 3 % flaxseeds gel and 13 % of Aerosil gel (natural and synthetic) respectively.

Table 1: List of instruments and manufacturing company

S. No. Equipments Manufacturer
1 Magnetic stirrer Remi limited
2 Analytical Balance Sartorius
3 Vacuum filter Norge air filter 407
4 UV/Visible spectrophotometer ELICO Limited
5 FTIR Spectrophotometer Shimadzu-FTIR 410 Model
6 Hot air oven Inlab equipments
7 Franz Diffusion cell Fabricated
8 Dissolution apparatus Labinbia Ds 8000

Table 2: Composition of luliconazole microsponge

S. No. FR code Drug (mg) EC (mg) Eudragit RSPO (mg) HPMC (mg) DCM (ml) PVA (g) DIS water (ml)
1 F1(1:1) 250 250
- 5 0.1 100
2 F2(1:2) 250 500
5 0.1 100
3 F3(1:3) 250 750
5 0.1 100
4 F4(1:1) 250
250
5 0.1 100
5 F5(1:2) 250
500
5 0.1 100
6 F6(1:3) 250
750
5 0.1 100
7 F7(1:1:1) 250 250
250 5 0.1 100
8 F8(1:1:2) 250 500
250 5 0.1 100
9 F9(1:1:3) 250 750
250 5 0.1 100
10 F10(1:1:1) 250
250 250 5 0.1 100
11 F11(1:1:2) 250
500 250 5 0.1 100
12 F12(1:1:3) 250
750 250 5 0.1 100
13 F13(1:1:1) 250 250 250
5 0.1 100

Fig. 1: Image of microsponge in light microscope


a) Flaxseeds microsponge gel b) Aerosil microsponge gel

Fig. 2: Image of gel loaded with microsponge

Evaluation of luliconazole drug

Preformulation studies: [25]

Melting Point Determination [26]

Solubility [27]

Drug Excipient Compatibility Studies by FTIR [28]

Determination of λ max of luliconazole [29-31]

Preparation of stock solutions

Stock solution was prepared by dissolving 100 mg of Luliconazole in 20 ml methanol and make up the volume using 0.1N HCL in 100 ml volumetric flask as primary stock solution, further secondary stock solution was prepared by pipetting 10 ml from primary stock solution and diluting to 100 ml with 0.1N HCL. Further dilutions were made by transferring suitable aliquots (0.2–3 ml) into various 10 ml volumetric flasks and made up to volume with solvent. The diluted solutions prepared for calibration curve were checked for their absorbance using UV-VISIBLE spectrophotometer at 294.5 nm against buffer as blank. Standard graph was plotted between the concentration on X-axis and absorbance on Y-axis.

Evaluation of microsponges [32-34]

Particle size analysis

Determination of the average particle size of Luliconazole loaded microsponges was determined with an optical microscope using a calibrated eye piece and stage micrometer. A minute quantity of microsponges was spread on a clean glass slide. The average particle size was calculated by measuring 50 particles of each batch.

Avg PS = ∑ xi ∕ n

Where, Avg PS is the average diameter of particles (μm), n is number of particles per group, and ∑ xi sum of particles

Production yield [35]

The Production yield of the prepared luliconazole microsponge was determined by calculating accurately the initial weight of the raw materials and the last weight of the microsponge.

% yield= (Actual weight of the product/Total weight of excipients and drug) ×100

Scanning electron microscopy [37]

Scanning Electron Microscopy of optimized luliconazole microsponge formulation was carried to determine the surface morphology. The sample was mounted directly onto the SEM sample holder using double sided sticking tape and images were recorded at different magnifications at acceleration voltage of 10 kV using scanning electron microscope.

Uniform drug content [38]

The microsponges was determined spectrophotometrically (λmax = 294.5 nm). A sample of Luliconazole microsponges (50 mg) was dissolved dissolved in 5ML of methanol and made up to volume 50 ml using 0.1N HCL to form primary stock solution. secondary stock solution was prepared by pipetting 5 ml of primary stock solution and made up to the volume with 0.1N HCL to 50 ml volumetric flask. Further serial dilutions are made 4,6,8,10,12(ug/ml). The drug content was determined and expressed as actual drug content in microsponge. The drug content of the microsponges was calculated according to the following equation,

In vitro dissolution studies [39]

In vitro drug release study was carried out using USP type-II dissolution test apparatus. The dissolution medium 900 ml of 7.4 phosphate buffer was maintained at 37±1 ⁰C and stirred at 50rpm. Aliquots of samples (1 ml) at an time interval upto 6 hour were withdrawn and filtered through Whatmann filter paper and made upto volume 10 ml using 7.4 phosphate buffer. The samples were analyzed for Luliconazole content by UV-Visible spectrophotometer at 294.5 nm.

Data obtained was subjected to obtain the drug release and graph is plotted for time v/s % CDR`.

Evaluation of microsponge gel [40]

pH

The pH of the systems was measured by direct immersion of the electrode of the pH meter (Henna pH meter) in the system at room temperature.

Extrudability [41]

A collapsible tube was filled with sample gel and then pressed firmly at the crimped end. When the cap was removed, gel extruded until pressure dissipated, weight im grams required to extrude 0.5 cm ribbon of gel in 10 second was determined.

Spreadability [42]

the spreadability of the prepared Luliconazole microsponge gel was measured by spreading of 0.5g of gel on a circle of 2 cm diameter pre-marked on a glass plate and then second glass plate was employed. Half kilogram of weight was permitted to rest on the upper glass plate for 5 min. The diameter of the circle after spreading of the gel was determined.

In vitro drug release [43-45]

The study was performed by modified Franz diffusion cell using dialysis membrane. Before carrying out the study, membrane was kept in buffer pH 7.4 for 6 hr and it was mounted carefully between the donor and receptor chamber. 500 mg of microsponge gel was weighed and homogencity spread on the dialysis membrane. 50 ml of phosphate buffer (pH 7.4) was placed in receptor medium as a dissolution medium both donor and receptor compartment were kept in contact with each other and whole assembly was maintained at constant temperature of 32±0.5˚ C, magnetic bead was used to stirred the solution of receptor chamber. 1 ml of sample withdrawn after specific time intervals and equal amount was replaced with fresh dissolution media. Sample absorption was calculated spectrophotometrically at 294.5 nm and % cumulative drug permeation was calculated.

Uniform drug content of microsponge gel [46-48]

The microsponges gel was determined spectrophotometrically (λmax = 294.5 nm). A sample of Luliconazole microsponge gel (100 mg) was dissolved dissolved in 5ML of methanol and made upto volume 50 ml using 0.1N HCL to form primary stock solution. secondary stock solution was prepared by pipetting 5 ml of primary stock solution and made upto the volume with 0.1N HCL to 50 ml volumetric flask. Further serial dilutions are made 8,12,16,20,24 (ug/ml). The drug content was determined and expressed as actual drug content in microsponge. The drug content of the microsponges was calculated according to the following equation,

Kinetics of drug release [49-53]

Investigation for the drug release was done by studying the release data with zero order, first order kinetics and Higuchi equation. The release mechanism was understood by fitting the data to Korsmeyer Peppas model.

RESULTS AND DICUSSION

Preformulation studies

Preformulation studies of Luliconazole was carried on the basis of following parameters

Organoleptic properties of drug

Luliconazole is a pale color; it is odorless, and appeared as crystalline powder

Melting point of drug

The melting point range of the Luliconazole was found to be 151 °C. The normal range of the melting point of Luliconazole is 150-152 °C, Melting point indicates the purity of drug.

Solubility of drug

Luliconazole was freely soluble in Dichloromethane, ethanol and methanol, it insoluble in water that shows it is lipophilic in nature.

Determination of λ max of luliconazole

The λ maxof the Luliconazole was found to be 294.5

Calibration curve of luliconazole

For the preparation of calibration curve, samples was prepared from stock solution (4, 6, 8, 10, 12,18,20 μg/ml). The absorbance of sample was taken at 294.5 nm. The calibration curve of luliconazole is presented in fig. 3, and data are presented in table 3.

Compatibility studies

The spectrum obtained from FTIR spectroscopy studies at wavelength from 4000 cm-1 to 400 cm-1 as shown in fig. 4,5,6,7,8 from the table 5, it was observed that characteristic peaks in the region was found to be observed in combination of drugs and polymers which were identical to that of pure drug. Thereby confirming that there are no interactions between the drug and excipients.

Table 3: Analytical data for calibration curve of Luliconazole

S. No. Conc in mg/ml Absorbance
1 0 0
2 4 0.3021
3 8 0.5891
4 10 0.6961
5 12 0.8164
6 18 1.1263
7 20 1.2454

The graph plotted between concentration and absorbance was found to be linear and straight line

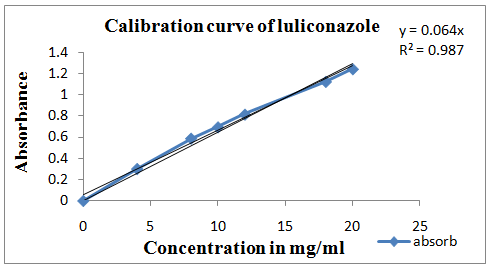

Fig. 3: Calibration curve of luliconazole

Table 4: Statistical data for calibration curve

S. No. Parameters Values
1 λmax 294.5
2 Linearity range µg/ml 0.1-100µg/ml
3 Slope 0.0648
4 R 2 0.9966

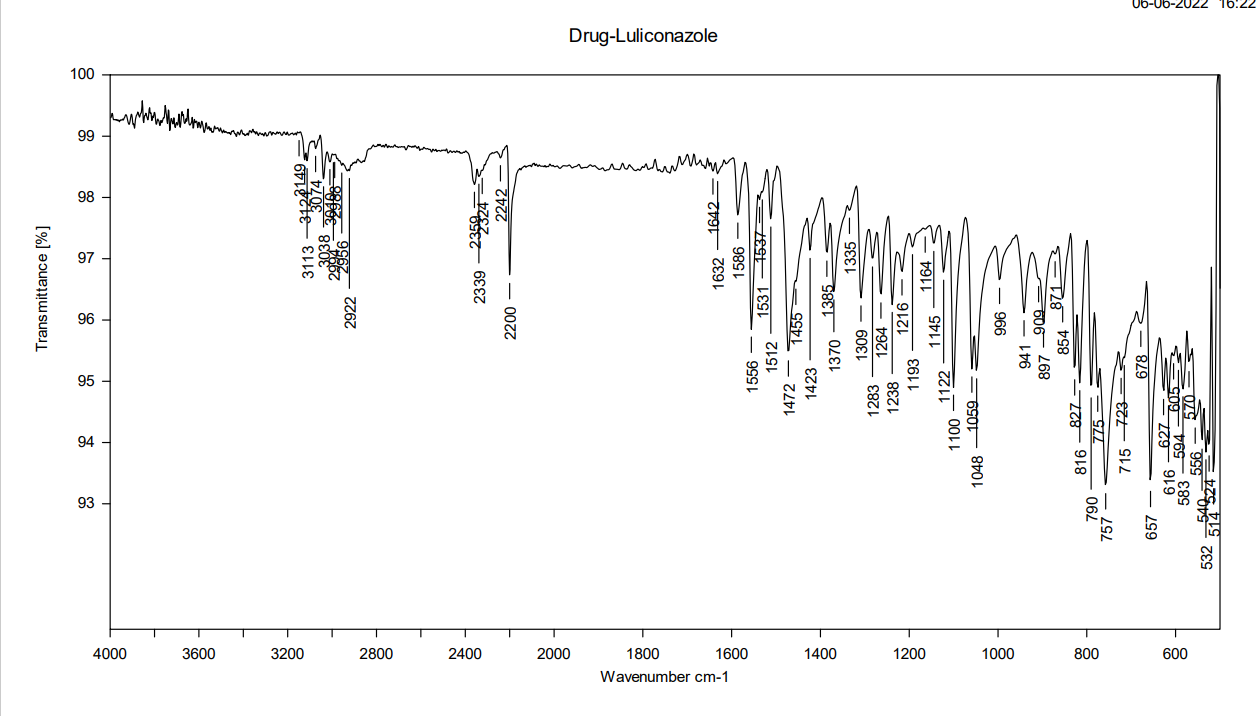

Fig. 4: FTIR spectra of luliconazole

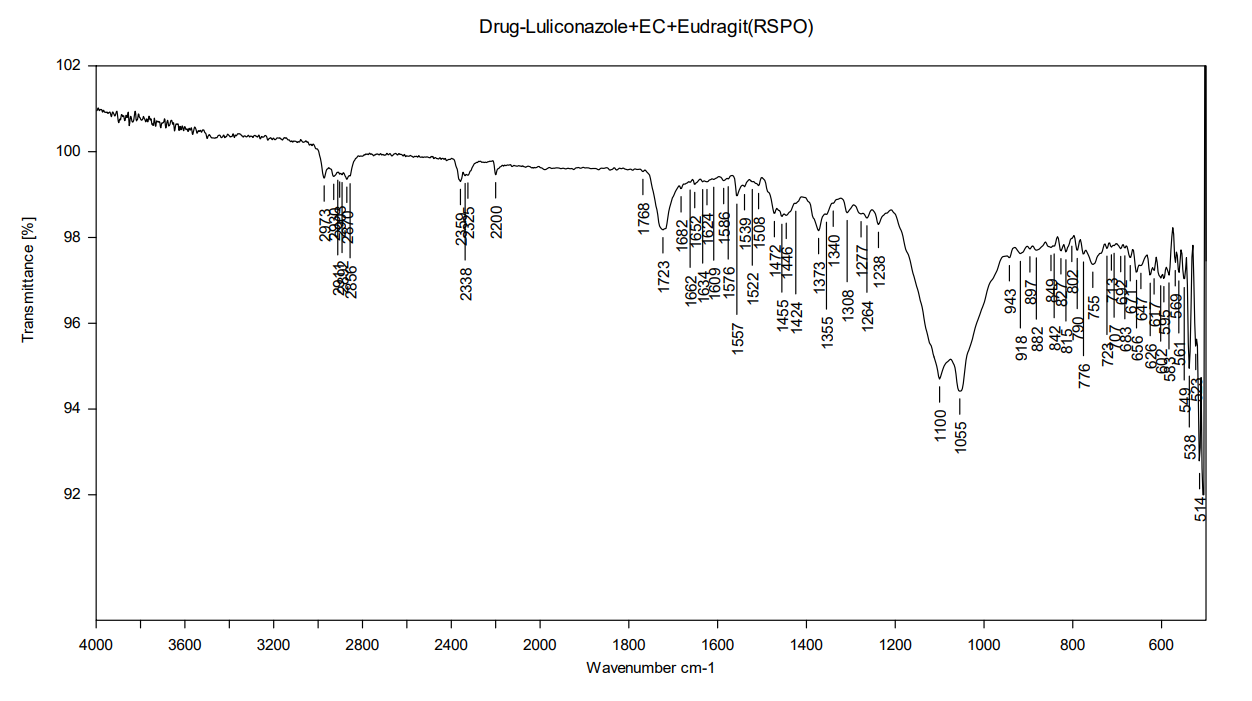

Fig. 5: FTIR spectra of luliconazole+EC+Eudragit RSPO

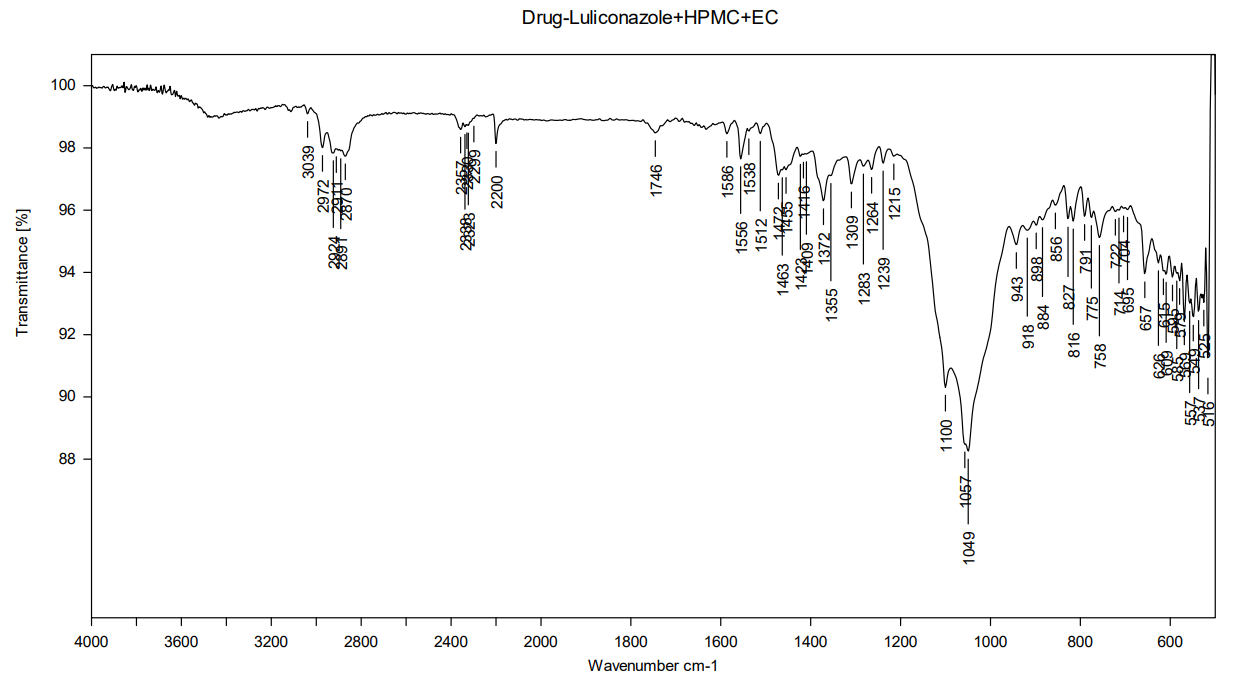

Fig. 6: FTIR spectra of luliconazole+HPMC+EC

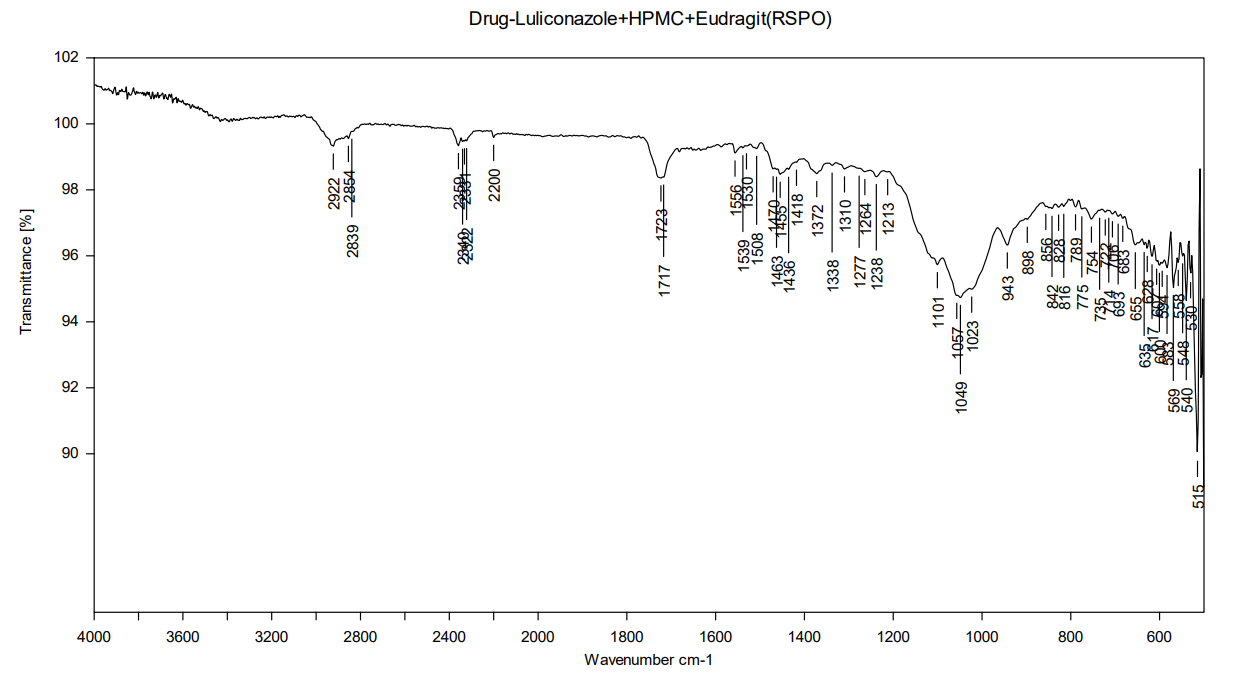

Fig. 7: FTIR spectra of luliconazole+HPMC+Eudragit RSPO

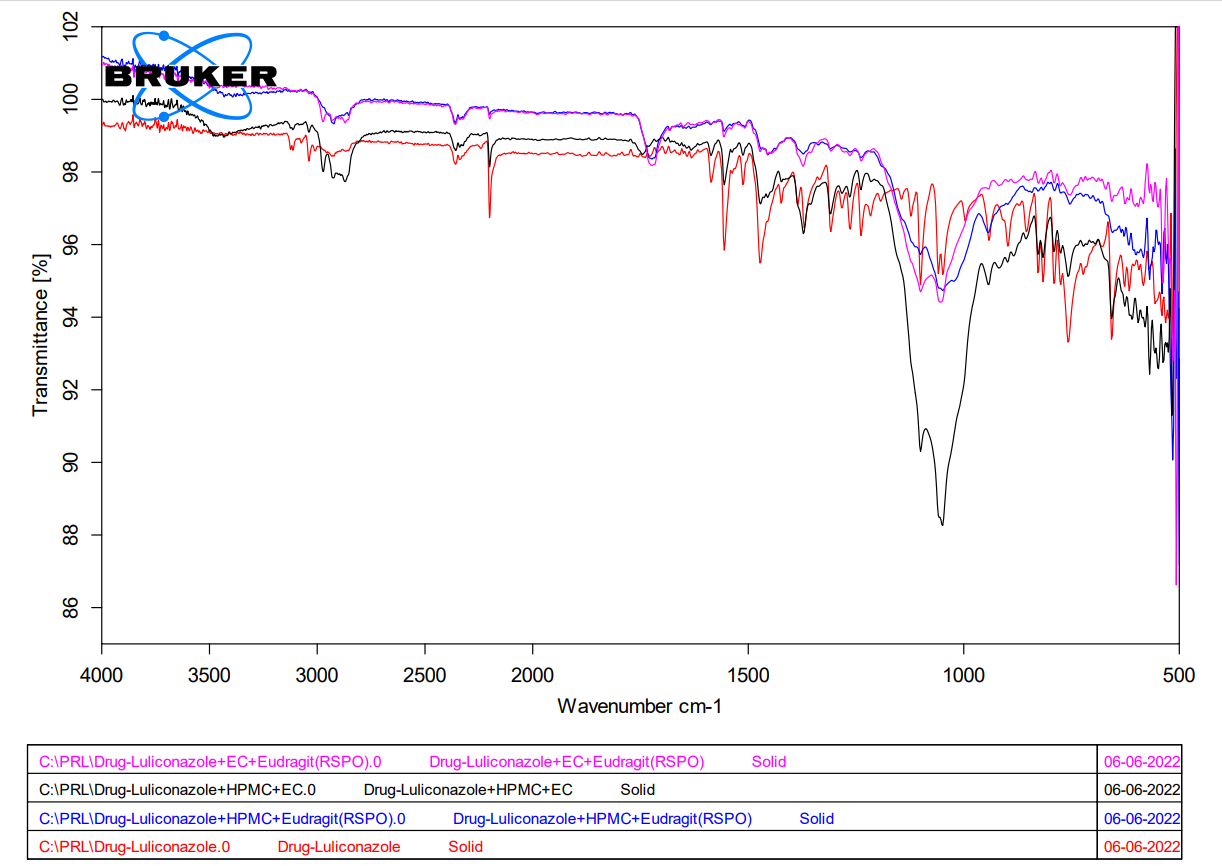

Fig. 8: Comparison FTIR spectra of all ingredients

Table 5: Interpretation of IR spectra

Functional group Observed frequency cm-1
Luliconazole Luliconazole+EC+RSPO Luliconazole+HPMC+EC Luliconazole+HPMC+eudragit RSPO Interactions
CN Stretching 2200 2200 2200 2200 No interaction
CH Bending 1100 1100 1100 1101 No interaction
C-Cl Stretching 775 776 775 775 No interaction
CH Bending 816 815 816 816 No Interaction

Characterization and evaluation of microsponge

The particle size of the prepared Luliconazole microsponges was determined using microscopic method and the particle size was in the range of 50 to 300 mm. Based on the polymer ratio the particle size was less in case of 1:1 and 1:1:1 ratio and was bigger in case of 1:3, 1:1:3 ratio. Considering this we can say that increase in polymer ratio increases the particle size.

The microscopic image of the prepared microsponge showed that they are spherical and discrete in shape. Table 6: Shows the particle size and fig. 9 shows the graph of particle size distribution of microsponge.

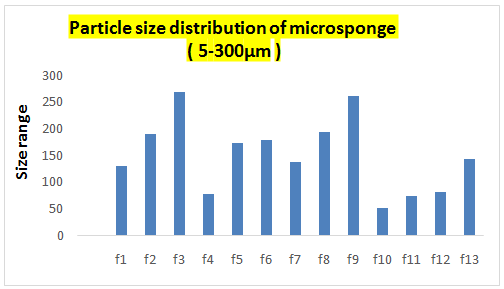

Fig. 9: Graph showing particle size distribution of microsponge

Table 6: Shows the particle size and fig. 9 shows the graph of particle size distribution of microsponge

S. No. FR Average particle size (µm)
1 F1 129
2 F2 189
3 F3 269
4 F4 76.1
5 F5 171.8
6 F6 178
7 F7 136
8 F8 193
9 F9 261
10 F10 51.5
11 F11 73
12 F12 80.5
13 F13 143

Percentage yield

The percentage yields of Microsponge prepared by Quasi emulsion solvent diffusion method were found to be in between 25 to 90% as shown in table 7. The percentage yield was very less in 1:1 HPMC k15 and Eudragit RSPO (F10) formulation, because HPMC is water soluble polymer most of the polymer is dissolved in water. The yield was 90% in drug and Eudragit RSPO (f4) formulation due insoluble in water, The graph of percentage yield is as shown in the fig. 10.

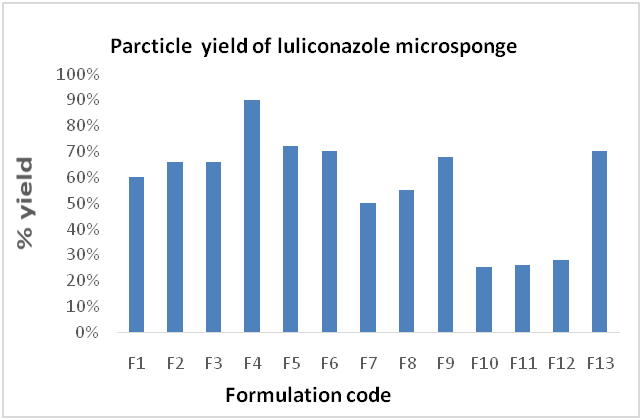

Fig. 10: Graph showing particle yield of microsponge

Table 7: Percentage yield of luliconazole microsponge

S. No. FC % Yield
1 F1 60%
2 F2 66%
3 F3 66%
4 F4 90%
5 F5 72%
6 F6 70%
7 F7 50%
8 F8 55%
9 F9 68%
10 F10 25%
11 F11 26%
12 F12 28%
13 F13 70%

Sem analysis of microsponge

Scanning Electron Microscopy of optimized luliconazole microsponge formulation was carried to determine the surface morphology. The sample was mounted directly onto the SEM sample holder using double sided sticking tape and images were recorded at 11.8 mm X 100SE magnifications at acceleration voltage of 10 kV using scanning electron microscope. Fig. 11 shows the SEM image of microsponge F1 formulation. The porous image of microsponge can be seen in fig. 12 which is recorded at 11.5 X 50.0 SE. So, by this we can say that all microsponge pores are lies in the given range.

Fig. 11: SEM image of F1 microsponge

Fig. 12: SEM image of porous structure of F1 microsponge

Drug content

The percentage drug content of all the 13 formulations was done and found to be between 65.61%-97.26 % as shown in table 8 and fig. 13. The F1 formulation showed maximum drug content of all the formulation. Because the EC is water insoluble polymer and polymer and drug ratio is (1:1), increase in polymer ratio and water-soluble polymers drug content decrease.

Table 8: Drug content in luliconazole microsponge

S. No. FC % Drug content
1 F1 97.26
2 F2 94.81
3 F3 88.64
4 F4 70.34
5 F5 79.83
6 F6 65.61
7 F7 95.83
8 F8 87.99
9 F9 80.55
10 F10 91.76
11 F11 90.66
12 F12 87.49
13 F13 74.93

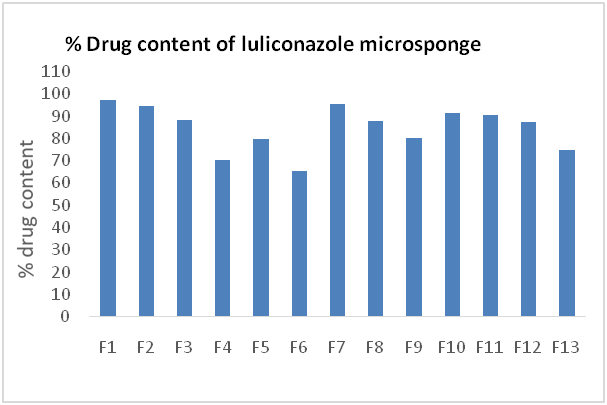

Fig. 13: Graph showing % drug content of microsponge

In vitro dissolution studies

All the formulations prepared Microsponge of Luliconazole were subjected to in vitro release studies. The release data obtained for formulations F1–F6 were tabulated in table 9 and formulation F7–F13 in table 9 and 10 and fig. 14 and 15 shows the plot of cumulative % drug released as a function of time for different formulations respectively. Cumulative % drug release at 6th h was high in formulation (F1) 72.45% which and low in (F12) 56.87% respectively, depending on type of polymer and concentration of polymer.

Table 9: Cumulative % drug release of microsponge F1–F6

Time in min Cumulative % drug release
F1
0 0
15 1.140867
30 3.851694
45 7.278569
60 12.70576
120 14.90176
180 20.56556
240 37.41613
300 54.85581
360 72.45741

Table 10: Cumulative % drug release of microsponge F7-F13

Time in min Cumulative % drug release
F7
0 0
15 1.436877
30 3.383335
45 6.884939
60 12.88682
120 21.92875
180 32.14182
240 44.68843
300 59.03412
360 71.90368

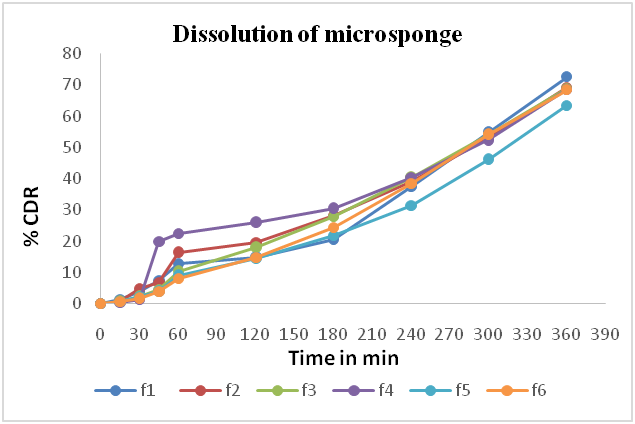

Fig. 14: Graph showing % drug release of microsponge F1-F6

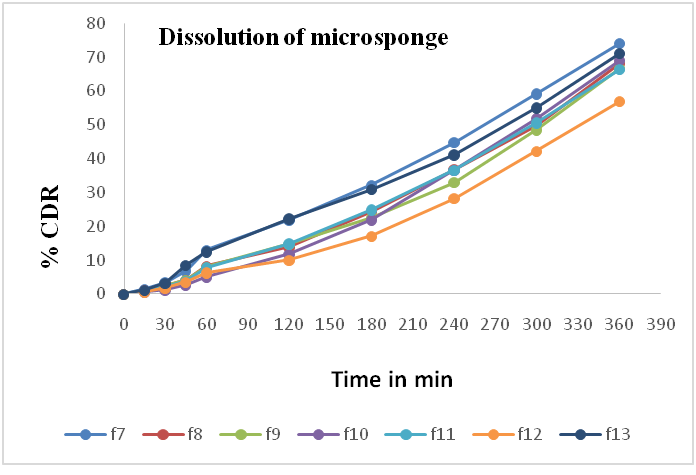

Fig. 15: Graph showing % drug release of microsponge F7-F13

Evaluation of microsponge topical gel

The evaluation of Microsponge gel was performed for gels prepared from F1 formulation of microsponge with different gelling agent (Natural and synthetic). Flax seed gel and aerosol gel.

pH

The pH of microsponge gel was performed for optimized formulation was found to be pH 4.1 to 6.3 for Luliconazole. The pH of microsponge gel was found to be in the range of 5.2-6.2. From table 11

Extrudability

The extrudability of luliconazole microsponge gel was found to be good. The prepared gel from natural and synthetic gelling agent shows better good extrudability

Spreadability

The spreadability of Luliconazole microsponge gel was found to be 5.1. The microsponge gel has good spreadability and having good appearance. Other was brown transparent in appearance. Spreadability range 1-8.5. refer spreadability table 11

Drug content

The percentage drug content of MGI and MGII formulations was done and found to be 97.6–87.8 and marketed formulation of luliconazole gel found to be 99.8 as shown in table 11. The MGI formulation showed maximum drug content of the microsponge gel formulation.

In vitro drug release

In vitro drug release for Luliconazole microsponge gel was performed using modified Franz diffusion cell. From table 12 and fig. 16 the drug release for Microsponge gel of shows 65-63 % at 6 h respectively. Formulated Microsponge gel also shows better penetration and higher drug release, in this highest drug release Flaxseed gelling was having good consistency, appearance, transparency.

Table 11: pH, extrudability, spreadabilityand drug content of microsponge gel and gel

Gel code pH Extrudability (g/cm2) Spreadability (cm) % Drug content
MGI 6.0 * 5.0 97.6
MGII 6.1 * 5.5 87.8
MF 6.3 *** 6.0 99.8

*Satisfactory, **Good, ***Excellent

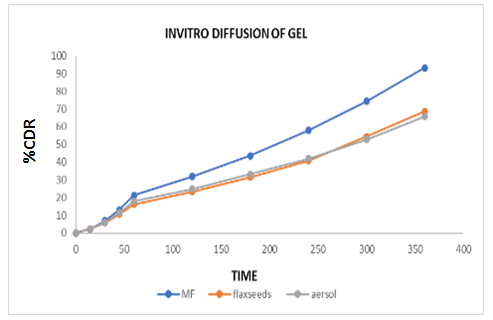

Fig. 16: Graph showing drug release of microsponge gel and marketed gel of luliconazole

Table 12: Comparision study of in vitro drug release of microsponge gel and marketed gel of luliconazole

Time in min % Drug release
MF
0 0
15 2.377011
30 7.018643
45 13.1893
60 21.27494
120 32.01038
180 43.70355
240 57.97512
300 74.46596
360 93.28595

Kinetics of drug release

The in vitro drug release data of all formulations were analyzed for determining kinetics of drug release is shown in table 13 and fig. 17. The obtained data were fitted to zero order kinetics, first order kinetics and Higuchi model, korsmeyer peppas. The highest correlation coefficient (r2) obtained from these method gives an idea about model best fitted to the release data. From the results of kinetic studies, the examination of correlation coefficient r2indicated that the drug release followed zero order kinetics. It was found that the value of r2 for zero order is 0.9894 and 0.9859 respectively for MGI and MGII, it was understood to be following zero order release pattern. It was found that the optimized formulation MGI and MGII follows a zero-order kinetics as it has the highest R2 value and it was further concluded by the n exponent value of karsmeyer-peppas model which shows the zero-order drug release mechanism with time independent and case II transport mechanism.

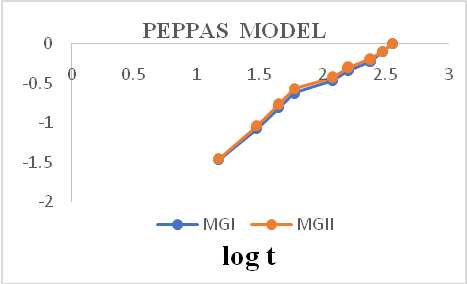

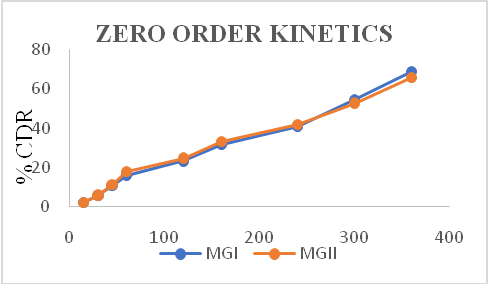

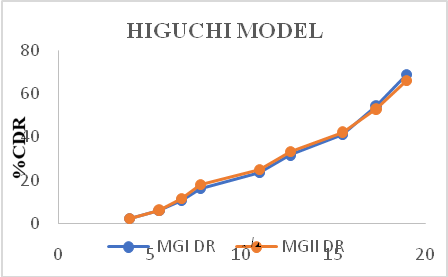

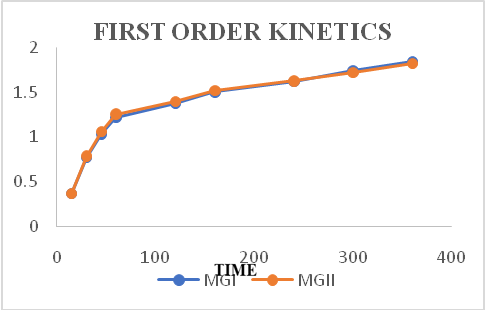

Fig. 17: Graph showing Zero order, Higuchi, first order and peppas model kinetics of microsponge gels MGI and MGII

Table 13: Kinetic study of microsponge gel and marketed gel

Formulation code Zero order First order Higuchi model Peppas model
R value
MGI 0.9894 0.792 0.9666 0.9774
MGII 0.9859 0.7597 0.9798 0.967

CONCLUSION

The Microsponge based delivery system has been developed using quasi emulsion solvent diffusion method to provide a sustained release medication for topical delivery of luliconazole. The drug content and the size of the prepared microsponges were affected by the drug: polymer ratio. Microsponge formulation MS I which showed good results incorporated in natural gel (flaxseeds)andsynthetic (Aerosil) and formulated as gels MG I-II respectively. Among the two gels, MG I showed better in vitro drug release. A fickian diffusion which is controlled by the porosity of the microsponges is the mechanism of the drug release from the flax seed gel loaded with the selected microsponge formulation. As the gel has sustained-release characteristics the side effects have been minimized.

ACKNOWLEDGEMENT

The author gratefully acknowledged the East point college of Pharmacy for support and providing good laboratory with materials and equipment’s.

FUNDING

Nil

AUTHORS CONTRIBUTIONS

All the authors have contributed equally.

CONFLICT OF INTERESTS

Declared none

REFERENCES

  1. Kumar BP, Sarath Chandiran I, Bhavya B, Sindhuri M. Microparticulate drug delivery system: a review. Indian J Pharm Sci Res. 2011;1(1):19-37.

  2. Cai Y, Chen Y, Hong X, Liu Z, Yuan W. Porous microsphere and its applications. Int J Nanomedicine. 2013;8:1111-20. doi: 10.2147/IJN.S41271, PMID 23515359.

  3. Patel A, Upadhyay P. Microsponges as the versatile tool for topical route: a review. Int J Pharm Sci Res. 2012;3(9):2926-37.

  4. Potulwar A, Sailesh J. Wadher, A review on different methods development approaches of micro sponge’s drug delivery system. Turk J Comput Math Educ. 2021;12(14):4353-61.

  5. Lengyel M, Kallai Szabo N, Antal V, Laki AJ, Antal I. Microparticles, microspheres, and microcapsules for advanced drug delivery. Sci Pharm. 2019;87(3):87-20. doi: 10.3390/scipharm87030020.

  6. Makwana R, Patel V. Microsponge for topical drug delivery system. Int J Pharm Technol. 2014;5(4):2839-51.

  7. Satheesh Madhav NV, Kala S. Review on microparticulate drug delivery system. Int J PharmTech Res. 2011;3(3):1242-54.

  8. Ingale DJ, Aloorkar NH, KulkarnI AS, Patil RAP. Microsponges as innovative drug delivery systems. PCI-Approved-IJPSN 2012;5(1):1597-606. doi: 10.37285/ijpsn.2012.5.1.2.

  9. Gunasheela SS, V Chandrakala, S Srinivasan. Microsponge: an adaptable topical drug delivery system. World J Adv Res Rev. 2022;15(1):396-411. doi: 10.30574/wjarr.2022.15.1.0694.

  10. Tiwari A, Tiwari V, Palaria B, Kumar M, Kaushik D. Microsponges: a breakthrough tool in pharmaceutical research. Futur J Pharm Sci. 2022;8(1):31. doi: 10.1186/s43094-022-00421-9.

  11. Mehta M, Panchal A, Shah VH, Upadhayay U. Formulation and in vitro evaluation of controlled release microsponge gel for topical delivery of clotrimazole. Int J Adv Pharm. 2012:93-101.

  12. Kaundal A, Bhatia R, Sharama A, Sukrial P. A reivew on microsponges drug delivery system. Int J Adv Pharm. 2014;4:177-81.

  13. Pandey P, Jain V, Mahajan SC. A review: microsponge drug delivery system. Int J Biopharm. 2013;4:225-30.

  14. Ahuja G, Pathak K. Porous carriers for controlled/modulated drug delivery. Indian J Pharm Sci. 2009;71(6):599-607. doi: 10.4103/0250-474X.59540, PMID 20376211.

  15. Johnson J. Medical news today. Health line media a red ventures company. Brighton, UK: UK Ltd; 2018.

  16. Fungal Infections. Medline plus. United States National Library of Medicine; 2021.

  17. Brown GD, Denning DW, Gow NA, Levitz SM, Netea MG, White TC. Hidden Killers: human fungal infections. Sci Transl Med. 2012 Dec 19;4(165):165rv13. doi: 10.1126/scitranslmed.3004404, PMID 23253612.

  18. Houst J, Spizek J, Havlicek V. Review-antifungal drugs. Metabolites. 2020;10(3):1-16. doi: 10.3390/metabo10030106, PMID 32178468.

  19. Akhtar N, Verma A, Pathak K. Topical delivery of drugs for the effective treatment of fungal infections of skin. Curr Pharm Des. 2015;21(20):2892-913. doi: 10.2174/1381612821666150428150456, PMID 25925110.

  20. Yadav K, Mishra JN, Vishwakarma DK. Formulation and development of antifungal nail lacquer containing miconazole nitrate use in treatment of onychomycosis. IJSRP. 2019 Apr;9(4):736-52. doi: 10.29322/IJSRP.9.04.2019.p8890.

  21. Long CC. Common skin disorders and their topical treatment. Dermatological and transdermal formulations. New York: Marcel Dekker Inc; 2002. p. 1-12, 53-4.

  22. Buyutimkin S, Sigh J, Newsam J, Smith D, Kisak E, Inventors. Nuvo research inc, highly permeating terbinafine formulation. US patent 2012/0309843. Vol. A1; 2012.

  23. Moore CB, Walls CM, Denning DW. In vitro activities of terbinafine against Aspergillus species in comparison with those of itraconazole and amphotericin B. Antimicrob Agents Chemother. 2001;45(6):1882-5. doi: 10.1128/AAC.45.6.1882-1885.2001, PMID 11353643.

  24. Vij NN, Saudagar RB. Formulation development and evaluation of film-forming gel for prolonged dermal delivery of terbinafine hydrochloride. Int J Pharm Sci Res. 2014 Sep;5(9):537-54.

  25. Rowe RC, Sheskey PJ. Handbook of pharmaceutical excipients. Pharmaceutical Press; 2006.

  26. Abhishek Tiwari A, Varsha Tiwari V, Palaria B, Kumar M, Kaushik D. Microsponges: a breakthrough tool in pharmaceutical research,. Futur J Pharm Sci. 2022;8(1):31. doi: 10.1186/s43094-022-00421-9.

  27. Farhana Sultan F, Himansu Chopra H, Kumar Sharma G. Formulation and evaluation of luliconazole microsponges loaded gel for topical delivery. Research J Pharm Technol. 2021;14(11):5775-80. doi: 10.52711/0974-360X.2021.01004.

  28. Thavva V, Rao S. Baratam2 formulation and evaluation of terbinafine hydrochloride microsponge gel. Int J Appl Pharm. 2019;11(6):0975-7058.

  29. Shresthaa S, Sonu Pakhrinb UV. Spectrophotometric determination of luliconazole semisolid dosage form, American scientific research. J Eng Sciences. 2021;77(1):161-71.

  30. Hu Y. Youn Young Shim, Flaxseed Gum Solution Functional Properties; 2020.

  31. Inamdar M. Isolation and evaluation of fenugreek, flaxseed mucilages and its use as a pharmaceutical binder. Int J Pharm Technol. 2012;4(3):4766-77.

  32. Shailesh Sharma S, Anu Sharma, Chamanpreet Kaur. Microsponges: as a topical drug delivery system. International Journal of Pharmaceutical Science and Research. 2020;11(2):524-34.

  33. Anju VS, MA Kuriachan. Formulation and evaluation of terbinafine hydrochloride loaded microsponge based gel for topical sustained delivery. International Journal of Pharmacy and Pharmaceutical Research. 2017;10(2).

  34. Monika, Singh DJ, Prasad D, Hans Mansi, Kumari Satish. Preparation and characterization of itraconazole microsponges using Eudragit RSPO and study the effect of stirring on the formation of microsponges. J Drug Deliv Ther. 2019;9(3):451-8.

  35. Jyoti J, Kumar S. Innovative and novel strategy: microsponges for topical drug delivery. J Drug Delivery Ther 2018;8(5):28-34. doi: 10.22270/jddt.v8i5.1885.

  36. Swami V, Shaikh AA, Jadhav PN, Buchade RS. Formulation development of celecoxib loaded microsponges using Eudragit and ethyl cellulose. Int J Pharm Investig. 2021;11(2 Apr-Jun).

  37. Vishal Y, Jadhav P, Dombe S, Bodhe A, Salunkhe P. Formulation and evaluation of microsponge gel for topical delivery of antifungal drug. Int J Appl Pharm. 2017;9(4):0975.

  38. SS Patel, MR Patel, MJ Patel. Formulation and evaluation of microsponge based nicorandil sustained released tablet. Journal of Scientific Research. 2017;9(3):285-96. doi: 10.3329/jsr.v9i3.31193.

  39. Saba maanvizhi, V Iyyappan, PG Bhavishi. Evaluation of an antifungal luliconazole gel formulation using semiautomatic diffusion cell apparatus and application of mathematical models in drug release kinetics. Eur J Mol Clin Med;8(4):2021.

  40. Syed SM, Gaikwad SS, Wagh S. Formulation and evaluation of gel containing fluconazole microsponges. Asian J Pharm Res Dev. 2020;8(4):231-9.

  41. Shankar D, Gajanan S, Suresh J, Dushyant G. Formulation and evaluation of luliconazole emulgel for topical drug delivery. Int Res J Sci Eng. 2018:85-90.

  42. Dantas MGB, Bomfim SAG. Reis, development and evaluation of stability of a gel formulation containing the monoterpene borneol. Sci World J. 2016.

  43. Ashwini S, Bansode AS, Vaishnavi B. Kute, formulation, development and evaluation of microsponge loaded topical gel of nnystatin. Journal of Drug Delivery and Therapeutics. 2019;9(2):451-61.

  44. Yadav P, Nanda S. Development and evaluation of some microsponge loaded medicated topical formulations of acyclovir. Int J Pharm Sci Res. 1395-1410;5(4).

  45. Shahzad Y, Sidra S. Influence of polymer ratio and surfactants on controlled drug release from cellulosic microsponges, University of Huddersfield Repository; 2017.

  46. He Y, Majid K, Maqbool M, Hussain T, Yousaf AM, Khan IU. Formulation and characterization of lornoxicam-loaded cellulosic-microsponge gel for possible applications in arthritis. Saudi Pharm J. 2020;28(8):994-1003. doi: 10.1016/j.jsps.2020.06.021. PMID 32792844.

  47. Inukonda Rajitha I, K Umasankar, P Jayachandra Reddy. Development and evaluation of microsponge drug delivery system of indomethacin. International Journal of Pharmacy. 2017;7(3):125-31.

  48. Meenakshi Bhatia M, Megha Saini M. Formulation and evaluation of curcumin microsponges for oral and topical drug delivery. Progress in Biomaterials. 2018;7(3):239-48. doi: 10.1007/s40204-018-0099-9, PMID 30242738.

  49. Asish D, Dwivedi Jayesh, Momin Munira. Formulation and characterization of acyclovir based topical microemulsions by QBD approach. J Drug Deliv Ther. 2019;9(1):237-43.

  50. V Dinesh Kumar, Sumit KR Jaiswal. The microsponge delivery system of acyclovir: preparation, characterization and in vitro evaluation. Der Pharmacia Lettre. 2011;3(5):115-24.

  51. Riyaz Ali M, Osmania RA M, Nagesh H Aloorkar, Ingale DJ, Kulkarni PK, Hani U, Bhosale RR. Microsponges based novel drug delivery system for augmented arthritis therapy. Saudi Pharmaceutical Journal. 2015;23(5):562-72. doi: 10.1016/j.jsps.2015.02.020.

  52. MS Ayesha, N Shaikh, Ashish Y Pawar. Formulation and evaluation nanosponges loaded hydrogel of luliconazole. Int J Sci Dev Res. 2020:5(8).

  53. Padmaa M Paarath, Preethy Ani Jose. Release kinetics–concepts and applications. International Journal of Pharmacy Research and Technology. 2018;8(1):12-20.
